binary_stats.c File Reference

#include <linux/kvm_host.h>
#include <linux/kvm.h>
#include <linux/errno.h>
#include <linux/uaccess.h>

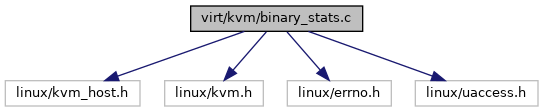

Include dependency graph for binary_stats.c:

Go to the source code of this file.

Functions
ssize_t	kvm_stats_read (char *id, const struct kvm_stats_header *header, const struct _kvm_stats_desc *desc, void *stats, size_t size_stats, char __user *user_buffer, size_t size, loff_t *offset)

Function Documentation

kvm_stats_read()

ssize_t kvm_stats_read	(	char *	id,
		const struct kvm_stats_header *	header,
		const struct _kvm_stats_desc *	desc,
		void *	stats,
		size_t	size_stats,
		char __user *	user_buffer,
		size_t	size,
		loff_t *	offset
	)

kvm_stats_read() - Common function to read from the binary statistics file descriptor.

@id: identification string of the stats @header: stats header for a vm or a vcpu @desc: start address of an array of stats descriptors for a vm or a vcpu @stats: start address of stats data block for a vm or a vcpu @size_stats: the size of stats data block pointed by @stats @user_buffer: start address of userspace buffer @size: requested read size from userspace @offset: the start position from which the content will be read for the corresponding vm or vcp file descriptor

The file content of a vm/vcpu file descriptor is now defined as below: +----------—+ | Header | +----------—+ | id string | +----------—+ | Descriptors | +----------—+ | Stats Data | +----------—+ Although this function allows userspace to read any amount of data (as long as in the limit) from any position, the typical usage would follow below steps:

1. Read header from offset 0. Get the offset of descriptors and stats data and some other necessary information. This is a one-time work for the lifecycle of the corresponding vm/vcpu stats fd.
2. Read id string from its offset. This is a one-time work for the lifecycle of the corresponding vm/vcpu stats fd.
3. Read descriptors from its offset and discover all the stats by parsing descriptors. This is a one-time work for the lifecycle of the corresponding vm/vcpu stats fd.
4. Periodically read stats data from its offset using pread.

Return: the number of bytes that has been successfully read

Definition at line 52 of file binary_stats.c.

{
    ssize_t len;
    ssize_t copylen;
    ssize_t remain = size;
    size_t size_desc;
    size_t size_header;
    void *src;
    loff_t pos = *offset;
    char __user *dest = user_buffer;

    size_header = sizeof(*header);
    size_desc = header->num_desc * sizeof(*desc);

    len = KVM_STATS_NAME_SIZE + size_header + size_desc + size_stats - pos;
    len = min(len, remain);
    if (len <= 0)
        return 0;
    remain = len;

    /*
     * Copy kvm stats header.
     * The header is the first block of content userspace usually read out.
     * The pos is 0 and the copylen and remain would be the size of header.
     * The copy of the header would be skipped if offset is larger than the
     * size of header. That usually happens when userspace reads stats
     * descriptors and stats data.
     */
    copylen = size_header - pos;
    copylen = min(copylen, remain);
    if (copylen > 0) {
        src = (void *)header + pos;
        if (copy_to_user(dest, src, copylen))
            return -EFAULT;
        remain -= copylen;
        pos += copylen;
        dest += copylen;
    }

    /*
     * Copy kvm stats header id string.
     * The id string is unique for every vm/vcpu, which is stored in kvm
     * and kvm_vcpu structure.
     * The id string is part of the stat header from the perspective of
     * userspace, it is usually read out together with previous constant
     * header part and could be skipped for later descriptors and stats
     * data readings.
     */
    copylen = header->id_offset + KVM_STATS_NAME_SIZE - pos;
    copylen = min(copylen, remain);
    if (copylen > 0) {
        src = id + pos - header->id_offset;
        if (copy_to_user(dest, src, copylen))
            return -EFAULT;
        remain -= copylen;
        pos += copylen;
        dest += copylen;
    }

    /*
     * Copy kvm stats descriptors.
     * The descriptors copy would be skipped in the typical case that
     * userspace periodically read stats data, since the pos would be
     * greater than the end address of descriptors
     * (header->header.desc_offset + size_desc) causing copylen <= 0.
     */
    copylen = header->desc_offset + size_desc - pos;
    copylen = min(copylen, remain);
    if (copylen > 0) {
        src = (void *)desc + pos - header->desc_offset;
        if (copy_to_user(dest, src, copylen))
            return -EFAULT;
        remain -= copylen;
        pos += copylen;
        dest += copylen;
    }

    /* Copy kvm stats values */
    copylen = header->data_offset + size_stats - pos;
    copylen = min(copylen, remain);
    if (copylen > 0) {
        src = stats + pos - header->data_offset;
        if (copy_to_user(dest, src, copylen))
            return -EFAULT;
        pos += copylen;
    }

    *offset = pos;
    return len;
}

Here is the caller graph for this function:
