hypercalls.c File Reference

#include <linux/arm-smccc.h>
#include <linux/kvm_host.h>
#include <asm/kvm_emulate.h>
#include <kvm/arm_hypercalls.h>
#include <kvm/arm_psci.h>

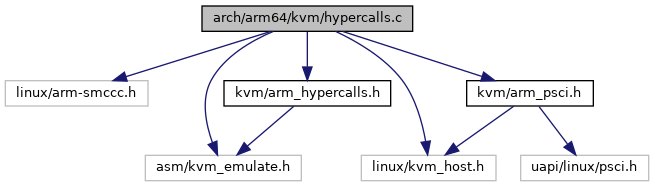

Include dependency graph for hypercalls.c:

Go to the source code of this file.

Macros
#define	KVM_ARM_SMCCC_STD_FEATURES    GENMASK(KVM_REG_ARM_STD_BMAP_BIT_COUNT - 1, 0)
#define	KVM_ARM_SMCCC_STD_HYP_FEATURES    GENMASK(KVM_REG_ARM_STD_HYP_BMAP_BIT_COUNT - 1, 0)
#define	KVM_ARM_SMCCC_VENDOR_HYP_FEATURES    GENMASK(KVM_REG_ARM_VENDOR_HYP_BMAP_BIT_COUNT - 1, 0)
#define	SMC32_ARCH_RANGE_BEGIN   ARM_SMCCC_VERSION_FUNC_ID
#define	SMC32_ARCH_RANGE_END
#define	SMC64_ARCH_RANGE_BEGIN
#define	SMC64_ARCH_RANGE_END
#define	KVM_REG_FEATURE_LEVEL_MASK   GENMASK(3, 0)

Functions
static void	kvm_ptp_get_time (struct kvm_vcpu *vcpu, u64 *val)
static bool	kvm_smccc_default_allowed (u32 func_id)
static bool	kvm_smccc_test_fw_bmap (struct kvm_vcpu *vcpu, u32 func_id)
static int	kvm_smccc_filter_insert_reserved (struct kvm *kvm)
static bool	kvm_smccc_filter_configured (struct kvm *kvm)
static int	kvm_smccc_set_filter (struct kvm *kvm, struct kvm_smccc_filter __user *uaddr)
static u8	kvm_smccc_filter_get_action (struct kvm *kvm, u32 func_id)
static u8	kvm_smccc_get_action (struct kvm_vcpu *vcpu, u32 func_id)
static void	kvm_prepare_hypercall_exit (struct kvm_vcpu *vcpu, u32 func_id)
int	kvm_smccc_call_handler (struct kvm_vcpu *vcpu)
void	kvm_arm_init_hypercalls (struct kvm *kvm)
void	kvm_arm_teardown_hypercalls (struct kvm *kvm)
int	kvm_arm_get_fw_num_regs (struct kvm_vcpu *vcpu)
int	kvm_arm_copy_fw_reg_indices (struct kvm_vcpu *vcpu, u64 __user *uindices)
static int	get_kernel_wa_level (u64 regid)
int	kvm_arm_get_fw_reg (struct kvm_vcpu *vcpu, const struct kvm_one_reg *reg)
static int	kvm_arm_set_fw_reg_bmap (struct kvm_vcpu *vcpu, u64 reg_id, u64 val)
int	kvm_arm_set_fw_reg (struct kvm_vcpu *vcpu, const struct kvm_one_reg *reg)
int	kvm_vm_smccc_has_attr (struct kvm *kvm, struct kvm_device_attr *attr)
int	kvm_vm_smccc_set_attr (struct kvm *kvm, struct kvm_device_attr *attr)

Variables
static const u64	kvm_arm_fw_reg_ids []

Macro Definition Documentation

KVM_ARM_SMCCC_STD_FEATURES

#define KVM_ARM_SMCCC_STD_FEATURES    GENMASK(KVM_REG_ARM_STD_BMAP_BIT_COUNT - 1, 0)

Definition at line 12 of file hypercalls.c.

KVM_ARM_SMCCC_STD_HYP_FEATURES

#define KVM_ARM_SMCCC_STD_HYP_FEATURES    GENMASK(KVM_REG_ARM_STD_HYP_BMAP_BIT_COUNT - 1, 0)

Definition at line 14 of file hypercalls.c.

KVM_ARM_SMCCC_VENDOR_HYP_FEATURES

#define KVM_ARM_SMCCC_VENDOR_HYP_FEATURES    GENMASK(KVM_REG_ARM_VENDOR_HYP_BMAP_BIT_COUNT - 1, 0)

Definition at line 16 of file hypercalls.c.

KVM_REG_FEATURE_LEVEL_MASK

#define KVM_REG_FEATURE_LEVEL_MASK   GENMASK(3, 0)

Definition at line 425 of file hypercalls.c.

SMC32_ARCH_RANGE_BEGIN

#define SMC32_ARCH_RANGE_BEGIN   ARM_SMCCC_VERSION_FUNC_ID

Definition at line 124 of file hypercalls.c.

SMC32_ARCH_RANGE_END

#define SMC32_ARCH_RANGE_END

Value:

                           ARM_SMCCC_CALL_VAL(ARM_SMCCC_FAST_CALL,      \
                           ARM_SMCCC_SMC_32,        \
                           0, ARM_SMCCC_FUNC_MASK)

Definition at line 125 of file hypercalls.c.

SMC64_ARCH_RANGE_BEGIN

#define SMC64_ARCH_RANGE_BEGIN

Value:

                           ARM_SMCCC_CALL_VAL(ARM_SMCCC_FAST_CALL,      \
                           ARM_SMCCC_SMC_64,        \
                           0, 0)

Definition at line 129 of file hypercalls.c.

SMC64_ARCH_RANGE_END

#define SMC64_ARCH_RANGE_END

Value:

                           ARM_SMCCC_CALL_VAL(ARM_SMCCC_FAST_CALL,      \
                           ARM_SMCCC_SMC_64,        \
                           0, ARM_SMCCC_FUNC_MASK)

Definition at line 132 of file hypercalls.c.

Function Documentation

get_kernel_wa_level()

static int get_kernel_wa_level ( u64  regid )

static

Definition at line 431 of file hypercalls.c.

{
    switch (regid) {
    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_1:
        switch (arm64_get_spectre_v2_state()) {
        case SPECTRE_VULNERABLE:
            return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_1_NOT_AVAIL;
        case SPECTRE_MITIGATED:
            return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_1_AVAIL;
        case SPECTRE_UNAFFECTED:
            return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_1_NOT_REQUIRED;
        }
        return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_1_NOT_AVAIL;
    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2:
        switch (arm64_get_spectre_v4_state()) {
        case SPECTRE_MITIGATED:
            /*
             * As for the hypercall discovery, we pretend we
             * don't have any FW mitigation if SSBS is there at
             * all times.
             */
            if (cpus_have_final_cap(ARM64_SSBS))
                return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_NOT_AVAIL;
            fallthrough;
        case SPECTRE_UNAFFECTED:
            return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_NOT_REQUIRED;
        case SPECTRE_VULNERABLE:
            return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_NOT_AVAIL;
        }
        break;
    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_3:
        switch (arm64_get_spectre_bhb_state()) {
        case SPECTRE_VULNERABLE:
            return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_3_NOT_AVAIL;
        case SPECTRE_MITIGATED:
            return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_3_AVAIL;
        case SPECTRE_UNAFFECTED:
            return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_3_NOT_REQUIRED;
        }
        return KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_3_NOT_AVAIL;
    }

    return -EINVAL;
}

Here is the caller graph for this function:

kvm_arm_copy_fw_reg_indices()

int kvm_arm_copy_fw_reg_indices	(	struct kvm_vcpu *	vcpu,
		u64 __user *	uindices
	)

Definition at line 413 of file hypercalls.c.

{
    int i;

    for (i = 0; i < ARRAY_SIZE(kvm_arm_fw_reg_ids); i++) {
        if (put_user(kvm_arm_fw_reg_ids[i], uindices++))
            return -EFAULT;
    }

    return 0;
}

Here is the caller graph for this function:

kvm_arm_get_fw_num_regs()

int kvm_arm_get_fw_num_regs

(

struct kvm_vcpu *

vcpu

)

Definition at line 408 of file hypercalls.c.

{
    return ARRAY_SIZE(kvm_arm_fw_reg_ids);
}

Here is the caller graph for this function:

kvm_arm_get_fw_reg()

int kvm_arm_get_fw_reg	(	struct kvm_vcpu *	vcpu,
		const struct kvm_one_reg *	reg
	)

Definition at line 476 of file hypercalls.c.

{
    struct kvm_smccc_features *smccc_feat = &vcpu->kvm->arch.smccc_feat;
    void __user *uaddr = (void __user *)(long)reg->addr;
    u64 val;

    switch (reg->id) {
    case KVM_REG_ARM_PSCI_VERSION:
        val = kvm_psci_version(vcpu);
        break;
    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_1:
    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2:
    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_3:
        val = get_kernel_wa_level(reg->id) & KVM_REG_FEATURE_LEVEL_MASK;
        break;
    case KVM_REG_ARM_STD_BMAP:
        val = READ_ONCE(smccc_feat->std_bmap);
        break;
    case KVM_REG_ARM_STD_HYP_BMAP:
        val = READ_ONCE(smccc_feat->std_hyp_bmap);
        break;
    case KVM_REG_ARM_VENDOR_HYP_BMAP:
        val = READ_ONCE(smccc_feat->vendor_hyp_bmap);
        break;
    default:
        return -ENOENT;
    }

    if (copy_to_user(uaddr, &val, KVM_REG_SIZE(reg->id)))
        return -EFAULT;

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_arm_init_hypercalls()

void kvm_arm_init_hypercalls

(

struct kvm *

kvm

)

Definition at line 392 of file hypercalls.c.

{
    struct kvm_smccc_features *smccc_feat = &kvm->arch.smccc_feat;

    smccc_feat->std_bmap = KVM_ARM_SMCCC_STD_FEATURES;
    smccc_feat->std_hyp_bmap = KVM_ARM_SMCCC_STD_HYP_FEATURES;
    smccc_feat->vendor_hyp_bmap = KVM_ARM_SMCCC_VENDOR_HYP_FEATURES;

    mt_init(&kvm->arch.smccc_filter);
}

Here is the caller graph for this function:

kvm_arm_set_fw_reg()

int kvm_arm_set_fw_reg	(	struct kvm_vcpu *	vcpu,
		const struct kvm_one_reg *	reg
	)

Definition at line 551 of file hypercalls.c.

{
    void __user *uaddr = (void __user *)(long)reg->addr;
    u64 val;
    int wa_level;

    if (KVM_REG_SIZE(reg->id) != sizeof(val))
        return -ENOENT;
    if (copy_from_user(&val, uaddr, KVM_REG_SIZE(reg->id)))
        return -EFAULT;

    switch (reg->id) {
    case KVM_REG_ARM_PSCI_VERSION:
    {
        bool wants_02;

        wants_02 = vcpu_has_feature(vcpu, KVM_ARM_VCPU_PSCI_0_2);

        switch (val) {
        case KVM_ARM_PSCI_0_1:
            if (wants_02)
                return -EINVAL;
            vcpu->kvm->arch.psci_version = val;
            return 0;
        case KVM_ARM_PSCI_0_2:
        case KVM_ARM_PSCI_1_0:
        case KVM_ARM_PSCI_1_1:
            if (!wants_02)
                return -EINVAL;
            vcpu->kvm->arch.psci_version = val;
            return 0;
        }
        break;
    }

    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_1:
    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_3:
        if (val & ~KVM_REG_FEATURE_LEVEL_MASK)
            return -EINVAL;

        if (get_kernel_wa_level(reg->id) < val)
            return -EINVAL;

        return 0;

    case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2:
        if (val & ~(KVM_REG_FEATURE_LEVEL_MASK |
                KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_ENABLED))
            return -EINVAL;

        /* The enabled bit must not be set unless the level is AVAIL. */
        if ((val & KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_ENABLED) &&
            (val & KVM_REG_FEATURE_LEVEL_MASK) != KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_AVAIL)
            return -EINVAL;

        /*
         * Map all the possible incoming states to the only two we
         * really want to deal with.
         */
        switch (val & KVM_REG_FEATURE_LEVEL_MASK) {
        case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_NOT_AVAIL:
        case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_UNKNOWN:
            wa_level = KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_NOT_AVAIL;
            break;
        case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_AVAIL:
        case KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_NOT_REQUIRED:
            wa_level = KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2_NOT_REQUIRED;
            break;
        default:
            return -EINVAL;
        }

        /*
         * We can deal with NOT_AVAIL on NOT_REQUIRED, but not the
         * other way around.
         */
        if (get_kernel_wa_level(reg->id) < wa_level)
            return -EINVAL;

        return 0;
    case KVM_REG_ARM_STD_BMAP:
    case KVM_REG_ARM_STD_HYP_BMAP:
    case KVM_REG_ARM_VENDOR_HYP_BMAP:
        return kvm_arm_set_fw_reg_bmap(vcpu, reg->id, val);
    default:
        return -ENOENT;
    }

    return -EINVAL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_arm_set_fw_reg_bmap()

static int kvm_arm_set_fw_reg_bmap ( struct kvm_vcpu *  vcpu, u64  reg_id, u64  val  )

static

Definition at line 510 of file hypercalls.c.

{
    int ret = 0;
    struct kvm *kvm = vcpu->kvm;
    struct kvm_smccc_features *smccc_feat = &kvm->arch.smccc_feat;
    unsigned long *fw_reg_bmap, fw_reg_features;

    switch (reg_id) {
    case KVM_REG_ARM_STD_BMAP:
        fw_reg_bmap = &smccc_feat->std_bmap;
        fw_reg_features = KVM_ARM_SMCCC_STD_FEATURES;
        break;
    case KVM_REG_ARM_STD_HYP_BMAP:
        fw_reg_bmap = &smccc_feat->std_hyp_bmap;
        fw_reg_features = KVM_ARM_SMCCC_STD_HYP_FEATURES;
        break;
    case KVM_REG_ARM_VENDOR_HYP_BMAP:
        fw_reg_bmap = &smccc_feat->vendor_hyp_bmap;
        fw_reg_features = KVM_ARM_SMCCC_VENDOR_HYP_FEATURES;
        break;
    default:
        return -ENOENT;
    }

    /* Check for unsupported bit */
    if (val & ~fw_reg_features)
        return -EINVAL;

    mutex_lock(&kvm->arch.config_lock);

    if (kvm_vm_has_ran_once(kvm) && val != *fw_reg_bmap) {
        ret = -EBUSY;
        goto out;
    }

    WRITE_ONCE(*fw_reg_bmap, val);
out:
    mutex_unlock(&kvm->arch.config_lock);
    return ret;
}

Here is the caller graph for this function:

kvm_arm_teardown_hypercalls()

void kvm_arm_teardown_hypercalls

(

struct kvm *

kvm

)

Definition at line 403 of file hypercalls.c.

{
    mtree_destroy(&kvm->arch.smccc_filter);
}

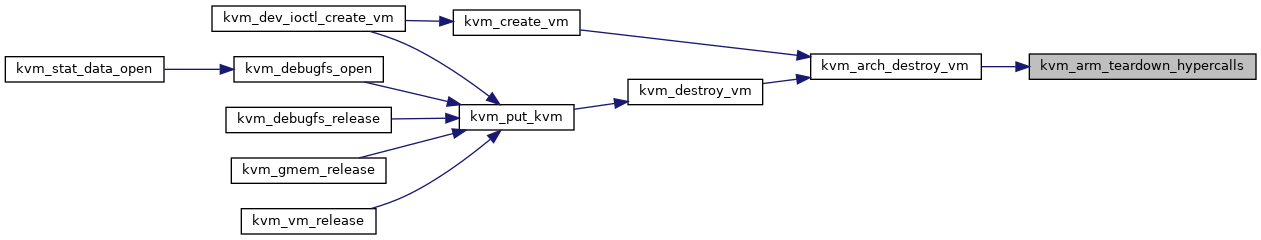

Here is the caller graph for this function:

kvm_prepare_hypercall_exit()

static void kvm_prepare_hypercall_exit ( struct kvm_vcpu *  vcpu, u32  func_id  )

static

Definition at line 244 of file hypercalls.c.

{
    u8 ec = ESR_ELx_EC(kvm_vcpu_get_esr(vcpu));
    struct kvm_run *run = vcpu->run;
    u64 flags = 0;

    if (ec == ESR_ELx_EC_SMC32 || ec == ESR_ELx_EC_SMC64)
        flags |= KVM_HYPERCALL_EXIT_SMC;

    if (!kvm_vcpu_trap_il_is32bit(vcpu))
        flags |= KVM_HYPERCALL_EXIT_16BIT;

    run->exit_reason = KVM_EXIT_HYPERCALL;
    run->hypercall = (typeof(run->hypercall)) {
        .nr = func_id,
        .flags  = flags,
    };
}

Here is the caller graph for this function:

kvm_ptp_get_time()

static void kvm_ptp_get_time ( struct kvm_vcpu *  vcpu, u64 *  val  )

static

Definition at line 19 of file hypercalls.c.

{
    struct system_time_snapshot systime_snapshot;
    u64 cycles = ~0UL;
    u32 feature;

    /*
     * system time and counter value must captured at the same
     * time to keep consistency and precision.
     */
    ktime_get_snapshot(&systime_snapshot);

    /*
     * This is only valid if the current clocksource is the
     * architected counter, as this is the only one the guest
     * can see.
     */
    if (systime_snapshot.cs_id != CSID_ARM_ARCH_COUNTER)
        return;

    /*
     * The guest selects one of the two reference counters
     * (virtual or physical) with the first argument of the SMCCC
     * call. In case the identifier is not supported, error out.
     */
    feature = smccc_get_arg1(vcpu);
    switch (feature) {
    case KVM_PTP_VIRT_COUNTER:
        cycles = systime_snapshot.cycles - vcpu->kvm->arch.timer_data.voffset;
        break;
    case KVM_PTP_PHYS_COUNTER:
        cycles = systime_snapshot.cycles - vcpu->kvm->arch.timer_data.poffset;
        break;
    default:
        return;
    }

    /*
     * This relies on the top bit of val[0] never being set for
     * valid values of system time, because that is *really* far
     * in the future (about 292 years from 1970, and at that stage
     * nobody will give a damn about it).
     */
    val[0] = upper_32_bits(systime_snapshot.real);
    val[1] = lower_32_bits(systime_snapshot.real);
    val[2] = upper_32_bits(cycles);
    val[3] = lower_32_bits(cycles);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_smccc_call_handler()

int kvm_smccc_call_handler

(

struct kvm_vcpu *

vcpu

)

Definition at line 263 of file hypercalls.c.

{
    struct kvm_smccc_features *smccc_feat = &vcpu->kvm->arch.smccc_feat;
    u32 func_id = smccc_get_function(vcpu);
    u64 val[4] = {SMCCC_RET_NOT_SUPPORTED};
    u32 feature;
    u8 action;
    gpa_t gpa;

    action = kvm_smccc_get_action(vcpu, func_id);
    switch (action) {
    case KVM_SMCCC_FILTER_HANDLE:
        break;
    case KVM_SMCCC_FILTER_DENY:
        goto out;
    case KVM_SMCCC_FILTER_FWD_TO_USER:
        kvm_prepare_hypercall_exit(vcpu, func_id);
        return 0;
    default:
        WARN_RATELIMIT(1, "Unhandled SMCCC filter action: %d\n", action);
        goto out;
    }

    switch (func_id) {
    case ARM_SMCCC_VERSION_FUNC_ID:
        val[0] = ARM_SMCCC_VERSION_1_1;
        break;
    case ARM_SMCCC_ARCH_FEATURES_FUNC_ID:
        feature = smccc_get_arg1(vcpu);
        switch (feature) {
        case ARM_SMCCC_ARCH_WORKAROUND_1:
            switch (arm64_get_spectre_v2_state()) {
            case SPECTRE_VULNERABLE:
                break;
            case SPECTRE_MITIGATED:
                val[0] = SMCCC_RET_SUCCESS;
                break;
            case SPECTRE_UNAFFECTED:
                val[0] = SMCCC_ARCH_WORKAROUND_RET_UNAFFECTED;
                break;
            }
            break;
        case ARM_SMCCC_ARCH_WORKAROUND_2:
            switch (arm64_get_spectre_v4_state()) {
            case SPECTRE_VULNERABLE:
                break;
            case SPECTRE_MITIGATED:
                /*
                 * SSBS everywhere: Indicate no firmware
                 * support, as the SSBS support will be
                 * indicated to the guest and the default is
                 * safe.
                 *
                 * Otherwise, expose a permanent mitigation
                 * to the guest, and hide SSBS so that the
                 * guest stays protected.
                 */
                if (cpus_have_final_cap(ARM64_SSBS))
                    break;
                fallthrough;
            case SPECTRE_UNAFFECTED:
                val[0] = SMCCC_RET_NOT_REQUIRED;
                break;
            }
            break;
        case ARM_SMCCC_ARCH_WORKAROUND_3:
            switch (arm64_get_spectre_bhb_state()) {
            case SPECTRE_VULNERABLE:
                break;
            case SPECTRE_MITIGATED:
                val[0] = SMCCC_RET_SUCCESS;
                break;
            case SPECTRE_UNAFFECTED:
                val[0] = SMCCC_ARCH_WORKAROUND_RET_UNAFFECTED;
                break;
            }
            break;
        case ARM_SMCCC_HV_PV_TIME_FEATURES:
            if (test_bit(KVM_REG_ARM_STD_HYP_BIT_PV_TIME,
                     &smccc_feat->std_hyp_bmap))
                val[0] = SMCCC_RET_SUCCESS;
            break;
        }
        break;
    case ARM_SMCCC_HV_PV_TIME_FEATURES:
        val[0] = kvm_hypercall_pv_features(vcpu);
        break;
    case ARM_SMCCC_HV_PV_TIME_ST:
        gpa = kvm_init_stolen_time(vcpu);
        if (gpa != INVALID_GPA)
            val[0] = gpa;
        break;
    case ARM_SMCCC_VENDOR_HYP_CALL_UID_FUNC_ID:
        val[0] = ARM_SMCCC_VENDOR_HYP_UID_KVM_REG_0;
        val[1] = ARM_SMCCC_VENDOR_HYP_UID_KVM_REG_1;
        val[2] = ARM_SMCCC_VENDOR_HYP_UID_KVM_REG_2;
        val[3] = ARM_SMCCC_VENDOR_HYP_UID_KVM_REG_3;
        break;
    case ARM_SMCCC_VENDOR_HYP_KVM_FEATURES_FUNC_ID:
        val[0] = smccc_feat->vendor_hyp_bmap;
        break;
    case ARM_SMCCC_VENDOR_HYP_KVM_PTP_FUNC_ID:
        kvm_ptp_get_time(vcpu, val);
        break;
    case ARM_SMCCC_TRNG_VERSION:
    case ARM_SMCCC_TRNG_FEATURES:
    case ARM_SMCCC_TRNG_GET_UUID:
    case ARM_SMCCC_TRNG_RND32:
    case ARM_SMCCC_TRNG_RND64:
        return kvm_trng_call(vcpu);
    default:
        return kvm_psci_call(vcpu);
    }

out:
    smccc_set_retval(vcpu, val[0], val[1], val[2], val[3]);
    return 1;
}

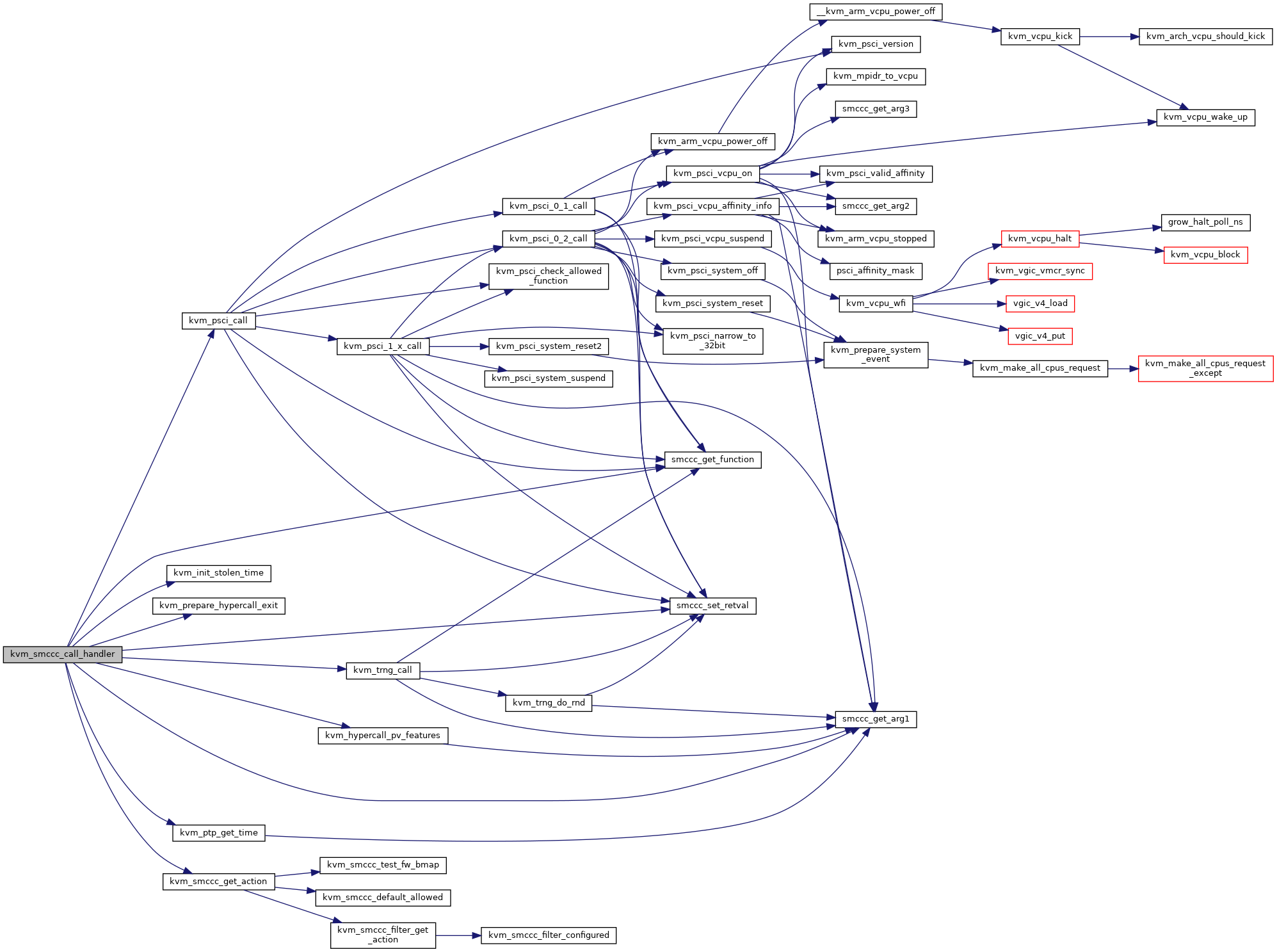

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_smccc_default_allowed()

static bool kvm_smccc_default_allowed ( u32  func_id )

static

Definition at line 68 of file hypercalls.c.

{
    switch (func_id) {
    /*
     * List of function-ids that are not gated with the bitmapped
     * feature firmware registers, and are to be allowed for
     * servicing the call by default.
     */
    case ARM_SMCCC_VERSION_FUNC_ID:
    case ARM_SMCCC_ARCH_FEATURES_FUNC_ID:
        return true;
    default:
        /* PSCI 0.2 and up is in the 0:0x1f range */
        if (ARM_SMCCC_OWNER_NUM(func_id) == ARM_SMCCC_OWNER_STANDARD &&
            ARM_SMCCC_FUNC_NUM(func_id) <= 0x1f)
            return true;

        /*
         * KVM's PSCI 0.1 doesn't comply with SMCCC, and has
         * its own function-id base and range
         */
        if (func_id >= KVM_PSCI_FN(0) && func_id <= KVM_PSCI_FN(3))
            return true;

        return false;
    }
}

Here is the caller graph for this function:

kvm_smccc_filter_configured()

static bool kvm_smccc_filter_configured ( struct kvm *  kvm )

static

Definition at line 165 of file hypercalls.c.

{
    return !mtree_empty(&kvm->arch.smccc_filter);
}

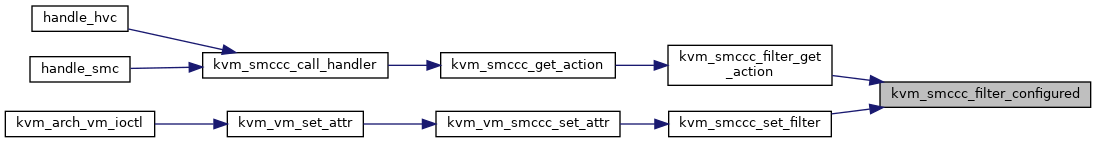

Here is the caller graph for this function:

kvm_smccc_filter_get_action()

static u8 kvm_smccc_filter_get_action ( struct kvm *  kvm, u32  func_id  )

static

Definition at line 209 of file hypercalls.c.

{
    unsigned long idx = func_id;
    void *val;

    if (!kvm_smccc_filter_configured(kvm))
        return KVM_SMCCC_FILTER_HANDLE;

    /*
     * But where's the error handling, you say?
     *
     * mt_find() returns NULL if no entry was found, which just so happens
     * to match KVM_SMCCC_FILTER_HANDLE.
     */
    val = mt_find(&kvm->arch.smccc_filter, &idx, idx);
    return xa_to_value(val);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_smccc_filter_insert_reserved()

static int kvm_smccc_filter_insert_reserved ( struct kvm *  kvm )

static

Definition at line 136 of file hypercalls.c.

{
    int r;

    /*
     * Prevent userspace from handling any SMCCC calls in the architecture
     * range, avoiding the risk of misrepresenting Spectre mitigation status
     * to the guest.
     */
    r = mtree_insert_range(&kvm->arch.smccc_filter,
                   SMC32_ARCH_RANGE_BEGIN, SMC32_ARCH_RANGE_END,
                   xa_mk_value(KVM_SMCCC_FILTER_HANDLE),
                   GFP_KERNEL_ACCOUNT);
    if (r)
        goto out_destroy;

    r = mtree_insert_range(&kvm->arch.smccc_filter,
                   SMC64_ARCH_RANGE_BEGIN, SMC64_ARCH_RANGE_END,
                   xa_mk_value(KVM_SMCCC_FILTER_HANDLE),
                   GFP_KERNEL_ACCOUNT);
    if (r)
        goto out_destroy;

    return 0;
out_destroy:
    mtree_destroy(&kvm->arch.smccc_filter);
    return r;
}

Here is the caller graph for this function:

kvm_smccc_get_action()

static u8 kvm_smccc_get_action ( struct kvm_vcpu *  vcpu, u32  func_id  )

static

Definition at line 227 of file hypercalls.c.

{
    /*
     * Intervening actions in the SMCCC filter take precedence over the
     * pseudo-firmware register bitmaps.
     */
    u8 action = kvm_smccc_filter_get_action(vcpu->kvm, func_id);
    if (action != KVM_SMCCC_FILTER_HANDLE)
        return action;

    if (kvm_smccc_test_fw_bmap(vcpu, func_id) ||
        kvm_smccc_default_allowed(func_id))
        return KVM_SMCCC_FILTER_HANDLE;

    return KVM_SMCCC_FILTER_DENY;
}

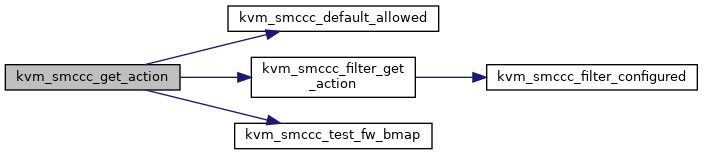

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_smccc_set_filter()

static int kvm_smccc_set_filter ( struct kvm *  kvm, struct kvm_smccc_filter __user *  uaddr  )

static

Definition at line 170 of file hypercalls.c.

{
    const void *zero_page = page_to_virt(ZERO_PAGE(0));
    struct kvm_smccc_filter filter;
    u32 start, end;
    int r;

    if (copy_from_user(&filter, uaddr, sizeof(filter)))
        return -EFAULT;

    if (memcmp(filter.pad, zero_page, sizeof(filter.pad)))
        return -EINVAL;

    start = filter.base;
    end = start + filter.nr_functions - 1;

    if (end < start || filter.action >= NR_SMCCC_FILTER_ACTIONS)
        return -EINVAL;

    mutex_lock(&kvm->arch.config_lock);

    if (kvm_vm_has_ran_once(kvm)) {
        r = -EBUSY;
        goto out_unlock;
    }

    if (!kvm_smccc_filter_configured(kvm)) {
        r = kvm_smccc_filter_insert_reserved(kvm);
        if (WARN_ON_ONCE(r))
            goto out_unlock;
    }

    r = mtree_insert_range(&kvm->arch.smccc_filter, start, end,
                   xa_mk_value(filter.action), GFP_KERNEL_ACCOUNT);
out_unlock:
    mutex_unlock(&kvm->arch.config_lock);
    return r;
}

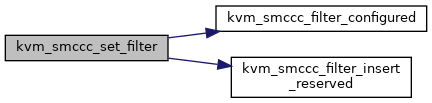

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_smccc_test_fw_bmap()

static bool kvm_smccc_test_fw_bmap ( struct kvm_vcpu *  vcpu, u32  func_id  )

static

Definition at line 96 of file hypercalls.c.

{
    struct kvm_smccc_features *smccc_feat = &vcpu->kvm->arch.smccc_feat;

    switch (func_id) {
    case ARM_SMCCC_TRNG_VERSION:
    case ARM_SMCCC_TRNG_FEATURES:
    case ARM_SMCCC_TRNG_GET_UUID:
    case ARM_SMCCC_TRNG_RND32:
    case ARM_SMCCC_TRNG_RND64:
        return test_bit(KVM_REG_ARM_STD_BIT_TRNG_V1_0,
                &smccc_feat->std_bmap);
    case ARM_SMCCC_HV_PV_TIME_FEATURES:
    case ARM_SMCCC_HV_PV_TIME_ST:
        return test_bit(KVM_REG_ARM_STD_HYP_BIT_PV_TIME,
                &smccc_feat->std_hyp_bmap);
    case ARM_SMCCC_VENDOR_HYP_KVM_FEATURES_FUNC_ID:
    case ARM_SMCCC_VENDOR_HYP_CALL_UID_FUNC_ID:
        return test_bit(KVM_REG_ARM_VENDOR_HYP_BIT_FUNC_FEAT,
                &smccc_feat->vendor_hyp_bmap);
    case ARM_SMCCC_VENDOR_HYP_KVM_PTP_FUNC_ID:
        return test_bit(KVM_REG_ARM_VENDOR_HYP_BIT_PTP,
                &smccc_feat->vendor_hyp_bmap);
    default:
        return false;
    }
}

Here is the caller graph for this function:

kvm_vm_smccc_has_attr()

int kvm_vm_smccc_has_attr	(	struct kvm *	kvm,
		struct kvm_device_attr *	attr
	)

Definition at line 642 of file hypercalls.c.

{
    switch (attr->attr) {
    case KVM_ARM_VM_SMCCC_FILTER:
        return 0;
    default:
        return -ENXIO;
    }
}

Here is the caller graph for this function:

kvm_vm_smccc_set_attr()

int kvm_vm_smccc_set_attr	(	struct kvm *	kvm,
		struct kvm_device_attr *	attr
	)

Definition at line 652 of file hypercalls.c.

{
    void __user *uaddr = (void __user *)attr->addr;

    switch (attr->attr) {
    case KVM_ARM_VM_SMCCC_FILTER:
        return kvm_smccc_set_filter(kvm, uaddr);
    default:
        return -ENXIO;
    }
}

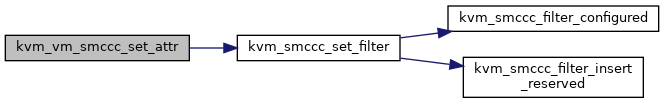

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

kvm_arm_fw_reg_ids

const u64 kvm_arm_fw_reg_ids[]

static

Initial value:

= {
    KVM_REG_ARM_PSCI_VERSION,
    KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_1,
    KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_2,
    KVM_REG_ARM_SMCCC_ARCH_WORKAROUND_3,
    KVM_REG_ARM_STD_BMAP,
    KVM_REG_ARM_STD_HYP_BMAP,
    KVM_REG_ARM_VENDOR_HYP_BMAP,
}

Definition at line 382 of file hypercalls.c.
