fpu.h File Reference
#include <asm/fpu/api.h>
Include dependency graph for fpu.h:

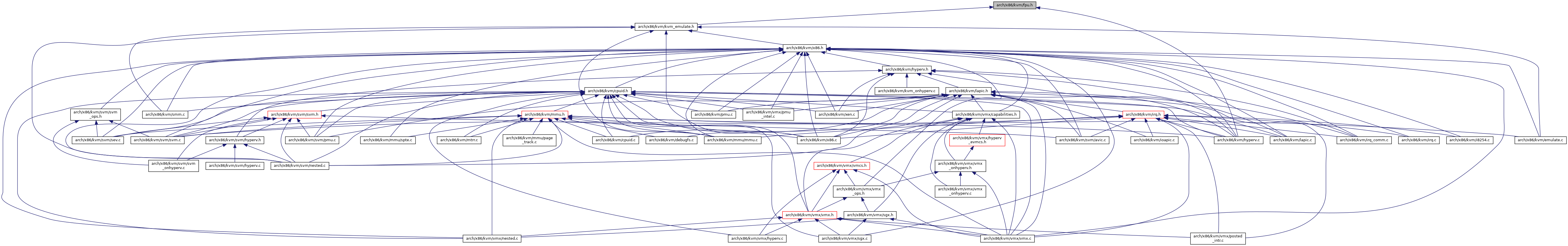

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define __sse128_u   union { sse128_t vec; u64 as_u64[2]; u32 as_u32[4]; }

#define sse128_lo(x)   ({ __sse128_u t; t.vec = x; t.as_u64[0]; })

#define sse128_hi(x)   ({ __sse128_u t; t.vec = x; t.as_u64[1]; })

#define sse128_l0(x)   ({ __sse128_u t; t.vec = x; t.as_u32[0]; })

#define sse128_l1(x)   ({ __sse128_u t; t.vec = x; t.as_u32[1]; })

#define sse128_l2(x)   ({ __sse128_u t; t.vec = x; t.as_u32[2]; })

#define sse128_l3(x)   ({ __sse128_u t; t.vec = x; t.as_u32[3]; })

#define sse128(lo, hi)   ({ __sse128_u t; t.as_u64[0] = lo; t.as_u64[1] = hi; t.vec; })


Typedefs

typedef u32 __attribute__((vector_size(16))) sse128_t


Functions

static void _kvm_read_sse_reg (int reg, sse128_t *data)

static void _kvm_write_sse_reg (int reg, const sse128_t *data)

static void _kvm_read_mmx_reg (int reg, u64 *data)

static void _kvm_write_mmx_reg (int reg, const u64 *data)

static void kvm_fpu_get (void)

static void kvm_fpu_put (void)

static void kvm_read_sse_reg (int reg, sse128_t *data)

static void kvm_write_sse_reg (int reg, const sse128_t *data)

static void kvm_read_mmx_reg (int reg, u64 *data)

static void kvm_write_mmx_reg (int reg, const u64 *data)


Macro Definition Documentation

◆ __sse128_u

#define __sse128_u   union { sse128_t vec; u64 as_u64[2]; u32 as_u32[4]; }

Definition at line 9 of file fpu.h.

◆ sse128

#define sse128 (   lo,
  hi
)    ({ __sse128_u t; t.as_u64[0] = lo; t.as_u64[1] = hi; t.vec; })

Definition at line 16 of file fpu.h.

◆ sse128_hi

#define sse128_hi (   x)    ({ __sse128_u t; t.vec = x; t.as_u64[1]; })

Definition at line 11 of file fpu.h.

◆ sse128_l0

#define sse128_l0 (   x)    ({ __sse128_u t; t.vec = x; t.as_u32[0]; })

Definition at line 12 of file fpu.h.

◆ sse128_l1

#define sse128_l1 (   x)    ({ __sse128_u t; t.vec = x; t.as_u32[1]; })

Definition at line 13 of file fpu.h.

◆ sse128_l2

#define sse128_l2 (   x)    ({ __sse128_u t; t.vec = x; t.as_u32[2]; })

Definition at line 14 of file fpu.h.

◆ sse128_l3

#define sse128_l3 (   x)    ({ __sse128_u t; t.vec = x; t.as_u32[3]; })

Definition at line 15 of file fpu.h.

◆ sse128_lo

#define sse128_lo (   x)    ({ __sse128_u t; t.vec = x; t.as_u64[0]; })

Definition at line 10 of file fpu.h.

Typedef Documentation

◆ __attribute__

typedef u32 __attribute__((vector_size(16))) sse128_t

Definition at line 8 of file fpu.h.

Function Documentation

◆ _kvm_read_mmx_reg()

static void _kvm_read_mmx_reg ( int  reg,
u64 *  data
)
inlinestatic

Definition at line 68 of file fpu.h.

69 {
70  switch (reg) {
71  case 0: asm("movq %%mm0, %0" : "=m"(*data)); break;
72  case 1: asm("movq %%mm1, %0" : "=m"(*data)); break;
73  case 2: asm("movq %%mm2, %0" : "=m"(*data)); break;
74  case 3: asm("movq %%mm3, %0" : "=m"(*data)); break;
75  case 4: asm("movq %%mm4, %0" : "=m"(*data)); break;
76  case 5: asm("movq %%mm5, %0" : "=m"(*data)); break;
77  case 6: asm("movq %%mm6, %0" : "=m"(*data)); break;
78  case 7: asm("movq %%mm7, %0" : "=m"(*data)); break;
79  default: BUG();
80  }
81 }

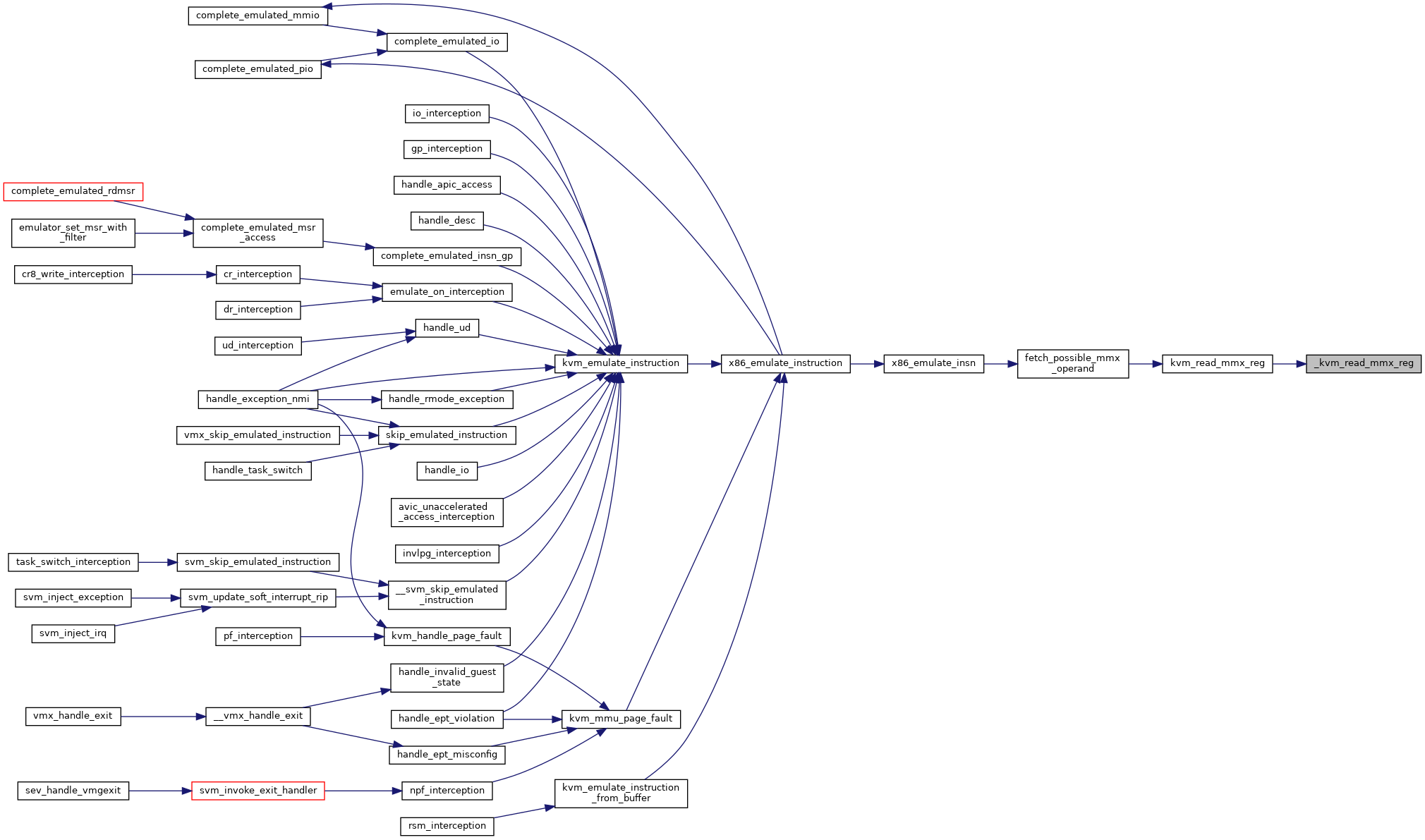

Here is the caller graph for this function:

◆ _kvm_read_sse_reg()

static void _kvm_read_sse_reg ( int  reg,
sse128_t *  data
)
inlinestatic

Definition at line 18 of file fpu.h.

19 {
20  switch (reg) {
21  case 0: asm("movdqa %%xmm0, %0" : "=m"(*data)); break;
22  case 1: asm("movdqa %%xmm1, %0" : "=m"(*data)); break;
23  case 2: asm("movdqa %%xmm2, %0" : "=m"(*data)); break;
24  case 3: asm("movdqa %%xmm3, %0" : "=m"(*data)); break;
25  case 4: asm("movdqa %%xmm4, %0" : "=m"(*data)); break;
26  case 5: asm("movdqa %%xmm5, %0" : "=m"(*data)); break;
27  case 6: asm("movdqa %%xmm6, %0" : "=m"(*data)); break;
28  case 7: asm("movdqa %%xmm7, %0" : "=m"(*data)); break;
29 #ifdef CONFIG_X86_64
30  case 8: asm("movdqa %%xmm8, %0" : "=m"(*data)); break;
31  case 9: asm("movdqa %%xmm9, %0" : "=m"(*data)); break;
32  case 10: asm("movdqa %%xmm10, %0" : "=m"(*data)); break;
33  case 11: asm("movdqa %%xmm11, %0" : "=m"(*data)); break;
34  case 12: asm("movdqa %%xmm12, %0" : "=m"(*data)); break;
35  case 13: asm("movdqa %%xmm13, %0" : "=m"(*data)); break;
36  case 14: asm("movdqa %%xmm14, %0" : "=m"(*data)); break;
37  case 15: asm("movdqa %%xmm15, %0" : "=m"(*data)); break;
38 #endif
39  default: BUG();
40  }
41 }
Here is the caller graph for this function:

◆ _kvm_write_mmx_reg()

static void _kvm_write_mmx_reg ( int  reg,
const u64 *  data
)
inlinestatic

Definition at line 83 of file fpu.h.

84 {
85  switch (reg) {
86  case 0: asm("movq %0, %%mm0" : : "m"(*data)); break;
87  case 1: asm("movq %0, %%mm1" : : "m"(*data)); break;
88  case 2: asm("movq %0, %%mm2" : : "m"(*data)); break;
89  case 3: asm("movq %0, %%mm3" : : "m"(*data)); break;
90  case 4: asm("movq %0, %%mm4" : : "m"(*data)); break;
91  case 5: asm("movq %0, %%mm5" : : "m"(*data)); break;
92  case 6: asm("movq %0, %%mm6" : : "m"(*data)); break;
93  case 7: asm("movq %0, %%mm7" : : "m"(*data)); break;
94  default: BUG();
95  }
96 }

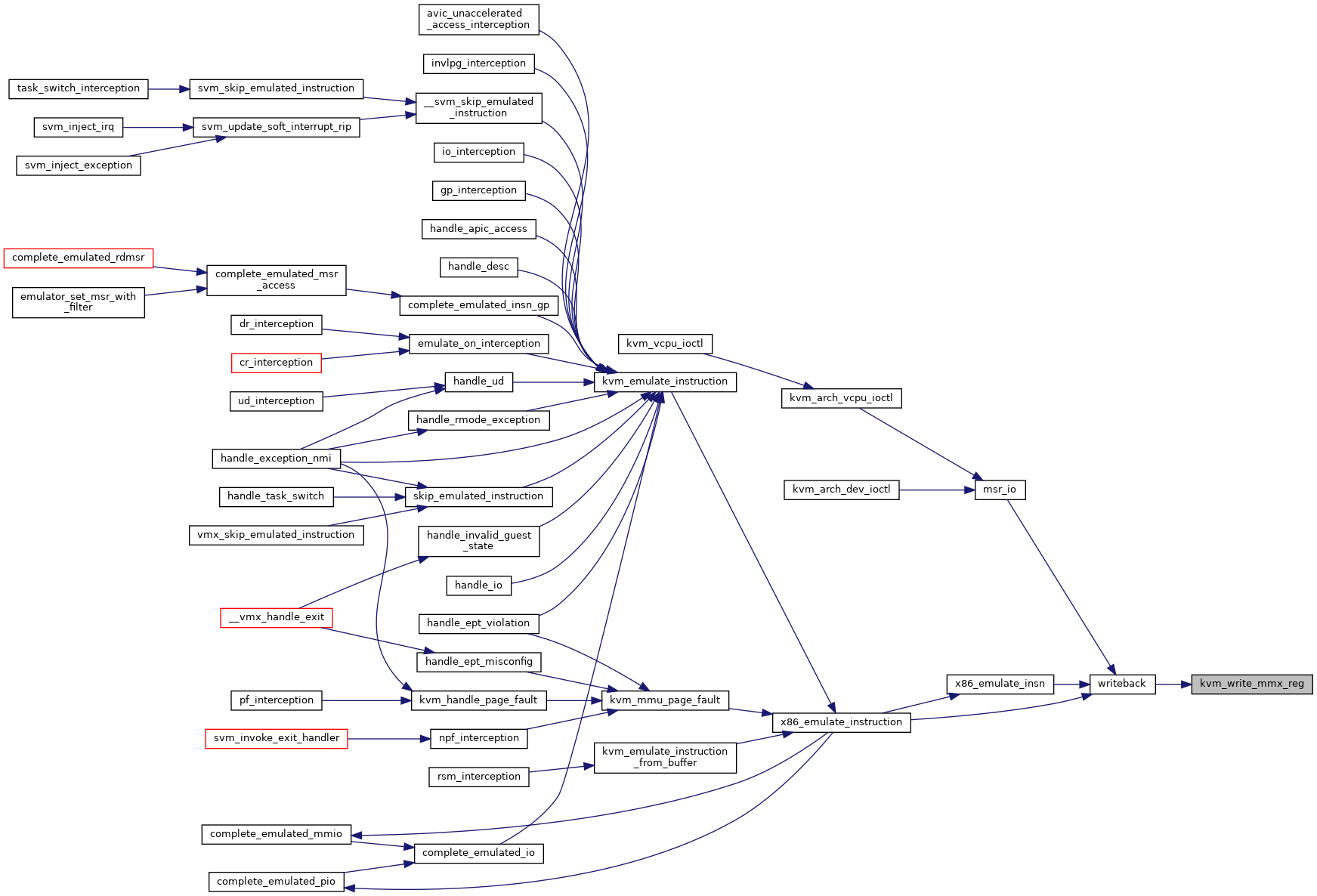

Here is the caller graph for this function:

◆ _kvm_write_sse_reg()

static void _kvm_write_sse_reg ( int  reg,
const sse128_t *  data
)
inlinestatic

Definition at line 43 of file fpu.h.

44 {
45  switch (reg) {
46  case 0: asm("movdqa %0, %%xmm0" : : "m"(*data)); break;
47  case 1: asm("movdqa %0, %%xmm1" : : "m"(*data)); break;
48  case 2: asm("movdqa %0, %%xmm2" : : "m"(*data)); break;
49  case 3: asm("movdqa %0, %%xmm3" : : "m"(*data)); break;
50  case 4: asm("movdqa %0, %%xmm4" : : "m"(*data)); break;
51  case 5: asm("movdqa %0, %%xmm5" : : "m"(*data)); break;
52  case 6: asm("movdqa %0, %%xmm6" : : "m"(*data)); break;
53  case 7: asm("movdqa %0, %%xmm7" : : "m"(*data)); break;
54 #ifdef CONFIG_X86_64
55  case 8: asm("movdqa %0, %%xmm8" : : "m"(*data)); break;
56  case 9: asm("movdqa %0, %%xmm9" : : "m"(*data)); break;
57  case 10: asm("movdqa %0, %%xmm10" : : "m"(*data)); break;
58  case 11: asm("movdqa %0, %%xmm11" : : "m"(*data)); break;
59  case 12: asm("movdqa %0, %%xmm12" : : "m"(*data)); break;
60  case 13: asm("movdqa %0, %%xmm13" : : "m"(*data)); break;
61  case 14: asm("movdqa %0, %%xmm14" : : "m"(*data)); break;
62  case 15: asm("movdqa %0, %%xmm15" : : "m"(*data)); break;
63 #endif
64  default: BUG();
65  }
66 }
Here is the caller graph for this function:

◆ kvm_fpu_get()

static void kvm_fpu_get ( void  )
inlinestatic

Definition at line 98 of file fpu.h.

99 {
100  fpregs_lock();
101
102  fpregs_assert_state_consistent();
103  if (test_thread_flag(TIF_NEED_FPU_LOAD))
104  switch_fpu_return();
105 }

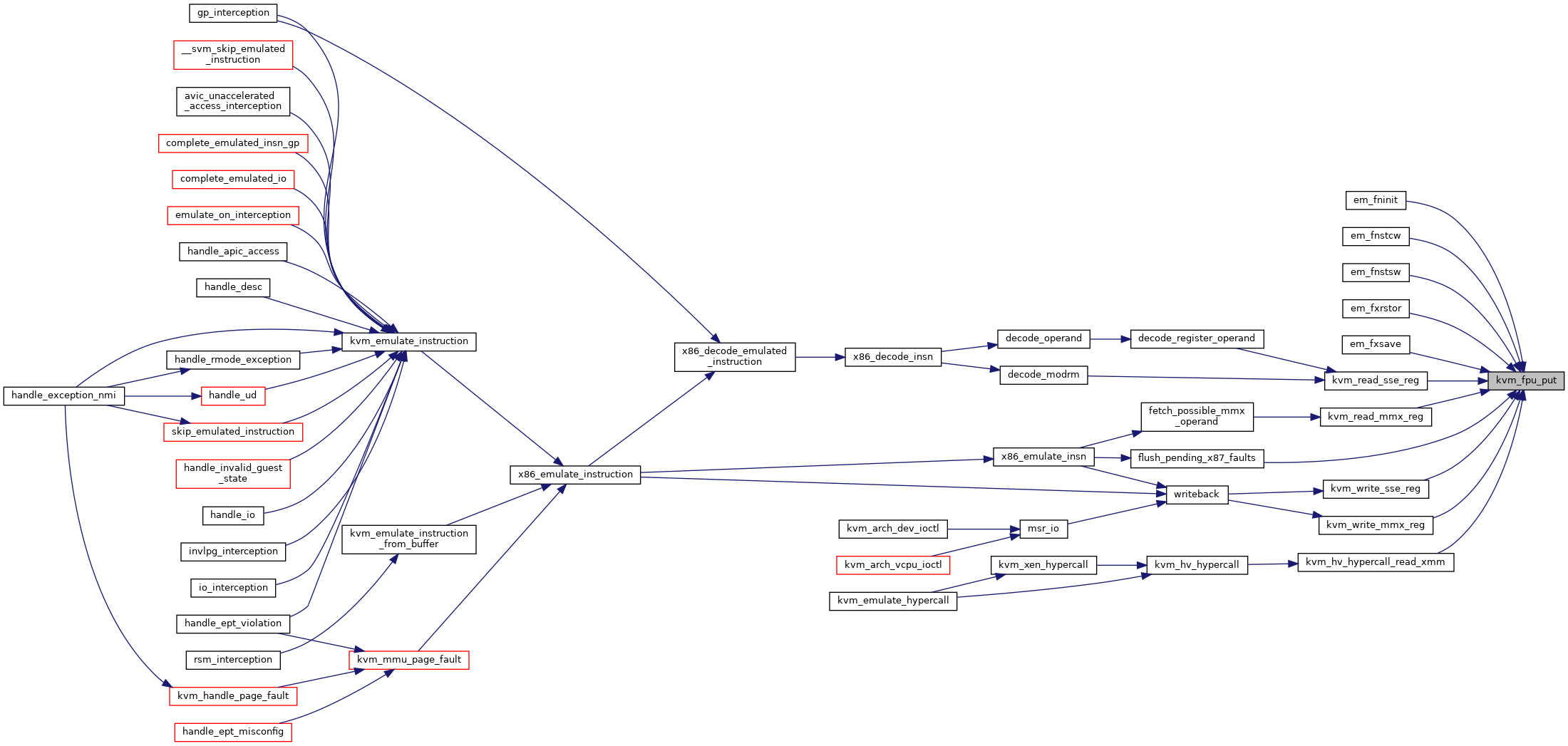

Here is the caller graph for this function:

◆ kvm_fpu_put()

static void kvm_fpu_put ( void  )
inlinestatic

Definition at line 107 of file fpu.h.

108 {
109  fpregs_unlock();
110 }
Here is the caller graph for this function:

◆ kvm_read_mmx_reg()

static void kvm_read_mmx_reg ( int  reg,
u64 *  data
)
inlinestatic

Definition at line 126 of file fpu.h.

127 {
128  kvm_fpu_get();
129  _kvm_read_mmx_reg(reg, data);
130  kvm_fpu_put();
131 }
kvm_fpu_get
static void kvm_fpu_get(void)
Definition: fpu.h:98
kvm_fpu_put
static void kvm_fpu_put(void)
Definition: fpu.h:107
_kvm_read_mmx_reg
static void _kvm_read_mmx_reg(int reg, u64 *data)
Definition: fpu.h:68
Here is the call graph for this function:

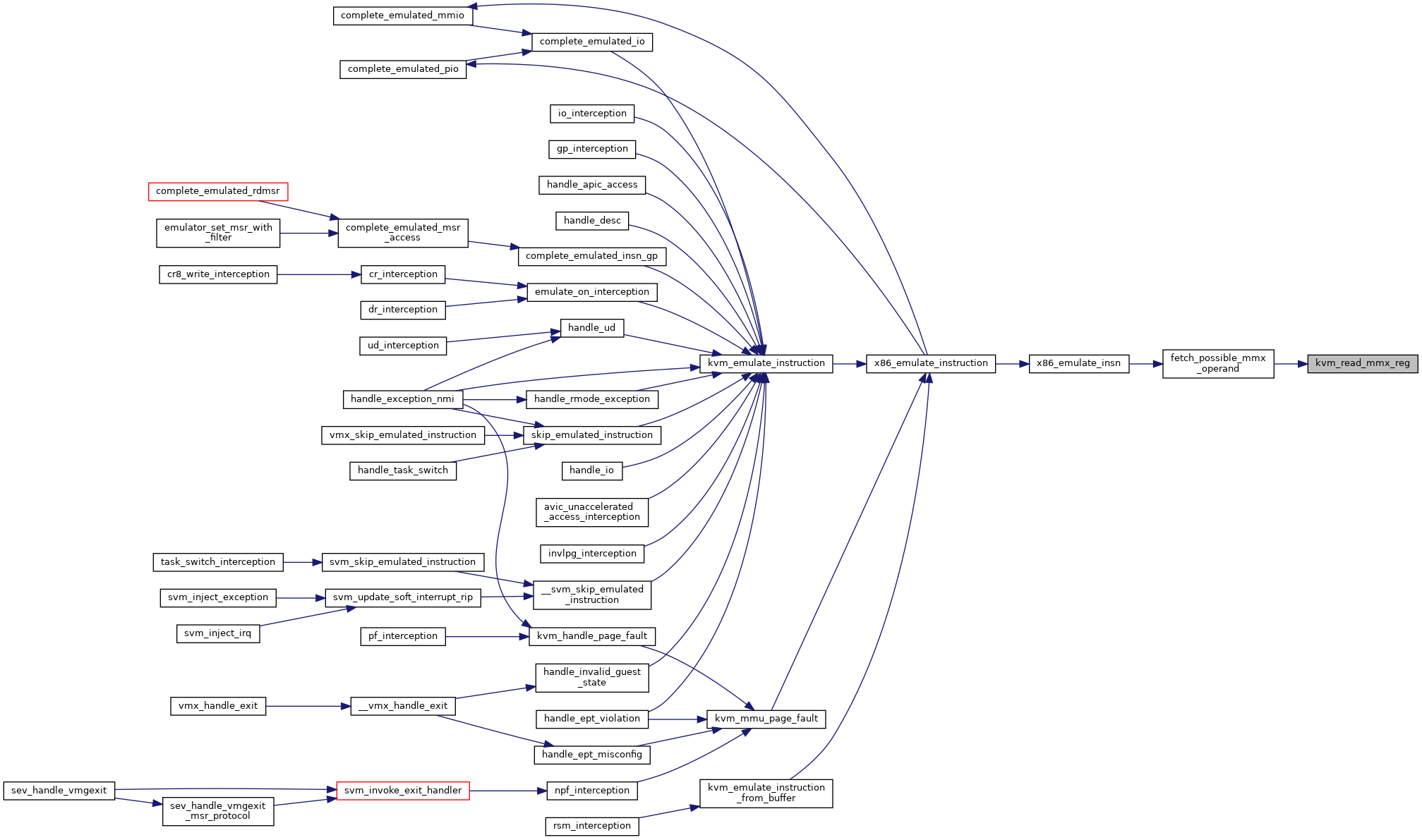

Here is the caller graph for this function:

◆ kvm_read_sse_reg()

static void kvm_read_sse_reg ( int  reg,
sse128_t *  data
)
inlinestatic

Definition at line 112 of file fpu.h.

113 {
114  kvm_fpu_get();
115  _kvm_read_sse_reg(reg, data);
116  kvm_fpu_put();
117 }
_kvm_read_sse_reg
static void _kvm_read_sse_reg(int reg, sse128_t *data)
Definition: fpu.h:18
Here is the call graph for this function:

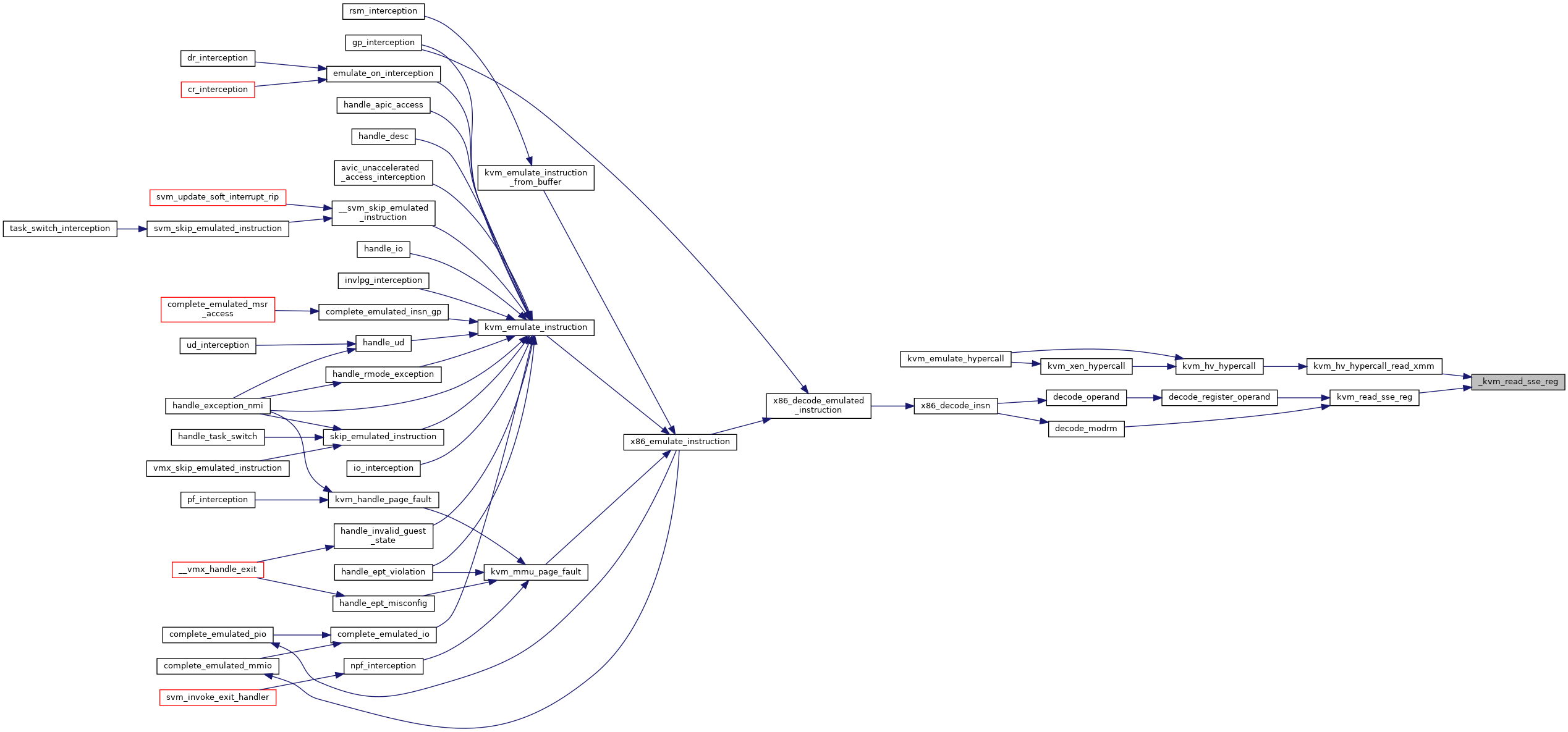

Here is the caller graph for this function:

◆ kvm_write_mmx_reg()

static void kvm_write_mmx_reg ( int  reg,
const u64 *  data
)
inlinestatic

Definition at line 133 of file fpu.h.

134 {
135  kvm_fpu_get();
136  _kvm_write_mmx_reg(reg, data);
137  kvm_fpu_put();
138 }
_kvm_write_mmx_reg
static void _kvm_write_mmx_reg(int reg, const u64 *data)
Definition: fpu.h:83

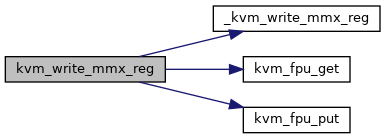

Here is the call graph for this function:

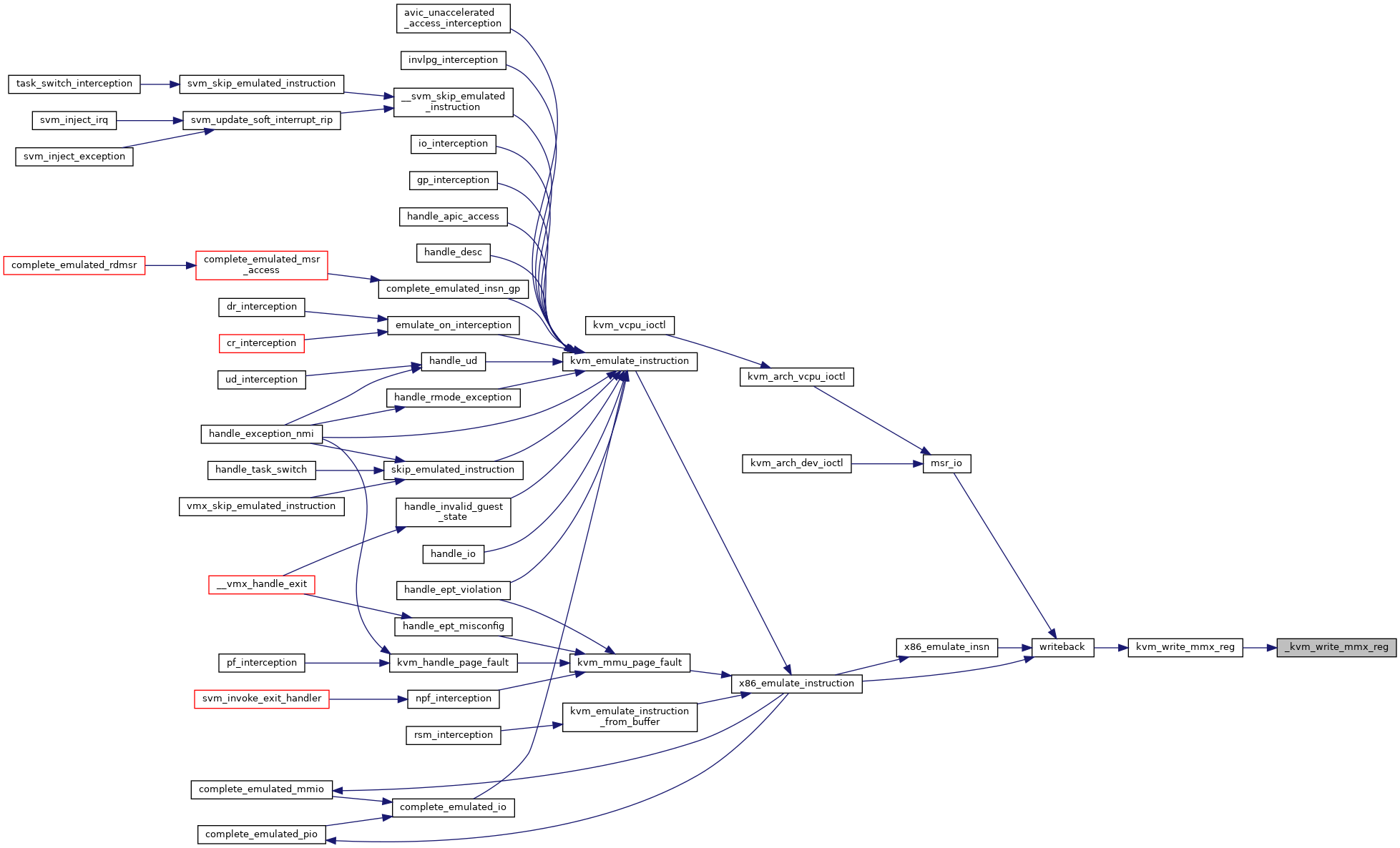

Here is the caller graph for this function:

◆ kvm_write_sse_reg()

static void kvm_write_sse_reg ( int  reg,
const sse128_t *  data
)
inlinestatic

Definition at line 119 of file fpu.h.

120 {
121  kvm_fpu_get();
122  _kvm_write_sse_reg(reg, data);
123  kvm_fpu_put();
124 }
_kvm_write_sse_reg
static void _kvm_write_sse_reg(int reg, const sse128_t *data)
Definition: fpu.h:43

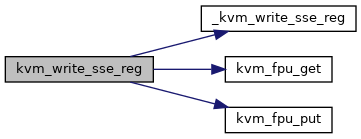

Here is the call graph for this function:
Here is the caller graph for this function:
