kvm_cache_regs.h File Reference

#include <linux/kvm_host.h>

Include dependency graph for kvm_cache_regs.h:

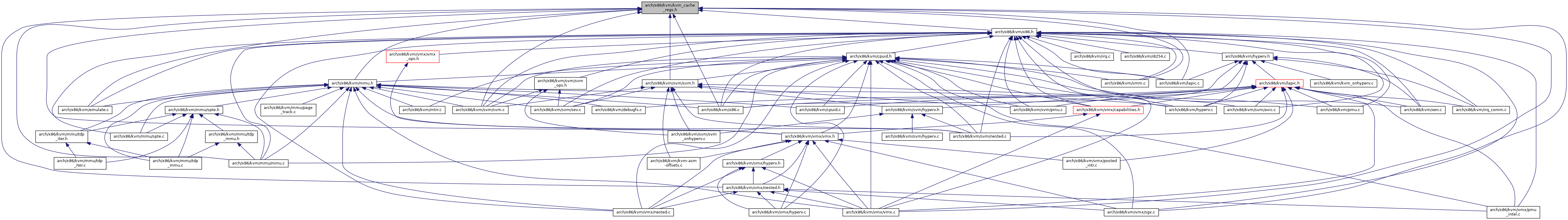

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	KVM_POSSIBLE_CR0_GUEST_BITS   (X86_CR0_TS | X86_CR0_WP)
#define	KVM_POSSIBLE_CR4_GUEST_BITS
#define	X86_CR0_PDPTR_BITS   (X86_CR0_CD | X86_CR0_NW | X86_CR0_PG)
#define	X86_CR4_TLBFLUSH_BITS   (X86_CR4_PGE | X86_CR4_PCIDE | X86_CR4_PAE | X86_CR4_SMEP)
#define	X86_CR4_PDPTR_BITS   (X86_CR4_PGE | X86_CR4_PSE | X86_CR4_PAE | X86_CR4_SMEP)
#define	BUILD_KVM_GPR_ACCESSORS(lname, uname)

Functions
static bool	kvm_register_is_available (struct kvm_vcpu *vcpu, enum kvm_reg reg)
static bool	kvm_register_is_dirty (struct kvm_vcpu *vcpu, enum kvm_reg reg)
static void	kvm_register_mark_available (struct kvm_vcpu *vcpu, enum kvm_reg reg)
static void	kvm_register_mark_dirty (struct kvm_vcpu *vcpu, enum kvm_reg reg)
static __always_inline bool	kvm_register_test_and_mark_available (struct kvm_vcpu *vcpu, enum kvm_reg reg)
static unsigned long	kvm_register_read_raw (struct kvm_vcpu *vcpu, int reg)
static void	kvm_register_write_raw (struct kvm_vcpu *vcpu, int reg, unsigned long val)
static unsigned long	kvm_rip_read (struct kvm_vcpu *vcpu)
static void	kvm_rip_write (struct kvm_vcpu *vcpu, unsigned long val)
static unsigned long	kvm_rsp_read (struct kvm_vcpu *vcpu)
static void	kvm_rsp_write (struct kvm_vcpu *vcpu, unsigned long val)
static u64	kvm_pdptr_read (struct kvm_vcpu *vcpu, int index)
static void	kvm_pdptr_write (struct kvm_vcpu *vcpu, int index, u64 value)
static ulong	kvm_read_cr0_bits (struct kvm_vcpu *vcpu, ulong mask)
static __always_inline bool	kvm_is_cr0_bit_set (struct kvm_vcpu *vcpu, unsigned long cr0_bit)
static ulong	kvm_read_cr0 (struct kvm_vcpu *vcpu)
static ulong	kvm_read_cr4_bits (struct kvm_vcpu *vcpu, ulong mask)
static __always_inline bool	kvm_is_cr4_bit_set (struct kvm_vcpu *vcpu, unsigned long cr4_bit)
static ulong	kvm_read_cr3 (struct kvm_vcpu *vcpu)
static ulong	kvm_read_cr4 (struct kvm_vcpu *vcpu)
static u64	kvm_read_edx_eax (struct kvm_vcpu *vcpu)
static void	enter_guest_mode (struct kvm_vcpu *vcpu)
static void	leave_guest_mode (struct kvm_vcpu *vcpu)
static bool	is_guest_mode (struct kvm_vcpu *vcpu)

Macro Definition Documentation

BUILD_KVM_GPR_ACCESSORS

#define BUILD_KVM_GPR_ACCESSORS	(		lname,
			uname
	)

Value:

static __always_inline unsigned long kvm_##lname##_read(struct kvm_vcpu *vcpu)\
{                                         \
    return vcpu->arch.regs[VCPU_REGS_##uname];                \
}                                         \
static __always_inline void kvm_##lname##_write(struct kvm_vcpu *vcpu,        \
                        unsigned long val)        \
{                                         \
    vcpu->arch.regs[VCPU_REGS_##uname] = val;                 \
}

Definition at line 18 of file kvm_cache_regs.h.

KVM_POSSIBLE_CR0_GUEST_BITS

#define KVM_POSSIBLE_CR0_GUEST_BITS   (X86_CR0_TS | X86_CR0_WP)

Definition at line 7 of file kvm_cache_regs.h.

KVM_POSSIBLE_CR4_GUEST_BITS

#define KVM_POSSIBLE_CR4_GUEST_BITS

Value:

    (X86_CR4_PVI | X86_CR4_DE | X86_CR4_PCE | X86_CR4_OSFXSR  \
     | X86_CR4_OSXMMEXCPT | X86_CR4_PGE | X86_CR4_TSD | X86_CR4_FSGSBASE)

Definition at line 8 of file kvm_cache_regs.h.

X86_CR0_PDPTR_BITS

#define X86_CR0_PDPTR_BITS   (X86_CR0_CD | X86_CR0_NW | X86_CR0_PG)

Definition at line 12 of file kvm_cache_regs.h.

X86_CR4_PDPTR_BITS

#define X86_CR4_PDPTR_BITS   (X86_CR4_PGE | X86_CR4_PSE | X86_CR4_PAE | X86_CR4_SMEP)

Definition at line 14 of file kvm_cache_regs.h.

X86_CR4_TLBFLUSH_BITS

#define X86_CR4_TLBFLUSH_BITS   (X86_CR4_PGE | X86_CR4_PCIDE | X86_CR4_PAE | X86_CR4_SMEP)

Definition at line 13 of file kvm_cache_regs.h.

Function Documentation

enter_guest_mode()

static void enter_guest_mode ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 208 of file kvm_cache_regs.h.

{
    vcpu->arch.hflags |= HF_GUEST_MASK;
    vcpu->stat.guest_mode = 1;
}

Here is the caller graph for this function:

is_guest_mode()

static bool is_guest_mode ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 226 of file kvm_cache_regs.h.

{
    return vcpu->arch.hflags & HF_GUEST_MASK;
}

kvm_is_cr0_bit_set()

static __always_inline bool kvm_is_cr0_bit_set ( struct kvm_vcpu *  vcpu, unsigned long  cr0_bit  )

static

Definition at line 160 of file kvm_cache_regs.h.

{
    BUILD_BUG_ON(!is_power_of_2(cr0_bit));

    return !!kvm_read_cr0_bits(vcpu, cr0_bit);
}

Here is the call graph for this function:

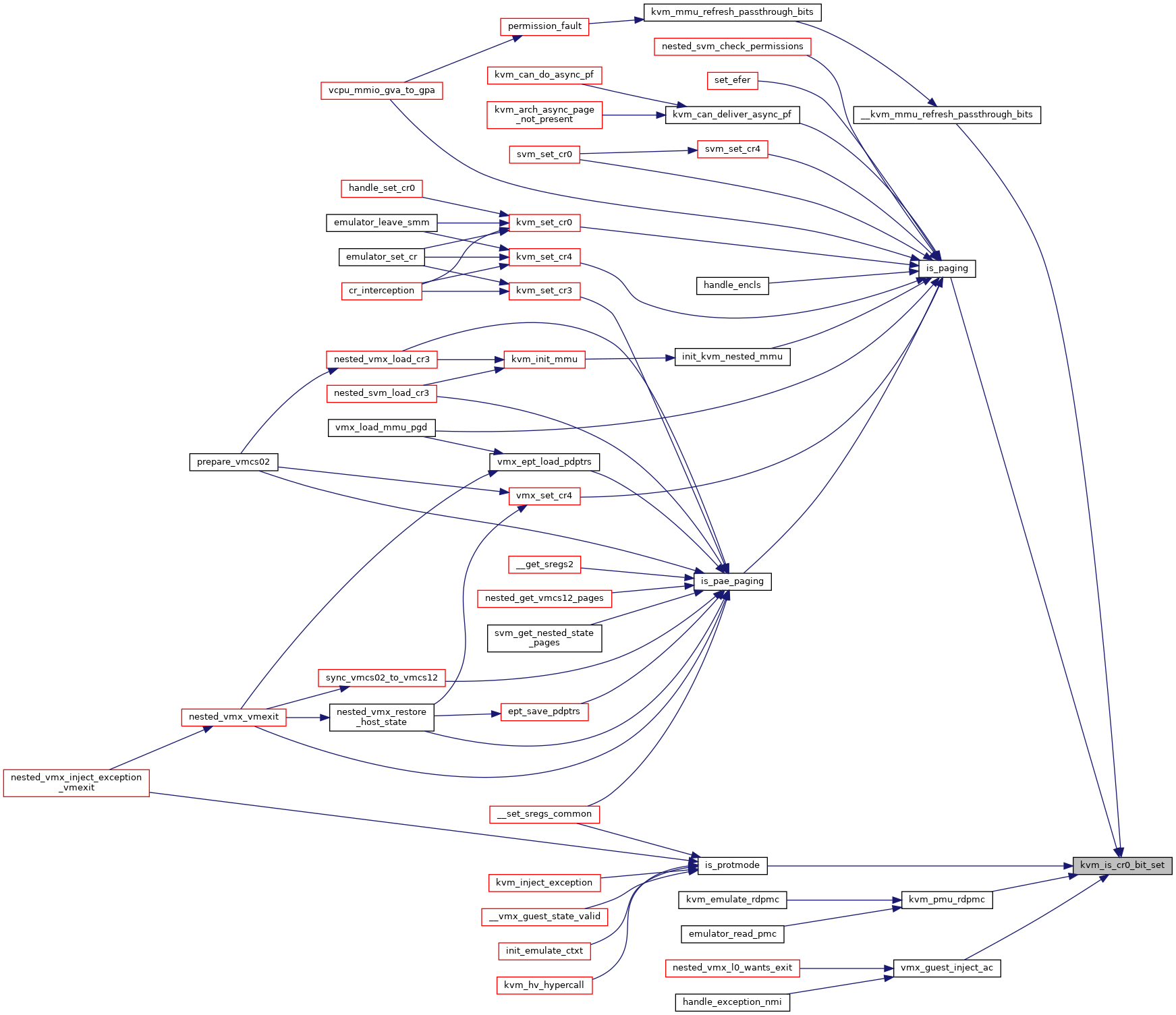

Here is the caller graph for this function:

kvm_is_cr4_bit_set()

static __always_inline bool kvm_is_cr4_bit_set ( struct kvm_vcpu *  vcpu, unsigned long  cr4_bit  )

static

Definition at line 182 of file kvm_cache_regs.h.

{
    BUILD_BUG_ON(!is_power_of_2(cr4_bit));

    return !!kvm_read_cr4_bits(vcpu, cr4_bit);
}

Here is the call graph for this function:

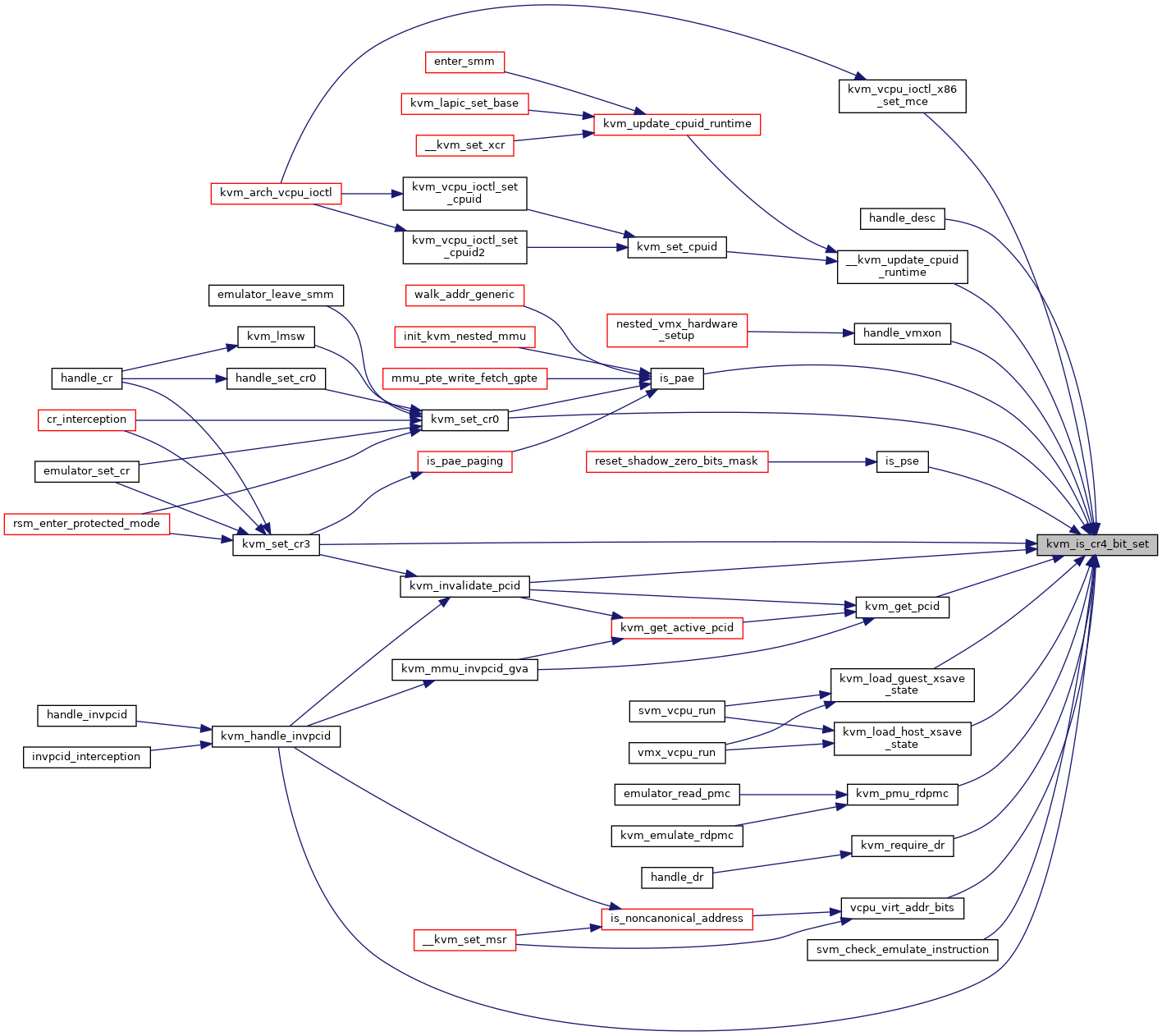

Here is the caller graph for this function:

kvm_pdptr_read()

static u64 kvm_pdptr_read ( struct kvm_vcpu *  vcpu, int  index  )

inlinestatic

Definition at line 136 of file kvm_cache_regs.h.

{
    might_sleep();  /* on svm */

    if (!kvm_register_is_available(vcpu, VCPU_EXREG_PDPTR))
        static_call(kvm_x86_cache_reg)(vcpu, VCPU_EXREG_PDPTR);

    return vcpu->arch.walk_mmu->pdptrs[index];
}

Here is the call graph for this function:

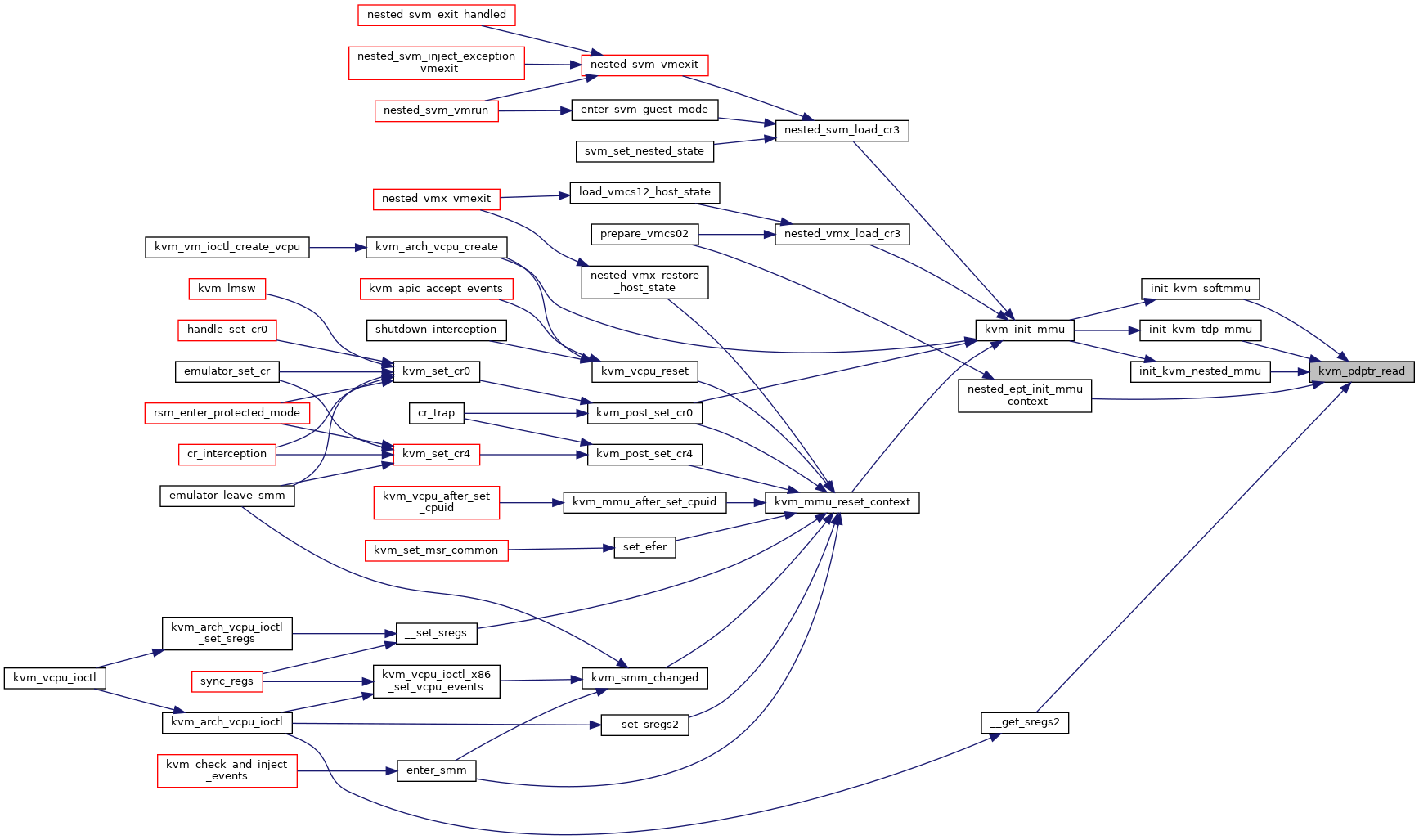

Here is the caller graph for this function:

kvm_pdptr_write()

static void kvm_pdptr_write ( struct kvm_vcpu *  vcpu, int  index, u64  value  )

inlinestatic

Definition at line 146 of file kvm_cache_regs.h.

{
    vcpu->arch.walk_mmu->pdptrs[index] = value;
}

Here is the caller graph for this function:

kvm_read_cr0()

static ulong kvm_read_cr0 ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 168 of file kvm_cache_regs.h.

{
    return kvm_read_cr0_bits(vcpu, ~0UL);
}

Here is the call graph for this function:

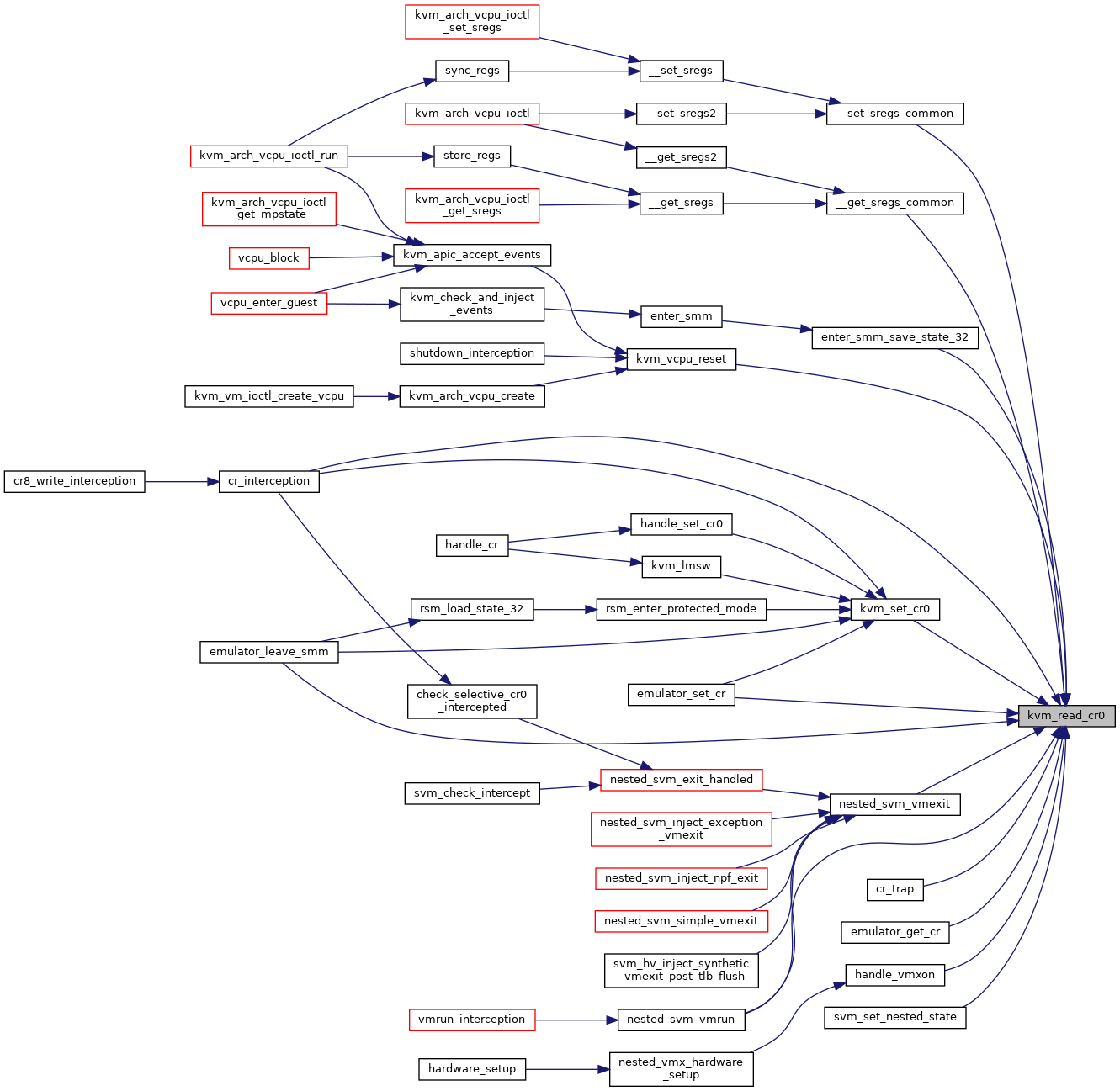

Here is the caller graph for this function:

kvm_read_cr0_bits()

static ulong kvm_read_cr0_bits ( struct kvm_vcpu *  vcpu, ulong  mask  )

inlinestatic

Definition at line 151 of file kvm_cache_regs.h.

{
    ulong tmask = mask & KVM_POSSIBLE_CR0_GUEST_BITS;
    if ((tmask & vcpu->arch.cr0_guest_owned_bits) &&
        !kvm_register_is_available(vcpu, VCPU_EXREG_CR0))
        static_call(kvm_x86_cache_reg)(vcpu, VCPU_EXREG_CR0);
    return vcpu->arch.cr0 & mask;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_read_cr3()

static ulong kvm_read_cr3 ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 190 of file kvm_cache_regs.h.

{
    if (!kvm_register_is_available(vcpu, VCPU_EXREG_CR3))
        static_call(kvm_x86_cache_reg)(vcpu, VCPU_EXREG_CR3);
    return vcpu->arch.cr3;
}

Here is the call graph for this function:

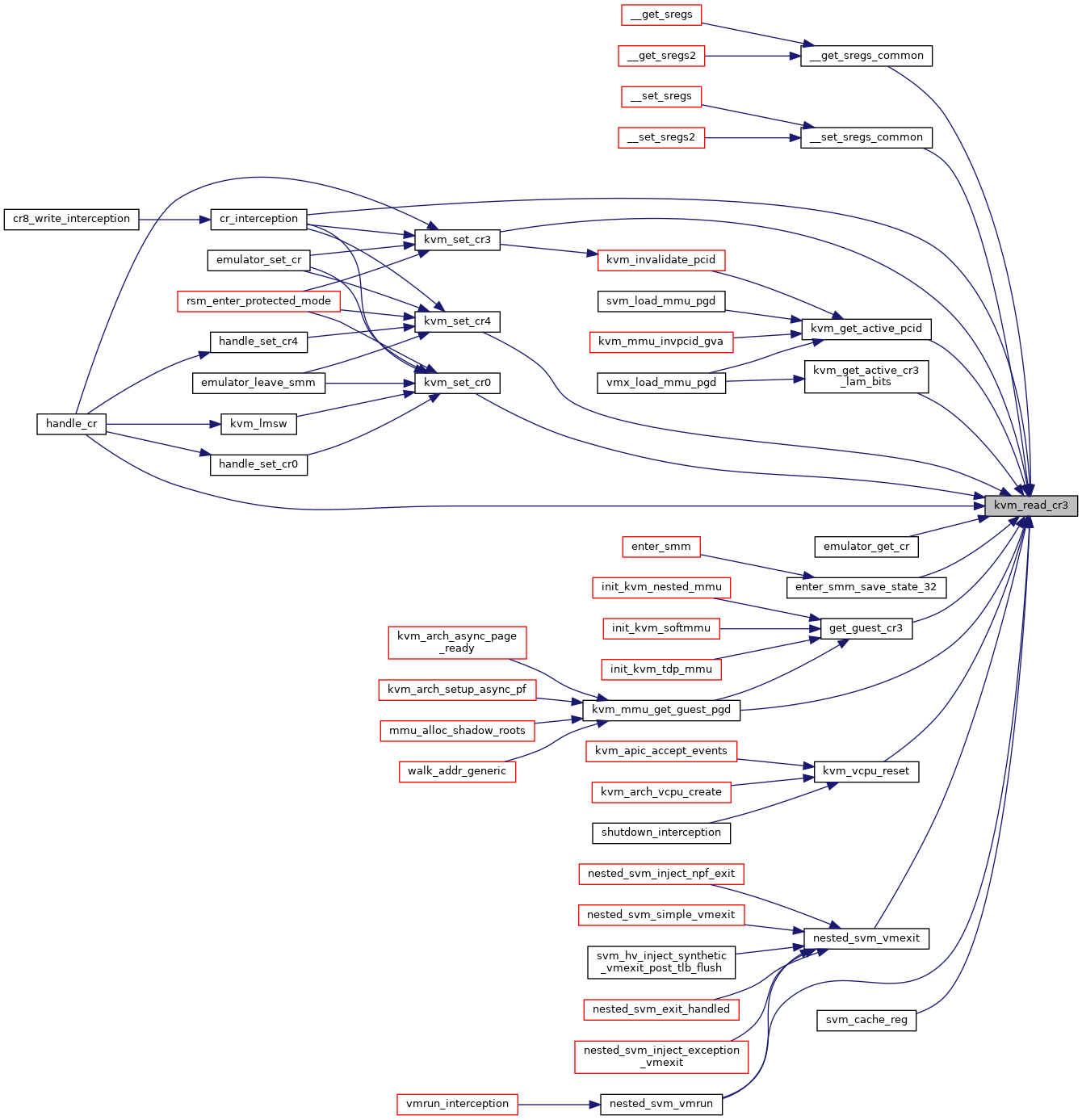

Here is the caller graph for this function:

kvm_read_cr4()

static ulong kvm_read_cr4 ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 197 of file kvm_cache_regs.h.

{
    return kvm_read_cr4_bits(vcpu, ~0UL);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_read_cr4_bits()

static ulong kvm_read_cr4_bits ( struct kvm_vcpu *  vcpu, ulong  mask  )

inlinestatic

Definition at line 173 of file kvm_cache_regs.h.

{
    ulong tmask = mask & KVM_POSSIBLE_CR4_GUEST_BITS;
    if ((tmask & vcpu->arch.cr4_guest_owned_bits) &&
        !kvm_register_is_available(vcpu, VCPU_EXREG_CR4))
        static_call(kvm_x86_cache_reg)(vcpu, VCPU_EXREG_CR4);
    return vcpu->arch.cr4 & mask;
}

Here is the call graph for this function:

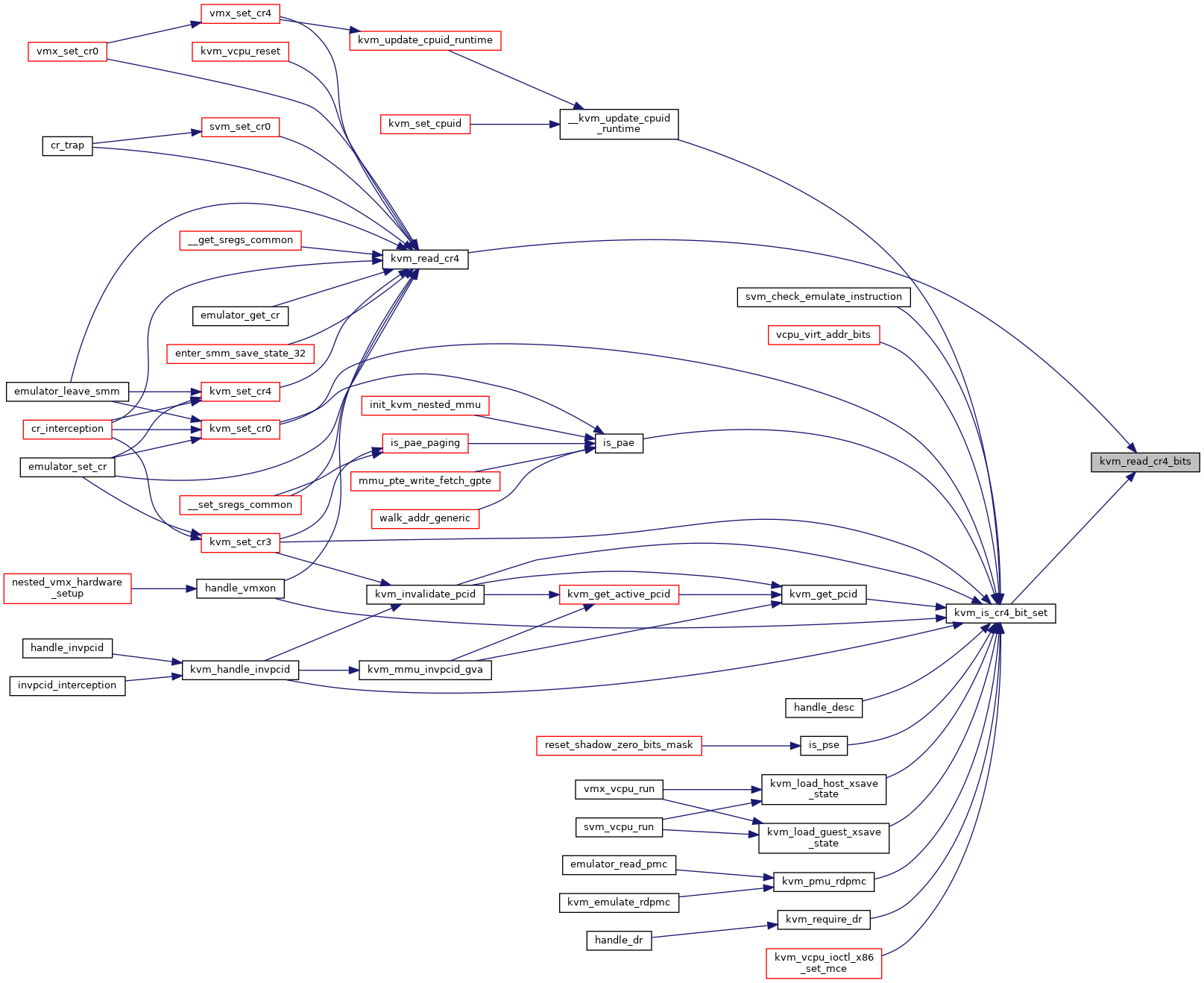

Here is the caller graph for this function:

kvm_read_edx_eax()

static u64 kvm_read_edx_eax ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 202 of file kvm_cache_regs.h.

{
    return (kvm_rax_read(vcpu) & -1u)
        | ((u64)(kvm_rdx_read(vcpu) & -1u) << 32);
}

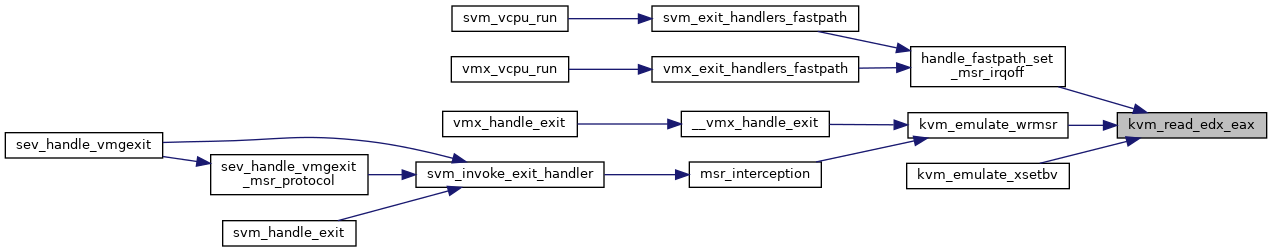

Here is the caller graph for this function:

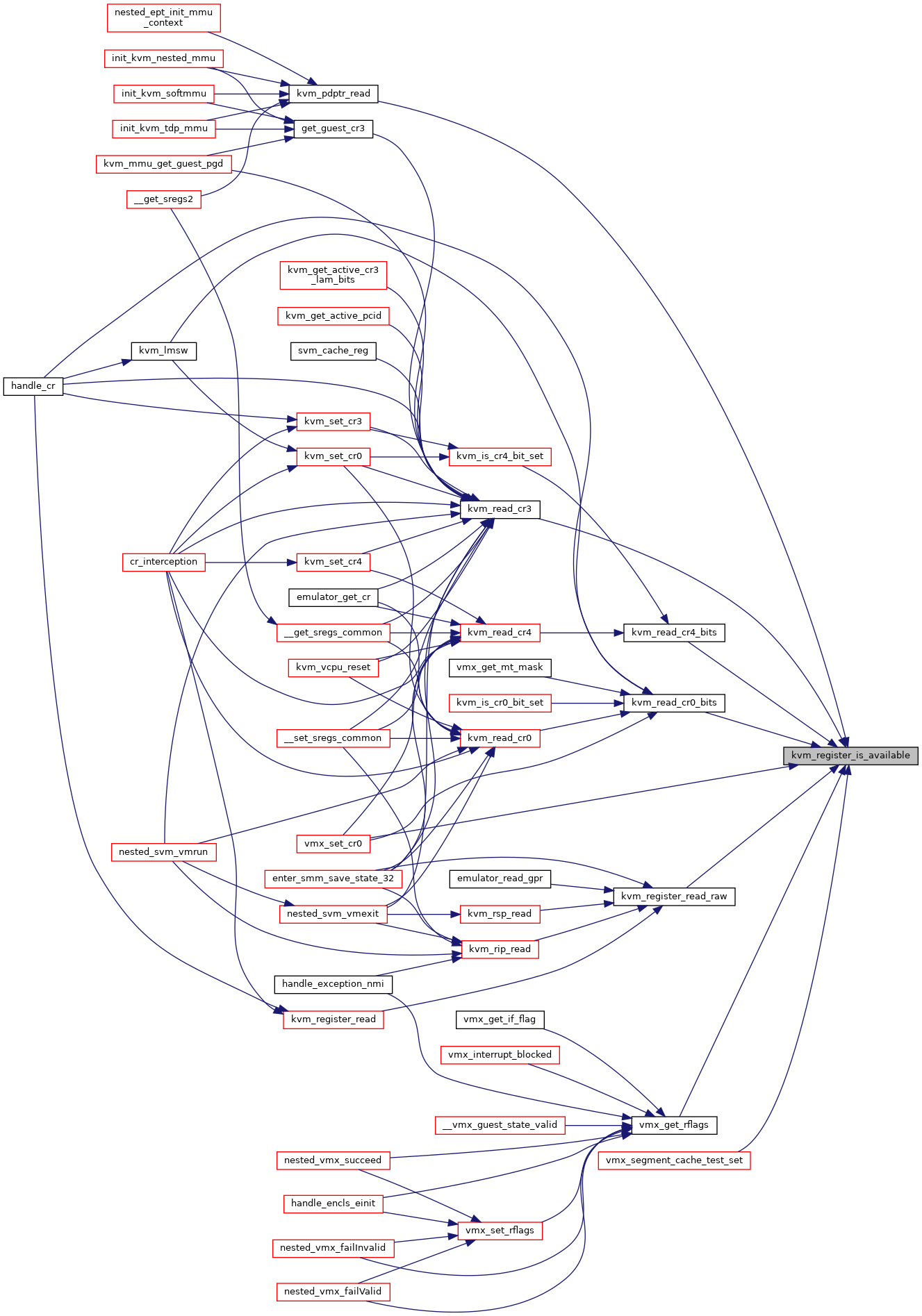

kvm_register_is_available()

static bool kvm_register_is_available ( struct kvm_vcpu *  vcpu, enum kvm_reg  reg  )

inlinestatic

Definition at line 53 of file kvm_cache_regs.h.

{
    return test_bit(reg, (unsigned long *)&vcpu->arch.regs_avail);
}

Here is the caller graph for this function:

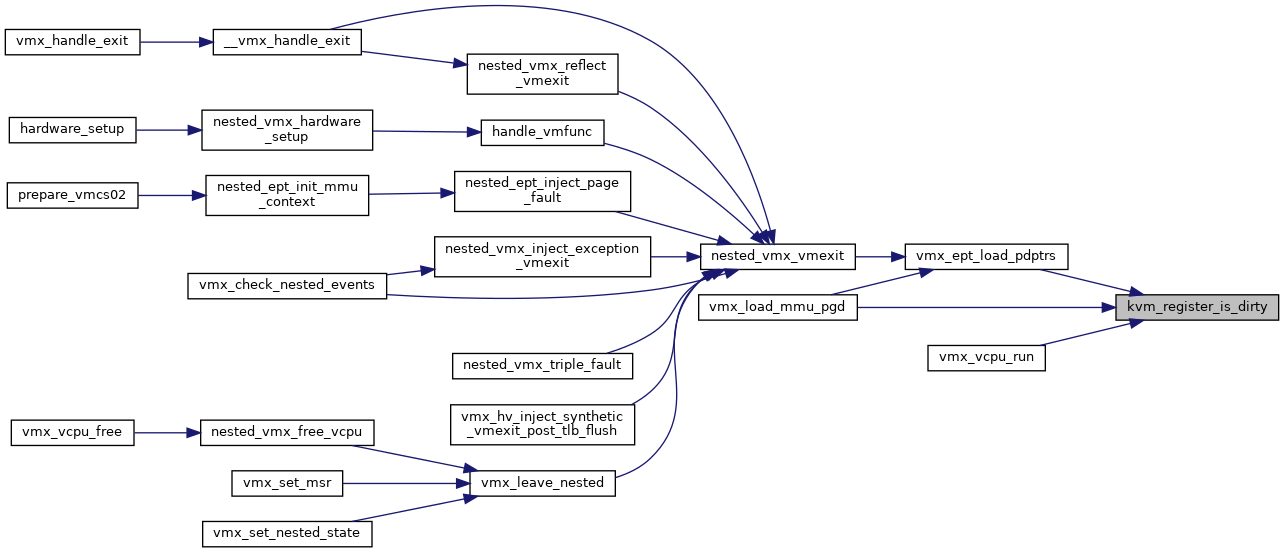

kvm_register_is_dirty()

static bool kvm_register_is_dirty ( struct kvm_vcpu *  vcpu, enum kvm_reg  reg  )

inlinestatic

Definition at line 59 of file kvm_cache_regs.h.

{
    return test_bit(reg, (unsigned long *)&vcpu->arch.regs_dirty);
}

Here is the caller graph for this function:

kvm_register_mark_available()

static void kvm_register_mark_available ( struct kvm_vcpu *  vcpu, enum kvm_reg  reg  )

inlinestatic

Definition at line 65 of file kvm_cache_regs.h.

{
    __set_bit(reg, (unsigned long *)&vcpu->arch.regs_avail);
}

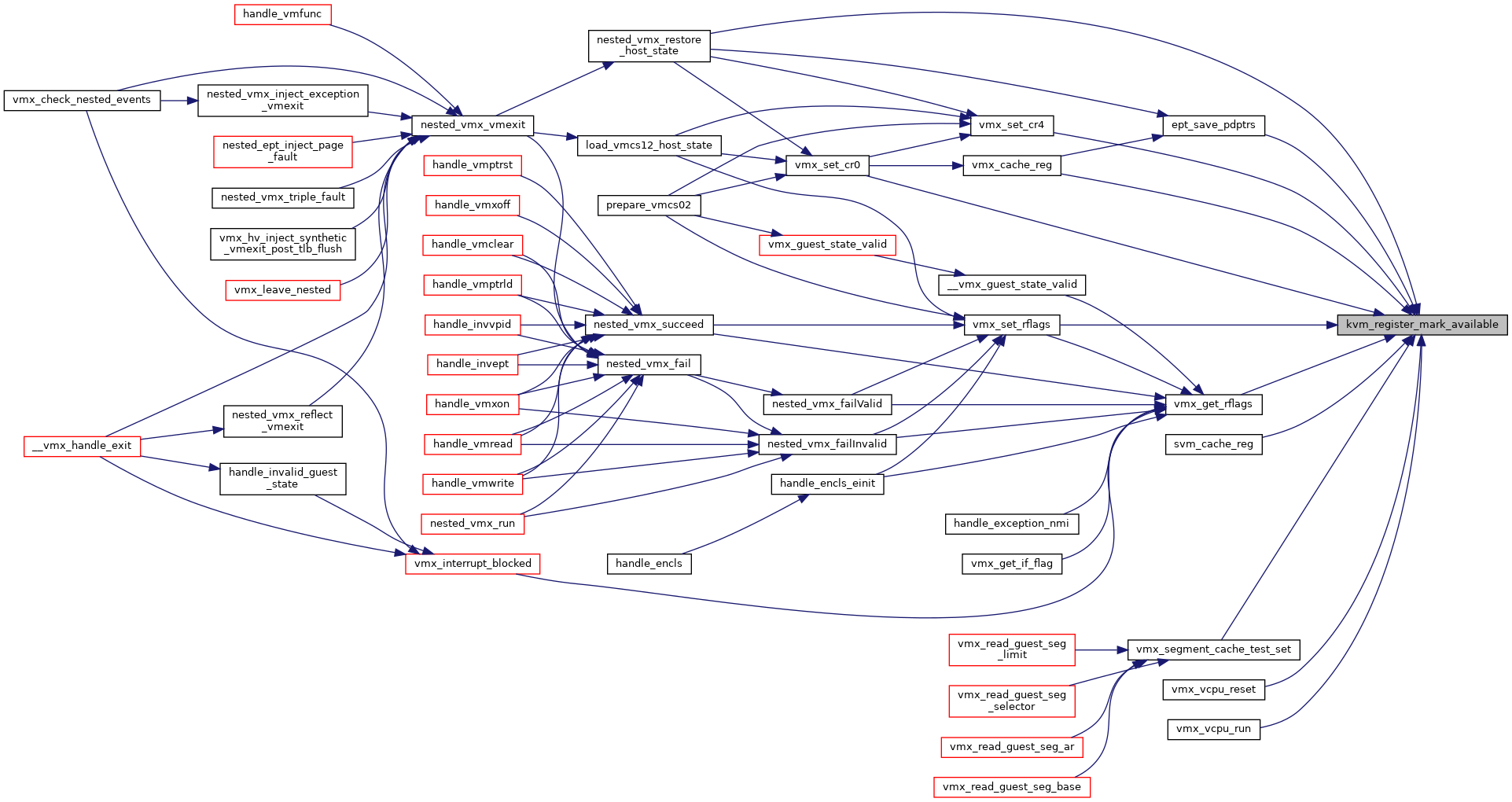

Here is the caller graph for this function:

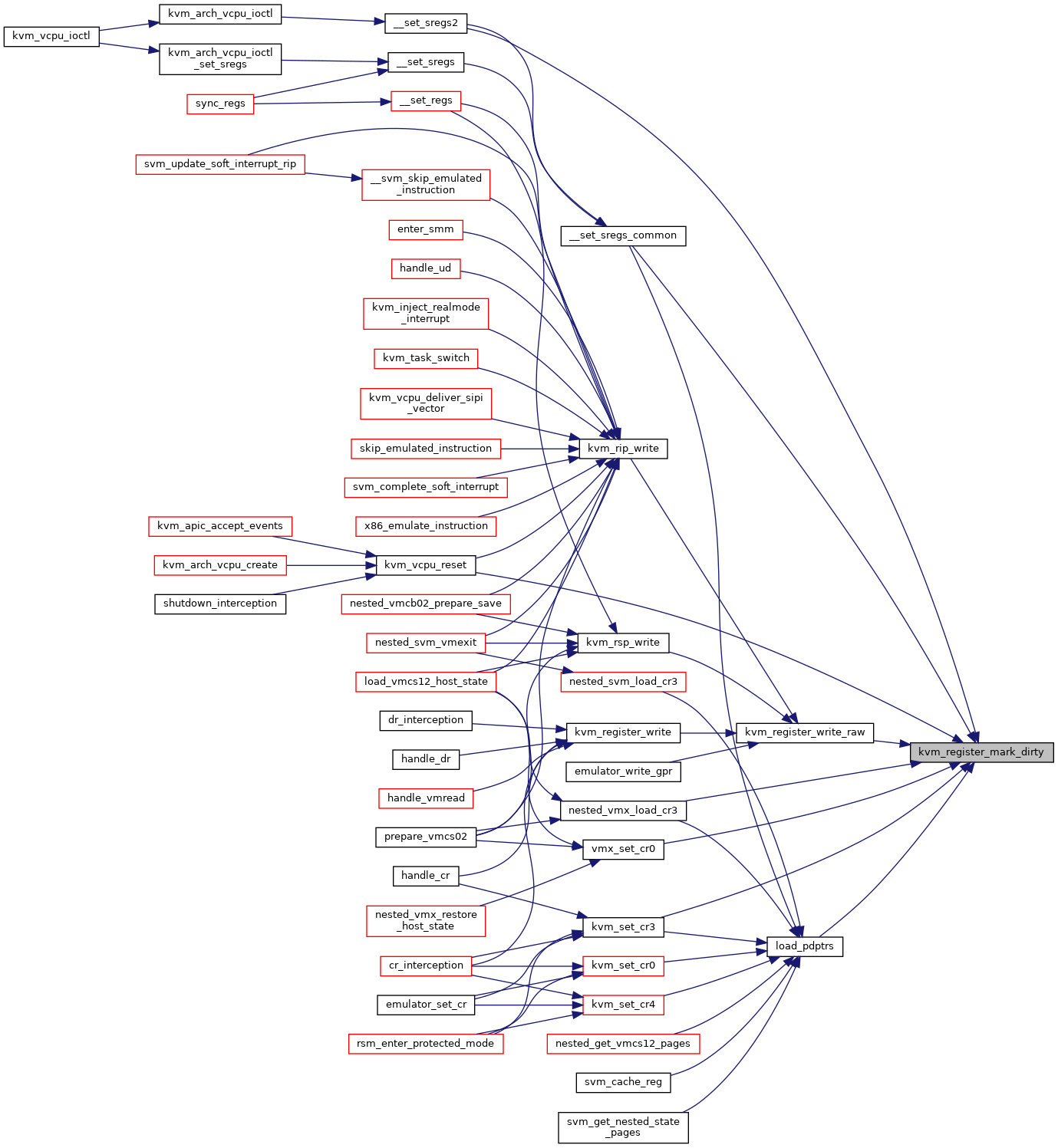

kvm_register_mark_dirty()

static void kvm_register_mark_dirty ( struct kvm_vcpu *  vcpu, enum kvm_reg  reg  )

inlinestatic

Definition at line 71 of file kvm_cache_regs.h.

{
    __set_bit(reg, (unsigned long *)&vcpu->arch.regs_avail);
    __set_bit(reg, (unsigned long *)&vcpu->arch.regs_dirty);
}

Here is the caller graph for this function:

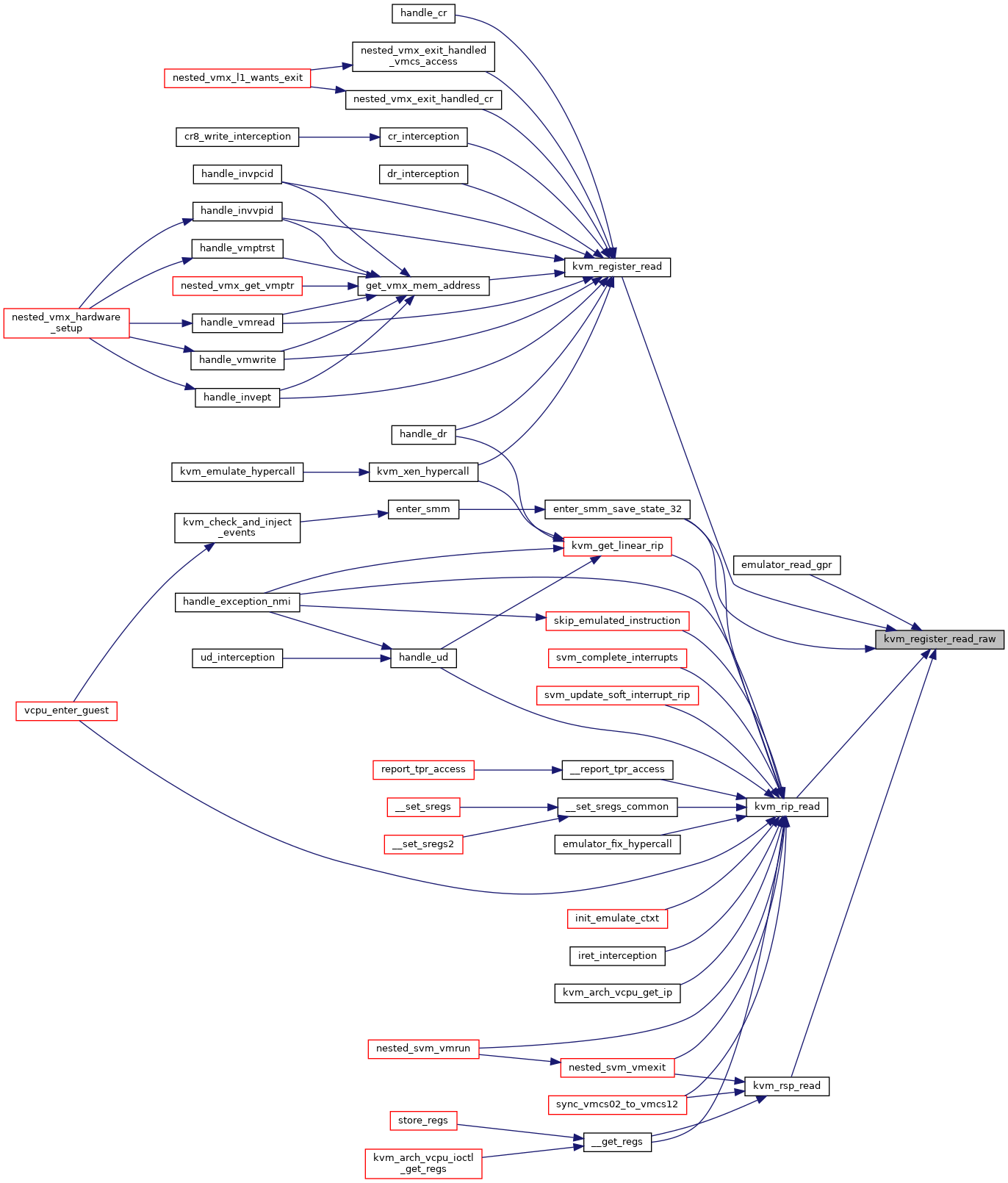

kvm_register_read_raw()

static unsigned long kvm_register_read_raw ( struct kvm_vcpu *  vcpu, int  reg  )

inlinestatic

Definition at line 95 of file kvm_cache_regs.h.

{
    if (WARN_ON_ONCE((unsigned int)reg >= NR_VCPU_REGS))
        return 0;

    if (!kvm_register_is_available(vcpu, reg))
        static_call(kvm_x86_cache_reg)(vcpu, reg);

    return vcpu->arch.regs[reg];
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_register_test_and_mark_available()

static __always_inline bool kvm_register_test_and_mark_available ( struct kvm_vcpu *  vcpu, enum kvm_reg  reg  )

static

Definition at line 84 of file kvm_cache_regs.h.

{
    return arch___test_and_set_bit(reg, (unsigned long *)&vcpu->arch.regs_avail);
}

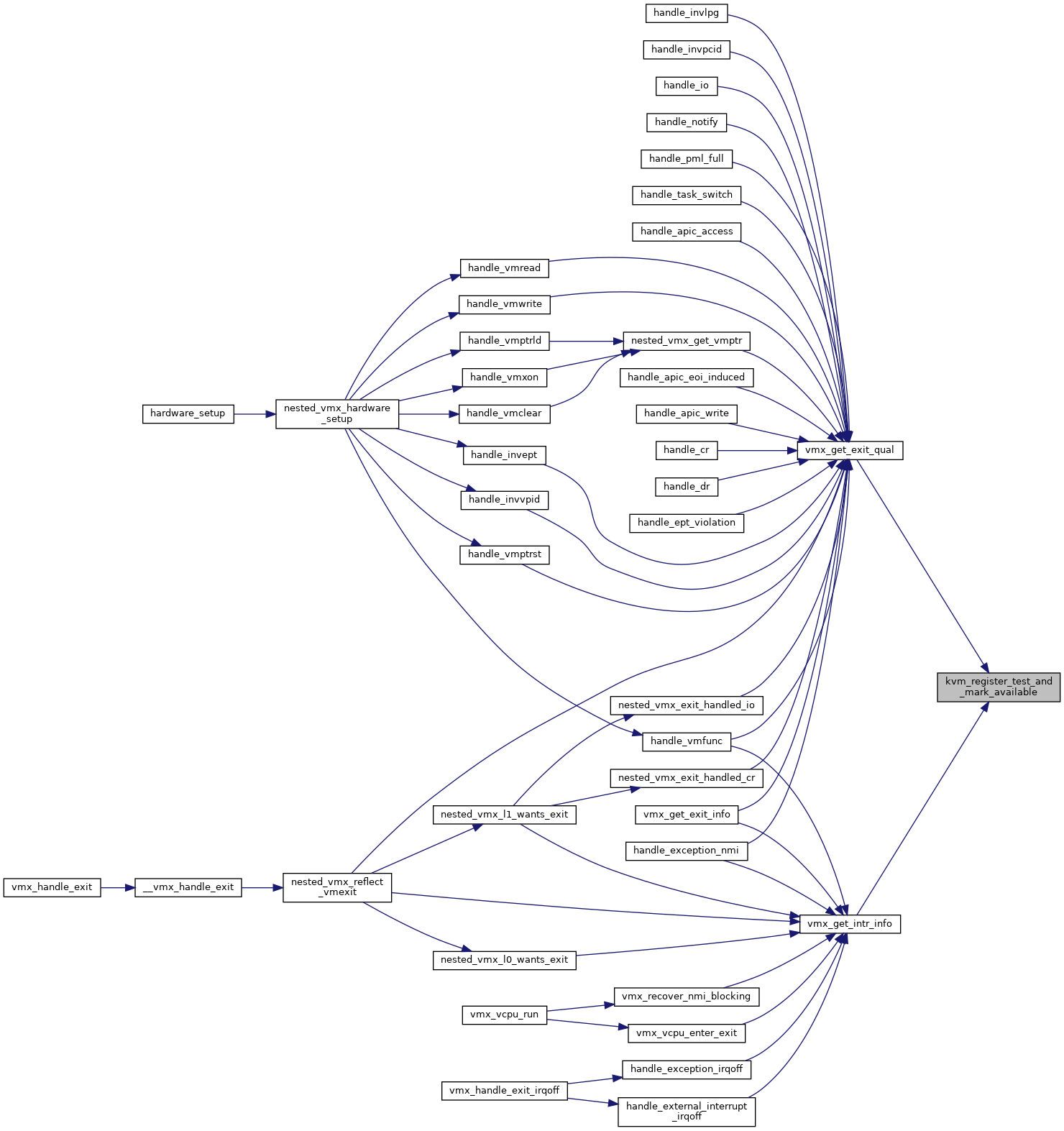

Here is the caller graph for this function:

kvm_register_write_raw()

static void kvm_register_write_raw ( struct kvm_vcpu *  vcpu, int  reg, unsigned long  val  )

inlinestatic

Definition at line 106 of file kvm_cache_regs.h.

{
    if (WARN_ON_ONCE((unsigned int)reg >= NR_VCPU_REGS))
        return;

    vcpu->arch.regs[reg] = val;
    kvm_register_mark_dirty(vcpu, reg);
}

Here is the call graph for this function:

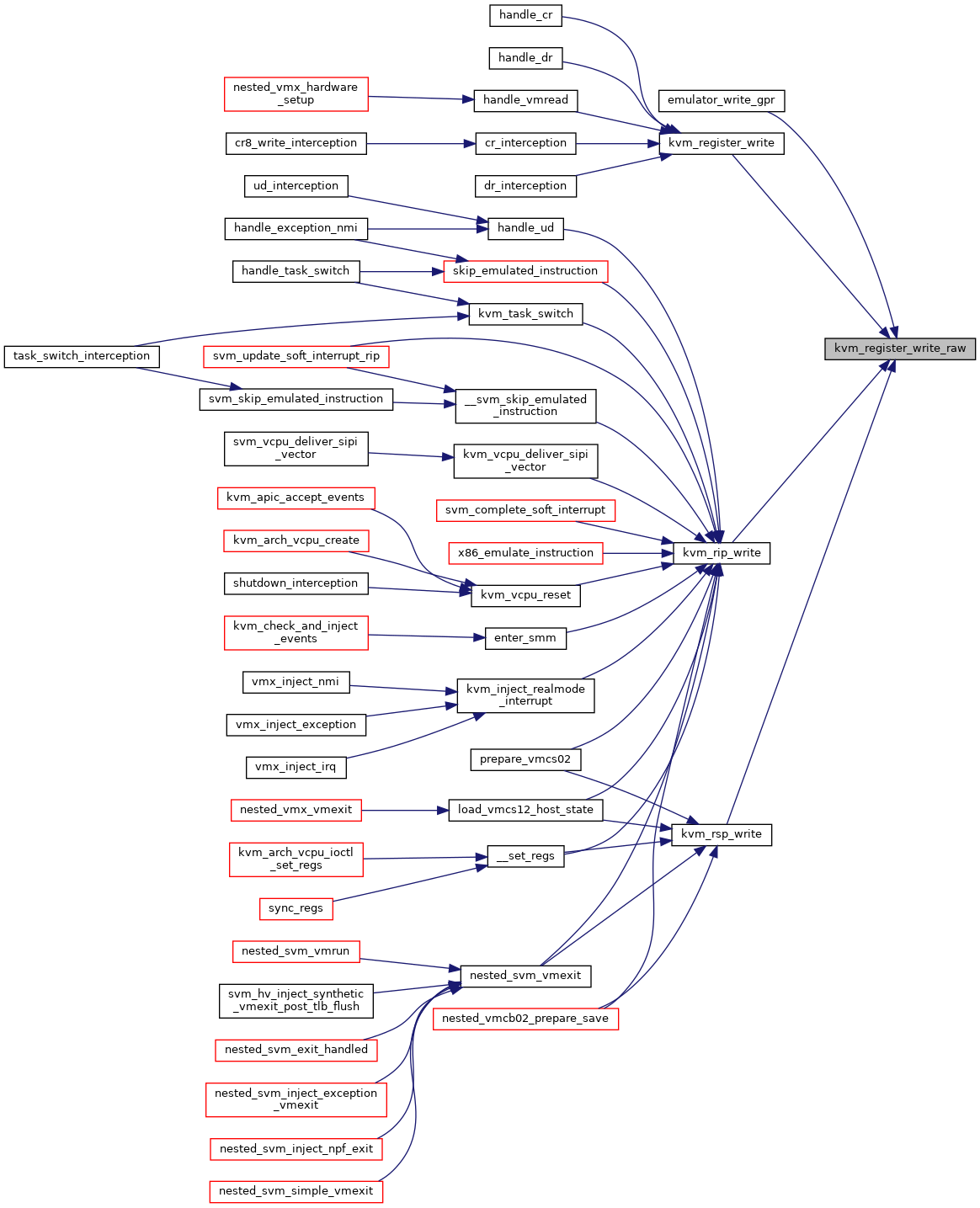

Here is the caller graph for this function:

kvm_rip_read()

static unsigned long kvm_rip_read ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 116 of file kvm_cache_regs.h.

{
    return kvm_register_read_raw(vcpu, VCPU_REGS_RIP);
}

Here is the call graph for this function:

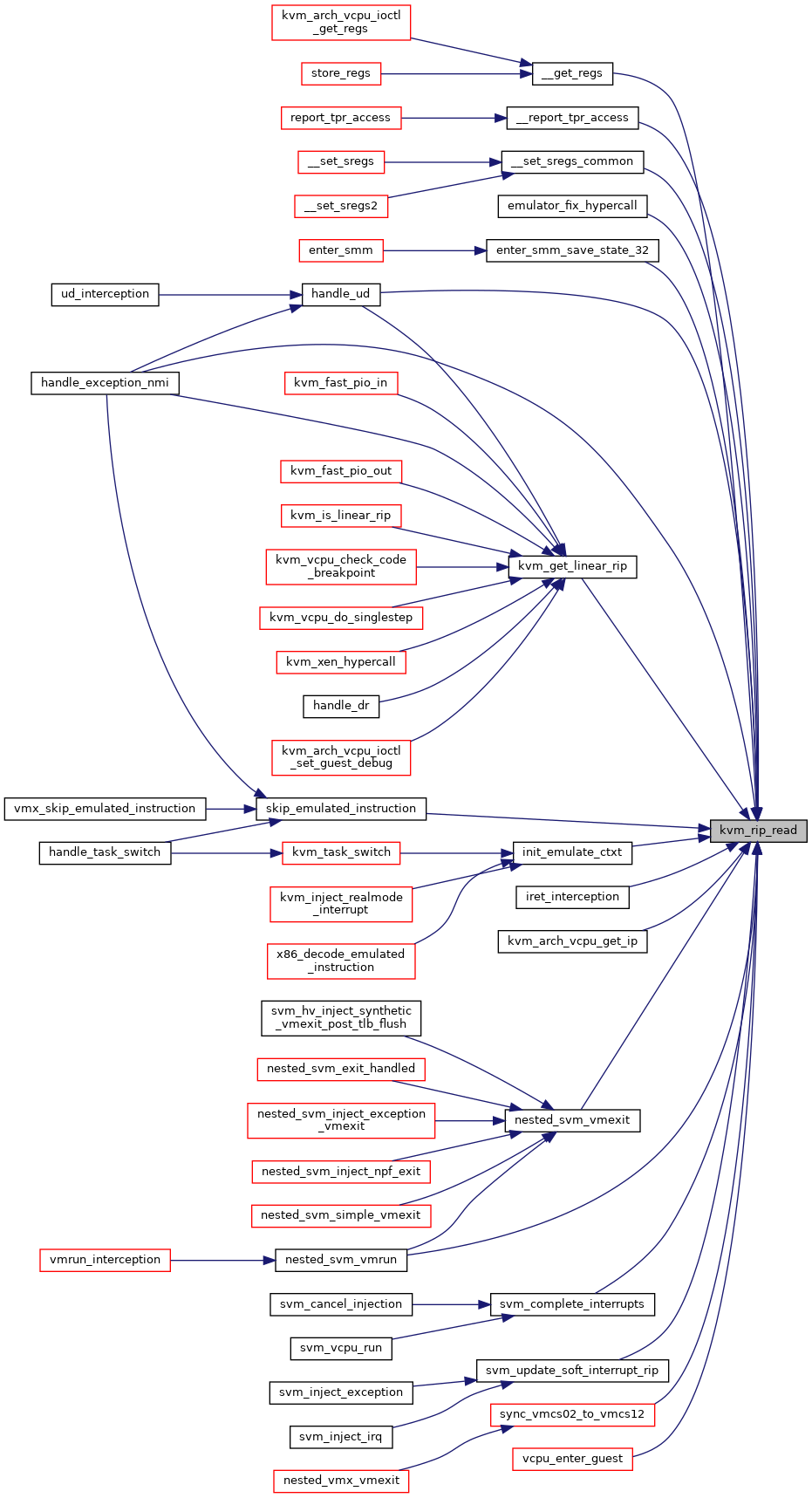

Here is the caller graph for this function:

kvm_rip_write()

static void kvm_rip_write ( struct kvm_vcpu *  vcpu, unsigned long  val  )

inlinestatic

Definition at line 121 of file kvm_cache_regs.h.

{
    kvm_register_write_raw(vcpu, VCPU_REGS_RIP, val);
}

Here is the call graph for this function:

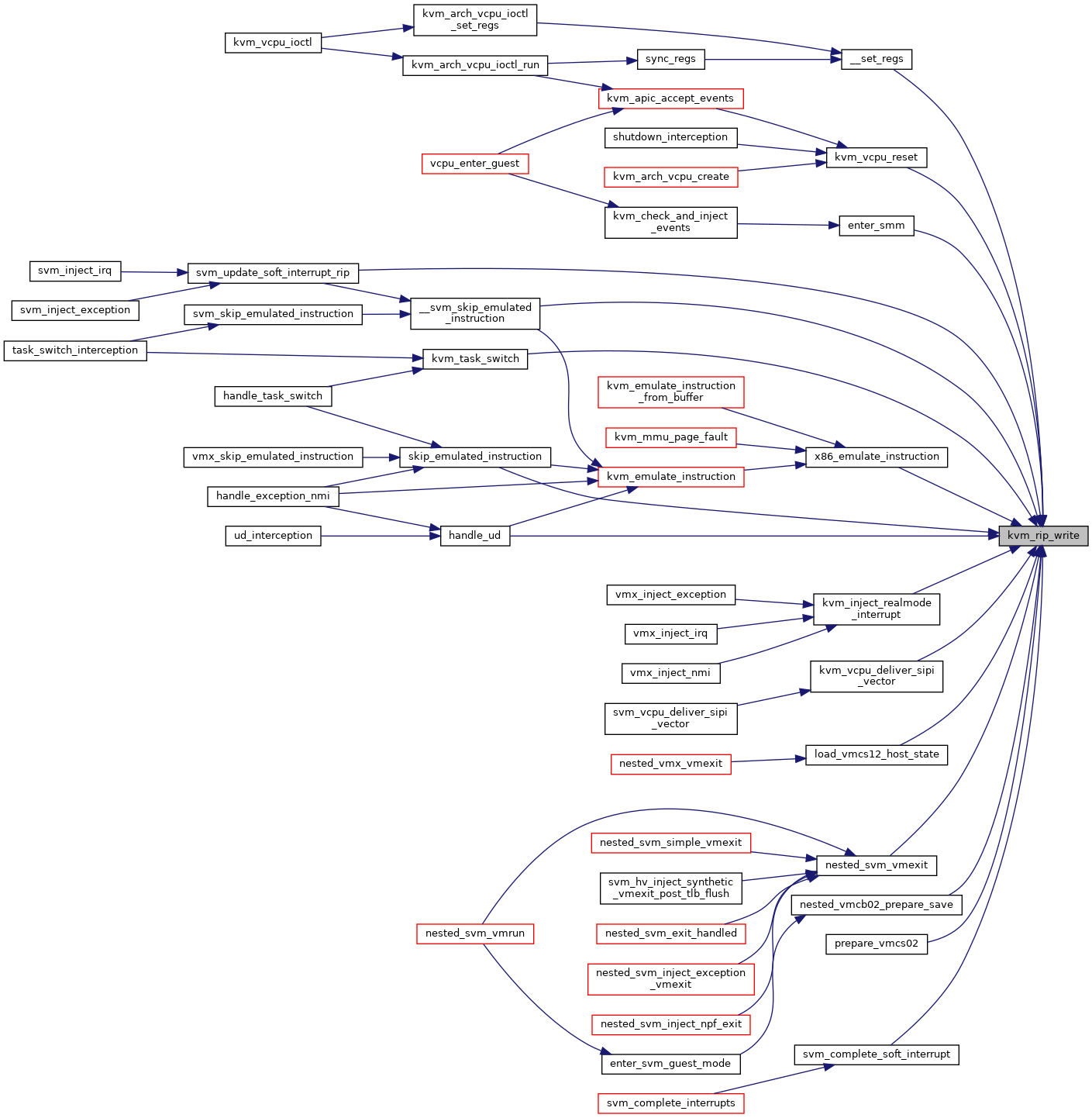

Here is the caller graph for this function:

kvm_rsp_read()

static unsigned long kvm_rsp_read ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 126 of file kvm_cache_regs.h.

{
    return kvm_register_read_raw(vcpu, VCPU_REGS_RSP);
}

Here is the call graph for this function:

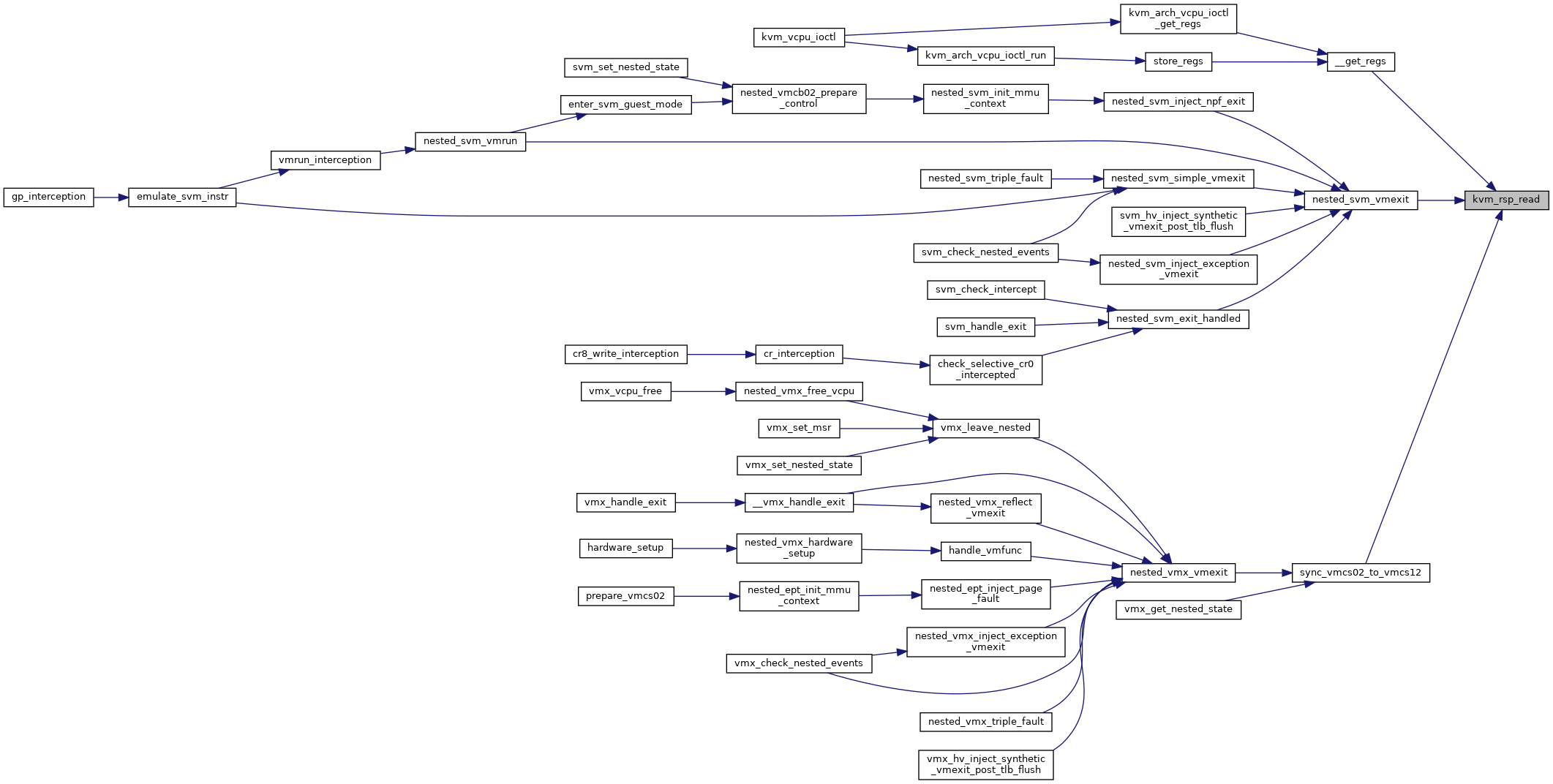

Here is the caller graph for this function:

kvm_rsp_write()

static void kvm_rsp_write ( struct kvm_vcpu *  vcpu, unsigned long  val  )

inlinestatic

Definition at line 131 of file kvm_cache_regs.h.

{
    kvm_register_write_raw(vcpu, VCPU_REGS_RSP, val);
}

Here is the call graph for this function:

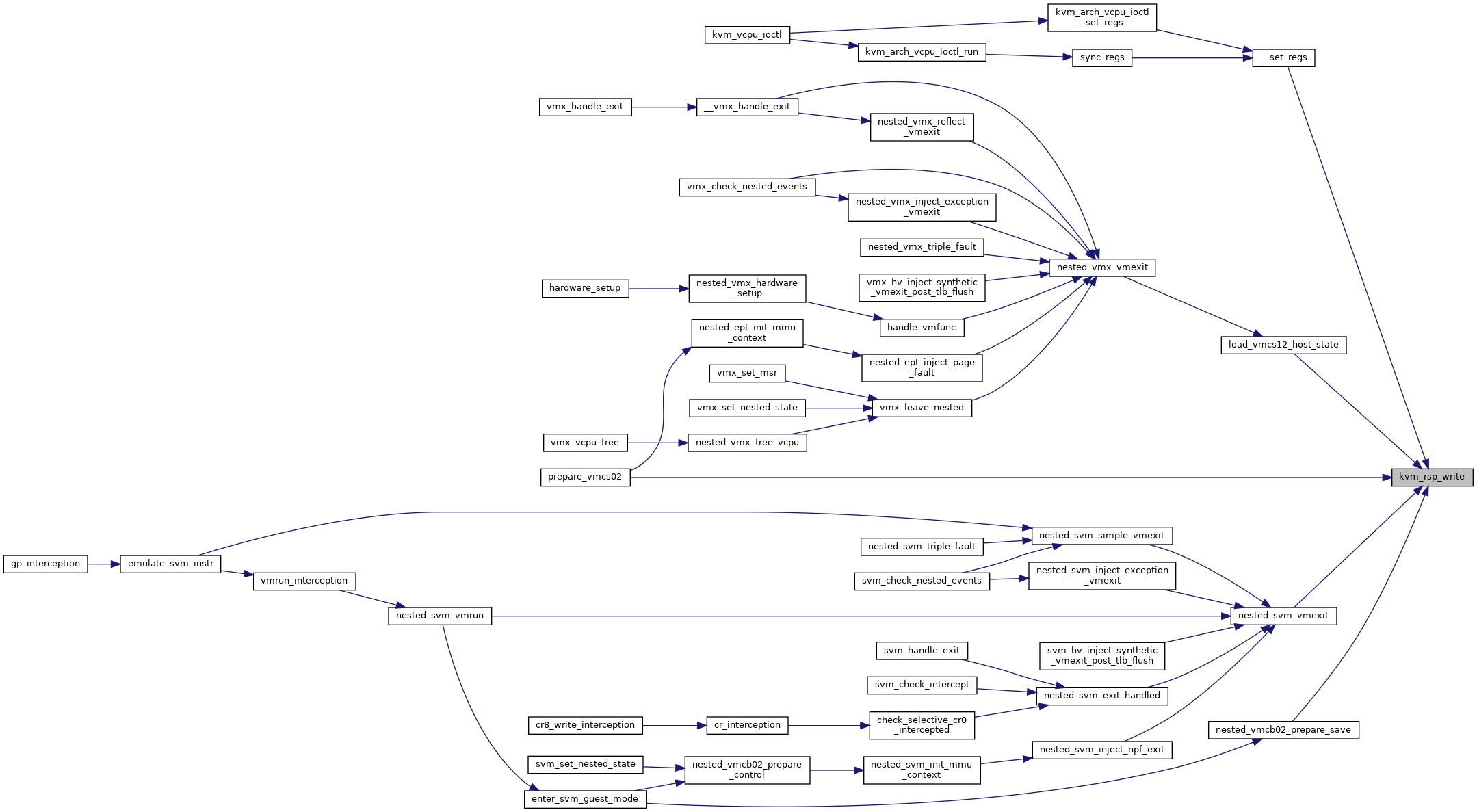

Here is the caller graph for this function:

leave_guest_mode()

static void leave_guest_mode ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 214 of file kvm_cache_regs.h.

{
    vcpu->arch.hflags &= ~HF_GUEST_MASK;

    if (vcpu->arch.load_eoi_exitmap_pending) {
        vcpu->arch.load_eoi_exitmap_pending = false;
        kvm_make_request(KVM_REQ_LOAD_EOI_EXITMAP, vcpu);
    }

    vcpu->stat.guest_mode = 0;
}

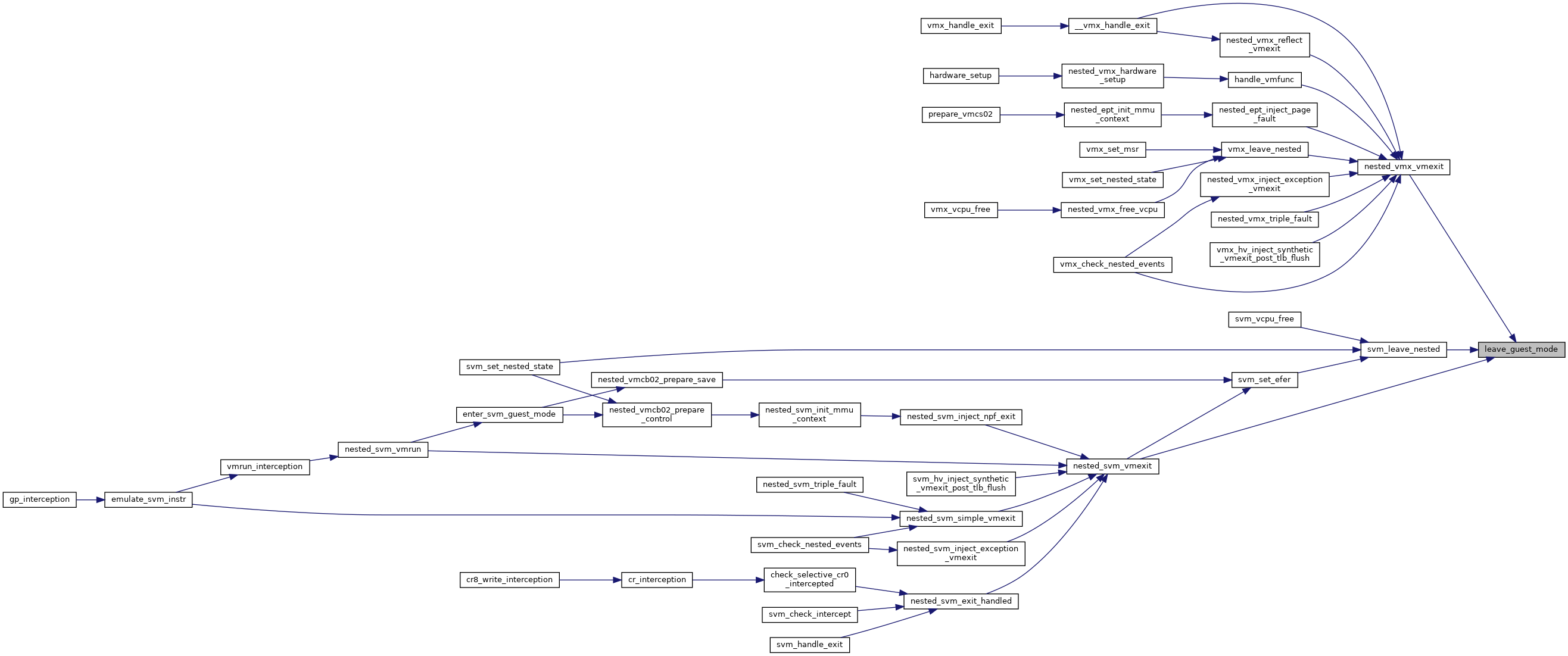

Here is the caller graph for this function:
