kvm_onhyperv.c File Reference

#include <linux/kvm_host.h>
#include <asm/mshyperv.h>
#include "hyperv.h"
#include "kvm_onhyperv.h"

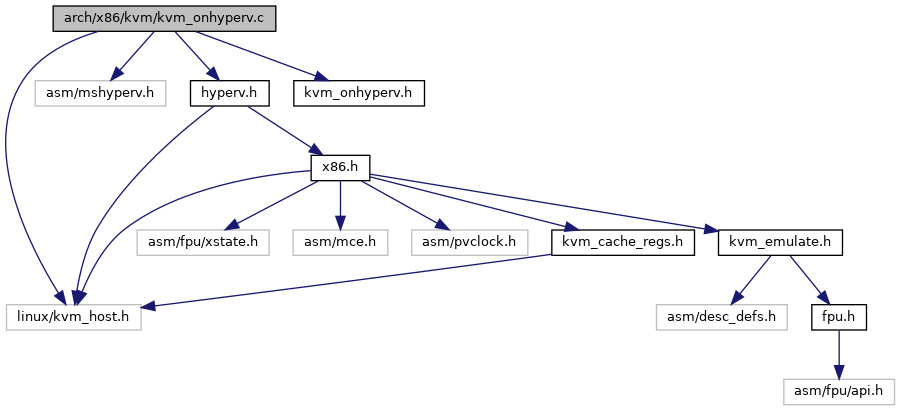

Include dependency graph for kvm_onhyperv.c:

Go to the source code of this file.

Classes
struct	kvm_hv_tlb_range

Macros
#define	pr_fmt(fmt)   KBUILD_MODNAME ": " fmt

Functions
static int	kvm_fill_hv_flush_list_func (struct hv_guest_mapping_flush_list *flush, void *data)
static int	hv_remote_flush_root_tdp (hpa_t root_tdp, struct kvm_hv_tlb_range *range)
static int	__hv_flush_remote_tlbs_range (struct kvm *kvm, struct kvm_hv_tlb_range *range)
int	hv_flush_remote_tlbs_range (struct kvm *kvm, gfn_t start_gfn, gfn_t nr_pages)
	EXPORT_SYMBOL_GPL (hv_flush_remote_tlbs_range)
int	hv_flush_remote_tlbs (struct kvm *kvm)
	EXPORT_SYMBOL_GPL (hv_flush_remote_tlbs)
void	hv_track_root_tdp (struct kvm_vcpu *vcpu, hpa_t root_tdp)
	EXPORT_SYMBOL_GPL (hv_track_root_tdp)

Macro Definition Documentation

pr_fmt

#define pr_fmt

(

fmt

)

KBUILD_MODNAME ": " fmt

Definition at line 5 of file kvm_onhyperv.c.

Function Documentation

__hv_flush_remote_tlbs_range()

static int __hv_flush_remote_tlbs_range ( struct kvm *  kvm, struct kvm_hv_tlb_range *  range  )

static

Definition at line 37 of file kvm_onhyperv.c.

{
    struct kvm_arch *kvm_arch = &kvm->arch;
    struct kvm_vcpu *vcpu;
    int ret = 0, nr_unique_valid_roots;
    unsigned long i;
    hpa_t root;

    spin_lock(&kvm_arch->hv_root_tdp_lock);

    if (!VALID_PAGE(kvm_arch->hv_root_tdp)) {
        nr_unique_valid_roots = 0;

        /*
         * Flush all valid roots, and see if all vCPUs have converged
         * on a common root, in which case future flushes can skip the
         * loop and flush the common root.
         */
        kvm_for_each_vcpu(i, vcpu, kvm) {
            root = vcpu->arch.hv_root_tdp;
            if (!VALID_PAGE(root) || root == kvm_arch->hv_root_tdp)
                continue;

            /*
             * Set the tracked root to the first valid root.  Keep
             * this root for the entirety of the loop even if more
             * roots are encountered as a low effort optimization
             * to avoid flushing the same (first) root again.
             */
            if (++nr_unique_valid_roots == 1)
                kvm_arch->hv_root_tdp = root;

            if (!ret)
                ret = hv_remote_flush_root_tdp(root, range);

            /*
             * Stop processing roots if a failure occurred and
             * multiple valid roots have already been detected.
             */
            if (ret && nr_unique_valid_roots > 1)
                break;
        }

        /*
         * The optimized flush of a single root can't be used if there
         * are multiple valid roots (obviously).
         */
        if (nr_unique_valid_roots > 1)
            kvm_arch->hv_root_tdp = INVALID_PAGE;
    } else {
        ret = hv_remote_flush_root_tdp(kvm_arch->hv_root_tdp, range);
    }

    spin_unlock(&kvm_arch->hv_root_tdp_lock);
    return ret;
}

Here is the call graph for this function:

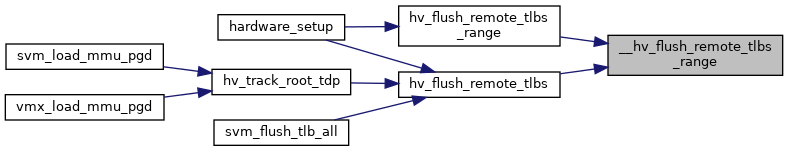

Here is the caller graph for this function:

EXPORT_SYMBOL_GPL() [1/3]

EXPORT_SYMBOL_GPL

(

hv_flush_remote_tlbs

)

EXPORT_SYMBOL_GPL() [2/3]

EXPORT_SYMBOL_GPL

(

hv_flush_remote_tlbs_range

)

EXPORT_SYMBOL_GPL() [3/3]

EXPORT_SYMBOL_GPL

(

hv_track_root_tdp

)

hv_flush_remote_tlbs()

int hv_flush_remote_tlbs

(

struct kvm *

kvm

)

Definition at line 106 of file kvm_onhyperv.c.

{
    return __hv_flush_remote_tlbs_range(kvm, NULL);
}

Here is the call graph for this function:

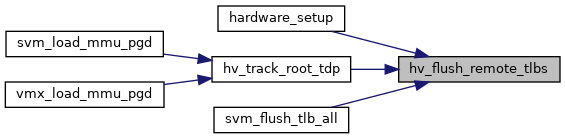

Here is the caller graph for this function:

hv_flush_remote_tlbs_range()

int hv_flush_remote_tlbs_range	(	struct kvm *	kvm,
		gfn_t	start_gfn,
		gfn_t	nr_pages
	)

Definition at line 95 of file kvm_onhyperv.c.

{
    struct kvm_hv_tlb_range range = {
        .start_gfn = start_gfn,
        .pages = nr_pages,
    };

    return __hv_flush_remote_tlbs_range(kvm, &range);
}

Here is the call graph for this function:

Here is the caller graph for this function:

hv_remote_flush_root_tdp()

static int hv_remote_flush_root_tdp ( hpa_t  root_tdp, struct kvm_hv_tlb_range *  range  )

inlinestatic

Definition at line 27 of file kvm_onhyperv.c.

{
    if (range)
        return hyperv_flush_guest_mapping_range(root_tdp,
                kvm_fill_hv_flush_list_func, (void *)range);
    else
        return hyperv_flush_guest_mapping(root_tdp);
}

Here is the call graph for this function:

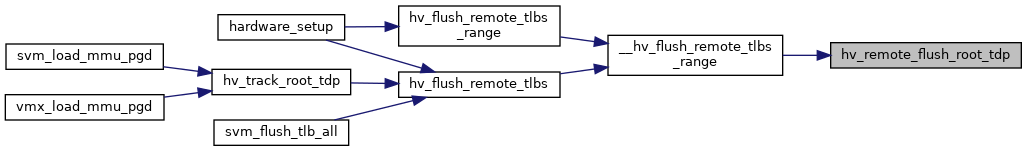

Here is the caller graph for this function:

hv_track_root_tdp()

void hv_track_root_tdp	(	struct kvm_vcpu *	vcpu,
		hpa_t	root_tdp
	)

Definition at line 112 of file kvm_onhyperv.c.

{
    struct kvm_arch *kvm_arch = &vcpu->kvm->arch;

    if (kvm_x86_ops.flush_remote_tlbs == hv_flush_remote_tlbs) {
        spin_lock(&kvm_arch->hv_root_tdp_lock);
        vcpu->arch.hv_root_tdp = root_tdp;
        if (root_tdp != kvm_arch->hv_root_tdp)
            kvm_arch->hv_root_tdp = INVALID_PAGE;
        spin_unlock(&kvm_arch->hv_root_tdp_lock);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_fill_hv_flush_list_func()

static int kvm_fill_hv_flush_list_func ( struct hv_guest_mapping_flush_list *  flush, void *  data  )

static

Definition at line 18 of file kvm_onhyperv.c.

{
    struct kvm_hv_tlb_range *range = data;

    return hyperv_fill_flush_guest_mapping_list(flush, range->start_gfn,
            range->pages);
}

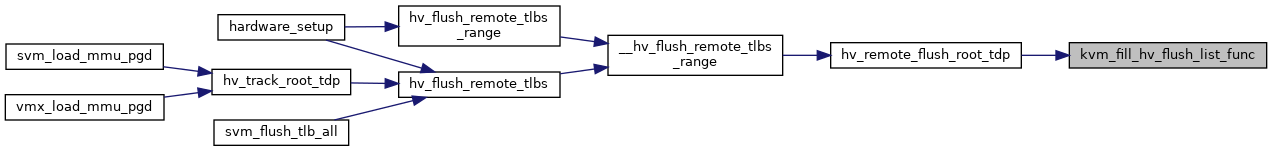

Here is the caller graph for this function:
