vmcs.h File Reference

#include <linux/ktime.h>
#include <linux/list.h>
#include <linux/nospec.h>
#include <asm/kvm.h>
#include <asm/vmx.h>
#include "capabilities.h"

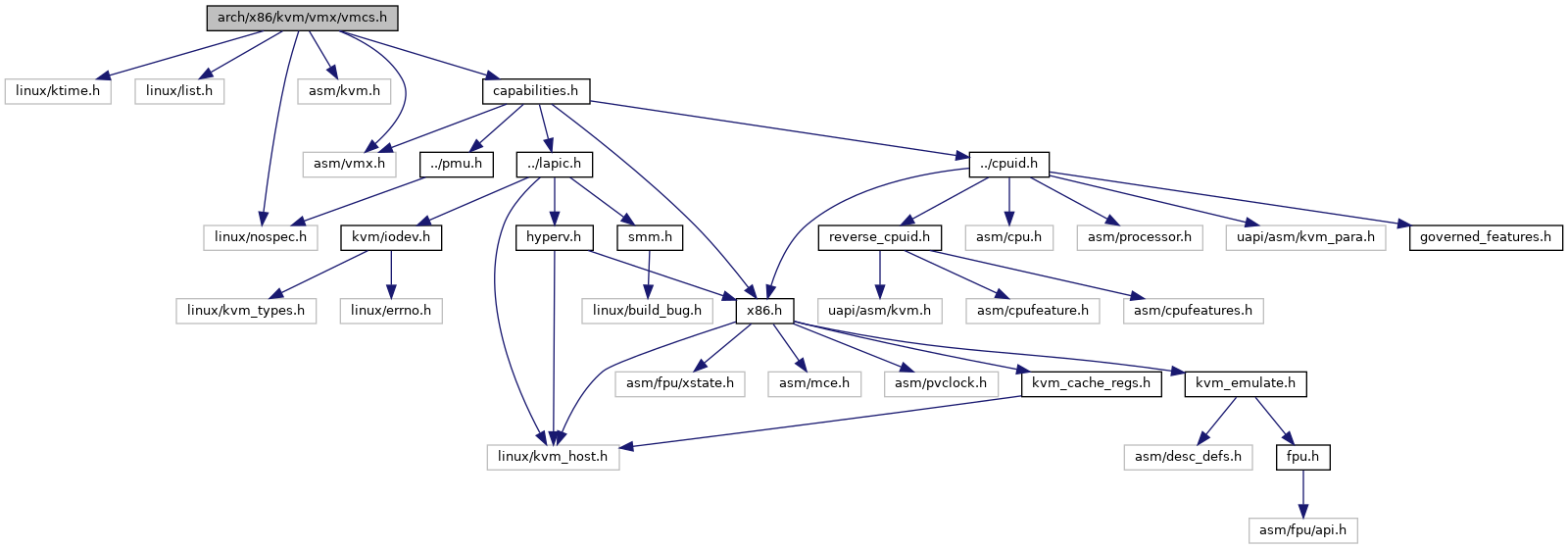

Include dependency graph for vmcs.h:

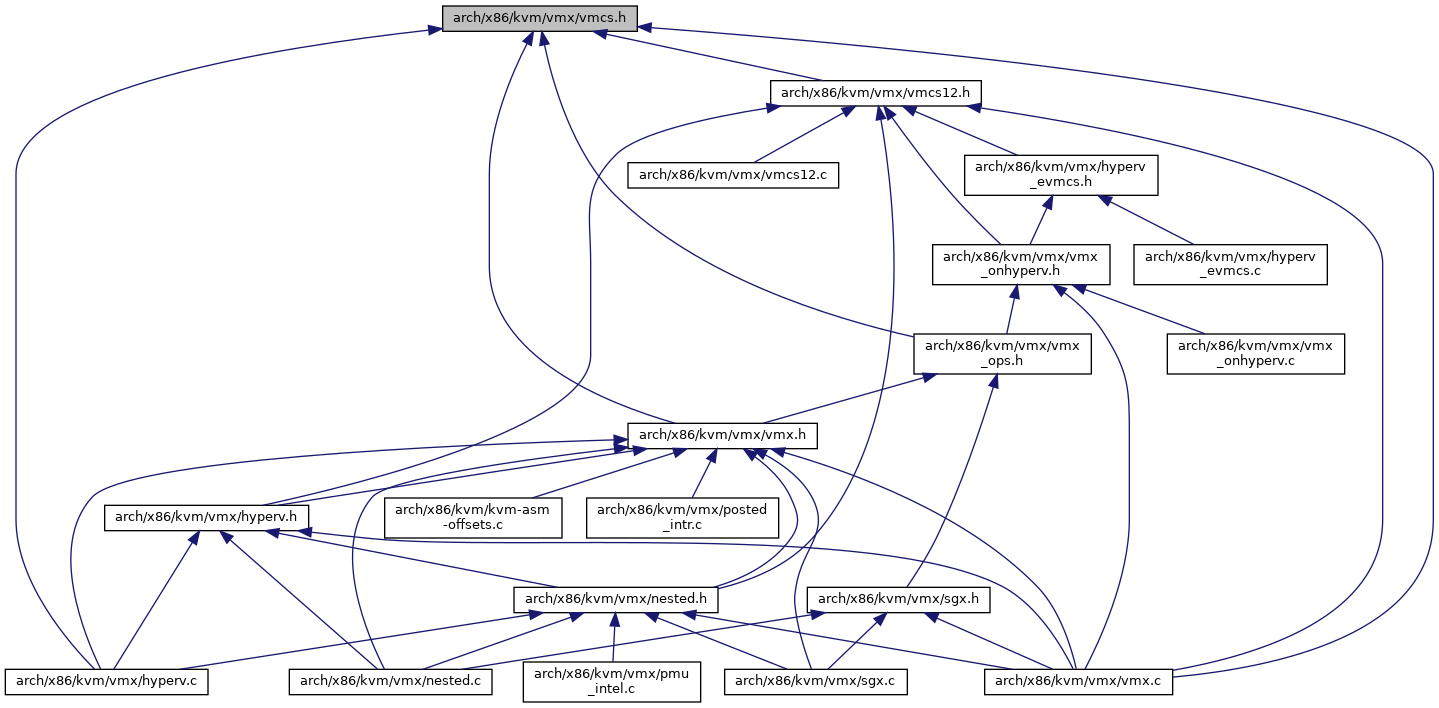

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	vmcs_hdr
struct	vmcs
struct	vmcs_host_state
struct	vmcs_controls_shadow
struct	loaded_vmcs

Macros
#define	ROL16(val, n)   ((u16)(((u16)(val) << (n)) | ((u16)(val) >> (16 - (n)))))
#define	VMCS_FIELD_INDEX_SHIFT   (1)
#define	VMCS_FIELD_INDEX_MASK   GENMASK(9, 1)

Enumerations
enum	vmcs_field_width { VMCS_FIELD_WIDTH_U16 = 0 , VMCS_FIELD_WIDTH_U64 = 1 , VMCS_FIELD_WIDTH_U32 = 2 , VMCS_FIELD_WIDTH_NATURAL_WIDTH = 3 }

Functions
	DECLARE_PER_CPU (struct vmcs *, current_vmcs)
static __always_inline bool	is_intr_type (u32 intr_info, u32 type)
static bool	is_intr_type_n (u32 intr_info, u32 type, u8 vector)
static bool	is_exception_n (u32 intr_info, u8 vector)
static bool	is_debug (u32 intr_info)
static bool	is_breakpoint (u32 intr_info)
static bool	is_double_fault (u32 intr_info)
static bool	is_page_fault (u32 intr_info)
static bool	is_invalid_opcode (u32 intr_info)
static bool	is_gp_fault (u32 intr_info)
static bool	is_alignment_check (u32 intr_info)
static bool	is_machine_check (u32 intr_info)
static bool	is_nm_fault (u32 intr_info)
static bool	is_icebp (u32 intr_info)
static __always_inline bool	is_nmi (u32 intr_info)
static bool	is_external_intr (u32 intr_info)
static bool	is_exception_with_error_code (u32 intr_info)
static int	vmcs_field_width (unsigned long field)
static int	vmcs_field_readonly (unsigned long field)
static unsigned int	vmcs_field_index (unsigned long field)

Macro Definition Documentation

ROL16

#define ROL16	(		val,
			n
	)		((u16)(((u16)(val) << (n)) | ((u16)(val) >> (16 - (n)))))

Definition at line 14 of file vmcs.h.

VMCS_FIELD_INDEX_MASK

#define VMCS_FIELD_INDEX_MASK   GENMASK(9, 1)

Definition at line 186 of file vmcs.h.

VMCS_FIELD_INDEX_SHIFT

#define VMCS_FIELD_INDEX_SHIFT   (1)

Definition at line 185 of file vmcs.h.

Enumeration Type Documentation

vmcs_field_width

enum vmcs_field_width

Enumerator
VMCS_FIELD_WIDTH_U16
VMCS_FIELD_WIDTH_U64
VMCS_FIELD_WIDTH_U32
VMCS_FIELD_WIDTH_NATURAL_WIDTH

Definition at line 166 of file vmcs.h.

                      {
    VMCS_FIELD_WIDTH_U16 = 0,
    VMCS_FIELD_WIDTH_U64 = 1,
    VMCS_FIELD_WIDTH_U32 = 2,
    VMCS_FIELD_WIDTH_NATURAL_WIDTH = 3
};

Function Documentation

DECLARE_PER_CPU()

DECLARE_PER_CPU	(	struct vmcs *	,
		current_vmcs
	)

is_alignment_check()

static bool is_alignment_check ( u32  intr_info )

inlinestatic

Definition at line 128 of file vmcs.h.

{
    return is_exception_n(intr_info, AC_VECTOR);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_breakpoint()

static bool is_breakpoint ( u32  intr_info )

inlinestatic

Definition at line 103 of file vmcs.h.

{
    return is_exception_n(intr_info, BP_VECTOR);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_debug()

static bool is_debug ( u32  intr_info )

inlinestatic

Definition at line 98 of file vmcs.h.

{
    return is_exception_n(intr_info, DB_VECTOR);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_double_fault()

static bool is_double_fault ( u32  intr_info )

inlinestatic

Definition at line 108 of file vmcs.h.

{
    return is_exception_n(intr_info, DF_VECTOR);
}

Here is the call graph for this function:

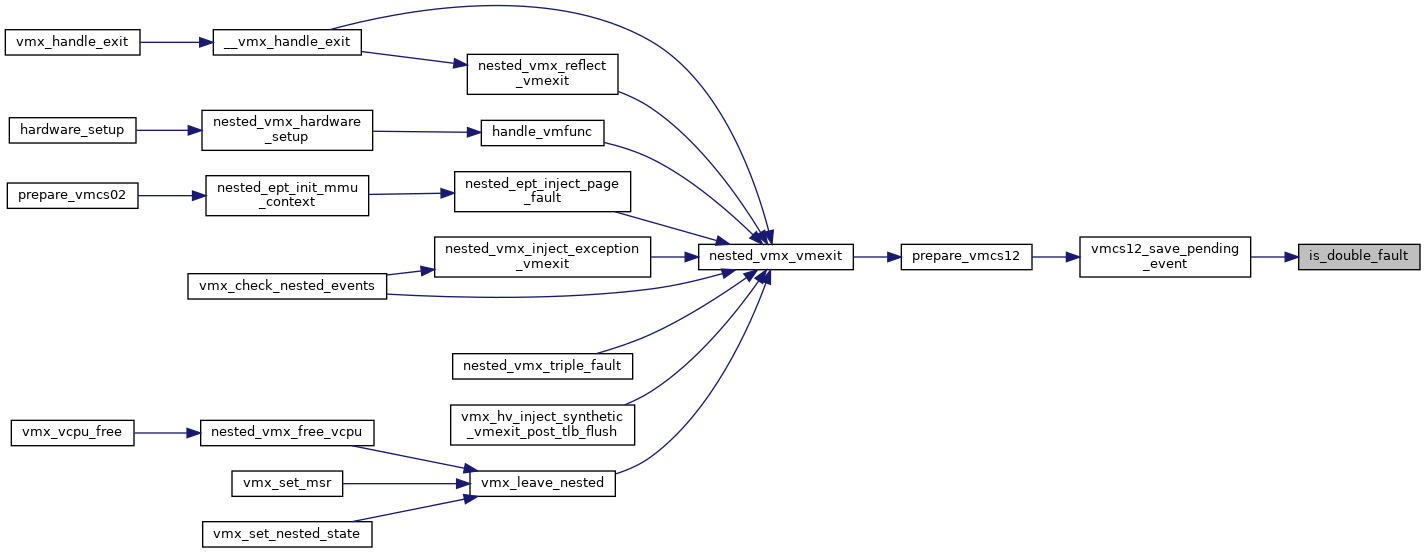

Here is the caller graph for this function:

is_exception_n()

static bool is_exception_n ( u32  intr_info, u8  vector  )

inlinestatic

Definition at line 93 of file vmcs.h.

{
    return is_intr_type_n(intr_info, INTR_TYPE_HARD_EXCEPTION, vector);
}

Here is the call graph for this function:

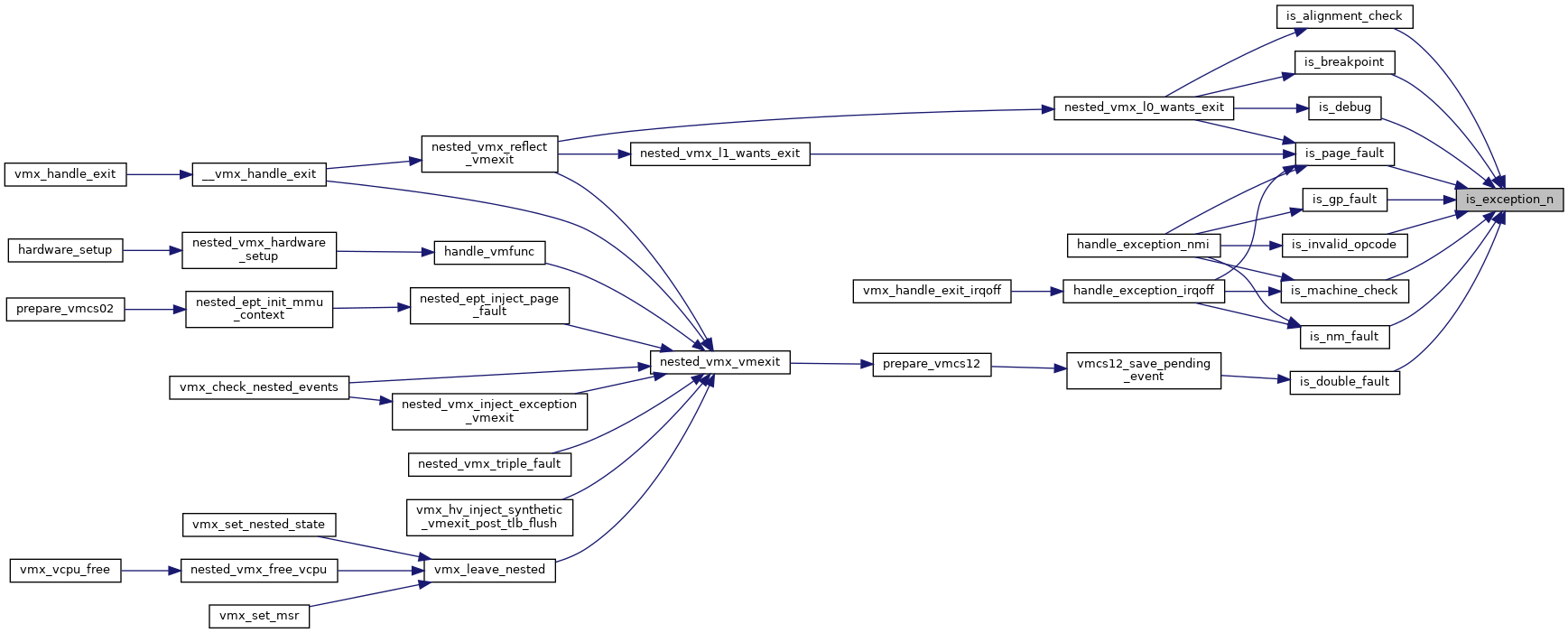

Here is the caller graph for this function:

is_exception_with_error_code()

static bool is_exception_with_error_code ( u32  intr_info )

inlinestatic

Definition at line 159 of file vmcs.h.

{
    const u32 mask = INTR_INFO_VALID_MASK | INTR_INFO_DELIVER_CODE_MASK;

    return (intr_info & mask) == mask;
}

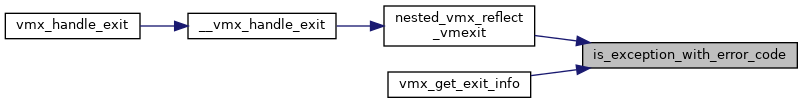

Here is the caller graph for this function:

is_external_intr()

static bool is_external_intr ( u32  intr_info )

inlinestatic

Definition at line 154 of file vmcs.h.

{
    return is_intr_type(intr_info, INTR_TYPE_EXT_INTR);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_gp_fault()

static bool is_gp_fault ( u32  intr_info )

inlinestatic

Definition at line 123 of file vmcs.h.

{
    return is_exception_n(intr_info, GP_VECTOR);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_icebp()

static bool is_icebp ( u32  intr_info )

inlinestatic

Definition at line 144 of file vmcs.h.

{
    return is_intr_type(intr_info, INTR_TYPE_PRIV_SW_EXCEPTION);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_intr_type()

static __always_inline bool is_intr_type ( u32  intr_info, u32  type  )

static

Definition at line 78 of file vmcs.h.

{
    const u32 mask = INTR_INFO_VALID_MASK | INTR_INFO_INTR_TYPE_MASK;

    return (intr_info & mask) == (INTR_INFO_VALID_MASK | type);
}

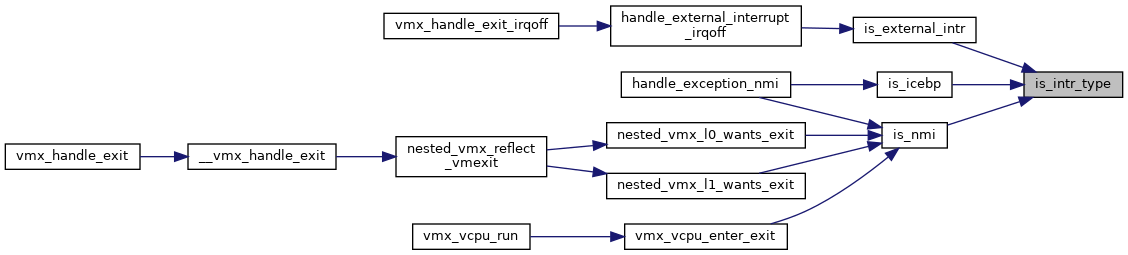

Here is the caller graph for this function:

is_intr_type_n()

static bool is_intr_type_n ( u32  intr_info, u32  type, u8  vector  )

inlinestatic

Definition at line 85 of file vmcs.h.

{
    const u32 mask = INTR_INFO_VALID_MASK | INTR_INFO_INTR_TYPE_MASK |
             INTR_INFO_VECTOR_MASK;

    return (intr_info & mask) == (INTR_INFO_VALID_MASK | type | vector);
}

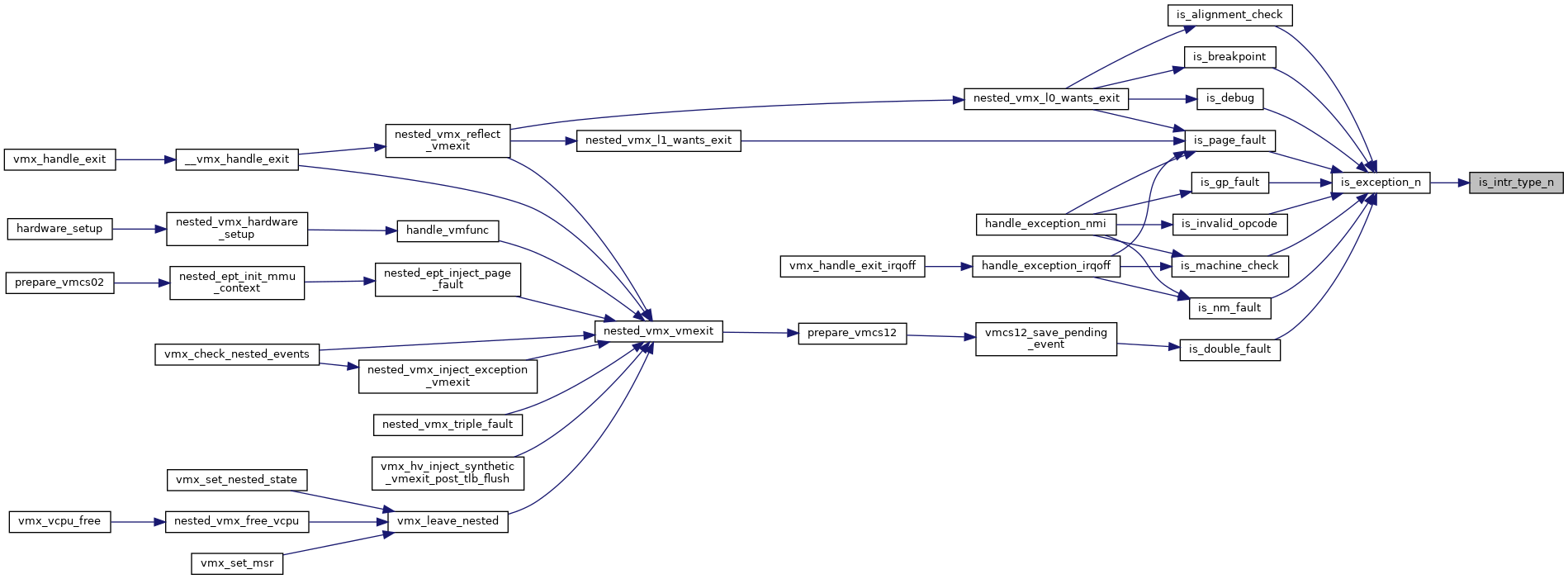

Here is the caller graph for this function:

is_invalid_opcode()

static bool is_invalid_opcode ( u32  intr_info )

inlinestatic

Definition at line 118 of file vmcs.h.

{
    return is_exception_n(intr_info, UD_VECTOR);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_machine_check()

static bool is_machine_check ( u32  intr_info )

inlinestatic

Definition at line 133 of file vmcs.h.

{
    return is_exception_n(intr_info, MC_VECTOR);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_nm_fault()

static bool is_nm_fault ( u32  intr_info )

inlinestatic

Definition at line 138 of file vmcs.h.

{
    return is_exception_n(intr_info, NM_VECTOR);
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_nmi()

static __always_inline bool is_nmi ( u32  intr_info )

static

Definition at line 149 of file vmcs.h.

{
    return is_intr_type(intr_info, INTR_TYPE_NMI_INTR);
}

Here is the call graph for this function:

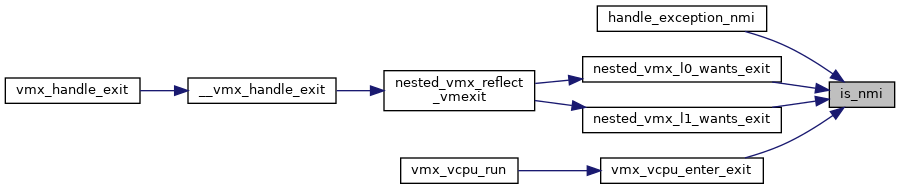

Here is the caller graph for this function:

is_page_fault()

static bool is_page_fault ( u32  intr_info )

inlinestatic

Definition at line 113 of file vmcs.h.

{
    return is_exception_n(intr_info, PF_VECTOR);
}

Here is the call graph for this function:

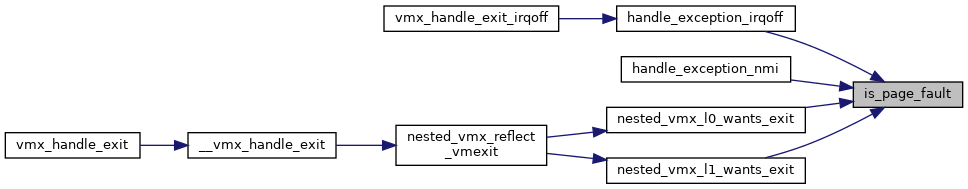

Here is the caller graph for this function:

vmcs_field_index()

static unsigned int vmcs_field_index ( unsigned long  field )

inlinestatic

Definition at line 188 of file vmcs.h.

{
    return (field & VMCS_FIELD_INDEX_MASK) >> VMCS_FIELD_INDEX_SHIFT;
}

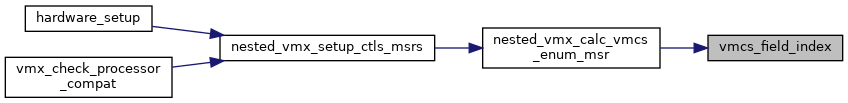

Here is the caller graph for this function:

vmcs_field_readonly()

static int vmcs_field_readonly ( unsigned long  field )

inlinestatic

Definition at line 180 of file vmcs.h.

{
    return (((field >> 10) & 0x3) == 1);
}

Here is the caller graph for this function:

vmcs_field_width()

static int vmcs_field_width ( unsigned long  field )

inlinestatic

Definition at line 173 of file vmcs.h.

{
    if (0x1 & field)    /* the *_HIGH fields are all 32 bit */
        return VMCS_FIELD_WIDTH_U32;
    return (field >> 13) & 0x3;
}
