ffa.c File Reference

#include <linux/arm-smccc.h>
#include <linux/arm_ffa.h>
#include <asm/kvm_pkvm.h>
#include <nvhe/ffa.h>
#include <nvhe/mem_protect.h>
#include <nvhe/memory.h>
#include <nvhe/trap_handler.h>
#include <nvhe/spinlock.h>

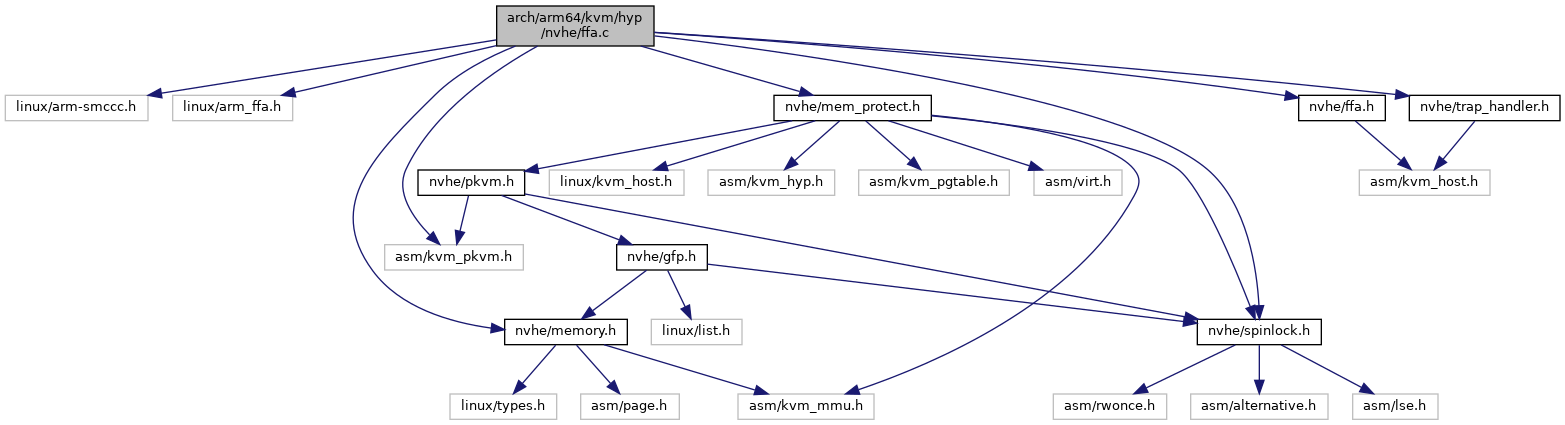

Include dependency graph for ffa.c:

Go to the source code of this file.

Classes
struct	kvm_ffa_descriptor_buffer
struct	kvm_ffa_buffers

Macros
#define	HOST_FFA_ID   0

Functions
static void	ffa_to_smccc_error (struct arm_smccc_res *res, u64 ffa_errno)
static void	ffa_to_smccc_res_prop (struct arm_smccc_res *res, int ret, u64 prop)
static void	ffa_to_smccc_res (struct arm_smccc_res *res, int ret)
static void	ffa_set_retval (struct kvm_cpu_context *ctxt, struct arm_smccc_res *res)
static bool	is_ffa_call (u64 func_id)
static int	ffa_map_hyp_buffers (u64 ffa_page_count)
static int	ffa_unmap_hyp_buffers (void)
static void	ffa_mem_frag_tx (struct arm_smccc_res *res, u32 handle_lo, u32 handle_hi, u32 fraglen, u32 endpoint_id)
static void	ffa_mem_frag_rx (struct arm_smccc_res *res, u32 handle_lo, u32 handle_hi, u32 fragoff)
static void	ffa_mem_xfer (struct arm_smccc_res *res, u64 func_id, u32 len, u32 fraglen)
static void	ffa_mem_reclaim (struct arm_smccc_res *res, u32 handle_lo, u32 handle_hi, u32 flags)
static void	ffa_retrieve_req (struct arm_smccc_res *res, u32 len)
static void	do_ffa_rxtx_map (struct arm_smccc_res *res, struct kvm_cpu_context *ctxt)
static void	do_ffa_rxtx_unmap (struct arm_smccc_res *res, struct kvm_cpu_context *ctxt)
static u32	__ffa_host_share_ranges (struct ffa_mem_region_addr_range *ranges, u32 nranges)
static u32	__ffa_host_unshare_ranges (struct ffa_mem_region_addr_range *ranges, u32 nranges)
static int	ffa_host_share_ranges (struct ffa_mem_region_addr_range *ranges, u32 nranges)
static int	ffa_host_unshare_ranges (struct ffa_mem_region_addr_range *ranges, u32 nranges)
static void	do_ffa_mem_frag_tx (struct arm_smccc_res *res, struct kvm_cpu_context *ctxt)
static __always_inline void	do_ffa_mem_xfer (const u64 func_id, struct arm_smccc_res *res, struct kvm_cpu_context *ctxt)
static void	do_ffa_mem_reclaim (struct arm_smccc_res *res, struct kvm_cpu_context *ctxt)
static bool	ffa_call_supported (u64 func_id)
static bool	do_ffa_features (struct arm_smccc_res *res, struct kvm_cpu_context *ctxt)
bool	kvm_host_ffa_handler (struct kvm_cpu_context *host_ctxt, u32 func_id)
int	hyp_ffa_init (void *pages)

Variables
static struct kvm_ffa_descriptor_buffer	ffa_desc_buf
static struct kvm_ffa_buffers	hyp_buffers
static struct kvm_ffa_buffers	host_buffers

Macro Definition Documentation

HOST_FFA_ID

#define HOST_FFA_ID   0

Definition at line 43 of file ffa.c.

Function Documentation

__ffa_host_share_ranges()

static u32 __ffa_host_share_ranges ( struct ffa_mem_region_addr_range *  ranges, u32  nranges  )

static

Definition at line 292 of file ffa.c.

{
    u32 i;

    for (i = 0; i < nranges; ++i) {
        struct ffa_mem_region_addr_range *range = &ranges[i];
        u64 sz = (u64)range->pg_cnt * FFA_PAGE_SIZE;
        u64 pfn = hyp_phys_to_pfn(range->address);

        if (!PAGE_ALIGNED(sz))
            break;

        if (__pkvm_host_share_ffa(pfn, sz / PAGE_SIZE))
            break;
    }

    return i;
}

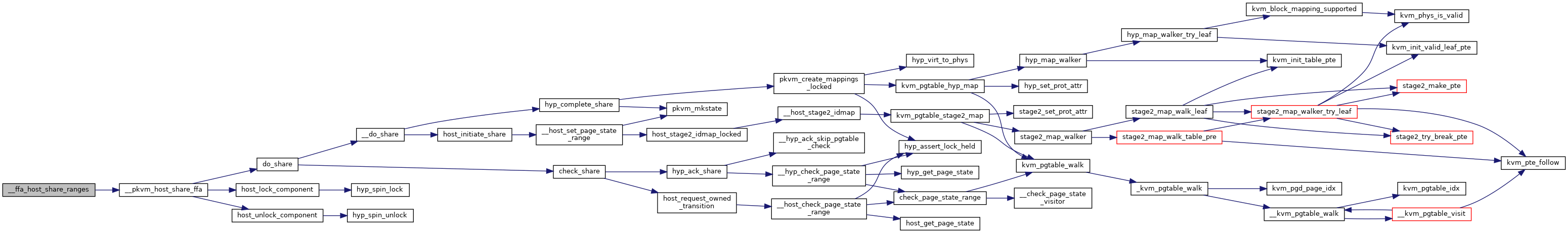

Here is the call graph for this function:

Here is the caller graph for this function:

__ffa_host_unshare_ranges()

static u32 __ffa_host_unshare_ranges ( struct ffa_mem_region_addr_range *  ranges, u32  nranges  )

static

Definition at line 312 of file ffa.c.

{
    u32 i;

    for (i = 0; i < nranges; ++i) {
        struct ffa_mem_region_addr_range *range = &ranges[i];
        u64 sz = (u64)range->pg_cnt * FFA_PAGE_SIZE;
        u64 pfn = hyp_phys_to_pfn(range->address);

        if (!PAGE_ALIGNED(sz))
            break;

        if (__pkvm_host_unshare_ffa(pfn, sz / PAGE_SIZE))
            break;
    }

    return i;
}

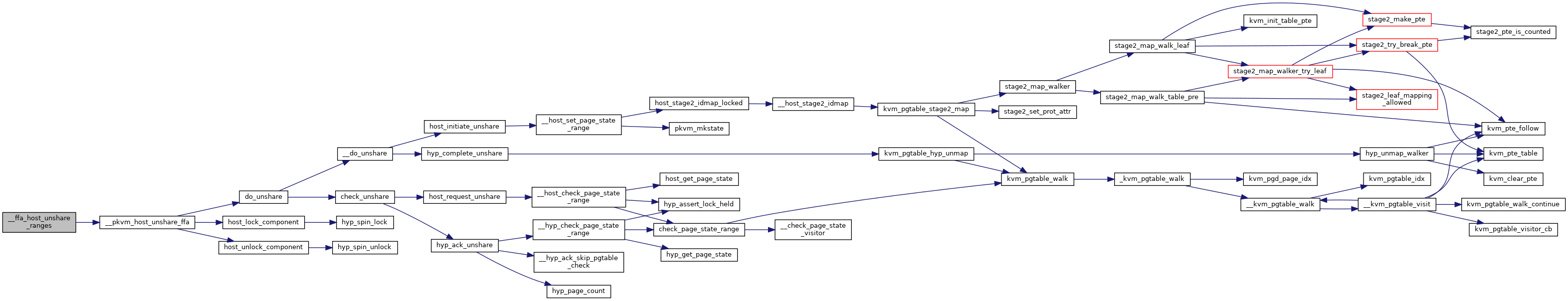

Here is the call graph for this function:

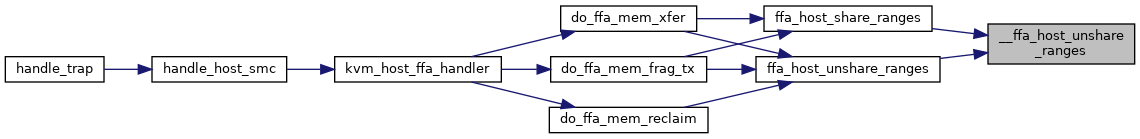

Here is the caller graph for this function:

do_ffa_features()

static bool do_ffa_features ( struct arm_smccc_res *  res, struct kvm_cpu_context *  ctxt  )

static

Definition at line 614 of file ffa.c.

{
    DECLARE_REG(u32, id, ctxt, 1);
    u64 prop = 0;
    int ret = 0;

    if (!ffa_call_supported(id)) {
        ret = FFA_RET_NOT_SUPPORTED;
        goto out_handled;
    }

    switch (id) {
    case FFA_MEM_SHARE:
    case FFA_FN64_MEM_SHARE:
    case FFA_MEM_LEND:
    case FFA_FN64_MEM_LEND:
        ret = FFA_RET_SUCCESS;
        prop = 0; /* No support for dynamic buffers */
        goto out_handled;
    default:
        return false;
    }

out_handled:
    ffa_to_smccc_res_prop(res, ret, prop);
    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

do_ffa_mem_frag_tx()

static void do_ffa_mem_frag_tx ( struct arm_smccc_res *  res, struct kvm_cpu_context *  ctxt  )

static

Definition at line 360 of file ffa.c.

{
    DECLARE_REG(u32, handle_lo, ctxt, 1);
    DECLARE_REG(u32, handle_hi, ctxt, 2);
    DECLARE_REG(u32, fraglen, ctxt, 3);
    DECLARE_REG(u32, endpoint_id, ctxt, 4);
    struct ffa_mem_region_addr_range *buf;
    int ret = FFA_RET_INVALID_PARAMETERS;
    u32 nr_ranges;

    if (fraglen > KVM_FFA_MBOX_NR_PAGES * PAGE_SIZE)
        goto out;

    if (fraglen % sizeof(*buf))
        goto out;

    hyp_spin_lock(&host_buffers.lock);
    if (!host_buffers.tx)
        goto out_unlock;

    buf = hyp_buffers.tx;
    memcpy(buf, host_buffers.tx, fraglen);
    nr_ranges = fraglen / sizeof(*buf);

    ret = ffa_host_share_ranges(buf, nr_ranges);
    if (ret) {
        /*
         * We're effectively aborting the transaction, so we need
         * to restore the global state back to what it was prior to
         * transmission of the first fragment.
         */
        ffa_mem_reclaim(res, handle_lo, handle_hi, 0);
        WARN_ON(res->a0 != FFA_SUCCESS);
        goto out_unlock;
    }

    ffa_mem_frag_tx(res, handle_lo, handle_hi, fraglen, endpoint_id);
    if (res->a0 != FFA_SUCCESS && res->a0 != FFA_MEM_FRAG_RX)
        WARN_ON(ffa_host_unshare_ranges(buf, nr_ranges));

out_unlock:
    hyp_spin_unlock(&host_buffers.lock);
out:
    if (ret)
        ffa_to_smccc_res(res, ret);

    /*
     * If for any reason this did not succeed, we're in trouble as we have
     * now lost the content of the previous fragments and we can't rollback
     * the host stage-2 changes. The pages previously marked as shared will
     * remain stuck in that state forever, hence preventing the host from
     * sharing/donating them again and may possibly lead to subsequent
     * failures, but this will not compromise confidentiality.
     */
    return;
}

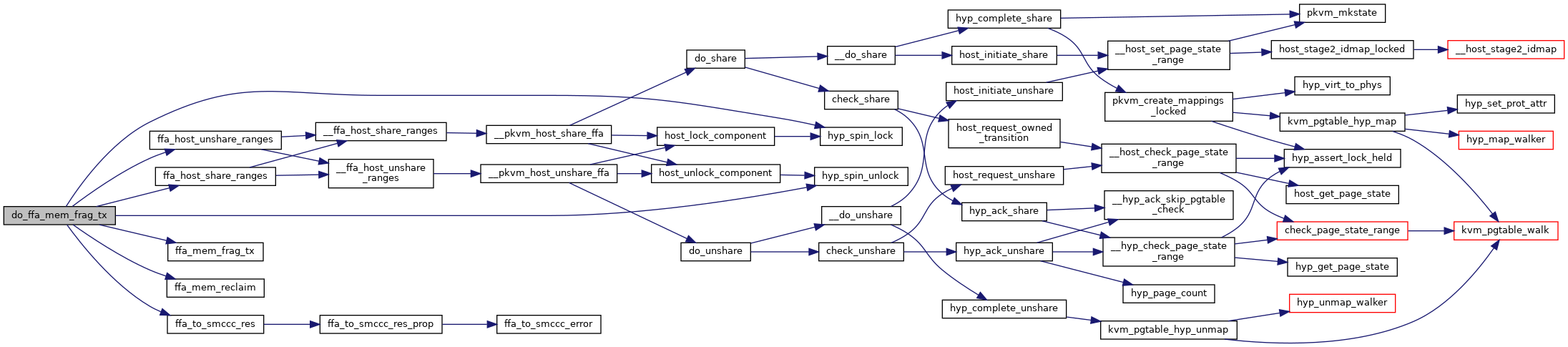

Here is the call graph for this function:

Here is the caller graph for this function:

do_ffa_mem_reclaim()

static void do_ffa_mem_reclaim ( struct arm_smccc_res *  res, struct kvm_cpu_context *  ctxt  )

static

Definition at line 504 of file ffa.c.

{
    DECLARE_REG(u32, handle_lo, ctxt, 1);
    DECLARE_REG(u32, handle_hi, ctxt, 2);
    DECLARE_REG(u32, flags, ctxt, 3);
    struct ffa_mem_region_attributes *ep_mem_access;
    struct ffa_composite_mem_region *reg;
    u32 offset, len, fraglen, fragoff;
    struct ffa_mem_region *buf;
    int ret = 0;
    u64 handle;

    handle = PACK_HANDLE(handle_lo, handle_hi);

    hyp_spin_lock(&host_buffers.lock);

    buf = hyp_buffers.tx;
    *buf = (struct ffa_mem_region) {
        .sender_id  = HOST_FFA_ID,
        .handle     = handle,
    };

    ffa_retrieve_req(res, sizeof(*buf));
    buf = hyp_buffers.rx;
    if (res->a0 != FFA_MEM_RETRIEVE_RESP)
        goto out_unlock;

    len = res->a1;
    fraglen = res->a2;

    ep_mem_access = (void *)buf +
            ffa_mem_desc_offset(buf, 0, FFA_VERSION_1_0);
    offset = ep_mem_access->composite_off;
    /*
     * We can trust the SPMD to get this right, but let's at least
     * check that we end up with something that doesn't look _completely_
     * bogus.
     */
    if (WARN_ON(offset > len ||
            fraglen > KVM_FFA_MBOX_NR_PAGES * PAGE_SIZE)) {
        ret = FFA_RET_ABORTED;
        goto out_unlock;
    }

    if (len > ffa_desc_buf.len) {
        ret = FFA_RET_NO_MEMORY;
        goto out_unlock;
    }

    buf = ffa_desc_buf.buf;
    memcpy(buf, hyp_buffers.rx, fraglen);

    for (fragoff = fraglen; fragoff < len; fragoff += fraglen) {
        ffa_mem_frag_rx(res, handle_lo, handle_hi, fragoff);
        if (res->a0 != FFA_MEM_FRAG_TX) {
            ret = FFA_RET_INVALID_PARAMETERS;
            goto out_unlock;
        }

        fraglen = res->a3;
        memcpy((void *)buf + fragoff, hyp_buffers.rx, fraglen);
    }

    ffa_mem_reclaim(res, handle_lo, handle_hi, flags);
    if (res->a0 != FFA_SUCCESS)
        goto out_unlock;

    reg = (void *)buf + offset;
    /* If the SPMD was happy, then we should be too. */
    WARN_ON(ffa_host_unshare_ranges(reg->constituents,
                    reg->addr_range_cnt));
out_unlock:
    hyp_spin_unlock(&host_buffers.lock);

    if (ret)
        ffa_to_smccc_res(res, ret);
}

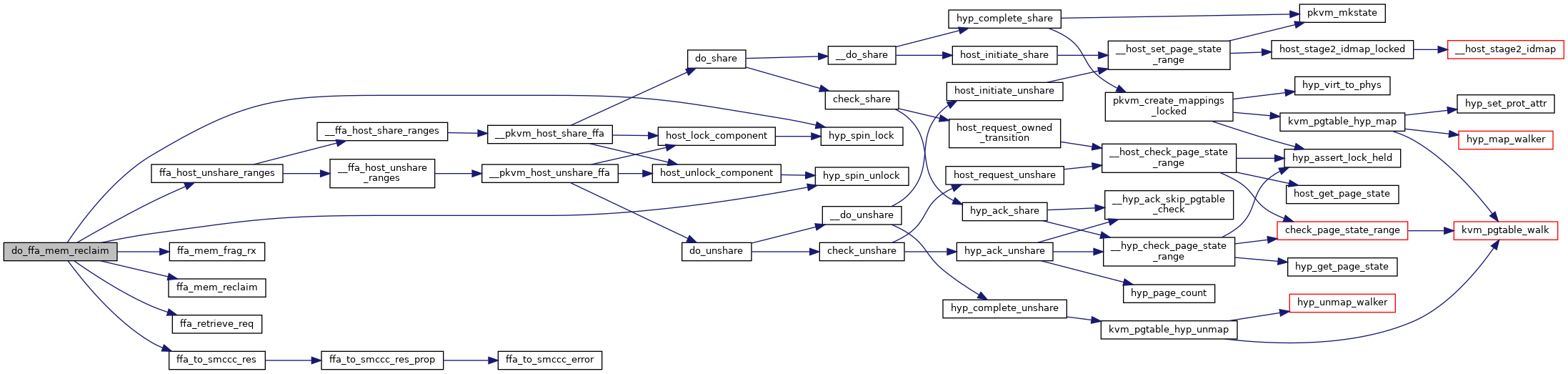

Here is the call graph for this function:

Here is the caller graph for this function:

do_ffa_mem_xfer()

static __always_inline void do_ffa_mem_xfer ( const u64  func_id, struct arm_smccc_res *  res, struct kvm_cpu_context *  ctxt  )

static

Definition at line 418 of file ffa.c.

{
    DECLARE_REG(u32, len, ctxt, 1);
    DECLARE_REG(u32, fraglen, ctxt, 2);
    DECLARE_REG(u64, addr_mbz, ctxt, 3);
    DECLARE_REG(u32, npages_mbz, ctxt, 4);
    struct ffa_mem_region_attributes *ep_mem_access;
    struct ffa_composite_mem_region *reg;
    struct ffa_mem_region *buf;
    u32 offset, nr_ranges;
    int ret = 0;

    BUILD_BUG_ON(func_id != FFA_FN64_MEM_SHARE &&
             func_id != FFA_FN64_MEM_LEND);

    if (addr_mbz || npages_mbz || fraglen > len ||
        fraglen > KVM_FFA_MBOX_NR_PAGES * PAGE_SIZE) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out;
    }

    if (fraglen < sizeof(struct ffa_mem_region) +
              sizeof(struct ffa_mem_region_attributes)) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out;
    }

    hyp_spin_lock(&host_buffers.lock);
    if (!host_buffers.tx) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out_unlock;
    }

    buf = hyp_buffers.tx;
    memcpy(buf, host_buffers.tx, fraglen);

    ep_mem_access = (void *)buf +
            ffa_mem_desc_offset(buf, 0, FFA_VERSION_1_0);
    offset = ep_mem_access->composite_off;
    if (!offset || buf->ep_count != 1 || buf->sender_id != HOST_FFA_ID) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out_unlock;
    }

    if (fraglen < offset + sizeof(struct ffa_composite_mem_region)) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out_unlock;
    }

    reg = (void *)buf + offset;
    nr_ranges = ((void *)buf + fraglen) - (void *)reg->constituents;
    if (nr_ranges % sizeof(reg->constituents[0])) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out_unlock;
    }

    nr_ranges /= sizeof(reg->constituents[0]);
    ret = ffa_host_share_ranges(reg->constituents, nr_ranges);
    if (ret)
        goto out_unlock;

    ffa_mem_xfer(res, func_id, len, fraglen);
    if (fraglen != len) {
        if (res->a0 != FFA_MEM_FRAG_RX)
            goto err_unshare;

        if (res->a3 != fraglen)
            goto err_unshare;
    } else if (res->a0 != FFA_SUCCESS) {
        goto err_unshare;
    }

out_unlock:
    hyp_spin_unlock(&host_buffers.lock);
out:
    if (ret)
        ffa_to_smccc_res(res, ret);
    return;

err_unshare:
    WARN_ON(ffa_host_unshare_ranges(reg->constituents, nr_ranges));
    goto out_unlock;
}

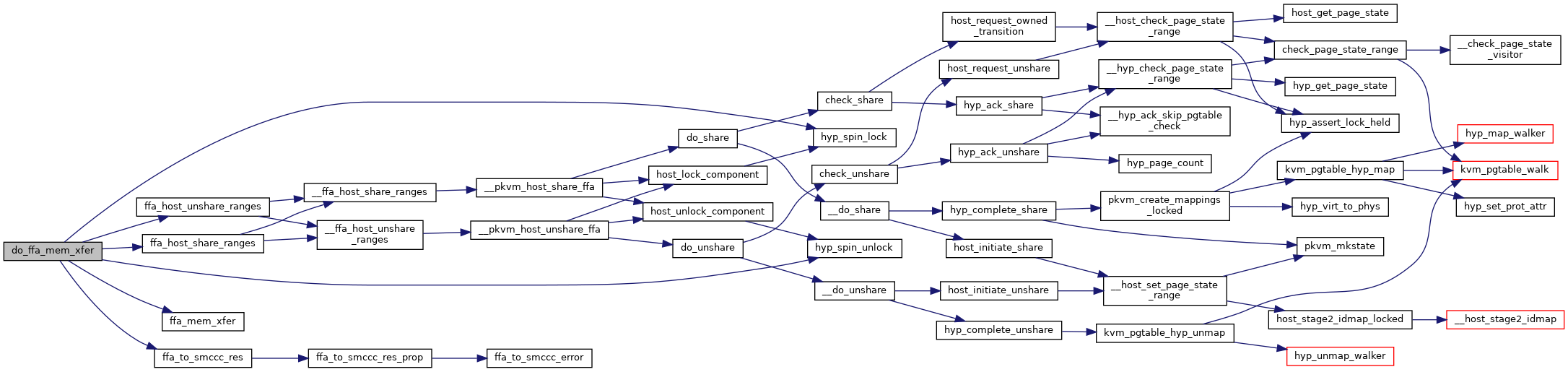

Here is the call graph for this function:

Here is the caller graph for this function:

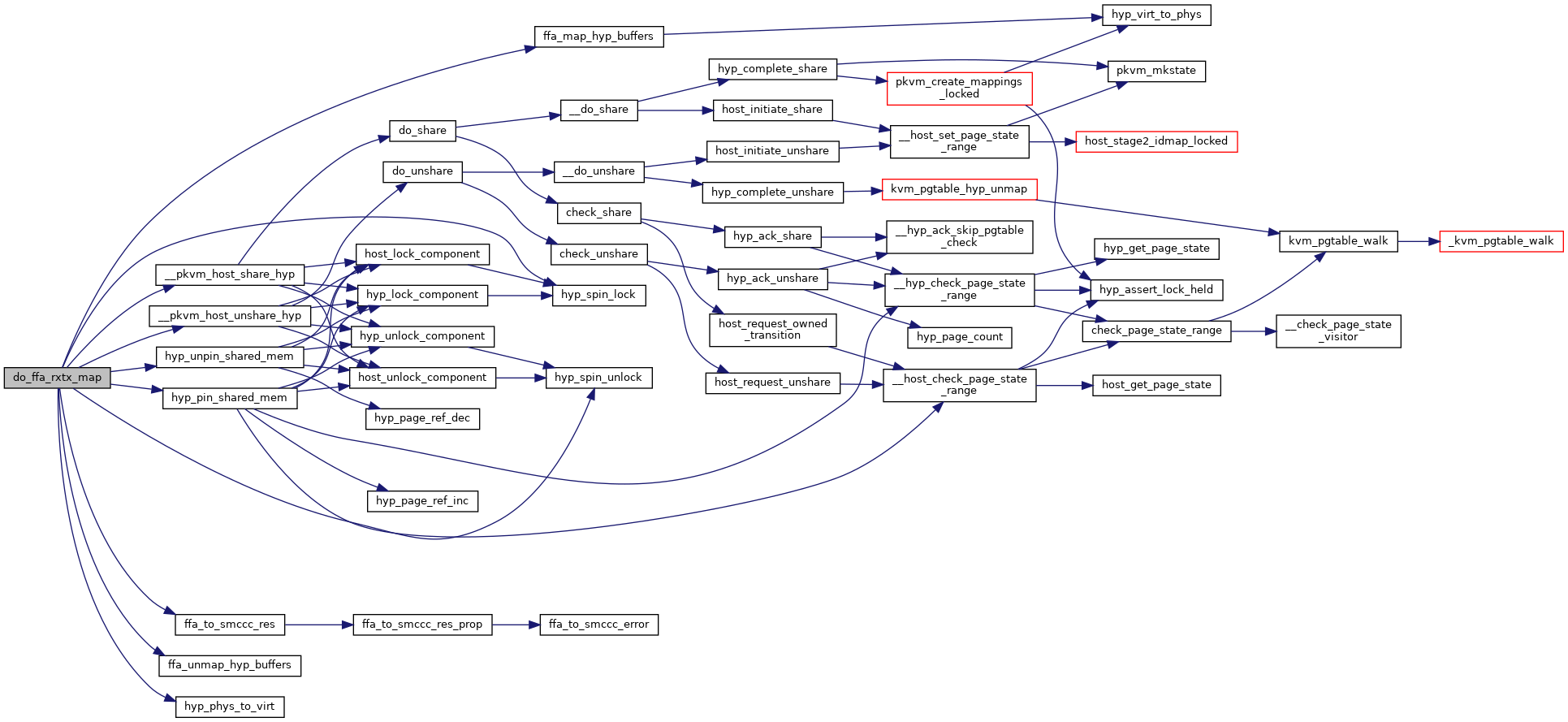

do_ffa_rxtx_map()

static void do_ffa_rxtx_map ( struct arm_smccc_res *  res, struct kvm_cpu_context *  ctxt  )

static

Definition at line 180 of file ffa.c.

{
    DECLARE_REG(phys_addr_t, tx, ctxt, 1);
    DECLARE_REG(phys_addr_t, rx, ctxt, 2);
    DECLARE_REG(u32, npages, ctxt, 3);
    int ret = 0;
    void *rx_virt, *tx_virt;

    if (npages != (KVM_FFA_MBOX_NR_PAGES * PAGE_SIZE) / FFA_PAGE_SIZE) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out;
    }

    if (!PAGE_ALIGNED(tx) || !PAGE_ALIGNED(rx)) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out;
    }

    hyp_spin_lock(&host_buffers.lock);
    if (host_buffers.tx) {
        ret = FFA_RET_DENIED;
        goto out_unlock;
    }

    /*
     * Map our hypervisor buffers into the SPMD before mapping and
     * pinning the host buffers in our own address space.
     */
    ret = ffa_map_hyp_buffers(npages);
    if (ret)
        goto out_unlock;

    ret = __pkvm_host_share_hyp(hyp_phys_to_pfn(tx));
    if (ret) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto err_unmap;
    }

    ret = __pkvm_host_share_hyp(hyp_phys_to_pfn(rx));
    if (ret) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto err_unshare_tx;
    }

    tx_virt = hyp_phys_to_virt(tx);
    ret = hyp_pin_shared_mem(tx_virt, tx_virt + 1);
    if (ret) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto err_unshare_rx;
    }

    rx_virt = hyp_phys_to_virt(rx);
    ret = hyp_pin_shared_mem(rx_virt, rx_virt + 1);
    if (ret) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto err_unpin_tx;
    }

    host_buffers.tx = tx_virt;
    host_buffers.rx = rx_virt;

out_unlock:
    hyp_spin_unlock(&host_buffers.lock);
out:
    ffa_to_smccc_res(res, ret);
    return;

err_unpin_tx:
    hyp_unpin_shared_mem(tx_virt, tx_virt + 1);
err_unshare_rx:
    __pkvm_host_unshare_hyp(hyp_phys_to_pfn(rx));
err_unshare_tx:
    __pkvm_host_unshare_hyp(hyp_phys_to_pfn(tx));
err_unmap:
    ffa_unmap_hyp_buffers();
    goto out_unlock;
}

Here is the call graph for this function:

Here is the caller graph for this function:

do_ffa_rxtx_unmap()

static void do_ffa_rxtx_unmap ( struct arm_smccc_res *  res, struct kvm_cpu_context *  ctxt  )

static

Definition at line 259 of file ffa.c.

{
    DECLARE_REG(u32, id, ctxt, 1);
    int ret = 0;

    if (id != HOST_FFA_ID) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out;
    }

    hyp_spin_lock(&host_buffers.lock);
    if (!host_buffers.tx) {
        ret = FFA_RET_INVALID_PARAMETERS;
        goto out_unlock;
    }

    hyp_unpin_shared_mem(host_buffers.tx, host_buffers.tx + 1);
    WARN_ON(__pkvm_host_unshare_hyp(hyp_virt_to_pfn(host_buffers.tx)));
    host_buffers.tx = NULL;

    hyp_unpin_shared_mem(host_buffers.rx, host_buffers.rx + 1);
    WARN_ON(__pkvm_host_unshare_hyp(hyp_virt_to_pfn(host_buffers.rx)));
    host_buffers.rx = NULL;

    ffa_unmap_hyp_buffers();

out_unlock:
    hyp_spin_unlock(&host_buffers.lock);
out:
    ffa_to_smccc_res(res, ret);
}

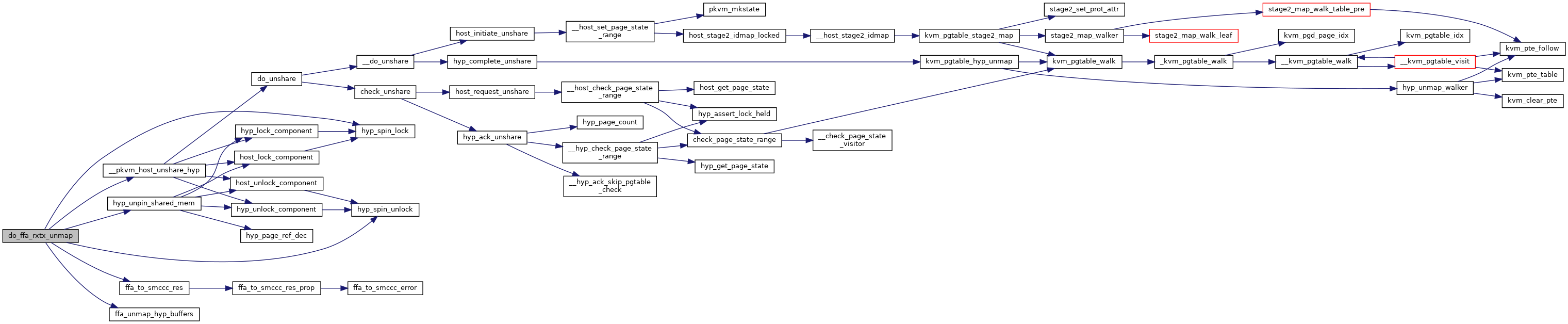

Here is the call graph for this function:

Here is the caller graph for this function:

ffa_call_supported()

static bool ffa_call_supported ( u64  func_id )

static

Definition at line 587 of file ffa.c.

{
    switch (func_id) {
    /* Unsupported memory management calls */
    case FFA_FN64_MEM_RETRIEVE_REQ:
    case FFA_MEM_RETRIEVE_RESP:
    case FFA_MEM_RELINQUISH:
    case FFA_MEM_OP_PAUSE:
    case FFA_MEM_OP_RESUME:
    case FFA_MEM_FRAG_RX:
    case FFA_FN64_MEM_DONATE:
    /* Indirect message passing via RX/TX buffers */
    case FFA_MSG_SEND:
    case FFA_MSG_POLL:
    case FFA_MSG_WAIT:
    /* 32-bit variants of 64-bit calls */
    case FFA_MSG_SEND_DIRECT_REQ:
    case FFA_MSG_SEND_DIRECT_RESP:
    case FFA_RXTX_MAP:
    case FFA_MEM_DONATE:
    case FFA_MEM_RETRIEVE_REQ:
        return false;
    }

    return true;
}

Here is the caller graph for this function:

ffa_host_share_ranges()

static int ffa_host_share_ranges ( struct ffa_mem_region_addr_range *  ranges, u32  nranges  )

static

Definition at line 332 of file ffa.c.

{
    u32 nshared = __ffa_host_share_ranges(ranges, nranges);
    int ret = 0;

    if (nshared != nranges) {
        WARN_ON(__ffa_host_unshare_ranges(ranges, nshared) != nshared);
        ret = FFA_RET_DENIED;
    }

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

ffa_host_unshare_ranges()

static int ffa_host_unshare_ranges ( struct ffa_mem_region_addr_range *  ranges, u32  nranges  )

static

Definition at line 346 of file ffa.c.

{
    u32 nunshared = __ffa_host_unshare_ranges(ranges, nranges);
    int ret = 0;

    if (nunshared != nranges) {
        WARN_ON(__ffa_host_share_ranges(ranges, nunshared) != nunshared);
        ret = FFA_RET_DENIED;
    }

    return ret;
}

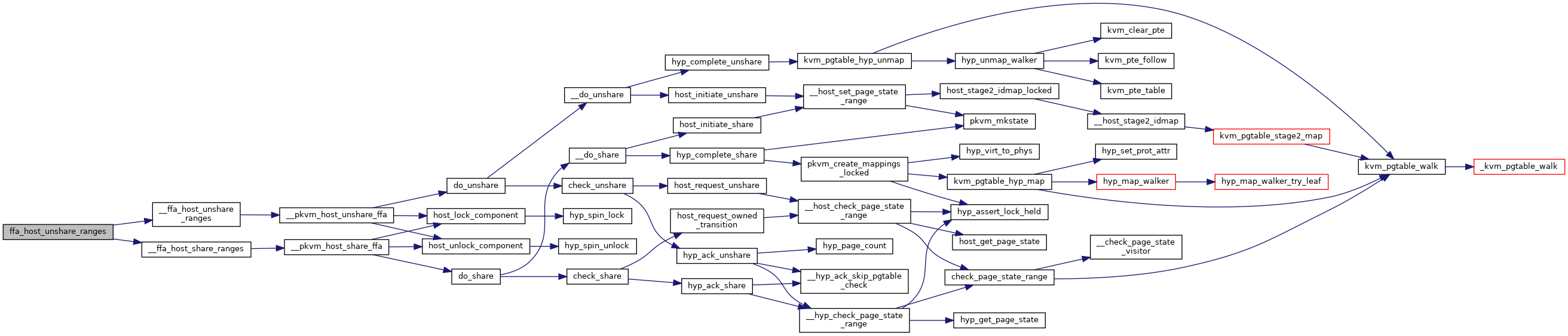

Here is the call graph for this function:

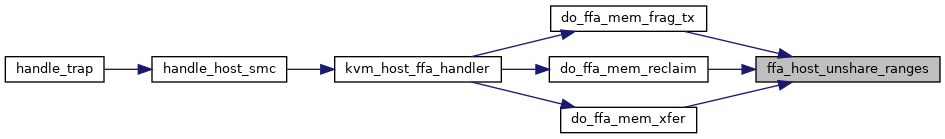

Here is the caller graph for this function:

ffa_map_hyp_buffers()

static int ffa_map_hyp_buffers ( u64  ffa_page_count )

static

Definition at line 111 of file ffa.c.

{
    struct arm_smccc_res res;

    arm_smccc_1_1_smc(FFA_FN64_RXTX_MAP,
              hyp_virt_to_phys(hyp_buffers.tx),
              hyp_virt_to_phys(hyp_buffers.rx),
              ffa_page_count,
              0, 0, 0, 0,
              &res);

    return res.a0 == FFA_SUCCESS ? FFA_RET_SUCCESS : res.a2;
}

Here is the call graph for this function:

Here is the caller graph for this function:

ffa_mem_frag_rx()

static void ffa_mem_frag_rx ( struct arm_smccc_res *  res, u32  handle_lo, u32  handle_hi, u32  fragoff  )

static

Definition at line 146 of file ffa.c.

{
    arm_smccc_1_1_smc(FFA_MEM_FRAG_RX,
              handle_lo, handle_hi, fragoff, HOST_FFA_ID,
              0, 0, 0,
              res);
}

Here is the caller graph for this function:

ffa_mem_frag_tx()

static void ffa_mem_frag_tx ( struct arm_smccc_res *  res, u32  handle_lo, u32  handle_hi, u32  fraglen, u32  endpoint_id  )

static

Definition at line 137 of file ffa.c.

{
    arm_smccc_1_1_smc(FFA_MEM_FRAG_TX,
              handle_lo, handle_hi, fraglen, endpoint_id,
              0, 0, 0,
              res);
}

Here is the caller graph for this function:

ffa_mem_reclaim()

static void ffa_mem_reclaim ( struct arm_smccc_res *  res, u32  handle_lo, u32  handle_hi, u32  flags  )

static

Definition at line 163 of file ffa.c.

{
    arm_smccc_1_1_smc(FFA_MEM_RECLAIM,
              handle_lo, handle_hi, flags,
              0, 0, 0, 0,
              res);
}

Here is the caller graph for this function:

ffa_mem_xfer()

static void ffa_mem_xfer ( struct arm_smccc_res *  res, u64  func_id, u32  len, u32  fraglen  )

static

Definition at line 155 of file ffa.c.

{
    arm_smccc_1_1_smc(func_id, len, fraglen,
              0, 0, 0, 0, 0,
              res);
}

Here is the caller graph for this function:

ffa_retrieve_req()

static void ffa_retrieve_req ( struct arm_smccc_res *  res, u32  len  )

static

Definition at line 172 of file ffa.c.

{
    arm_smccc_1_1_smc(FFA_FN64_MEM_RETRIEVE_REQ,
              len, len,
              0, 0, 0, 0, 0,
              res);
}

Here is the caller graph for this function:

ffa_set_retval()

static void ffa_set_retval ( struct kvm_cpu_context *  ctxt, struct arm_smccc_res *  res  )

static

Definition at line 94 of file ffa.c.

{
    cpu_reg(ctxt, 0) = res->a0;
    cpu_reg(ctxt, 1) = res->a1;
    cpu_reg(ctxt, 2) = res->a2;
    cpu_reg(ctxt, 3) = res->a3;
}

Here is the caller graph for this function:

ffa_to_smccc_error()

static void ffa_to_smccc_error ( struct arm_smccc_res *  res, u64  ffa_errno  )

static

Definition at line 71 of file ffa.c.

{
    *res = (struct arm_smccc_res) {
        .a0 = FFA_ERROR,
        .a2 = ffa_errno,
    };
}

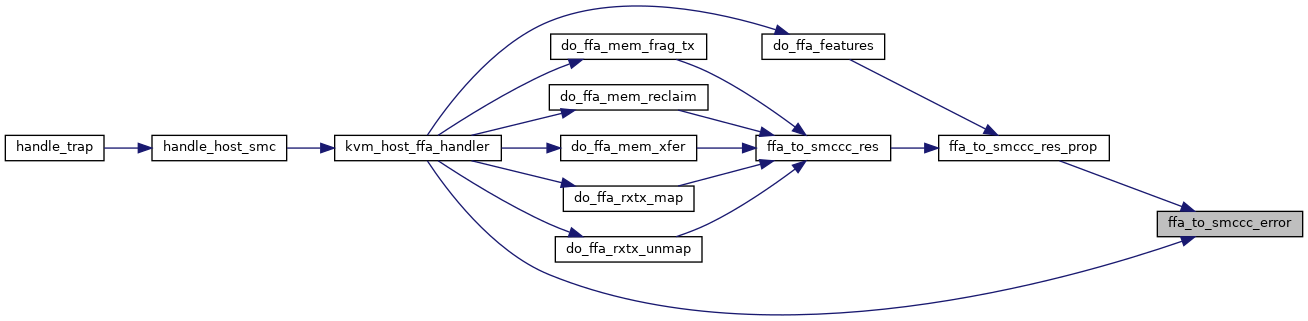

Here is the caller graph for this function:

ffa_to_smccc_res()

static void ffa_to_smccc_res ( struct arm_smccc_res *  res, int  ret  )

static

Definition at line 89 of file ffa.c.

{
    ffa_to_smccc_res_prop(res, ret, 0);
}

Here is the call graph for this function:

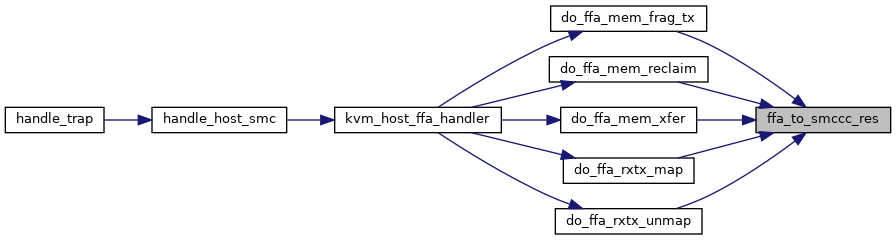

Here is the caller graph for this function:

ffa_to_smccc_res_prop()

static void ffa_to_smccc_res_prop ( struct arm_smccc_res *  res, int  ret, u64  prop  )

static

Definition at line 79 of file ffa.c.

{
    if (ret == FFA_RET_SUCCESS) {
        *res = (struct arm_smccc_res) { .a0 = FFA_SUCCESS,
                        .a2 = prop };
    } else {
        ffa_to_smccc_error(res, ret);
    }
}

Here is the call graph for this function:

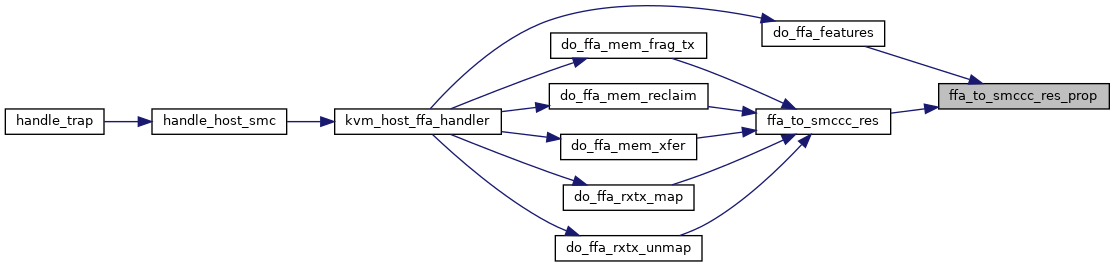

Here is the caller graph for this function:

ffa_unmap_hyp_buffers()

static int ffa_unmap_hyp_buffers ( void  )

static

Definition at line 125 of file ffa.c.

{
    struct arm_smccc_res res;

    arm_smccc_1_1_smc(FFA_RXTX_UNMAP,
              HOST_FFA_ID,
              0, 0, 0, 0, 0, 0,
              &res);

    return res.a0 == FFA_SUCCESS ? FFA_RET_SUCCESS : res.a2;
}

Here is the caller graph for this function:

hyp_ffa_init()

int hyp_ffa_init

(

void *

pages

)

Definition at line 700 of file ffa.c.

{
    struct arm_smccc_res res;
    size_t min_rxtx_sz;
    void *tx, *rx;

    if (kvm_host_psci_config.smccc_version < ARM_SMCCC_VERSION_1_2)
        return 0;

    arm_smccc_1_1_smc(FFA_VERSION, FFA_VERSION_1_0, 0, 0, 0, 0, 0, 0, &res);
    if (res.a0 == FFA_RET_NOT_SUPPORTED)
        return 0;

    /*
     * Firmware returns the maximum supported version of the FF-A
     * implementation. Check that the returned version is
     * backwards-compatible with the hyp according to the rules in DEN0077A
     * v1.1 REL0 13.2.1.
     *
     * Of course, things are never simple when dealing with firmware. v1.1
     * broke ABI with v1.0 on several structures, which is itself
     * incompatible with the aforementioned versioning scheme. The
     * expectation is that v1.x implementations that do not support the v1.0
     * ABI return NOT_SUPPORTED rather than a version number, according to
     * DEN0077A v1.1 REL0 18.6.4.
     */
    if (FFA_MAJOR_VERSION(res.a0) != 1)
        return -EOPNOTSUPP;

    arm_smccc_1_1_smc(FFA_ID_GET, 0, 0, 0, 0, 0, 0, 0, &res);
    if (res.a0 != FFA_SUCCESS)
        return -EOPNOTSUPP;

    if (res.a2 != HOST_FFA_ID)
        return -EINVAL;

    arm_smccc_1_1_smc(FFA_FEATURES, FFA_FN64_RXTX_MAP,
              0, 0, 0, 0, 0, 0, &res);
    if (res.a0 != FFA_SUCCESS)
        return -EOPNOTSUPP;

    switch (res.a2) {
    case FFA_FEAT_RXTX_MIN_SZ_4K:
        min_rxtx_sz = SZ_4K;
        break;
    case FFA_FEAT_RXTX_MIN_SZ_16K:
        min_rxtx_sz = SZ_16K;
        break;
    case FFA_FEAT_RXTX_MIN_SZ_64K:
        min_rxtx_sz = SZ_64K;
        break;
    default:
        return -EINVAL;
    }

    if (min_rxtx_sz > PAGE_SIZE)
        return -EOPNOTSUPP;

    tx = pages;
    pages += KVM_FFA_MBOX_NR_PAGES * PAGE_SIZE;
    rx = pages;
    pages += KVM_FFA_MBOX_NR_PAGES * PAGE_SIZE;

    ffa_desc_buf = (struct kvm_ffa_descriptor_buffer) {
        .buf    = pages,
        .len    = PAGE_SIZE *
              (hyp_ffa_proxy_pages() - (2 * KVM_FFA_MBOX_NR_PAGES)),
    };

    hyp_buffers = (struct kvm_ffa_buffers) {
        .lock   = __HYP_SPIN_LOCK_UNLOCKED,
        .tx = tx,
        .rx = rx,
    };

    host_buffers = (struct kvm_ffa_buffers) {
        .lock   = __HYP_SPIN_LOCK_UNLOCKED,
    };

    return 0;
}

Here is the caller graph for this function:

is_ffa_call()

static bool is_ffa_call ( u64  func_id )

static

Definition at line 103 of file ffa.c.

{
    return ARM_SMCCC_IS_FAST_CALL(func_id) &&
           ARM_SMCCC_OWNER_NUM(func_id) == ARM_SMCCC_OWNER_STANDARD &&
           ARM_SMCCC_FUNC_NUM(func_id) >= FFA_MIN_FUNC_NUM &&
           ARM_SMCCC_FUNC_NUM(func_id) <= FFA_MAX_FUNC_NUM;
}

Here is the caller graph for this function:

kvm_host_ffa_handler()

bool kvm_host_ffa_handler	(	struct kvm_cpu_context *	host_ctxt,
		u32	func_id
	)

Definition at line 643 of file ffa.c.

{
    struct arm_smccc_res res;

    /*
     * There's no way we can tell what a non-standard SMC call might
     * be up to. Ideally, we would terminate these here and return
     * an error to the host, but sadly devices make use of custom
     * firmware calls for things like power management, debugging,
     * RNG access and crash reporting.
     *
     * Given that the architecture requires us to trust EL3 anyway,
     * we forward unrecognised calls on under the assumption that
     * the firmware doesn't expose a mechanism to access arbitrary
     * non-secure memory. Short of a per-device table of SMCs, this
     * is the best we can do.
     */
    if (!is_ffa_call(func_id))
        return false;

    switch (func_id) {
    case FFA_FEATURES:
        if (!do_ffa_features(&res, host_ctxt))
            return false;
        goto out_handled;
    /* Memory management */
    case FFA_FN64_RXTX_MAP:
        do_ffa_rxtx_map(&res, host_ctxt);
        goto out_handled;
    case FFA_RXTX_UNMAP:
        do_ffa_rxtx_unmap(&res, host_ctxt);
        goto out_handled;
    case FFA_MEM_SHARE:
    case FFA_FN64_MEM_SHARE:
        do_ffa_mem_xfer(FFA_FN64_MEM_SHARE, &res, host_ctxt);
        goto out_handled;
    case FFA_MEM_RECLAIM:
        do_ffa_mem_reclaim(&res, host_ctxt);
        goto out_handled;
    case FFA_MEM_LEND:
    case FFA_FN64_MEM_LEND:
        do_ffa_mem_xfer(FFA_FN64_MEM_LEND, &res, host_ctxt);
        goto out_handled;
    case FFA_MEM_FRAG_TX:
        do_ffa_mem_frag_tx(&res, host_ctxt);
        goto out_handled;
    }

    if (ffa_call_supported(func_id))
        return false; /* Pass through */

    ffa_to_smccc_error(&res, FFA_RET_NOT_SUPPORTED);
out_handled:
    ffa_set_retval(host_ctxt, &res);
    return true;
}

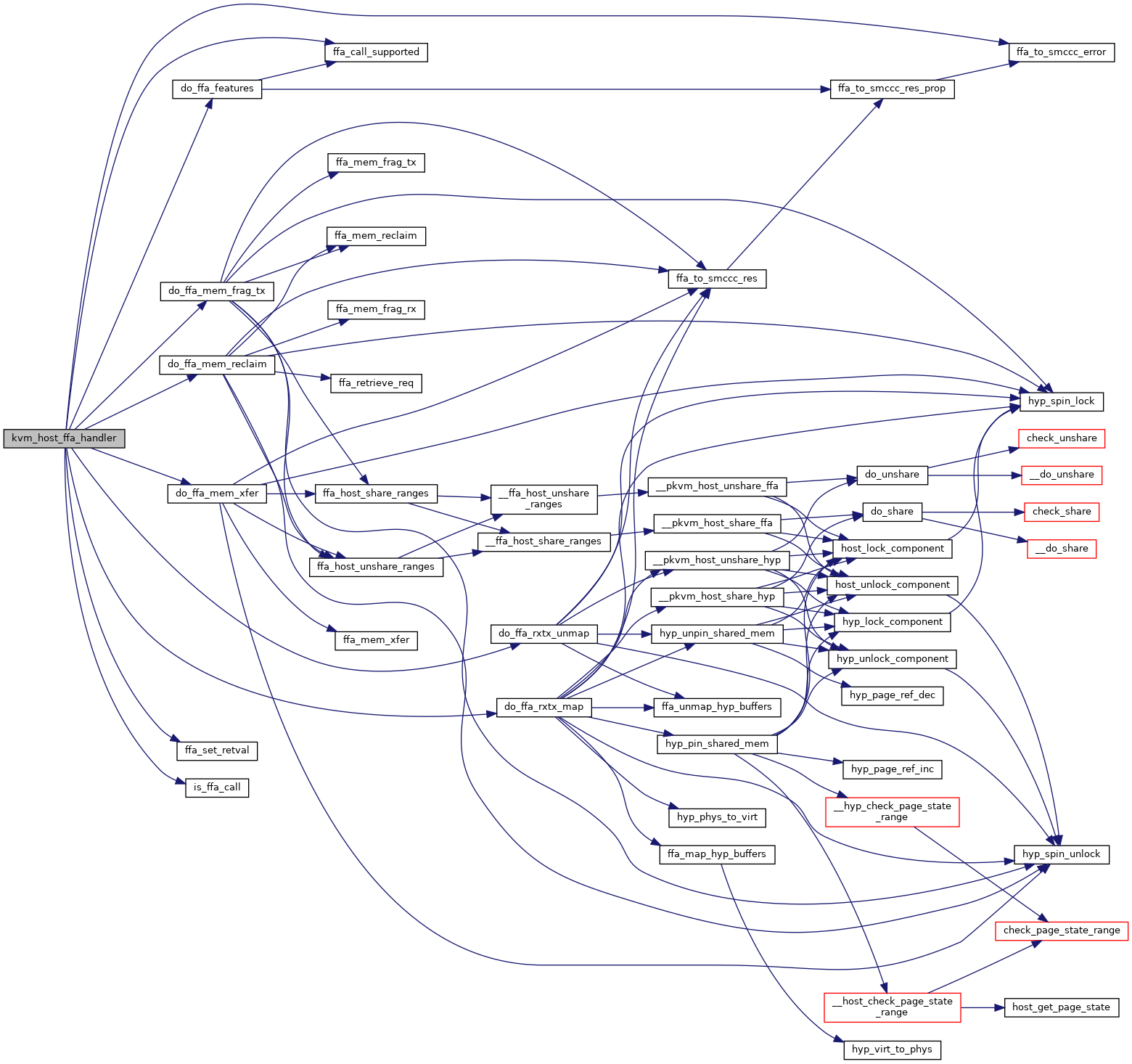

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

ffa_desc_buf

struct kvm_ffa_descriptor_buffer ffa_desc_buf

static

Definition at line 1 of file ffa.c.

host_buffers

struct kvm_ffa_buffers host_buffers

static

Definition at line 1 of file ffa.c.

hyp_buffers

struct kvm_ffa_buffers hyp_buffers

static

Definition at line 1 of file ffa.c.
