guest_memfd.c File Reference

#include <linux/backing-dev.h>
#include <linux/falloc.h>
#include <linux/kvm_host.h>
#include <linux/pagemap.h>
#include <linux/anon_inodes.h>
#include "kvm_mm.h"

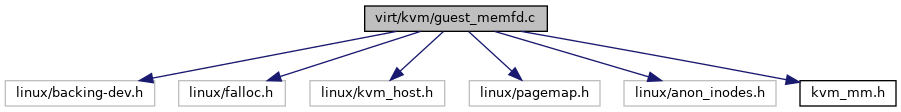

Include dependency graph for guest_memfd.c:

Go to the source code of this file.

Classes
struct	kvm_gmem

Functions
static struct folio *	kvm_gmem_get_folio (struct inode *inode, pgoff_t index)
static void	kvm_gmem_invalidate_begin (struct kvm_gmem *gmem, pgoff_t start, pgoff_t end)
static void	kvm_gmem_invalidate_end (struct kvm_gmem *gmem, pgoff_t start, pgoff_t end)
static long	kvm_gmem_punch_hole (struct inode *inode, loff_t offset, loff_t len)
static long	kvm_gmem_allocate (struct inode *inode, loff_t offset, loff_t len)
static long	kvm_gmem_fallocate (struct file *file, int mode, loff_t offset, loff_t len)
static int	kvm_gmem_release (struct inode *inode, struct file *file)
static struct file *	kvm_gmem_get_file (struct kvm_memory_slot *slot)
void	kvm_gmem_init (struct module *module)
static int	kvm_gmem_migrate_folio (struct address_space *mapping, struct folio *dst, struct folio *src, enum migrate_mode mode)
static int	kvm_gmem_error_folio (struct address_space *mapping, struct folio *folio)
static int	kvm_gmem_getattr (struct mnt_idmap *idmap, const struct path *path, struct kstat *stat, u32 request_mask, unsigned int query_flags)
static int	kvm_gmem_setattr (struct mnt_idmap *idmap, struct dentry *dentry, struct iattr *attr)
static int	__kvm_gmem_create (struct kvm *kvm, loff_t size, u64 flags)
int	kvm_gmem_create (struct kvm *kvm, struct kvm_create_guest_memfd *args)
int	kvm_gmem_bind (struct kvm *kvm, struct kvm_memory_slot *slot, unsigned int fd, loff_t offset)
void	kvm_gmem_unbind (struct kvm_memory_slot *slot)
int	kvm_gmem_get_pfn (struct kvm *kvm, struct kvm_memory_slot *slot, gfn_t gfn, kvm_pfn_t *pfn, int *max_order)
	EXPORT_SYMBOL_GPL (kvm_gmem_get_pfn)

Variables
static struct file_operations	kvm_gmem_fops
static const struct address_space_operations	kvm_gmem_aops
static const struct inode_operations	kvm_gmem_iops

Function Documentation

__kvm_gmem_create()

static int __kvm_gmem_create ( struct kvm *  kvm, loff_t  size, u64  flags  )

static

Definition at line 327 of file guest_memfd.c.

{
    const char *anon_name = "[kvm-gmem]";
    struct kvm_gmem *gmem;
    struct inode *inode;
    struct file *file;
    int fd, err;

    fd = get_unused_fd_flags(0);
    if (fd < 0)
        return fd;

    gmem = kzalloc(sizeof(*gmem), GFP_KERNEL);
    if (!gmem) {
        err = -ENOMEM;
        goto err_fd;
    }

    file = anon_inode_create_getfile(anon_name, &kvm_gmem_fops, gmem,
                     O_RDWR, NULL);
    if (IS_ERR(file)) {
        err = PTR_ERR(file);
        goto err_gmem;
    }

    file->f_flags |= O_LARGEFILE;

    inode = file->f_inode;
    WARN_ON(file->f_mapping != inode->i_mapping);

    inode->i_private = (void *)(unsigned long)flags;
    inode->i_op = &kvm_gmem_iops;
    inode->i_mapping->a_ops = &kvm_gmem_aops;
    inode->i_mode |= S_IFREG;
    inode->i_size = size;
    mapping_set_gfp_mask(inode->i_mapping, GFP_HIGHUSER);
    mapping_set_unmovable(inode->i_mapping);
    /* Unmovable mappings are supposed to be marked unevictable as well. */
    WARN_ON_ONCE(!mapping_unevictable(inode->i_mapping));

    kvm_get_kvm(kvm);
    gmem->kvm = kvm;
    xa_init(&gmem->bindings);
    list_add(&gmem->entry, &inode->i_mapping->i_private_list);

    fd_install(fd, file);
    return fd;

err_gmem:
    kfree(gmem);
err_fd:
    put_unused_fd(fd);
    return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

EXPORT_SYMBOL_GPL()

EXPORT_SYMBOL_GPL

(

kvm_gmem_get_pfn

)

kvm_gmem_allocate()

static long kvm_gmem_allocate ( struct inode *  inode, loff_t  offset, loff_t  len  )

static

Definition at line 124 of file guest_memfd.c.

{
    struct address_space *mapping = inode->i_mapping;
    pgoff_t start, index, end;
    int r;

    /* Dedicated guest is immutable by default. */
    if (offset + len > i_size_read(inode))
        return -EINVAL;

    filemap_invalidate_lock_shared(mapping);

    start = offset >> PAGE_SHIFT;
    end = (offset + len) >> PAGE_SHIFT;

    r = 0;
    for (index = start; index < end; ) {
        struct folio *folio;

        if (signal_pending(current)) {
            r = -EINTR;
            break;
        }

        folio = kvm_gmem_get_folio(inode, index);
        if (!folio) {
            r = -ENOMEM;
            break;
        }

        index = folio_next_index(folio);

        folio_unlock(folio);
        folio_put(folio);

        /* 64-bit only, wrapping the index should be impossible. */
        if (WARN_ON_ONCE(!index))
            break;

        cond_resched();
    }

    filemap_invalidate_unlock_shared(mapping);

    return r;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_gmem_bind()

int kvm_gmem_bind	(	struct kvm *	kvm,
		struct kvm_memory_slot *	slot,
		unsigned int	fd,
		loff_t	offset
	)

Definition at line 397 of file guest_memfd.c.

{
    loff_t size = slot->npages << PAGE_SHIFT;
    unsigned long start, end;
    struct kvm_gmem *gmem;
    struct inode *inode;
    struct file *file;
    int r = -EINVAL;

    BUILD_BUG_ON(sizeof(gfn_t) != sizeof(slot->gmem.pgoff));

    file = fget(fd);
    if (!file)
        return -EBADF;

    if (file->f_op != &kvm_gmem_fops)
        goto err;

    gmem = file->private_data;
    if (gmem->kvm != kvm)
        goto err;

    inode = file_inode(file);

    if (offset < 0 || !PAGE_ALIGNED(offset) ||
        offset + size > i_size_read(inode))
        goto err;

    filemap_invalidate_lock(inode->i_mapping);

    start = offset >> PAGE_SHIFT;
    end = start + slot->npages;

    if (!xa_empty(&gmem->bindings) &&
        xa_find(&gmem->bindings, &start, end - 1, XA_PRESENT)) {
        filemap_invalidate_unlock(inode->i_mapping);
        goto err;
    }

    /*
     * No synchronize_rcu() needed, any in-flight readers are guaranteed to
     * be see either a NULL file or this new file, no need for them to go
     * away.
     */
    rcu_assign_pointer(slot->gmem.file, file);
    slot->gmem.pgoff = start;

    xa_store_range(&gmem->bindings, start, end - 1, slot, GFP_KERNEL);
    filemap_invalidate_unlock(inode->i_mapping);

    /*
     * Drop the reference to the file, even on success.  The file pins KVM,
     * not the other way 'round.  Active bindings are invalidated if the
     * file is closed before memslots are destroyed.
     */
    r = 0;
err:
    fput(file);
    return r;
}

Here is the caller graph for this function:

kvm_gmem_create()

int kvm_gmem_create	(	struct kvm *	kvm,
		struct kvm_create_guest_memfd *	args
	)

Definition at line 382 of file guest_memfd.c.

{
    loff_t size = args->size;
    u64 flags = args->flags;
    u64 valid_flags = 0;

    if (flags & ~valid_flags)
        return -EINVAL;

    if (size <= 0 || !PAGE_ALIGNED(size))
        return -EINVAL;

    return __kvm_gmem_create(kvm, size, flags);
}

Here is the call graph for this function:

kvm_gmem_error_folio()

static int kvm_gmem_error_folio ( struct address_space *  mapping, struct folio *  folio  )

static

Definition at line 270 of file guest_memfd.c.

{
    struct list_head *gmem_list = &mapping->i_private_list;
    struct kvm_gmem *gmem;
    pgoff_t start, end;

    filemap_invalidate_lock_shared(mapping);

    start = folio->index;
    end = start + folio_nr_pages(folio);

    list_for_each_entry(gmem, gmem_list, entry)
        kvm_gmem_invalidate_begin(gmem, start, end);

    /*
     * Do not truncate the range, what action is taken in response to the
     * error is userspace's decision (assuming the architecture supports
     * gracefully handling memory errors).  If/when the guest attempts to
     * access a poisoned page, kvm_gmem_get_pfn() will return -EHWPOISON,
     * at which point KVM can either terminate the VM or propagate the
     * error to userspace.
     */

    list_for_each_entry(gmem, gmem_list, entry)
        kvm_gmem_invalidate_end(gmem, start, end);

    filemap_invalidate_unlock_shared(mapping);

    return MF_DELAYED;
}

kvm_gmem_fallocate()

static long kvm_gmem_fallocate ( struct file *  file, int  mode, loff_t  offset, loff_t  len  )

static

Definition at line 171 of file guest_memfd.c.

{
    int ret;

    if (!(mode & FALLOC_FL_KEEP_SIZE))
        return -EOPNOTSUPP;

    if (mode & ~(FALLOC_FL_KEEP_SIZE | FALLOC_FL_PUNCH_HOLE))
        return -EOPNOTSUPP;

    if (!PAGE_ALIGNED(offset) || !PAGE_ALIGNED(len))
        return -EINVAL;

    if (mode & FALLOC_FL_PUNCH_HOLE)
        ret = kvm_gmem_punch_hole(file_inode(file), offset, len);
    else
        ret = kvm_gmem_allocate(file_inode(file), offset, len);

    if (!ret)
        file_modified(file);
    return ret;
}

Here is the call graph for this function:

kvm_gmem_get_file()

static struct file* kvm_gmem_get_file ( struct kvm_memory_slot *  slot )

inlinestatic

Definition at line 240 of file guest_memfd.c.

{
    /*
     * Do not return slot->gmem.file if it has already been closed;
     * there might be some time between the last fput() and when
     * kvm_gmem_release() clears slot->gmem.file, and you do not
     * want to spin in the meanwhile.
     */
    return get_file_active(&slot->gmem.file);
}

Here is the caller graph for this function:

kvm_gmem_get_folio()

static struct folio* kvm_gmem_get_folio ( struct inode *  inode, pgoff_t  index  )

static

Definition at line 16 of file guest_memfd.c.

{
    struct folio *folio;

    /* TODO: Support huge pages. */
    folio = filemap_grab_folio(inode->i_mapping, index);
    if (IS_ERR_OR_NULL(folio))
        return NULL;

    /*
     * Use the up-to-date flag to track whether or not the memory has been
     * zeroed before being handed off to the guest.  There is no backing
     * storage for the memory, so the folio will remain up-to-date until
     * it's removed.
     *
     * TODO: Skip clearing pages when trusted firmware will do it when
     * assigning memory to the guest.
     */
    if (!folio_test_uptodate(folio)) {
        unsigned long nr_pages = folio_nr_pages(folio);
        unsigned long i;

        for (i = 0; i < nr_pages; i++)
            clear_highpage(folio_page(folio, i));

        folio_mark_uptodate(folio);
    }

    /*
     * Ignore accessed, referenced, and dirty flags.  The memory is
     * unevictable and there is no storage to write back to.
     */
    return folio;
}

Here is the caller graph for this function:

kvm_gmem_get_pfn()

int kvm_gmem_get_pfn	(	struct kvm *	kvm,
		struct kvm_memory_slot *	slot,
		gfn_t	gfn,
		kvm_pfn_t *	pfn,
		int *	max_order
	)

Definition at line 485 of file guest_memfd.c.

{
    pgoff_t index = gfn - slot->base_gfn + slot->gmem.pgoff;
    struct kvm_gmem *gmem;
    struct folio *folio;
    struct page *page;
    struct file *file;
    int r;

    file = kvm_gmem_get_file(slot);
    if (!file)
        return -EFAULT;

    gmem = file->private_data;

    if (WARN_ON_ONCE(xa_load(&gmem->bindings, index) != slot)) {
        r = -EIO;
        goto out_fput;
    }

    folio = kvm_gmem_get_folio(file_inode(file), index);
    if (!folio) {
        r = -ENOMEM;
        goto out_fput;
    }

    if (folio_test_hwpoison(folio)) {
        r = -EHWPOISON;
        goto out_unlock;
    }

    page = folio_file_page(folio, index);

    *pfn = page_to_pfn(page);
    if (max_order)
        *max_order = 0;

    r = 0;

out_unlock:
    folio_unlock(folio);
out_fput:
    fput(file);

    return r;
}

Here is the call graph for this function:

kvm_gmem_getattr()

static int kvm_gmem_getattr ( struct mnt_idmap *  idmap, const struct path *  path, struct kstat *  stat, u32  request_mask, unsigned int  query_flags  )

static

Definition at line 307 of file guest_memfd.c.

{
    struct inode *inode = path->dentry->d_inode;

    generic_fillattr(idmap, request_mask, inode, stat);
    return 0;
}

kvm_gmem_init()

void kvm_gmem_init

(

struct module *

module

)

Definition at line 257 of file guest_memfd.c.

{
    kvm_gmem_fops.owner = module;
}

Here is the caller graph for this function:

kvm_gmem_invalidate_begin()

static void kvm_gmem_invalidate_begin ( struct kvm_gmem *  gmem, pgoff_t  start, pgoff_t  end  )

static

Definition at line 51 of file guest_memfd.c.

{
    bool flush = false, found_memslot = false;
    struct kvm_memory_slot *slot;
    struct kvm *kvm = gmem->kvm;
    unsigned long index;

    xa_for_each_range(&gmem->bindings, index, slot, start, end - 1) {
        pgoff_t pgoff = slot->gmem.pgoff;

        struct kvm_gfn_range gfn_range = {
            .start = slot->base_gfn + max(pgoff, start) - pgoff,
            .end = slot->base_gfn + min(pgoff + slot->npages, end) - pgoff,
            .slot = slot,
            .may_block = true,
        };

        if (!found_memslot) {
            found_memslot = true;

            KVM_MMU_LOCK(kvm);
            kvm_mmu_invalidate_begin(kvm);
        }

        flush |= kvm_mmu_unmap_gfn_range(kvm, &gfn_range);
    }

    if (flush)
        kvm_flush_remote_tlbs(kvm);

    if (found_memslot)
        KVM_MMU_UNLOCK(kvm);
}

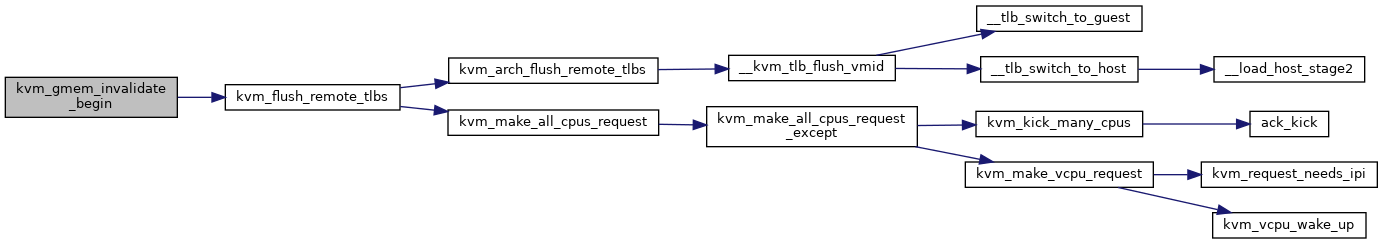

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_gmem_invalidate_end()

static void kvm_gmem_invalidate_end ( struct kvm_gmem *  gmem, pgoff_t  start, pgoff_t  end  )

static

Definition at line 86 of file guest_memfd.c.

{
    struct kvm *kvm = gmem->kvm;

    if (xa_find(&gmem->bindings, &start, end - 1, XA_PRESENT)) {
        KVM_MMU_LOCK(kvm);
        kvm_mmu_invalidate_end(kvm);
        KVM_MMU_UNLOCK(kvm);
    }
}

Here is the caller graph for this function:

kvm_gmem_migrate_folio()

static int kvm_gmem_migrate_folio ( struct address_space *  mapping, struct folio *  dst, struct folio *  src, enum migrate_mode  mode  )

static

Definition at line 262 of file guest_memfd.c.

{
    WARN_ON_ONCE(1);
    return -EINVAL;
}

kvm_gmem_punch_hole()

static long kvm_gmem_punch_hole ( struct inode *  inode, loff_t  offset, loff_t  len  )

static

Definition at line 98 of file guest_memfd.c.

{
    struct list_head *gmem_list = &inode->i_mapping->i_private_list;
    pgoff_t start = offset >> PAGE_SHIFT;
    pgoff_t end = (offset + len) >> PAGE_SHIFT;
    struct kvm_gmem *gmem;

    /*
     * Bindings must be stable across invalidation to ensure the start+end
     * are balanced.
     */
    filemap_invalidate_lock(inode->i_mapping);

    list_for_each_entry(gmem, gmem_list, entry)
        kvm_gmem_invalidate_begin(gmem, start, end);

    truncate_inode_pages_range(inode->i_mapping, offset, offset + len - 1);

    list_for_each_entry(gmem, gmem_list, entry)
        kvm_gmem_invalidate_end(gmem, start, end);

    filemap_invalidate_unlock(inode->i_mapping);

    return 0;
}

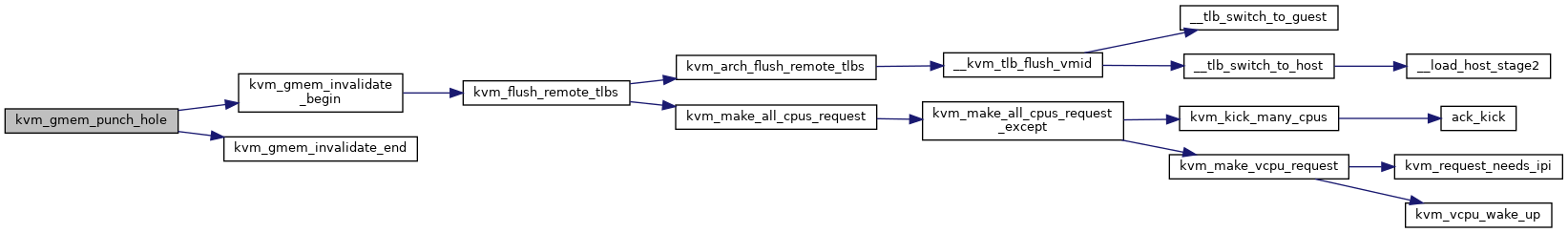

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_gmem_release()

static int kvm_gmem_release ( struct inode *  inode, struct file *  file  )

static

Definition at line 195 of file guest_memfd.c.

{
    struct kvm_gmem *gmem = file->private_data;
    struct kvm_memory_slot *slot;
    struct kvm *kvm = gmem->kvm;
    unsigned long index;

    /*
     * Prevent concurrent attempts to *unbind* a memslot.  This is the last
     * reference to the file and thus no new bindings can be created, but
     * dereferencing the slot for existing bindings needs to be protected
     * against memslot updates, specifically so that unbind doesn't race
     * and free the memslot (kvm_gmem_get_file() will return NULL).
     */
    mutex_lock(&kvm->slots_lock);

    filemap_invalidate_lock(inode->i_mapping);

    xa_for_each(&gmem->bindings, index, slot)
        rcu_assign_pointer(slot->gmem.file, NULL);

    synchronize_rcu();

    /*
     * All in-flight operations are gone and new bindings can be created.
     * Zap all SPTEs pointed at by this file.  Do not free the backing
     * memory, as its lifetime is associated with the inode, not the file.
     */
    kvm_gmem_invalidate_begin(gmem, 0, -1ul);
    kvm_gmem_invalidate_end(gmem, 0, -1ul);

    list_del(&gmem->entry);

    filemap_invalidate_unlock(inode->i_mapping);

    mutex_unlock(&kvm->slots_lock);

    xa_destroy(&gmem->bindings);
    kfree(gmem);

    kvm_put_kvm(kvm);

    return 0;
}

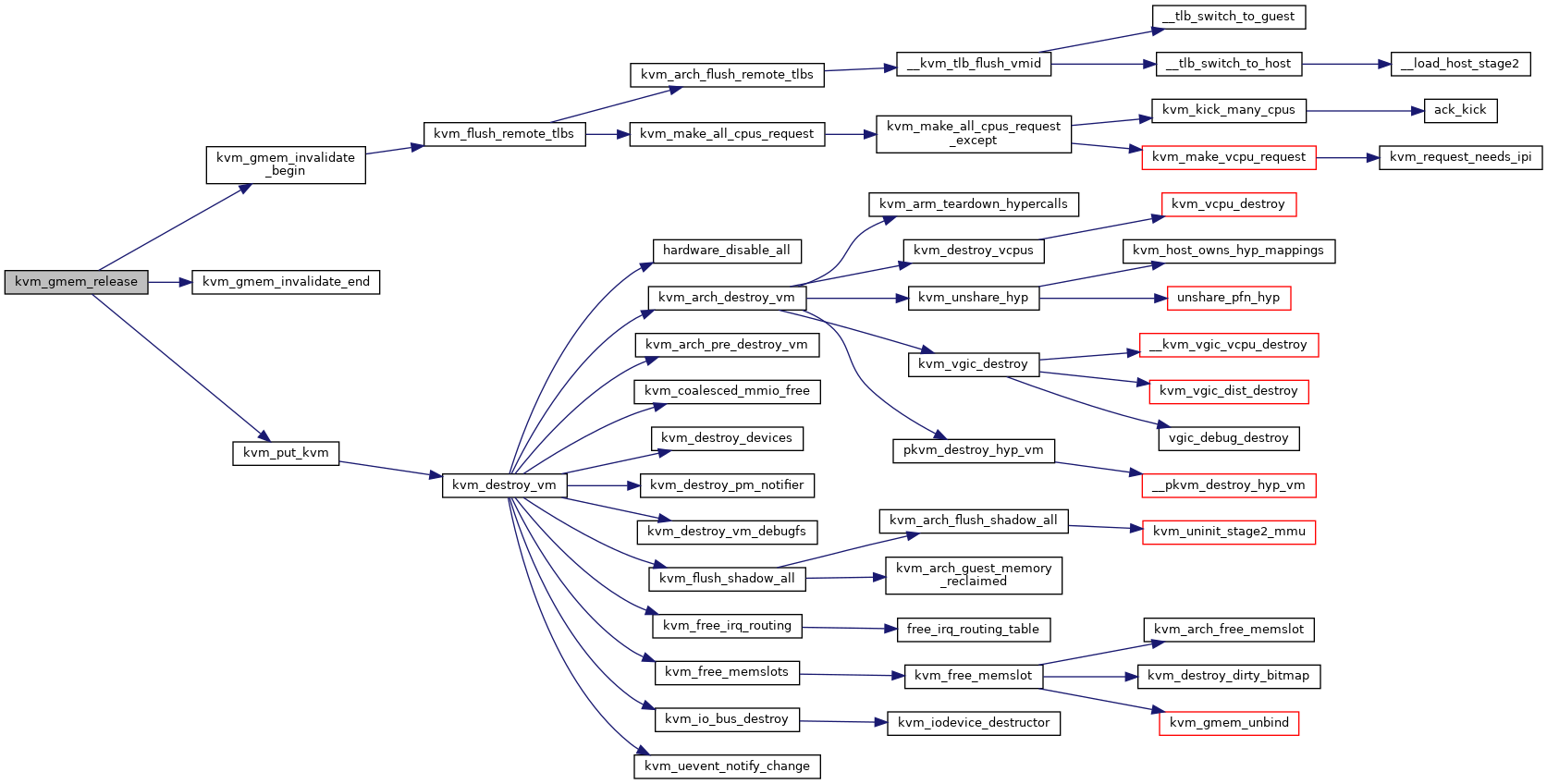

Here is the call graph for this function:

kvm_gmem_setattr()

static int kvm_gmem_setattr ( struct mnt_idmap *  idmap, struct dentry *  dentry, struct iattr *  attr  )

static

Definition at line 317 of file guest_memfd.c.

{
    return -EINVAL;
}

kvm_gmem_unbind()

void kvm_gmem_unbind

(

struct kvm_memory_slot *

slot

)

Definition at line 459 of file guest_memfd.c.

{
    unsigned long start = slot->gmem.pgoff;
    unsigned long end = start + slot->npages;
    struct kvm_gmem *gmem;
    struct file *file;

    /*
     * Nothing to do if the underlying file was already closed (or is being
     * closed right now), kvm_gmem_release() invalidates all bindings.
     */
    file = kvm_gmem_get_file(slot);
    if (!file)
        return;

    gmem = file->private_data;

    filemap_invalidate_lock(file->f_mapping);
    xa_store_range(&gmem->bindings, start, end - 1, NULL, GFP_KERNEL);
    rcu_assign_pointer(slot->gmem.file, NULL);
    synchronize_rcu();
    filemap_invalidate_unlock(file->f_mapping);

    fput(file);
}

Here is the call graph for this function:

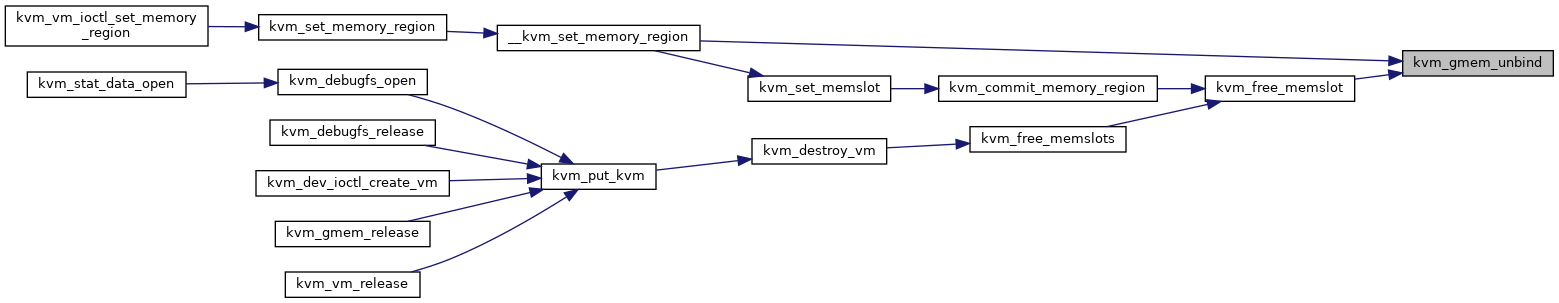

Here is the caller graph for this function:

Variable Documentation

kvm_gmem_aops

const struct address_space_operations kvm_gmem_aops

static

Initial value:

= {
    .dirty_folio = noop_dirty_folio,
    .migrate_folio  = kvm_gmem_migrate_folio,
    .error_remove_folio = kvm_gmem_error_folio,
}

Definition at line 270 of file guest_memfd.c.

kvm_gmem_fops

struct file_operations kvm_gmem_fops

static

Initial value:

= {
    .open       = generic_file_open,
    .release    = kvm_gmem_release,
    .fallocate  = kvm_gmem_fallocate,
}

Definition at line 240 of file guest_memfd.c.

kvm_gmem_iops

const struct inode_operations kvm_gmem_iops

static

Initial value:

= {
    .getattr    = kvm_gmem_getattr,
    .setattr    = kvm_gmem_setattr,
}

Definition at line 317 of file guest_memfd.c.
