pfncache.c File Reference

#include <linux/kvm_host.h>
#include <linux/kvm.h>
#include <linux/highmem.h>
#include <linux/module.h>
#include <linux/errno.h>
#include "kvm_mm.h"

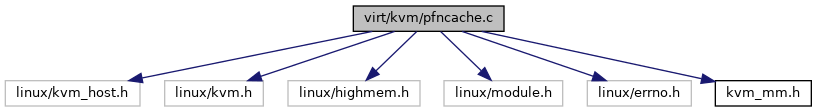

Include dependency graph for pfncache.c:

Go to the source code of this file.

Functions
void	gfn_to_pfn_cache_invalidate_start (struct kvm *kvm, unsigned long start, unsigned long end, bool may_block)
bool	kvm_gpc_check (struct gfn_to_pfn_cache *gpc, unsigned long len)
	EXPORT_SYMBOL_GPL (kvm_gpc_check)
static void	gpc_unmap_khva (kvm_pfn_t pfn, void *khva)
static bool	mmu_notifier_retry_cache (struct kvm *kvm, unsigned long mmu_seq)
static kvm_pfn_t	hva_to_pfn_retry (struct gfn_to_pfn_cache *gpc)
static int	__kvm_gpc_refresh (struct gfn_to_pfn_cache *gpc, gpa_t gpa, unsigned long len)
int	kvm_gpc_refresh (struct gfn_to_pfn_cache *gpc, unsigned long len)
	EXPORT_SYMBOL_GPL (kvm_gpc_refresh)
void	kvm_gpc_init (struct gfn_to_pfn_cache *gpc, struct kvm *kvm, struct kvm_vcpu *vcpu, enum pfn_cache_usage usage)
	EXPORT_SYMBOL_GPL (kvm_gpc_init)
int	kvm_gpc_activate (struct gfn_to_pfn_cache *gpc, gpa_t gpa, unsigned long len)
	EXPORT_SYMBOL_GPL (kvm_gpc_activate)
void	kvm_gpc_deactivate (struct gfn_to_pfn_cache *gpc)
	EXPORT_SYMBOL_GPL (kvm_gpc_deactivate)

Function Documentation

__kvm_gpc_refresh()

static int __kvm_gpc_refresh ( struct gfn_to_pfn_cache *  gpc, gpa_t  gpa, unsigned long  len  )

static

Definition at line 239 of file pfncache.c.

{
    struct kvm_memslots *slots = kvm_memslots(gpc->kvm);
    unsigned long page_offset = gpa & ~PAGE_MASK;
    bool unmap_old = false;
    unsigned long old_uhva;
    kvm_pfn_t old_pfn;
    void *old_khva;
    int ret;

    /*
     * If must fit within a single page. The 'len' argument is
     * only to enforce that.
     */
    if (page_offset + len > PAGE_SIZE)
        return -EINVAL;

    /*
     * If another task is refreshing the cache, wait for it to complete.
     * There is no guarantee that concurrent refreshes will see the same
     * gpa, memslots generation, etc..., so they must be fully serialized.
     */
    mutex_lock(&gpc->refresh_lock);

    write_lock_irq(&gpc->lock);

    if (!gpc->active) {
        ret = -EINVAL;
        goto out_unlock;
    }

    old_pfn = gpc->pfn;
    old_khva = gpc->khva - offset_in_page(gpc->khva);
    old_uhva = gpc->uhva;

    /* If the userspace HVA is invalid, refresh that first */
    if (gpc->gpa != gpa || gpc->generation != slots->generation ||
        kvm_is_error_hva(gpc->uhva)) {
        gfn_t gfn = gpa_to_gfn(gpa);

        gpc->gpa = gpa;
        gpc->generation = slots->generation;
        gpc->memslot = __gfn_to_memslot(slots, gfn);
        gpc->uhva = gfn_to_hva_memslot(gpc->memslot, gfn);

        if (kvm_is_error_hva(gpc->uhva)) {
            ret = -EFAULT;
            goto out;
        }
    }

    /*
     * If the userspace HVA changed or the PFN was already invalid,
     * drop the lock and do the HVA to PFN lookup again.
     */
    if (!gpc->valid || old_uhva != gpc->uhva) {
        ret = hva_to_pfn_retry(gpc);
    } else {
        /*
         * If the HVA→PFN mapping was already valid, don't unmap it.
         * But do update gpc->khva because the offset within the page
         * may have changed.
         */
        gpc->khva = old_khva + page_offset;
        ret = 0;
        goto out_unlock;
    }

 out:
    /*
     * Invalidate the cache and purge the pfn/khva if the refresh failed.
     * Some/all of the uhva, gpa, and memslot generation info may still be
     * valid, leave it as is.
     */
    if (ret) {
        gpc->valid = false;
        gpc->pfn = KVM_PFN_ERR_FAULT;
        gpc->khva = NULL;
    }

    /* Detect a pfn change before dropping the lock! */
    unmap_old = (old_pfn != gpc->pfn);

out_unlock:
    write_unlock_irq(&gpc->lock);

    mutex_unlock(&gpc->refresh_lock);

    if (unmap_old)
        gpc_unmap_khva(old_pfn, old_khva);

    return ret;
}

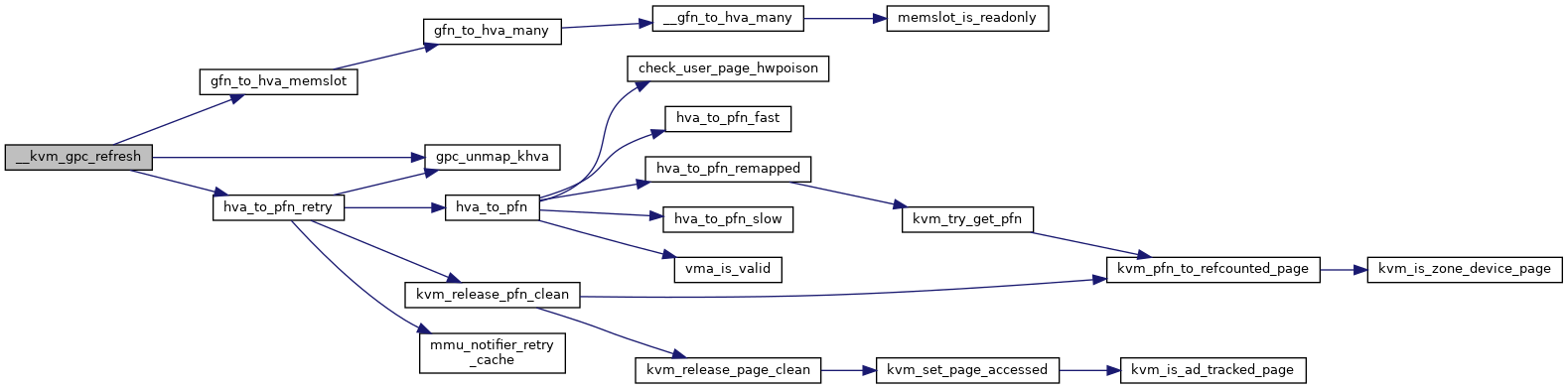

Here is the call graph for this function:

Here is the caller graph for this function:

EXPORT_SYMBOL_GPL() [1/5]

EXPORT_SYMBOL_GPL

(

kvm_gpc_activate

)

EXPORT_SYMBOL_GPL() [2/5]

EXPORT_SYMBOL_GPL

(

kvm_gpc_check

)

EXPORT_SYMBOL_GPL() [3/5]

EXPORT_SYMBOL_GPL

(

kvm_gpc_deactivate

)

EXPORT_SYMBOL_GPL() [4/5]

EXPORT_SYMBOL_GPL

(

kvm_gpc_init

)

EXPORT_SYMBOL_GPL() [5/5]

EXPORT_SYMBOL_GPL

(

kvm_gpc_refresh

)

gfn_to_pfn_cache_invalidate_start()

void gfn_to_pfn_cache_invalidate_start	(	struct kvm *	kvm,
		unsigned long	start,
		unsigned long	end,
		bool	may_block
	)

Definition at line 25 of file pfncache.c.

{
    DECLARE_BITMAP(vcpu_bitmap, KVM_MAX_VCPUS);
    struct gfn_to_pfn_cache *gpc;
    bool evict_vcpus = false;

    spin_lock(&kvm->gpc_lock);
    list_for_each_entry(gpc, &kvm->gpc_list, list) {
        write_lock_irq(&gpc->lock);

        /* Only a single page so no need to care about length */
        if (gpc->valid && !is_error_noslot_pfn(gpc->pfn) &&
            gpc->uhva >= start && gpc->uhva < end) {
            gpc->valid = false;

            /*
             * If a guest vCPU could be using the physical address,
             * it needs to be forced out of guest mode.
             */
            if (gpc->usage & KVM_GUEST_USES_PFN) {
                if (!evict_vcpus) {
                    evict_vcpus = true;
                    bitmap_zero(vcpu_bitmap, KVM_MAX_VCPUS);
                }
                __set_bit(gpc->vcpu->vcpu_idx, vcpu_bitmap);
            }
        }
        write_unlock_irq(&gpc->lock);
    }
    spin_unlock(&kvm->gpc_lock);

    if (evict_vcpus) {
        /*
         * KVM needs to ensure the vCPU is fully out of guest context
         * before allowing the invalidation to continue.
         */
        unsigned int req = KVM_REQ_OUTSIDE_GUEST_MODE;
        bool called;

        /*
         * If the OOM reaper is active, then all vCPUs should have
         * been stopped already, so perform the request without
         * KVM_REQUEST_WAIT and be sad if any needed to be IPI'd.
         */
        if (!may_block)
            req &= ~KVM_REQUEST_WAIT;

        called = kvm_make_vcpus_request_mask(kvm, req, vcpu_bitmap);

        WARN_ON_ONCE(called && !may_block);
    }
}

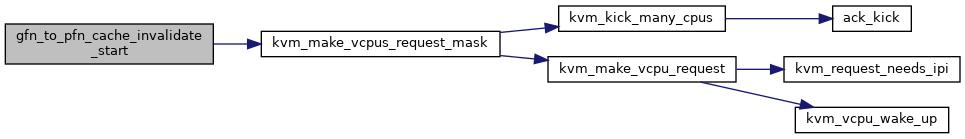

Here is the call graph for this function:

gpc_unmap_khva()

static void gpc_unmap_khva ( kvm_pfn_t  pfn, void *  khva  )

static

Definition at line 99 of file pfncache.c.

{
    /* Unmap the old pfn/page if it was mapped before. */
    if (!is_error_noslot_pfn(pfn) && khva) {
        if (pfn_valid(pfn))
            kunmap(pfn_to_page(pfn));
#ifdef CONFIG_HAS_IOMEM
        else
            memunmap(khva);
#endif
    }
}

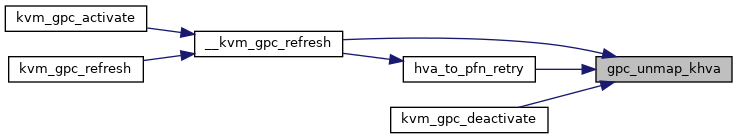

Here is the caller graph for this function:

hva_to_pfn_retry()

static kvm_pfn_t hva_to_pfn_retry ( struct gfn_to_pfn_cache *  gpc )

static

Definition at line 140 of file pfncache.c.

{
    /* Note, the new page offset may be different than the old! */
    void *old_khva = gpc->khva - offset_in_page(gpc->khva);
    kvm_pfn_t new_pfn = KVM_PFN_ERR_FAULT;
    void *new_khva = NULL;
    unsigned long mmu_seq;

    lockdep_assert_held(&gpc->refresh_lock);

    lockdep_assert_held_write(&gpc->lock);

    /*
     * Invalidate the cache prior to dropping gpc->lock, the gpa=>uhva
     * assets have already been updated and so a concurrent check() from a
     * different task may not fail the gpa/uhva/generation checks.
     */
    gpc->valid = false;

    do {
        mmu_seq = gpc->kvm->mmu_invalidate_seq;
        smp_rmb();

        write_unlock_irq(&gpc->lock);

        /*
         * If the previous iteration "failed" due to an mmu_notifier
         * event, release the pfn and unmap the kernel virtual address
         * from the previous attempt.  Unmapping might sleep, so this
         * needs to be done after dropping the lock.  Opportunistically
         * check for resched while the lock isn't held.
         */
        if (new_pfn != KVM_PFN_ERR_FAULT) {
            /*
             * Keep the mapping if the previous iteration reused
             * the existing mapping and didn't create a new one.
             */
            if (new_khva != old_khva)
                gpc_unmap_khva(new_pfn, new_khva);

            kvm_release_pfn_clean(new_pfn);

            cond_resched();
        }

        /* We always request a writeable mapping */
        new_pfn = hva_to_pfn(gpc->uhva, false, false, NULL, true, NULL);
        if (is_error_noslot_pfn(new_pfn))
            goto out_error;

        /*
         * Obtain a new kernel mapping if KVM itself will access the
         * pfn.  Note, kmap() and memremap() can both sleep, so this
         * too must be done outside of gpc->lock!
         */
        if (gpc->usage & KVM_HOST_USES_PFN) {
            if (new_pfn == gpc->pfn) {
                new_khva = old_khva;
            } else if (pfn_valid(new_pfn)) {
                new_khva = kmap(pfn_to_page(new_pfn));
#ifdef CONFIG_HAS_IOMEM
            } else {
                new_khva = memremap(pfn_to_hpa(new_pfn), PAGE_SIZE, MEMREMAP_WB);
#endif
            }
            if (!new_khva) {
                kvm_release_pfn_clean(new_pfn);
                goto out_error;
            }
        }

        write_lock_irq(&gpc->lock);

        /*
         * Other tasks must wait for _this_ refresh to complete before
         * attempting to refresh.
         */
        WARN_ON_ONCE(gpc->valid);
    } while (mmu_notifier_retry_cache(gpc->kvm, mmu_seq));

    gpc->valid = true;
    gpc->pfn = new_pfn;
    gpc->khva = new_khva + (gpc->gpa & ~PAGE_MASK);

    /*
     * Put the reference to the _new_ pfn.  The pfn is now tracked by the
     * cache and can be safely migrated, swapped, etc... as the cache will
     * invalidate any mappings in response to relevant mmu_notifier events.
     */
    kvm_release_pfn_clean(new_pfn);

    return 0;

out_error:
    write_lock_irq(&gpc->lock);

    return -EFAULT;
}

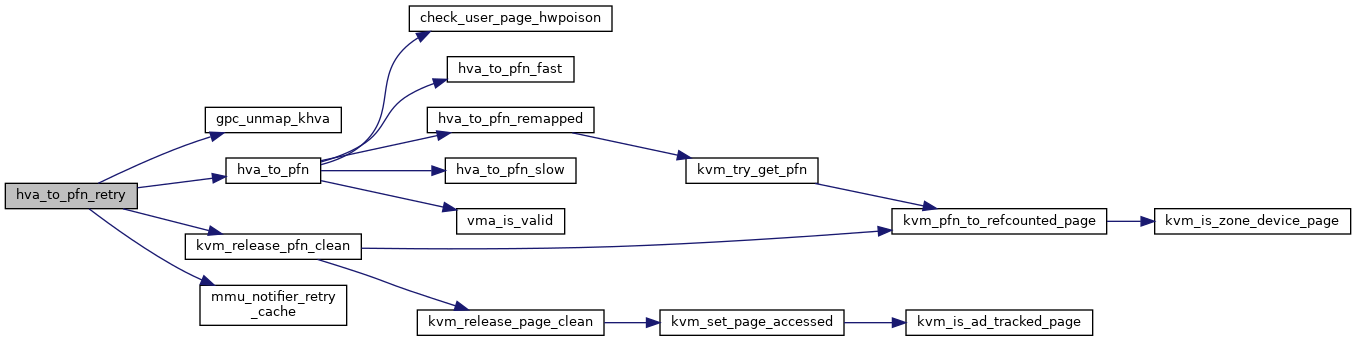

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_gpc_activate()

int kvm_gpc_activate	(	struct gfn_to_pfn_cache *	gpc,
		gpa_t	gpa,
		unsigned long	len
	)

Definition at line 357 of file pfncache.c.

{
    struct kvm *kvm = gpc->kvm;

    if (!gpc->active) {
        if (KVM_BUG_ON(gpc->valid, kvm))
            return -EIO;

        spin_lock(&kvm->gpc_lock);
        list_add(&gpc->list, &kvm->gpc_list);
        spin_unlock(&kvm->gpc_lock);

        /*
         * Activate the cache after adding it to the list, a concurrent
         * refresh must not establish a mapping until the cache is
         * reachable by mmu_notifier events.
         */
        write_lock_irq(&gpc->lock);
        gpc->active = true;
        write_unlock_irq(&gpc->lock);
    }
    return __kvm_gpc_refresh(gpc, gpa, len);
}

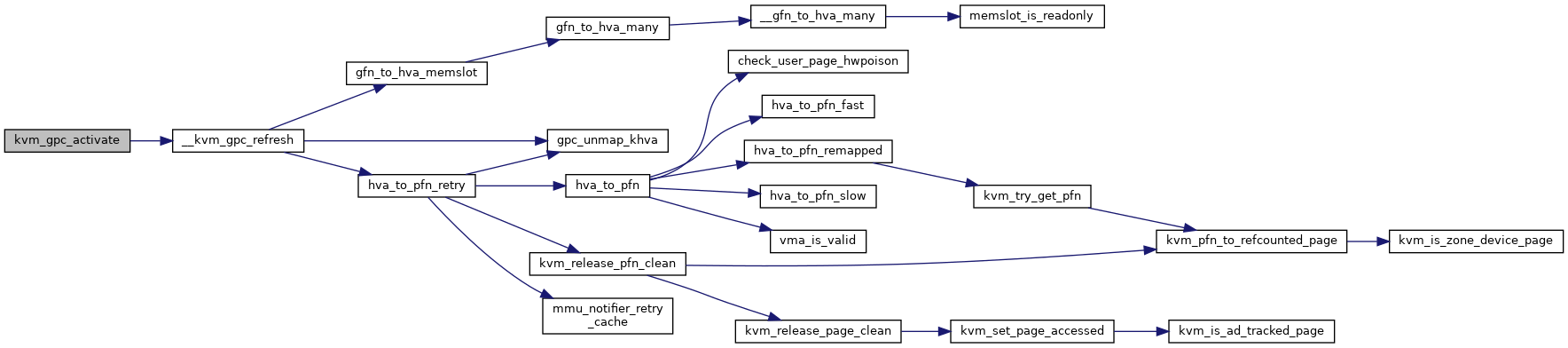

Here is the call graph for this function:

kvm_gpc_check()

bool kvm_gpc_check	(	struct gfn_to_pfn_cache *	gpc,
		unsigned long	len
	)

Definition at line 79 of file pfncache.c.

{
    struct kvm_memslots *slots = kvm_memslots(gpc->kvm);

    if (!gpc->active)
        return false;

    if ((gpc->gpa & ~PAGE_MASK) + len > PAGE_SIZE)
        return false;

    if (gpc->generation != slots->generation || kvm_is_error_hva(gpc->uhva))
        return false;

    if (!gpc->valid)
        return false;

    return true;
}

kvm_gpc_deactivate()

void kvm_gpc_deactivate

(

struct gfn_to_pfn_cache *

gpc

)

Definition at line 382 of file pfncache.c.

{
    struct kvm *kvm = gpc->kvm;
    kvm_pfn_t old_pfn;
    void *old_khva;

    if (gpc->active) {
        /*
         * Deactivate the cache before removing it from the list, KVM
         * must stall mmu_notifier events until all users go away, i.e.
         * until gpc->lock is dropped and refresh is guaranteed to fail.
         */
        write_lock_irq(&gpc->lock);
        gpc->active = false;
        gpc->valid = false;

        /*
         * Leave the GPA => uHVA cache intact, it's protected by the
         * memslot generation.  The PFN lookup needs to be redone every
         * time as mmu_notifier protection is lost when the cache is
         * removed from the VM's gpc_list.
         */
        old_khva = gpc->khva - offset_in_page(gpc->khva);
        gpc->khva = NULL;

        old_pfn = gpc->pfn;
        gpc->pfn = KVM_PFN_ERR_FAULT;
        write_unlock_irq(&gpc->lock);

        spin_lock(&kvm->gpc_lock);
        list_del(&gpc->list);
        spin_unlock(&kvm->gpc_lock);

        gpc_unmap_khva(old_pfn, old_khva);
    }
}

Here is the call graph for this function:

kvm_gpc_init()

void kvm_gpc_init	(	struct gfn_to_pfn_cache *	gpc,
		struct kvm *	kvm,
		struct kvm_vcpu *	vcpu,
		enum pfn_cache_usage	usage
	)

Definition at line 340 of file pfncache.c.

{
    WARN_ON_ONCE(!usage || (usage & KVM_GUEST_AND_HOST_USE_PFN) != usage);
    WARN_ON_ONCE((usage & KVM_GUEST_USES_PFN) && !vcpu);

    rwlock_init(&gpc->lock);
    mutex_init(&gpc->refresh_lock);

    gpc->kvm = kvm;
    gpc->vcpu = vcpu;
    gpc->usage = usage;
    gpc->pfn = KVM_PFN_ERR_FAULT;
    gpc->uhva = KVM_HVA_ERR_BAD;
}

kvm_gpc_refresh()

int kvm_gpc_refresh	(	struct gfn_to_pfn_cache *	gpc,
		unsigned long	len
	)

Definition at line 334 of file pfncache.c.

{
    return __kvm_gpc_refresh(gpc, gpc->gpa, len);
}

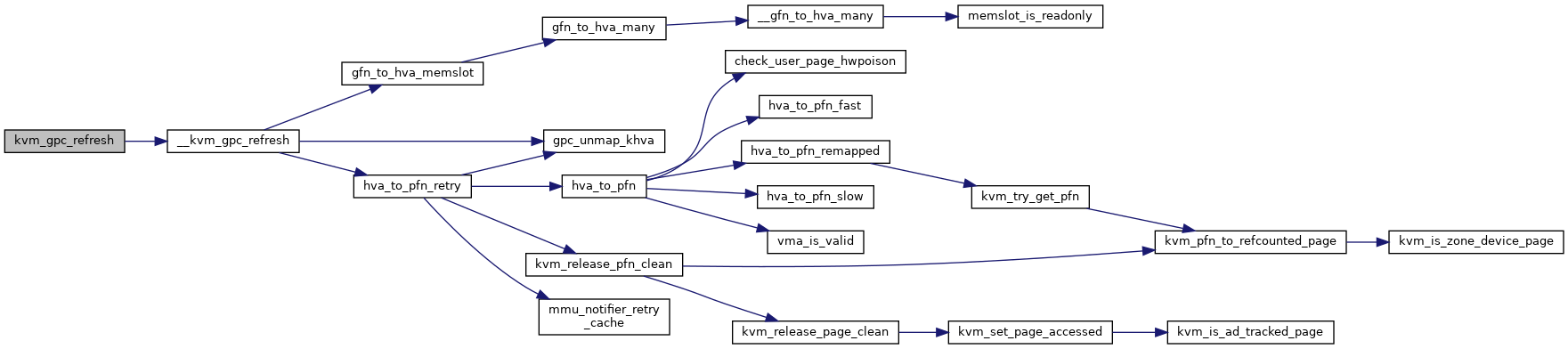

Here is the call graph for this function:

mmu_notifier_retry_cache()

static bool mmu_notifier_retry_cache ( struct kvm *  kvm, unsigned long  mmu_seq  )

inlinestatic

Definition at line 112 of file pfncache.c.

{
    /*
     * mn_active_invalidate_count acts for all intents and purposes
     * like mmu_invalidate_in_progress here; but the latter cannot
     * be used here because the invalidation of caches in the
     * mmu_notifier event occurs _before_ mmu_invalidate_in_progress
     * is elevated.
     *
     * Note, it does not matter that mn_active_invalidate_count
     * is not protected by gpc->lock.  It is guaranteed to
     * be elevated before the mmu_notifier acquires gpc->lock, and
     * isn't dropped until after mmu_invalidate_seq is updated.
     */
    if (kvm->mn_active_invalidate_count)
        return true;

    /*
     * Ensure mn_active_invalidate_count is read before
     * mmu_invalidate_seq.  This pairs with the smp_wmb() in
     * mmu_notifier_invalidate_range_end() to guarantee either the
     * old (non-zero) value of mn_active_invalidate_count or the
     * new (incremented) value of mmu_invalidate_seq is observed.
     */
    smp_rmb();
    return kvm->mmu_invalidate_seq != mmu_seq;
}

Here is the caller graph for this function:
