i8259.c File Reference

#include <linux/mm.h>
#include <linux/slab.h>
#include <linux/bitops.h>
#include "irq.h"
#include <linux/kvm_host.h>
#include "trace.h"

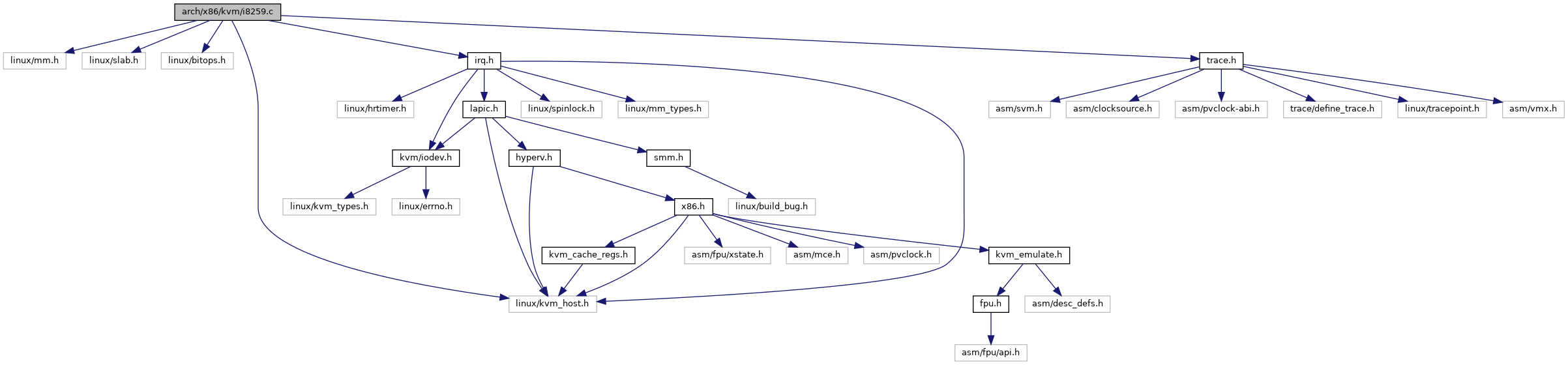

Include dependency graph for i8259.c:

Go to the source code of this file.

Macros
#define	pr_fmt(fmt)   KBUILD_MODNAME ": " fmt
#define	pr_pic_unimpl(fmt, ...)    pr_err_ratelimited("pic: " fmt, ## __VA_ARGS__)

Functions
static void	pic_irq_request (struct kvm *kvm, int level)
static void	pic_lock (struct kvm_pic *s) __acquires(&s -> lock)
static void	pic_unlock (struct kvm_pic *s) __releases(&s -> lock)
static void	pic_clear_isr (struct kvm_kpic_state *s, int irq)
static int	pic_set_irq1 (struct kvm_kpic_state *s, int irq, int level)
static int	get_priority (struct kvm_kpic_state *s, int mask)
static int	pic_get_irq (struct kvm_kpic_state *s)
static void	pic_update_irq (struct kvm_pic *s)
void	kvm_pic_update_irq (struct kvm_pic *s)
int	kvm_pic_set_irq (struct kvm_pic *s, int irq, int irq_source_id, int level)
void	kvm_pic_clear_all (struct kvm_pic *s, int irq_source_id)
static void	pic_intack (struct kvm_kpic_state *s, int irq)
int	kvm_pic_read_irq (struct kvm *kvm)
static void	kvm_pic_reset (struct kvm_kpic_state *s)
static void	pic_ioport_write (void *opaque, u32 addr, u32 val)
static u32	pic_poll_read (struct kvm_kpic_state *s, u32 addr1)
static u32	pic_ioport_read (void *opaque, u32 addr)
static void	elcr_ioport_write (void *opaque, u32 val)
static u32	elcr_ioport_read (void *opaque)
static int	picdev_write (struct kvm_pic *s, gpa_t addr, int len, const void *val)
static int	picdev_read (struct kvm_pic *s, gpa_t addr, int len, void *val)
static int	picdev_master_write (struct kvm_vcpu *vcpu, struct kvm_io_device *dev, gpa_t addr, int len, const void *val)
static int	picdev_master_read (struct kvm_vcpu *vcpu, struct kvm_io_device *dev, gpa_t addr, int len, void *val)
static int	picdev_slave_write (struct kvm_vcpu *vcpu, struct kvm_io_device *dev, gpa_t addr, int len, const void *val)
static int	picdev_slave_read (struct kvm_vcpu *vcpu, struct kvm_io_device *dev, gpa_t addr, int len, void *val)
static int	picdev_elcr_write (struct kvm_vcpu *vcpu, struct kvm_io_device *dev, gpa_t addr, int len, const void *val)
static int	picdev_elcr_read (struct kvm_vcpu *vcpu, struct kvm_io_device *dev, gpa_t addr, int len, void *val)
int	kvm_pic_init (struct kvm *kvm)
void	kvm_pic_destroy (struct kvm *kvm)

Variables
static const struct kvm_io_device_ops	picdev_master_ops
static const struct kvm_io_device_ops	picdev_slave_ops
static const struct kvm_io_device_ops	picdev_elcr_ops

Macro Definition Documentation

pr_fmt

#define pr_fmt

(

fmt

)

KBUILD_MODNAME ": " fmt

Definition at line 29 of file i8259.c.

pr_pic_unimpl

#define pr_pic_unimpl	(		fmt,
			...
	)		pr_err_ratelimited("pic: " fmt, ## __VA_ARGS__)

Definition at line 39 of file i8259.c.

Function Documentation

elcr_ioport_read()

static u32 elcr_ioport_read ( void *  opaque )

static

Definition at line 450 of file i8259.c.

{
    struct kvm_kpic_state *s = opaque;
    return s->elcr;
}

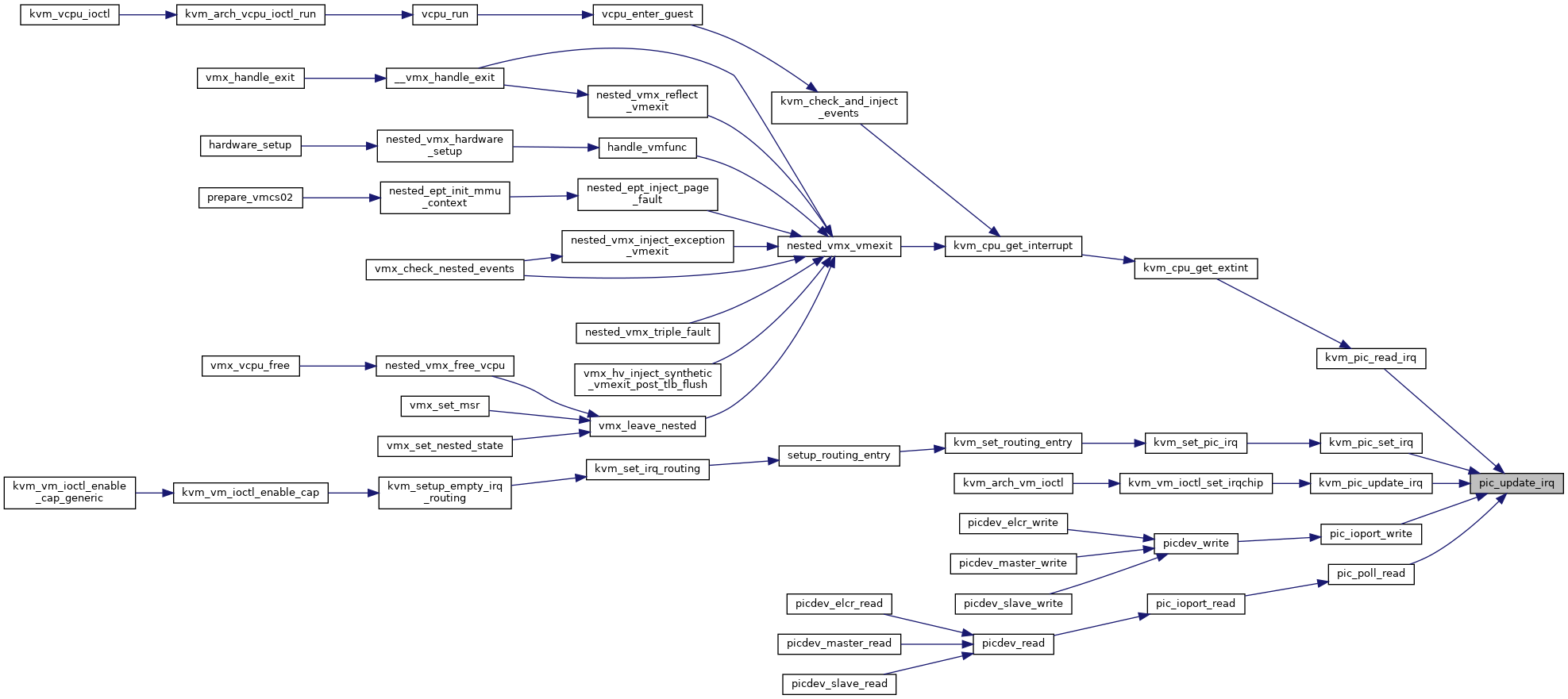

Here is the caller graph for this function:

elcr_ioport_write()

static void elcr_ioport_write ( void *  opaque, u32  val  )

static

Definition at line 444 of file i8259.c.

{
    struct kvm_kpic_state *s = opaque;
    s->elcr = val & s->elcr_mask;
}

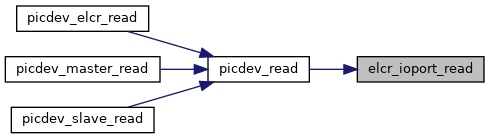

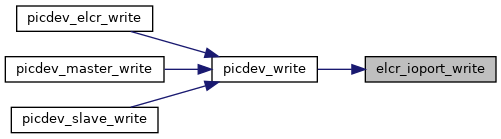

Here is the caller graph for this function:

get_priority()

static int get_priority ( struct kvm_kpic_state *  s, int  mask  )

inlinestatic

Definition at line 121 of file i8259.c.

{
    int priority;
    if (mask == 0)
        return 8;
    priority = 0;
    while ((mask & (1 << ((priority + s->priority_add) & 7))) == 0)
        priority++;
    return priority;
}

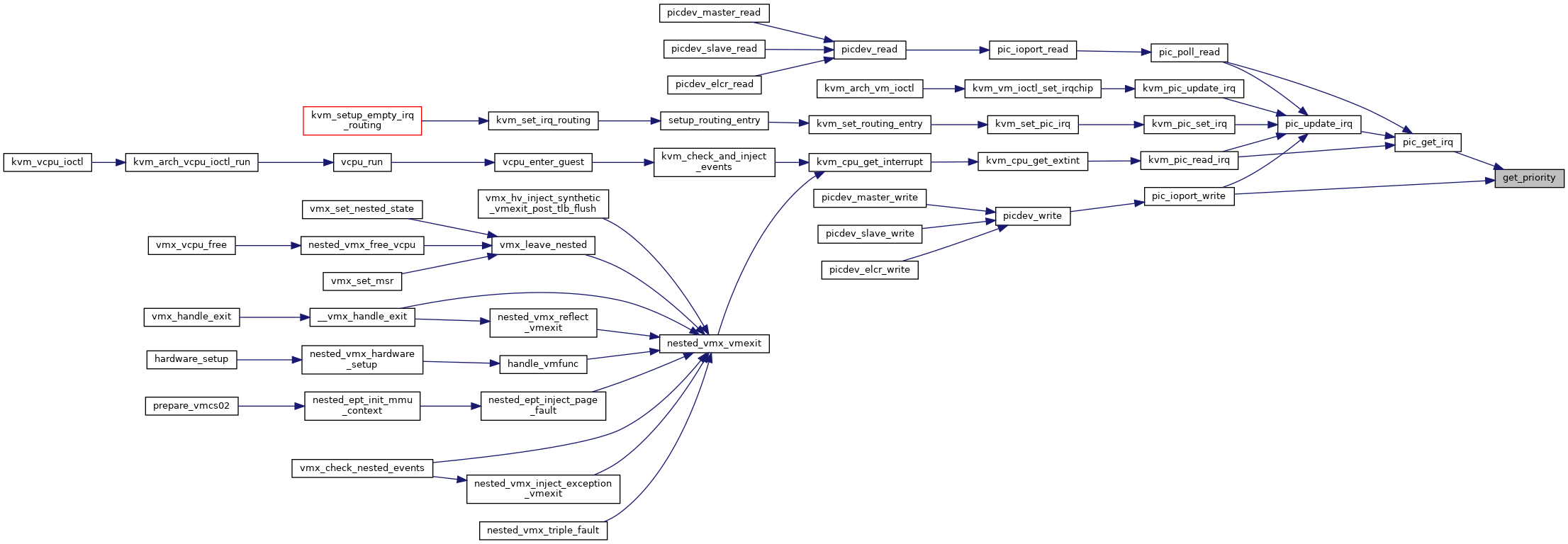

Here is the caller graph for this function:

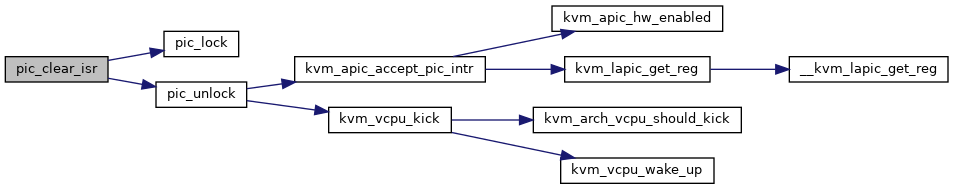

kvm_pic_clear_all()

void kvm_pic_clear_all	(	struct kvm_pic *	s,
		int	irq_source_id
	)

Definition at line 206 of file i8259.c.

{
    int i;

    pic_lock(s);
    for (i = 0; i < PIC_NUM_PINS; i++)
        __clear_bit(irq_source_id, &s->irq_states[i]);
    pic_unlock(s);
}

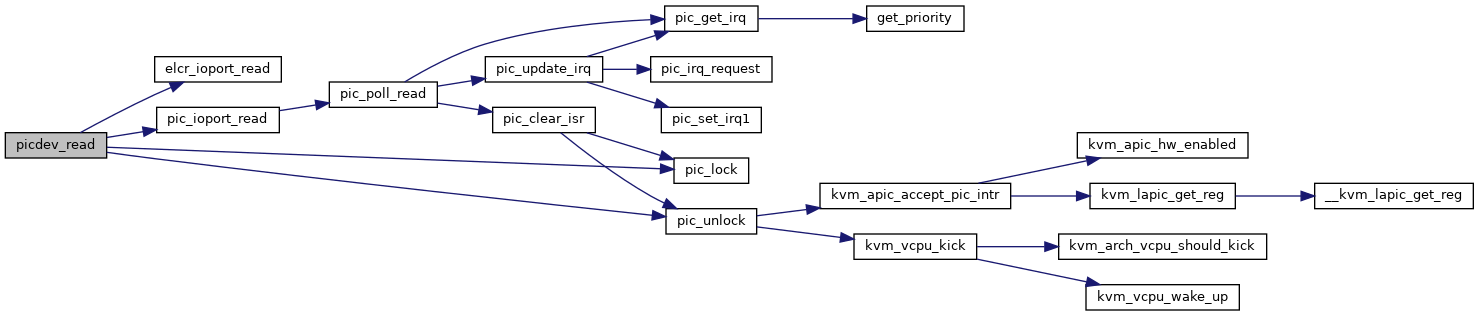

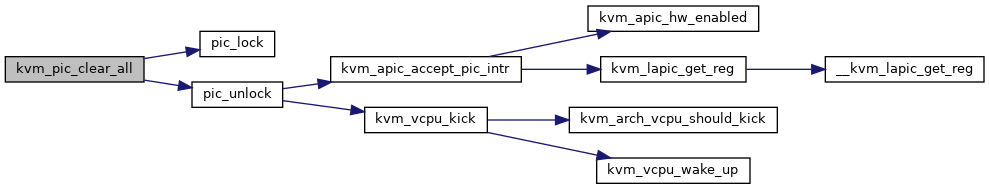

Here is the call graph for this function:

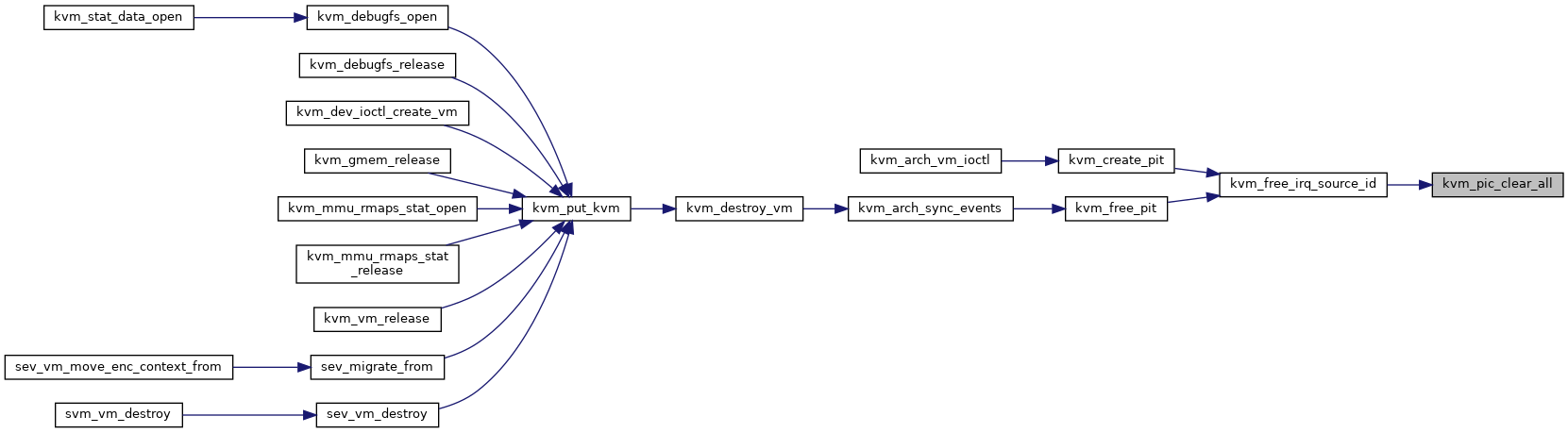

Here is the caller graph for this function:

kvm_pic_destroy()

void kvm_pic_destroy

(

struct kvm *

kvm

)

Definition at line 645 of file i8259.c.

{
    struct kvm_pic *vpic = kvm->arch.vpic;

    if (!vpic)
        return;

    mutex_lock(&kvm->slots_lock);
    kvm_io_bus_unregister_dev(vpic->kvm, KVM_PIO_BUS, &vpic->dev_master);
    kvm_io_bus_unregister_dev(vpic->kvm, KVM_PIO_BUS, &vpic->dev_slave);
    kvm_io_bus_unregister_dev(vpic->kvm, KVM_PIO_BUS, &vpic->dev_elcr);
    mutex_unlock(&kvm->slots_lock);

    kvm->arch.vpic = NULL;
    kfree(vpic);
}

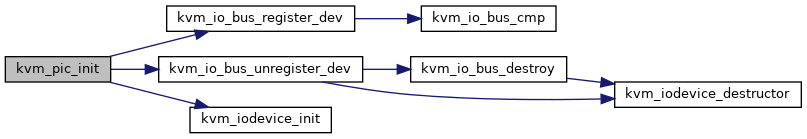

Here is the call graph for this function:

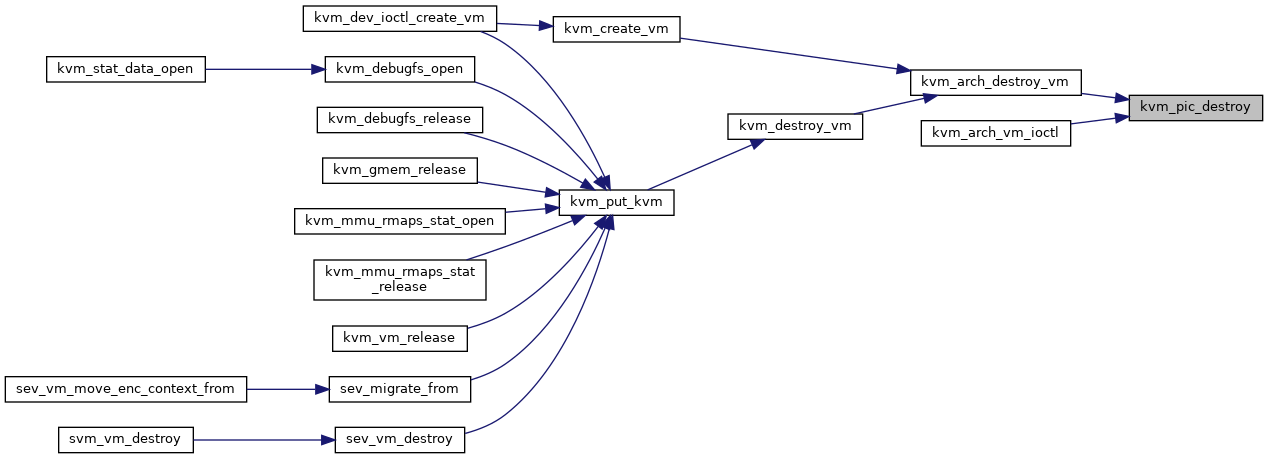

Here is the caller graph for this function:

kvm_pic_init()

int kvm_pic_init

(

struct kvm *

kvm

)

Definition at line 590 of file i8259.c.

{
    struct kvm_pic *s;
    int ret;

    s = kzalloc(sizeof(struct kvm_pic), GFP_KERNEL_ACCOUNT);
    if (!s)
        return -ENOMEM;
    spin_lock_init(&s->lock);
    s->kvm = kvm;
    s->pics[0].elcr_mask = 0xf8;
    s->pics[1].elcr_mask = 0xde;
    s->pics[0].pics_state = s;
    s->pics[1].pics_state = s;

    /*
     * Initialize PIO device
     */
    kvm_iodevice_init(&s->dev_master, &picdev_master_ops);
    kvm_iodevice_init(&s->dev_slave, &picdev_slave_ops);
    kvm_iodevice_init(&s->dev_elcr, &picdev_elcr_ops);
    mutex_lock(&kvm->slots_lock);
    ret = kvm_io_bus_register_dev(kvm, KVM_PIO_BUS, 0x20, 2,
                      &s->dev_master);
    if (ret < 0)
        goto fail_unlock;

    ret = kvm_io_bus_register_dev(kvm, KVM_PIO_BUS, 0xa0, 2, &s->dev_slave);
    if (ret < 0)
        goto fail_unreg_2;

    ret = kvm_io_bus_register_dev(kvm, KVM_PIO_BUS, 0x4d0, 2, &s->dev_elcr);
    if (ret < 0)
        goto fail_unreg_1;

    mutex_unlock(&kvm->slots_lock);

    kvm->arch.vpic = s;

    return 0;

fail_unreg_1:
    kvm_io_bus_unregister_dev(kvm, KVM_PIO_BUS, &s->dev_slave);

fail_unreg_2:
    kvm_io_bus_unregister_dev(kvm, KVM_PIO_BUS, &s->dev_master);

fail_unlock:
    mutex_unlock(&kvm->slots_lock);

    kfree(s);

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

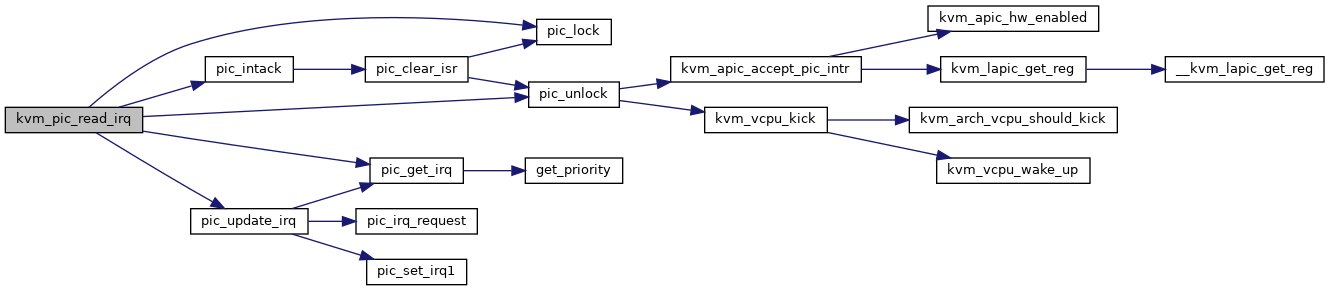

kvm_pic_read_irq()

int kvm_pic_read_irq

(

struct kvm *

kvm

)

Definition at line 236 of file i8259.c.

{
    int irq, irq2, intno;
    struct kvm_pic *s = kvm->arch.vpic;

    s->output = 0;

    pic_lock(s);
    irq = pic_get_irq(&s->pics[0]);
    if (irq >= 0) {
        pic_intack(&s->pics[0], irq);
        if (irq == 2) {
            irq2 = pic_get_irq(&s->pics[1]);
            if (irq2 >= 0)
                pic_intack(&s->pics[1], irq2);
            else
                /*
                 * spurious IRQ on slave controller
                 */
                irq2 = 7;
            intno = s->pics[1].irq_base + irq2;
        } else
            intno = s->pics[0].irq_base + irq;
    } else {
        /*
         * spurious IRQ on host controller
         */
        irq = 7;
        intno = s->pics[0].irq_base + irq;
    }
    pic_update_irq(s);
    pic_unlock(s);

    return intno;
}

Here is the call graph for this function:

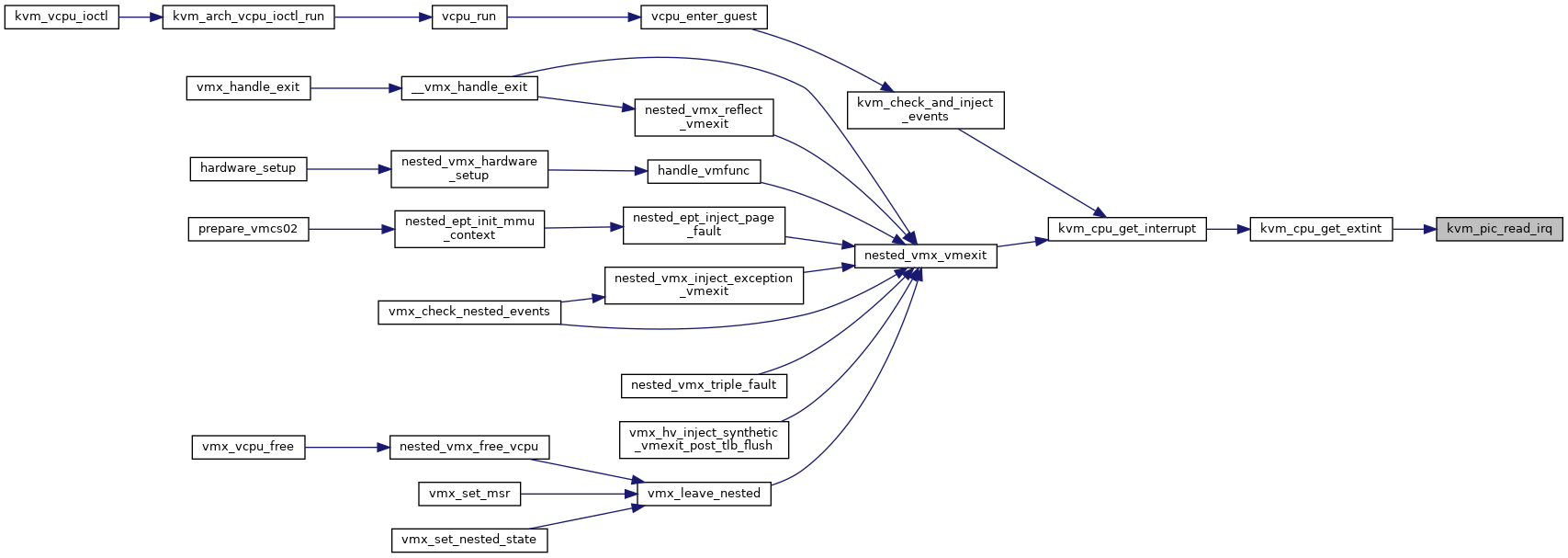

Here is the caller graph for this function:

kvm_pic_reset()

static void kvm_pic_reset ( struct kvm_kpic_state *  s )

static

Definition at line 272 of file i8259.c.

{
    int irq;
    unsigned long i;
    struct kvm_vcpu *vcpu;
    u8 edge_irr = s->irr & ~s->elcr;
    bool found = false;

    s->last_irr = 0;
    s->irr &= s->elcr;
    s->imr = 0;
    s->priority_add = 0;
    s->special_mask = 0;
    s->read_reg_select = 0;
    if (!s->init4) {
        s->special_fully_nested_mode = 0;
        s->auto_eoi = 0;
    }
    s->init_state = 1;

    kvm_for_each_vcpu(i, vcpu, s->pics_state->kvm)
        if (kvm_apic_accept_pic_intr(vcpu)) {
            found = true;
            break;
        }


    if (!found)
        return;

    for (irq = 0; irq < PIC_NUM_PINS/2; irq++)
        if (edge_irr & (1 << irq))
            pic_clear_isr(s, irq);
}

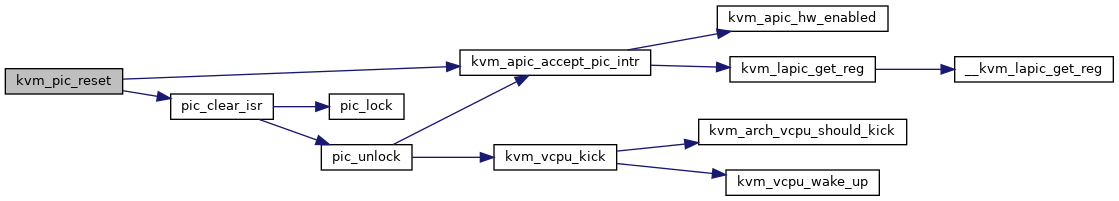

Here is the call graph for this function:

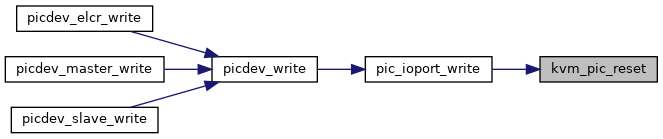

Here is the caller graph for this function:

kvm_pic_set_irq()

int kvm_pic_set_irq	(	struct kvm_pic *	s,
		int	irq,
		int	irq_source_id,
		int	level
	)

Definition at line 188 of file i8259.c.

{
    int ret, irq_level;

    BUG_ON(irq < 0 || irq >= PIC_NUM_PINS);

    pic_lock(s);
    irq_level = __kvm_irq_line_state(&s->irq_states[irq],
                     irq_source_id, level);
    ret = pic_set_irq1(&s->pics[irq >> 3], irq & 7, irq_level);
    pic_update_irq(s);
    trace_kvm_pic_set_irq(irq >> 3, irq & 7, s->pics[irq >> 3].elcr,
                  s->pics[irq >> 3].imr, ret == 0);
    pic_unlock(s);

    return ret;
}

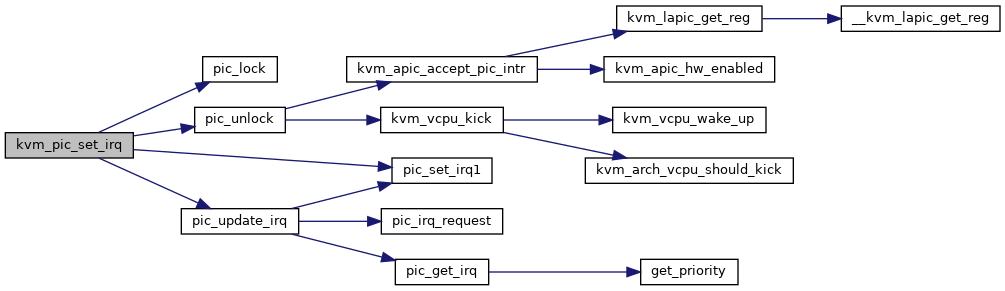

Here is the call graph for this function:

Here is the caller graph for this function:

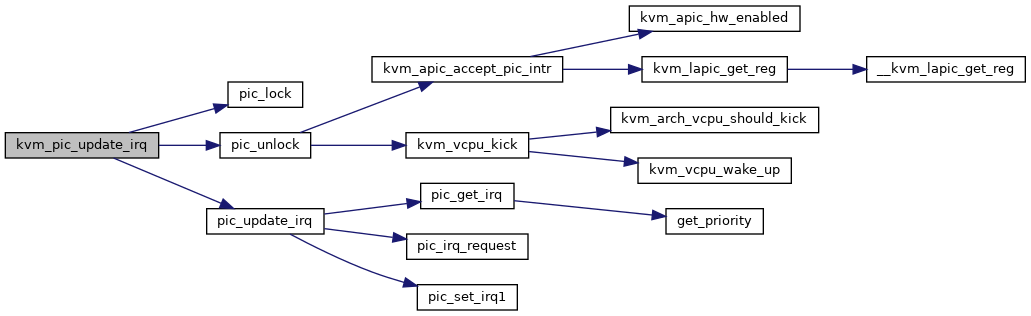

kvm_pic_update_irq()

void kvm_pic_update_irq

(

struct kvm_pic *

s

)

Definition at line 181 of file i8259.c.

{
    pic_lock(s);
    pic_update_irq(s);
    pic_unlock(s);
}

Here is the call graph for this function:

Here is the caller graph for this function:

pic_clear_isr()

static void pic_clear_isr ( struct kvm_kpic_state *  s, int  irq  )

static

Definition at line 72 of file i8259.c.

{
    s->isr &= ~(1 << irq);
    if (s != &s->pics_state->pics[0])
        irq += 8;
    /*
     * We are dropping lock while calling ack notifiers since ack
     * notifier callbacks for assigned devices call into PIC recursively.
     * Other interrupt may be delivered to PIC while lock is dropped but
     * it should be safe since PIC state is already updated at this stage.
     */
    pic_unlock(s->pics_state);
    kvm_notify_acked_irq(s->pics_state->kvm, SELECT_PIC(irq), irq);
    pic_lock(s->pics_state);
}

Here is the call graph for this function:

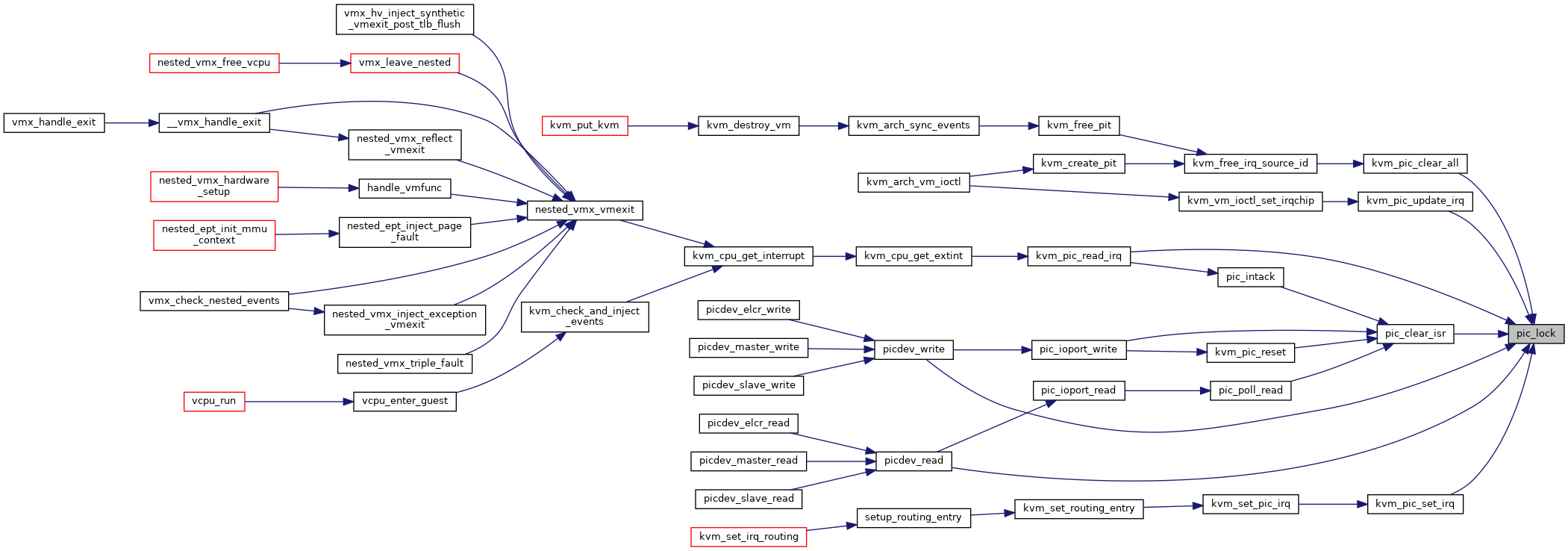

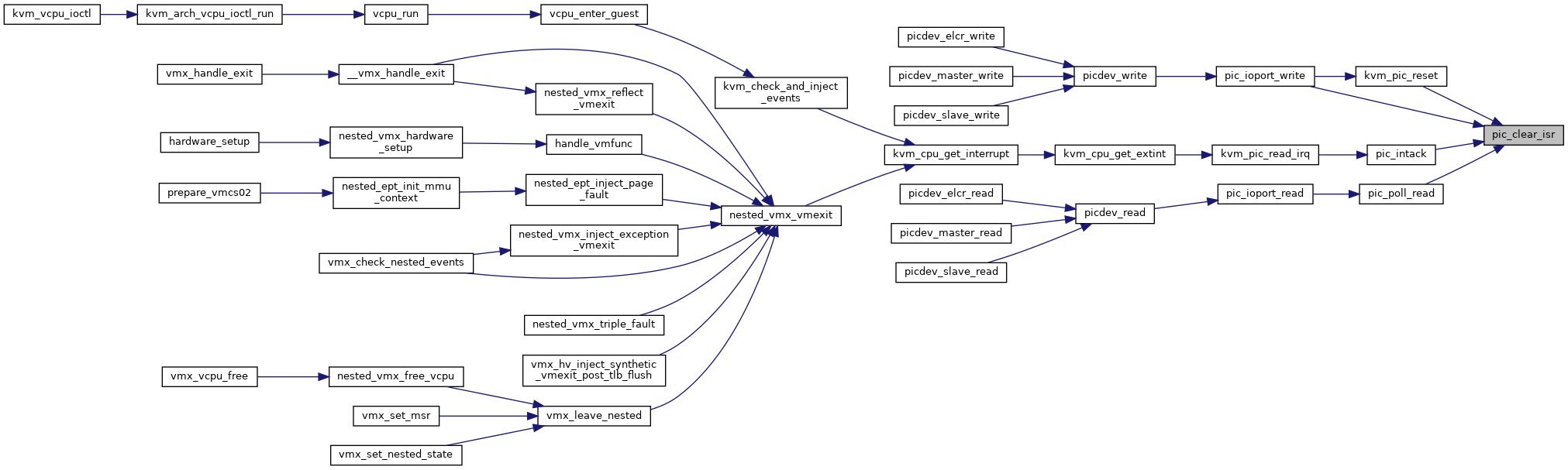

Here is the caller graph for this function:

pic_get_irq()

static int pic_get_irq ( struct kvm_kpic_state *  s )

static

Definition at line 135 of file i8259.c.

{
    int mask, cur_priority, priority;

    mask = s->irr & ~s->imr;
    priority = get_priority(s, mask);
    if (priority == 8)
        return -1;
    /*
     * compute current priority. If special fully nested mode on the
     * master, the IRQ coming from the slave is not taken into account
     * for the priority computation.
     */
    mask = s->isr;
    if (s->special_fully_nested_mode && s == &s->pics_state->pics[0])
        mask &= ~(1 << 2);
    cur_priority = get_priority(s, mask);
    if (priority < cur_priority)
        /*
         * higher priority found: an irq should be generated
         */
        return (priority + s->priority_add) & 7;
    else
        return -1;
}

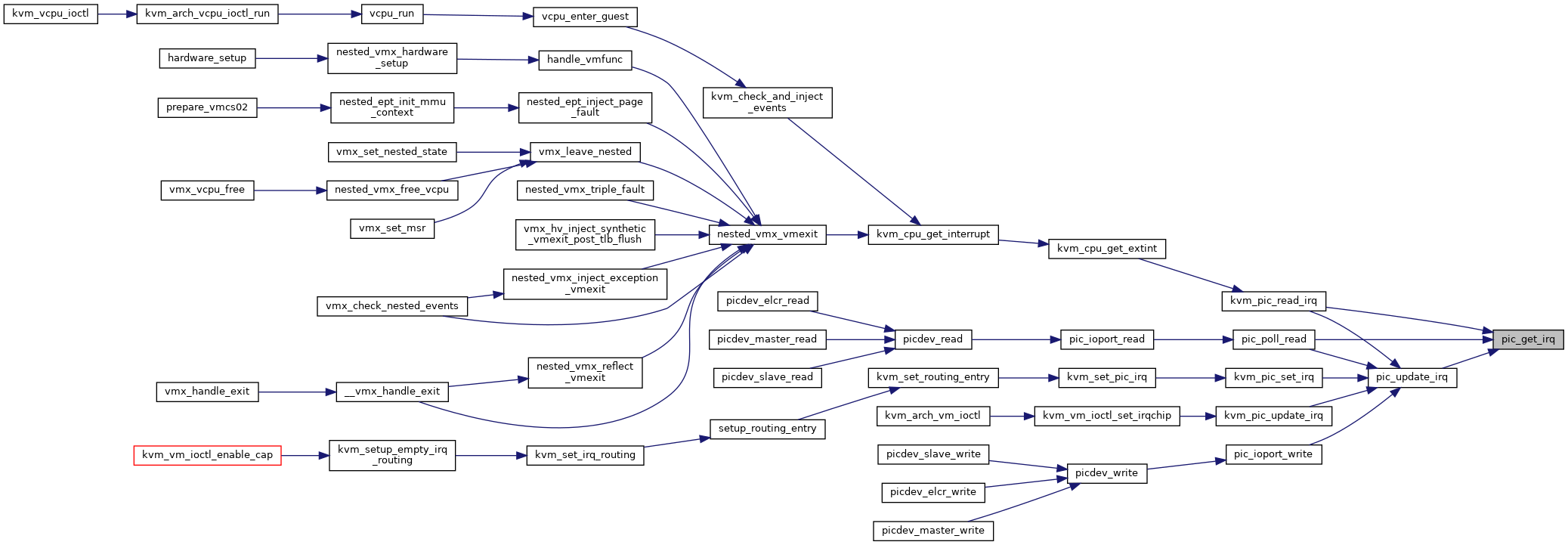

Here is the call graph for this function:

Here is the caller graph for this function:

pic_intack()

static void pic_intack ( struct kvm_kpic_state *  s, int  irq  )

inlinestatic

Definition at line 219 of file i8259.c.

{
    s->isr |= 1 << irq;
    /*
     * We don't clear a level sensitive interrupt here
     */
    if (!(s->elcr & (1 << irq)))
        s->irr &= ~(1 << irq);

    if (s->auto_eoi) {
        if (s->rotate_on_auto_eoi)
            s->priority_add = (irq + 1) & 7;
        pic_clear_isr(s, irq);
    }

}

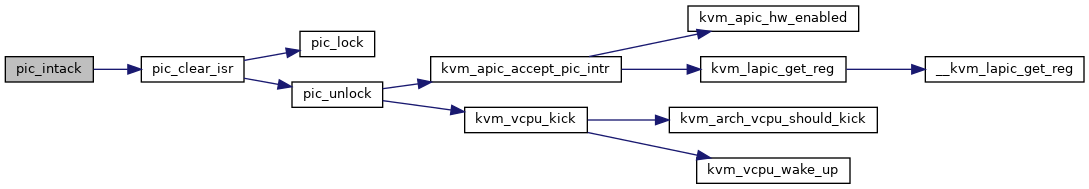

Here is the call graph for this function:

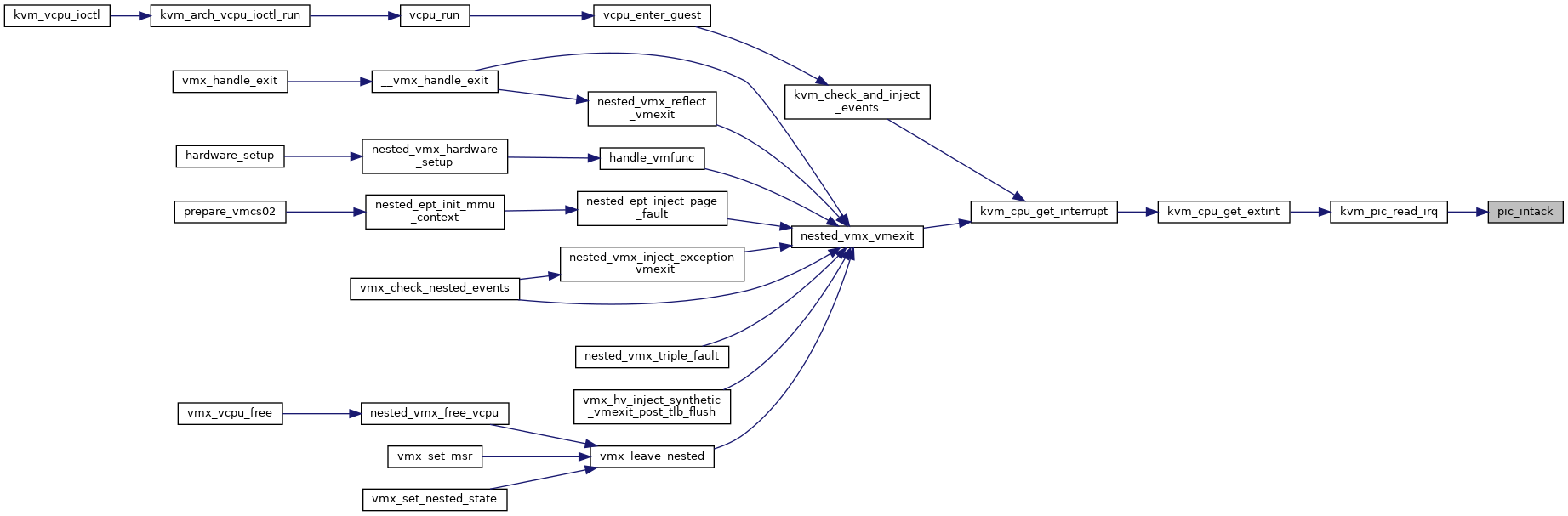

Here is the caller graph for this function:

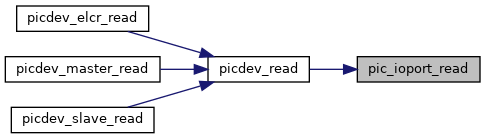

pic_ioport_read()

static u32 pic_ioport_read ( void *  opaque, u32  addr  )

static

Definition at line 425 of file i8259.c.

{
    struct kvm_kpic_state *s = opaque;
    int ret;

    if (s->poll) {
        ret = pic_poll_read(s, addr);
        s->poll = 0;
    } else
        if ((addr & 1) == 0)
            if (s->read_reg_select)
                ret = s->isr;
            else
                ret = s->irr;
        else
            ret = s->imr;
    return ret;
}

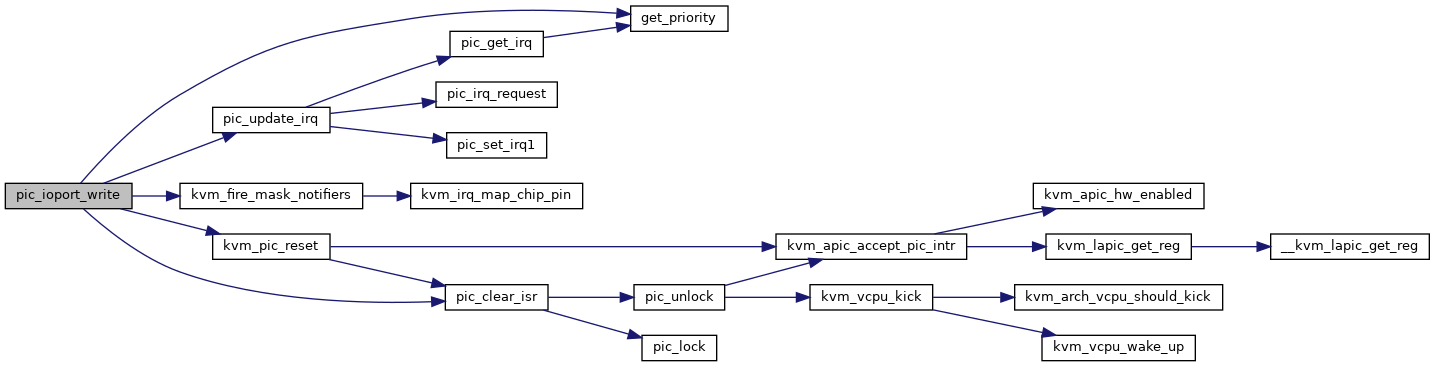

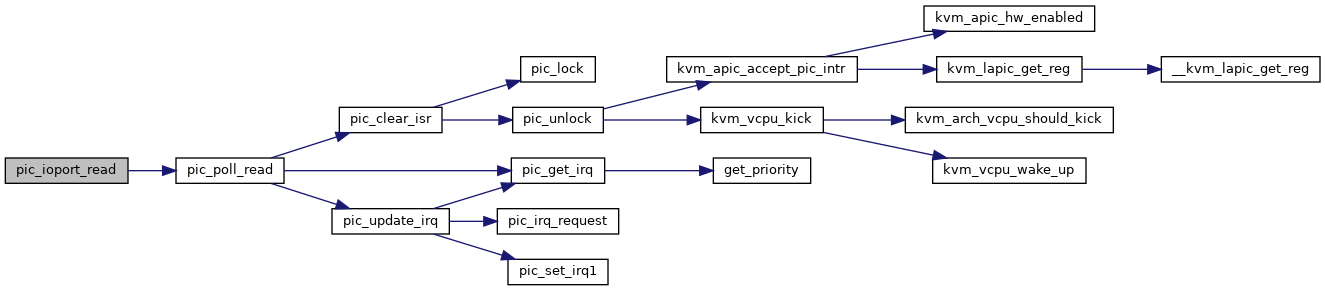

Here is the call graph for this function:

Here is the caller graph for this function:

pic_ioport_write()

static void pic_ioport_write ( void *  opaque, u32  addr, u32  val  )

static

Definition at line 307 of file i8259.c.

{
    struct kvm_kpic_state *s = opaque;
    int priority, cmd, irq;

    addr &= 1;
    if (addr == 0) {
        if (val & 0x10) {
            s->init4 = val & 1;
            if (val & 0x02)
                pr_pic_unimpl("single mode not supported");
            if (val & 0x08)
                pr_pic_unimpl(
                        "level sensitive irq not supported");
            kvm_pic_reset(s);
        } else if (val & 0x08) {
            if (val & 0x04)
                s->poll = 1;
            if (val & 0x02)
                s->read_reg_select = val & 1;
            if (val & 0x40)
                s->special_mask = (val >> 5) & 1;
        } else {
            cmd = val >> 5;
            switch (cmd) {
            case 0:
            case 4:
                s->rotate_on_auto_eoi = cmd >> 2;
                break;
            case 1: /* end of interrupt */
            case 5:
                priority = get_priority(s, s->isr);
                if (priority != 8) {
                    irq = (priority + s->priority_add) & 7;
                    if (cmd == 5)
                        s->priority_add = (irq + 1) & 7;
                    pic_clear_isr(s, irq);
                    pic_update_irq(s->pics_state);
                }
                break;
            case 3:
                irq = val & 7;
                pic_clear_isr(s, irq);
                pic_update_irq(s->pics_state);
                break;
            case 6:
                s->priority_add = (val + 1) & 7;
                pic_update_irq(s->pics_state);
                break;
            case 7:
                irq = val & 7;
                s->priority_add = (irq + 1) & 7;
                pic_clear_isr(s, irq);
                pic_update_irq(s->pics_state);
                break;
            default:
                break;  /* no operation */
            }
        }
    } else
        switch (s->init_state) {
        case 0: { /* normal mode */
            u8 imr_diff = s->imr ^ val,
                off = (s == &s->pics_state->pics[0]) ? 0 : 8;
            s->imr = val;
            for (irq = 0; irq < PIC_NUM_PINS/2; irq++)
                if (imr_diff & (1 << irq))
                    kvm_fire_mask_notifiers(
                        s->pics_state->kvm,
                        SELECT_PIC(irq + off),
                        irq + off,
                        !!(s->imr & (1 << irq)));
            pic_update_irq(s->pics_state);
            break;
        }
        case 1:
            s->irq_base = val & 0xf8;
            s->init_state = 2;
            break;
        case 2:
            if (s->init4)
                s->init_state = 3;
            else
                s->init_state = 0;
            break;
        case 3:
            s->special_fully_nested_mode = (val >> 4) & 1;
            s->auto_eoi = (val >> 1) & 1;
            s->init_state = 0;
            break;
        }
}

Here is the call graph for this function:

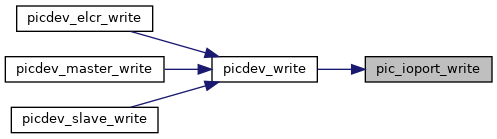

Here is the caller graph for this function:

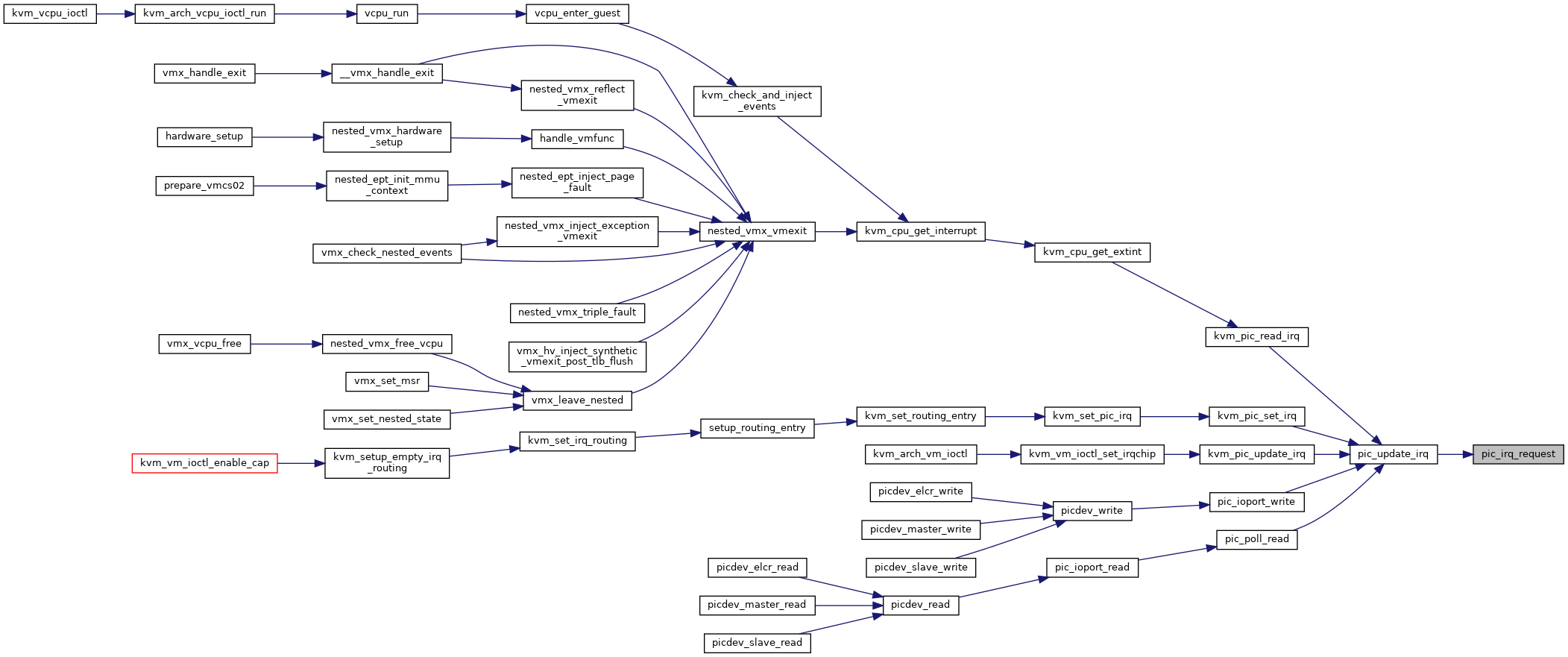

pic_irq_request()

static void pic_irq_request ( struct kvm *  kvm, int  level  )

static

Definition at line 566 of file i8259.c.

{
    struct kvm_pic *s = kvm->arch.vpic;

    if (!s->output)
        s->wakeup_needed = true;
    s->output = level;
}

Here is the caller graph for this function:

pic_lock()

static void pic_lock ( struct kvm_pic *  s ) & -> lock)

static

Definition at line 44 of file i8259.c.

{
    spin_lock(&s->lock);
}

Here is the caller graph for this function:

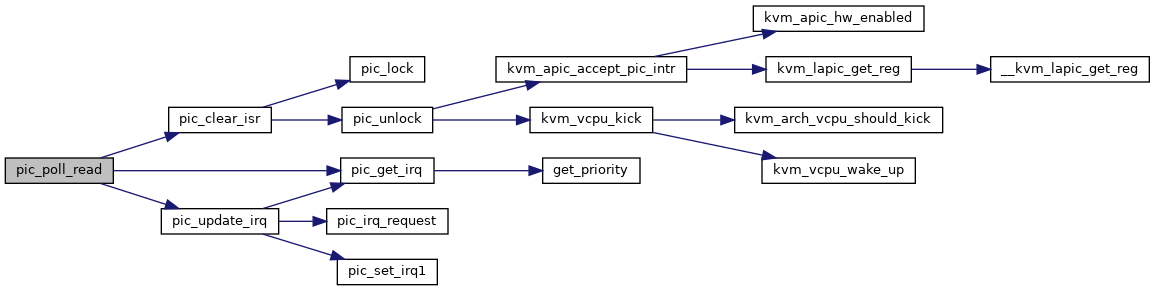

pic_poll_read()

static u32 pic_poll_read ( struct kvm_kpic_state *  s, u32  addr1  )

static

Definition at line 400 of file i8259.c.

{
    int ret;

    ret = pic_get_irq(s);
    if (ret >= 0) {
        if (addr1 >> 7) {
            s->pics_state->pics[0].isr &= ~(1 << 2);
            s->pics_state->pics[0].irr &= ~(1 << 2);
        }
        s->irr &= ~(1 << ret);
        pic_clear_isr(s, ret);
        if (addr1 >> 7 || ret != 2)
            pic_update_irq(s->pics_state);
        /* Bit 7 is 1, means there's an interrupt */
        ret |= 0x80;
    } else {
        /* Bit 7 is 0, means there's no interrupt */
        ret = 0x07;
        pic_update_irq(s->pics_state);
    }

    return ret;
}

Here is the call graph for this function:

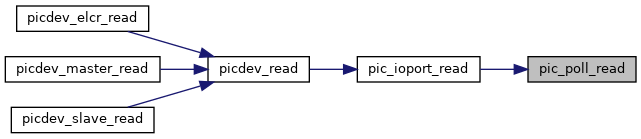

Here is the caller graph for this function:

pic_set_irq1()

static int pic_set_irq1 ( struct kvm_kpic_state *  s, int  irq, int  level  )

inlinestatic

Definition at line 91 of file i8259.c.

{
    int mask, ret = 1;
    mask = 1 << irq;
    if (s->elcr & mask) /* level triggered */
        if (level) {
            ret = !(s->irr & mask);
            s->irr |= mask;
            s->last_irr |= mask;
        } else {
            s->irr &= ~mask;
            s->last_irr &= ~mask;
        }
    else    /* edge triggered */
        if (level) {
            if ((s->last_irr & mask) == 0) {
                ret = !(s->irr & mask);
                s->irr |= mask;
            }
            s->last_irr |= mask;
        } else
            s->last_irr &= ~mask;

    return (s->imr & mask) ? -1 : ret;
}

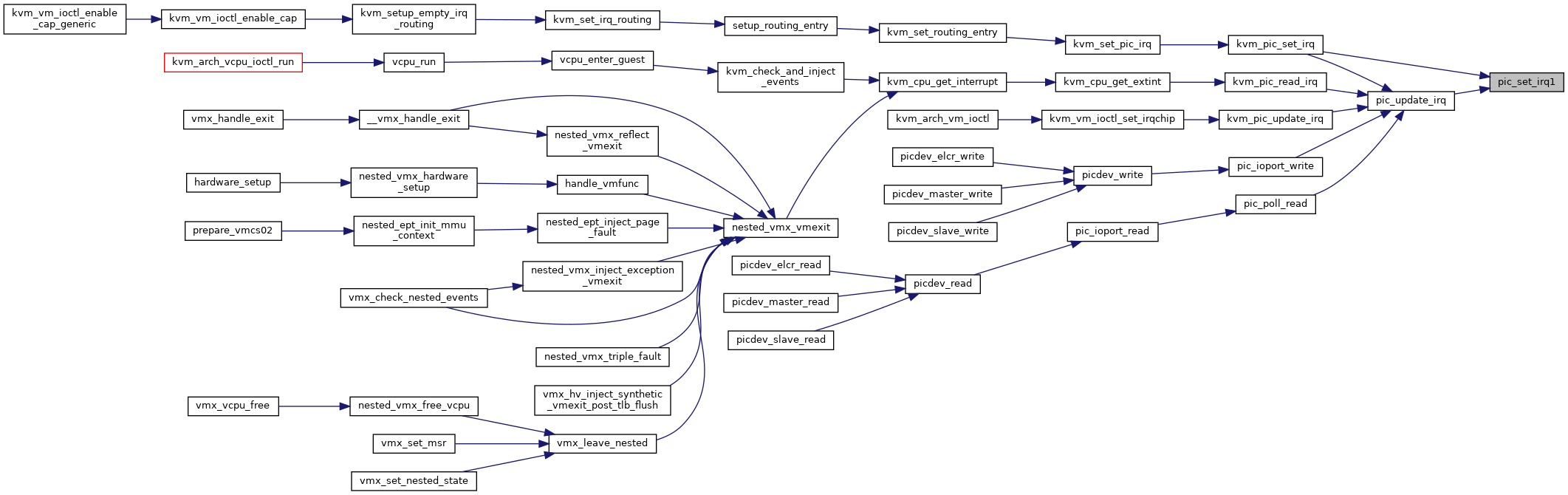

Here is the caller graph for this function:

pic_unlock()

static void pic_unlock ( struct kvm_pic *  s ) & -> lock)

static

Definition at line 50 of file i8259.c.

{
    bool wakeup = s->wakeup_needed;
    struct kvm_vcpu *vcpu;
    unsigned long i;

    s->wakeup_needed = false;

    spin_unlock(&s->lock);

    if (wakeup) {
        kvm_for_each_vcpu(i, vcpu, s->kvm) {
            if (kvm_apic_accept_pic_intr(vcpu)) {
                kvm_make_request(KVM_REQ_EVENT, vcpu);
                kvm_vcpu_kick(vcpu);
                return;
            }
        }
    }
}

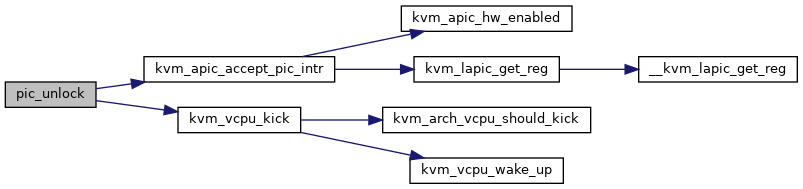

Here is the call graph for this function:

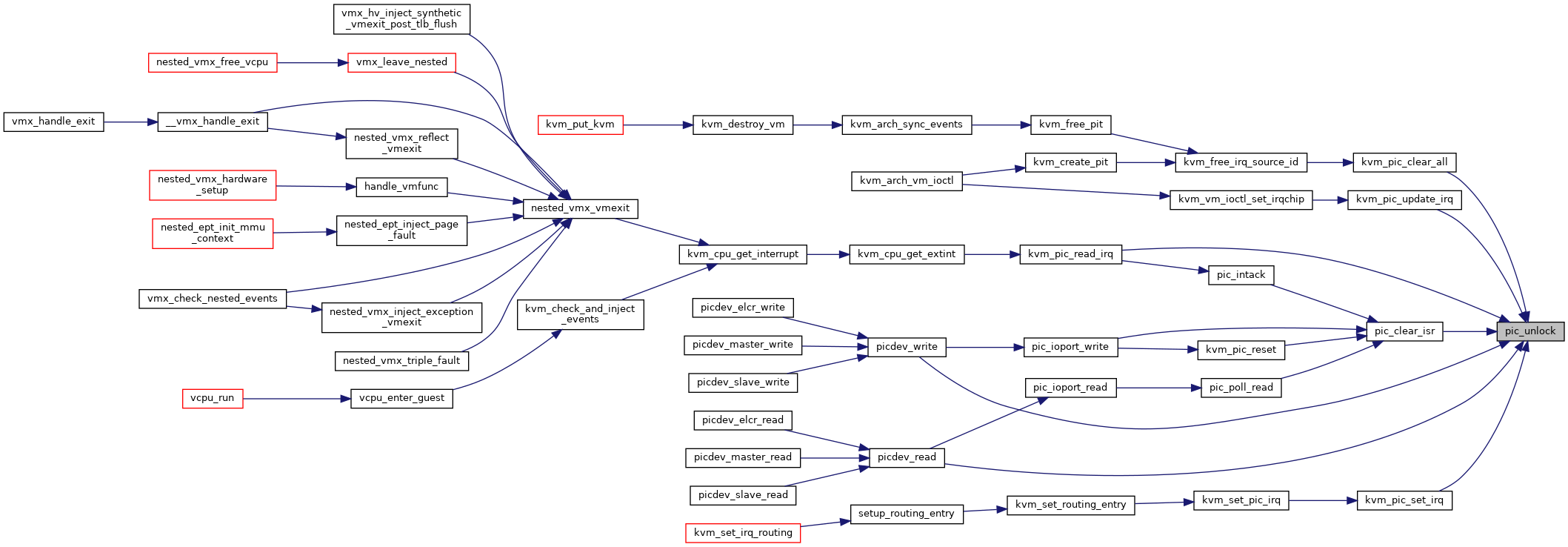

Here is the caller graph for this function:

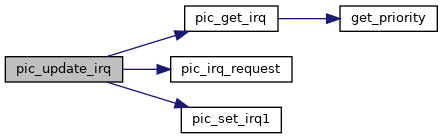

pic_update_irq()

static void pic_update_irq ( struct kvm_pic *  s )

static

Definition at line 165 of file i8259.c.

{
    int irq2, irq;

    irq2 = pic_get_irq(&s->pics[1]);
    if (irq2 >= 0) {
        /*
         * if irq request by slave pic, signal master PIC
         */
        pic_set_irq1(&s->pics[0], 2, 1);
        pic_set_irq1(&s->pics[0], 2, 0);
    }
    irq = pic_get_irq(&s->pics[0]);
    pic_irq_request(s->kvm, irq >= 0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

picdev_elcr_read()

static int picdev_elcr_read ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  dev, gpa_t  addr, int  len, void *  val  )

static

Definition at line 556 of file i8259.c.

{
    return picdev_read(container_of(dev, struct kvm_pic, dev_elcr),
                addr, len, val);
}

Here is the call graph for this function:

picdev_elcr_write()

static int picdev_elcr_write ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  dev, gpa_t  addr, int  len, const void *  val  )

static

Definition at line 549 of file i8259.c.

{
    return picdev_write(container_of(dev, struct kvm_pic, dev_elcr),
                addr, len, val);
}

Here is the call graph for this function:

picdev_master_read()

static int picdev_master_read ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  dev, gpa_t  addr, int  len, void *  val  )

static

Definition at line 528 of file i8259.c.

{
    return picdev_read(container_of(dev, struct kvm_pic, dev_master),
                addr, len, val);
}

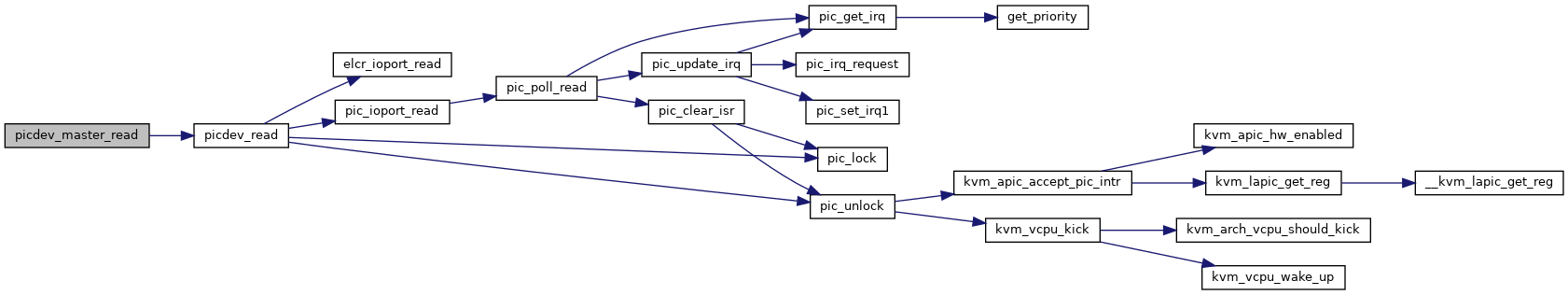

Here is the call graph for this function:

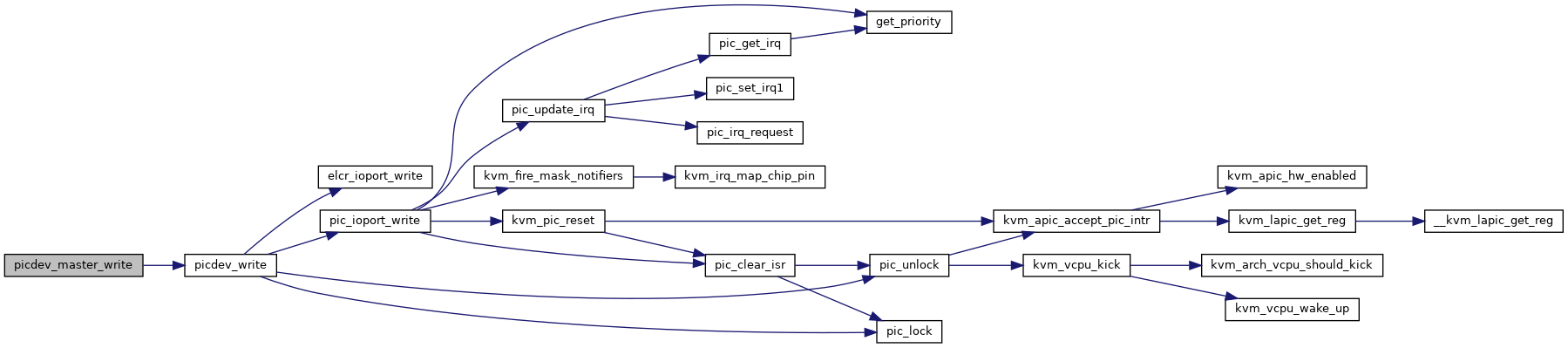

picdev_master_write()

static int picdev_master_write ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  dev, gpa_t  addr, int  len, const void *  val  )

static

Definition at line 521 of file i8259.c.

{
    return picdev_write(container_of(dev, struct kvm_pic, dev_master),
                addr, len, val);
}

Here is the call graph for this function:

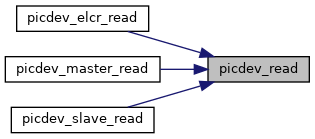

picdev_read()

static int picdev_read ( struct kvm_pic *  s, gpa_t  addr, int  len, void *  val  )

static

Definition at line 490 of file i8259.c.

{
    unsigned char *data = (unsigned char *)val;

    if (len != 1) {
        memset(val, 0, len);
        pr_pic_unimpl("non byte read\n");
        return 0;
    }
    switch (addr) {
    case 0x20:
    case 0x21:
    case 0xa0:
    case 0xa1:
        pic_lock(s);
        *data = pic_ioport_read(&s->pics[addr >> 7], addr);
        pic_unlock(s);
        break;
    case 0x4d0:
    case 0x4d1:
        pic_lock(s);
        *data = elcr_ioport_read(&s->pics[addr & 1]);
        pic_unlock(s);
        break;
    default:
        return -EOPNOTSUPP;
    }
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

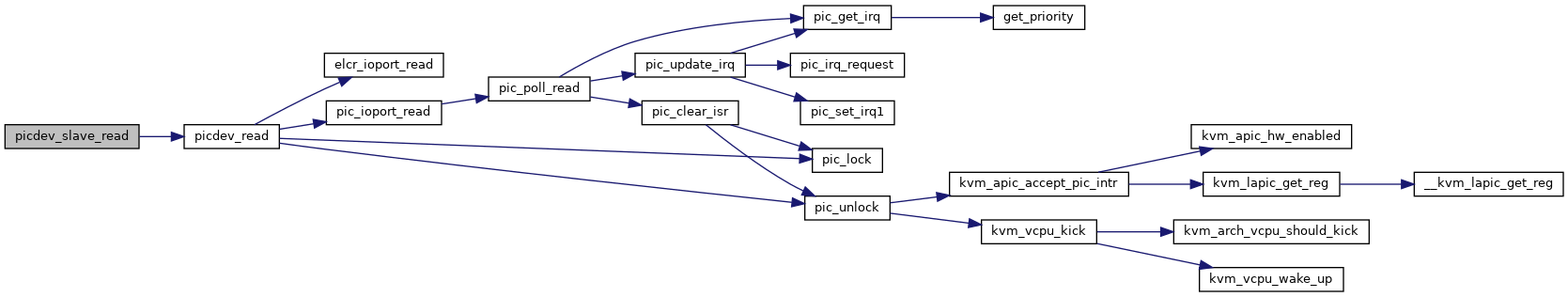

picdev_slave_read()

static int picdev_slave_read ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  dev, gpa_t  addr, int  len, void *  val  )

static

Definition at line 542 of file i8259.c.

{
    return picdev_read(container_of(dev, struct kvm_pic, dev_slave),
                addr, len, val);
}

Here is the call graph for this function:

picdev_slave_write()

static int picdev_slave_write ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  dev, gpa_t  addr, int  len, const void *  val  )

static

Definition at line 535 of file i8259.c.

{
    return picdev_write(container_of(dev, struct kvm_pic, dev_slave),
                addr, len, val);
}

Here is the call graph for this function:

picdev_write()

static int picdev_write ( struct kvm_pic *  s, gpa_t  addr, int  len, const void *  val  )

static

Definition at line 456 of file i8259.c.

{
    unsigned char data = *(unsigned char *)val;

    if (len != 1) {
        pr_pic_unimpl("non byte write\n");
        return 0;
    }
    switch (addr) {
    case 0x20:
    case 0x21:
        pic_lock(s);
        pic_ioport_write(&s->pics[0], addr, data);
        pic_unlock(s);
        break;
    case 0xa0:
    case 0xa1:
        pic_lock(s);
        pic_ioport_write(&s->pics[1], addr, data);
        pic_unlock(s);
        break;
    case 0x4d0:
    case 0x4d1:
        pic_lock(s);
        elcr_ioport_write(&s->pics[addr & 1], data);
        pic_unlock(s);
        break;
    default:
        return -EOPNOTSUPP;
    }
    return 0;
}

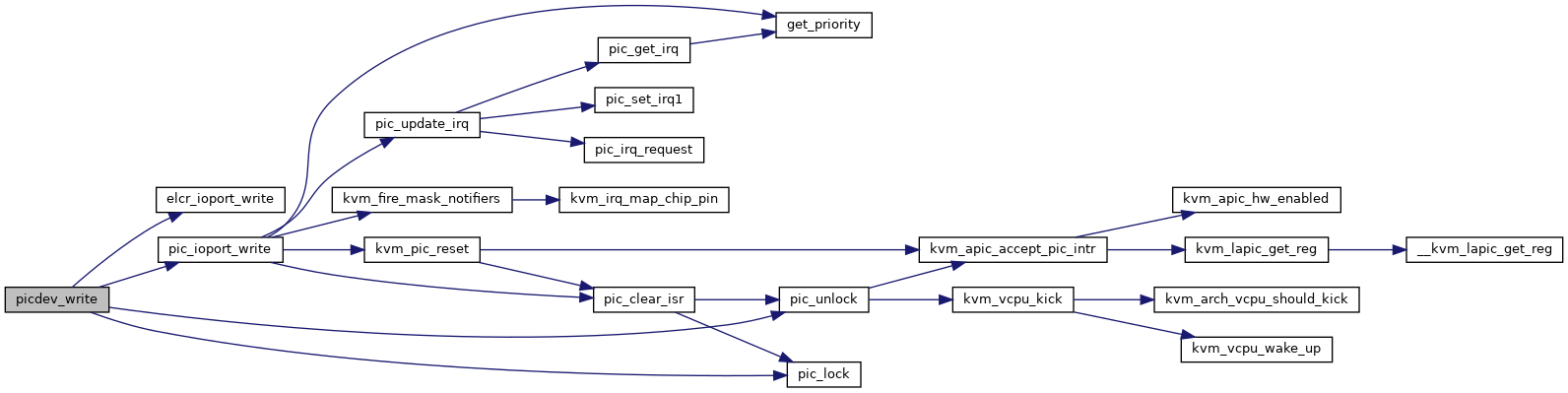

Here is the call graph for this function:

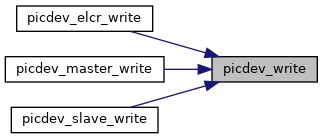

Here is the caller graph for this function:

Variable Documentation

picdev_elcr_ops

const struct kvm_io_device_ops picdev_elcr_ops

static

Initial value:

= {
    .read     = picdev_elcr_read,
    .write    = picdev_elcr_write,
}

Definition at line 566 of file i8259.c.

picdev_master_ops

const struct kvm_io_device_ops picdev_master_ops

static

Initial value:

= {
    .read     = picdev_master_read,
    .write    = picdev_master_write,
}

Definition at line 566 of file i8259.c.

picdev_slave_ops

const struct kvm_io_device_ops picdev_slave_ops

static

Initial value:

= {
    .read     = picdev_slave_read,
    .write    = picdev_slave_write,
}

Definition at line 566 of file i8259.c.
