vmcs12.h File Reference

#include <linux/build_bug.h>
#include "vmcs.h"

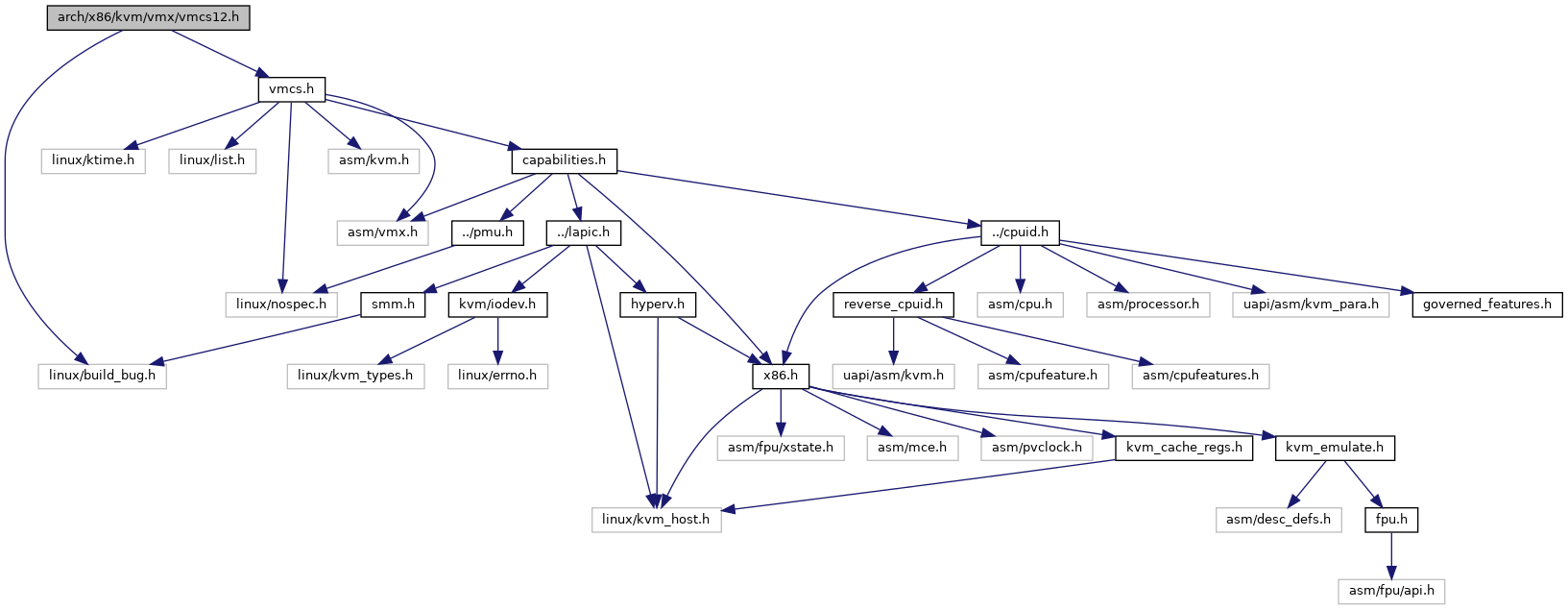

Include dependency graph for vmcs12.h:

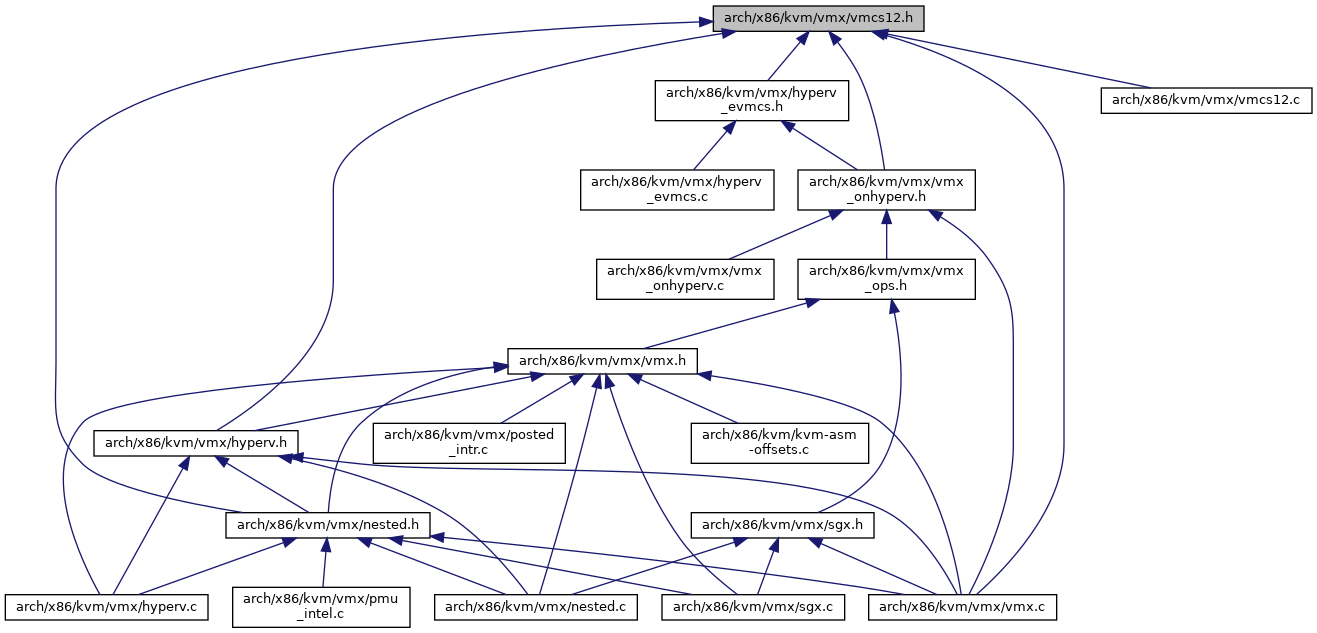

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	vmcs12

Macros
#define	VMCS12_REVISION   0x11e57ed0
#define	VMCS12_SIZE   KVM_STATE_NESTED_VMX_VMCS_SIZE
#define	CHECK_OFFSET(field, loc)    ASSERT_STRUCT_OFFSET(struct vmcs12, field, loc)

Typedefs
typedef u64	natural_width

Functions
static void	vmx_check_vmcs12_offsets (void)
static short	get_vmcs12_field_offset (unsigned long field)
static u64	vmcs12_read_any (struct vmcs12 *vmcs12, unsigned long field, u16 offset)
static void	vmcs12_write_any (struct vmcs12 *vmcs12, unsigned long field, u16 offset, u64 field_value)

Variables
const unsigned short	vmcs12_field_offsets []
const unsigned int	nr_vmcs12_fields

Macro Definition Documentation

CHECK_OFFSET

#define CHECK_OFFSET	(		field,
			loc
	)		ASSERT_STRUCT_OFFSET(struct vmcs12, field, loc)

Definition at line 211 of file vmcs12.h.

VMCS12_REVISION

#define VMCS12_REVISION   0x11e57ed0

Definition at line 198 of file vmcs12.h.

VMCS12_SIZE

#define VMCS12_SIZE   KVM_STATE_NESTED_VMX_VMCS_SIZE

Definition at line 206 of file vmcs12.h.

Typedef Documentation

natural_width

typedef u64 natural_width

Definition at line 26 of file vmcs12.h.

Function Documentation

get_vmcs12_field_offset()

static short get_vmcs12_field_offset ( unsigned long  field )

inlinestatic

Definition at line 366 of file vmcs12.h.

{
    unsigned short offset;
    unsigned int index;

    if (field >> 15)
        return -ENOENT;

    index = ROL16(field, 6);
    if (index >= nr_vmcs12_fields)
        return -ENOENT;

    index = array_index_nospec(index, nr_vmcs12_fields);
    offset = vmcs12_field_offsets[index];
    if (offset == 0)
        return -ENOENT;
    return offset;
}

Here is the caller graph for this function:

vmcs12_read_any()

static u64 vmcs12_read_any ( struct vmcs12 *  vmcs12, unsigned long  field, u16  offset  )

inlinestatic

Definition at line 385 of file vmcs12.h.

{
    char *p = (char *)vmcs12 + offset;

    switch (vmcs_field_width(field)) {
    case VMCS_FIELD_WIDTH_NATURAL_WIDTH:
        return *((natural_width *)p);
    case VMCS_FIELD_WIDTH_U16:
        return *((u16 *)p);
    case VMCS_FIELD_WIDTH_U32:
        return *((u32 *)p);
    case VMCS_FIELD_WIDTH_U64:
        return *((u64 *)p);
    default:
        WARN_ON_ONCE(1);
        return -1;
    }
}

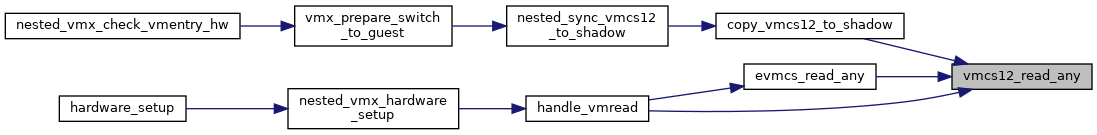

Here is the caller graph for this function:

vmcs12_write_any()

static void vmcs12_write_any ( struct vmcs12 *  vmcs12, unsigned long  field, u16  offset, u64  field_value  )

inlinestatic

Definition at line 405 of file vmcs12.h.

{
    char *p = (char *)vmcs12 + offset;

    switch (vmcs_field_width(field)) {
    case VMCS_FIELD_WIDTH_U16:
        *(u16 *)p = field_value;
        break;
    case VMCS_FIELD_WIDTH_U32:
        *(u32 *)p = field_value;
        break;
    case VMCS_FIELD_WIDTH_U64:
        *(u64 *)p = field_value;
        break;
    case VMCS_FIELD_WIDTH_NATURAL_WIDTH:
        *(natural_width *)p = field_value;
        break;
    default:
        WARN_ON_ONCE(1);
        break;
    }
}

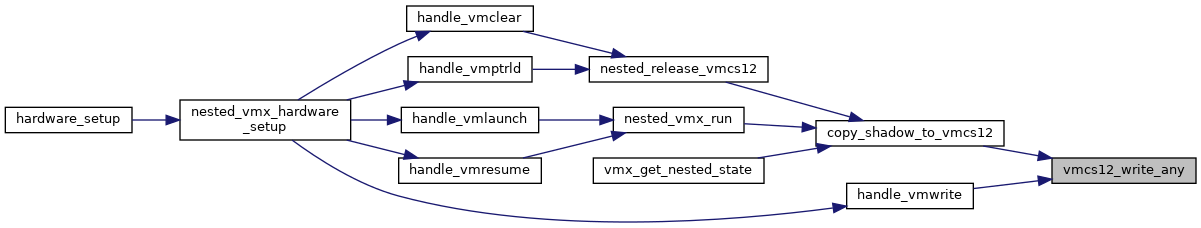

Here is the caller graph for this function:

vmx_check_vmcs12_offsets()

static void vmx_check_vmcs12_offsets ( void  )

inlinestatic

Definition at line 214 of file vmcs12.h.

{
    CHECK_OFFSET(hdr, 0);
    CHECK_OFFSET(abort, 4);
    CHECK_OFFSET(launch_state, 8);
    CHECK_OFFSET(io_bitmap_a, 40);
    CHECK_OFFSET(io_bitmap_b, 48);
    CHECK_OFFSET(msr_bitmap, 56);
    CHECK_OFFSET(vm_exit_msr_store_addr, 64);
    CHECK_OFFSET(vm_exit_msr_load_addr, 72);
    CHECK_OFFSET(vm_entry_msr_load_addr, 80);
    CHECK_OFFSET(tsc_offset, 88);
    CHECK_OFFSET(virtual_apic_page_addr, 96);
    CHECK_OFFSET(apic_access_addr, 104);
    CHECK_OFFSET(posted_intr_desc_addr, 112);
    CHECK_OFFSET(ept_pointer, 120);
    CHECK_OFFSET(eoi_exit_bitmap0, 128);
    CHECK_OFFSET(eoi_exit_bitmap1, 136);
    CHECK_OFFSET(eoi_exit_bitmap2, 144);
    CHECK_OFFSET(eoi_exit_bitmap3, 152);
    CHECK_OFFSET(xss_exit_bitmap, 160);
    CHECK_OFFSET(guest_physical_address, 168);
    CHECK_OFFSET(vmcs_link_pointer, 176);
    CHECK_OFFSET(guest_ia32_debugctl, 184);
    CHECK_OFFSET(guest_ia32_pat, 192);
    CHECK_OFFSET(guest_ia32_efer, 200);
    CHECK_OFFSET(guest_ia32_perf_global_ctrl, 208);
    CHECK_OFFSET(guest_pdptr0, 216);
    CHECK_OFFSET(guest_pdptr1, 224);
    CHECK_OFFSET(guest_pdptr2, 232);
    CHECK_OFFSET(guest_pdptr3, 240);
    CHECK_OFFSET(guest_bndcfgs, 248);
    CHECK_OFFSET(host_ia32_pat, 256);
    CHECK_OFFSET(host_ia32_efer, 264);
    CHECK_OFFSET(host_ia32_perf_global_ctrl, 272);
    CHECK_OFFSET(vmread_bitmap, 280);
    CHECK_OFFSET(vmwrite_bitmap, 288);
    CHECK_OFFSET(vm_function_control, 296);
    CHECK_OFFSET(eptp_list_address, 304);
    CHECK_OFFSET(pml_address, 312);
    CHECK_OFFSET(encls_exiting_bitmap, 320);
    CHECK_OFFSET(tsc_multiplier, 328);
    CHECK_OFFSET(cr0_guest_host_mask, 344);
    CHECK_OFFSET(cr4_guest_host_mask, 352);
    CHECK_OFFSET(cr0_read_shadow, 360);
    CHECK_OFFSET(cr4_read_shadow, 368);
    CHECK_OFFSET(dead_space, 376);
    CHECK_OFFSET(exit_qualification, 408);
    CHECK_OFFSET(guest_linear_address, 416);
    CHECK_OFFSET(guest_cr0, 424);
    CHECK_OFFSET(guest_cr3, 432);
    CHECK_OFFSET(guest_cr4, 440);
    CHECK_OFFSET(guest_es_base, 448);
    CHECK_OFFSET(guest_cs_base, 456);
    CHECK_OFFSET(guest_ss_base, 464);
    CHECK_OFFSET(guest_ds_base, 472);
    CHECK_OFFSET(guest_fs_base, 480);
    CHECK_OFFSET(guest_gs_base, 488);
    CHECK_OFFSET(guest_ldtr_base, 496);
    CHECK_OFFSET(guest_tr_base, 504);
    CHECK_OFFSET(guest_gdtr_base, 512);
    CHECK_OFFSET(guest_idtr_base, 520);
    CHECK_OFFSET(guest_dr7, 528);
    CHECK_OFFSET(guest_rsp, 536);
    CHECK_OFFSET(guest_rip, 544);
    CHECK_OFFSET(guest_rflags, 552);
    CHECK_OFFSET(guest_pending_dbg_exceptions, 560);
    CHECK_OFFSET(guest_sysenter_esp, 568);
    CHECK_OFFSET(guest_sysenter_eip, 576);
    CHECK_OFFSET(host_cr0, 584);
    CHECK_OFFSET(host_cr3, 592);
    CHECK_OFFSET(host_cr4, 600);
    CHECK_OFFSET(host_fs_base, 608);
    CHECK_OFFSET(host_gs_base, 616);
    CHECK_OFFSET(host_tr_base, 624);
    CHECK_OFFSET(host_gdtr_base, 632);
    CHECK_OFFSET(host_idtr_base, 640);
    CHECK_OFFSET(host_ia32_sysenter_esp, 648);
    CHECK_OFFSET(host_ia32_sysenter_eip, 656);
    CHECK_OFFSET(host_rsp, 664);
    CHECK_OFFSET(host_rip, 672);
    CHECK_OFFSET(pin_based_vm_exec_control, 744);
    CHECK_OFFSET(cpu_based_vm_exec_control, 748);
    CHECK_OFFSET(exception_bitmap, 752);
    CHECK_OFFSET(page_fault_error_code_mask, 756);
    CHECK_OFFSET(page_fault_error_code_match, 760);
    CHECK_OFFSET(cr3_target_count, 764);
    CHECK_OFFSET(vm_exit_controls, 768);
    CHECK_OFFSET(vm_exit_msr_store_count, 772);
    CHECK_OFFSET(vm_exit_msr_load_count, 776);
    CHECK_OFFSET(vm_entry_controls, 780);
    CHECK_OFFSET(vm_entry_msr_load_count, 784);
    CHECK_OFFSET(vm_entry_intr_info_field, 788);
    CHECK_OFFSET(vm_entry_exception_error_code, 792);
    CHECK_OFFSET(vm_entry_instruction_len, 796);
    CHECK_OFFSET(tpr_threshold, 800);
    CHECK_OFFSET(secondary_vm_exec_control, 804);
    CHECK_OFFSET(vm_instruction_error, 808);
    CHECK_OFFSET(vm_exit_reason, 812);
    CHECK_OFFSET(vm_exit_intr_info, 816);
    CHECK_OFFSET(vm_exit_intr_error_code, 820);
    CHECK_OFFSET(idt_vectoring_info_field, 824);
    CHECK_OFFSET(idt_vectoring_error_code, 828);
    CHECK_OFFSET(vm_exit_instruction_len, 832);
    CHECK_OFFSET(vmx_instruction_info, 836);
    CHECK_OFFSET(guest_es_limit, 840);
    CHECK_OFFSET(guest_cs_limit, 844);
    CHECK_OFFSET(guest_ss_limit, 848);
    CHECK_OFFSET(guest_ds_limit, 852);
    CHECK_OFFSET(guest_fs_limit, 856);
    CHECK_OFFSET(guest_gs_limit, 860);
    CHECK_OFFSET(guest_ldtr_limit, 864);
    CHECK_OFFSET(guest_tr_limit, 868);
    CHECK_OFFSET(guest_gdtr_limit, 872);
    CHECK_OFFSET(guest_idtr_limit, 876);
    CHECK_OFFSET(guest_es_ar_bytes, 880);
    CHECK_OFFSET(guest_cs_ar_bytes, 884);
    CHECK_OFFSET(guest_ss_ar_bytes, 888);
    CHECK_OFFSET(guest_ds_ar_bytes, 892);
    CHECK_OFFSET(guest_fs_ar_bytes, 896);
    CHECK_OFFSET(guest_gs_ar_bytes, 900);
    CHECK_OFFSET(guest_ldtr_ar_bytes, 904);
    CHECK_OFFSET(guest_tr_ar_bytes, 908);
    CHECK_OFFSET(guest_interruptibility_info, 912);
    CHECK_OFFSET(guest_activity_state, 916);
    CHECK_OFFSET(guest_sysenter_cs, 920);
    CHECK_OFFSET(host_ia32_sysenter_cs, 924);
    CHECK_OFFSET(vmx_preemption_timer_value, 928);
    CHECK_OFFSET(virtual_processor_id, 960);
    CHECK_OFFSET(posted_intr_nv, 962);
    CHECK_OFFSET(guest_es_selector, 964);
    CHECK_OFFSET(guest_cs_selector, 966);
    CHECK_OFFSET(guest_ss_selector, 968);
    CHECK_OFFSET(guest_ds_selector, 970);
    CHECK_OFFSET(guest_fs_selector, 972);
    CHECK_OFFSET(guest_gs_selector, 974);
    CHECK_OFFSET(guest_ldtr_selector, 976);
    CHECK_OFFSET(guest_tr_selector, 978);
    CHECK_OFFSET(guest_intr_status, 980);
    CHECK_OFFSET(host_es_selector, 982);
    CHECK_OFFSET(host_cs_selector, 984);
    CHECK_OFFSET(host_ss_selector, 986);
    CHECK_OFFSET(host_ds_selector, 988);
    CHECK_OFFSET(host_fs_selector, 990);
    CHECK_OFFSET(host_gs_selector, 992);
    CHECK_OFFSET(host_tr_selector, 994);
    CHECK_OFFSET(guest_pml_index, 996);
}

Here is the caller graph for this function:

Variable Documentation

nr_vmcs12_fields

const unsigned int nr_vmcs12_fields

extern

Definition at line 155 of file vmcs12.c.

vmcs12_field_offsets

const unsigned short vmcs12_field_offsets[]

extern

Definition at line 12 of file vmcs12.c.
