mm.c File Reference

#include <linux/kvm_host.h>
#include <asm/kvm_hyp.h>
#include <asm/kvm_mmu.h>
#include <asm/kvm_pgtable.h>
#include <asm/kvm_pkvm.h>
#include <asm/spectre.h>
#include <nvhe/early_alloc.h>
#include <nvhe/gfp.h>
#include <nvhe/memory.h>
#include <nvhe/mem_protect.h>
#include <nvhe/mm.h>
#include <nvhe/spinlock.h>

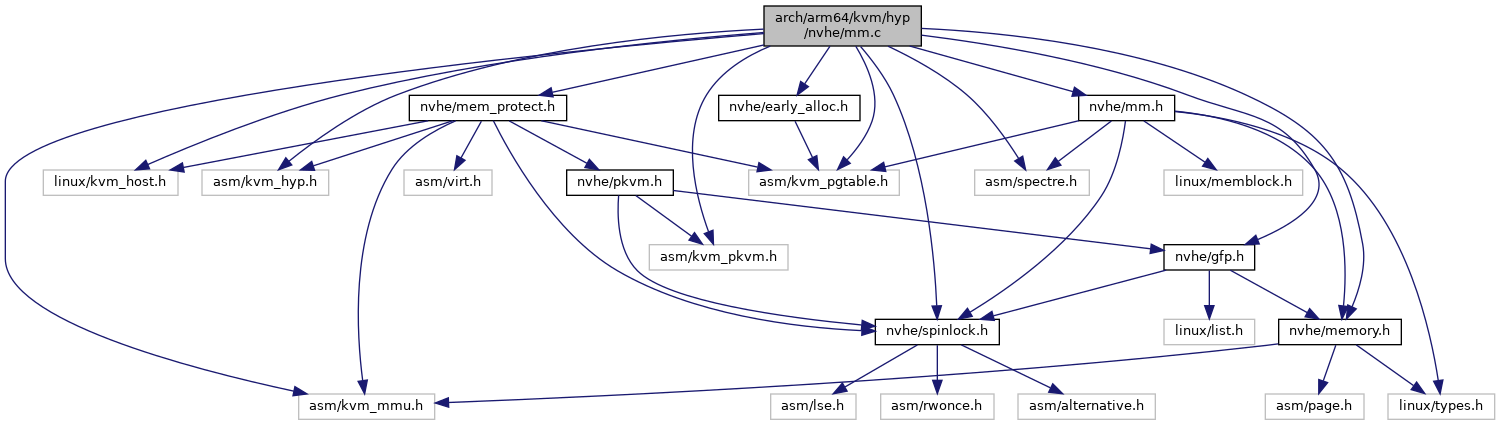

Include dependency graph for mm.c:

Go to the source code of this file.

Classes
struct	hyp_fixmap_slot

Functions
static	DEFINE_PER_CPU (struct hyp_fixmap_slot, fixmap_slots)
static int	__pkvm_create_mappings (unsigned long start, unsigned long size, unsigned long phys, enum kvm_pgtable_prot prot)
static int	__pkvm_alloc_private_va_range (unsigned long start, size_t size)
int	pkvm_alloc_private_va_range (size_t size, unsigned long *haddr)
int	__pkvm_create_private_mapping (phys_addr_t phys, size_t size, enum kvm_pgtable_prot prot, unsigned long *haddr)
int	pkvm_create_mappings_locked (void *from, void *to, enum kvm_pgtable_prot prot)
int	pkvm_create_mappings (void *from, void *to, enum kvm_pgtable_prot prot)
int	hyp_back_vmemmap (phys_addr_t back)
int	pkvm_cpu_set_vector (enum arm64_hyp_spectre_vector slot)
int	hyp_map_vectors (void)
void *	hyp_fixmap_map (phys_addr_t phys)
static void	fixmap_clear_slot (struct hyp_fixmap_slot *slot)
void	hyp_fixmap_unmap (void)
static int	__create_fixmap_slot_cb (const struct kvm_pgtable_visit_ctx *ctx, enum kvm_pgtable_walk_flags visit)
static int	create_fixmap_slot (u64 addr, u64 cpu)
int	hyp_create_pcpu_fixmap (void)
int	hyp_create_idmap (u32 hyp_va_bits)
int	pkvm_create_stack (phys_addr_t phys, unsigned long *haddr)
static void *	admit_host_page (void *arg)
int	refill_memcache (struct kvm_hyp_memcache *mc, unsigned long min_pages, struct kvm_hyp_memcache *host_mc)

Variables
struct kvm_pgtable	pkvm_pgtable
hyp_spinlock_t	pkvm_pgd_lock
struct memblock_region	hyp_memory [HYP_MEMBLOCK_REGIONS]
unsigned int	hyp_memblock_nr
static u64	__io_map_base
static void *	__hyp_bp_vect_base

Function Documentation

__create_fixmap_slot_cb()

static int __create_fixmap_slot_cb ( const struct kvm_pgtable_visit_ctx *  ctx, enum kvm_pgtable_walk_flags  visit  )

static

Definition at line 273 of file mm.c.

{
    struct hyp_fixmap_slot *slot = per_cpu_ptr(&fixmap_slots, (u64)ctx->arg);

    if (!kvm_pte_valid(ctx->old) || ctx->level != KVM_PGTABLE_LAST_LEVEL)
        return -EINVAL;

    slot->addr = ctx->addr;
    slot->ptep = ctx->ptep;

    /*
     * Clear the PTE, but keep the page-table page refcount elevated to
     * prevent it from ever being freed. This lets us manipulate the PTEs
     * by hand safely without ever needing to allocate memory.
     */
    fixmap_clear_slot(slot);

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

__pkvm_alloc_private_va_range()

static int __pkvm_alloc_private_va_range ( unsigned long  start, size_t  size  )

static

Definition at line 47 of file mm.c.

{
    unsigned long cur;

    hyp_assert_lock_held(&pkvm_pgd_lock);

    if (!start || start < __io_map_base)
        return -EINVAL;

    /* The allocated size is always a multiple of PAGE_SIZE */
    cur = start + PAGE_ALIGN(size);

    /* Are we overflowing on the vmemmap ? */
    if (cur > __hyp_vmemmap)
        return -ENOMEM;

    __io_map_base = cur;

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

__pkvm_create_mappings()

static int __pkvm_create_mappings ( unsigned long  start, unsigned long  size, unsigned long  phys, enum kvm_pgtable_prot  prot  )

static

Definition at line 35 of file mm.c.

{
    int err;

    hyp_spin_lock(&pkvm_pgd_lock);
    err = kvm_pgtable_hyp_map(&pkvm_pgtable, start, size, phys, prot);
    hyp_spin_unlock(&pkvm_pgd_lock);

    return err;
}

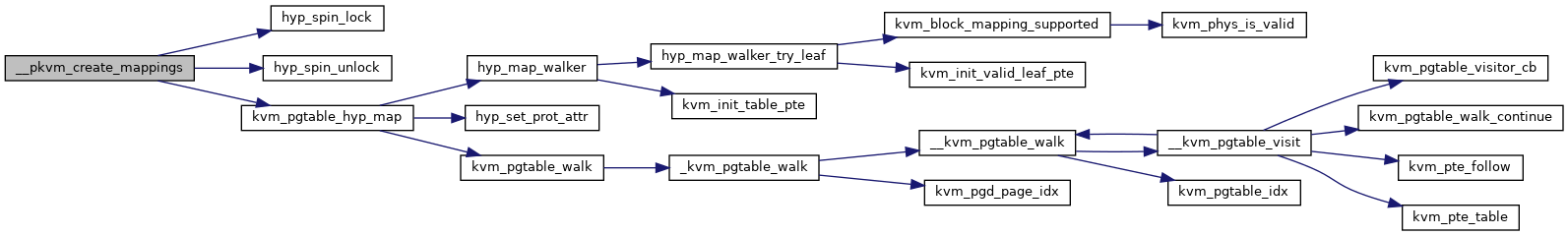

Here is the call graph for this function:

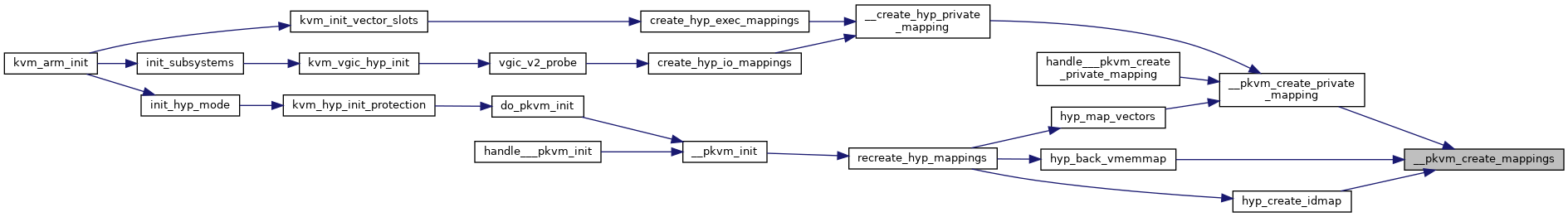

Here is the caller graph for this function:

__pkvm_create_private_mapping()

int __pkvm_create_private_mapping	(	phys_addr_t	phys,
		size_t	size,
		enum kvm_pgtable_prot	prot,
		unsigned long *	haddr
	)

Definition at line 93 of file mm.c.

{
    unsigned long addr;
    int err;

    size = PAGE_ALIGN(size + offset_in_page(phys));
    err = pkvm_alloc_private_va_range(size, &addr);
    if (err)
        return err;

    err = __pkvm_create_mappings(addr, size, phys, prot);
    if (err)
        return err;

    *haddr = addr + offset_in_page(phys);
    return err;
}

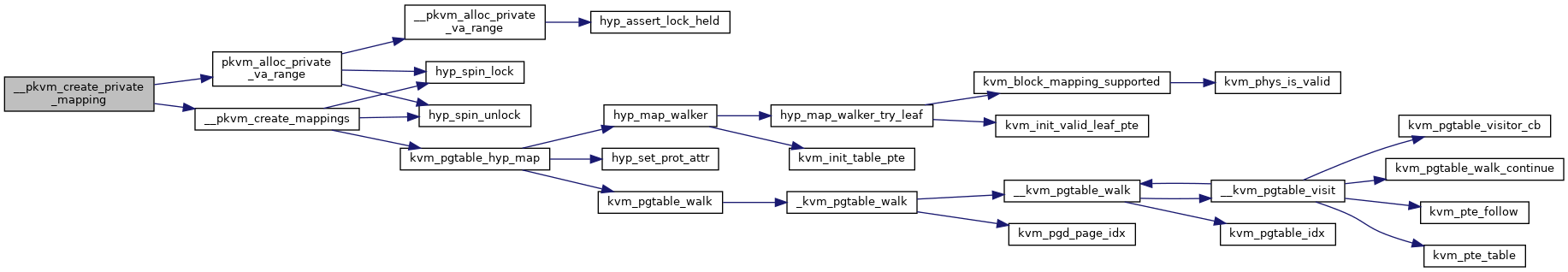

Here is the call graph for this function:

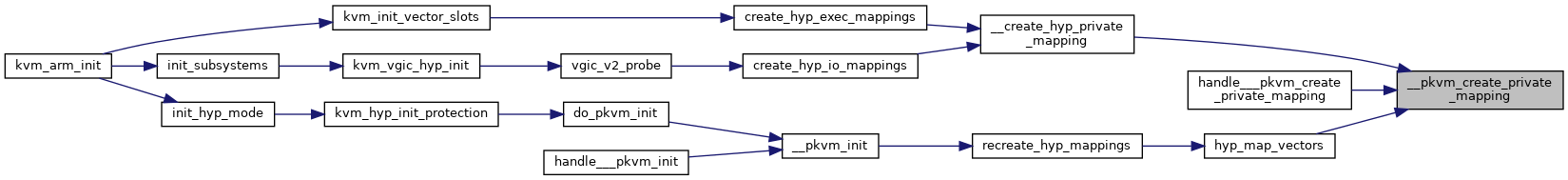

Here is the caller graph for this function:

admit_host_page()

static void* admit_host_page ( void *  arg )

static

Definition at line 392 of file mm.c.

{
    struct kvm_hyp_memcache *host_mc = arg;

    if (!host_mc->nr_pages)
        return NULL;

    /*
     * The host still owns the pages in its memcache, so we need to go
     * through a full host-to-hyp donation cycle to change it. Fortunately,
     * __pkvm_host_donate_hyp() takes care of races for us, so if it
     * succeeds we're good to go.
     */
    if (__pkvm_host_donate_hyp(hyp_phys_to_pfn(host_mc->head), 1))
        return NULL;

    return pop_hyp_memcache(host_mc, hyp_phys_to_virt);
}

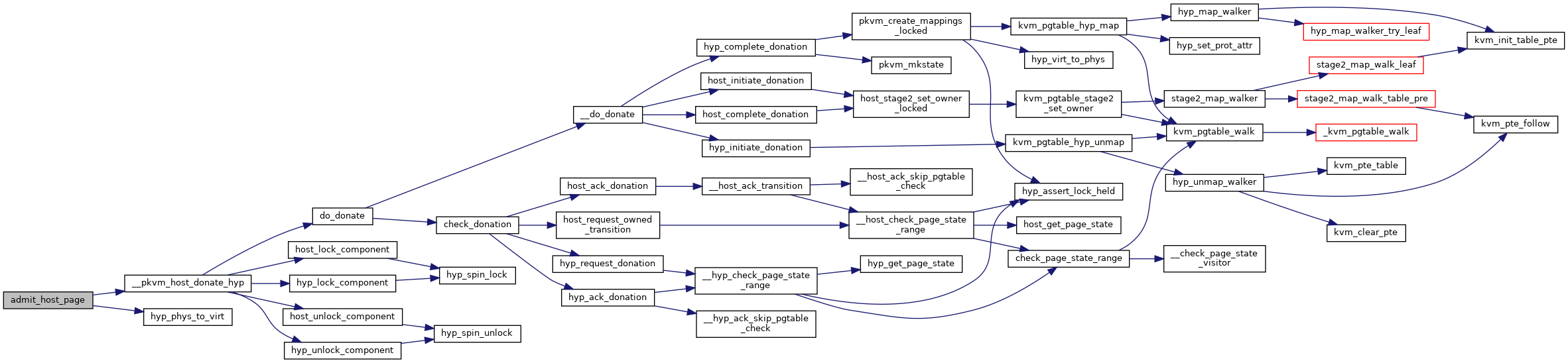

Here is the call graph for this function:

Here is the caller graph for this function:

create_fixmap_slot()

static int create_fixmap_slot ( u64  addr, u64  cpu  )

static

Definition at line 294 of file mm.c.

{
    struct kvm_pgtable_walker walker = {
        .cb = __create_fixmap_slot_cb,
        .flags  = KVM_PGTABLE_WALK_LEAF,
        .arg = (void *)cpu,
    };

    return kvm_pgtable_walk(&pkvm_pgtable, addr, PAGE_SIZE, &walker);
}

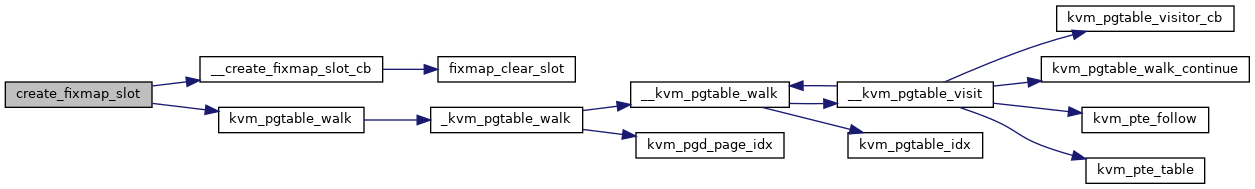

Here is the call graph for this function:

Here is the caller graph for this function:

DEFINE_PER_CPU()

static DEFINE_PER_CPU ( struct hyp_fixmap_slot  , fixmap_slots    )

static

fixmap_clear_slot()

static void fixmap_clear_slot ( struct hyp_fixmap_slot *  slot )

static

Definition at line 246 of file mm.c.

{
    kvm_pte_t *ptep = slot->ptep;
    u64 addr = slot->addr;

    WRITE_ONCE(*ptep, *ptep & ~KVM_PTE_VALID);

    /*
     * Irritatingly, the architecture requires that we use inner-shareable
     * broadcast TLB invalidation here in case another CPU speculates
     * through our fixmap and decides to create an "amalagamation of the
     * values held in the TLB" due to the apparent lack of a
     * break-before-make sequence.
     *
     * https://lore.kernel.org/kvm/20221017115209.2099-1-will@kernel.org/T/#mf10dfbaf1eaef9274c581b81c53758918c1d0f03
     */
    dsb(ishst);
    __tlbi_level(vale2is, __TLBI_VADDR(addr, 0), KVM_PGTABLE_LAST_LEVEL);
    dsb(ish);
    isb();
}

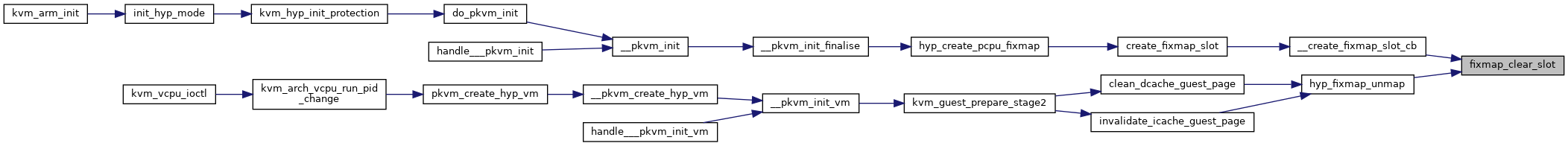

Here is the caller graph for this function:

hyp_back_vmemmap()

int hyp_back_vmemmap

(

phys_addr_t

back

)

Definition at line 149 of file mm.c.

{
    unsigned long i, start, size, end = 0;
    int ret;

    for (i = 0; i < hyp_memblock_nr; i++) {
        start = hyp_memory[i].base;
        start = ALIGN_DOWN((u64)hyp_phys_to_page(start), PAGE_SIZE);
        /*
         * The begining of the hyp_vmemmap region for the current
         * memblock may already be backed by the page backing the end
         * the previous region, so avoid mapping it twice.
         */
        start = max(start, end);

        end = hyp_memory[i].base + hyp_memory[i].size;
        end = PAGE_ALIGN((u64)hyp_phys_to_page(end));
        if (start >= end)
            continue;

        size = end - start;
        ret = __pkvm_create_mappings(start, size, back, PAGE_HYP);
        if (ret)
            return ret;

        memset(hyp_phys_to_virt(back), 0, size);
        back += size;
    }

    return 0;
}

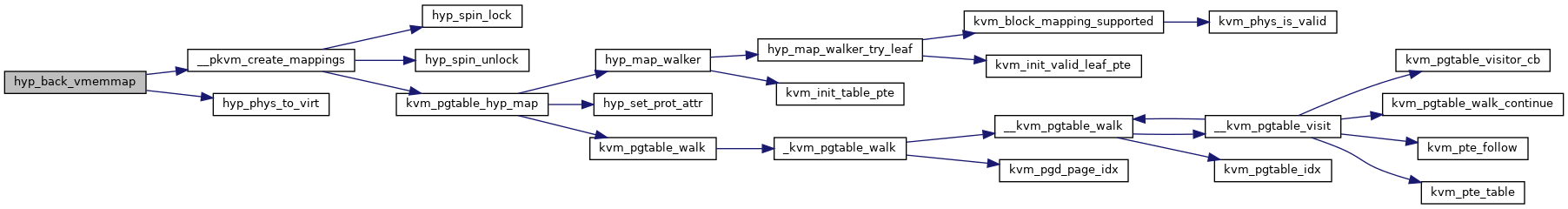

Here is the call graph for this function:

Here is the caller graph for this function:

hyp_create_idmap()

int hyp_create_idmap

(

u32

hyp_va_bits

)

Definition at line 328 of file mm.c.

{
    unsigned long start, end;

    start = hyp_virt_to_phys((void *)__hyp_idmap_text_start);
    start = ALIGN_DOWN(start, PAGE_SIZE);

    end = hyp_virt_to_phys((void *)__hyp_idmap_text_end);
    end = ALIGN(end, PAGE_SIZE);

    /*
     * One half of the VA space is reserved to linearly map portions of
     * memory -- see va_layout.c for more details. The other half of the VA
     * space contains the trampoline page, and needs some care. Split that
     * second half in two and find the quarter of VA space not conflicting
     * with the idmap to place the IOs and the vmemmap. IOs use the lower
     * half of the quarter and the vmemmap the upper half.
     */
    __io_map_base = start & BIT(hyp_va_bits - 2);
    __io_map_base ^= BIT(hyp_va_bits - 2);
    __hyp_vmemmap = __io_map_base | BIT(hyp_va_bits - 3);

    return __pkvm_create_mappings(start, end - start, start, PAGE_HYP_EXEC);
}

Here is the call graph for this function:

Here is the caller graph for this function:

hyp_create_pcpu_fixmap()

int hyp_create_pcpu_fixmap

(

void

)

Definition at line 305 of file mm.c.

{
    unsigned long addr, i;
    int ret;

    for (i = 0; i < hyp_nr_cpus; i++) {
        ret = pkvm_alloc_private_va_range(PAGE_SIZE, &addr);
        if (ret)
            return ret;

        ret = kvm_pgtable_hyp_map(&pkvm_pgtable, addr, PAGE_SIZE,
                      __hyp_pa(__hyp_bss_start), PAGE_HYP);
        if (ret)
            return ret;

        ret = create_fixmap_slot(addr, i);
        if (ret)
            return ret;
    }

    return 0;
}

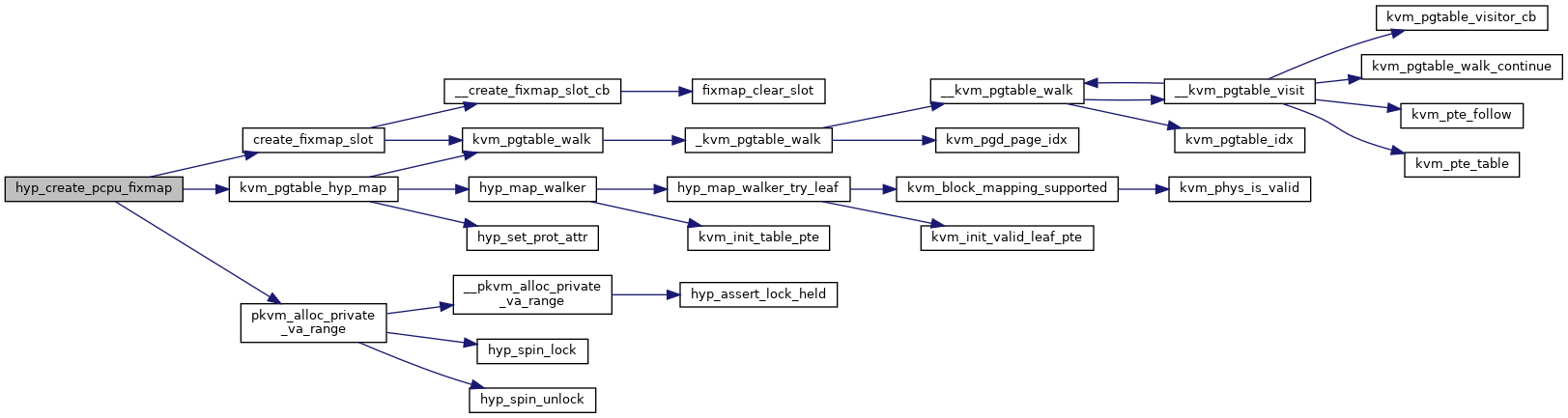

Here is the call graph for this function:

Here is the caller graph for this function:

hyp_fixmap_map()

void* hyp_fixmap_map

(

phys_addr_t

phys

)

Definition at line 232 of file mm.c.

{
    struct hyp_fixmap_slot *slot = this_cpu_ptr(&fixmap_slots);
    kvm_pte_t pte, *ptep = slot->ptep;

    pte = *ptep;
    pte &= ~kvm_phys_to_pte(KVM_PHYS_INVALID);
    pte |= kvm_phys_to_pte(phys) | KVM_PTE_VALID;
    WRITE_ONCE(*ptep, pte);
    dsb(ishst);

    return (void *)slot->addr;
}

Here is the caller graph for this function:

hyp_fixmap_unmap()

void hyp_fixmap_unmap

(

void

)

Definition at line 268 of file mm.c.

{
    fixmap_clear_slot(this_cpu_ptr(&fixmap_slots));
}

Here is the call graph for this function:

Here is the caller graph for this function:

hyp_map_vectors()

int hyp_map_vectors

(

void

)

Definition at line 210 of file mm.c.

{
    phys_addr_t phys;
    unsigned long bp_base;
    int ret;

    if (!kvm_system_needs_idmapped_vectors()) {
        __hyp_bp_vect_base = __bp_harden_hyp_vecs;
        return 0;
    }

    phys = __hyp_pa(__bp_harden_hyp_vecs);
    ret = __pkvm_create_private_mapping(phys, __BP_HARDEN_HYP_VECS_SZ,
                        PAGE_HYP_EXEC, &bp_base);
    if (ret)
        return ret;

    __hyp_bp_vect_base = (void *)bp_base;

    return 0;
}

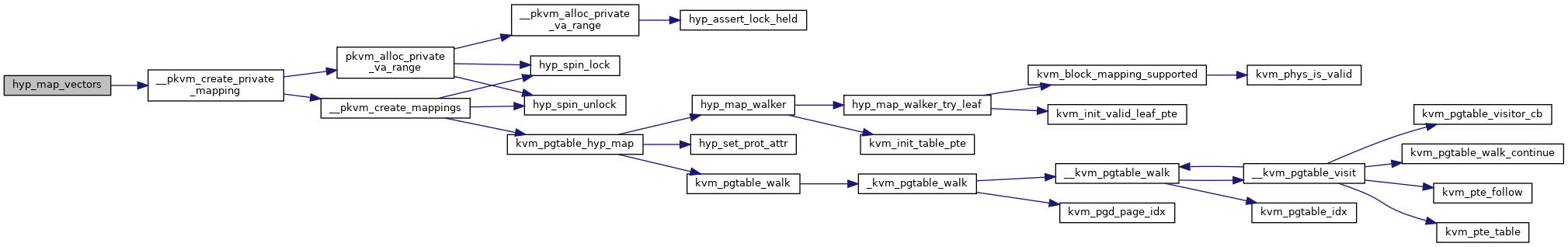

Here is the call graph for this function:

Here is the caller graph for this function:

pkvm_alloc_private_va_range()

int pkvm_alloc_private_va_range	(	size_t	size,
		unsigned long *	haddr
	)

pkvm_alloc_private_va_range - Allocates a private VA range. @size: The size of the VA range to reserve. @haddr: The hypervisor virtual start address of the allocation.

The private virtual address (VA) range is allocated above __io_map_base and aligned based on the order of @size.

Return: 0 on success or negative error code on failure.

Definition at line 78 of file mm.c.

{
    unsigned long addr;
    int ret;

    hyp_spin_lock(&pkvm_pgd_lock);
    addr = __io_map_base;
    ret = __pkvm_alloc_private_va_range(addr, size);
    hyp_spin_unlock(&pkvm_pgd_lock);

    *haddr = addr;

    return ret;
}

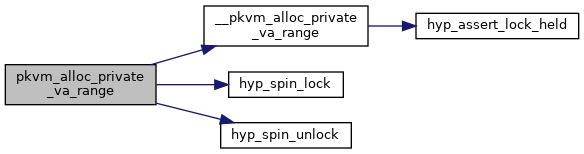

Here is the call graph for this function:

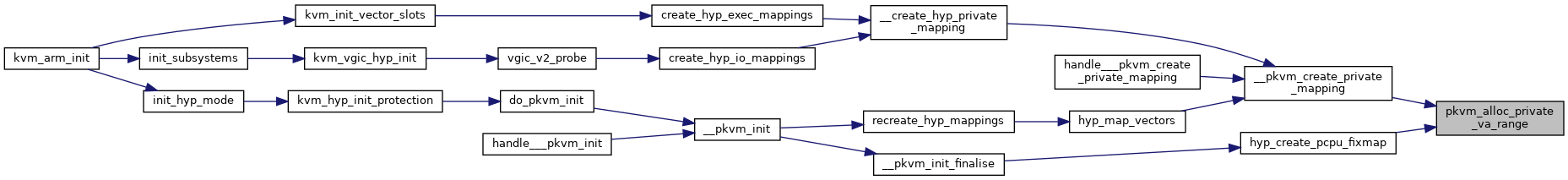

Here is the caller graph for this function:

pkvm_cpu_set_vector()

int pkvm_cpu_set_vector

(

enum arm64_hyp_spectre_vector

slot

)

Definition at line 182 of file mm.c.

{
    void *vector;

    switch (slot) {
    case HYP_VECTOR_DIRECT: {
        vector = __kvm_hyp_vector;
        break;
    }
    case HYP_VECTOR_SPECTRE_DIRECT: {
        vector = __bp_harden_hyp_vecs;
        break;
    }
    case HYP_VECTOR_INDIRECT:
    case HYP_VECTOR_SPECTRE_INDIRECT: {
        vector = (void *)__hyp_bp_vect_base;
        break;
    }
    default:
        return -EINVAL;
    }

    vector = __kvm_vector_slot2addr(vector, slot);
    *this_cpu_ptr(&kvm_hyp_vector) = (unsigned long)vector;

    return 0;
}

Here is the caller graph for this function:

pkvm_create_mappings()

int pkvm_create_mappings	(	void *	from,
		void *	to,
		enum kvm_pgtable_prot	prot
	)

Definition at line 138 of file mm.c.

{
    int ret;

    hyp_spin_lock(&pkvm_pgd_lock);
    ret = pkvm_create_mappings_locked(from, to, prot);
    hyp_spin_unlock(&pkvm_pgd_lock);

    return ret;
}

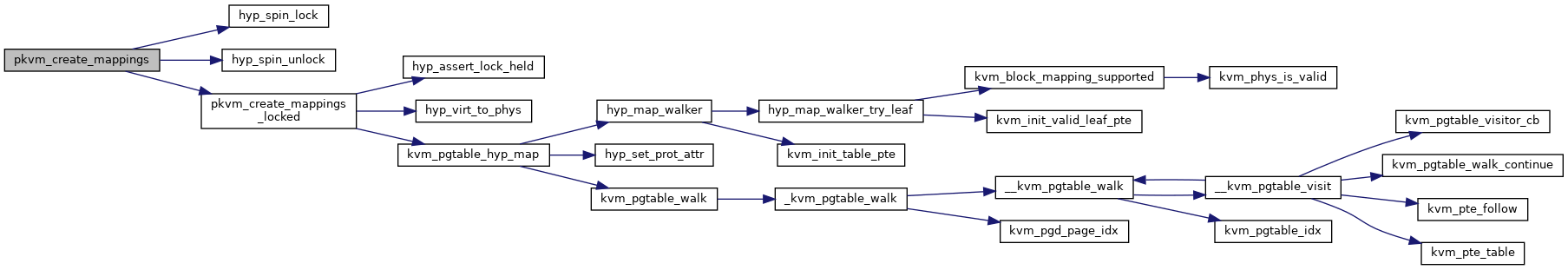

Here is the call graph for this function:

Here is the caller graph for this function:

pkvm_create_mappings_locked()

int pkvm_create_mappings_locked	(	void *	from,
		void *	to,
		enum kvm_pgtable_prot	prot
	)

Definition at line 113 of file mm.c.

{
    unsigned long start = (unsigned long)from;
    unsigned long end = (unsigned long)to;
    unsigned long virt_addr;
    phys_addr_t phys;

    hyp_assert_lock_held(&pkvm_pgd_lock);

    start = start & PAGE_MASK;
    end = PAGE_ALIGN(end);

    for (virt_addr = start; virt_addr < end; virt_addr += PAGE_SIZE) {
        int err;

        phys = hyp_virt_to_phys((void *)virt_addr);
        err = kvm_pgtable_hyp_map(&pkvm_pgtable, virt_addr, PAGE_SIZE,
                      phys, prot);
        if (err)
            return err;
    }

    return 0;
}

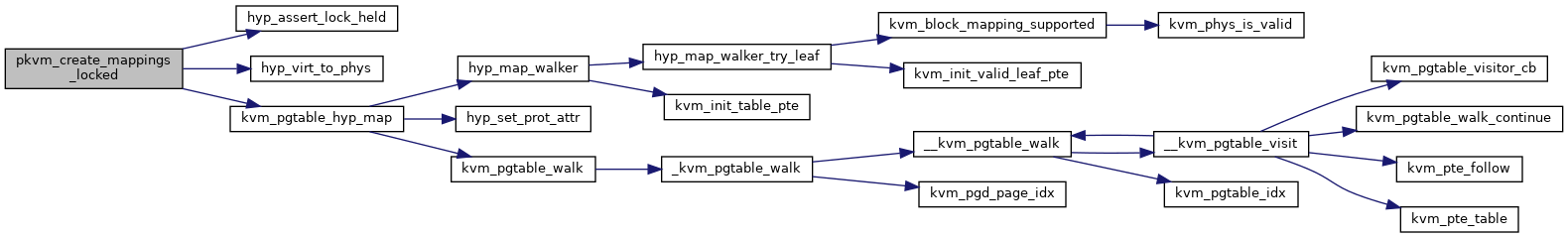

Here is the call graph for this function:

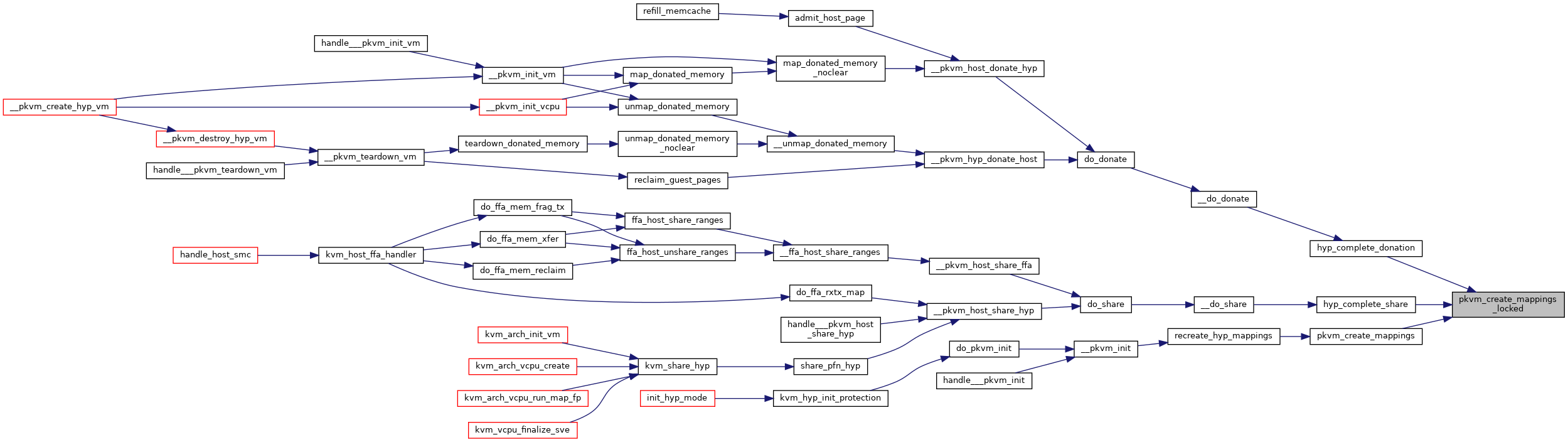

Here is the caller graph for this function:

pkvm_create_stack()

int pkvm_create_stack	(	phys_addr_t	phys,
		unsigned long *	haddr
	)

Definition at line 353 of file mm.c.

{
    unsigned long addr, prev_base;
    size_t size;
    int ret;

    hyp_spin_lock(&pkvm_pgd_lock);

    prev_base = __io_map_base;
    /*
     * Efficient stack verification using the PAGE_SHIFT bit implies
     * an alignment of our allocation on the order of the size.
     */
    size = PAGE_SIZE * 2;
    addr = ALIGN(__io_map_base, size);

    ret = __pkvm_alloc_private_va_range(addr, size);
    if (!ret) {
        /*
         * Since the stack grows downwards, map the stack to the page
         * at the higher address and leave the lower guard page
         * unbacked.
         *
         * Any valid stack address now has the PAGE_SHIFT bit as 1
         * and addresses corresponding to the guard page have the
         * PAGE_SHIFT bit as 0 - this is used for overflow detection.
         */
        ret = kvm_pgtable_hyp_map(&pkvm_pgtable, addr + PAGE_SIZE,
                      PAGE_SIZE, phys, PAGE_HYP);
        if (ret)
            __io_map_base = prev_base;
    }
    hyp_spin_unlock(&pkvm_pgd_lock);

    *haddr = addr + size;

    return ret;
}

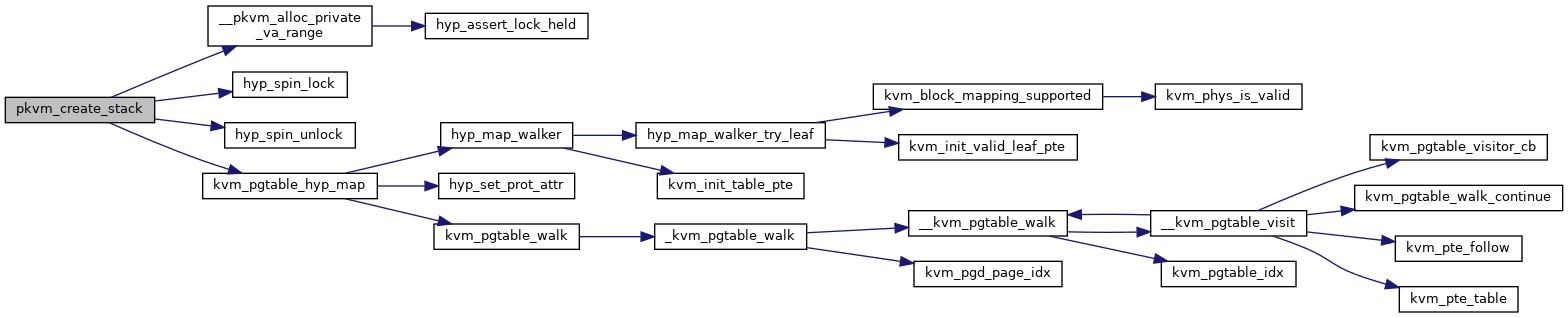

Here is the call graph for this function:

Here is the caller graph for this function:

refill_memcache()

int refill_memcache	(	struct kvm_hyp_memcache *	mc,
		unsigned long	min_pages,
		struct kvm_hyp_memcache *	host_mc
	)

Definition at line 412 of file mm.c.

{
    struct kvm_hyp_memcache tmp = *host_mc;
    int ret;

    ret =  __topup_hyp_memcache(mc, min_pages, admit_host_page,
                    hyp_virt_to_phys, &tmp);
    *host_mc = tmp;

    return ret;
}

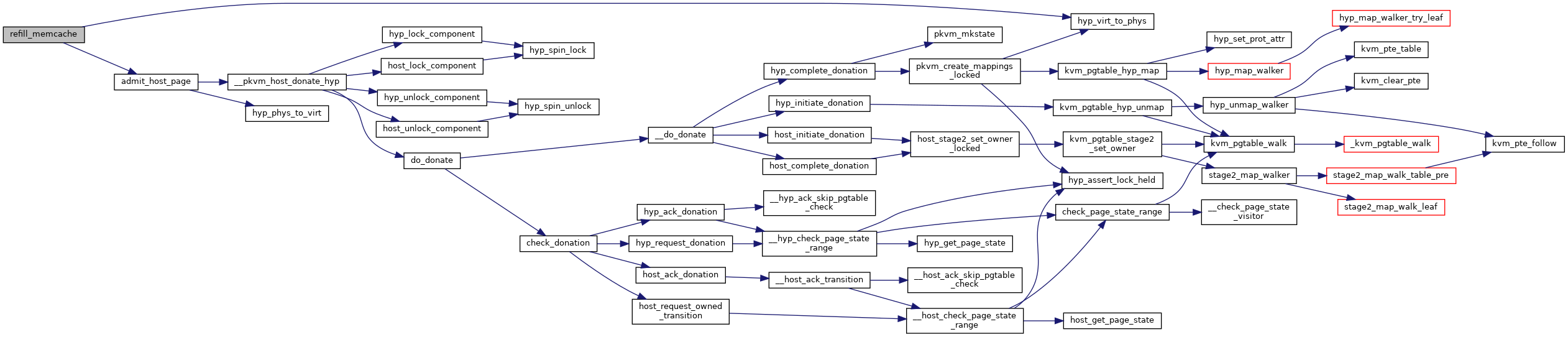

Here is the call graph for this function:

Variable Documentation

__hyp_bp_vect_base

void* __hyp_bp_vect_base

static

Definition at line 181 of file mm.c.

__io_map_base

u64 __io_map_base

static

Definition at line 27 of file mm.c.

hyp_memblock_nr

unsigned int hyp_memblock_nr

Definition at line 25 of file mm.c.

hyp_memory

struct memblock_region hyp_memory[HYP_MEMBLOCK_REGIONS]

Definition at line 22 of file mm.c.

pkvm_pgd_lock

hyp_spinlock_t pkvm_pgd_lock

Definition at line 22 of file mm.c.

pkvm_pgtable

struct kvm_pgtable pkvm_pgtable

Definition at line 1 of file mm.c.
