switch.h File Reference

#include <hyp/adjust_pc.h>
#include <hyp/fault.h>
#include <linux/arm-smccc.h>
#include <linux/kvm_host.h>
#include <linux/types.h>
#include <linux/jump_label.h>
#include <uapi/linux/psci.h>
#include <kvm/arm_psci.h>
#include <asm/barrier.h>
#include <asm/cpufeature.h>
#include <asm/extable.h>
#include <asm/kprobes.h>
#include <asm/kvm_asm.h>
#include <asm/kvm_emulate.h>
#include <asm/kvm_hyp.h>
#include <asm/kvm_mmu.h>
#include <asm/kvm_nested.h>
#include <asm/fpsimd.h>
#include <asm/debug-monitors.h>
#include <asm/processor.h>
#include <asm/traps.h>

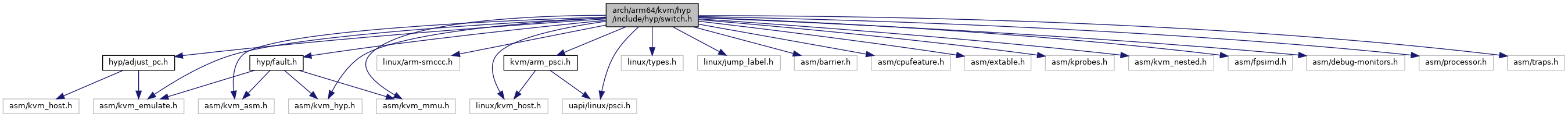

Include dependency graph for switch.h:

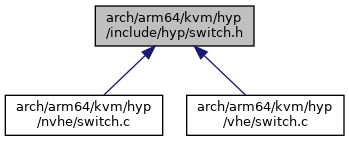

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	kvm_exception_table_entry

Macros
#define	compute_clr_set(vcpu, reg, clr, set)
#define	update_fgt_traps_cs(vcpu, reg, clr, set)
#define	update_fgt_traps(vcpu, reg)    update_fgt_traps_cs(vcpu, reg, 0, 0)
#define	CHECK_FGT_MASKS(reg)
#define	__ptrauth_save_key(ctxt, key)

Typedefs
typedef bool(*	exit_handler_fn) (struct kvm_vcpu *, u64 *)

Functions
static bool	guest_owns_fp_regs (struct kvm_vcpu *vcpu)
static void	__fpsimd_save_fpexc32 (struct kvm_vcpu *vcpu)
static void	__activate_traps_fpsimd32 (struct kvm_vcpu *vcpu)
static bool	cpu_has_amu (void)
static void	__activate_traps_hfgxtr (struct kvm_vcpu *vcpu)
static void	__deactivate_traps_hfgxtr (struct kvm_vcpu *vcpu)
static void	__activate_traps_common (struct kvm_vcpu *vcpu)
static void	__deactivate_traps_common (struct kvm_vcpu *vcpu)
static void	___activate_traps (struct kvm_vcpu *vcpu)
static void	___deactivate_traps (struct kvm_vcpu *vcpu)
static bool	__populate_fault_info (struct kvm_vcpu *vcpu)
static bool	kvm_hyp_handle_mops (struct kvm_vcpu *vcpu, u64 *exit_code)
static void	__hyp_sve_restore_guest (struct kvm_vcpu *vcpu)
static bool	kvm_hyp_handle_fpsimd (struct kvm_vcpu *vcpu, u64 *exit_code)
static bool	handle_tx2_tvm (struct kvm_vcpu *vcpu)
static bool	esr_is_ptrauth_trap (u64 esr)
	DECLARE_PER_CPU (struct kvm_cpu_context, kvm_hyp_ctxt)
static bool	kvm_hyp_handle_ptrauth (struct kvm_vcpu *vcpu, u64 *exit_code)
static bool	kvm_hyp_handle_cntpct (struct kvm_vcpu *vcpu)
static bool	handle_ampere1_tcr (struct kvm_vcpu *vcpu)
static bool	kvm_hyp_handle_sysreg (struct kvm_vcpu *vcpu, u64 *exit_code)
static bool	kvm_hyp_handle_cp15_32 (struct kvm_vcpu *vcpu, u64 *exit_code)
static bool	kvm_hyp_handle_memory_fault (struct kvm_vcpu *vcpu, u64 *exit_code)
static bool	kvm_hyp_handle_iabt_low (struct kvm_vcpu *vcpu, u64 *exit_code) __alias(kvm_hyp_handle_memory_fault)
static bool	kvm_hyp_handle_watchpt_low (struct kvm_vcpu *vcpu, u64 *exit_code) __alias(kvm_hyp_handle_memory_fault)
static bool	kvm_hyp_handle_dabt_low (struct kvm_vcpu *vcpu, u64 *exit_code)
static const exit_handler_fn *	kvm_get_exit_handler_array (struct kvm_vcpu *vcpu)
static void	early_exit_filter (struct kvm_vcpu *vcpu, u64 *exit_code)
static bool	kvm_hyp_handle_exit (struct kvm_vcpu *vcpu, u64 *exit_code)
static void	synchronize_vcpu_pstate (struct kvm_vcpu *vcpu, u64 *exit_code)
static bool	fixup_guest_exit (struct kvm_vcpu *vcpu, u64 *exit_code)
static void	__kvm_unexpected_el2_exception (void)

Variables
struct kvm_exception_table_entry	__start___kvm_ex_table
struct kvm_exception_table_entry	__stop___kvm_ex_table

Macro Definition Documentation

__ptrauth_save_key

#define __ptrauth_save_key	(		ctxt,
			key
	)

Value:

    do {                                \
    u64 __val;                                                      \
    __val = read_sysreg_s(SYS_ ## key ## KEYLO_EL1);                \
    ctxt_sys_reg(ctxt, key ## KEYLO_EL1) = __val;                   \
    __val = read_sysreg_s(SYS_ ## key ## KEYHI_EL1);                \
    ctxt_sys_reg(ctxt, key ## KEYHI_EL1) = __val;                   \
} while(0)

Definition at line 465 of file switch.h.

CHECK_FGT_MASKS

#define CHECK_FGT_MASKS

(

reg

)

Value:

    do {                                    \
        BUILD_BUG_ON((__ ## reg ## _MASK) & (__ ## reg ## _nMASK)); \
        BUILD_BUG_ON(~((__ ## reg ## _RES0) ^ (__ ## reg ## _MASK) ^    \
                   (__ ## reg ## _nMASK)));             \
    } while(0)

Definition at line 107 of file switch.h.

compute_clr_set

#define compute_clr_set	(		vcpu,
			reg,
			clr,
			set
	)

Value:

    do {                                \
        u64 hfg;                        \
        hfg = __vcpu_sys_reg(vcpu, reg) & ~__ ## reg ## _RES0;  \
        set |= hfg & __ ## reg ## _MASK;            \
        clr |= ~hfg & __ ## reg ## _nMASK;          \
    } while(0)

Definition at line 74 of file switch.h.

update_fgt_traps

#define update_fgt_traps	(		vcpu,
			reg
	)		update_fgt_traps_cs(vcpu, reg, 0, 0)

Definition at line 100 of file switch.h.

update_fgt_traps_cs

#define update_fgt_traps_cs	(		vcpu,
			reg,
			clr,
			set
	)

Value:

    do {                                \
        struct kvm_cpu_context *hctxt =             \
            &this_cpu_ptr(&kvm_host_data)->host_ctxt;   \
        u64 c = 0, s = 0;                   \
                                    \
        ctxt_sys_reg(hctxt, reg) = read_sysreg_s(SYS_ ## reg);  \
        compute_clr_set(vcpu, reg, c, s);           \
        s |= set;                       \
        c |= clr;                       \
        if (c || s) {                       \
            u64 val = __ ## reg ## _nMASK;          \
            val |= s;                   \
            val &= ~c;                  \
            write_sysreg_s(val, SYS_ ## reg);       \
        }                           \
    } while(0)

Definition at line 82 of file switch.h.

Typedef Documentation

exit_handler_fn

typedef bool(* exit_handler_fn) (struct kvm_vcpu *, u64 *)

Definition at line 645 of file switch.h.

Function Documentation

___activate_traps()

static void ___activate_traps ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 268 of file switch.h.

{
    u64 hcr = vcpu->arch.hcr_el2;

    if (cpus_have_final_cap(ARM64_WORKAROUND_CAVIUM_TX2_219_TVM))
        hcr |= HCR_TVM;

    write_sysreg(hcr, hcr_el2);

    if (cpus_have_final_cap(ARM64_HAS_RAS_EXTN) && (hcr & HCR_VSE))
        write_sysreg_s(vcpu->arch.vsesr_el2, SYS_VSESR_EL2);
}

Here is the caller graph for this function:

___deactivate_traps()

static void ___deactivate_traps ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 281 of file switch.h.

{
    /*
     * If we pended a virtual abort, preserve it until it gets
     * cleared. See D1.14.3 (Virtual Interrupts) for details, but
     * the crucial bit is "On taking a vSError interrupt,
     * HCR_EL2.VSE is cleared to 0."
     */
    if (vcpu->arch.hcr_el2 & HCR_VSE) {
        vcpu->arch.hcr_el2 &= ~HCR_VSE;
        vcpu->arch.hcr_el2 |= read_sysreg(hcr_el2) & HCR_VSE;
    }
}

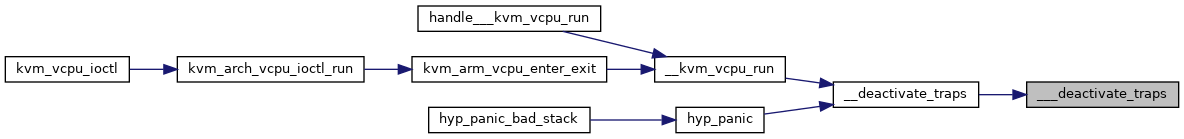

Here is the caller graph for this function:

__activate_traps_common()

static void __activate_traps_common ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 207 of file switch.h.

{
    /* Trap on AArch32 cp15 c15 (impdef sysregs) accesses (EL1 or EL0) */
    write_sysreg(1 << 15, hstr_el2);

    /*
     * Make sure we trap PMU access from EL0 to EL2. Also sanitize
     * PMSELR_EL0 to make sure it never contains the cycle
     * counter, which could make a PMXEVCNTR_EL0 access UNDEF at
     * EL1 instead of being trapped to EL2.
     */
    if (kvm_arm_support_pmu_v3()) {
        struct kvm_cpu_context *hctxt;

        write_sysreg(0, pmselr_el0);

        hctxt = &this_cpu_ptr(&kvm_host_data)->host_ctxt;
        ctxt_sys_reg(hctxt, PMUSERENR_EL0) = read_sysreg(pmuserenr_el0);
        write_sysreg(ARMV8_PMU_USERENR_MASK, pmuserenr_el0);
        vcpu_set_flag(vcpu, PMUSERENR_ON_CPU);
    }

    vcpu->arch.mdcr_el2_host = read_sysreg(mdcr_el2);
    write_sysreg(vcpu->arch.mdcr_el2, mdcr_el2);

    if (cpus_have_final_cap(ARM64_HAS_HCX)) {
        u64 hcrx = HCRX_GUEST_FLAGS;
        if (vcpu_has_nv(vcpu) && !is_hyp_ctxt(vcpu)) {
            u64 clr = 0, set = 0;

            compute_clr_set(vcpu, HCRX_EL2, clr, set);

            hcrx |= set;
            hcrx &= ~clr;
        }

        write_sysreg_s(hcrx, SYS_HCRX_EL2);
    }

    __activate_traps_hfgxtr(vcpu);
}

Here is the call graph for this function:

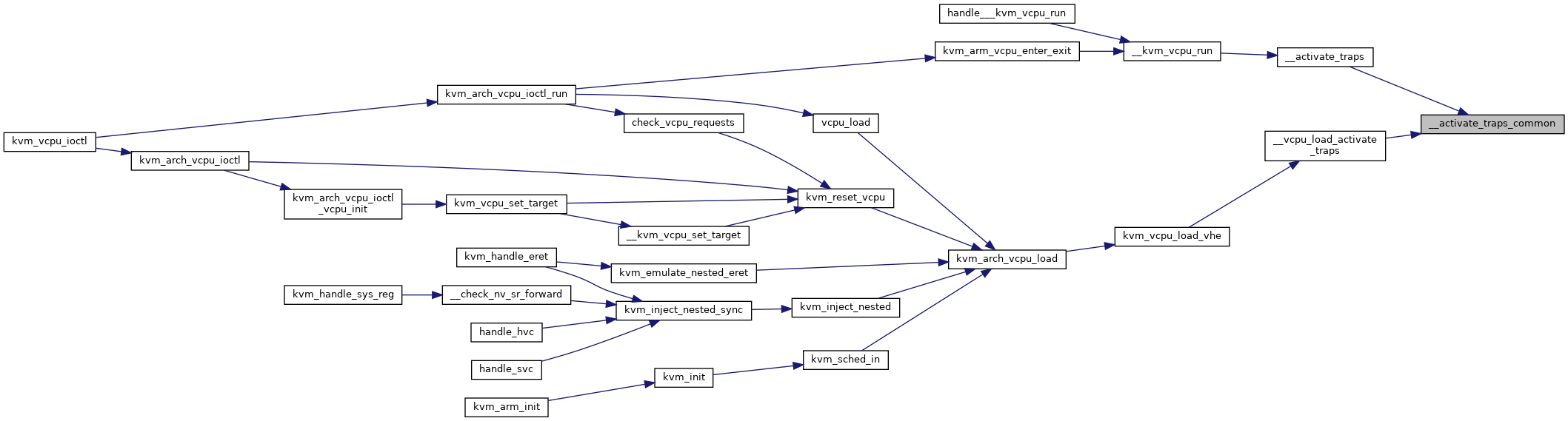

Here is the caller graph for this function:

__activate_traps_fpsimd32()

static void __activate_traps_fpsimd32 ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 57 of file switch.h.

{
    /*
     * We are about to set CPTR_EL2.TFP to trap all floating point
     * register accesses to EL2, however, the ARM ARM clearly states that
     * traps are only taken to EL2 if the operation would not otherwise
     * trap to EL1.  Therefore, always make sure that for 32-bit guests,
     * we set FPEXC.EN to prevent traps to EL1, when setting the TFP bit.
     * If FP/ASIMD is not implemented, FPEXC is UNDEFINED and any access to
     * it will cause an exception.
     */
    if (vcpu_el1_is_32bit(vcpu) && system_supports_fpsimd()) {
        write_sysreg(1 << 30, fpexc32_el2);
        isb();
    }
}

Here is the caller graph for this function:

__activate_traps_hfgxtr()

static void __activate_traps_hfgxtr ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 122 of file switch.h.

{
    struct kvm_cpu_context *hctxt = &this_cpu_ptr(&kvm_host_data)->host_ctxt;
    u64 r_clr = 0, w_clr = 0, r_set = 0, w_set = 0, tmp;
    u64 r_val, w_val;

    CHECK_FGT_MASKS(HFGRTR_EL2);
    CHECK_FGT_MASKS(HFGWTR_EL2);
    CHECK_FGT_MASKS(HFGITR_EL2);
    CHECK_FGT_MASKS(HDFGRTR_EL2);
    CHECK_FGT_MASKS(HDFGWTR_EL2);
    CHECK_FGT_MASKS(HAFGRTR_EL2);
    CHECK_FGT_MASKS(HCRX_EL2);

    if (!cpus_have_final_cap(ARM64_HAS_FGT))
        return;

    ctxt_sys_reg(hctxt, HFGRTR_EL2) = read_sysreg_s(SYS_HFGRTR_EL2);
    ctxt_sys_reg(hctxt, HFGWTR_EL2) = read_sysreg_s(SYS_HFGWTR_EL2);

    if (cpus_have_final_cap(ARM64_SME)) {
        tmp = HFGxTR_EL2_nSMPRI_EL1_MASK | HFGxTR_EL2_nTPIDR2_EL0_MASK;

        r_clr |= tmp;
        w_clr |= tmp;
    }

    /*
     * Trap guest writes to TCR_EL1 to prevent it from enabling HA or HD.
     */
    if (cpus_have_final_cap(ARM64_WORKAROUND_AMPERE_AC03_CPU_38))
        w_set |= HFGxTR_EL2_TCR_EL1_MASK;

    if (vcpu_has_nv(vcpu) && !is_hyp_ctxt(vcpu)) {
        compute_clr_set(vcpu, HFGRTR_EL2, r_clr, r_set);
        compute_clr_set(vcpu, HFGWTR_EL2, w_clr, w_set);
    }

    /* The default to trap everything not handled or supported in KVM. */
    tmp = HFGxTR_EL2_nAMAIR2_EL1 | HFGxTR_EL2_nMAIR2_EL1 | HFGxTR_EL2_nS2POR_EL1 |
          HFGxTR_EL2_nPOR_EL1 | HFGxTR_EL2_nPOR_EL0 | HFGxTR_EL2_nACCDATA_EL1;

    r_val = __HFGRTR_EL2_nMASK & ~tmp;
    r_val |= r_set;
    r_val &= ~r_clr;

    w_val = __HFGWTR_EL2_nMASK & ~tmp;
    w_val |= w_set;
    w_val &= ~w_clr;

    write_sysreg_s(r_val, SYS_HFGRTR_EL2);
    write_sysreg_s(w_val, SYS_HFGWTR_EL2);

    if (!vcpu_has_nv(vcpu) || is_hyp_ctxt(vcpu))
        return;

    update_fgt_traps(vcpu, HFGITR_EL2);
    update_fgt_traps(vcpu, HDFGRTR_EL2);
    update_fgt_traps(vcpu, HDFGWTR_EL2);

    if (cpu_has_amu())
        update_fgt_traps(vcpu, HAFGRTR_EL2);
}

Here is the call graph for this function:

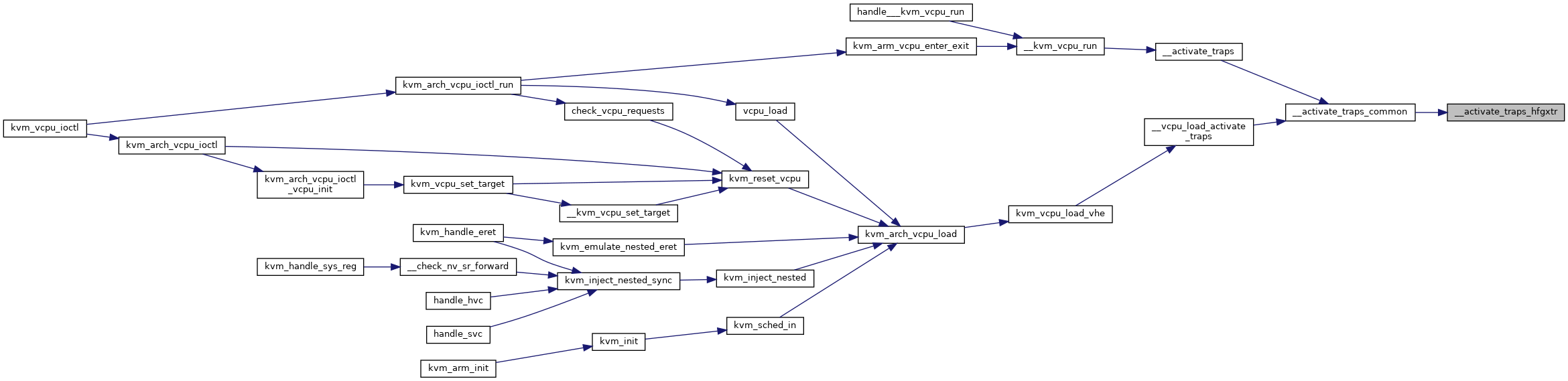

Here is the caller graph for this function:

__deactivate_traps_common()

static void __deactivate_traps_common ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 249 of file switch.h.

{
    write_sysreg(vcpu->arch.mdcr_el2_host, mdcr_el2);

    write_sysreg(0, hstr_el2);
    if (kvm_arm_support_pmu_v3()) {
        struct kvm_cpu_context *hctxt;

        hctxt = &this_cpu_ptr(&kvm_host_data)->host_ctxt;
        write_sysreg(ctxt_sys_reg(hctxt, PMUSERENR_EL0), pmuserenr_el0);
        vcpu_clear_flag(vcpu, PMUSERENR_ON_CPU);
    }

    if (cpus_have_final_cap(ARM64_HAS_HCX))
        write_sysreg_s(HCRX_HOST_FLAGS, SYS_HCRX_EL2);

    __deactivate_traps_hfgxtr(vcpu);
}

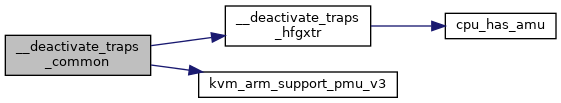

Here is the call graph for this function:

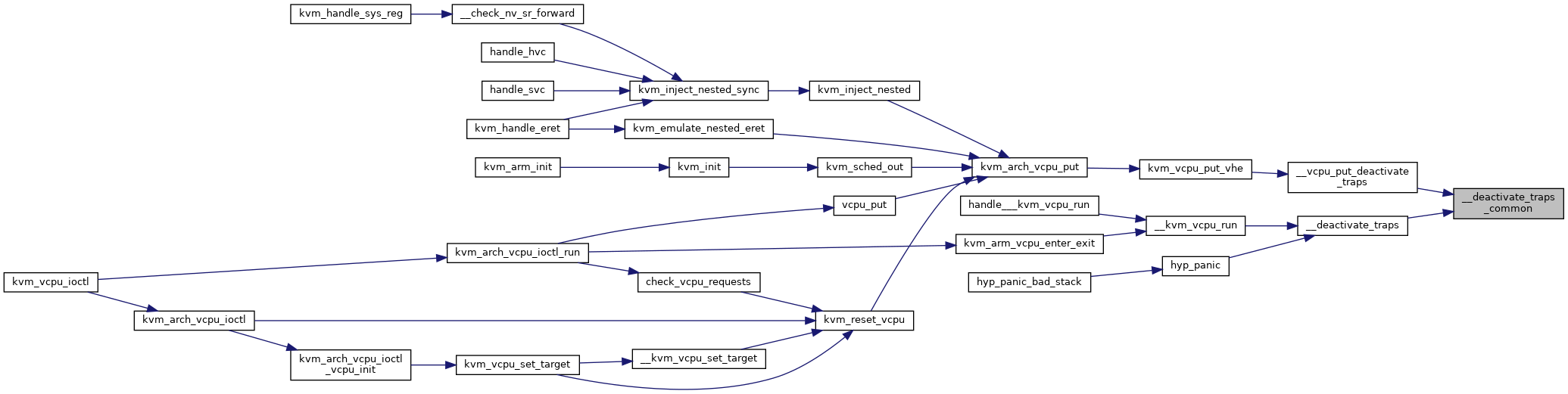

Here is the caller graph for this function:

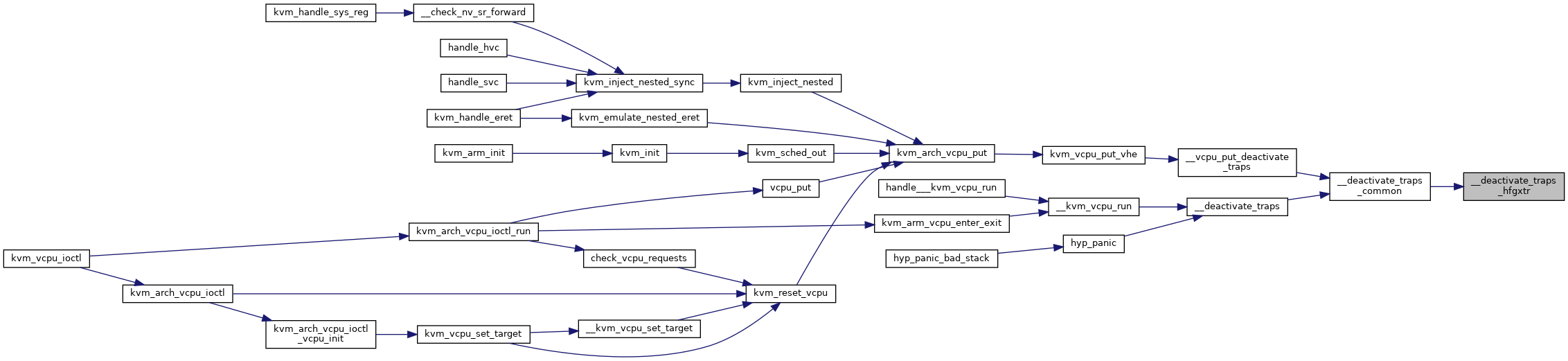

__deactivate_traps_hfgxtr()

static void __deactivate_traps_hfgxtr ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 186 of file switch.h.

{
    struct kvm_cpu_context *hctxt = &this_cpu_ptr(&kvm_host_data)->host_ctxt;

    if (!cpus_have_final_cap(ARM64_HAS_FGT))
        return;

    write_sysreg_s(ctxt_sys_reg(hctxt, HFGRTR_EL2), SYS_HFGRTR_EL2);
    write_sysreg_s(ctxt_sys_reg(hctxt, HFGWTR_EL2), SYS_HFGWTR_EL2);

    if (!vcpu_has_nv(vcpu) || is_hyp_ctxt(vcpu))
        return;

    write_sysreg_s(ctxt_sys_reg(hctxt, HFGITR_EL2), SYS_HFGITR_EL2);
    write_sysreg_s(ctxt_sys_reg(hctxt, HDFGRTR_EL2), SYS_HDFGRTR_EL2);
    write_sysreg_s(ctxt_sys_reg(hctxt, HDFGWTR_EL2), SYS_HDFGWTR_EL2);

    if (cpu_has_amu())
        write_sysreg_s(ctxt_sys_reg(hctxt, HAFGRTR_EL2), SYS_HAFGRTR_EL2);
}

Here is the call graph for this function:

Here is the caller graph for this function:

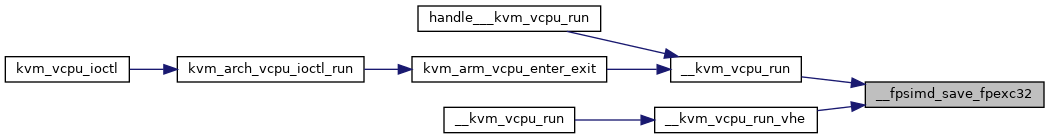

__fpsimd_save_fpexc32()

static void __fpsimd_save_fpexc32 ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 49 of file switch.h.

{
    if (!vcpu_el1_is_32bit(vcpu))
        return;

    __vcpu_sys_reg(vcpu, FPEXC32_EL2) = read_sysreg(fpexc32_el2);
}

Here is the caller graph for this function:

__hyp_sve_restore_guest()

static void __hyp_sve_restore_guest ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 316 of file switch.h.

{
    sve_cond_update_zcr_vq(vcpu_sve_max_vq(vcpu) - 1, SYS_ZCR_EL2);
    __sve_restore_state(vcpu_sve_pffr(vcpu),
                &vcpu->arch.ctxt.fp_regs.fpsr);
    write_sysreg_el1(__vcpu_sys_reg(vcpu, ZCR_EL1), SYS_ZCR);
}

Here is the caller graph for this function:

__kvm_unexpected_el2_exception()

static void __kvm_unexpected_el2_exception ( void  )

inlinestatic

Definition at line 748 of file switch.h.

{
    extern char __guest_exit_panic[];
    unsigned long addr, fixup;
    struct kvm_exception_table_entry *entry, *end;
    unsigned long elr_el2 = read_sysreg(elr_el2);

    entry = &__start___kvm_ex_table;
    end = &__stop___kvm_ex_table;

    while (entry < end) {
        addr = (unsigned long)&entry->insn + entry->insn;
        fixup = (unsigned long)&entry->fixup + entry->fixup;

        if (addr != elr_el2) {
            entry++;
            continue;
        }

        write_sysreg(fixup, elr_el2);
        return;
    }

    /* Trigger a panic after restoring the hyp context. */
    write_sysreg(__guest_exit_panic, elr_el2);
}

Here is the caller graph for this function:

__populate_fault_info()

static bool __populate_fault_info ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 295 of file switch.h.

{
    return __get_fault_info(vcpu->arch.fault.esr_el2, &vcpu->arch.fault);
}

Here is the call graph for this function:

Here is the caller graph for this function:

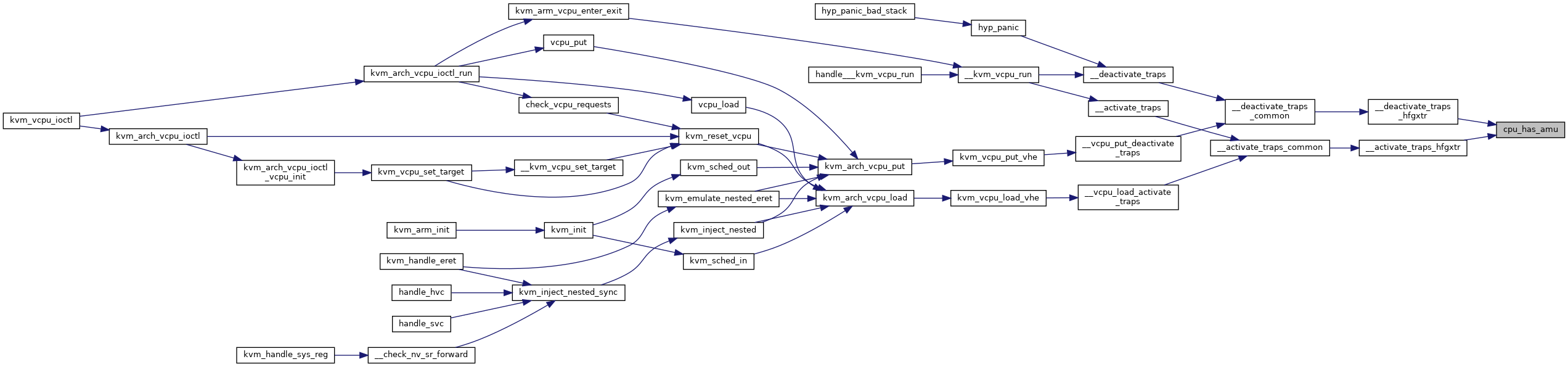

cpu_has_amu()

static bool cpu_has_amu ( void  )

inlinestatic

Definition at line 114 of file switch.h.

{
       u64 pfr0 = read_sysreg_s(SYS_ID_AA64PFR0_EL1);

       return cpuid_feature_extract_unsigned_field(pfr0,
               ID_AA64PFR0_EL1_AMU_SHIFT);
}

Here is the caller graph for this function:

DECLARE_PER_CPU()

DECLARE_PER_CPU	(	struct kvm_cpu_context	,
		kvm_hyp_ctxt
	)

early_exit_filter()

static void early_exit_filter ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

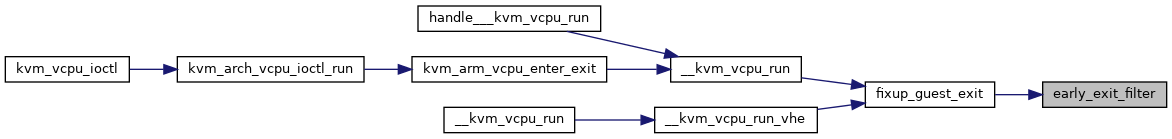

Here is the caller graph for this function:

esr_is_ptrauth_trap()

static bool esr_is_ptrauth_trap ( u64  esr )

inlinestatic

Definition at line 446 of file switch.h.

{
    switch (esr_sys64_to_sysreg(esr)) {
    case SYS_APIAKEYLO_EL1:
    case SYS_APIAKEYHI_EL1:
    case SYS_APIBKEYLO_EL1:
    case SYS_APIBKEYHI_EL1:
    case SYS_APDAKEYLO_EL1:
    case SYS_APDAKEYHI_EL1:
    case SYS_APDBKEYLO_EL1:
    case SYS_APDBKEYHI_EL1:
    case SYS_APGAKEYLO_EL1:
    case SYS_APGAKEYHI_EL1:
        return true;
    }

    return false;
}

Here is the caller graph for this function:

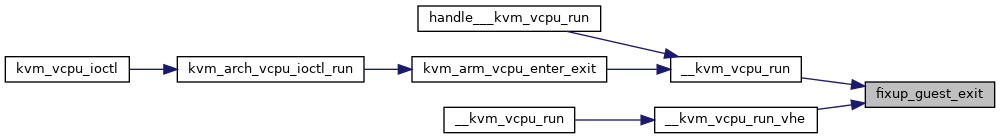

fixup_guest_exit()

static bool fixup_guest_exit ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

inlinestatic

Definition at line 693 of file switch.h.

{
    /*
     * Save PSTATE early so that we can evaluate the vcpu mode
     * early on.
     */
    synchronize_vcpu_pstate(vcpu, exit_code);

    /*
     * Check whether we want to repaint the state one way or
     * another.
     */
    early_exit_filter(vcpu, exit_code);

    if (ARM_EXCEPTION_CODE(*exit_code) != ARM_EXCEPTION_IRQ)
        vcpu->arch.fault.esr_el2 = read_sysreg_el2(SYS_ESR);

    if (ARM_SERROR_PENDING(*exit_code) &&
        ARM_EXCEPTION_CODE(*exit_code) != ARM_EXCEPTION_IRQ) {
        u8 esr_ec = kvm_vcpu_trap_get_class(vcpu);

        /*
         * HVC already have an adjusted PC, which we need to
         * correct in order to return to after having injected
         * the SError.
         *
         * SMC, on the other hand, is *trapped*, meaning its
         * preferred return address is the SMC itself.
         */
        if (esr_ec == ESR_ELx_EC_HVC32 || esr_ec == ESR_ELx_EC_HVC64)
            write_sysreg_el2(read_sysreg_el2(SYS_ELR) - 4, SYS_ELR);
    }

    /*
     * We're using the raw exception code in order to only process
     * the trap if no SError is pending. We will come back to the
     * same PC once the SError has been injected, and replay the
     * trapping instruction.
     */
    if (*exit_code != ARM_EXCEPTION_TRAP)
        goto exit;

    /* Check if there's an exit handler and allow it to handle the exit. */
    if (kvm_hyp_handle_exit(vcpu, exit_code))
        goto guest;
exit:
    /* Return to the host kernel and handle the exit */
    return false;

guest:
    /* Re-enter the guest */
    asm(ALTERNATIVE("nop", "dmb sy", ARM64_WORKAROUND_1508412));
    return true;
}

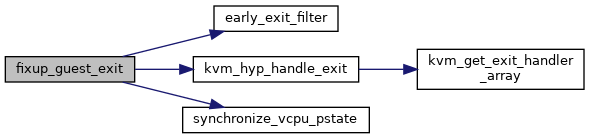

Here is the call graph for this function:

Here is the caller graph for this function:

guest_owns_fp_regs()

static bool guest_owns_fp_regs ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 43 of file switch.h.

{
    return vcpu->arch.fp_state == FP_STATE_GUEST_OWNED;
}

Here is the caller graph for this function:

handle_ampere1_tcr()

static bool handle_ampere1_tcr ( struct kvm_vcpu *  vcpu )

static

Definition at line 549 of file switch.h.

{
    u32 sysreg = esr_sys64_to_sysreg(kvm_vcpu_get_esr(vcpu));
    int rt = kvm_vcpu_sys_get_rt(vcpu);
    u64 val = vcpu_get_reg(vcpu, rt);

    if (sysreg != SYS_TCR_EL1)
        return false;

    /*
     * Affected parts do not advertise support for hardware Access Flag /
     * Dirty state management in ID_AA64MMFR1_EL1.HAFDBS, but the underlying
     * control bits are still functional. The architecture requires these be
     * RES0 on systems that do not implement FEAT_HAFDBS.
     *
     * Uphold the requirements of the architecture by masking guest writes
     * to TCR_EL1.{HA,HD} here.
     */
    val &= ~(TCR_HD | TCR_HA);
    write_sysreg_el1(val, SYS_TCR);
    __kvm_skip_instr(vcpu);
    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

handle_tx2_tvm()

static bool handle_tx2_tvm ( struct kvm_vcpu *  vcpu )

inlinestatic

Definition at line 391 of file switch.h.

{
    u32 sysreg = esr_sys64_to_sysreg(kvm_vcpu_get_esr(vcpu));
    int rt = kvm_vcpu_sys_get_rt(vcpu);
    u64 val = vcpu_get_reg(vcpu, rt);

    /*
     * The normal sysreg handling code expects to see the traps,
     * let's not do anything here.
     */
    if (vcpu->arch.hcr_el2 & HCR_TVM)
        return false;

    switch (sysreg) {
    case SYS_SCTLR_EL1:
        write_sysreg_el1(val, SYS_SCTLR);
        break;
    case SYS_TTBR0_EL1:
        write_sysreg_el1(val, SYS_TTBR0);
        break;
    case SYS_TTBR1_EL1:
        write_sysreg_el1(val, SYS_TTBR1);
        break;
    case SYS_TCR_EL1:
        write_sysreg_el1(val, SYS_TCR);
        break;
    case SYS_ESR_EL1:
        write_sysreg_el1(val, SYS_ESR);
        break;
    case SYS_FAR_EL1:
        write_sysreg_el1(val, SYS_FAR);
        break;
    case SYS_AFSR0_EL1:
        write_sysreg_el1(val, SYS_AFSR0);
        break;
    case SYS_AFSR1_EL1:
        write_sysreg_el1(val, SYS_AFSR1);
        break;
    case SYS_MAIR_EL1:
        write_sysreg_el1(val, SYS_MAIR);
        break;
    case SYS_AMAIR_EL1:
        write_sysreg_el1(val, SYS_AMAIR);
        break;
    case SYS_CONTEXTIDR_EL1:
        write_sysreg_el1(val, SYS_CONTEXTIDR);
        break;
    default:
        return false;
    }

    __kvm_skip_instr(vcpu);
    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

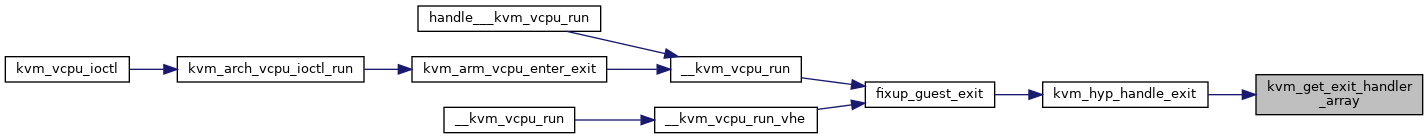

kvm_get_exit_handler_array()

static const exit_handler_fn* kvm_get_exit_handler_array ( struct kvm_vcpu *  vcpu )

static

Here is the caller graph for this function:

kvm_hyp_handle_cntpct()

static bool kvm_hyp_handle_cntpct ( struct kvm_vcpu *  vcpu )

static

Definition at line 500 of file switch.h.

{
    struct arch_timer_context *ctxt;
    u32 sysreg;
    u64 val;

    /*
     * We only get here for 64bit guests, 32bit guests will hit
     * the long and winding road all the way to the standard
     * handling. Yes, it sucks to be irrelevant.
     */
    sysreg = esr_sys64_to_sysreg(kvm_vcpu_get_esr(vcpu));

    switch (sysreg) {
    case SYS_CNTPCT_EL0:
    case SYS_CNTPCTSS_EL0:
        if (vcpu_has_nv(vcpu)) {
            if (is_hyp_ctxt(vcpu)) {
                ctxt = vcpu_hptimer(vcpu);
                break;
            }

            /* Check for guest hypervisor trapping */
            val = __vcpu_sys_reg(vcpu, CNTHCTL_EL2);
            if (!vcpu_el2_e2h_is_set(vcpu))
                val = (val & CNTHCTL_EL1PCTEN) << 10;

            if (!(val & (CNTHCTL_EL1PCTEN << 10)))
                return false;
        }

        ctxt = vcpu_ptimer(vcpu);
        break;
    default:
        return false;
    }

    val = arch_timer_read_cntpct_el0();

    if (ctxt->offset.vm_offset)
        val -= *kern_hyp_va(ctxt->offset.vm_offset);
    if (ctxt->offset.vcpu_offset)
        val -= *kern_hyp_va(ctxt->offset.vcpu_offset);

    vcpu_set_reg(vcpu, kvm_vcpu_sys_get_rt(vcpu), val);
    __kvm_skip_instr(vcpu);
    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

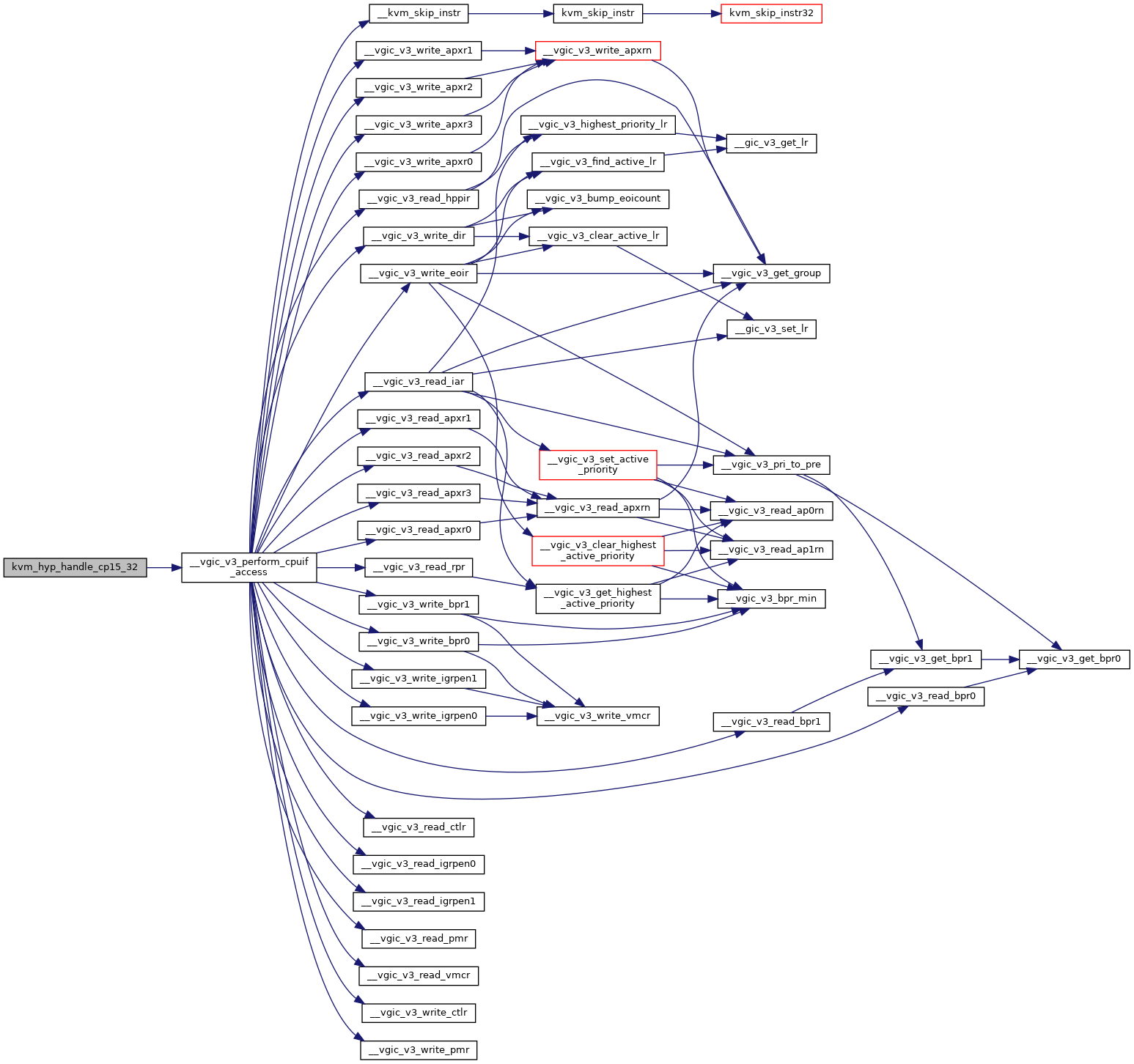

kvm_hyp_handle_cp15_32()

static bool kvm_hyp_handle_cp15_32 ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

Definition at line 596 of file switch.h.

{
    if (static_branch_unlikely(&vgic_v3_cpuif_trap) &&
        __vgic_v3_perform_cpuif_access(vcpu) == 1)
        return true;

    return false;
}

Here is the call graph for this function:

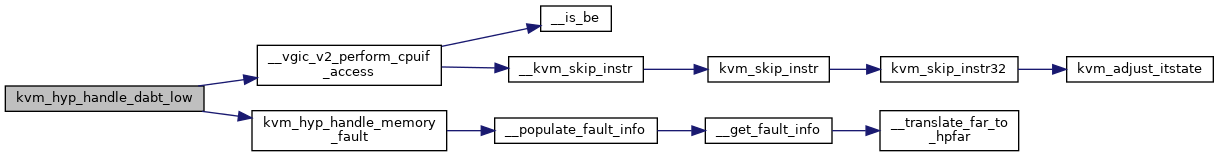

kvm_hyp_handle_dabt_low()

static bool kvm_hyp_handle_dabt_low ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

Definition at line 617 of file switch.h.

{
    if (kvm_hyp_handle_memory_fault(vcpu, exit_code))
        return true;

    if (static_branch_unlikely(&vgic_v2_cpuif_trap)) {
        bool valid;

        valid = kvm_vcpu_trap_is_translation_fault(vcpu) &&
            kvm_vcpu_dabt_isvalid(vcpu) &&
            !kvm_vcpu_abt_issea(vcpu) &&
            !kvm_vcpu_abt_iss1tw(vcpu);

        if (valid) {
            int ret = __vgic_v2_perform_cpuif_access(vcpu);

            if (ret == 1)
                return true;

            /* Promote an illegal access to an SError.*/
            if (ret == -1)
                *exit_code = ARM_EXCEPTION_EL1_SERROR;
        }
    }

    return false;
}

Here is the call graph for this function:

kvm_hyp_handle_exit()

static bool kvm_hyp_handle_exit ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

inlinestatic

Definition at line 657 of file switch.h.

{
    const exit_handler_fn *handlers = kvm_get_exit_handler_array(vcpu);
    exit_handler_fn fn;

    fn = handlers[kvm_vcpu_trap_get_class(vcpu)];

    if (fn)
        return fn(vcpu, exit_code);

    return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_hyp_handle_fpsimd()

static bool kvm_hyp_handle_fpsimd ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

Definition at line 330 of file switch.h.

{
    bool sve_guest;
    u8 esr_ec;
    u64 reg;

    if (!system_supports_fpsimd())
        return false;

    sve_guest = vcpu_has_sve(vcpu);
    esr_ec = kvm_vcpu_trap_get_class(vcpu);

    /* Only handle traps the vCPU can support here: */
    switch (esr_ec) {
    case ESR_ELx_EC_FP_ASIMD:
        break;
    case ESR_ELx_EC_SVE:
        if (!sve_guest)
            return false;
        break;
    default:
        return false;
    }

    /* Valid trap.  Switch the context: */

    /* First disable enough traps to allow us to update the registers */
    if (has_vhe() || has_hvhe()) {
        reg = CPACR_EL1_FPEN_EL0EN | CPACR_EL1_FPEN_EL1EN;
        if (sve_guest)
            reg |= CPACR_EL1_ZEN_EL0EN | CPACR_EL1_ZEN_EL1EN;

        sysreg_clear_set(cpacr_el1, 0, reg);
    } else {
        reg = CPTR_EL2_TFP;
        if (sve_guest)
            reg |= CPTR_EL2_TZ;

        sysreg_clear_set(cptr_el2, reg, 0);
    }
    isb();

    /* Write out the host state if it's in the registers */
    if (vcpu->arch.fp_state == FP_STATE_HOST_OWNED)
        __fpsimd_save_state(vcpu->arch.host_fpsimd_state);

    /* Restore the guest state */
    if (sve_guest)
        __hyp_sve_restore_guest(vcpu);
    else
        __fpsimd_restore_state(&vcpu->arch.ctxt.fp_regs);

    /* Skip restoring fpexc32 for AArch64 guests */
    if (!(read_sysreg(hcr_el2) & HCR_RW))
        write_sysreg(__vcpu_sys_reg(vcpu, FPEXC32_EL2), fpexc32_el2);

    vcpu->arch.fp_state = FP_STATE_GUEST_OWNED;

    return true;
}

Here is the call graph for this function:

kvm_hyp_handle_iabt_low()

static bool kvm_hyp_handle_iabt_low ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

kvm_hyp_handle_memory_fault()

static bool kvm_hyp_handle_memory_fault ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

Definition at line 605 of file switch.h.

{
    if (!__populate_fault_info(vcpu))
        return true;

    return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_hyp_handle_mops()

static bool kvm_hyp_handle_mops ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

Definition at line 300 of file switch.h.

{
    *vcpu_pc(vcpu) = read_sysreg_el2(SYS_ELR);
    arm64_mops_reset_regs(vcpu_gp_regs(vcpu), vcpu->arch.fault.esr_el2);
    write_sysreg_el2(*vcpu_pc(vcpu), SYS_ELR);

    /*
     * Finish potential single step before executing the prologue
     * instruction.
     */
    *vcpu_cpsr(vcpu) &= ~DBG_SPSR_SS;
    write_sysreg_el2(*vcpu_cpsr(vcpu), SYS_SPSR);

    return true;
}

kvm_hyp_handle_ptrauth()

static bool kvm_hyp_handle_ptrauth ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

Definition at line 476 of file switch.h.

{
    struct kvm_cpu_context *ctxt;
    u64 val;

    if (!vcpu_has_ptrauth(vcpu))
        return false;

    ctxt = this_cpu_ptr(&kvm_hyp_ctxt);
    __ptrauth_save_key(ctxt, APIA);
    __ptrauth_save_key(ctxt, APIB);
    __ptrauth_save_key(ctxt, APDA);
    __ptrauth_save_key(ctxt, APDB);
    __ptrauth_save_key(ctxt, APGA);

    vcpu_ptrauth_enable(vcpu);

    val = read_sysreg(hcr_el2);
    val |= (HCR_API | HCR_APK);
    write_sysreg(val, hcr_el2);

    return true;
}

Here is the caller graph for this function:

kvm_hyp_handle_sysreg()

static bool kvm_hyp_handle_sysreg ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

Definition at line 573 of file switch.h.

{
    if (cpus_have_final_cap(ARM64_WORKAROUND_CAVIUM_TX2_219_TVM) &&
        handle_tx2_tvm(vcpu))
        return true;

    if (cpus_have_final_cap(ARM64_WORKAROUND_AMPERE_AC03_CPU_38) &&
        handle_ampere1_tcr(vcpu))
        return true;

    if (static_branch_unlikely(&vgic_v3_cpuif_trap) &&
        __vgic_v3_perform_cpuif_access(vcpu) == 1)
        return true;

    if (esr_is_ptrauth_trap(kvm_vcpu_get_esr(vcpu)))
        return kvm_hyp_handle_ptrauth(vcpu, exit_code);

    if (kvm_hyp_handle_cntpct(vcpu))
        return true;

    return false;
}

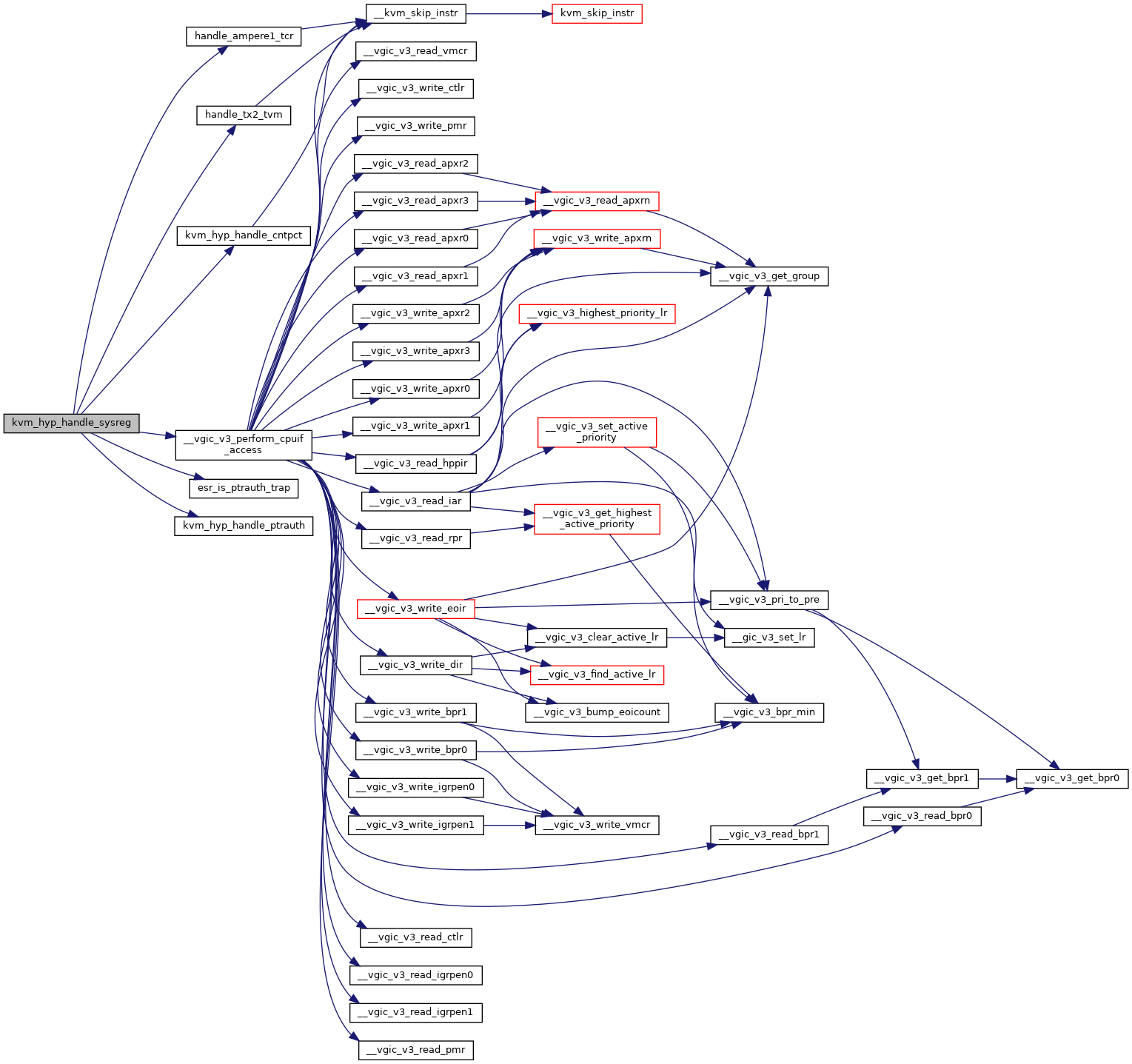

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_hyp_handle_watchpt_low()

static bool kvm_hyp_handle_watchpt_low ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

synchronize_vcpu_pstate()

static void synchronize_vcpu_pstate ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

inlinestatic

Definition at line 670 of file switch.h.

{
    /*
     * Check for the conditions of Cortex-A510's #2077057. When these occur
     * SPSR_EL2 can't be trusted, but isn't needed either as it is
     * unchanged from the value in vcpu_gp_regs(vcpu)->pstate.
     * Are we single-stepping the guest, and took a PAC exception from the
     * active-not-pending state?
     */
    if (cpus_have_final_cap(ARM64_WORKAROUND_2077057)       &&
        vcpu->guest_debug & KVM_GUESTDBG_SINGLESTEP         &&
        *vcpu_cpsr(vcpu) & DBG_SPSR_SS              &&
        ESR_ELx_EC(read_sysreg_el2(SYS_ESR)) == ESR_ELx_EC_PAC)
        write_sysreg_el2(*vcpu_cpsr(vcpu), SYS_SPSR);

    vcpu->arch.ctxt.regs.pstate = read_sysreg_el2(SYS_SPSR);
}

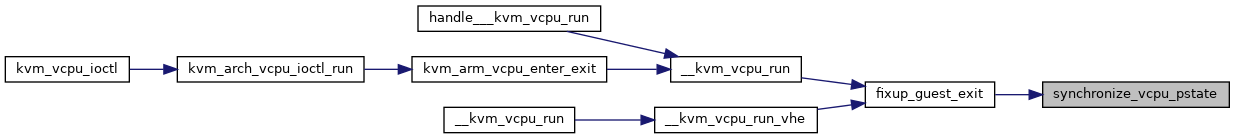

Here is the caller graph for this function:

Variable Documentation

__start___kvm_ex_table

struct kvm_exception_table_entry __start___kvm_ex_table

extern

__stop___kvm_ex_table

struct kvm_exception_table_entry __stop___kvm_ex_table

extern
