#include <asm/kvm_emulate.h>#include <kvm/arm_arch_timer.h>#include <linux/tracepoint.h>#include <trace/define_trace.h>

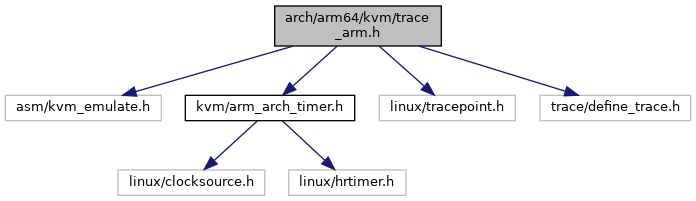

Include dependency graph for trace_arm.h:

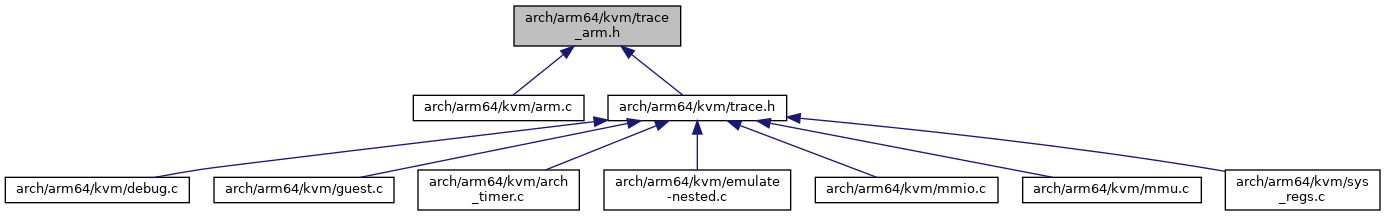

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Macros | |
| #define | _TRACE_ARM_ARM64_KVM_H |
| #define | TRACE_SYSTEM kvm |
| #define | TRACE_INCLUDE_PATH . |
| #define | TRACE_INCLUDE_FILE trace_arm |
Functions | |
| TRACE_EVENT (kvm_entry, TP_PROTO(unsigned long vcpu_pc), TP_ARGS(vcpu_pc), TP_STRUCT__entry(__field(unsigned long, vcpu_pc)), TP_fast_assign(__entry->vcpu_pc=vcpu_pc;), TP_printk("PC: 0x%016lx", __entry->vcpu_pc)) | |
| TRACE_EVENT (kvm_exit, TP_PROTO(int ret, unsigned int esr_ec, unsigned long vcpu_pc), TP_ARGS(ret, esr_ec, vcpu_pc), TP_STRUCT__entry(__field(int, ret) __field(unsigned int, esr_ec) __field(unsigned long, vcpu_pc)), TP_fast_assign(__entry->ret=ARM_EXCEPTION_CODE(ret);__entry->esr_ec=ARM_EXCEPTION_IS_TRAP(ret) ? esr_ec :0;__entry->vcpu_pc=vcpu_pc;), TP_printk("%s: HSR_EC: 0x%04x (%s), PC: 0x%016lx", __print_symbolic(__entry->ret, kvm_arm_exception_type), __entry->esr_ec, __print_symbolic(__entry->esr_ec, kvm_arm_exception_class), __entry->vcpu_pc)) | |
| TRACE_EVENT (kvm_guest_fault, TP_PROTO(unsigned long vcpu_pc, unsigned long hsr, unsigned long hxfar, unsigned long long ipa), TP_ARGS(vcpu_pc, hsr, hxfar, ipa), TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(unsigned long, hsr) __field(unsigned long, hxfar) __field(unsigned long long, ipa)), TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->hsr=hsr;__entry->hxfar=hxfar;__entry->ipa=ipa;), TP_printk("ipa %#llx, hsr %#08lx, hxfar %#08lx, pc %#016lx", __entry->ipa, __entry->hsr, __entry->hxfar, __entry->vcpu_pc)) | |
| TRACE_EVENT (kvm_access_fault, TP_PROTO(unsigned long ipa), TP_ARGS(ipa), TP_STRUCT__entry(__field(unsigned long, ipa)), TP_fast_assign(__entry->ipa=ipa;), TP_printk("IPA: %lx", __entry->ipa)) | |
| TRACE_EVENT (kvm_irq_line, TP_PROTO(unsigned int type, int vcpu_idx, int irq_num, int level), TP_ARGS(type, vcpu_idx, irq_num, level), TP_STRUCT__entry(__field(unsigned int, type) __field(int, vcpu_idx) __field(int, irq_num) __field(int, level)), TP_fast_assign(__entry->type=type;__entry->vcpu_idx=vcpu_idx;__entry->irq_num=irq_num;__entry->level=level;), TP_printk("Inject %s interrupt (%d), vcpu->idx: %d, num: %d, level: %d",(__entry->type==KVM_ARM_IRQ_TYPE_CPU) ? "CPU" :(__entry->type==KVM_ARM_IRQ_TYPE_PPI) ? "VGIC PPI" :(__entry->type==KVM_ARM_IRQ_TYPE_SPI) ? "VGIC SPI" :"UNKNOWN", __entry->type, __entry->vcpu_idx, __entry->irq_num, __entry->level)) | |
| TRACE_EVENT (kvm_mmio_emulate, TP_PROTO(unsigned long vcpu_pc, unsigned long instr, unsigned long cpsr), TP_ARGS(vcpu_pc, instr, cpsr), TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(unsigned long, instr) __field(unsigned long, cpsr)), TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->instr=instr;__entry->cpsr=cpsr;), TP_printk("Emulate MMIO at: 0x%016lx (instr: %08lx, cpsr: %08lx)", __entry->vcpu_pc, __entry->instr, __entry->cpsr)) | |
| TRACE_EVENT (kvm_mmio_nisv, TP_PROTO(unsigned long vcpu_pc, unsigned long esr, unsigned long far, unsigned long ipa), TP_ARGS(vcpu_pc, esr, far, ipa), TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(unsigned long, esr) __field(unsigned long, far) __field(unsigned long, ipa)), TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->esr=esr;__entry->far=far;__entry->ipa=ipa;), TP_printk("ipa %#016lx, esr %#016lx, far %#016lx, pc %#016lx", __entry->ipa, __entry->esr, __entry->far, __entry->vcpu_pc)) | |
| TRACE_EVENT (kvm_set_way_flush, TP_PROTO(unsigned long vcpu_pc, bool cache), TP_ARGS(vcpu_pc, cache), TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(bool, cache)), TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->cache=cache;), TP_printk("S/W flush at 0x%016lx (cache %s)", __entry->vcpu_pc, __entry->cache ? "on" :"off")) | |
| TRACE_EVENT (kvm_toggle_cache, TP_PROTO(unsigned long vcpu_pc, bool was, bool now), TP_ARGS(vcpu_pc, was, now), TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(bool, was) __field(bool, now)), TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->was=was;__entry->now=now;), TP_printk("VM op at 0x%016lx (cache was %s, now %s)", __entry->vcpu_pc, __entry->was ? "on" :"off", __entry->now ? "on" :"off")) | |
| TRACE_EVENT (kvm_timer_update_irq, TP_PROTO(unsigned long vcpu_id, __u32 irq, int level), TP_ARGS(vcpu_id, irq, level), TP_STRUCT__entry(__field(unsigned long, vcpu_id) __field(__u32, irq) __field(int, level)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->irq=irq;__entry->level=level;), TP_printk("VCPU: %ld, IRQ %d, level %d", __entry->vcpu_id, __entry->irq, __entry->level)) | |
| TRACE_EVENT (kvm_get_timer_map, TP_PROTO(unsigned long vcpu_id, struct timer_map *map), TP_ARGS(vcpu_id, map), TP_STRUCT__entry(__field(unsigned long, vcpu_id) __field(int, direct_vtimer) __field(int, direct_ptimer) __field(int, emul_vtimer) __field(int, emul_ptimer)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->direct_vtimer=arch_timer_ctx_index(map->direct_vtimer);__entry->direct_ptimer=(map->direct_ptimer) ? arch_timer_ctx_index(map->direct_ptimer) :-1;__entry->emul_vtimer=(map->emul_vtimer) ? arch_timer_ctx_index(map->emul_vtimer) :-1;__entry->emul_ptimer=(map->emul_ptimer) ? arch_timer_ctx_index(map->emul_ptimer) :-1;), TP_printk("VCPU: %ld, dv: %d, dp: %d, ev: %d, ep: %d", __entry->vcpu_id, __entry->direct_vtimer, __entry->direct_ptimer, __entry->emul_vtimer, __entry->emul_ptimer)) | |
| TRACE_EVENT (kvm_timer_save_state, TP_PROTO(struct arch_timer_context *ctx), TP_ARGS(ctx), TP_STRUCT__entry(__field(unsigned long, ctl) __field(unsigned long long, cval) __field(int, timer_idx)), TP_fast_assign(__entry->ctl=timer_get_ctl(ctx);__entry->cval=timer_get_cval(ctx);__entry->timer_idx=arch_timer_ctx_index(ctx);), TP_printk(" CTL: %#08lx CVAL: %#16llx arch_timer_ctx_index: %d", __entry->ctl, __entry->cval, __entry->timer_idx)) | |
| TRACE_EVENT (kvm_timer_restore_state, TP_PROTO(struct arch_timer_context *ctx), TP_ARGS(ctx), TP_STRUCT__entry(__field(unsigned long, ctl) __field(unsigned long long, cval) __field(int, timer_idx)), TP_fast_assign(__entry->ctl=timer_get_ctl(ctx);__entry->cval=timer_get_cval(ctx);__entry->timer_idx=arch_timer_ctx_index(ctx);), TP_printk("CTL: %#08lx CVAL: %#16llx arch_timer_ctx_index: %d", __entry->ctl, __entry->cval, __entry->timer_idx)) | |
| TRACE_EVENT (kvm_timer_hrtimer_expire, TP_PROTO(struct arch_timer_context *ctx), TP_ARGS(ctx), TP_STRUCT__entry(__field(int, timer_idx)), TP_fast_assign(__entry->timer_idx=arch_timer_ctx_index(ctx);), TP_printk("arch_timer_ctx_index: %d", __entry->timer_idx)) | |
| TRACE_EVENT (kvm_timer_emulate, TP_PROTO(struct arch_timer_context *ctx, bool should_fire), TP_ARGS(ctx, should_fire), TP_STRUCT__entry(__field(int, timer_idx) __field(bool, should_fire)), TP_fast_assign(__entry->timer_idx=arch_timer_ctx_index(ctx);__entry->should_fire=should_fire;), TP_printk("arch_timer_ctx_index: %d (should_fire: %d)", __entry->timer_idx, __entry->should_fire)) | |
| TRACE_EVENT (kvm_nested_eret, TP_PROTO(struct kvm_vcpu *vcpu, unsigned long elr_el2, unsigned long spsr_el2), TP_ARGS(vcpu, elr_el2, spsr_el2), TP_STRUCT__entry(__field(struct kvm_vcpu *, vcpu) __field(unsigned long, elr_el2) __field(unsigned long, spsr_el2) __field(unsigned long, target_mode) __field(unsigned long, hcr_el2)), TP_fast_assign(__entry->vcpu=vcpu;__entry->elr_el2=elr_el2;__entry->spsr_el2=spsr_el2;__entry->target_mode=spsr_el2 &(PSR_MODE_MASK|PSR_MODE32_BIT);__entry->hcr_el2=__vcpu_sys_reg(vcpu, HCR_EL2);), TP_printk("elr_el2: 0x%lx spsr_el2: 0x%08lx (M: %s) hcr_el2: %lx", __entry->elr_el2, __entry->spsr_el2, __print_symbolic(__entry->target_mode, kvm_mode_names), __entry->hcr_el2)) | |
| TRACE_EVENT (kvm_inject_nested_exception, TP_PROTO(struct kvm_vcpu *vcpu, u64 esr_el2, int type), TP_ARGS(vcpu, esr_el2, type), TP_STRUCT__entry(__field(struct kvm_vcpu *, vcpu) __field(unsigned long, esr_el2) __field(int, type) __field(unsigned long, spsr_el2) __field(unsigned long, pc) __field(unsigned long, source_mode) __field(unsigned long, hcr_el2)), TP_fast_assign(__entry->vcpu=vcpu;__entry->esr_el2=esr_el2;__entry->type=type;__entry->spsr_el2= *vcpu_cpsr(vcpu);__entry->pc= *vcpu_pc(vcpu);__entry->source_mode= *vcpu_cpsr(vcpu) &(PSR_MODE_MASK|PSR_MODE32_BIT);__entry->hcr_el2=__vcpu_sys_reg(vcpu, HCR_EL2);), TP_printk("%s: esr_el2 0x%lx elr_el2: 0x%lx spsr_el2: 0x%08lx (M: %s) hcr_el2: %lx", __print_symbolic(__entry->type, kvm_exception_type_names), __entry->esr_el2, __entry->pc, __entry->spsr_el2, __print_symbolic(__entry->source_mode, kvm_mode_names), __entry->hcr_el2)) | |
| TRACE_EVENT (kvm_forward_sysreg_trap, TP_PROTO(struct kvm_vcpu *vcpu, u32 sysreg, bool is_read), TP_ARGS(vcpu, sysreg, is_read), TP_STRUCT__entry(__field(u64, pc) __field(u32, sysreg) __field(bool, is_read)), TP_fast_assign(__entry->pc= *vcpu_pc(vcpu);__entry->sysreg=sysreg;__entry->is_read=is_read;), TP_printk("%llx %c (%d,%d,%d,%d,%d)", __entry->pc, __entry->is_read ? 'R' :'W', sys_reg_Op0(__entry->sysreg), sys_reg_Op1(__entry->sysreg), sys_reg_CRn(__entry->sysreg), sys_reg_CRm(__entry->sysreg), sys_reg_Op2(__entry->sysreg))) | |
Macro Definition Documentation
◆ _TRACE_ARM_ARM64_KVM_H
| #define _TRACE_ARM_ARM64_KVM_H |
Definition at line 3 of file trace_arm.h.
◆ TRACE_INCLUDE_FILE
| #define TRACE_INCLUDE_FILE trace_arm |
Definition at line 423 of file trace_arm.h.
◆ TRACE_INCLUDE_PATH
| #define TRACE_INCLUDE_PATH . |
Definition at line 421 of file trace_arm.h.
◆ TRACE_SYSTEM
| #define TRACE_SYSTEM kvm |
Definition at line 10 of file trace_arm.h.
Function Documentation
◆ TRACE_EVENT() [1/18]
| TRACE_EVENT | ( | kvm_access_fault | , |
| TP_PROTO(unsigned long ipa) | , | ||
| TP_ARGS(ipa) | , | ||
| TP_STRUCT__entry(__field(unsigned long, ipa)) | , | ||
| TP_fast_assign(__entry->ipa=ipa;) | , | ||
| TP_printk("IPA: %lx", __entry->ipa) | |||
| ) |
◆ TRACE_EVENT() [2/18]
| TRACE_EVENT | ( | kvm_entry | , |
| TP_PROTO(unsigned long vcpu_pc) | , | ||
| TP_ARGS(vcpu_pc) | , | ||
| TP_STRUCT__entry(__field(unsigned long, vcpu_pc)) | , | ||
| TP_fast_assign(__entry->vcpu_pc=vcpu_pc;) | , | ||
| TP_printk("PC: 0x%016lx", __entry->vcpu_pc) | |||
| ) |
◆ TRACE_EVENT() [3/18]
| TRACE_EVENT | ( | kvm_exit | , |
| TP_PROTO(int ret, unsigned int esr_ec, unsigned long vcpu_pc) | , | ||
| TP_ARGS(ret, esr_ec, vcpu_pc) | , | ||
| TP_STRUCT__entry(__field(int, ret) __field(unsigned int, esr_ec) __field(unsigned long, vcpu_pc)) | , | ||
| TP_fast_assign(__entry->ret=ARM_EXCEPTION_CODE(ret);__entry->esr_ec=ARM_EXCEPTION_IS_TRAP(ret) ? esr_ec :0;__entry->vcpu_pc=vcpu_pc;) | , | ||
| TP_printk("%s: HSR_EC: 0x%04x (%s), PC: 0x%016lx", __print_symbolic(__entry->ret, kvm_arm_exception_type), __entry->esr_ec, __print_symbolic(__entry->esr_ec, kvm_arm_exception_class), __entry->vcpu_pc) | |||
| ) |
◆ TRACE_EVENT() [4/18]
| TRACE_EVENT | ( | kvm_forward_sysreg_trap | , |
| TP_PROTO(struct kvm_vcpu *vcpu, u32 sysreg, bool is_read) | , | ||
| TP_ARGS(vcpu, sysreg, is_read) | , | ||
| TP_STRUCT__entry(__field(u64, pc) __field(u32, sysreg) __field(bool, is_read)) | , | ||
| TP_fast_assign(__entry->pc=*vcpu_pc(vcpu);__entry->sysreg=sysreg;__entry->is_read=is_read;) | , | ||
| TP_printk("%llx %c (%d,%d,%d,%d,%d)", __entry->pc, __entry->is_read ? 'R' :'W', sys_reg_Op0(__entry->sysreg), sys_reg_Op1(__entry->sysreg), sys_reg_CRn(__entry->sysreg), sys_reg_CRm(__entry->sysreg), sys_reg_Op2(__entry->sysreg)) | |||
| ) |
◆ TRACE_EVENT() [5/18]
| TRACE_EVENT | ( | kvm_get_timer_map | , |
| TP_PROTO(unsigned long vcpu_id, struct timer_map *map) | , | ||
| TP_ARGS(vcpu_id, map) | , | ||
| TP_STRUCT__entry(__field(unsigned long, vcpu_id) __field(int, direct_vtimer) __field(int, direct_ptimer) __field(int, emul_vtimer) __field(int, emul_ptimer)) | , | ||
| TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->direct_vtimer=arch_timer_ctx_index(map->direct_vtimer);__entry->direct_ptimer=(map->direct_ptimer) ? arch_timer_ctx_index(map->direct_ptimer) :-1;__entry->emul_vtimer=(map->emul_vtimer) ? arch_timer_ctx_index(map->emul_vtimer) :-1;__entry->emul_ptimer=(map->emul_ptimer) ? arch_timer_ctx_index(map->emul_ptimer) :-1;) | , | ||
| TP_printk("VCPU: %ld, dv: %d, dp: %d, ev: %d, ep: %d", __entry->vcpu_id, __entry->direct_vtimer, __entry->direct_ptimer, __entry->emul_vtimer, __entry->emul_ptimer) | |||
| ) |
◆ TRACE_EVENT() [6/18]
| TRACE_EVENT | ( | kvm_guest_fault | , |
| TP_PROTO(unsigned long vcpu_pc, unsigned long hsr, unsigned long hxfar, unsigned long long ipa) | , | ||
| TP_ARGS(vcpu_pc, hsr, hxfar, ipa) | , | ||
| TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(unsigned long, hsr) __field(unsigned long, hxfar) __field(unsigned long long, ipa)) | , | ||
| TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->hsr=hsr;__entry->hxfar=hxfar;__entry->ipa=ipa;) | , | ||
| TP_printk("ipa %#llx, hsr %#08lx, hxfar %#08lx, pc %#016lx", __entry->ipa, __entry->hsr, __entry->hxfar, __entry->vcpu_pc) | |||
| ) |
◆ TRACE_EVENT() [7/18]
| TRACE_EVENT | ( | kvm_inject_nested_exception | , |
| TP_PROTO(struct kvm_vcpu *vcpu, u64 esr_el2, int type) | , | ||
| TP_ARGS(vcpu, esr_el2, type) | , | ||
| TP_STRUCT__entry(__field(struct kvm_vcpu *, vcpu) __field(unsigned long, esr_el2) __field(int, type) __field(unsigned long, spsr_el2) __field(unsigned long, pc) __field(unsigned long, source_mode) __field(unsigned long, hcr_el2)) | , | ||
| TP_fast_assign(__entry->vcpu=vcpu;__entry->esr_el2=esr_el2;__entry->type=type;__entry->spsr_el2=*vcpu_cpsr(vcpu);__entry->pc=*vcpu_pc(vcpu);__entry->source_mode=*vcpu_cpsr(vcpu) &(PSR_MODE_MASK|PSR_MODE32_BIT);__entry->hcr_el2=__vcpu_sys_reg(vcpu, HCR_EL2);) | , | ||
| TP_printk("%s: esr_el2 0x%lx elr_el2: 0x%lx spsr_el2: 0x%08lx (M: %s) hcr_el2: %lx", __print_symbolic(__entry->type, kvm_exception_type_names), __entry->esr_el2, __entry->pc, __entry->spsr_el2, __print_symbolic(__entry->source_mode, kvm_mode_names), __entry->hcr_el2) | |||
| ) |
◆ TRACE_EVENT() [8/18]
| TRACE_EVENT | ( | kvm_irq_line | , |
| TP_PROTO(unsigned int type, int vcpu_idx, int irq_num, int level) | , | ||
| TP_ARGS(type, vcpu_idx, irq_num, level) | , | ||
| TP_STRUCT__entry(__field(unsigned int, type) __field(int, vcpu_idx) __field(int, irq_num) __field(int, level)) | , | ||
| TP_fast_assign(__entry->type=type;__entry->vcpu_idx=vcpu_idx;__entry->irq_num=irq_num;__entry->level=level;) | , | ||
| TP_printk("Inject %s interrupt (%d), vcpu->idx: %d, num: %d, level: %d",(__entry->type==KVM_ARM_IRQ_TYPE_CPU) ? "CPU" :(__entry->type==KVM_ARM_IRQ_TYPE_PPI) ? "VGIC PPI" :(__entry->type==KVM_ARM_IRQ_TYPE_SPI) ? "VGIC SPI" :"UNKNOWN", __entry->type, __entry->vcpu_idx, __entry->irq_num, __entry->level) | |||
| ) |
◆ TRACE_EVENT() [9/18]
| TRACE_EVENT | ( | kvm_mmio_emulate | , |
| TP_PROTO(unsigned long vcpu_pc, unsigned long instr, unsigned long cpsr) | , | ||
| TP_ARGS(vcpu_pc, instr, cpsr) | , | ||
| TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(unsigned long, instr) __field(unsigned long, cpsr)) | , | ||
| TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->instr=instr;__entry->cpsr=cpsr;) | , | ||
| TP_printk("Emulate MMIO at: 0x%016lx (instr: %08lx, cpsr: %08lx)", __entry->vcpu_pc, __entry->instr, __entry->cpsr) | |||
| ) |
◆ TRACE_EVENT() [10/18]
| TRACE_EVENT | ( | kvm_mmio_nisv | , |
| TP_PROTO(unsigned long vcpu_pc, unsigned long esr, unsigned long far, unsigned long ipa) | , | ||
| TP_ARGS(vcpu_pc, esr, far, ipa) | , | ||
| TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(unsigned long, esr) __field(unsigned long, far) __field(unsigned long, ipa)) | , | ||
| TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->esr=esr;__entry->far=far;__entry->ipa=ipa;) | , | ||
| TP_printk("ipa %#016lx, esr %#016lx, far %#016lx, pc %#016lx", __entry->ipa, __entry->esr, __entry->far, __entry->vcpu_pc) | |||
| ) |
◆ TRACE_EVENT() [11/18]
| TRACE_EVENT | ( | kvm_nested_eret | , |
| TP_PROTO(struct kvm_vcpu *vcpu, unsigned long elr_el2, unsigned long spsr_el2) | , | ||
| TP_ARGS(vcpu, elr_el2, spsr_el2) | , | ||
| TP_STRUCT__entry(__field(struct kvm_vcpu *, vcpu) __field(unsigned long, elr_el2) __field(unsigned long, spsr_el2) __field(unsigned long, target_mode) __field(unsigned long, hcr_el2)) | , | ||
| TP_fast_assign(__entry->vcpu=vcpu;__entry->elr_el2=elr_el2;__entry->spsr_el2=spsr_el2;__entry->target_mode=spsr_el2 &(PSR_MODE_MASK|PSR_MODE32_BIT);__entry->hcr_el2=__vcpu_sys_reg(vcpu, HCR_EL2);) | , | ||
| TP_printk("elr_el2: 0x%lx spsr_el2: 0x%08lx (M: %s) hcr_el2: %lx", __entry->elr_el2, __entry->spsr_el2, __print_symbolic(__entry->target_mode, kvm_mode_names), __entry->hcr_el2) | |||
| ) |
◆ TRACE_EVENT() [12/18]
| TRACE_EVENT | ( | kvm_set_way_flush | , |
| TP_PROTO(unsigned long vcpu_pc, bool cache) | , | ||
| TP_ARGS(vcpu_pc, cache) | , | ||
| TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(bool, cache)) | , | ||
| TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->cache=cache;) | , | ||
| TP_printk("S/W flush at 0x%016lx (cache %s)", __entry->vcpu_pc, __entry->cache ? "on" :"off") | |||
| ) |
◆ TRACE_EVENT() [13/18]
| TRACE_EVENT | ( | kvm_timer_emulate | , |
| TP_PROTO(struct arch_timer_context *ctx, bool should_fire) | , | ||
| TP_ARGS(ctx, should_fire) | , | ||
| TP_STRUCT__entry(__field(int, timer_idx) __field(bool, should_fire)) | , | ||
| TP_fast_assign(__entry->timer_idx=arch_timer_ctx_index(ctx);__entry->should_fire=should_fire;) | , | ||
| TP_printk("arch_timer_ctx_index: %d (should_fire: %d)", __entry->timer_idx, __entry->should_fire) | |||
| ) |
◆ TRACE_EVENT() [14/18]
| TRACE_EVENT | ( | kvm_timer_hrtimer_expire | , |
| TP_PROTO(struct arch_timer_context *ctx) | , | ||
| TP_ARGS(ctx) | , | ||
| TP_STRUCT__entry(__field(int, timer_idx)) | , | ||
| TP_fast_assign(__entry->timer_idx=arch_timer_ctx_index(ctx);) | , | ||
| TP_printk("arch_timer_ctx_index: %d", __entry->timer_idx) | |||
| ) |
◆ TRACE_EVENT() [15/18]
| TRACE_EVENT | ( | kvm_timer_restore_state | , |
| TP_PROTO(struct arch_timer_context *ctx) | , | ||
| TP_ARGS(ctx) | , | ||
| TP_STRUCT__entry(__field(unsigned long, ctl) __field(unsigned long long, cval) __field(int, timer_idx)) | , | ||
| TP_fast_assign(__entry->ctl=timer_get_ctl(ctx);__entry->cval=timer_get_cval(ctx);__entry->timer_idx=arch_timer_ctx_index(ctx);) | , | ||
| TP_printk("CTL: %#08lx CVAL: %#16llx arch_timer_ctx_index: %d", __entry->ctl, __entry->cval, __entry->timer_idx) | |||
| ) |
◆ TRACE_EVENT() [16/18]
| TRACE_EVENT | ( | kvm_timer_save_state | , |
| TP_PROTO(struct arch_timer_context *ctx) | , | ||
| TP_ARGS(ctx) | , | ||
| TP_STRUCT__entry(__field(unsigned long, ctl) __field(unsigned long long, cval) __field(int, timer_idx)) | , | ||
| TP_fast_assign(__entry->ctl=timer_get_ctl(ctx);__entry->cval=timer_get_cval(ctx);__entry->timer_idx=arch_timer_ctx_index(ctx);) | , | ||
| TP_printk(" CTL: %#08lx CVAL: %#16llx arch_timer_ctx_index: %d", __entry->ctl, __entry->cval, __entry->timer_idx) | |||
| ) |
◆ TRACE_EVENT() [17/18]
| TRACE_EVENT | ( | kvm_timer_update_irq | , |
| TP_PROTO(unsigned long vcpu_id, __u32 irq, int level) | , | ||
| TP_ARGS(vcpu_id, irq, level) | , | ||
| TP_STRUCT__entry(__field(unsigned long, vcpu_id) __field(__u32, irq) __field(int, level)) | , | ||
| TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->irq=irq;__entry->level=level;) | , | ||
| TP_printk("VCPU: %ld, IRQ %d, level %d", __entry->vcpu_id, __entry->irq, __entry->level) | |||
| ) |
◆ TRACE_EVENT() [18/18]
| TRACE_EVENT | ( | kvm_toggle_cache | , |
| TP_PROTO(unsigned long vcpu_pc, bool was, bool now) | , | ||
| TP_ARGS(vcpu_pc, was, now) | , | ||
| TP_STRUCT__entry(__field(unsigned long, vcpu_pc) __field(bool, was) __field(bool, now)) | , | ||
| TP_fast_assign(__entry->vcpu_pc=vcpu_pc;__entry->was=was;__entry->now=now;) | , | ||
| TP_printk("VM op at 0x%016lx (cache was %s, now %s)", __entry->vcpu_pc, __entry->was ? "on" :"off", __entry->now ? "on" :"off") | |||
| ) |
