arch_timer.c File Reference

#include <linux/cpu.h>
#include <linux/kvm.h>
#include <linux/kvm_host.h>
#include <linux/interrupt.h>
#include <linux/irq.h>
#include <linux/irqdomain.h>
#include <linux/uaccess.h>
#include <clocksource/arm_arch_timer.h>
#include <asm/arch_timer.h>
#include <asm/kvm_emulate.h>
#include <asm/kvm_hyp.h>
#include <asm/kvm_nested.h>
#include <kvm/arm_vgic.h>
#include <kvm/arm_arch_timer.h>
#include "trace.h"

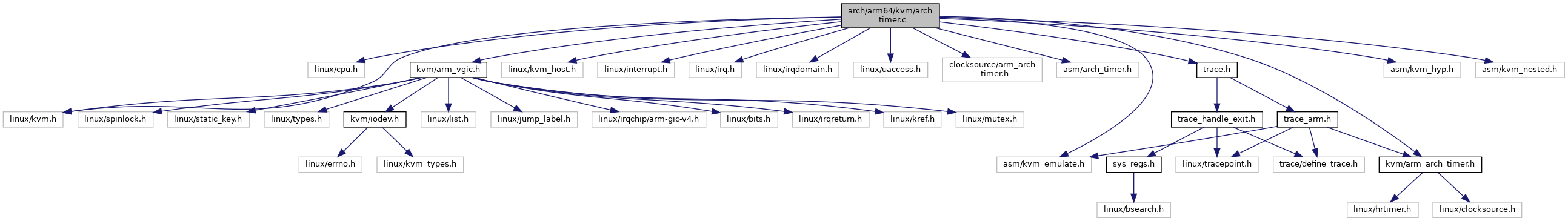

Include dependency graph for arch_timer.c:

Go to the source code of this file.

Macros
#define	assign_clear_set_bit(_pred, _bit, _clr, _set)

Functions
static	DEFINE_STATIC_KEY_FALSE (has_gic_active_state)
static bool	kvm_timer_irq_can_fire (struct arch_timer_context *timer_ctx)
static void	kvm_timer_update_irq (struct kvm_vcpu *vcpu, bool new_level, struct arch_timer_context *timer_ctx)
static bool	kvm_timer_should_fire (struct arch_timer_context *timer_ctx)
static void	kvm_arm_timer_write (struct kvm_vcpu *vcpu, struct arch_timer_context *timer, enum kvm_arch_timer_regs treg, u64 val)
static u64	kvm_arm_timer_read (struct kvm_vcpu *vcpu, struct arch_timer_context *timer, enum kvm_arch_timer_regs treg)
static bool	kvm_arch_timer_get_input_level (int vintid)
static int	nr_timers (struct kvm_vcpu *vcpu)
u32	timer_get_ctl (struct arch_timer_context *ctxt)
u64	timer_get_cval (struct arch_timer_context *ctxt)
static u64	timer_get_offset (struct arch_timer_context *ctxt)
static void	timer_set_ctl (struct arch_timer_context *ctxt, u32 ctl)
static void	timer_set_cval (struct arch_timer_context *ctxt, u64 cval)
static void	timer_set_offset (struct arch_timer_context *ctxt, u64 offset)

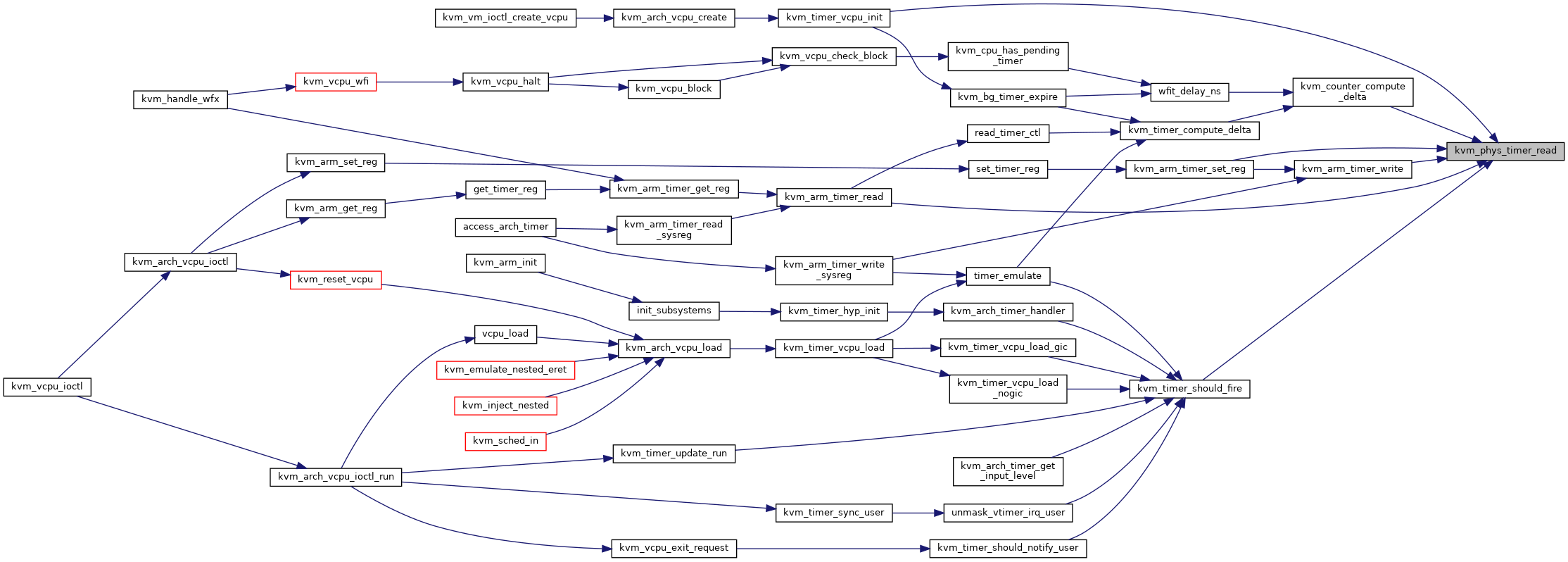

u64	kvm_phys_timer_read (void)
void	get_timer_map (struct kvm_vcpu *vcpu, struct timer_map *map)
static bool	userspace_irqchip (struct kvm *kvm)
static void	soft_timer_start (struct hrtimer *hrt, u64 ns)

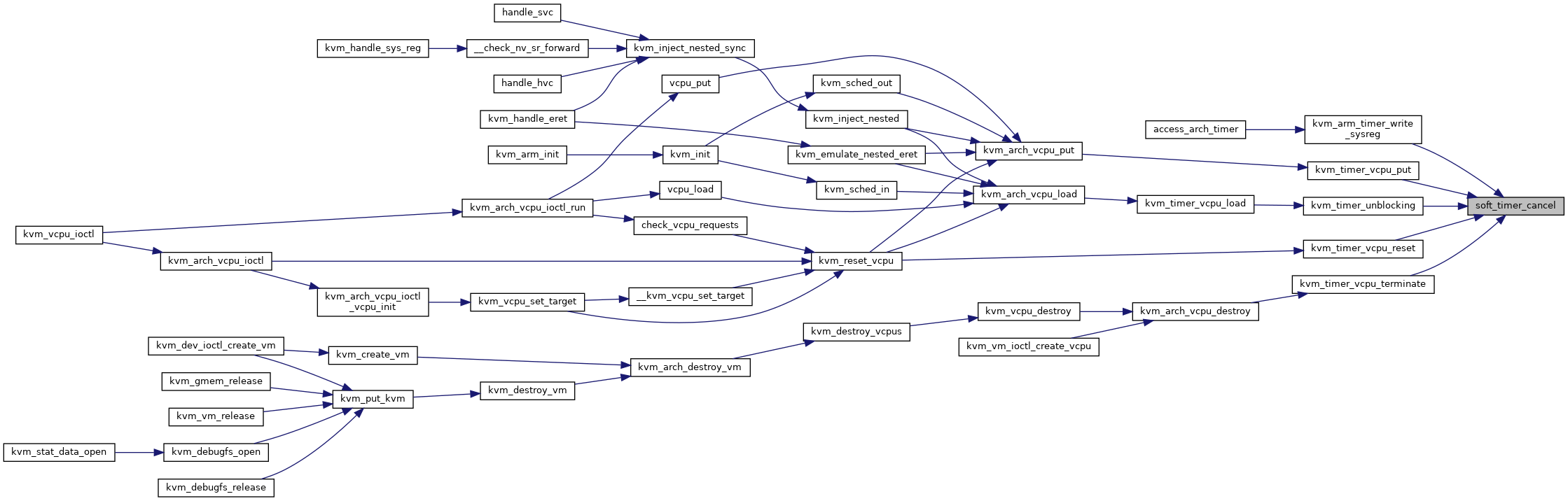

static void	soft_timer_cancel (struct hrtimer *hrt)
static irqreturn_t	kvm_arch_timer_handler (int irq, void *dev_id)
static u64	kvm_counter_compute_delta (struct arch_timer_context *timer_ctx, u64 val)
static u64	kvm_timer_compute_delta (struct arch_timer_context *timer_ctx)
static bool	vcpu_has_wfit_active (struct kvm_vcpu *vcpu)
static u64	wfit_delay_ns (struct kvm_vcpu *vcpu)
static u64	kvm_timer_earliest_exp (struct kvm_vcpu *vcpu)
static enum hrtimer_restart	kvm_bg_timer_expire (struct hrtimer *hrt)
static enum hrtimer_restart	kvm_hrtimer_expire (struct hrtimer *hrt)
int	kvm_cpu_has_pending_timer (struct kvm_vcpu *vcpu)
void	kvm_timer_update_run (struct kvm_vcpu *vcpu)
static void	timer_emulate (struct arch_timer_context *ctx)

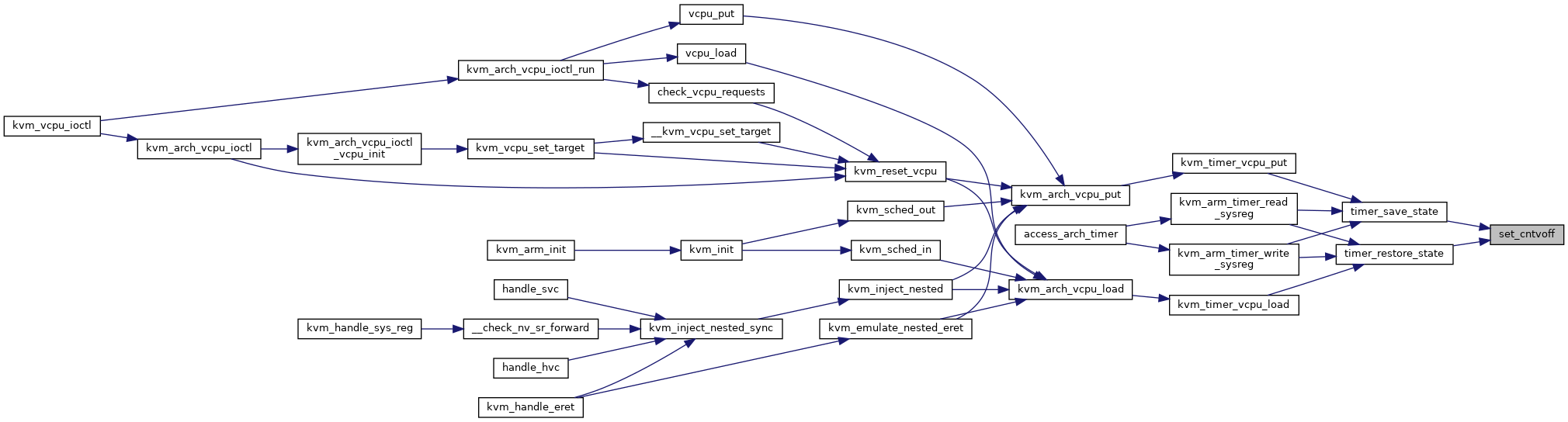

static void	set_cntvoff (u64 cntvoff)
static void	set_cntpoff (u64 cntpoff)
static void	timer_save_state (struct arch_timer_context *ctx)
static void	kvm_timer_blocking (struct kvm_vcpu *vcpu)

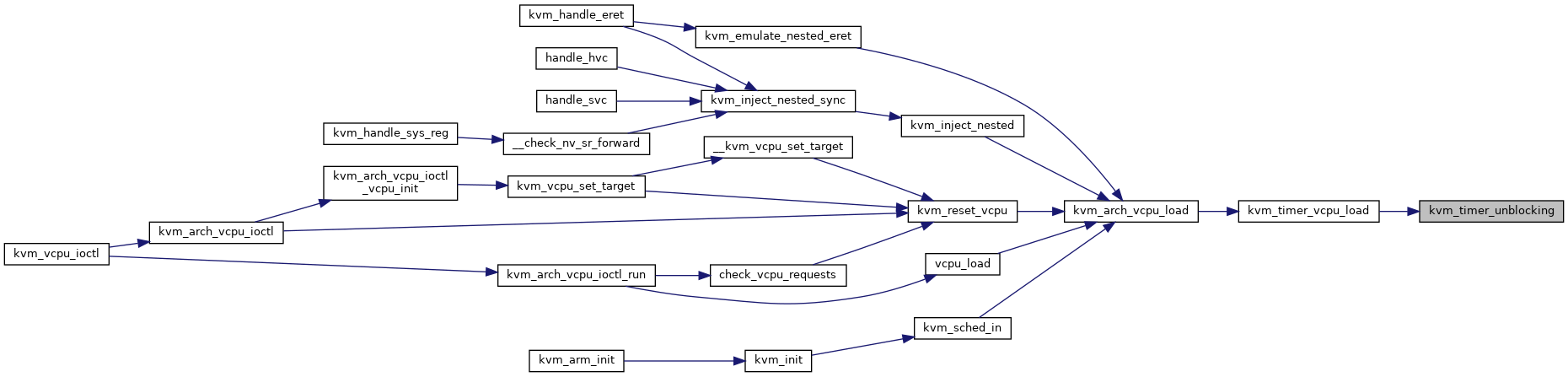

static void	kvm_timer_unblocking (struct kvm_vcpu *vcpu)
static void	timer_restore_state (struct arch_timer_context *ctx)
static void	set_timer_irq_phys_active (struct arch_timer_context *ctx, bool active)
static void	kvm_timer_vcpu_load_gic (struct arch_timer_context *ctx)
static void	kvm_timer_vcpu_load_nogic (struct kvm_vcpu *vcpu)
static void	kvm_timer_vcpu_load_nested_switch (struct kvm_vcpu *vcpu, struct timer_map *map)
static void	timer_set_traps (struct kvm_vcpu *vcpu, struct timer_map *map)
void	kvm_timer_vcpu_load (struct kvm_vcpu *vcpu)
bool	kvm_timer_should_notify_user (struct kvm_vcpu *vcpu)
void	kvm_timer_vcpu_put (struct kvm_vcpu *vcpu)
static void	unmask_vtimer_irq_user (struct kvm_vcpu *vcpu)
void	kvm_timer_sync_user (struct kvm_vcpu *vcpu)
void	kvm_timer_vcpu_reset (struct kvm_vcpu *vcpu)
static void	timer_context_init (struct kvm_vcpu *vcpu, int timerid)
void	kvm_timer_vcpu_init (struct kvm_vcpu *vcpu)
void	kvm_timer_init_vm (struct kvm *kvm)
void	kvm_timer_cpu_up (void)
void	kvm_timer_cpu_down (void)

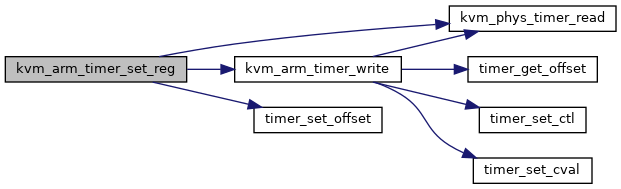

int	kvm_arm_timer_set_reg (struct kvm_vcpu *vcpu, u64 regid, u64 value)

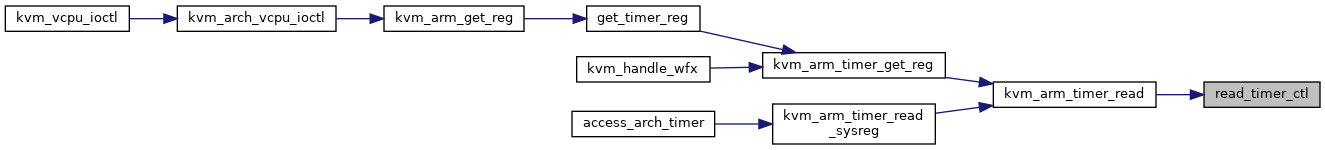

static u64	read_timer_ctl (struct arch_timer_context *timer)
u64	kvm_arm_timer_get_reg (struct kvm_vcpu *vcpu, u64 regid)
u64	kvm_arm_timer_read_sysreg (struct kvm_vcpu *vcpu, enum kvm_arch_timers tmr, enum kvm_arch_timer_regs treg)
void	kvm_arm_timer_write_sysreg (struct kvm_vcpu *vcpu, enum kvm_arch_timers tmr, enum kvm_arch_timer_regs treg, u64 val)
static int	timer_irq_set_vcpu_affinity (struct irq_data *d, void *vcpu)
static int	timer_irq_set_irqchip_state (struct irq_data *d, enum irqchip_irq_state which, bool val)
static void	timer_irq_eoi (struct irq_data *d)
static void	timer_irq_ack (struct irq_data *d)
static int	timer_irq_domain_alloc (struct irq_domain *domain, unsigned int virq, unsigned int nr_irqs, void *arg)
static void	timer_irq_domain_free (struct irq_domain *domain, unsigned int virq, unsigned int nr_irqs)
static void	kvm_irq_fixup_flags (unsigned int virq, u32 *flags)
static int	kvm_irq_init (struct arch_timer_kvm_info *info)
int __init	kvm_timer_hyp_init (bool has_gic)
void	kvm_timer_vcpu_terminate (struct kvm_vcpu *vcpu)
static bool	timer_irqs_are_valid (struct kvm_vcpu *vcpu)

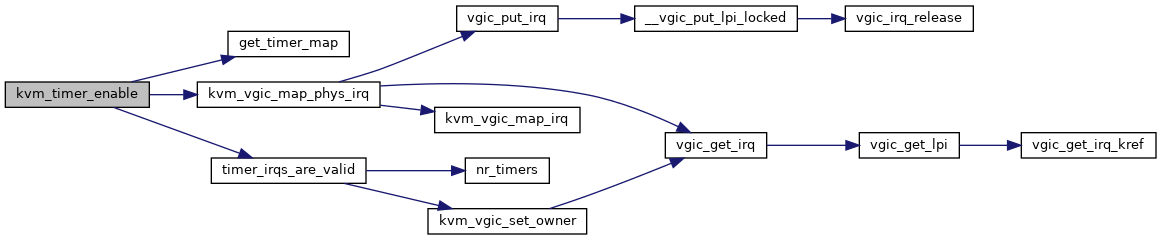

int	kvm_timer_enable (struct kvm_vcpu *vcpu)
void	kvm_timer_init_vhe (void)
int	kvm_arm_timer_set_attr (struct kvm_vcpu *vcpu, struct kvm_device_attr *attr)
int	kvm_arm_timer_get_attr (struct kvm_vcpu *vcpu, struct kvm_device_attr *attr)
int	kvm_arm_timer_has_attr (struct kvm_vcpu *vcpu, struct kvm_device_attr *attr)
int	kvm_vm_ioctl_set_counter_offset (struct kvm *kvm, struct kvm_arm_counter_offset *offset)

Variables
static struct timecounter *	timecounter
static unsigned int	host_vtimer_irq
static unsigned int	host_ptimer_irq
static u32	host_vtimer_irq_flags
static u32	host_ptimer_irq_flags
static const u8	default_ppi []
static struct irq_ops	arch_timer_irq_ops
static struct irq_chip	timer_chip
static const struct irq_domain_ops	timer_domain_ops

Macro Definition Documentation

assign_clear_set_bit

#define assign_clear_set_bit	(		_pred,
			_bit,
			_clr,
			_set
	)

Value:

    do {                                \
        if (_pred)                      \
            (_set) |= (_bit);               \
        else                            \
            (_clr) |= (_bit);               \
    } while (0)

Definition at line 705 of file arch_timer.c.

Function Documentation

DEFINE_STATIC_KEY_FALSE()

static DEFINE_STATIC_KEY_FALSE ( has_gic_active_state  )

static

get_timer_map()

void get_timer_map	(	struct kvm_vcpu *	vcpu,
		struct timer_map *	map
	)

Definition at line 178 of file arch_timer.c.

{
    if (vcpu_has_nv(vcpu)) {
        if (is_hyp_ctxt(vcpu)) {
            map->direct_vtimer = vcpu_hvtimer(vcpu);
            map->direct_ptimer = vcpu_hptimer(vcpu);
            map->emul_vtimer = vcpu_vtimer(vcpu);
            map->emul_ptimer = vcpu_ptimer(vcpu);
        } else {
            map->direct_vtimer = vcpu_vtimer(vcpu);
            map->direct_ptimer = vcpu_ptimer(vcpu);
            map->emul_vtimer = vcpu_hvtimer(vcpu);
            map->emul_ptimer = vcpu_hptimer(vcpu);
        }
    } else if (has_vhe()) {
        map->direct_vtimer = vcpu_vtimer(vcpu);
        map->direct_ptimer = vcpu_ptimer(vcpu);
        map->emul_vtimer = NULL;
        map->emul_ptimer = NULL;
    } else {
        map->direct_vtimer = vcpu_vtimer(vcpu);
        map->direct_ptimer = NULL;
        map->emul_vtimer = NULL;
        map->emul_ptimer = vcpu_ptimer(vcpu);
    }

    trace_kvm_get_timer_map(vcpu->vcpu_id, map);
}

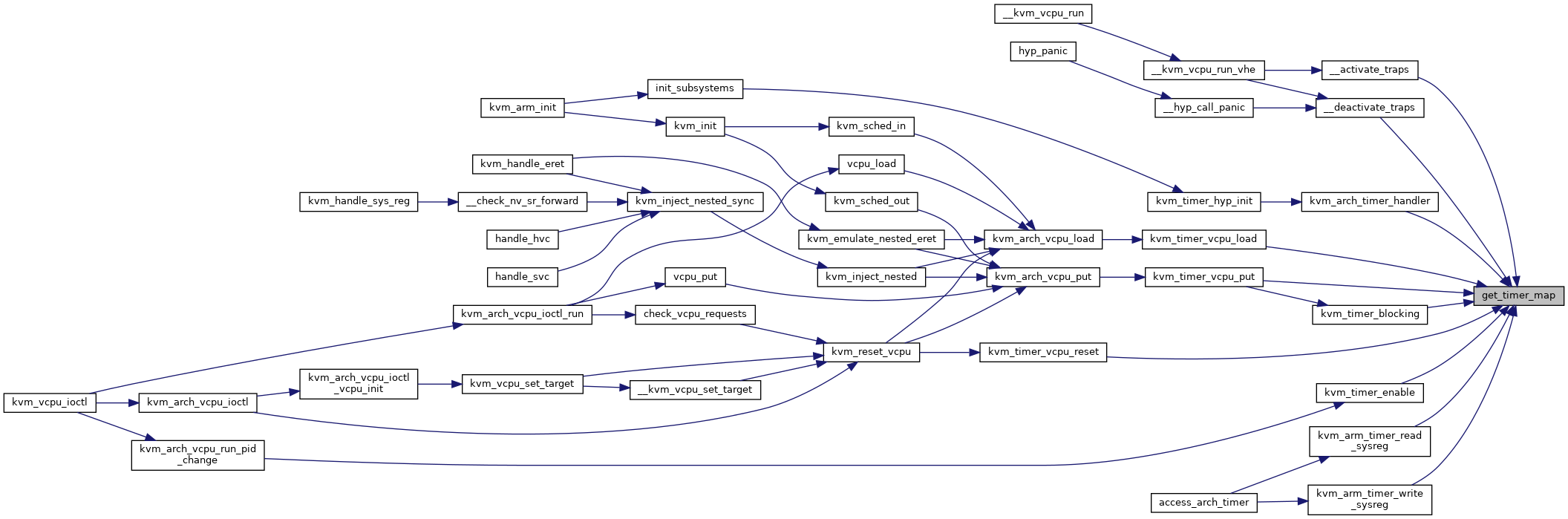

Here is the caller graph for this function:

kvm_arch_timer_get_input_level()

static bool kvm_arch_timer_get_input_level ( int  vintid )

static

Definition at line 1485 of file arch_timer.c.

{
    struct kvm_vcpu *vcpu = kvm_get_running_vcpu();

    if (WARN(!vcpu, "No vcpu context!\n"))
        return false;

    for (int i = 0; i < nr_timers(vcpu); i++) {
        struct arch_timer_context *ctx;

        ctx = vcpu_get_timer(vcpu, i);
        if (timer_irq(ctx) == vintid)
            return kvm_timer_should_fire(ctx);
    }

    /* A timer IRQ has fired, but no matching timer was found? */
    WARN_RATELIMIT(1, "timer INTID%d unknown\n", vintid);

    return false;
}

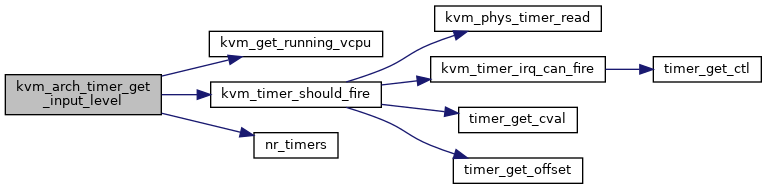

Here is the call graph for this function:

kvm_arch_timer_handler()

static irqreturn_t kvm_arch_timer_handler ( int  irq, void *  dev_id  )

static

Definition at line 224 of file arch_timer.c.

{
    struct kvm_vcpu *vcpu = *(struct kvm_vcpu **)dev_id;
    struct arch_timer_context *ctx;
    struct timer_map map;

    /*
     * We may see a timer interrupt after vcpu_put() has been called which
     * sets the CPU's vcpu pointer to NULL, because even though the timer
     * has been disabled in timer_save_state(), the hardware interrupt
     * signal may not have been retired from the interrupt controller yet.
     */
    if (!vcpu)
        return IRQ_HANDLED;

    get_timer_map(vcpu, &map);

    if (irq == host_vtimer_irq)
        ctx = map.direct_vtimer;
    else
        ctx = map.direct_ptimer;

    if (kvm_timer_should_fire(ctx))
        kvm_timer_update_irq(vcpu, true, ctx);

    if (userspace_irqchip(vcpu->kvm) &&
        !static_branch_unlikely(&has_gic_active_state))
        disable_percpu_irq(host_vtimer_irq);

    return IRQ_HANDLED;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_arm_timer_get_attr()

int kvm_arm_timer_get_attr	(	struct kvm_vcpu *	vcpu,
		struct kvm_device_attr *	attr
	)

Definition at line 1611 of file arch_timer.c.

{
    int __user *uaddr = (int __user *)(long)attr->addr;
    struct arch_timer_context *timer;
    int irq;

    switch (attr->attr) {
    case KVM_ARM_VCPU_TIMER_IRQ_VTIMER:
        timer = vcpu_vtimer(vcpu);
        break;
    case KVM_ARM_VCPU_TIMER_IRQ_PTIMER:
        timer = vcpu_ptimer(vcpu);
        break;
    case KVM_ARM_VCPU_TIMER_IRQ_HVTIMER:
        timer = vcpu_hvtimer(vcpu);
        break;
    case KVM_ARM_VCPU_TIMER_IRQ_HPTIMER:
        timer = vcpu_hptimer(vcpu);
        break;
    default:
        return -ENXIO;
    }

    irq = timer_irq(timer);
    return put_user(irq, uaddr);
}

Here is the caller graph for this function:

kvm_arm_timer_get_reg()

u64 kvm_arm_timer_get_reg	(	struct kvm_vcpu *	vcpu,
		u64	regid
	)

Definition at line 1107 of file arch_timer.c.

{
    switch (regid) {
    case KVM_REG_ARM_TIMER_CTL:
        return kvm_arm_timer_read(vcpu,
                      vcpu_vtimer(vcpu), TIMER_REG_CTL);
    case KVM_REG_ARM_TIMER_CNT:
        return kvm_arm_timer_read(vcpu,
                      vcpu_vtimer(vcpu), TIMER_REG_CNT);
    case KVM_REG_ARM_TIMER_CVAL:
        return kvm_arm_timer_read(vcpu,
                      vcpu_vtimer(vcpu), TIMER_REG_CVAL);
    case KVM_REG_ARM_PTIMER_CTL:
        return kvm_arm_timer_read(vcpu,
                      vcpu_ptimer(vcpu), TIMER_REG_CTL);
    case KVM_REG_ARM_PTIMER_CNT:
        return kvm_arm_timer_read(vcpu,
                      vcpu_ptimer(vcpu), TIMER_REG_CNT);
    case KVM_REG_ARM_PTIMER_CVAL:
        return kvm_arm_timer_read(vcpu,
                      vcpu_ptimer(vcpu), TIMER_REG_CVAL);
    }
    return (u64)-1;
}

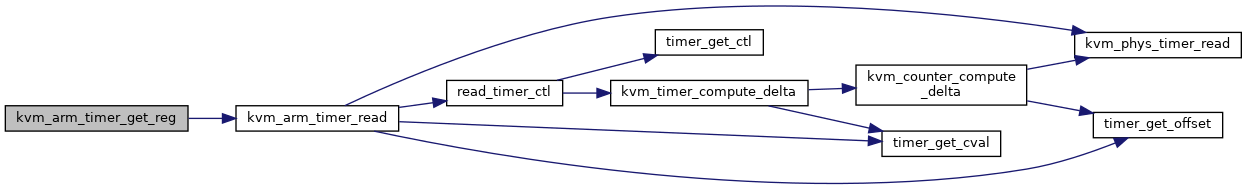

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_arm_timer_has_attr()

int kvm_arm_timer_has_attr	(	struct kvm_vcpu *	vcpu,
		struct kvm_device_attr *	attr
	)

Definition at line 1638 of file arch_timer.c.

{
    switch (attr->attr) {
    case KVM_ARM_VCPU_TIMER_IRQ_VTIMER:
    case KVM_ARM_VCPU_TIMER_IRQ_PTIMER:
    case KVM_ARM_VCPU_TIMER_IRQ_HVTIMER:
    case KVM_ARM_VCPU_TIMER_IRQ_HPTIMER:
        return 0;
    }

    return -ENXIO;
}

Here is the caller graph for this function:

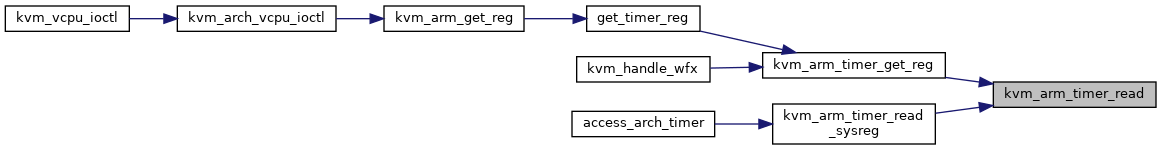

kvm_arm_timer_read()

static u64 kvm_arm_timer_read ( struct kvm_vcpu *  vcpu, struct arch_timer_context *  timer, enum kvm_arch_timer_regs  treg  )

static

Definition at line 1132 of file arch_timer.c.

{
    u64 val;

    switch (treg) {
    case TIMER_REG_TVAL:
        val = timer_get_cval(timer) - kvm_phys_timer_read() + timer_get_offset(timer);
        val = lower_32_bits(val);
        break;

    case TIMER_REG_CTL:
        val = read_timer_ctl(timer);
        break;

    case TIMER_REG_CVAL:
        val = timer_get_cval(timer);
        break;

    case TIMER_REG_CNT:
        val = kvm_phys_timer_read() - timer_get_offset(timer);
        break;

    case TIMER_REG_VOFF:
        val = *timer->offset.vcpu_offset;
        break;

    default:
        BUG();
    }

    return val;
}

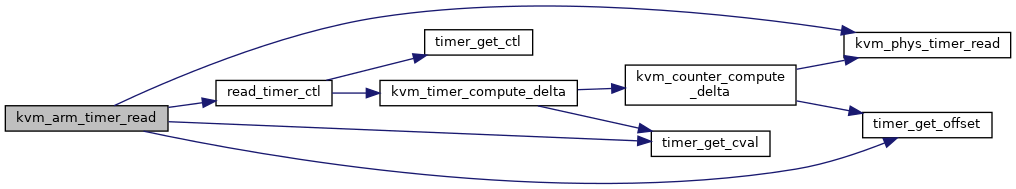

Here is the call graph for this function:

Here is the caller graph for this function:

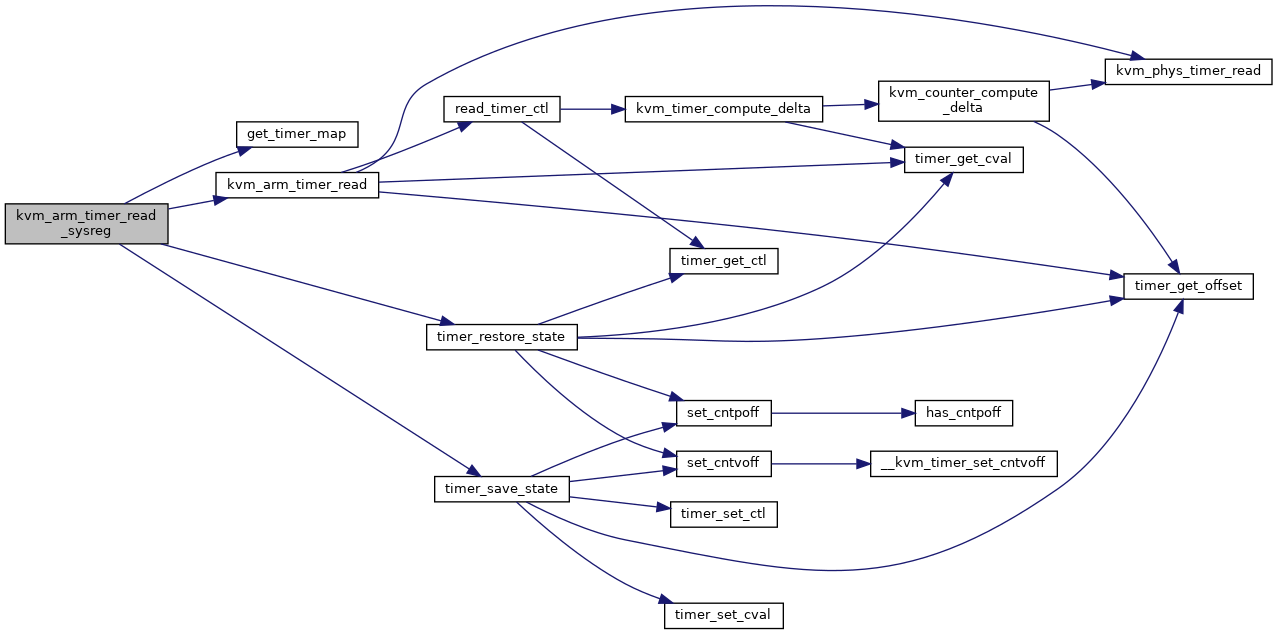

kvm_arm_timer_read_sysreg()

u64 kvm_arm_timer_read_sysreg	(	struct kvm_vcpu *	vcpu,
		enum kvm_arch_timers	tmr,
		enum kvm_arch_timer_regs	treg
	)

Definition at line 1167 of file arch_timer.c.

{
    struct arch_timer_context *timer;
    struct timer_map map;
    u64 val;

    get_timer_map(vcpu, &map);
    timer = vcpu_get_timer(vcpu, tmr);

    if (timer == map.emul_vtimer || timer == map.emul_ptimer)
        return kvm_arm_timer_read(vcpu, timer, treg);

    preempt_disable();
    timer_save_state(timer);

    val = kvm_arm_timer_read(vcpu, timer, treg);

    timer_restore_state(timer);
    preempt_enable();

    return val;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_arm_timer_set_attr()

int kvm_arm_timer_set_attr	(	struct kvm_vcpu *	vcpu,
		struct kvm_device_attr *	attr
	)

Definition at line 1559 of file arch_timer.c.

{
    int __user *uaddr = (int __user *)(long)attr->addr;
    int irq, idx, ret = 0;

    if (!irqchip_in_kernel(vcpu->kvm))
        return -EINVAL;

    if (get_user(irq, uaddr))
        return -EFAULT;

    if (!(irq_is_ppi(irq)))
        return -EINVAL;

    mutex_lock(&vcpu->kvm->arch.config_lock);

    if (test_bit(KVM_ARCH_FLAG_TIMER_PPIS_IMMUTABLE,
             &vcpu->kvm->arch.flags)) {
        ret = -EBUSY;
        goto out;
    }

    switch (attr->attr) {
    case KVM_ARM_VCPU_TIMER_IRQ_VTIMER:
        idx = TIMER_VTIMER;
        break;
    case KVM_ARM_VCPU_TIMER_IRQ_PTIMER:
        idx = TIMER_PTIMER;
        break;
    case KVM_ARM_VCPU_TIMER_IRQ_HVTIMER:
        idx = TIMER_HVTIMER;
        break;
    case KVM_ARM_VCPU_TIMER_IRQ_HPTIMER:
        idx = TIMER_HPTIMER;
        break;
    default:
        ret = -ENXIO;
        goto out;
    }

    /*
     * We cannot validate the IRQ unicity before we run, so take it at
     * face value. The verdict will be given on first vcpu run, for each
     * vcpu. Yes this is late. Blame it on the stupid API.
     */
    vcpu->kvm->arch.timer_data.ppi[idx] = irq;

out:
    mutex_unlock(&vcpu->kvm->arch.config_lock);
    return ret;
}

Here is the caller graph for this function:

kvm_arm_timer_set_reg()

int kvm_arm_timer_set_reg	(	struct kvm_vcpu *	vcpu,
		u64	regid,
		u64	value
	)

Definition at line 1048 of file arch_timer.c.

{
    struct arch_timer_context *timer;

    switch (regid) {
    case KVM_REG_ARM_TIMER_CTL:
        timer = vcpu_vtimer(vcpu);
        kvm_arm_timer_write(vcpu, timer, TIMER_REG_CTL, value);
        break;
    case KVM_REG_ARM_TIMER_CNT:
        if (!test_bit(KVM_ARCH_FLAG_VM_COUNTER_OFFSET,
                  &vcpu->kvm->arch.flags)) {
            timer = vcpu_vtimer(vcpu);
            timer_set_offset(timer, kvm_phys_timer_read() - value);
        }
        break;
    case KVM_REG_ARM_TIMER_CVAL:
        timer = vcpu_vtimer(vcpu);
        kvm_arm_timer_write(vcpu, timer, TIMER_REG_CVAL, value);
        break;
    case KVM_REG_ARM_PTIMER_CTL:
        timer = vcpu_ptimer(vcpu);
        kvm_arm_timer_write(vcpu, timer, TIMER_REG_CTL, value);
        break;
    case KVM_REG_ARM_PTIMER_CNT:
        if (!test_bit(KVM_ARCH_FLAG_VM_COUNTER_OFFSET,
                  &vcpu->kvm->arch.flags)) {
            timer = vcpu_ptimer(vcpu);
            timer_set_offset(timer, kvm_phys_timer_read() - value);
        }
        break;
    case KVM_REG_ARM_PTIMER_CVAL:
        timer = vcpu_ptimer(vcpu);
        kvm_arm_timer_write(vcpu, timer, TIMER_REG_CVAL, value);
        break;

    default:
        return -1;
    }

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_arm_timer_write()

static void kvm_arm_timer_write ( struct kvm_vcpu *  vcpu, struct arch_timer_context *  timer, enum kvm_arch_timer_regs  treg, u64  val  )

static

Definition at line 1192 of file arch_timer.c.

{
    switch (treg) {
    case TIMER_REG_TVAL:
        timer_set_cval(timer, kvm_phys_timer_read() - timer_get_offset(timer) + (s32)val);
        break;

    case TIMER_REG_CTL:
        timer_set_ctl(timer, val & ~ARCH_TIMER_CTRL_IT_STAT);
        break;

    case TIMER_REG_CVAL:
        timer_set_cval(timer, val);
        break;

    case TIMER_REG_VOFF:
        *timer->offset.vcpu_offset = val;
        break;

    default:
        BUG();
    }
}

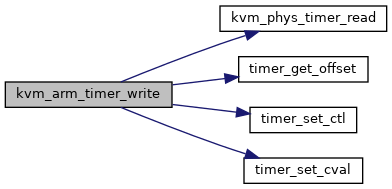

Here is the call graph for this function:

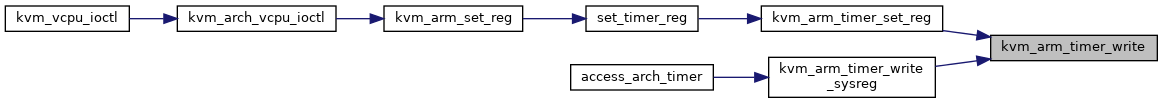

Here is the caller graph for this function:

kvm_arm_timer_write_sysreg()

void kvm_arm_timer_write_sysreg	(	struct kvm_vcpu *	vcpu,
		enum kvm_arch_timers	tmr,
		enum kvm_arch_timer_regs	treg,
		u64	val
	)

Definition at line 1219 of file arch_timer.c.

{
    struct arch_timer_context *timer;
    struct timer_map map;

    get_timer_map(vcpu, &map);
    timer = vcpu_get_timer(vcpu, tmr);
    if (timer == map.emul_vtimer || timer == map.emul_ptimer) {
        soft_timer_cancel(&timer->hrtimer);
        kvm_arm_timer_write(vcpu, timer, treg, val);
        timer_emulate(timer);
    } else {
        preempt_disable();
        timer_save_state(timer);
        kvm_arm_timer_write(vcpu, timer, treg, val);
        timer_restore_state(timer);
        preempt_enable();
    }
}

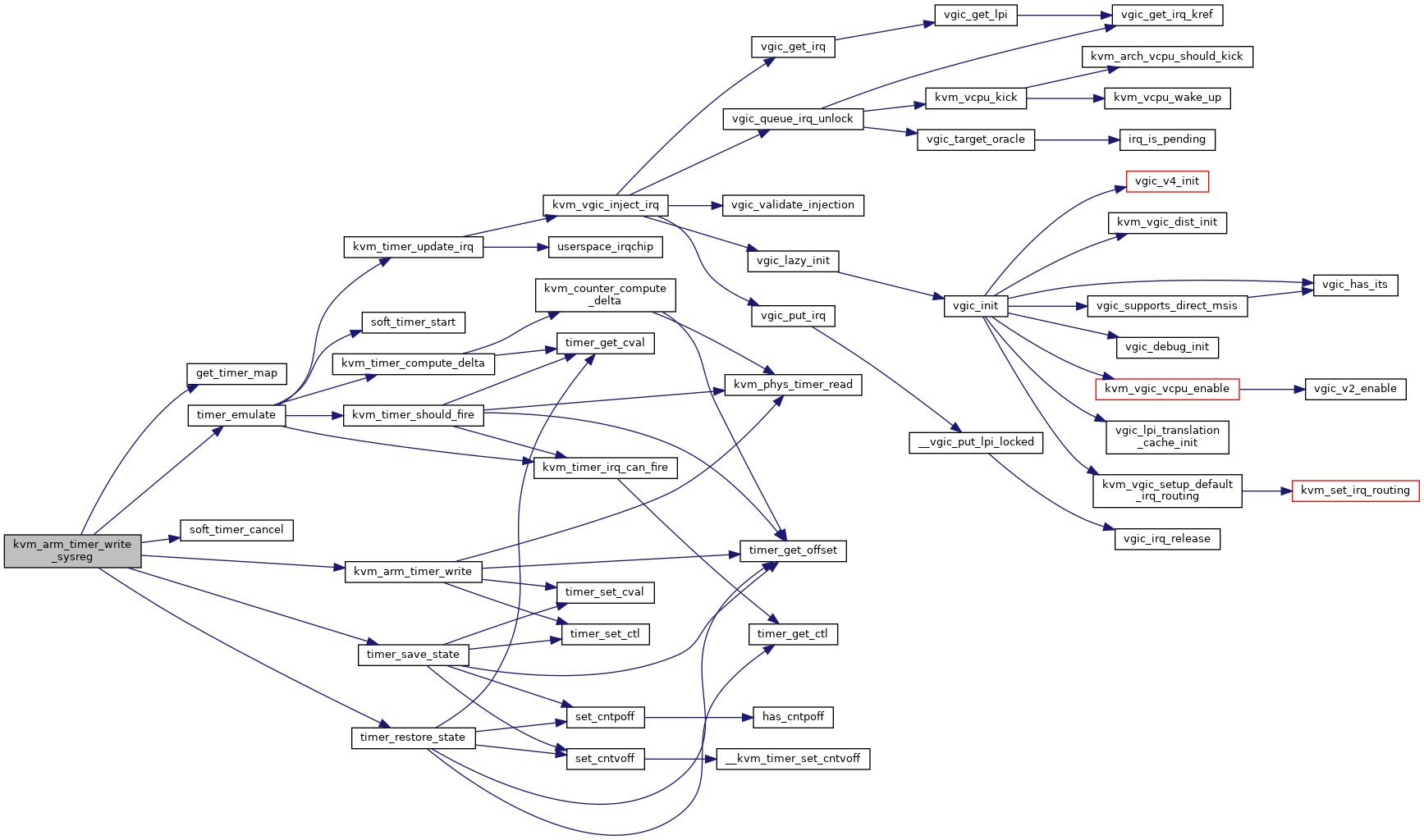

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_bg_timer_expire()

static enum hrtimer_restart kvm_bg_timer_expire ( struct hrtimer *  hrt )

static

Definition at line 307 of file arch_timer.c.

{
    struct arch_timer_cpu *timer;
    struct kvm_vcpu *vcpu;
    u64 ns;

    timer = container_of(hrt, struct arch_timer_cpu, bg_timer);
    vcpu = container_of(timer, struct kvm_vcpu, arch.timer_cpu);

    /*
     * Check that the timer has really expired from the guest's
     * PoV (NTP on the host may have forced it to expire
     * early). If we should have slept longer, restart it.
     */
    ns = kvm_timer_earliest_exp(vcpu);
    if (unlikely(ns)) {
        hrtimer_forward_now(hrt, ns_to_ktime(ns));
        return HRTIMER_RESTART;
    }

    kvm_vcpu_wake_up(vcpu);
    return HRTIMER_NORESTART;
}

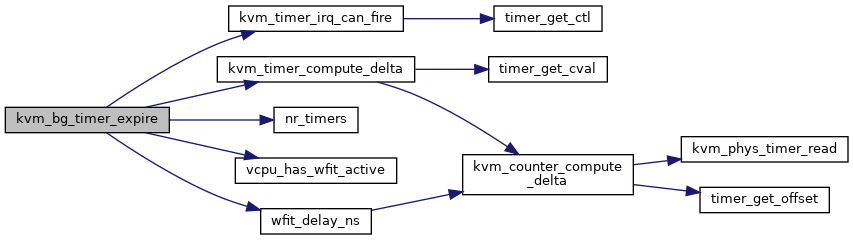

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_counter_compute_delta()

static u64 kvm_counter_compute_delta ( struct arch_timer_context *  timer_ctx, u64  val  )

static

Definition at line 256 of file arch_timer.c.

{
    u64 now = kvm_phys_timer_read() - timer_get_offset(timer_ctx);

    if (now < val) {
        u64 ns;

        ns = cyclecounter_cyc2ns(timecounter->cc,
                     val - now,
                     timecounter->mask,
                     &timer_ctx->ns_frac);
        return ns;
    }

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_cpu_has_pending_timer()

int kvm_cpu_has_pending_timer

(

struct kvm_vcpu *

vcpu

)

Definition at line 422 of file arch_timer.c.

{
    return vcpu_has_wfit_active(vcpu) && wfit_delay_ns(vcpu) == 0;
}

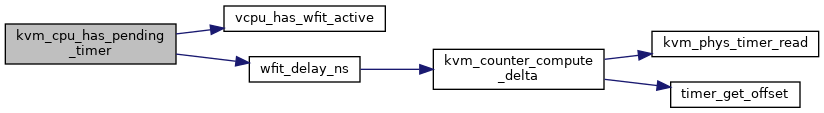

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_hrtimer_expire()

static enum hrtimer_restart kvm_hrtimer_expire ( struct hrtimer *  hrt )

static

Definition at line 307 of file arch_timer.c.

{
    struct arch_timer_context *ctx;
    struct kvm_vcpu *vcpu;
    u64 ns;

    ctx = container_of(hrt, struct arch_timer_context, hrtimer);
    vcpu = ctx->vcpu;

    trace_kvm_timer_hrtimer_expire(ctx);

    /*
     * Check that the timer has really expired from the guest's
     * PoV (NTP on the host may have forced it to expire
     * early). If not ready, schedule for a later time.
     */
    ns = kvm_timer_compute_delta(ctx);
    if (unlikely(ns)) {
        hrtimer_forward_now(hrt, ns_to_ktime(ns));
        return HRTIMER_RESTART;
    }

    kvm_timer_update_irq(vcpu, true, ctx);
    return HRTIMER_NORESTART;
}

Here is the caller graph for this function:

kvm_irq_fixup_flags()

static void kvm_irq_fixup_flags ( unsigned int  virq, u32 *  flags  )

static

Definition at line 1309 of file arch_timer.c.

{
    *flags = irq_get_trigger_type(virq);
    if (*flags != IRQF_TRIGGER_HIGH && *flags != IRQF_TRIGGER_LOW) {
        kvm_err("Invalid trigger for timer IRQ%d, assuming level low\n",
            virq);
        *flags = IRQF_TRIGGER_LOW;
    }
}

Here is the caller graph for this function:

kvm_irq_init()

static int kvm_irq_init ( struct arch_timer_kvm_info *  info )

static

Definition at line 1319 of file arch_timer.c.

{
    struct irq_domain *domain = NULL;

    if (info->virtual_irq <= 0) {
        kvm_err("kvm_arch_timer: invalid virtual timer IRQ: %d\n",
            info->virtual_irq);
        return -ENODEV;
    }

    host_vtimer_irq = info->virtual_irq;
    kvm_irq_fixup_flags(host_vtimer_irq, &host_vtimer_irq_flags);

    if (kvm_vgic_global_state.no_hw_deactivation) {
        struct fwnode_handle *fwnode;
        struct irq_data *data;

        fwnode = irq_domain_alloc_named_fwnode("kvm-timer");
        if (!fwnode)
            return -ENOMEM;

        /* Assume both vtimer and ptimer in the same parent */
        data = irq_get_irq_data(host_vtimer_irq);
        domain = irq_domain_create_hierarchy(data->domain, 0,
                             NR_KVM_TIMERS, fwnode,
                             &timer_domain_ops, NULL);
        if (!domain) {
            irq_domain_free_fwnode(fwnode);
            return -ENOMEM;
        }

        arch_timer_irq_ops.flags |= VGIC_IRQ_SW_RESAMPLE;
        WARN_ON(irq_domain_push_irq(domain, host_vtimer_irq,
                        (void *)TIMER_VTIMER));
    }

    if (info->physical_irq > 0) {
        host_ptimer_irq = info->physical_irq;
        kvm_irq_fixup_flags(host_ptimer_irq, &host_ptimer_irq_flags);

        if (domain)
            WARN_ON(irq_domain_push_irq(domain, host_ptimer_irq,
                            (void *)TIMER_PTIMER));
    }

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_phys_timer_read()

u64 kvm_phys_timer_read

(

void

)

Definition at line 173 of file arch_timer.c.

{
    return timecounter->cc->read(timecounter->cc);
}

Here is the caller graph for this function:

kvm_timer_blocking()

static void kvm_timer_blocking ( struct kvm_vcpu *  vcpu )

static

Definition at line 571 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);
    struct timer_map map;

    get_timer_map(vcpu, &map);

    /*
     * If no timers are capable of raising interrupts (disabled or
     * masked), then there's no more work for us to do.
     */
    if (!kvm_timer_irq_can_fire(map.direct_vtimer) &&
        !kvm_timer_irq_can_fire(map.direct_ptimer) &&
        !kvm_timer_irq_can_fire(map.emul_vtimer) &&
        !kvm_timer_irq_can_fire(map.emul_ptimer) &&
        !vcpu_has_wfit_active(vcpu))
        return;

    /*
     * At least one guest time will expire. Schedule a background timer.
     * Set the earliest expiration time among the guest timers.
     */
    soft_timer_start(&timer->bg_timer, kvm_timer_earliest_exp(vcpu));
}

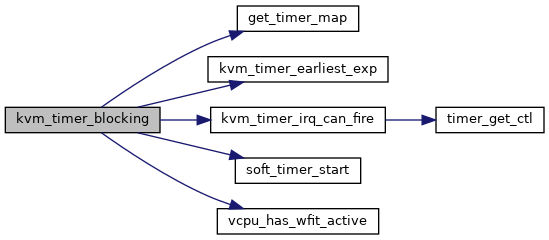

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_compute_delta()

static u64 kvm_timer_compute_delta ( struct arch_timer_context *  timer_ctx )

static

Definition at line 274 of file arch_timer.c.

{
    return kvm_counter_compute_delta(timer_ctx, timer_get_cval(timer_ctx));
}

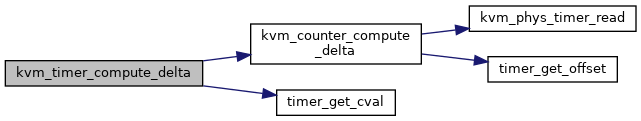

Here is the call graph for this function:

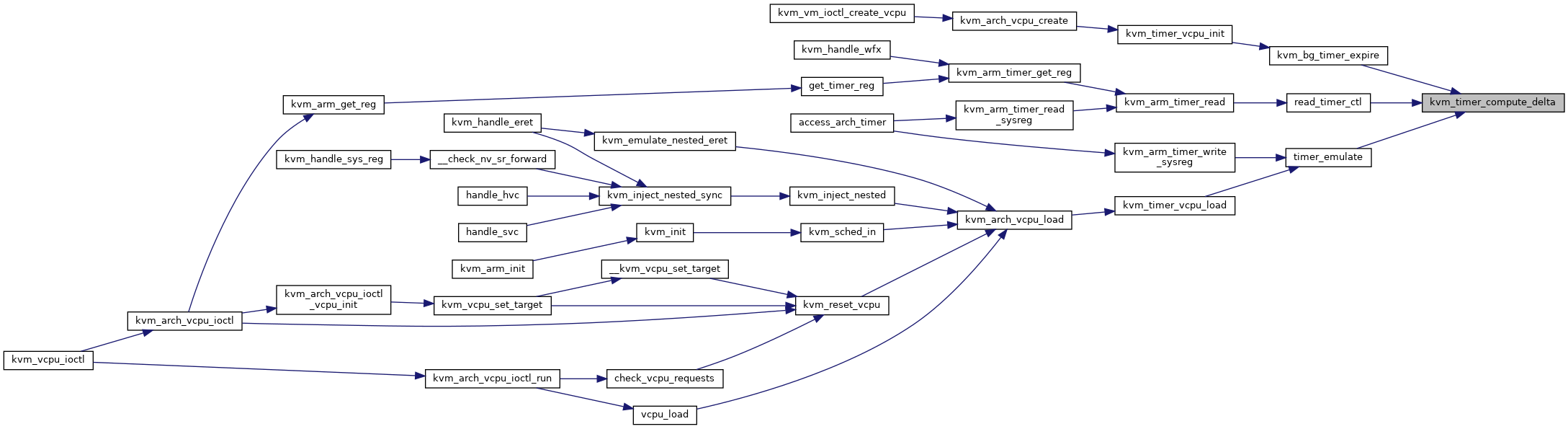

Here is the caller graph for this function:

kvm_timer_cpu_down()

void kvm_timer_cpu_down

(

void

)

Definition at line 1041 of file arch_timer.c.

{
    disable_percpu_irq(host_vtimer_irq);
    if (host_ptimer_irq)
        disable_percpu_irq(host_ptimer_irq);
}

Here is the caller graph for this function:

kvm_timer_cpu_up()

void kvm_timer_cpu_up

(

void

)

Definition at line 1034 of file arch_timer.c.

{
    enable_percpu_irq(host_vtimer_irq, host_vtimer_irq_flags);
    if (host_ptimer_irq)
        enable_percpu_irq(host_ptimer_irq, host_ptimer_irq_flags);
}

Here is the caller graph for this function:

kvm_timer_earliest_exp()

static u64 kvm_timer_earliest_exp ( struct kvm_vcpu *  vcpu )

static

Definition at line 307 of file arch_timer.c.

{
    u64 min_delta = ULLONG_MAX;
    int i;

    for (i = 0; i < nr_timers(vcpu); i++) {
        struct arch_timer_context *ctx = &vcpu->arch.timer_cpu.timers[i];

        WARN(ctx->loaded, "timer %d loaded\n", i);
        if (kvm_timer_irq_can_fire(ctx))
            min_delta = min(min_delta, kvm_timer_compute_delta(ctx));
    }

    if (vcpu_has_wfit_active(vcpu))
        min_delta = min(min_delta, wfit_delay_ns(vcpu));

    /* If none of timers can fire, then return 0 */
    if (min_delta == ULLONG_MAX)
        return 0;

    return min_delta;
}

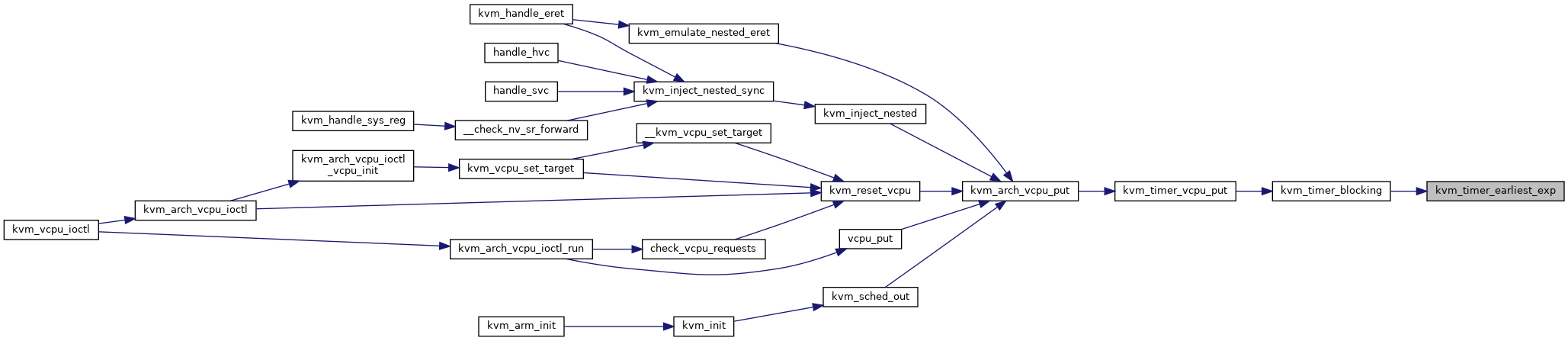

Here is the caller graph for this function:

kvm_timer_enable()

int kvm_timer_enable

(

struct kvm_vcpu *

vcpu

)

Definition at line 1506 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);
    struct timer_map map;
    int ret;

    if (timer->enabled)
        return 0;

    /* Without a VGIC we do not map virtual IRQs to physical IRQs */
    if (!irqchip_in_kernel(vcpu->kvm))
        goto no_vgic;

    /*
     * At this stage, we have the guarantee that the vgic is both
     * available and initialized.
     */
    if (!timer_irqs_are_valid(vcpu)) {
        kvm_debug("incorrectly configured timer irqs\n");
        return -EINVAL;
    }

    get_timer_map(vcpu, &map);

    ret = kvm_vgic_map_phys_irq(vcpu,
                    map.direct_vtimer->host_timer_irq,
                    timer_irq(map.direct_vtimer),
                    &arch_timer_irq_ops);
    if (ret)
        return ret;

    if (map.direct_ptimer) {
        ret = kvm_vgic_map_phys_irq(vcpu,
                        map.direct_ptimer->host_timer_irq,
                        timer_irq(map.direct_ptimer),
                        &arch_timer_irq_ops);
    }

    if (ret)
        return ret;

no_vgic:
    timer->enabled = 1;
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_hyp_init()

int __init kvm_timer_hyp_init

(

bool

has_gic

)

Definition at line 1367 of file arch_timer.c.

{
    struct arch_timer_kvm_info *info;
    int err;

    info = arch_timer_get_kvm_info();
    timecounter = &info->timecounter;

    if (!timecounter->cc) {
        kvm_err("kvm_arch_timer: uninitialized timecounter\n");
        return -ENODEV;
    }

    err = kvm_irq_init(info);
    if (err)
        return err;

    /* First, do the virtual EL1 timer irq */

    err = request_percpu_irq(host_vtimer_irq, kvm_arch_timer_handler,
                 "kvm guest vtimer", kvm_get_running_vcpus());
    if (err) {
        kvm_err("kvm_arch_timer: can't request vtimer interrupt %d (%d)\n",
            host_vtimer_irq, err);
        return err;
    }

    if (has_gic) {
        err = irq_set_vcpu_affinity(host_vtimer_irq,
                        kvm_get_running_vcpus());
        if (err) {
            kvm_err("kvm_arch_timer: error setting vcpu affinity\n");
            goto out_free_vtimer_irq;
        }

        static_branch_enable(&has_gic_active_state);
    }

    kvm_debug("virtual timer IRQ%d\n", host_vtimer_irq);

    /* Now let's do the physical EL1 timer irq */

    if (info->physical_irq > 0) {
        err = request_percpu_irq(host_ptimer_irq, kvm_arch_timer_handler,
                     "kvm guest ptimer", kvm_get_running_vcpus());
        if (err) {
            kvm_err("kvm_arch_timer: can't request ptimer interrupt %d (%d)\n",
                host_ptimer_irq, err);
            goto out_free_vtimer_irq;
        }

        if (has_gic) {
            err = irq_set_vcpu_affinity(host_ptimer_irq,
                            kvm_get_running_vcpus());
            if (err) {
                kvm_err("kvm_arch_timer: error setting vcpu affinity\n");
                goto out_free_ptimer_irq;
            }
        }

        kvm_debug("physical timer IRQ%d\n", host_ptimer_irq);
    } else if (has_vhe()) {
        kvm_err("kvm_arch_timer: invalid physical timer IRQ: %d\n",
            info->physical_irq);
        err = -ENODEV;
        goto out_free_vtimer_irq;
    }

    return 0;

out_free_ptimer_irq:
    if (info->physical_irq > 0)
        free_percpu_irq(host_ptimer_irq, kvm_get_running_vcpus());
out_free_vtimer_irq:
    free_percpu_irq(host_vtimer_irq, kvm_get_running_vcpus());
    return err;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_init_vhe()

void kvm_timer_init_vhe

(

void

)

Definition at line 1553 of file arch_timer.c.

{
    if (cpus_have_final_cap(ARM64_HAS_ECV_CNTPOFF))
        sysreg_clear_set(cnthctl_el2, 0, CNTHCTL_ECV);
}

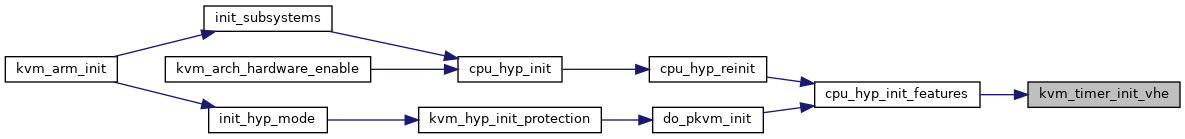

Here is the caller graph for this function:

kvm_timer_init_vm()

void kvm_timer_init_vm

(

struct kvm *

kvm

)

Definition at line 1028 of file arch_timer.c.

{
    for (int i = 0; i < NR_KVM_TIMERS; i++)
        kvm->arch.timer_data.ppi[i] = default_ppi[i];
}

Here is the caller graph for this function:

kvm_timer_irq_can_fire()

static bool kvm_timer_irq_can_fire ( struct arch_timer_context *  timer_ctx )

static

Definition at line 279 of file arch_timer.c.

{
    WARN_ON(timer_ctx && timer_ctx->loaded);
    return timer_ctx &&
        ((timer_get_ctl(timer_ctx) &
          (ARCH_TIMER_CTRL_IT_MASK | ARCH_TIMER_CTRL_ENABLE)) == ARCH_TIMER_CTRL_ENABLE);
}

Here is the call graph for this function:

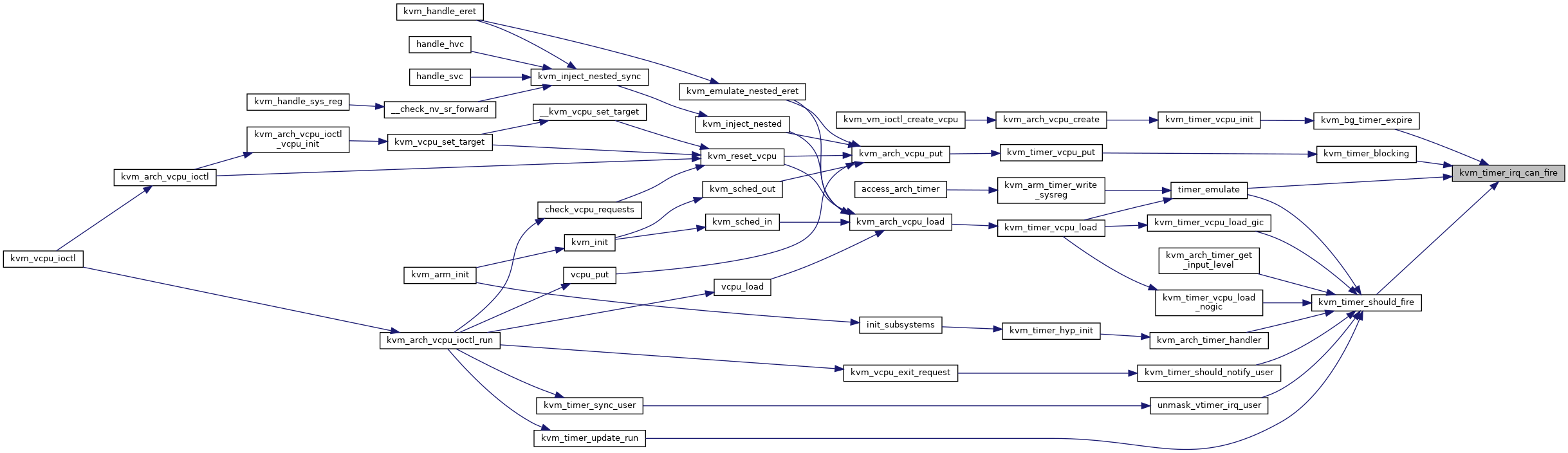

Here is the caller graph for this function:

kvm_timer_should_fire()

static bool kvm_timer_should_fire ( struct arch_timer_context *  timer_ctx )

static

Definition at line 380 of file arch_timer.c.

{
    enum kvm_arch_timers index;
    u64 cval, now;

    if (!timer_ctx)
        return false;

    index = arch_timer_ctx_index(timer_ctx);

    if (timer_ctx->loaded) {
        u32 cnt_ctl = 0;

        switch (index) {
        case TIMER_VTIMER:
        case TIMER_HVTIMER:
            cnt_ctl = read_sysreg_el0(SYS_CNTV_CTL);
            break;
        case TIMER_PTIMER:
        case TIMER_HPTIMER:
            cnt_ctl = read_sysreg_el0(SYS_CNTP_CTL);
            break;
        case NR_KVM_TIMERS:
            /* GCC is braindead */
            cnt_ctl = 0;
            break;
        }

        return  (cnt_ctl & ARCH_TIMER_CTRL_ENABLE) &&
                (cnt_ctl & ARCH_TIMER_CTRL_IT_STAT) &&
               !(cnt_ctl & ARCH_TIMER_CTRL_IT_MASK);
    }

    if (!kvm_timer_irq_can_fire(timer_ctx))
        return false;

    cval = timer_get_cval(timer_ctx);
    now = kvm_phys_timer_read() - timer_get_offset(timer_ctx);

    return cval <= now;
}

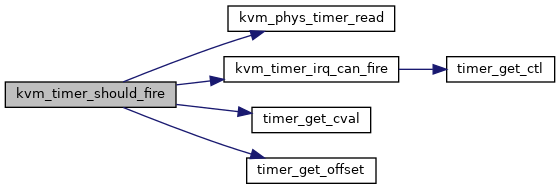

Here is the call graph for this function:

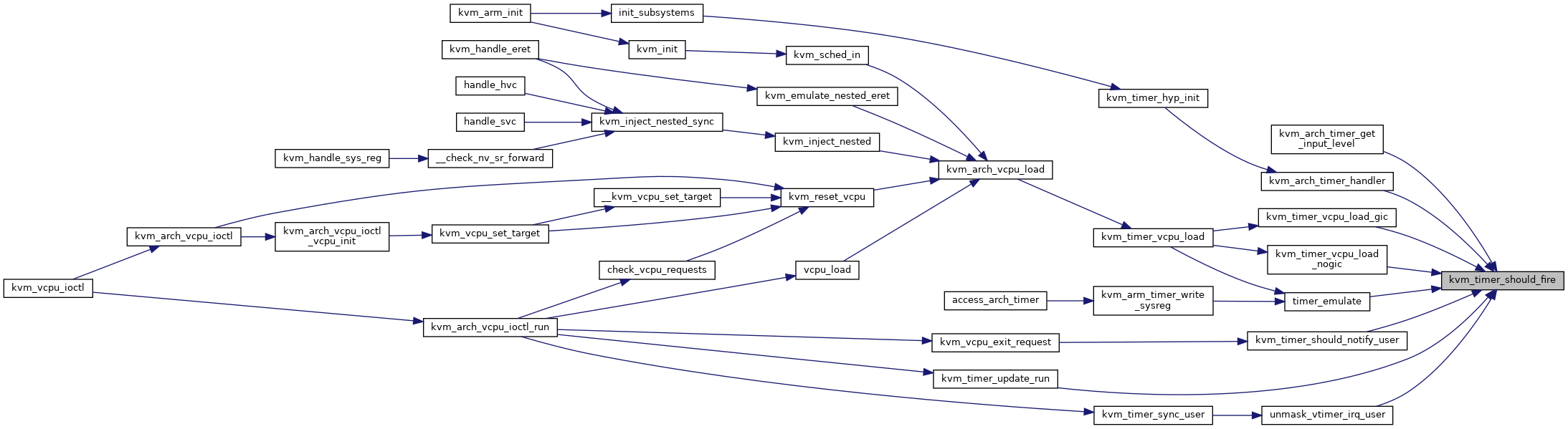

Here is the caller graph for this function:

kvm_timer_should_notify_user()

bool kvm_timer_should_notify_user

(

struct kvm_vcpu *

vcpu

)

Definition at line 860 of file arch_timer.c.

{
    struct arch_timer_context *vtimer = vcpu_vtimer(vcpu);
    struct arch_timer_context *ptimer = vcpu_ptimer(vcpu);
    struct kvm_sync_regs *sregs = &vcpu->run->s.regs;
    bool vlevel, plevel;

    if (likely(irqchip_in_kernel(vcpu->kvm)))
        return false;

    vlevel = sregs->device_irq_level & KVM_ARM_DEV_EL1_VTIMER;
    plevel = sregs->device_irq_level & KVM_ARM_DEV_EL1_PTIMER;

    return kvm_timer_should_fire(vtimer) != vlevel ||
           kvm_timer_should_fire(ptimer) != plevel;
}

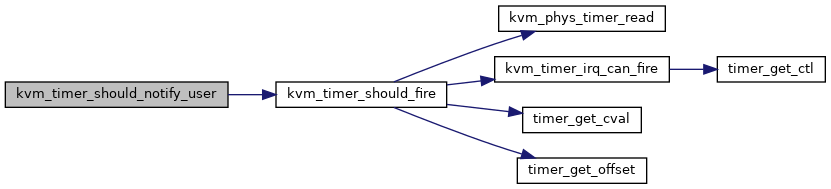

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_sync_user()

void kvm_timer_sync_user

(

struct kvm_vcpu *

vcpu

)

Definition at line 927 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);

    if (unlikely(!timer->enabled))
        return;

    if (unlikely(!irqchip_in_kernel(vcpu->kvm)))
        unmask_vtimer_irq_user(vcpu);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_unblocking()

static void kvm_timer_unblocking ( struct kvm_vcpu *  vcpu )

static

Definition at line 596 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);

    soft_timer_cancel(&timer->bg_timer);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_update_irq()

static void kvm_timer_update_irq ( struct kvm_vcpu *  vcpu, bool  new_level, struct arch_timer_context *  timer_ctx  )

static

Definition at line 445 of file arch_timer.c.

{
    int ret;

    timer_ctx->irq.level = new_level;
    trace_kvm_timer_update_irq(vcpu->vcpu_id, timer_irq(timer_ctx),
                   timer_ctx->irq.level);

    if (!userspace_irqchip(vcpu->kvm)) {
        ret = kvm_vgic_inject_irq(vcpu->kvm, vcpu,
                      timer_irq(timer_ctx),
                      timer_ctx->irq.level,
                      timer_ctx);
        WARN_ON(ret);
    }
}

Here is the call graph for this function:

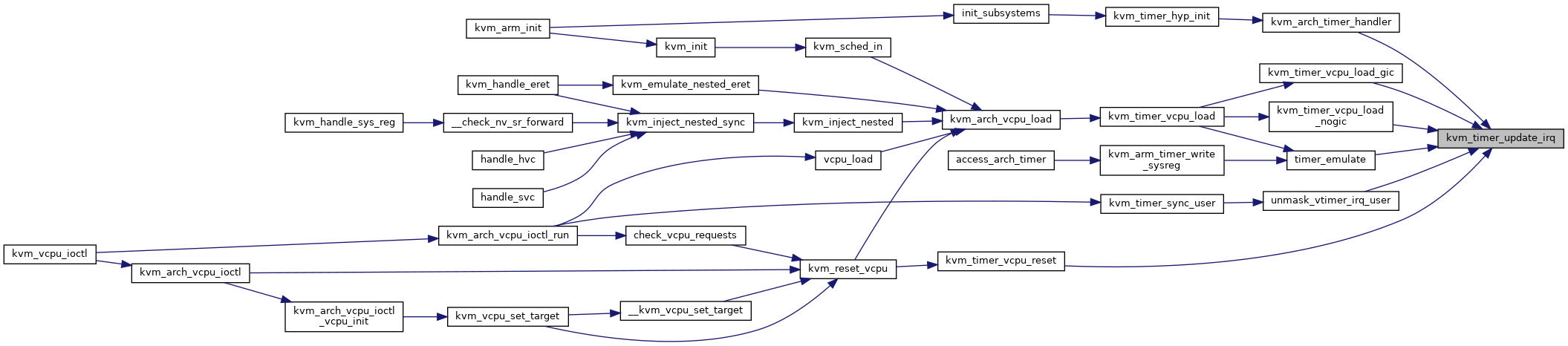

Here is the caller graph for this function:

kvm_timer_update_run()

void kvm_timer_update_run

(

struct kvm_vcpu *

vcpu

)

Definition at line 430 of file arch_timer.c.

{
    struct arch_timer_context *vtimer = vcpu_vtimer(vcpu);
    struct arch_timer_context *ptimer = vcpu_ptimer(vcpu);
    struct kvm_sync_regs *regs = &vcpu->run->s.regs;

    /* Populate the device bitmap with the timer states */
    regs->device_irq_level &= ~(KVM_ARM_DEV_EL1_VTIMER |
                    KVM_ARM_DEV_EL1_PTIMER);
    if (kvm_timer_should_fire(vtimer))
        regs->device_irq_level |= KVM_ARM_DEV_EL1_VTIMER;
    if (kvm_timer_should_fire(ptimer))
        regs->device_irq_level |= KVM_ARM_DEV_EL1_PTIMER;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_vcpu_init()

void kvm_timer_vcpu_init

(

struct kvm_vcpu *

vcpu

)

Definition at line 1011 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);

    for (int i = 0; i < NR_KVM_TIMERS; i++)
        timer_context_init(vcpu, i);

    /* Synchronize offsets across timers of a VM if not already provided */
    if (!test_bit(KVM_ARCH_FLAG_VM_COUNTER_OFFSET, &vcpu->kvm->arch.flags)) {
        timer_set_offset(vcpu_vtimer(vcpu), kvm_phys_timer_read());
        timer_set_offset(vcpu_ptimer(vcpu), 0);
    }

    hrtimer_init(&timer->bg_timer, CLOCK_MONOTONIC, HRTIMER_MODE_ABS_HARD);
    timer->bg_timer.function = kvm_bg_timer_expire;
}

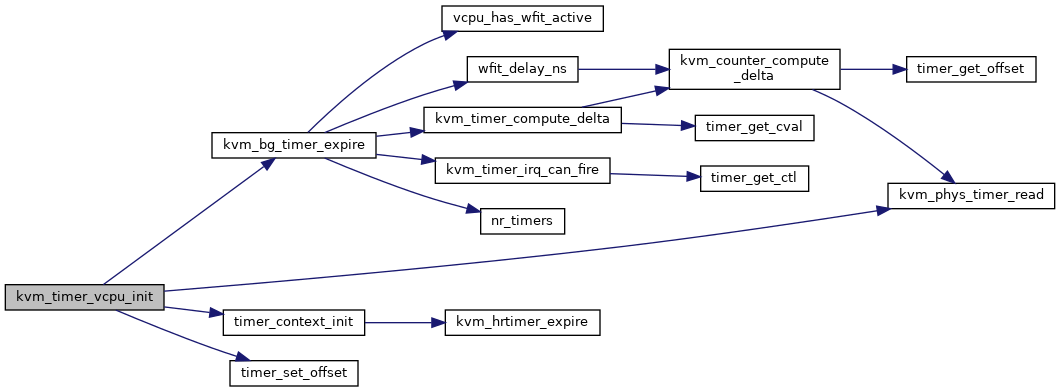

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_vcpu_load()

void kvm_timer_vcpu_load

(

struct kvm_vcpu *

vcpu

)

Definition at line 826 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);
    struct timer_map map;

    if (unlikely(!timer->enabled))
        return;

    get_timer_map(vcpu, &map);

    if (static_branch_likely(&has_gic_active_state)) {
        if (vcpu_has_nv(vcpu))
            kvm_timer_vcpu_load_nested_switch(vcpu, &map);

        kvm_timer_vcpu_load_gic(map.direct_vtimer);
        if (map.direct_ptimer)
            kvm_timer_vcpu_load_gic(map.direct_ptimer);
    } else {
        kvm_timer_vcpu_load_nogic(vcpu);
    }

    kvm_timer_unblocking(vcpu);

    timer_restore_state(map.direct_vtimer);
    if (map.direct_ptimer)
        timer_restore_state(map.direct_ptimer);
    if (map.emul_vtimer)
        timer_emulate(map.emul_vtimer);
    if (map.emul_ptimer)
        timer_emulate(map.emul_ptimer);

    timer_set_traps(vcpu, &map);
}

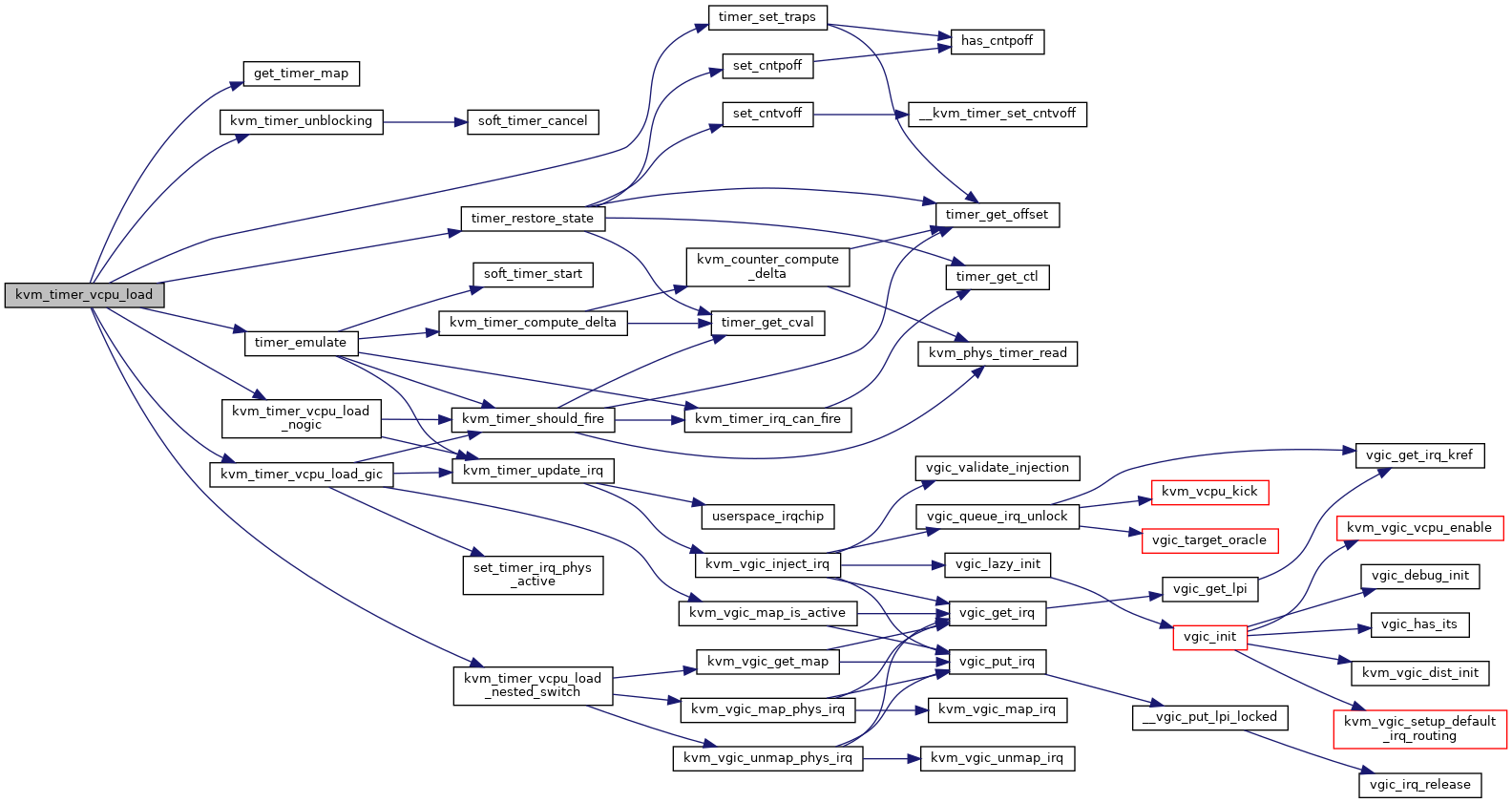

Here is the call graph for this function:

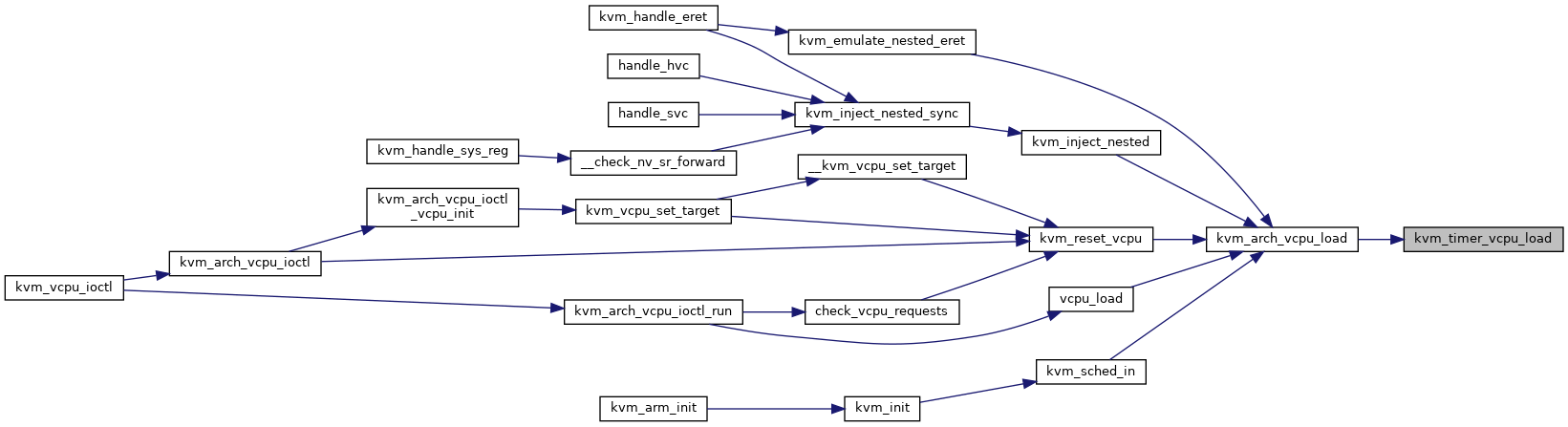

Here is the caller graph for this function:

kvm_timer_vcpu_load_gic()

static void kvm_timer_vcpu_load_gic ( struct arch_timer_context *  ctx )

static

Definition at line 655 of file arch_timer.c.

{
    struct kvm_vcpu *vcpu = ctx->vcpu;
    bool phys_active = false;

    /*
     * Update the timer output so that it is likely to match the
     * state we're about to restore. If the timer expires between
     * this point and the register restoration, we'll take the
     * interrupt anyway.
     */
    kvm_timer_update_irq(ctx->vcpu, kvm_timer_should_fire(ctx), ctx);

    if (irqchip_in_kernel(vcpu->kvm))
        phys_active = kvm_vgic_map_is_active(vcpu, timer_irq(ctx));

    phys_active |= ctx->irq.level;

    set_timer_irq_phys_active(ctx, phys_active);
}

Here is the call graph for this function:

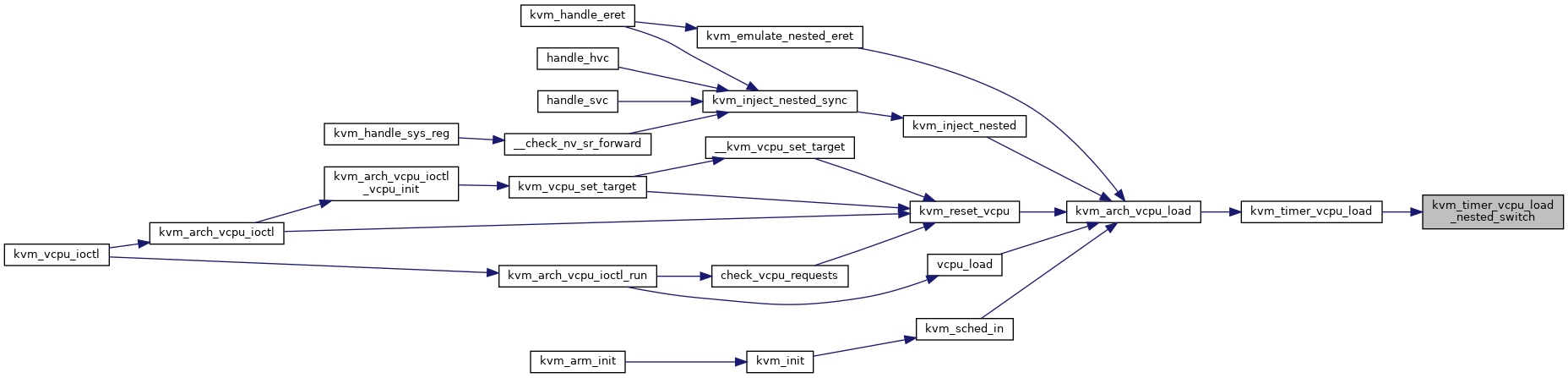

Here is the caller graph for this function:

kvm_timer_vcpu_load_nested_switch()

static void kvm_timer_vcpu_load_nested_switch ( struct kvm_vcpu *  vcpu, struct timer_map *  map  )

static

Definition at line 713 of file arch_timer.c.

{
    int hw, ret;

    if (!irqchip_in_kernel(vcpu->kvm))
        return;

    /*
     * We only ever unmap the vtimer irq on a VHE system that runs nested
     * virtualization, in which case we have both a valid emul_vtimer,
     * emul_ptimer, direct_vtimer, and direct_ptimer.
     *
     * Since this is called from kvm_timer_vcpu_load(), a change between
     * vEL2 and vEL1/0 will have just happened, and the timer_map will
     * represent this, and therefore we switch the emul/direct mappings
     * below.
     */
    hw = kvm_vgic_get_map(vcpu, timer_irq(map->direct_vtimer));
    if (hw < 0) {
        kvm_vgic_unmap_phys_irq(vcpu, timer_irq(map->emul_vtimer));
        kvm_vgic_unmap_phys_irq(vcpu, timer_irq(map->emul_ptimer));

        ret = kvm_vgic_map_phys_irq(vcpu,
                        map->direct_vtimer->host_timer_irq,
                        timer_irq(map->direct_vtimer),
                        &arch_timer_irq_ops);
        WARN_ON_ONCE(ret);
        ret = kvm_vgic_map_phys_irq(vcpu,
                        map->direct_ptimer->host_timer_irq,
                        timer_irq(map->direct_ptimer),
                        &arch_timer_irq_ops);
        WARN_ON_ONCE(ret);

        /*
         * The virtual offset behaviour is "interresting", as it
         * always applies when HCR_EL2.E2H==0, but only when
         * accessed from EL1 when HCR_EL2.E2H==1. So make sure we
         * track E2H when putting the HV timer in "direct" mode.
         */
        if (map->direct_vtimer == vcpu_hvtimer(vcpu)) {
            struct arch_timer_offset *offs = &map->direct_vtimer->offset;

            if (vcpu_el2_e2h_is_set(vcpu))
                offs->vcpu_offset = NULL;
            else
                offs->vcpu_offset = &__vcpu_sys_reg(vcpu, CNTVOFF_EL2);
        }
    }
}

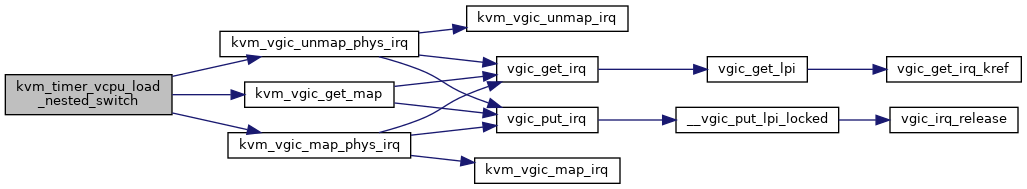

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_vcpu_load_nogic()

static void kvm_timer_vcpu_load_nogic ( struct kvm_vcpu *  vcpu )

static

Definition at line 676 of file arch_timer.c.

{
    struct arch_timer_context *vtimer = vcpu_vtimer(vcpu);

    /*
     * Update the timer output so that it is likely to match the
     * state we're about to restore. If the timer expires between
     * this point and the register restoration, we'll take the
     * interrupt anyway.
     */
    kvm_timer_update_irq(vcpu, kvm_timer_should_fire(vtimer), vtimer);

    /*
     * When using a userspace irqchip with the architected timers and a
     * host interrupt controller that doesn't support an active state, we
     * must still prevent continuously exiting from the guest, and
     * therefore mask the physical interrupt by disabling it on the host
     * interrupt controller when the virtual level is high, such that the
     * guest can make forward progress.  Once we detect the output level
     * being de-asserted, we unmask the interrupt again so that we exit
     * from the guest when the timer fires.
     */
    if (vtimer->irq.level)
        disable_percpu_irq(host_vtimer_irq);
    else
        enable_percpu_irq(host_vtimer_irq, host_vtimer_irq_flags);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_vcpu_put()

void kvm_timer_vcpu_put

(

struct kvm_vcpu *

vcpu

)

Definition at line 877 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);
    struct timer_map map;

    if (unlikely(!timer->enabled))
        return;

    get_timer_map(vcpu, &map);

    timer_save_state(map.direct_vtimer);
    if (map.direct_ptimer)
        timer_save_state(map.direct_ptimer);

    /*
     * Cancel soft timer emulation, because the only case where we
     * need it after a vcpu_put is in the context of a sleeping VCPU, and
     * in that case we already factor in the deadline for the physical
     * timer when scheduling the bg_timer.
     *
     * In any case, we re-schedule the hrtimer for the physical timer when
     * coming back to the VCPU thread in kvm_timer_vcpu_load().
     */
    if (map.emul_vtimer)
        soft_timer_cancel(&map.emul_vtimer->hrtimer);
    if (map.emul_ptimer)
        soft_timer_cancel(&map.emul_ptimer->hrtimer);

    if (kvm_vcpu_is_blocking(vcpu))
        kvm_timer_blocking(vcpu);
}

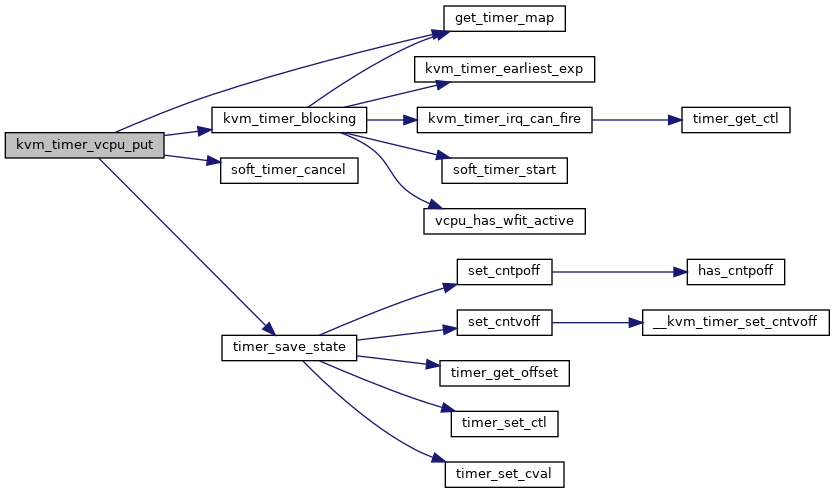

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_timer_vcpu_reset()

void kvm_timer_vcpu_reset

(

struct kvm_vcpu *

vcpu

)

Definition at line 938 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);
    struct timer_map map;

    get_timer_map(vcpu, &map);

    /*
     * The bits in CNTV_CTL are architecturally reset to UNKNOWN for ARMv8
     * and to 0 for ARMv7.  We provide an implementation that always
     * resets the timer to be disabled and unmasked and is compliant with
     * the ARMv7 architecture.
     */
    for (int i = 0; i < nr_timers(vcpu); i++)
        timer_set_ctl(vcpu_get_timer(vcpu, i), 0);

    /*
     * A vcpu running at EL2 is in charge of the offset applied to
     * the virtual timer, so use the physical VM offset, and point
     * the vcpu offset to CNTVOFF_EL2.
     */
    if (vcpu_has_nv(vcpu)) {
        struct arch_timer_offset *offs = &vcpu_vtimer(vcpu)->offset;

        offs->vcpu_offset = &__vcpu_sys_reg(vcpu, CNTVOFF_EL2);
        offs->vm_offset = &vcpu->kvm->arch.timer_data.poffset;
    }

    if (timer->enabled) {
        for (int i = 0; i < nr_timers(vcpu); i++)
            kvm_timer_update_irq(vcpu, false,
                         vcpu_get_timer(vcpu, i));

        if (irqchip_in_kernel(vcpu->kvm)) {
            kvm_vgic_reset_mapped_irq(vcpu, timer_irq(map.direct_vtimer));
            if (map.direct_ptimer)
                kvm_vgic_reset_mapped_irq(vcpu, timer_irq(map.direct_ptimer));
        }
    }

    if (map.emul_vtimer)
        soft_timer_cancel(&map.emul_vtimer->hrtimer);
    if (map.emul_ptimer)
        soft_timer_cancel(&map.emul_ptimer->hrtimer);
}

Here is the call graph for this function:

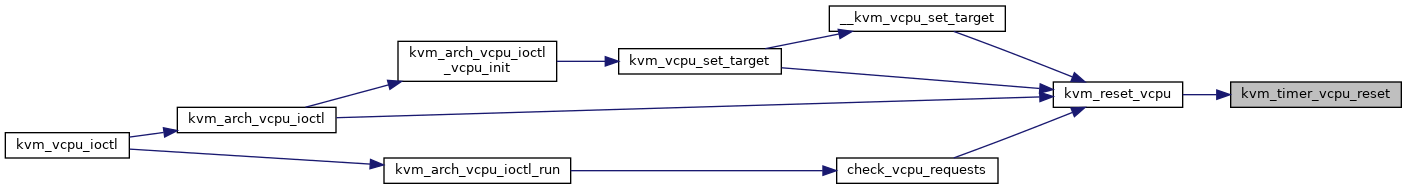

Here is the caller graph for this function:

kvm_timer_vcpu_terminate()

void kvm_timer_vcpu_terminate

(

struct kvm_vcpu *

vcpu

)

Definition at line 1445 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(vcpu);

    soft_timer_cancel(&timer->bg_timer);
}

Here is the call graph for this function:

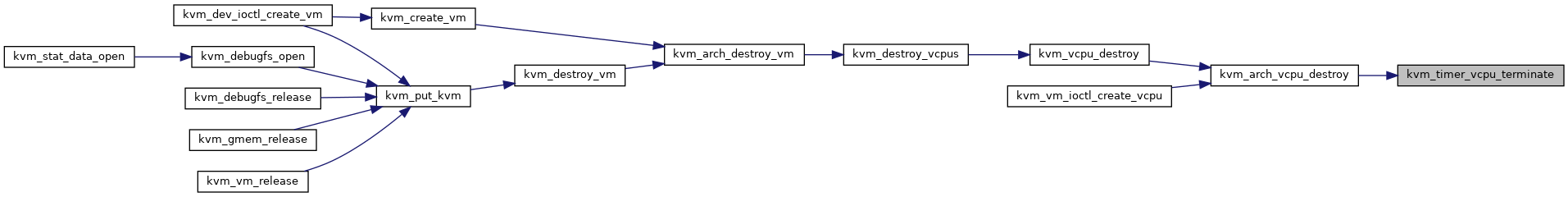

Here is the caller graph for this function:

kvm_vm_ioctl_set_counter_offset()

int kvm_vm_ioctl_set_counter_offset	(	struct kvm *	kvm,
		struct kvm_arm_counter_offset *	offset
	)

Definition at line 1651 of file arch_timer.c.

{
    int ret = 0;

    if (offset->reserved)
        return -EINVAL;

    mutex_lock(&kvm->lock);

    if (lock_all_vcpus(kvm)) {
        set_bit(KVM_ARCH_FLAG_VM_COUNTER_OFFSET, &kvm->arch.flags);

        /*
         * If userspace decides to set the offset using this
         * API rather than merely restoring the counter
         * values, the offset applies to both the virtual and
         * physical views.
         */
        kvm->arch.timer_data.voffset = offset->counter_offset;
        kvm->arch.timer_data.poffset = offset->counter_offset;

        unlock_all_vcpus(kvm);
    } else {
        ret = -EBUSY;
    }

    mutex_unlock(&kvm->lock);

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

nr_timers()

static int nr_timers ( struct kvm_vcpu *  vcpu )

static

Definition at line 58 of file arch_timer.c.

{
    if (!vcpu_has_nv(vcpu))
        return NR_KVM_EL0_TIMERS;

    return NR_KVM_TIMERS;
}

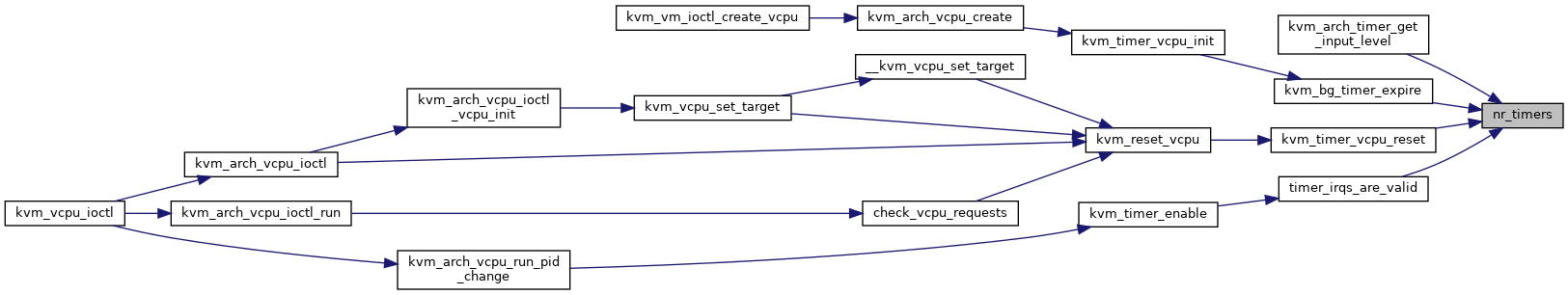

Here is the caller graph for this function:

read_timer_ctl()

static u64 read_timer_ctl ( struct arch_timer_context *  timer )

static

Definition at line 1091 of file arch_timer.c.

{
    /*
     * Set ISTATUS bit if it's expired.
     * Note that according to ARMv8 ARM Issue A.k, ISTATUS bit is
     * UNKNOWN when ENABLE bit is 0, so we chose to set ISTATUS bit
     * regardless of ENABLE bit for our implementation convenience.
     */
    u32 ctl = timer_get_ctl(timer);

    if (!kvm_timer_compute_delta(timer))
        ctl |= ARCH_TIMER_CTRL_IT_STAT;

    return ctl;
}

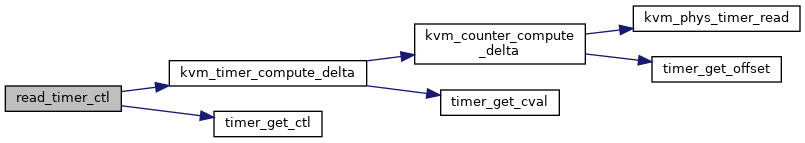

Here is the call graph for this function:

Here is the caller graph for this function:

set_cntpoff()

static void set_cntpoff ( u64  cntpoff )

static

Definition at line 491 of file arch_timer.c.

{
    if (has_cntpoff())
        write_sysreg_s(cntpoff, SYS_CNTPOFF_EL2);
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_cntvoff()

static void set_cntvoff ( u64  cntvoff )

static

Definition at line 486 of file arch_timer.c.

{
    kvm_call_hyp(__kvm_timer_set_cntvoff, cntvoff);
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_timer_irq_phys_active()

static void set_timer_irq_phys_active ( struct arch_timer_context *  ctx, bool  active  )

inlinestatic

Definition at line 648 of file arch_timer.c.

{
    int r;
    r = irq_set_irqchip_state(ctx->host_timer_irq, IRQCHIP_STATE_ACTIVE, active);
    WARN_ON(r);
}

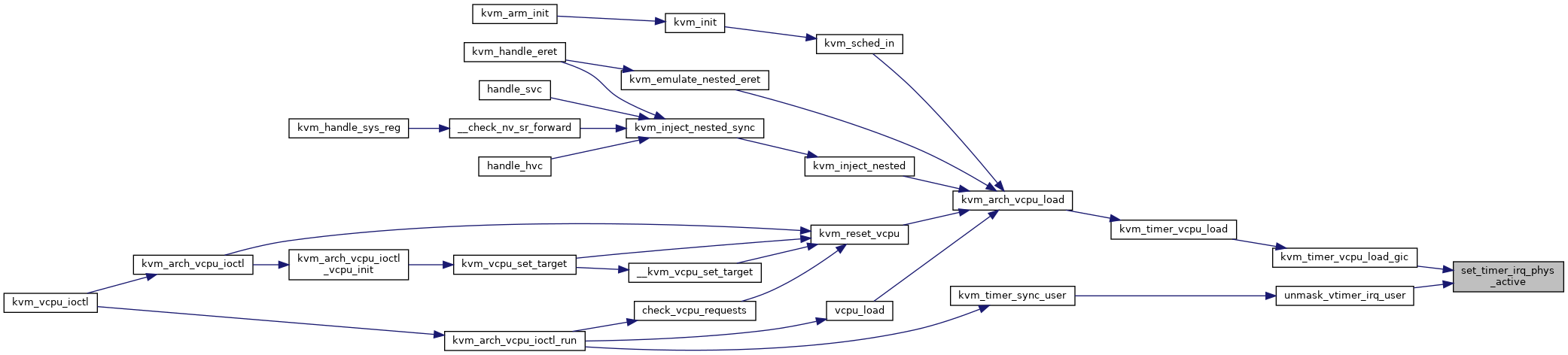

Here is the caller graph for this function:

soft_timer_cancel()

static void soft_timer_cancel ( struct hrtimer *  hrt )

static

Definition at line 219 of file arch_timer.c.

{
    hrtimer_cancel(hrt);
}

Here is the caller graph for this function:

soft_timer_start()

static void soft_timer_start ( struct hrtimer *  hrt, u64  ns  )

static

Definition at line 213 of file arch_timer.c.

{
    hrtimer_start(hrt, ktime_add_ns(ktime_get(), ns),
              HRTIMER_MODE_ABS_HARD);
}

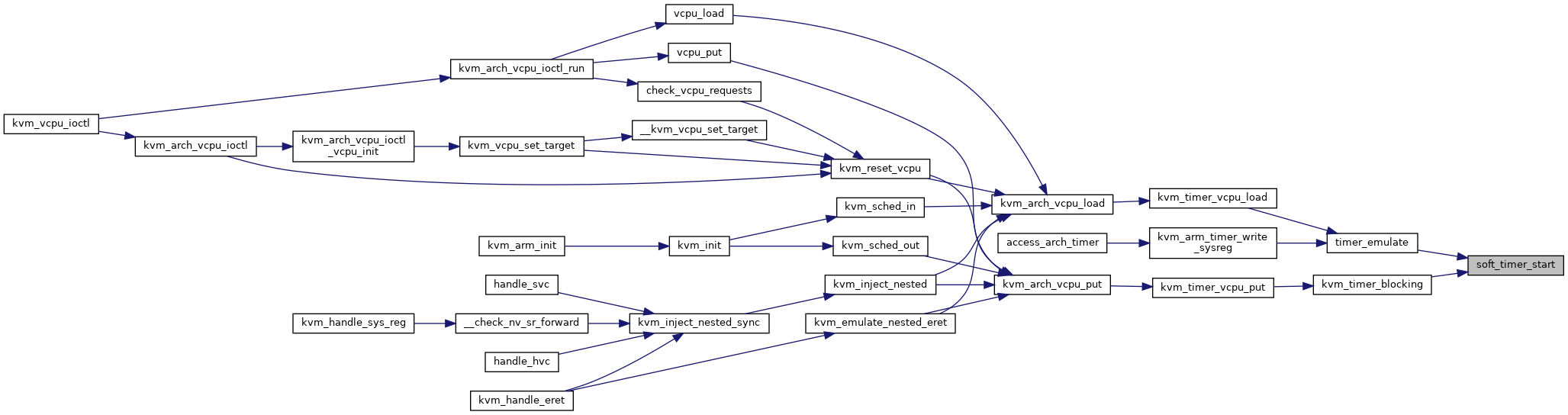

Here is the caller graph for this function:

timer_context_init()

static void timer_context_init ( struct kvm_vcpu *  vcpu, int  timerid  )

static

Definition at line 984 of file arch_timer.c.

{
    struct arch_timer_context *ctxt = vcpu_get_timer(vcpu, timerid);
    struct kvm *kvm = vcpu->kvm;

    ctxt->vcpu = vcpu;

    if (timerid == TIMER_VTIMER)
        ctxt->offset.vm_offset = &kvm->arch.timer_data.voffset;
    else
        ctxt->offset.vm_offset = &kvm->arch.timer_data.poffset;

    hrtimer_init(&ctxt->hrtimer, CLOCK_MONOTONIC, HRTIMER_MODE_ABS_HARD);
    ctxt->hrtimer.function = kvm_hrtimer_expire;

    switch (timerid) {
    case TIMER_PTIMER:
    case TIMER_HPTIMER:
        ctxt->host_timer_irq = host_ptimer_irq;
        break;
    case TIMER_VTIMER:
    case TIMER_HVTIMER:
        ctxt->host_timer_irq = host_vtimer_irq;
        break;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

timer_emulate()

static void timer_emulate ( struct arch_timer_context *  ctx )

static

Definition at line 464 of file arch_timer.c.

{
    bool should_fire = kvm_timer_should_fire(ctx);

    trace_kvm_timer_emulate(ctx, should_fire);

    if (should_fire != ctx->irq.level) {
        kvm_timer_update_irq(ctx->vcpu, should_fire, ctx);
        return;
    }

    /*
     * If the timer can fire now, we don't need to have a soft timer
     * scheduled for the future.  If the timer cannot fire at all,
     * then we also don't need a soft timer.
     */
    if (should_fire || !kvm_timer_irq_can_fire(ctx))
        return;

    soft_timer_start(&ctx->hrtimer, kvm_timer_compute_delta(ctx));
}

Here is the call graph for this function:

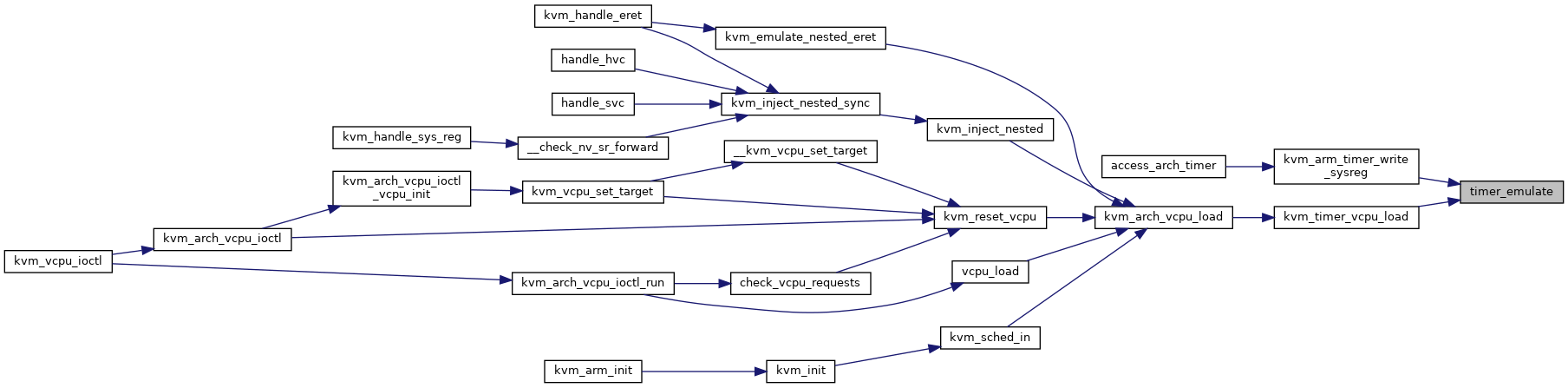

Here is the caller graph for this function:

timer_get_ctl()

u32 timer_get_ctl

(

struct arch_timer_context *

ctxt

)

Definition at line 66 of file arch_timer.c.

{
    struct kvm_vcpu *vcpu = ctxt->vcpu;

    switch(arch_timer_ctx_index(ctxt)) {
    case TIMER_VTIMER:
        return __vcpu_sys_reg(vcpu, CNTV_CTL_EL0);
    case TIMER_PTIMER:
        return __vcpu_sys_reg(vcpu, CNTP_CTL_EL0);
    case TIMER_HVTIMER:
        return __vcpu_sys_reg(vcpu, CNTHV_CTL_EL2);
    case TIMER_HPTIMER:
        return __vcpu_sys_reg(vcpu, CNTHP_CTL_EL2);
    default:
        WARN_ON(1);
        return 0;
    }
}

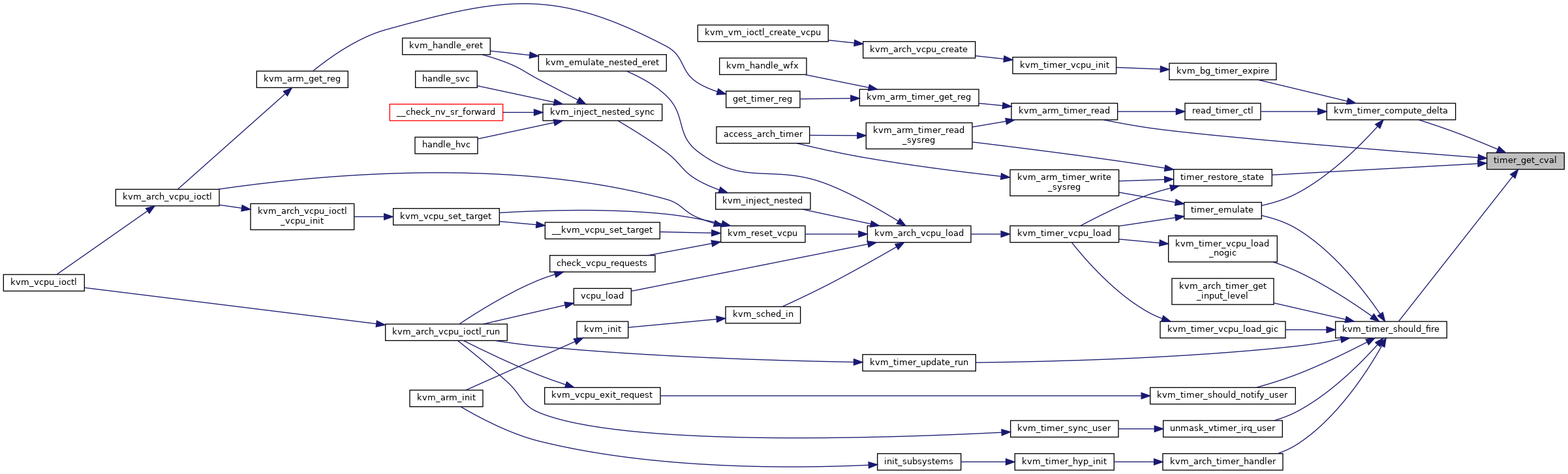

Here is the caller graph for this function:

timer_get_cval()

u64 timer_get_cval

(

struct arch_timer_context *

ctxt

)

Definition at line 85 of file arch_timer.c.

{
    struct kvm_vcpu *vcpu = ctxt->vcpu;

    switch(arch_timer_ctx_index(ctxt)) {
    case TIMER_VTIMER:
        return __vcpu_sys_reg(vcpu, CNTV_CVAL_EL0);
    case TIMER_PTIMER:
        return __vcpu_sys_reg(vcpu, CNTP_CVAL_EL0);
    case TIMER_HVTIMER:
        return __vcpu_sys_reg(vcpu, CNTHV_CVAL_EL2);
    case TIMER_HPTIMER:
        return __vcpu_sys_reg(vcpu, CNTHP_CVAL_EL2);
    default:
        WARN_ON(1);
        return 0;
    }
}

Here is the caller graph for this function:

timer_get_offset()

static u64 timer_get_offset ( struct arch_timer_context *  ctxt )

static

Definition at line 104 of file arch_timer.c.

{
    u64 offset = 0;

    if (!ctxt)
        return 0;

    if (ctxt->offset.vm_offset)
        offset += *ctxt->offset.vm_offset;
    if (ctxt->offset.vcpu_offset)
        offset += *ctxt->offset.vcpu_offset;

    return offset;
}

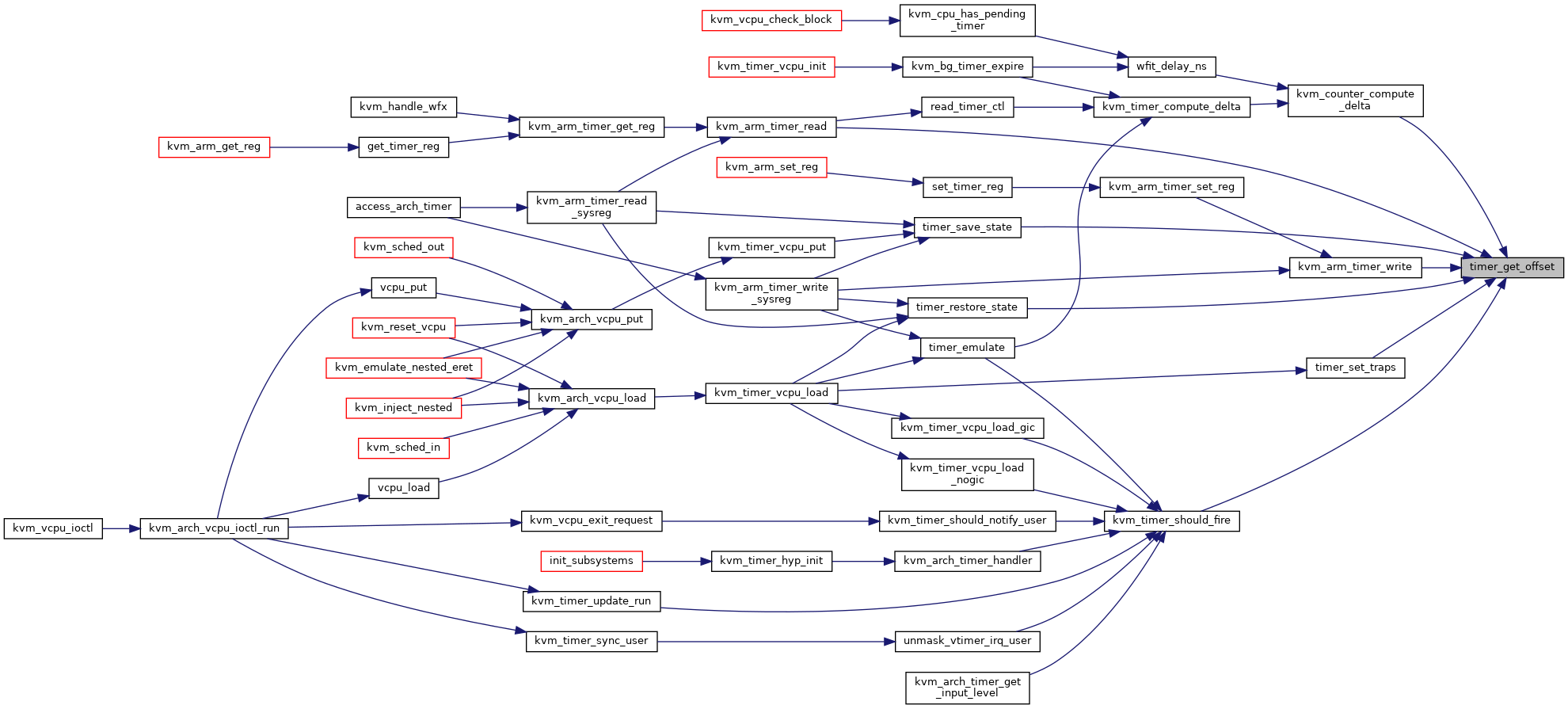

Here is the caller graph for this function:

timer_irq_ack()

static void timer_irq_ack ( struct irq_data *  d )

static

Definition at line 1272 of file arch_timer.c.

{
    d = d->parent_data;
    if (d->chip->irq_ack)
        d->chip->irq_ack(d);
}

timer_irq_domain_alloc()

static int timer_irq_domain_alloc ( struct irq_domain *  domain, unsigned int  virq, unsigned int  nr_irqs, void *  arg  )

static

Definition at line 1290 of file arch_timer.c.

{
    irq_hw_number_t hwirq = (uintptr_t)arg;

    return irq_domain_set_hwirq_and_chip(domain, virq, hwirq,
                         &timer_chip, NULL);
}

timer_irq_domain_free()

static void timer_irq_domain_free ( struct irq_domain *  domain, unsigned int  virq, unsigned int  nr_irqs  )

static

Definition at line 1299 of file arch_timer.c.

{
}

timer_irq_eoi()

static void timer_irq_eoi ( struct irq_data *  d )

static

Definition at line 1266 of file arch_timer.c.

{
    if (!irqd_is_forwarded_to_vcpu(d))
        irq_chip_eoi_parent(d);
}

timer_irq_set_irqchip_state()

static int timer_irq_set_irqchip_state ( struct irq_data *  d, enum irqchip_irq_state  which, bool  val  )

static

Definition at line 1252 of file arch_timer.c.

{
    if (which != IRQCHIP_STATE_ACTIVE || !irqd_is_forwarded_to_vcpu(d))
        return irq_chip_set_parent_state(d, which, val);

    if (val)
        irq_chip_mask_parent(d);
    else
        irq_chip_unmask_parent(d);

    return 0;
}

timer_irq_set_vcpu_affinity()

static int timer_irq_set_vcpu_affinity ( struct irq_data *  d, void *  vcpu  )

static

Definition at line 1242 of file arch_timer.c.

{
    if (vcpu)
        irqd_set_forwarded_to_vcpu(d);
    else
        irqd_clr_forwarded_to_vcpu(d);

    return 0;
}

timer_irqs_are_valid()

static bool timer_irqs_are_valid ( struct kvm_vcpu *  vcpu )

static

Definition at line 1452 of file arch_timer.c.

{
    u32 ppis = 0;
    bool valid;

    mutex_lock(&vcpu->kvm->arch.config_lock);

    for (int i = 0; i < nr_timers(vcpu); i++) {
        struct arch_timer_context *ctx;
        int irq;

        ctx = vcpu_get_timer(vcpu, i);
        irq = timer_irq(ctx);
        if (kvm_vgic_set_owner(vcpu, irq, ctx))
            break;

        /*
         * We know by construction that we only have PPIs, so
         * all values are less than 32.
         */
        ppis |= BIT(irq);
    }

    valid = hweight32(ppis) == nr_timers(vcpu);

    if (valid)
        set_bit(KVM_ARCH_FLAG_TIMER_PPIS_IMMUTABLE, &vcpu->kvm->arch.flags);

    mutex_unlock(&vcpu->kvm->arch.config_lock);

    return valid;
}

Here is the call graph for this function:

Here is the caller graph for this function:

timer_restore_state()

static void timer_restore_state ( struct arch_timer_context *  ctx )

static

Definition at line 603 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(ctx->vcpu);
    enum kvm_arch_timers index = arch_timer_ctx_index(ctx);
    unsigned long flags;

    if (!timer->enabled)
        return;

    local_irq_save(flags);

    if (ctx->loaded)
        goto out;

    switch (index) {
        u64 cval, offset;

    case TIMER_VTIMER:
    case TIMER_HVTIMER:
        set_cntvoff(timer_get_offset(ctx));
        write_sysreg_el0(timer_get_cval(ctx), SYS_CNTV_CVAL);
        isb();
        write_sysreg_el0(timer_get_ctl(ctx), SYS_CNTV_CTL);
        break;
    case TIMER_PTIMER:
    case TIMER_HPTIMER:
        cval = timer_get_cval(ctx);
        offset = timer_get_offset(ctx);
        set_cntpoff(offset);
        cval += offset;
        write_sysreg_el0(cval, SYS_CNTP_CVAL);
        isb();
        write_sysreg_el0(timer_get_ctl(ctx), SYS_CNTP_CTL);
        break;
    case NR_KVM_TIMERS:
        BUG();
    }

    trace_kvm_timer_restore_state(ctx);

    ctx->loaded = true;
out:
    local_irq_restore(flags);
}

Here is the call graph for this function:

Here is the caller graph for this function:

timer_save_state()

static void timer_save_state ( struct arch_timer_context *  ctx )

static

Definition at line 497 of file arch_timer.c.

{
    struct arch_timer_cpu *timer = vcpu_timer(ctx->vcpu);
    enum kvm_arch_timers index = arch_timer_ctx_index(ctx);
    unsigned long flags;

    if (!timer->enabled)
        return;

    local_irq_save(flags);

    if (!ctx->loaded)
        goto out;

    switch (index) {
        u64 cval;

    case TIMER_VTIMER:
    case TIMER_HVTIMER:
        timer_set_ctl(ctx, read_sysreg_el0(SYS_CNTV_CTL));
        timer_set_cval(ctx, read_sysreg_el0(SYS_CNTV_CVAL));

        /* Disable the timer */
        write_sysreg_el0(0, SYS_CNTV_CTL);
        isb();

        /*
         * The kernel may decide to run userspace after
         * calling vcpu_put, so we reset cntvoff to 0 to
         * ensure a consistent read between user accesses to
         * the virtual counter and kernel access to the
         * physical counter of non-VHE case.
         *
         * For VHE, the virtual counter uses a fixed virtual
         * offset of zero, so no need to zero CNTVOFF_EL2
         * register, but this is actually useful when switching
         * between EL1/vEL2 with NV.
         *
         * Do it unconditionally, as this is either unavoidable
         * or dirt cheap.
         */
        set_cntvoff(0);
        break;
    case TIMER_PTIMER:
    case TIMER_HPTIMER:
        timer_set_ctl(ctx, read_sysreg_el0(SYS_CNTP_CTL));
        cval = read_sysreg_el0(SYS_CNTP_CVAL);

        cval -= timer_get_offset(ctx);

        timer_set_cval(ctx, cval);

        /* Disable the timer */
        write_sysreg_el0(0, SYS_CNTP_CTL);
        isb();

        set_cntpoff(0);
        break;
    case NR_KVM_TIMERS:
        BUG();
    }

    trace_kvm_timer_save_state(ctx);

    ctx->loaded = false;
out:
    local_irq_restore(flags);
}

Here is the call graph for this function:

Here is the caller graph for this function:

timer_set_ctl()

static void timer_set_ctl ( struct arch_timer_context *  ctxt, u32  ctl  )

static

Definition at line 119 of file arch_timer.c.

{
    struct kvm_vcpu *vcpu = ctxt->vcpu;

    switch(arch_timer_ctx_index(ctxt)) {
    case TIMER_VTIMER:
        __vcpu_sys_reg(vcpu, CNTV_CTL_EL0) = ctl;
        break;
    case TIMER_PTIMER:
        __vcpu_sys_reg(vcpu, CNTP_CTL_EL0) = ctl;
        break;
    case TIMER_HVTIMER:
        __vcpu_sys_reg(vcpu, CNTHV_CTL_EL2) = ctl;
        break;
    case TIMER_HPTIMER:
        __vcpu_sys_reg(vcpu, CNTHP_CTL_EL2) = ctl;
        break;
    default:
        WARN_ON(1);
    }
}

Here is the caller graph for this function:

timer_set_cval()

static void timer_set_cval ( struct arch_timer_context *  ctxt, u64  cval  )

static

Definition at line 141 of file arch_timer.c.

{
    struct kvm_vcpu *vcpu = ctxt->vcpu;

    switch(arch_timer_ctx_index(ctxt)) {
    case TIMER_VTIMER:
        __vcpu_sys_reg(vcpu, CNTV_CVAL_EL0) = cval;
        break;
    case TIMER_PTIMER:
        __vcpu_sys_reg(vcpu, CNTP_CVAL_EL0) = cval;
        break;
    case TIMER_HVTIMER:
        __vcpu_sys_reg(vcpu, CNTHV_CVAL_EL2) = cval;
        break;
    case TIMER_HPTIMER:
        __vcpu_sys_reg(vcpu, CNTHP_CVAL_EL2) = cval;
        break;
    default:
        WARN_ON(1);
    }
}

Here is the caller graph for this function:

timer_set_offset()

static void timer_set_offset ( struct arch_timer_context *  ctxt, u64  offset  )

static

Definition at line 163 of file arch_timer.c.

{
    if (!ctxt->offset.vm_offset) {
        WARN(offset, "timer %ld\n", arch_timer_ctx_index(ctxt));
        return;
    }

    WRITE_ONCE(*ctxt->offset.vm_offset, offset);
}

Here is the caller graph for this function:

timer_set_traps()

static void timer_set_traps ( struct kvm_vcpu *  vcpu, struct timer_map *  map  )

static

Definition at line 764 of file arch_timer.c.

{
    bool tpt, tpc;
    u64 clr, set;

    /*
     * No trapping gets configured here with nVHE. See
     * __timer_enable_traps(), which is where the stuff happens.
     */
    if (!has_vhe())
        return;

    /*
     * Our default policy is not to trap anything. As we progress
     * within this function, reality kicks in and we start adding
     * traps based on emulation requirements.
     */
    tpt = tpc = false;

    /*
     * We have two possibility to deal with a physical offset:
     *
     * - Either we have CNTPOFF (yay!) or the offset is 0:
     *   we let the guest freely access the HW
     *
     * - or neither of these condition apply:
     *   we trap accesses to the HW, but still use it
     *   after correcting the physical offset
     */
    if (!has_cntpoff() && timer_get_offset(map->direct_ptimer))
        tpt = tpc = true;

    /*
     * Apply the enable bits that the guest hypervisor has requested for
     * its own guest. We can only add traps that wouldn't have been set
     * above.
     */
    if (vcpu_has_nv(vcpu) && !is_hyp_ctxt(vcpu)) {
        u64 val = __vcpu_sys_reg(vcpu, CNTHCTL_EL2);

        /* Use the VHE format for mental sanity */
        if (!vcpu_el2_e2h_is_set(vcpu))
            val = (val & (CNTHCTL_EL1PCEN | CNTHCTL_EL1PCTEN)) << 10;

        tpt |= !(val & (CNTHCTL_EL1PCEN << 10));
        tpc |= !(val & (CNTHCTL_EL1PCTEN << 10));
    }

    /*
     * Now that we have collected our requirements, compute the
     * trap and enable bits.
     */
    set = 0;
    clr = 0;

    assign_clear_set_bit(tpt, CNTHCTL_EL1PCEN << 10, set, clr);
    assign_clear_set_bit(tpc, CNTHCTL_EL1PCTEN << 10, set, clr);

    /* This only happens on VHE, so use the CNTHCTL_EL2 accessor. */
    sysreg_clear_set(cnthctl_el2, clr, set);
}

Here is the call graph for this function:

Here is the caller graph for this function:

unmask_vtimer_irq_user()

static void unmask_vtimer_irq_user ( struct kvm_vcpu *  vcpu )

static

Definition at line 914 of file arch_timer.c.

{
    struct arch_timer_context *vtimer = vcpu_vtimer(vcpu);

    if (!kvm_timer_should_fire(vtimer)) {
        kvm_timer_update_irq(vcpu, false, vtimer);
        if (static_branch_likely(&has_gic_active_state))
            set_timer_irq_phys_active(vtimer, false);
        else
            enable_percpu_irq(host_vtimer_irq, host_vtimer_irq_flags);
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

userspace_irqchip()

static bool userspace_irqchip ( struct kvm *  kvm )

inlinestatic

Definition at line 207 of file arch_timer.c.

{
    return static_branch_unlikely(&userspace_irqchip_in_use) &&
        unlikely(!irqchip_in_kernel(kvm));
}

Here is the caller graph for this function:

vcpu_has_wfit_active()

static bool vcpu_has_wfit_active ( struct kvm_vcpu *  vcpu )

static

Definition at line 287 of file arch_timer.c.

{
    return (cpus_have_final_cap(ARM64_HAS_WFXT) &&
        vcpu_get_flag(vcpu, IN_WFIT));
}

Here is the caller graph for this function:

wfit_delay_ns()

static u64 wfit_delay_ns ( struct kvm_vcpu *  vcpu )

static

Definition at line 293 of file arch_timer.c.

{
    u64 val = vcpu_get_reg(vcpu, kvm_vcpu_sys_get_rt(vcpu));
    struct arch_timer_context *ctx;

    ctx = is_hyp_ctxt(vcpu) ? vcpu_hvtimer(vcpu) : vcpu_vtimer(vcpu);

    return kvm_counter_compute_delta(ctx, val);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

arch_timer_irq_ops

struct irq_ops arch_timer_irq_ops

static

Initial value:

= {
    .get_input_level = kvm_arch_timer_get_input_level,
}

Definition at line 52 of file arch_timer.c.

default_ppi

const u8 default_ppi[]

static

Initial value:

= {
    [TIMER_PTIMER]  = 30,
    [TIMER_VTIMER]  = 27,
    [TIMER_HPTIMER] = 26,
    [TIMER_HVTIMER] = 28,
}

Definition at line 34 of file arch_timer.c.

host_ptimer_irq

unsigned int host_ptimer_irq

static

Definition at line 28 of file arch_timer.c.

host_ptimer_irq_flags

u32 host_ptimer_irq_flags

static

Definition at line 30 of file arch_timer.c.

host_vtimer_irq

unsigned int host_vtimer_irq

static

Definition at line 27 of file arch_timer.c.

host_vtimer_irq_flags

u32 host_vtimer_irq_flags

static

Definition at line 29 of file arch_timer.c.

timecounter

struct timecounter* timecounter

static

Definition at line 26 of file arch_timer.c.

timer_chip

struct irq_chip timer_chip

static

Initial value:

= {
    .name           = "KVM",
    .irq_ack        = timer_irq_ack,
    .irq_mask       = irq_chip_mask_parent,
    .irq_unmask     = irq_chip_unmask_parent,
    .irq_eoi        = timer_irq_eoi,
    .irq_set_type       = irq_chip_set_type_parent,
    .irq_set_vcpu_affinity  = timer_irq_set_vcpu_affinity,
    .irq_set_irqchip_state  = timer_irq_set_irqchip_state,
}

Definition at line 1272 of file arch_timer.c.

timer_domain_ops

const struct irq_domain_ops timer_domain_ops

static

Initial value:

= {
    .alloc  = timer_irq_domain_alloc,
    .free   = timer_irq_domain_free,
}

Definition at line 1299 of file arch_timer.c.
