vgic-irqfd.c File Reference

#include <linux/kvm.h>
#include <linux/kvm_host.h>
#include <trace/events/kvm.h>
#include <kvm/arm_vgic.h>
#include "vgic.h"

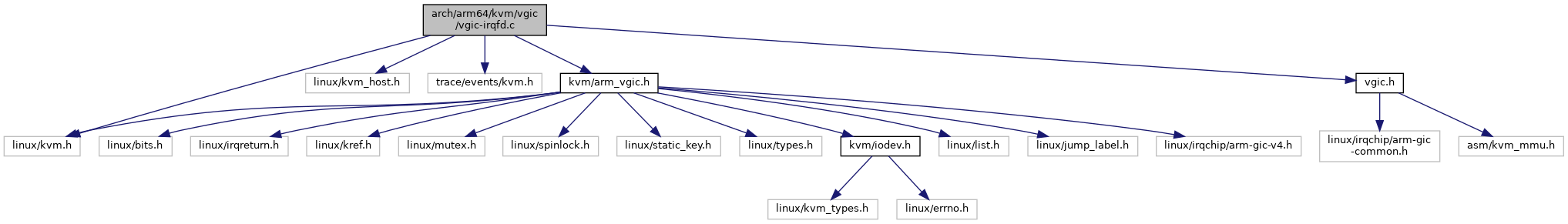

Include dependency graph for vgic-irqfd.c:

Go to the source code of this file.

Functions
static int	vgic_irqfd_set_irq (struct kvm_kernel_irq_routing_entry *e, struct kvm *kvm, int irq_source_id, int level, bool line_status)
int	kvm_set_routing_entry (struct kvm *kvm, struct kvm_kernel_irq_routing_entry *e, const struct kvm_irq_routing_entry *ue)
static void	kvm_populate_msi (struct kvm_kernel_irq_routing_entry *e, struct kvm_msi *msi)
int	kvm_set_msi (struct kvm_kernel_irq_routing_entry *e, struct kvm *kvm, int irq_source_id, int level, bool line_status)
int	kvm_arch_set_irq_inatomic (struct kvm_kernel_irq_routing_entry *e, struct kvm *kvm, int irq_source_id, int level, bool line_status)
int	kvm_vgic_setup_default_irq_routing (struct kvm *kvm)

Function Documentation

kvm_arch_set_irq_inatomic()

int kvm_arch_set_irq_inatomic	(	struct kvm_kernel_irq_routing_entry *	e,
		struct kvm *	kvm,
		int	irq_source_id,
		int	level,
		bool	line_status
	)

kvm_arch_set_irq_inatomic: fast-path for irqfd injection

Definition at line 104 of file vgic-irqfd.c.

{
    if (!level)
        return -EWOULDBLOCK;

    switch (e->type) {
    case KVM_IRQ_ROUTING_MSI: {
        struct kvm_msi msi;

        if (!vgic_has_its(kvm))
            break;

        kvm_populate_msi(e, &msi);
        return vgic_its_inject_cached_translation(kvm, &msi);
    }

    case KVM_IRQ_ROUTING_IRQCHIP:
        /*
         * Injecting SPIs is always possible in atomic context
         * as long as the damn vgic is initialized.
         */
        if (unlikely(!vgic_initialized(kvm)))
            break;
        return vgic_irqfd_set_irq(e, kvm, irq_source_id, 1, line_status);
    }

    return -EWOULDBLOCK;
}

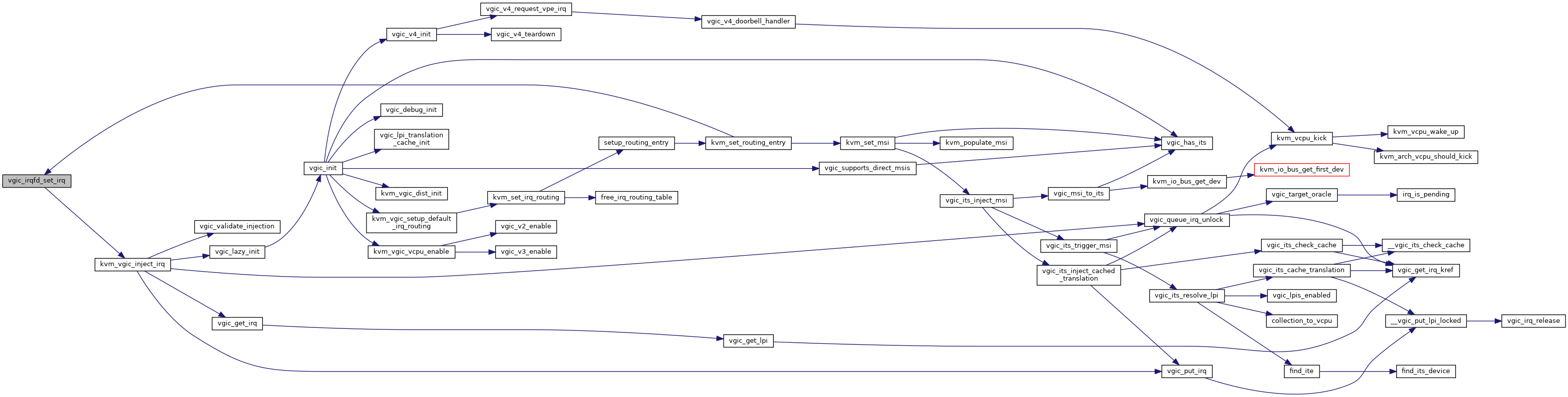

Here is the call graph for this function:

kvm_populate_msi()

static void kvm_populate_msi ( struct kvm_kernel_irq_routing_entry *  e, struct kvm_msi *  msi  )

static

Definition at line 69 of file vgic-irqfd.c.

{
    msi->address_lo = e->msi.address_lo;
    msi->address_hi = e->msi.address_hi;
    msi->data = e->msi.data;
    msi->flags = e->msi.flags;
    msi->devid = e->msi.devid;
}

Here is the caller graph for this function:

kvm_set_msi()

int kvm_set_msi	(	struct kvm_kernel_irq_routing_entry *	e,
		struct kvm *	kvm,
		int	irq_source_id,
		int	level,
		bool	line_status
	)

kvm_set_msi: inject the MSI corresponding to the MSI routing entry

This is the entry point for irqfd MSI injection and userspace MSI injection.

Definition at line 85 of file vgic-irqfd.c.

{
    struct kvm_msi msi;

    if (!vgic_has_its(kvm))
        return -ENODEV;

    if (!level)
        return -1;

    kvm_populate_msi(e, &msi);
    return vgic_its_inject_msi(kvm, &msi);
}

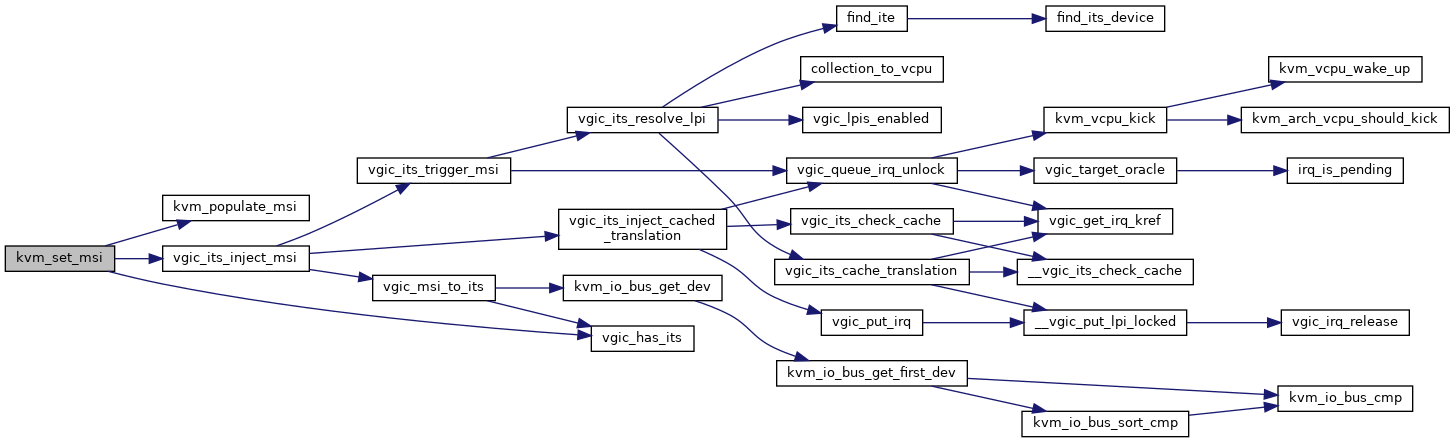

Here is the call graph for this function:

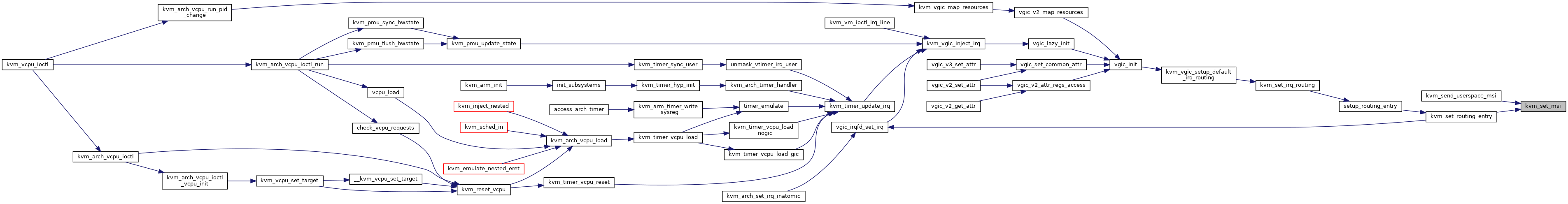

Here is the caller graph for this function:

kvm_set_routing_entry()

int kvm_set_routing_entry	(	struct kvm *	kvm,
		struct kvm_kernel_irq_routing_entry *	e,
		const struct kvm_irq_routing_entry *	ue
	)

kvm_set_routing_entry: populate a kvm routing entry from a user routing entry

@kvm: the VM this entry is applied to : kvm kernel routing entry handle @ue: user api routing entry handle return 0 on success, -EINVAL on errors.

Definition at line 38 of file vgic-irqfd.c.

{
    int r = -EINVAL;

    switch (ue->type) {
    case KVM_IRQ_ROUTING_IRQCHIP:
        e->set = vgic_irqfd_set_irq;
        e->irqchip.irqchip = ue->u.irqchip.irqchip;
        e->irqchip.pin = ue->u.irqchip.pin;
        if ((e->irqchip.pin >= KVM_IRQCHIP_NUM_PINS) ||
            (e->irqchip.irqchip >= KVM_NR_IRQCHIPS))
            goto out;
        break;
    case KVM_IRQ_ROUTING_MSI:
        e->set = kvm_set_msi;
        e->msi.address_lo = ue->u.msi.address_lo;
        e->msi.address_hi = ue->u.msi.address_hi;
        e->msi.data = ue->u.msi.data;
        e->msi.flags = ue->flags;
        e->msi.devid = ue->u.msi.devid;
        break;
    default:
        goto out;
    }
    r = 0;
out:
    return r;
}

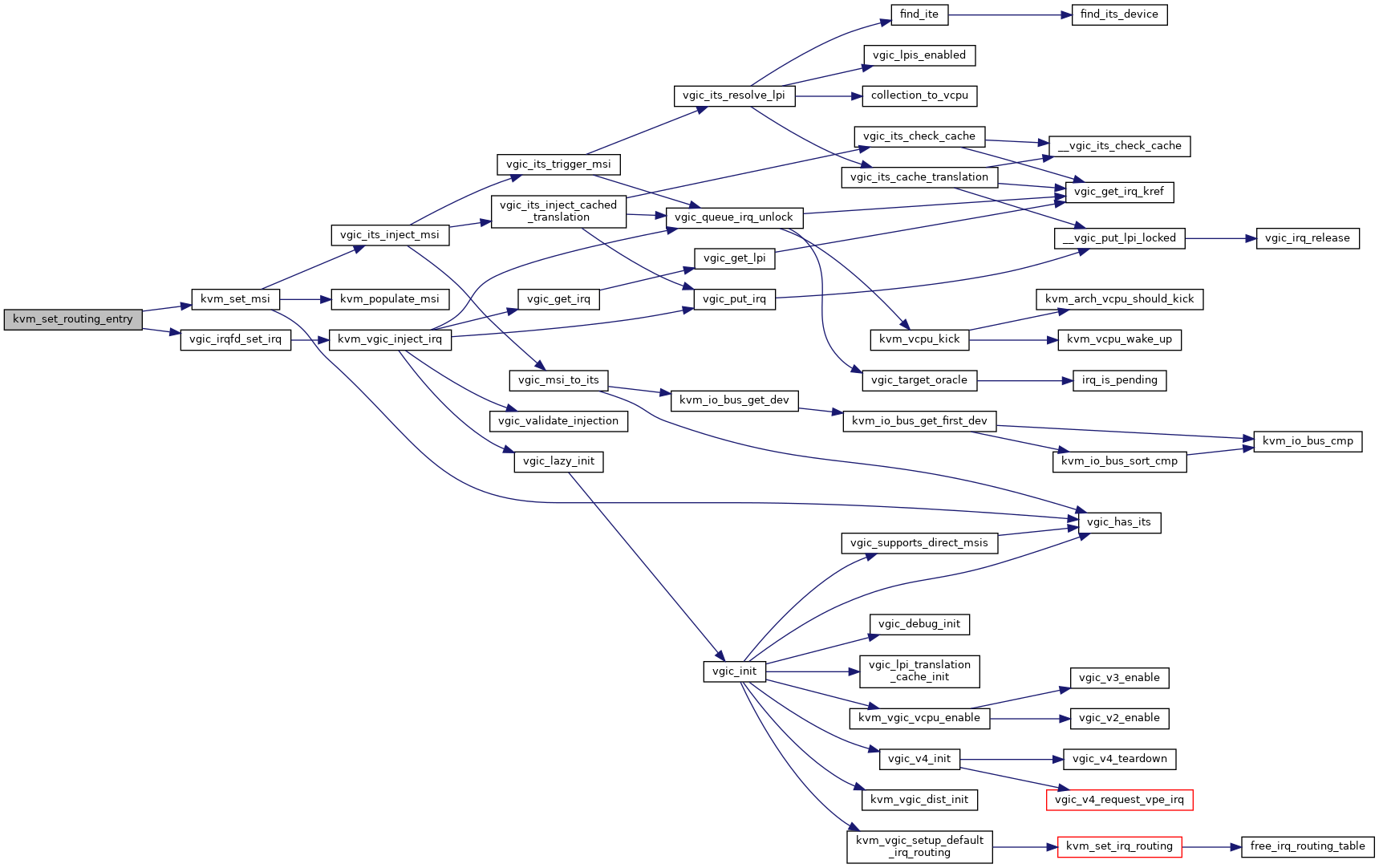

Here is the call graph for this function:

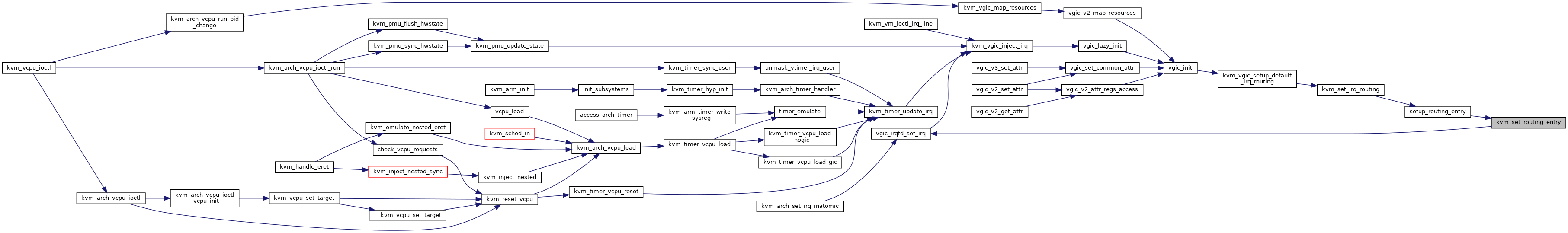

Here is the caller graph for this function:

kvm_vgic_setup_default_irq_routing()

int kvm_vgic_setup_default_irq_routing

(

struct kvm *

kvm

)

kvm_vgic_setup_default_irq_routing: Setup a default flat gsi routing table mapping all SPIs

Definition at line 135 of file vgic-irqfd.c.

{
    struct kvm_irq_routing_entry *entries;
    struct vgic_dist *dist = &kvm->arch.vgic;
    u32 nr = dist->nr_spis;
    int i, ret;

    entries = kcalloc(nr, sizeof(*entries), GFP_KERNEL_ACCOUNT);
    if (!entries)
        return -ENOMEM;

    for (i = 0; i < nr; i++) {
        entries[i].gsi = i;
        entries[i].type = KVM_IRQ_ROUTING_IRQCHIP;
        entries[i].u.irqchip.irqchip = 0;
        entries[i].u.irqchip.pin = i;
    }
    ret = kvm_set_irq_routing(kvm, entries, nr, 0);
    kfree(entries);
    return ret;
}

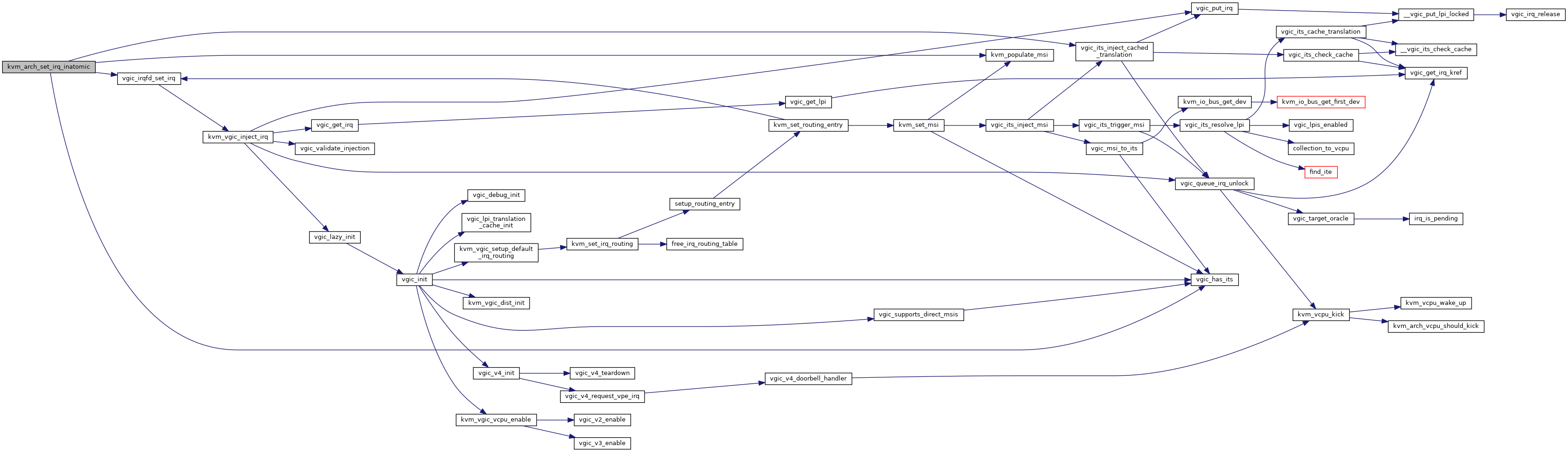

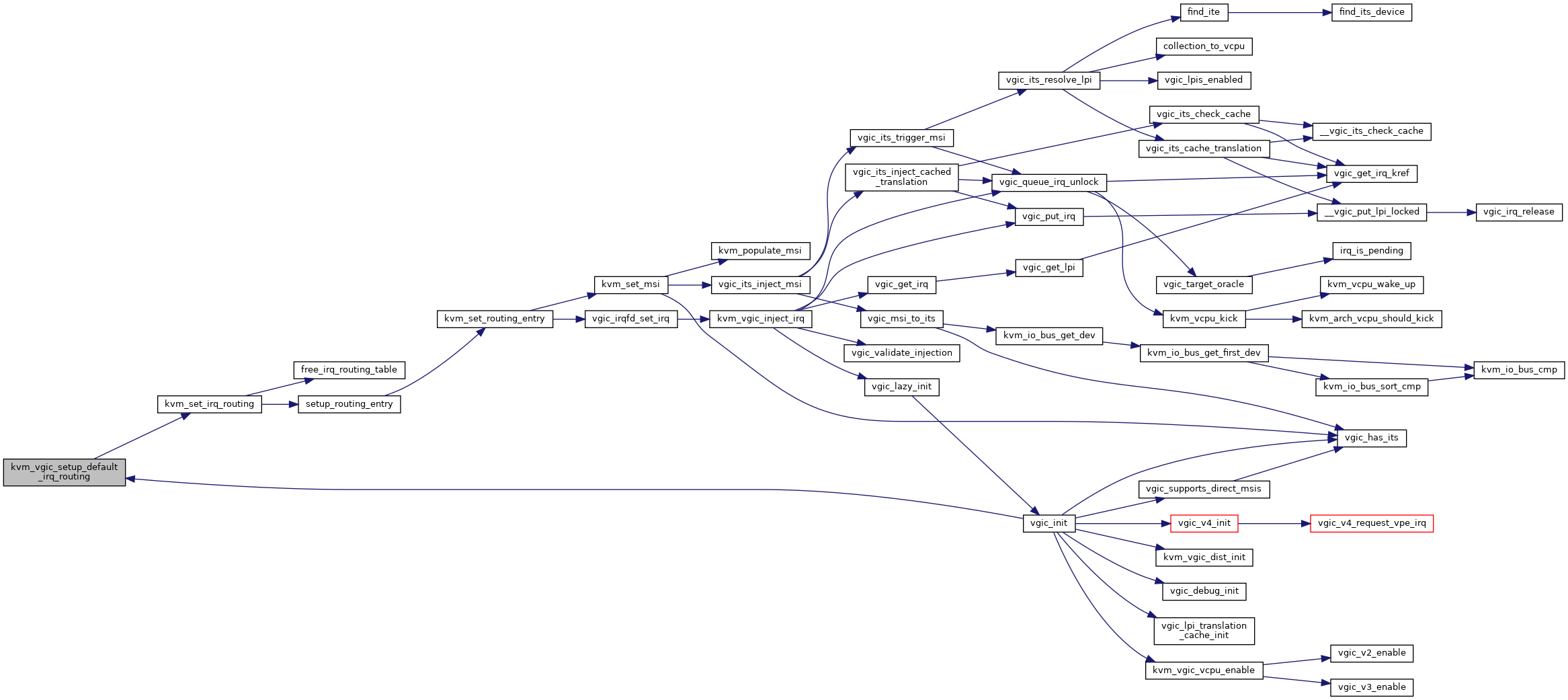

Here is the call graph for this function:

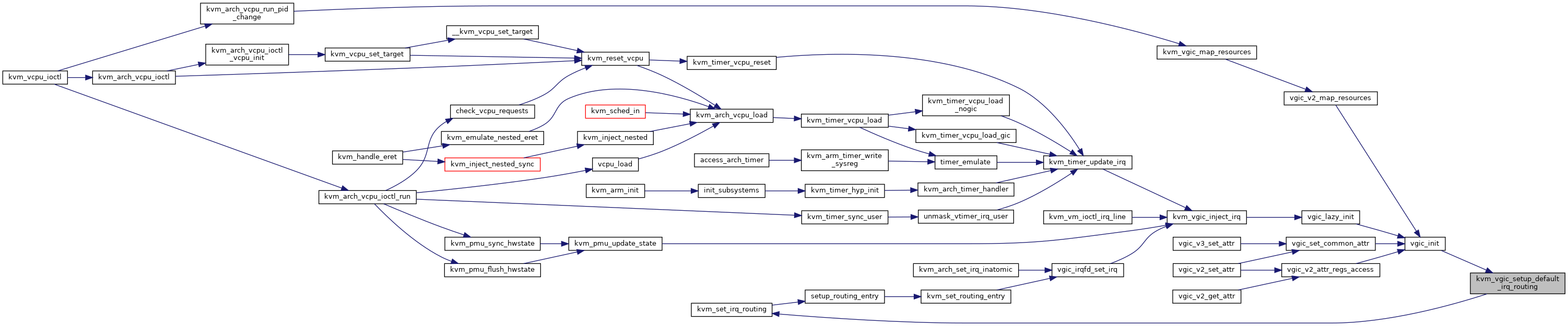

Here is the caller graph for this function:

vgic_irqfd_set_irq()

static int vgic_irqfd_set_irq ( struct kvm_kernel_irq_routing_entry *  e, struct kvm *  kvm, int  irq_source_id, int  level, bool  line_status  )

static

vgic_irqfd_set_irq: inject the IRQ corresponding to the irqchip routing entry

This is the entry point for irqfd IRQ injection

Definition at line 18 of file vgic-irqfd.c.

{
    unsigned int spi_id = e->irqchip.pin + VGIC_NR_PRIVATE_IRQS;

    if (!vgic_valid_spi(kvm, spi_id))
        return -EINVAL;
    return kvm_vgic_inject_irq(kvm, NULL, spi_id, level, NULL);
}

Here is the call graph for this function:

Here is the caller graph for this function:
