vgic-mmio-v3.c File Reference

#include <linux/bitfield.h>
#include <linux/irqchip/arm-gic-v3.h>
#include <linux/kvm.h>
#include <linux/kvm_host.h>
#include <linux/interrupt.h>
#include <kvm/iodev.h>
#include <kvm/arm_vgic.h>
#include <asm/kvm_emulate.h>
#include <asm/kvm_arm.h>
#include <asm/kvm_mmu.h>
#include "vgic.h"
#include "vgic-mmio.h"

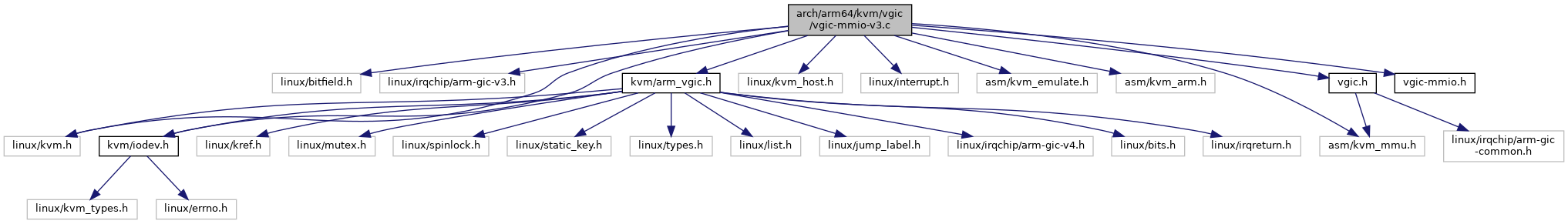

Include dependency graph for vgic-mmio-v3.c:

Go to the source code of this file.

Macros
#define	PROPBASER_RES0_MASK    (GENMASK_ULL(63, 59) | GENMASK_ULL(55, 52) | GENMASK_ULL(6, 5))
#define	PENDBASER_RES0_MASK
#define	REGISTER_DESC_WITH_BITS_PER_IRQ_SHARED(off, rd, wr, ur, uw, bpi, acc)
#define	SGI_AFFINITY_LEVEL(reg, level)

Functions
unsigned long	extract_bytes (u64 data, unsigned int offset, unsigned int num)
u64	update_64bit_reg (u64 reg, unsigned int offset, unsigned int len, unsigned long val)
bool	vgic_has_its (struct kvm *kvm)

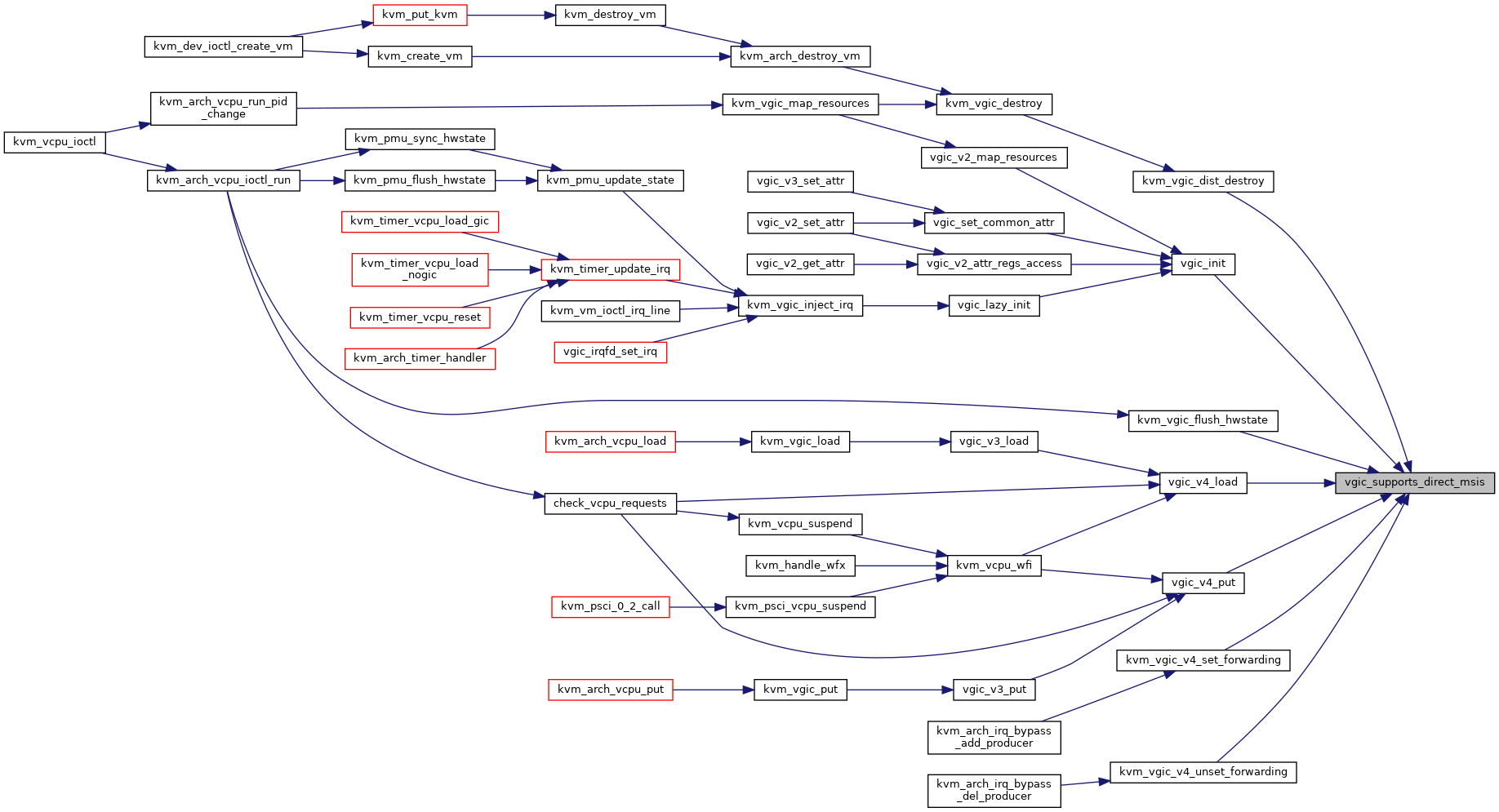

bool	vgic_supports_direct_msis (struct kvm *kvm)
static unsigned long	vgic_mmio_read_v3_misc (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_v3_misc (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static int	vgic_mmio_uaccess_write_v3_misc (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static unsigned long	vgic_mmio_read_irouter (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_irouter (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
bool	vgic_lpis_enabled (struct kvm_vcpu *vcpu)
static unsigned long	vgic_mmio_read_v3r_ctlr (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_v3r_ctlr (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static bool	vgic_mmio_vcpu_rdist_is_last (struct kvm_vcpu *vcpu)
static unsigned long	vgic_mmio_read_v3r_typer (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static unsigned long	vgic_mmio_read_v3r_iidr (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static unsigned long	vgic_mmio_read_v3_idregs (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static int	vgic_v3_uaccess_write_pending (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)

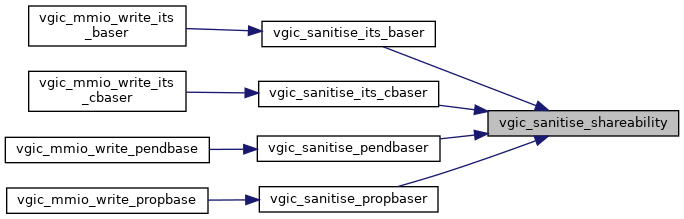

u64	vgic_sanitise_shareability (u64 field)
u64	vgic_sanitise_inner_cacheability (u64 field)
u64	vgic_sanitise_outer_cacheability (u64 field)
u64	vgic_sanitise_field (u64 reg, u64 field_mask, int field_shift, u64(*sanitise_fn)(u64))
static u64	vgic_sanitise_pendbaser (u64 reg)
static u64	vgic_sanitise_propbaser (u64 reg)
static unsigned long	vgic_mmio_read_propbase (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_propbase (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static unsigned long	vgic_mmio_read_pendbase (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_pendbase (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static unsigned long	vgic_mmio_read_sync (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_set_rdist_busy (struct kvm_vcpu *vcpu, bool busy)
static void	vgic_mmio_write_invlpi (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static void	vgic_mmio_write_invall (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
unsigned int	vgic_v3_init_dist_iodev (struct vgic_io_device *dev)
int	vgic_register_redist_iodev (struct kvm_vcpu *vcpu)
void	vgic_unregister_redist_iodev (struct kvm_vcpu *vcpu)
static int	vgic_register_all_redist_iodevs (struct kvm *kvm)
static int	vgic_v3_alloc_redist_region (struct kvm *kvm, uint32_t index, gpa_t base, uint32_t count)

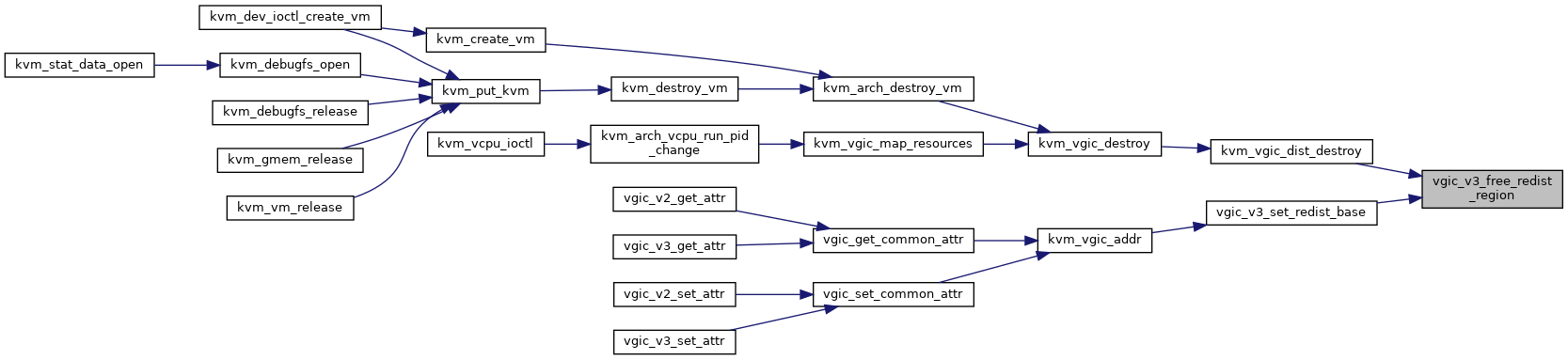

void	vgic_v3_free_redist_region (struct vgic_redist_region *rdreg)

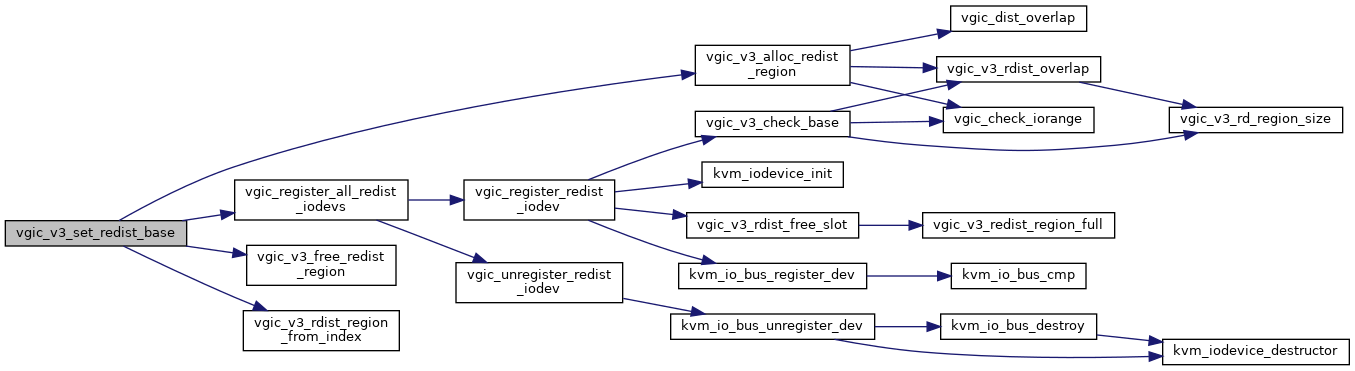

int	vgic_v3_set_redist_base (struct kvm *kvm, u32 index, u64 addr, u32 count)
int	vgic_v3_has_attr_regs (struct kvm_device *dev, struct kvm_device_attr *attr)
static void	vgic_v3_queue_sgi (struct kvm_vcpu *vcpu, u32 sgi, bool allow_group1)
void	vgic_v3_dispatch_sgi (struct kvm_vcpu *vcpu, u64 reg, bool allow_group1)
int	vgic_v3_dist_uaccess (struct kvm_vcpu *vcpu, bool is_write, int offset, u32 *val)
int	vgic_v3_redist_uaccess (struct kvm_vcpu *vcpu, bool is_write, int offset, u32 *val)
int	vgic_v3_line_level_info_uaccess (struct kvm_vcpu *vcpu, bool is_write, u32 intid, u32 *val)

Variables
static const struct vgic_register_region	vgic_v3_dist_registers []
static const struct vgic_register_region	vgic_v3_rd_registers []

Macro Definition Documentation

PENDBASER_RES0_MASK

#define PENDBASER_RES0_MASK

Value:

    (BIT_ULL(63) | GENMASK_ULL(61, 59) | GENMASK_ULL(55, 52) |  \
     GENMASK_ULL(15, 12) | GENMASK_ULL(6, 0))

Definition at line 415 of file vgic-mmio-v3.c.

PROPBASER_RES0_MASK

#define PROPBASER_RES0_MASK    (GENMASK_ULL(63, 59) | GENMASK_ULL(55, 52) | GENMASK_ULL(6, 5))

Definition at line 413 of file vgic-mmio-v3.c.

REGISTER_DESC_WITH_BITS_PER_IRQ_SHARED

#define REGISTER_DESC_WITH_BITS_PER_IRQ_SHARED	(		off,
			rd,
			wr,
			ur,
			uw,
			bpi,
			acc
	)

Value:

    {                               \
        .reg_offset = off,                  \
        .bits_per_irq = bpi,                    \
        .len = (bpi * VGIC_NR_PRIVATE_IRQS) / 8,        \
        .access_flags = acc,                    \
        .read = vgic_mmio_read_raz,             \
        .write = vgic_mmio_write_wi,                \
    }, {                                \
        .reg_offset = off + (bpi * VGIC_NR_PRIVATE_IRQS) / 8,   \
        .bits_per_irq = bpi,                    \
        .len = (bpi * (1024 - VGIC_NR_PRIVATE_IRQS)) / 8,   \
        .access_flags = acc,                    \
        .read = rd,                     \
        .write = wr,                        \
        .uaccess_read = ur,                 \
        .uaccess_write = uw,                    \
    }

Definition at line 575 of file vgic-mmio-v3.c.

SGI_AFFINITY_LEVEL

#define SGI_AFFINITY_LEVEL	(		reg,
			level
	)

Value:

    ((((reg) & ICC_SGI1R_AFFINITY_## level ##_MASK) \
    >> ICC_SGI1R_AFFINITY_## level ##_SHIFT) << MPIDR_LEVEL_SHIFT(level))

Definition at line 1006 of file vgic-mmio-v3.c.

Function Documentation

extract_bytes()

unsigned long extract_bytes	(	u64	data,
		unsigned int	offset,
		unsigned int	num
	)

Definition at line 22 of file vgic-mmio-v3.c.

{
    return (data >> (offset * 8)) & GENMASK_ULL(num * 8 - 1, 0);
}

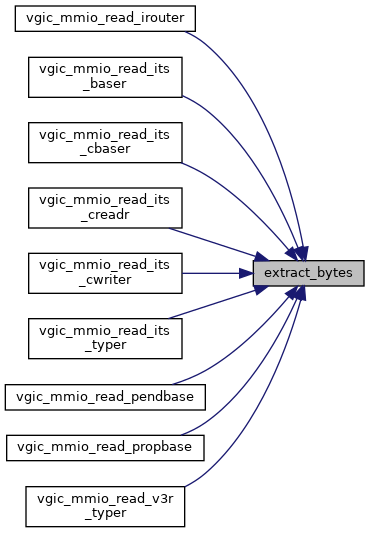

Here is the caller graph for this function:

update_64bit_reg()

u64 update_64bit_reg	(	u64	reg,
		unsigned int	offset,
		unsigned int	len,
		unsigned long	val
	)

Definition at line 29 of file vgic-mmio-v3.c.

{
    int lower = (offset & 4) * 8;
    int upper = lower + 8 * len - 1;

    reg &= ~GENMASK_ULL(upper, lower);
    val &= GENMASK_ULL(len * 8 - 1, 0);

    return reg | ((u64)val << lower);
}

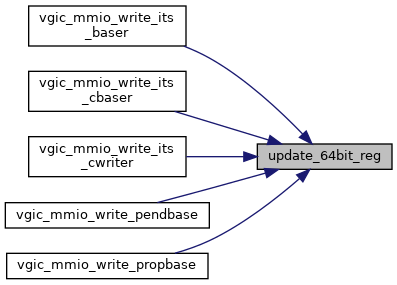

Here is the caller graph for this function:

vgic_has_its()

bool vgic_has_its

(

struct kvm *

kvm

)

Definition at line 41 of file vgic-mmio-v3.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;

    if (dist->vgic_model != KVM_DEV_TYPE_ARM_VGIC_V3)
        return false;

    return dist->has_its;
}

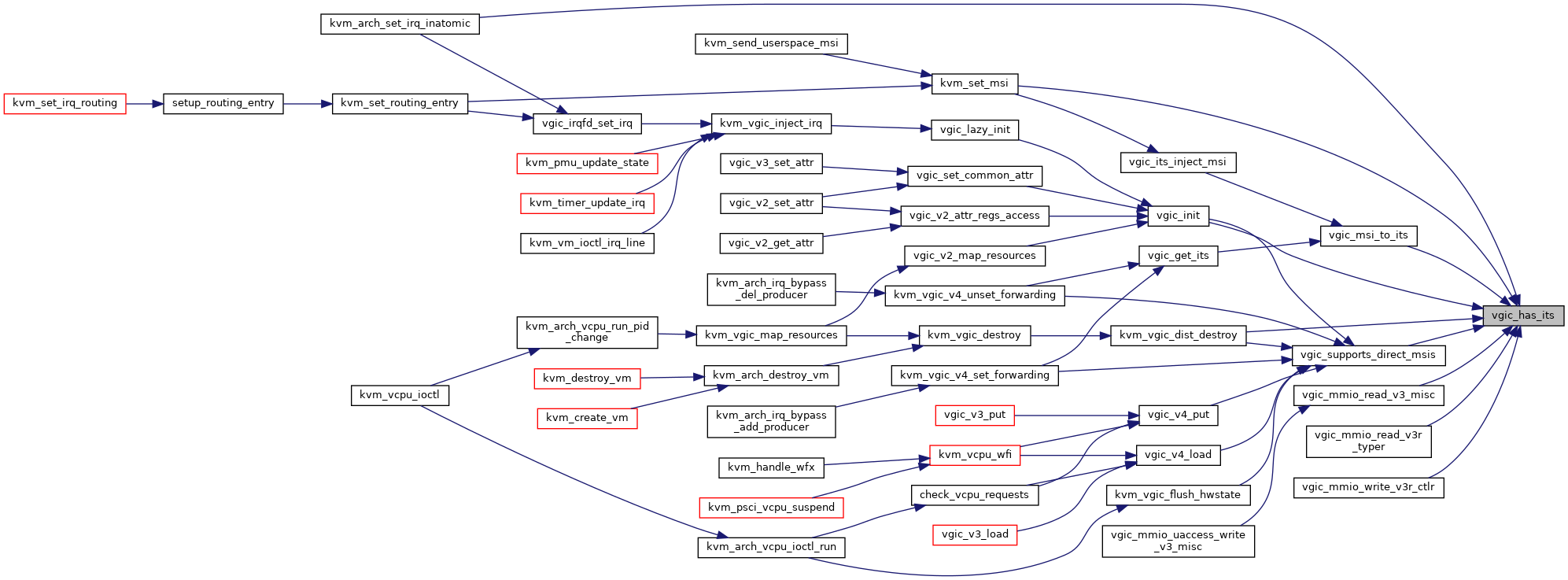

Here is the caller graph for this function:

vgic_lpis_enabled()

bool vgic_lpis_enabled

(

struct kvm_vcpu *

vcpu

)

Definition at line 238 of file vgic-mmio-v3.c.

{
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;

    return atomic_read(&vgic_cpu->ctlr) == GICR_CTLR_ENABLE_LPIS;
}

Here is the caller graph for this function:

vgic_mmio_read_irouter()

static unsigned long vgic_mmio_read_irouter ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 193 of file vgic-mmio-v3.c.

{
    int intid = VGIC_ADDR_TO_INTID(addr, 64);
    struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, NULL, intid);
    unsigned long ret = 0;

    if (!irq)
        return 0;

    /* The upper word is RAZ for us. */
    if (!(addr & 4))
        ret = extract_bytes(READ_ONCE(irq->mpidr), addr & 7, len);

    vgic_put_irq(vcpu->kvm, irq);
    return ret;
}

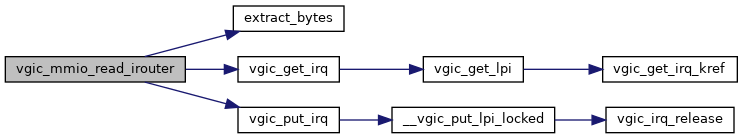

Here is the call graph for this function:

vgic_mmio_read_pendbase()

static unsigned long vgic_mmio_read_pendbase ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 480 of file vgic-mmio-v3.c.

{
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;
    u64 value = vgic_cpu->pendbaser;

    value &= ~GICR_PENDBASER_PTZ;

    return extract_bytes(value, addr & 7, len);
}

Here is the call graph for this function:

vgic_mmio_read_propbase()

static unsigned long vgic_mmio_read_propbase ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 452 of file vgic-mmio-v3.c.

{
    struct vgic_dist *dist = &vcpu->kvm->arch.vgic;

    return extract_bytes(dist->propbaser, addr & 7, len);
}

Here is the call graph for this function:

vgic_mmio_read_sync()

static unsigned long vgic_mmio_read_sync ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 511 of file vgic-mmio-v3.c.

{
    return !!atomic_read(&vcpu->arch.vgic_cpu.syncr_busy);
}

vgic_mmio_read_v3_idregs()

static unsigned long vgic_mmio_read_v3_idregs ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 344 of file vgic-mmio-v3.c.

{
    switch (addr & 0xffff) {
    case GICD_PIDR2:
        /* report a GICv3 compliant implementation */
        return 0x3b;
    }

    return 0;
}

vgic_mmio_read_v3_misc()

static unsigned long vgic_mmio_read_v3_misc ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 64 of file vgic-mmio-v3.c.

{
    struct vgic_dist *vgic = &vcpu->kvm->arch.vgic;
    u32 value = 0;

    switch (addr & 0x0c) {
    case GICD_CTLR:
        if (vgic->enabled)
            value |= GICD_CTLR_ENABLE_SS_G1;
        value |= GICD_CTLR_ARE_NS | GICD_CTLR_DS;
        if (vgic->nassgireq)
            value |= GICD_CTLR_nASSGIreq;
        break;
    case GICD_TYPER:
        value = vgic->nr_spis + VGIC_NR_PRIVATE_IRQS;
        value = (value >> 5) - 1;
        if (vgic_has_its(vcpu->kvm)) {
            value |= (INTERRUPT_ID_BITS_ITS - 1) << 19;
            value |= GICD_TYPER_LPIS;
        } else {
            value |= (INTERRUPT_ID_BITS_SPIS - 1) << 19;
        }
        break;
    case GICD_TYPER2:
        if (kvm_vgic_global_state.has_gicv4_1 && gic_cpuif_has_vsgi())
            value = GICD_TYPER2_nASSGIcap;
        break;
    case GICD_IIDR:
        value = (PRODUCT_ID_KVM << GICD_IIDR_PRODUCT_ID_SHIFT) |
            (vgic->implementation_rev << GICD_IIDR_REVISION_SHIFT) |
            (IMPLEMENTER_ARM << GICD_IIDR_IMPLEMENTER_SHIFT);
        break;
    default:
        return 0;
    }

    return value;
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_mmio_read_v3r_ctlr()

static unsigned long vgic_mmio_read_v3r_ctlr ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 245 of file vgic-mmio-v3.c.

{
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;
    unsigned long val;

    val = atomic_read(&vgic_cpu->ctlr);
    if (vgic_get_implementation_rev(vcpu) >= KVM_VGIC_IMP_REV_3)
        val |= GICR_CTLR_IR | GICR_CTLR_CES;

    return val;
}

Here is the call graph for this function:

vgic_mmio_read_v3r_iidr()

static unsigned long vgic_mmio_read_v3r_iidr ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 338 of file vgic-mmio-v3.c.

{
    return (PRODUCT_ID_KVM << 24) | (IMPLEMENTER_ARM << 0);
}

vgic_mmio_read_v3r_typer()

static unsigned long vgic_mmio_read_v3r_typer ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 319 of file vgic-mmio-v3.c.

{
    unsigned long mpidr = kvm_vcpu_get_mpidr_aff(vcpu);
    int target_vcpu_id = vcpu->vcpu_id;
    u64 value;

    value = (u64)(mpidr & GENMASK(23, 0)) << 32;
    value |= ((target_vcpu_id & 0xffff) << 8);

    if (vgic_has_its(vcpu->kvm))
        value |= GICR_TYPER_PLPIS;

    if (vgic_mmio_vcpu_rdist_is_last(vcpu))
        value |= GICR_TYPER_LAST;

    return extract_bytes(value, addr & 7, len);
}

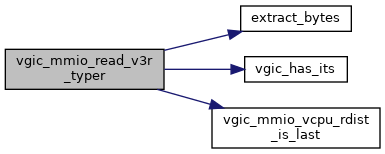

Here is the call graph for this function:

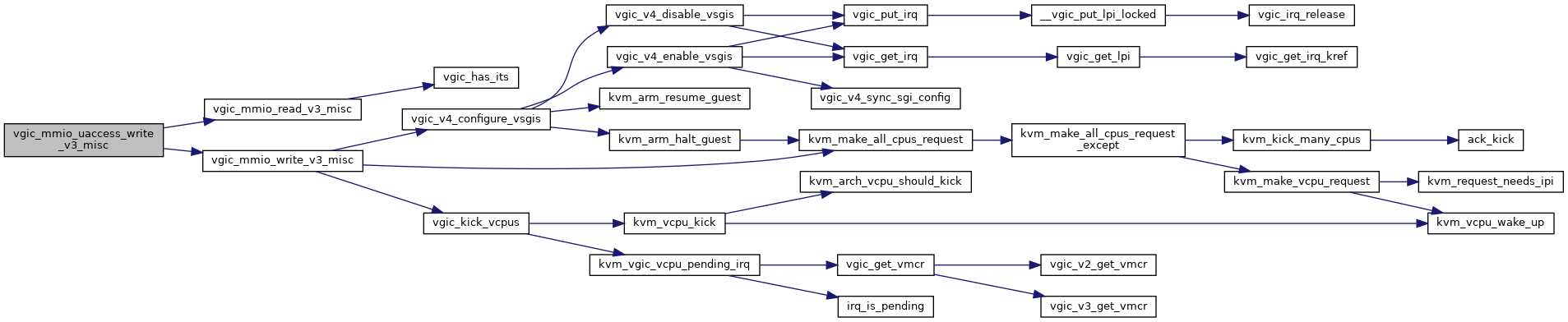

vgic_mmio_uaccess_write_v3_misc()

static int vgic_mmio_uaccess_write_v3_misc ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 153 of file vgic-mmio-v3.c.

{
    struct vgic_dist *dist = &vcpu->kvm->arch.vgic;
    u32 reg;

    switch (addr & 0x0c) {
    case GICD_TYPER2:
        if (val != vgic_mmio_read_v3_misc(vcpu, addr, len))
            return -EINVAL;
        return 0;
    case GICD_IIDR:
        reg = vgic_mmio_read_v3_misc(vcpu, addr, len);
        if ((reg ^ val) & ~GICD_IIDR_REVISION_MASK)
            return -EINVAL;

        reg = FIELD_GET(GICD_IIDR_REVISION_MASK, reg);
        switch (reg) {
        case KVM_VGIC_IMP_REV_2:
        case KVM_VGIC_IMP_REV_3:
            dist->implementation_rev = reg;
            return 0;
        default:
            return -EINVAL;
        }
    case GICD_CTLR:
        /* Not a GICv4.1? No HW SGIs */
        if (!kvm_vgic_global_state.has_gicv4_1)
            val &= ~GICD_CTLR_nASSGIreq;

        dist->enabled = val & GICD_CTLR_ENABLE_SS_G1;
        dist->nassgireq = val & GICD_CTLR_nASSGIreq;
        return 0;
    }

    vgic_mmio_write_v3_misc(vcpu, addr, len, val);
    return 0;
}

Here is the call graph for this function:

vgic_mmio_vcpu_rdist_is_last()

static bool vgic_mmio_vcpu_rdist_is_last ( struct kvm_vcpu *  vcpu )

static

Definition at line 292 of file vgic-mmio-v3.c.

{
    struct vgic_dist *vgic = &vcpu->kvm->arch.vgic;
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;
    struct vgic_redist_region *iter, *rdreg = vgic_cpu->rdreg;

    if (!rdreg)
        return false;

    if (vgic_cpu->rdreg_index < rdreg->free_index - 1) {
        return false;
    } else if (rdreg->count && vgic_cpu->rdreg_index == (rdreg->count - 1)) {
        struct list_head *rd_regions = &vgic->rd_regions;
        gpa_t end = rdreg->base + rdreg->count * KVM_VGIC_V3_REDIST_SIZE;

        /*
         * the rdist is the last one of the redist region,
         * check whether there is no other contiguous rdist region
         */
        list_for_each_entry(iter, rd_regions, list) {
            if (iter->base == end && iter->free_index > 0)
                return false;
        }
    }
    return true;
}

Here is the caller graph for this function:

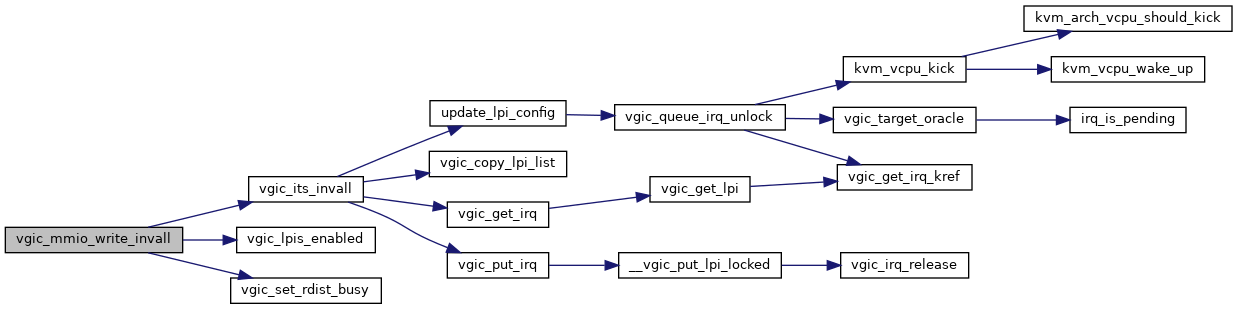

vgic_mmio_write_invall()

static void vgic_mmio_write_invall ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 555 of file vgic-mmio-v3.c.

{
    /* See vgic_mmio_write_invlpi() for the early return rationale */
    if ((addr & 4) || !vgic_lpis_enabled(vcpu))
        return;

    vgic_set_rdist_busy(vcpu, true);
    vgic_its_invall(vcpu);
    vgic_set_rdist_busy(vcpu, false);
}

Here is the call graph for this function:

vgic_mmio_write_invlpi()

static void vgic_mmio_write_invlpi ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 528 of file vgic-mmio-v3.c.

{
    struct vgic_irq *irq;

    /*
     * If the guest wrote only to the upper 32bit part of the
     * register, drop the write on the floor, as it is only for
     * vPEs (which we don't support for obvious reasons).
     *
     * Also discard the access if LPIs are not enabled.
     */
    if ((addr & 4) || !vgic_lpis_enabled(vcpu))
        return;

    vgic_set_rdist_busy(vcpu, true);

    irq = vgic_get_irq(vcpu->kvm, NULL, lower_32_bits(val));
    if (irq) {
        vgic_its_inv_lpi(vcpu->kvm, irq);
        vgic_put_irq(vcpu->kvm, irq);
    }

    vgic_set_rdist_busy(vcpu, false);
}

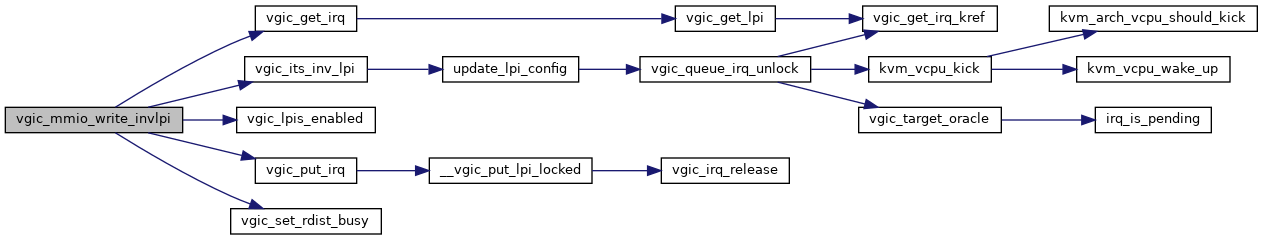

Here is the call graph for this function:

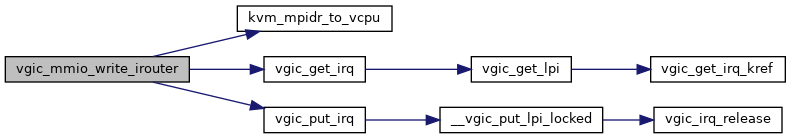

vgic_mmio_write_irouter()

static void vgic_mmio_write_irouter ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 211 of file vgic-mmio-v3.c.

{
    int intid = VGIC_ADDR_TO_INTID(addr, 64);
    struct vgic_irq *irq;
    unsigned long flags;

    /* The upper word is WI for us since we don't implement Aff3. */
    if (addr & 4)
        return;

    irq = vgic_get_irq(vcpu->kvm, NULL, intid);

    if (!irq)
        return;

    raw_spin_lock_irqsave(&irq->irq_lock, flags);

    /* We only care about and preserve Aff0, Aff1 and Aff2. */
    irq->mpidr = val & GENMASK(23, 0);
    irq->target_vcpu = kvm_mpidr_to_vcpu(vcpu->kvm, irq->mpidr);

    raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
    vgic_put_irq(vcpu->kvm, irq);
}

Here is the call graph for this function:

vgic_mmio_write_pendbase()

static void vgic_mmio_write_pendbase ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 491 of file vgic-mmio-v3.c.

{
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;
    u64 old_pendbaser, pendbaser;

    /* Storing a value with LPIs already enabled is undefined */
    if (vgic_lpis_enabled(vcpu))
        return;

    do {
        old_pendbaser = READ_ONCE(vgic_cpu->pendbaser);
        pendbaser = old_pendbaser;
        pendbaser = update_64bit_reg(pendbaser, addr & 4, len, val);
        pendbaser = vgic_sanitise_pendbaser(pendbaser);
    } while (cmpxchg64(&vgic_cpu->pendbaser, old_pendbaser,
               pendbaser) != old_pendbaser);
}

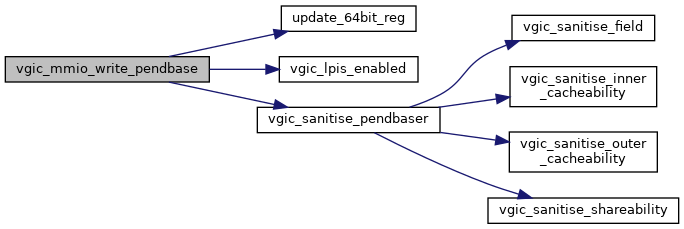

Here is the call graph for this function:

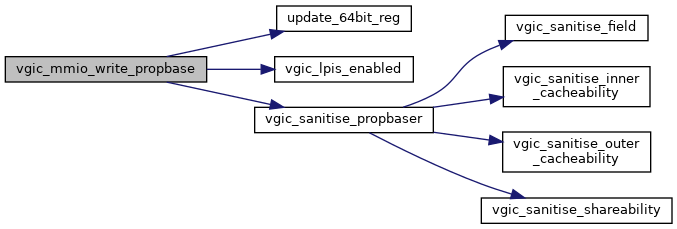

vgic_mmio_write_propbase()

static void vgic_mmio_write_propbase ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 460 of file vgic-mmio-v3.c.

{
    struct vgic_dist *dist = &vcpu->kvm->arch.vgic;
    u64 old_propbaser, propbaser;

    /* Storing a value with LPIs already enabled is undefined */
    if (vgic_lpis_enabled(vcpu))
        return;

    do {
        old_propbaser = READ_ONCE(dist->propbaser);
        propbaser = old_propbaser;
        propbaser = update_64bit_reg(propbaser, addr & 4, len, val);
        propbaser = vgic_sanitise_propbaser(propbaser);
    } while (cmpxchg64(&dist->propbaser, old_propbaser,
               propbaser) != old_propbaser);
}

Here is the call graph for this function:

vgic_mmio_write_v3_misc()

static void vgic_mmio_write_v3_misc ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 104 of file vgic-mmio-v3.c.

{
    struct vgic_dist *dist = &vcpu->kvm->arch.vgic;

    switch (addr & 0x0c) {
    case GICD_CTLR: {
        bool was_enabled, is_hwsgi;

        mutex_lock(&vcpu->kvm->arch.config_lock);

        was_enabled = dist->enabled;
        is_hwsgi = dist->nassgireq;

        dist->enabled = val & GICD_CTLR_ENABLE_SS_G1;

        /* Not a GICv4.1? No HW SGIs */
        if (!kvm_vgic_global_state.has_gicv4_1 || !gic_cpuif_has_vsgi())
            val &= ~GICD_CTLR_nASSGIreq;

        /* Dist stays enabled? nASSGIreq is RO */
        if (was_enabled && dist->enabled) {
            val &= ~GICD_CTLR_nASSGIreq;
            val |= FIELD_PREP(GICD_CTLR_nASSGIreq, is_hwsgi);
        }

        /* Switching HW SGIs? */
        dist->nassgireq = val & GICD_CTLR_nASSGIreq;
        if (is_hwsgi != dist->nassgireq)
            vgic_v4_configure_vsgis(vcpu->kvm);

        if (kvm_vgic_global_state.has_gicv4_1 &&
            was_enabled != dist->enabled)
            kvm_make_all_cpus_request(vcpu->kvm, KVM_REQ_RELOAD_GICv4);
        else if (!was_enabled && dist->enabled)
            vgic_kick_vcpus(vcpu->kvm);

        mutex_unlock(&vcpu->kvm->arch.config_lock);
        break;
    }
    case GICD_TYPER:
    case GICD_TYPER2:
    case GICD_IIDR:
        /* This is at best for documentation purposes... */
        return;
    }
}

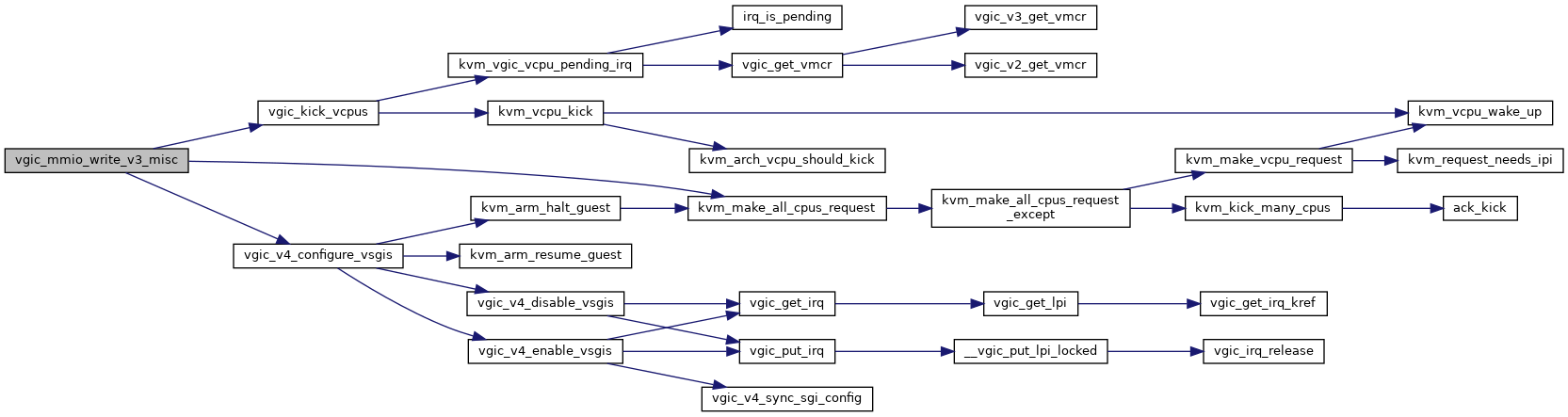

Here is the call graph for this function:

Here is the caller graph for this function:

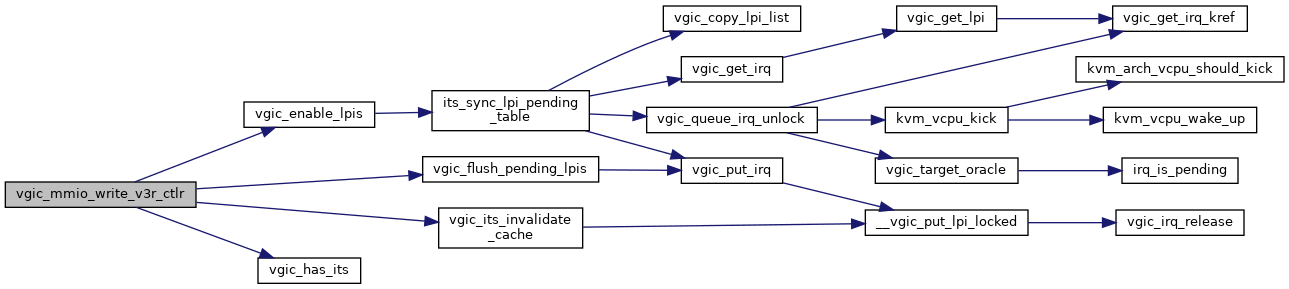

vgic_mmio_write_v3r_ctlr()

static void vgic_mmio_write_v3r_ctlr ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 258 of file vgic-mmio-v3.c.

{
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;
    u32 ctlr;

    if (!vgic_has_its(vcpu->kvm))
        return;

    if (!(val & GICR_CTLR_ENABLE_LPIS)) {
        /*
         * Don't disable if RWP is set, as there already an
         * ongoing disable. Funky guest...
         */
        ctlr = atomic_cmpxchg_acquire(&vgic_cpu->ctlr,
                          GICR_CTLR_ENABLE_LPIS,
                          GICR_CTLR_RWP);
        if (ctlr != GICR_CTLR_ENABLE_LPIS)
            return;

        vgic_flush_pending_lpis(vcpu);
        vgic_its_invalidate_cache(vcpu->kvm);
        atomic_set_release(&vgic_cpu->ctlr, 0);
    } else {
        ctlr = atomic_cmpxchg_acquire(&vgic_cpu->ctlr, 0,
                          GICR_CTLR_ENABLE_LPIS);
        if (ctlr != 0)
            return;

        vgic_enable_lpis(vcpu);
    }
}

Here is the call graph for this function:

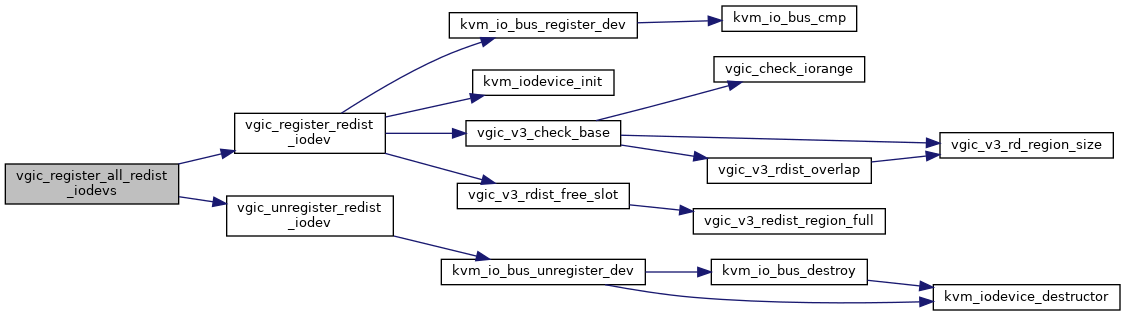

vgic_register_all_redist_iodevs()

static int vgic_register_all_redist_iodevs ( struct kvm *  kvm )

static

Definition at line 812 of file vgic-mmio-v3.c.

{
    struct kvm_vcpu *vcpu;
    unsigned long c;
    int ret = 0;

    lockdep_assert_held(&kvm->slots_lock);

    kvm_for_each_vcpu(c, vcpu, kvm) {
        ret = vgic_register_redist_iodev(vcpu);
        if (ret)
            break;
    }

    if (ret) {
        /* The current c failed, so iterate over the previous ones. */
        int i;

        for (i = 0; i < c; i++) {
            vcpu = kvm_get_vcpu(kvm, i);
            vgic_unregister_redist_iodev(vcpu);
        }
    }

    return ret;
}

Here is the call graph for this function:

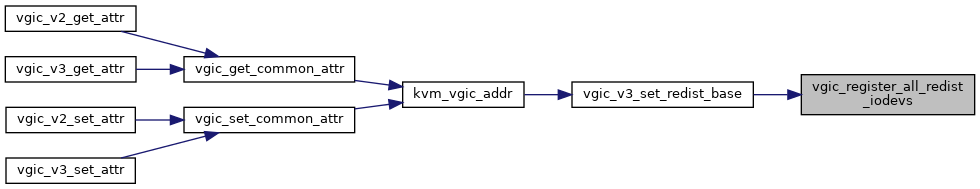

Here is the caller graph for this function:

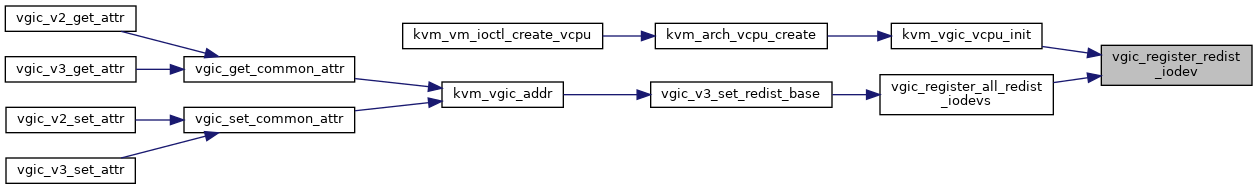

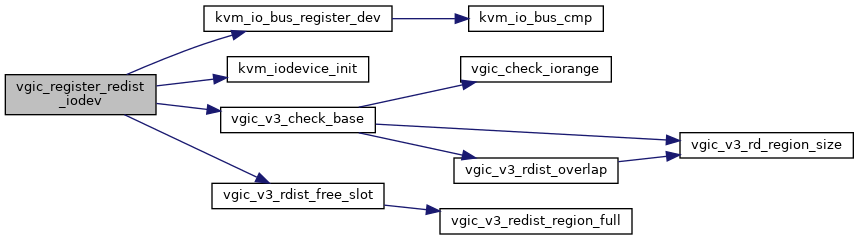

vgic_register_redist_iodev()

int vgic_register_redist_iodev

(

struct kvm_vcpu *

vcpu

)

vgic_register_redist_iodev - register a single redist iodev @vcpu: The VCPU to which the redistributor belongs

Register a KVM iodev for this VCPU's redistributor using the address provided.

Return 0 on success, -ERRNO otherwise.

Definition at line 746 of file vgic-mmio-v3.c.

{
    struct kvm *kvm = vcpu->kvm;
    struct vgic_dist *vgic = &kvm->arch.vgic;
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;
    struct vgic_io_device *rd_dev = &vcpu->arch.vgic_cpu.rd_iodev;
    struct vgic_redist_region *rdreg;
    gpa_t rd_base;
    int ret = 0;

    lockdep_assert_held(&kvm->slots_lock);
    mutex_lock(&kvm->arch.config_lock);

    if (!IS_VGIC_ADDR_UNDEF(vgic_cpu->rd_iodev.base_addr))
        goto out_unlock;

    /*
     * We may be creating VCPUs before having set the base address for the
     * redistributor region, in which case we will come back to this
     * function for all VCPUs when the base address is set.  Just return
     * without doing any work for now.
     */
    rdreg = vgic_v3_rdist_free_slot(&vgic->rd_regions);
    if (!rdreg)
        goto out_unlock;

    if (!vgic_v3_check_base(kvm)) {
        ret = -EINVAL;
        goto out_unlock;
    }

    vgic_cpu->rdreg = rdreg;
    vgic_cpu->rdreg_index = rdreg->free_index;

    rd_base = rdreg->base + rdreg->free_index * KVM_VGIC_V3_REDIST_SIZE;

    kvm_iodevice_init(&rd_dev->dev, &kvm_io_gic_ops);
    rd_dev->base_addr = rd_base;
    rd_dev->iodev_type = IODEV_REDIST;
    rd_dev->regions = vgic_v3_rd_registers;
    rd_dev->nr_regions = ARRAY_SIZE(vgic_v3_rd_registers);
    rd_dev->redist_vcpu = vcpu;

    mutex_unlock(&kvm->arch.config_lock);

    ret = kvm_io_bus_register_dev(kvm, KVM_MMIO_BUS, rd_base,
                      2 * SZ_64K, &rd_dev->dev);
    if (ret)
        return ret;

    /* Protected by slots_lock */
    rdreg->free_index++;
    return 0;

out_unlock:
    mutex_unlock(&kvm->arch.config_lock);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_sanitise_field()

u64 vgic_sanitise_field	(	u64	reg,
		u64	field_mask,
		int	field_shift,
		u64(*)(u64)	sanitise_fn
	)

Definition at line 404 of file vgic-mmio-v3.c.

{
    u64 field = (reg & field_mask) >> field_shift;

    field = sanitise_fn(field) << field_shift;
    return (reg & ~field_mask) | field;
}

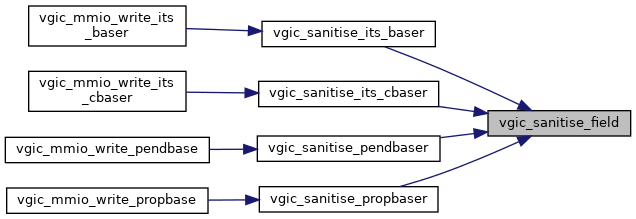

Here is the caller graph for this function:

vgic_sanitise_inner_cacheability()

u64 vgic_sanitise_inner_cacheability

(

u64

field

)

Definition at line 381 of file vgic-mmio-v3.c.

{
    switch (field) {
    case GIC_BASER_CACHE_nCnB:
    case GIC_BASER_CACHE_nC:
        return GIC_BASER_CACHE_RaWb;
    default:
        return field;
    }
}

Here is the caller graph for this function:

vgic_sanitise_outer_cacheability()

u64 vgic_sanitise_outer_cacheability

(

u64

field

)

Definition at line 393 of file vgic-mmio-v3.c.

{
    switch (field) {
    case GIC_BASER_CACHE_SameAsInner:
    case GIC_BASER_CACHE_nC:
        return field;
    default:
        return GIC_BASER_CACHE_SameAsInner;
    }
}

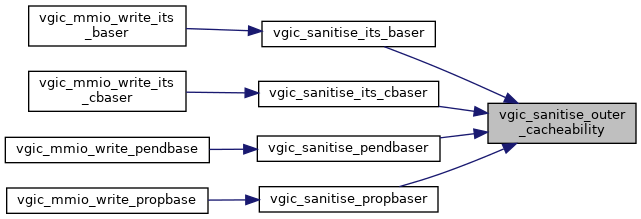

Here is the caller graph for this function:

vgic_sanitise_pendbaser()

static u64 vgic_sanitise_pendbaser ( u64  reg )

static

Definition at line 419 of file vgic-mmio-v3.c.

{
    reg = vgic_sanitise_field(reg, GICR_PENDBASER_SHAREABILITY_MASK,
                  GICR_PENDBASER_SHAREABILITY_SHIFT,
                  vgic_sanitise_shareability);
    reg = vgic_sanitise_field(reg, GICR_PENDBASER_INNER_CACHEABILITY_MASK,
                  GICR_PENDBASER_INNER_CACHEABILITY_SHIFT,
                  vgic_sanitise_inner_cacheability);
    reg = vgic_sanitise_field(reg, GICR_PENDBASER_OUTER_CACHEABILITY_MASK,
                  GICR_PENDBASER_OUTER_CACHEABILITY_SHIFT,
                  vgic_sanitise_outer_cacheability);

    reg &= ~PENDBASER_RES0_MASK;

    return reg;
}

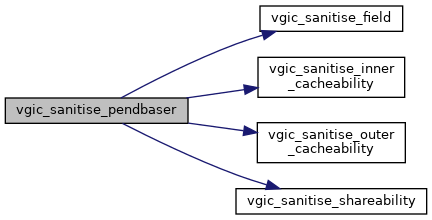

Here is the call graph for this function:

Here is the caller graph for this function:

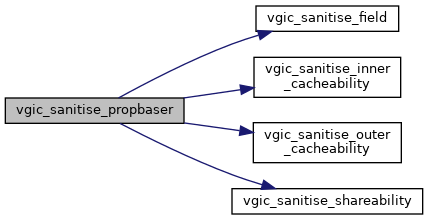

vgic_sanitise_propbaser()

static u64 vgic_sanitise_propbaser ( u64  reg )

static

Definition at line 436 of file vgic-mmio-v3.c.

{
    reg = vgic_sanitise_field(reg, GICR_PROPBASER_SHAREABILITY_MASK,
                  GICR_PROPBASER_SHAREABILITY_SHIFT,
                  vgic_sanitise_shareability);
    reg = vgic_sanitise_field(reg, GICR_PROPBASER_INNER_CACHEABILITY_MASK,
                  GICR_PROPBASER_INNER_CACHEABILITY_SHIFT,
                  vgic_sanitise_inner_cacheability);
    reg = vgic_sanitise_field(reg, GICR_PROPBASER_OUTER_CACHEABILITY_MASK,
                  GICR_PROPBASER_OUTER_CACHEABILITY_SHIFT,
                  vgic_sanitise_outer_cacheability);

    reg &= ~PROPBASER_RES0_MASK;
    return reg;
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_sanitise_shareability()

u64 vgic_sanitise_shareability

(

u64

field

)

Definition at line 370 of file vgic-mmio-v3.c.

{
    switch (field) {
    case GIC_BASER_OuterShareable:
        return GIC_BASER_InnerShareable;
    default:
        return field;
    }
}

Here is the caller graph for this function:

vgic_set_rdist_busy()

static void vgic_set_rdist_busy ( struct kvm_vcpu *  vcpu, bool  busy  )

static

Definition at line 517 of file vgic-mmio-v3.c.

{
    if (busy) {
        atomic_inc(&vcpu->arch.vgic_cpu.syncr_busy);
        smp_mb__after_atomic();
    } else {
        smp_mb__before_atomic();
        atomic_dec(&vcpu->arch.vgic_cpu.syncr_busy);
    }
}

Here is the caller graph for this function:

vgic_supports_direct_msis()

bool vgic_supports_direct_msis

(

struct kvm *

kvm

)

Definition at line 51 of file vgic-mmio-v3.c.

{
    return (kvm_vgic_global_state.has_gicv4_1 ||
        (kvm_vgic_global_state.has_gicv4 && vgic_has_its(kvm)));
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_unregister_redist_iodev()

void vgic_unregister_redist_iodev

(

struct kvm_vcpu *

vcpu

)

Definition at line 805 of file vgic-mmio-v3.c.

{
    struct vgic_io_device *rd_dev = &vcpu->arch.vgic_cpu.rd_iodev;

    kvm_io_bus_unregister_dev(vcpu->kvm, KVM_MMIO_BUS, &rd_dev->dev);
}

Here is the call graph for this function:

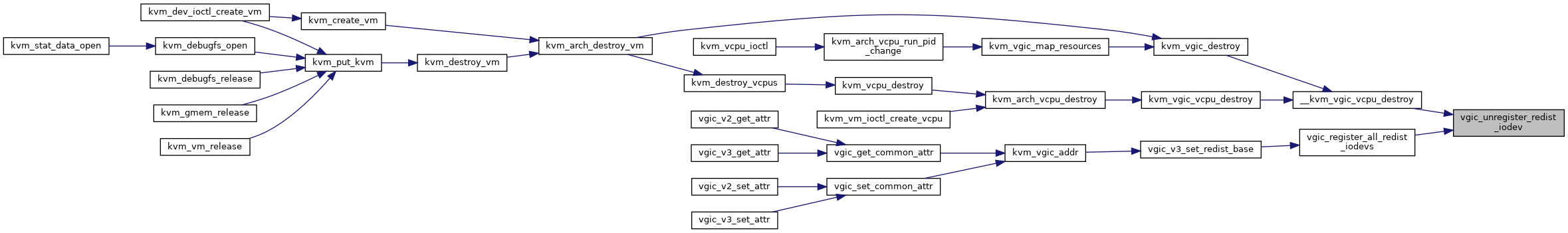

Here is the caller graph for this function:

vgic_v3_alloc_redist_region()

static int vgic_v3_alloc_redist_region ( struct kvm *  kvm, uint32_t  index, gpa_t  base, uint32_t  count  )

static

vgic_v3_alloc_redist_region - Allocate a new redistributor region

Performs various checks before inserting the rdist region in the list. Those tests depend on whether the size of the rdist region is known (ie. count != 0). The list is sorted by rdist region index.

@kvm: kvm handle @index: redist region index @base: base of the new rdist region @count: number of redistributors the region is made of (0 in the old style single region, whose size is induced from the number of vcpus)

Return 0 on success, < 0 otherwise

Definition at line 854 of file vgic-mmio-v3.c.

{
    struct vgic_dist *d = &kvm->arch.vgic;
    struct vgic_redist_region *rdreg;
    struct list_head *rd_regions = &d->rd_regions;
    int nr_vcpus = atomic_read(&kvm->online_vcpus);
    size_t size = count ? count * KVM_VGIC_V3_REDIST_SIZE
                : nr_vcpus * KVM_VGIC_V3_REDIST_SIZE;
    int ret;

    /* cross the end of memory ? */
    if (base + size < base)
        return -EINVAL;

    if (list_empty(rd_regions)) {
        if (index != 0)
            return -EINVAL;
    } else {
        rdreg = list_last_entry(rd_regions,
                    struct vgic_redist_region, list);

        /* Don't mix single region and discrete redist regions */
        if (!count && rdreg->count)
            return -EINVAL;

        if (!count)
            return -EEXIST;

        if (index != rdreg->index + 1)
            return -EINVAL;
    }

    /*
     * For legacy single-region redistributor regions (!count),
     * check that the redistributor region does not overlap with the
     * distributor's address space.
     */
    if (!count && !IS_VGIC_ADDR_UNDEF(d->vgic_dist_base) &&
        vgic_dist_overlap(kvm, base, size))
        return -EINVAL;

    /* collision with any other rdist region? */
    if (vgic_v3_rdist_overlap(kvm, base, size))
        return -EINVAL;

    rdreg = kzalloc(sizeof(*rdreg), GFP_KERNEL_ACCOUNT);
    if (!rdreg)
        return -ENOMEM;

    rdreg->base = VGIC_ADDR_UNDEF;

    ret = vgic_check_iorange(kvm, rdreg->base, base, SZ_64K, size);
    if (ret)
        goto free;

    rdreg->base = base;
    rdreg->count = count;
    rdreg->free_index = 0;
    rdreg->index = index;

    list_add_tail(&rdreg->list, rd_regions);
    return 0;
free:
    kfree(rdreg);
    return ret;
}

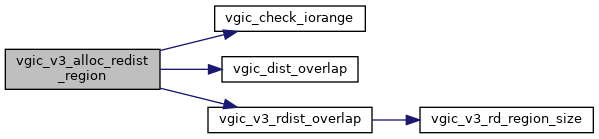

Here is the call graph for this function:

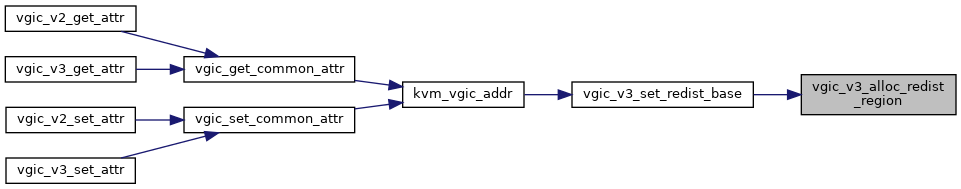

Here is the caller graph for this function:

vgic_v3_dispatch_sgi()

void vgic_v3_dispatch_sgi	(	struct kvm_vcpu *	vcpu,
		u64	reg,
		bool	allow_group1
	)

vgic_v3_dispatch_sgi - handle SGI requests from VCPUs @vcpu: The VCPU requesting a SGI @reg: The value written into ICC_{ASGI1,SGI0,SGI1}R by that VCPU @allow_group1: Does the sysreg access allow generation of G1 SGIs

With GICv3 (and ARE=1) CPUs trigger SGIs by writing to a system register. This will trap in sys_regs.c and call this function. This ICC_SGI1R_EL1 register contains the upper three affinity levels of the target processors as well as a bitmask of 16 Aff0 CPUs.

If the interrupt routing mode bit is not set, we iterate over the Aff0 bits and signal the VCPUs matching the provided Aff{3,2,1}.

If this bit is set, we signal all, but not the calling VCPU.

Definition at line 1058 of file vgic-mmio-v3.c.

{
    struct kvm *kvm = vcpu->kvm;
    struct kvm_vcpu *c_vcpu;
    unsigned long target_cpus;
    u64 mpidr;
    u32 sgi, aff0;
    unsigned long c;

    sgi = FIELD_GET(ICC_SGI1R_SGI_ID_MASK, reg);

    /* Broadcast */
    if (unlikely(reg & BIT_ULL(ICC_SGI1R_IRQ_ROUTING_MODE_BIT))) {
        kvm_for_each_vcpu(c, c_vcpu, kvm) {
            /* Don't signal the calling VCPU */
            if (c_vcpu == vcpu)
                continue;

            vgic_v3_queue_sgi(c_vcpu, sgi, allow_group1);
        }

        return;
    }

    /* We iterate over affinities to find the corresponding vcpus */
    mpidr = SGI_AFFINITY_LEVEL(reg, 3);
    mpidr |= SGI_AFFINITY_LEVEL(reg, 2);
    mpidr |= SGI_AFFINITY_LEVEL(reg, 1);
    target_cpus = FIELD_GET(ICC_SGI1R_TARGET_LIST_MASK, reg);

    for_each_set_bit(aff0, &target_cpus, hweight_long(ICC_SGI1R_TARGET_LIST_MASK)) {
        c_vcpu = kvm_mpidr_to_vcpu(kvm, mpidr | aff0);
        if (c_vcpu)
            vgic_v3_queue_sgi(c_vcpu, sgi, allow_group1);
    }
}

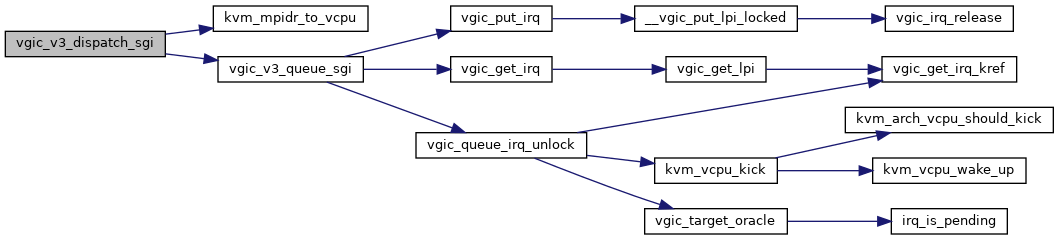

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_dist_uaccess()

int vgic_v3_dist_uaccess	(	struct kvm_vcpu *	vcpu,
		bool	is_write,
		int	offset,
		u32 *	val
	)

Definition at line 1095 of file vgic-mmio-v3.c.

{
    struct vgic_io_device dev = {
        .regions = vgic_v3_dist_registers,
        .nr_regions = ARRAY_SIZE(vgic_v3_dist_registers),
    };

    return vgic_uaccess(vcpu, &dev, is_write, offset, val);
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_free_redist_region()

void vgic_v3_free_redist_region

(

struct vgic_redist_region *

rdreg

)

Definition at line 922 of file vgic-mmio-v3.c.

{
    list_del(&rdreg->list);
    kfree(rdreg);
}

Here is the caller graph for this function:

vgic_v3_has_attr_regs()

int vgic_v3_has_attr_regs	(	struct kvm_device *	dev,
		struct kvm_device_attr *	attr
	)

Definition at line 956 of file vgic-mmio-v3.c.

{
    const struct vgic_register_region *region;
    struct vgic_io_device iodev;
    struct vgic_reg_attr reg_attr;
    struct kvm_vcpu *vcpu;
    gpa_t addr;
    int ret;

    ret = vgic_v3_parse_attr(dev, attr, &reg_attr);
    if (ret)
        return ret;

    vcpu = reg_attr.vcpu;
    addr = reg_attr.addr;

    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
        iodev.regions = vgic_v3_dist_registers;
        iodev.nr_regions = ARRAY_SIZE(vgic_v3_dist_registers);
        iodev.base_addr = 0;
        break;
    case KVM_DEV_ARM_VGIC_GRP_REDIST_REGS:{
        iodev.regions = vgic_v3_rd_registers;
        iodev.nr_regions = ARRAY_SIZE(vgic_v3_rd_registers);
        iodev.base_addr = 0;
        break;
    }
    case KVM_DEV_ARM_VGIC_GRP_CPU_SYSREGS:
        return vgic_v3_has_cpu_sysregs_attr(vcpu, attr);
    default:
        return -ENXIO;
    }

    /* We only support aligned 32-bit accesses. */
    if (addr & 3)
        return -ENXIO;

    region = vgic_get_mmio_region(vcpu, &iodev, addr, sizeof(u32));
    if (!region)
        return -ENXIO;

    return 0;
}

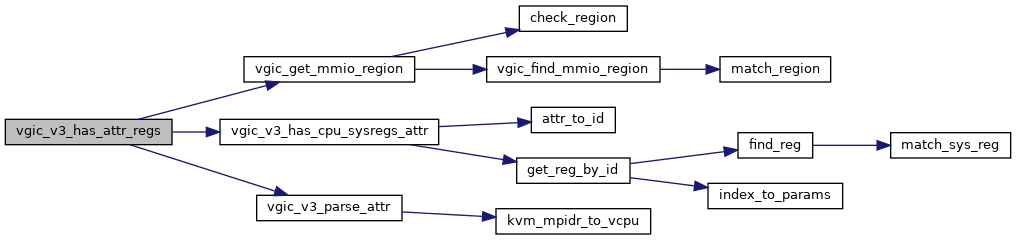

Here is the call graph for this function:

vgic_v3_init_dist_iodev()

unsigned int vgic_v3_init_dist_iodev

(

struct vgic_io_device *

dev

)

Definition at line 727 of file vgic-mmio-v3.c.

{
    dev->regions = vgic_v3_dist_registers;
    dev->nr_regions = ARRAY_SIZE(vgic_v3_dist_registers);

    kvm_iodevice_init(&dev->dev, &kvm_io_gic_ops);

    return SZ_64K;
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_line_level_info_uaccess()

int vgic_v3_line_level_info_uaccess	(	struct kvm_vcpu *	vcpu,
		bool	is_write,
		u32	intid,
		u32 *	val
	)

Definition at line 1117 of file vgic-mmio-v3.c.

{
    if (intid % 32)
        return -EINVAL;

    if (is_write)
        vgic_write_irq_line_level_info(vcpu, intid, *val);
    else
        *val = vgic_read_irq_line_level_info(vcpu, intid);

    return 0;
}

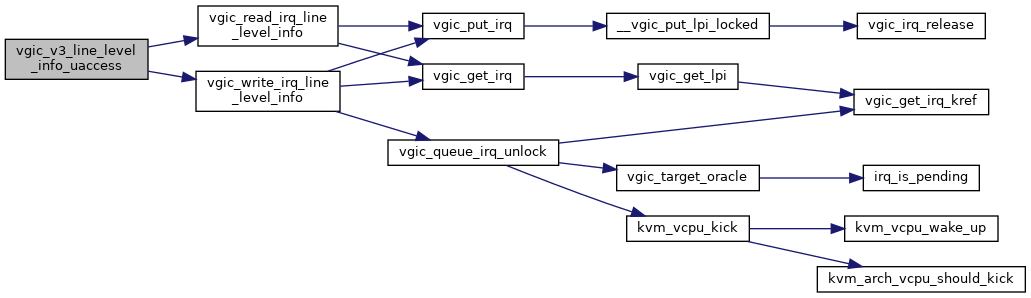

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_queue_sgi()

static void vgic_v3_queue_sgi ( struct kvm_vcpu *  vcpu, u32  sgi, bool  allow_group1  )

static

Definition at line 1010 of file vgic-mmio-v3.c.

{
    struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, vcpu, sgi);
    unsigned long flags;

    raw_spin_lock_irqsave(&irq->irq_lock, flags);

    /*
     * An access targeting Group0 SGIs can only generate
     * those, while an access targeting Group1 SGIs can
     * generate interrupts of either group.
     */
    if (!irq->group || allow_group1) {
        if (!irq->hw) {
            irq->pending_latch = true;
            vgic_queue_irq_unlock(vcpu->kvm, irq, flags);
        } else {
            /* HW SGI? Ask the GIC to inject it */
            int err;
            err = irq_set_irqchip_state(irq->host_irq,
                            IRQCHIP_STATE_PENDING,
                            true);
            WARN_RATELIMIT(err, "IRQ %d", irq->host_irq);
            raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
        }
    } else {
        raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
    }

    vgic_put_irq(vcpu->kvm, irq);
}

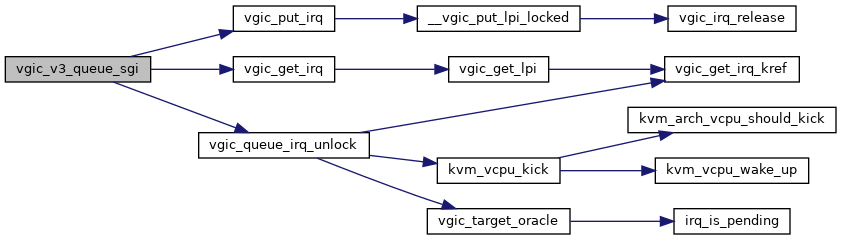

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_redist_uaccess()

int vgic_v3_redist_uaccess	(	struct kvm_vcpu *	vcpu,
		bool	is_write,
		int	offset,
		u32 *	val
	)

Definition at line 1106 of file vgic-mmio-v3.c.

{
    struct vgic_io_device rd_dev = {
        .regions = vgic_v3_rd_registers,
        .nr_regions = ARRAY_SIZE(vgic_v3_rd_registers),
    };

    return vgic_uaccess(vcpu, &rd_dev, is_write, offset, val);
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_set_redist_base()

int vgic_v3_set_redist_base	(	struct kvm *	kvm,
		u32	index,
		u64	addr,
		u32	count
	)

Definition at line 928 of file vgic-mmio-v3.c.

{
    int ret;

    mutex_lock(&kvm->arch.config_lock);
    ret = vgic_v3_alloc_redist_region(kvm, index, addr, count);
    mutex_unlock(&kvm->arch.config_lock);
    if (ret)
        return ret;

    /*
     * Register iodevs for each existing VCPU.  Adding more VCPUs
     * afterwards will register the iodevs when needed.
     */
    ret = vgic_register_all_redist_iodevs(kvm);
    if (ret) {
        struct vgic_redist_region *rdreg;

        mutex_lock(&kvm->arch.config_lock);
        rdreg = vgic_v3_rdist_region_from_index(kvm, index);
        vgic_v3_free_redist_region(rdreg);
        mutex_unlock(&kvm->arch.config_lock);
        return ret;
    }

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_uaccess_write_pending()

static int vgic_v3_uaccess_write_pending ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 356 of file vgic-mmio-v3.c.

{
    int ret;

    ret = vgic_uaccess_write_spending(vcpu, addr, len, val);
    if (ret)
        return ret;

    return vgic_uaccess_write_cpending(vcpu, addr, len, ~val);
}

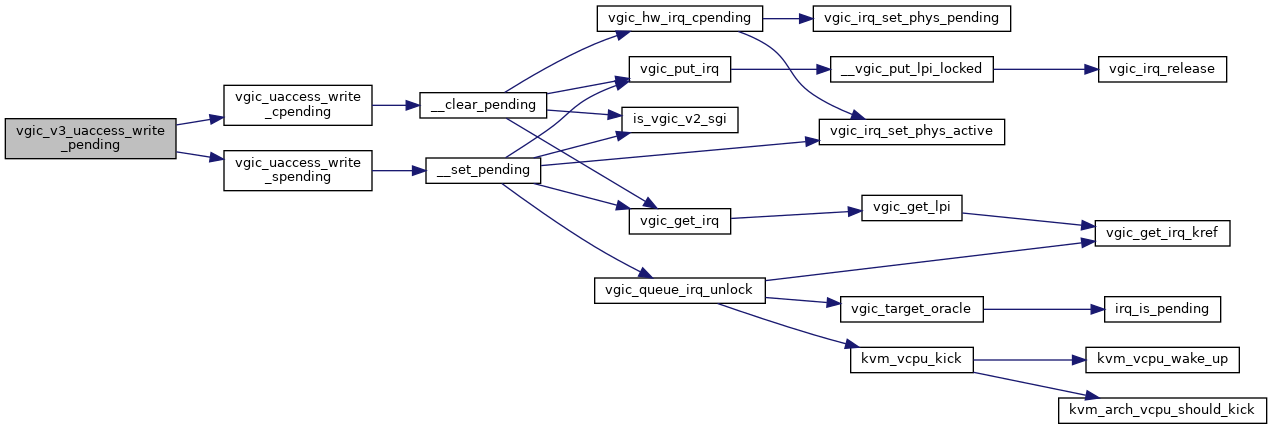

Here is the call graph for this function:

Variable Documentation

vgic_v3_dist_registers

const struct vgic_register_region vgic_v3_dist_registers[]

static

Definition at line 555 of file vgic-mmio-v3.c.

vgic_v3_rd_registers

const struct vgic_register_region vgic_v3_rd_registers[]

static

Definition at line 555 of file vgic-mmio-v3.c.
