vgic-v3.c File Reference

#include <linux/irqchip/arm-gic-v3.h>
#include <linux/irq.h>
#include <linux/irqdomain.h>
#include <linux/kstrtox.h>
#include <linux/kvm.h>
#include <linux/kvm_host.h>
#include <kvm/arm_vgic.h>
#include <asm/kvm_hyp.h>
#include <asm/kvm_mmu.h>
#include <asm/kvm_asm.h>
#include "vgic.h"

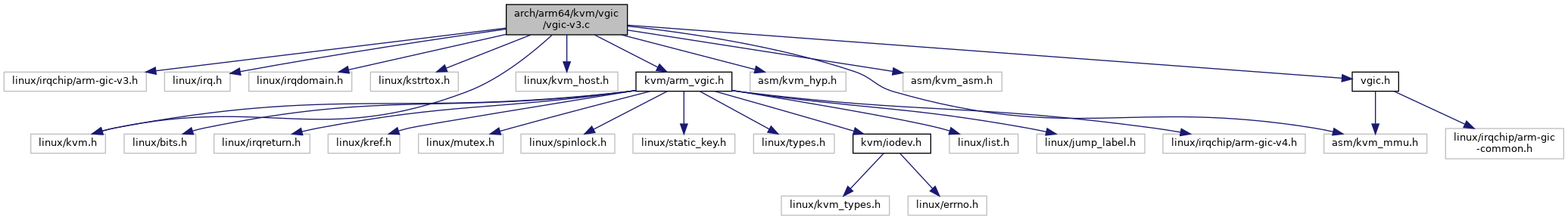

Include dependency graph for vgic-v3.c:

Go to the source code of this file.

Macros
#define	INITIAL_PENDBASER_VALUE

Functions
void	vgic_v3_set_underflow (struct kvm_vcpu *vcpu)
static bool	lr_signals_eoi_mi (u64 lr_val)
void	vgic_v3_fold_lr_state (struct kvm_vcpu *vcpu)
void	vgic_v3_populate_lr (struct kvm_vcpu *vcpu, struct vgic_irq *irq, int lr)
void	vgic_v3_clear_lr (struct kvm_vcpu *vcpu, int lr)
void	vgic_v3_set_vmcr (struct kvm_vcpu *vcpu, struct vgic_vmcr *vmcrp)
void	vgic_v3_get_vmcr (struct kvm_vcpu *vcpu, struct vgic_vmcr *vmcrp)
void	vgic_v3_enable (struct kvm_vcpu *vcpu)
int	vgic_v3_lpi_sync_pending_status (struct kvm *kvm, struct vgic_irq *irq)
static void	unmap_all_vpes (struct kvm *kvm)
static void	map_all_vpes (struct kvm *kvm)
int	vgic_v3_save_pending_tables (struct kvm *kvm)
bool	vgic_v3_rdist_overlap (struct kvm *kvm, gpa_t base, size_t size)
bool	vgic_v3_check_base (struct kvm *kvm)
struct vgic_redist_region *	vgic_v3_rdist_free_slot (struct list_head *rd_regions)
struct vgic_redist_region *	vgic_v3_rdist_region_from_index (struct kvm *kvm, u32 index)
int	vgic_v3_map_resources (struct kvm *kvm)
	DEFINE_STATIC_KEY_FALSE (vgic_v3_cpuif_trap)
static int __init	early_group0_trap_cfg (char *buf)
	early_param ("kvm-arm.vgic_v3_group0_trap", early_group0_trap_cfg)
static int __init	early_group1_trap_cfg (char *buf)
	early_param ("kvm-arm.vgic_v3_group1_trap", early_group1_trap_cfg)
static int __init	early_common_trap_cfg (char *buf)
	early_param ("kvm-arm.vgic_v3_common_trap", early_common_trap_cfg)
static int __init	early_gicv4_enable (char *buf)
	early_param ("kvm-arm.vgic_v4_enable", early_gicv4_enable)
static bool	vgic_v3_broken_seis (void)
int	vgic_v3_probe (const struct gic_kvm_info *info)
void	vgic_v3_load (struct kvm_vcpu *vcpu)
void	vgic_v3_vmcr_sync (struct kvm_vcpu *vcpu)
void	vgic_v3_put (struct kvm_vcpu *vcpu)

Variables
static bool	group0_trap
static bool	group1_trap
static bool	common_trap
static bool	dir_trap
static bool	gicv4_enable
static const struct midr_range	broken_seis []

Macro Definition Documentation

INITIAL_PENDBASER_VALUE

#define INITIAL_PENDBASER_VALUE

Value:

    (GIC_BASER_CACHEABILITY(GICR_PENDBASER, INNER, RaWb)        | \
    GIC_BASER_CACHEABILITY(GICR_PENDBASER, OUTER, SameAsInner)  | \
    GIC_BASER_SHAREABILITY(GICR_PENDBASER, InnerShareable))

Definition at line 255 of file vgic-v3.c.

Function Documentation

DEFINE_STATIC_KEY_FALSE()

DEFINE_STATIC_KEY_FALSE

(

vgic_v3_cpuif_trap

)

early_common_trap_cfg()

static int __init early_common_trap_cfg ( char *  buf )

static

Definition at line 591 of file vgic-v3.c.

{
    return kstrtobool(buf, &common_trap);
}

early_gicv4_enable()

static int __init early_gicv4_enable ( char *  buf )

static

Definition at line 597 of file vgic-v3.c.

{
    return kstrtobool(buf, &gicv4_enable);
}

early_group0_trap_cfg()

static int __init early_group0_trap_cfg ( char *  buf )

static

Definition at line 579 of file vgic-v3.c.

{
    return kstrtobool(buf, &group0_trap);
}

early_group1_trap_cfg()

static int __init early_group1_trap_cfg ( char *  buf )

static

Definition at line 585 of file vgic-v3.c.

{
    return kstrtobool(buf, &group1_trap);
}

early_param() [1/4]

early_param	(	"kvm-arm.vgic_v3_common_trap"	,
		early_common_trap_cfg
	)

early_param() [2/4]

early_param	(	"kvm-arm.vgic_v3_group0_trap"	,
		early_group0_trap_cfg
	)

early_param() [3/4]

early_param	(	"kvm-arm.vgic_v3_group1_trap"	,
		early_group1_trap_cfg
	)

early_param() [4/4]

early_param	(	"kvm-arm.vgic_v4_enable"	,
		early_gicv4_enable
	)

lr_signals_eoi_mi()

static bool lr_signals_eoi_mi ( u64  lr_val )

static

Definition at line 29 of file vgic-v3.c.

{
    return !(lr_val & ICH_LR_STATE) && (lr_val & ICH_LR_EOI) &&
           !(lr_val & ICH_LR_HW);
}

Here is the caller graph for this function:

map_all_vpes()

static void map_all_vpes ( struct kvm *  kvm )

static

Definition at line 363 of file vgic-v3.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    int i;

    for (i = 0; i < dist->its_vm.nr_vpes; i++)
        WARN_ON(vgic_v4_request_vpe_irq(kvm_get_vcpu(kvm, i),
                        dist->its_vm.vpes[i]->irq));
}

Here is the call graph for this function:

Here is the caller graph for this function:

unmap_all_vpes()

static void unmap_all_vpes ( struct kvm *  kvm )

static

Definition at line 354 of file vgic-v3.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    int i;

    for (i = 0; i < dist->its_vm.nr_vpes; i++)
        free_irq(dist->its_vm.vpes[i]->irq, kvm_get_vcpu(kvm, i));
}

Here is the caller graph for this function:

vgic_v3_broken_seis()

static bool vgic_v3_broken_seis ( void  )

static

Definition at line 619 of file vgic-v3.c.

{
    return ((kvm_vgic_global_state.ich_vtr_el2 & ICH_VTR_SEIS_MASK) &&
        is_midr_in_range_list(read_cpuid_id(), broken_seis));
}

Here is the caller graph for this function:

vgic_v3_check_base()

bool vgic_v3_check_base

(

struct kvm *

kvm

)

Definition at line 477 of file vgic-v3.c.

{
    struct vgic_dist *d = &kvm->arch.vgic;
    struct vgic_redist_region *rdreg;

    if (!IS_VGIC_ADDR_UNDEF(d->vgic_dist_base) &&
        d->vgic_dist_base + KVM_VGIC_V3_DIST_SIZE < d->vgic_dist_base)
        return false;

    list_for_each_entry(rdreg, &d->rd_regions, list) {
        size_t sz = vgic_v3_rd_region_size(kvm, rdreg);

        if (vgic_check_iorange(kvm, VGIC_ADDR_UNDEF,
                       rdreg->base, SZ_64K, sz))
            return false;
    }

    if (IS_VGIC_ADDR_UNDEF(d->vgic_dist_base))
        return true;

    return !vgic_v3_rdist_overlap(kvm, d->vgic_dist_base,
                      KVM_VGIC_V3_DIST_SIZE);
}

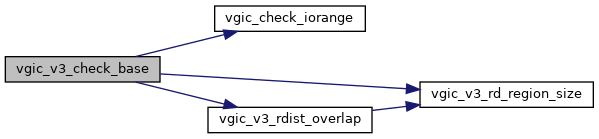

Here is the call graph for this function:

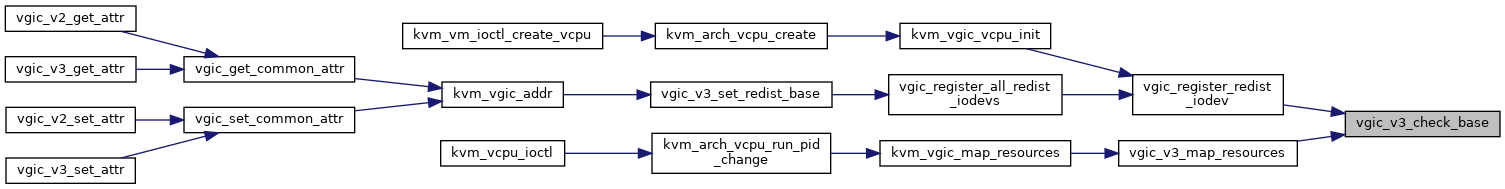

Here is the caller graph for this function:

vgic_v3_clear_lr()

void vgic_v3_clear_lr	(	struct kvm_vcpu *	vcpu,
		int	lr
	)

Definition at line 189 of file vgic-v3.c.

{
    vcpu->arch.vgic_cpu.vgic_v3.vgic_lr[lr] = 0;
}

Here is the caller graph for this function:

vgic_v3_enable()

void vgic_v3_enable

(

struct kvm_vcpu *

vcpu

)

Definition at line 260 of file vgic-v3.c.

{
    struct vgic_v3_cpu_if *vgic_v3 = &vcpu->arch.vgic_cpu.vgic_v3;

    /*
     * By forcing VMCR to zero, the GIC will restore the binary
     * points to their reset values. Anything else resets to zero
     * anyway.
     */
    vgic_v3->vgic_vmcr = 0;

    /*
     * If we are emulating a GICv3, we do it in an non-GICv2-compatible
     * way, so we force SRE to 1 to demonstrate this to the guest.
     * Also, we don't support any form of IRQ/FIQ bypass.
     * This goes with the spec allowing the value to be RAO/WI.
     */
    if (vcpu->kvm->arch.vgic.vgic_model == KVM_DEV_TYPE_ARM_VGIC_V3) {
        vgic_v3->vgic_sre = (ICC_SRE_EL1_DIB |
                     ICC_SRE_EL1_DFB |
                     ICC_SRE_EL1_SRE);
        vcpu->arch.vgic_cpu.pendbaser = INITIAL_PENDBASER_VALUE;
    } else {
        vgic_v3->vgic_sre = 0;
    }

    vcpu->arch.vgic_cpu.num_id_bits = (kvm_vgic_global_state.ich_vtr_el2 &
                       ICH_VTR_ID_BITS_MASK) >>
                       ICH_VTR_ID_BITS_SHIFT;
    vcpu->arch.vgic_cpu.num_pri_bits = ((kvm_vgic_global_state.ich_vtr_el2 &
                        ICH_VTR_PRI_BITS_MASK) >>
                        ICH_VTR_PRI_BITS_SHIFT) + 1;

    /* Get the show on the road... */
    vgic_v3->vgic_hcr = ICH_HCR_EN;
    if (group0_trap)
        vgic_v3->vgic_hcr |= ICH_HCR_TALL0;
    if (group1_trap)
        vgic_v3->vgic_hcr |= ICH_HCR_TALL1;
    if (common_trap)
        vgic_v3->vgic_hcr |= ICH_HCR_TC;
    if (dir_trap)
        vgic_v3->vgic_hcr |= ICH_HCR_TDIR;
}

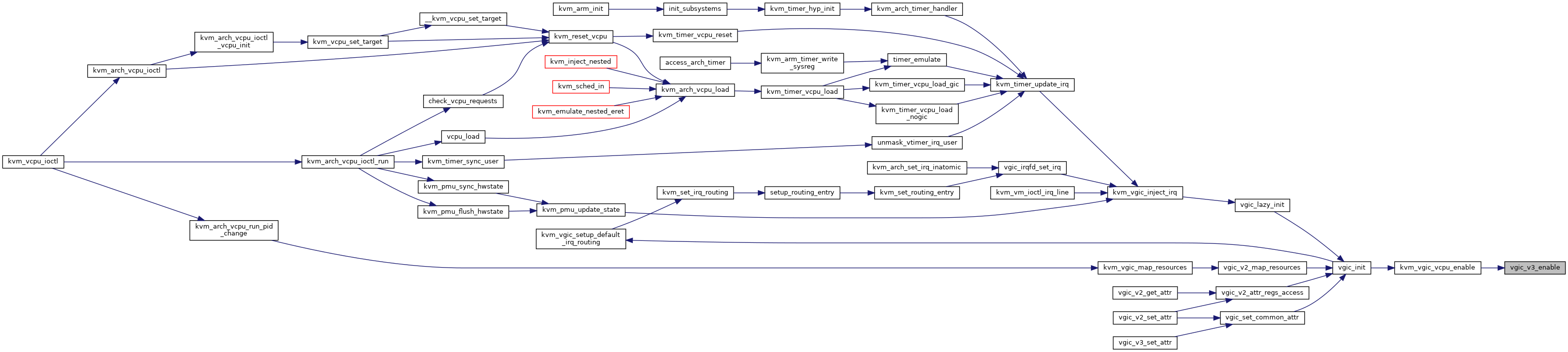

Here is the caller graph for this function:

vgic_v3_fold_lr_state()

void vgic_v3_fold_lr_state

(

struct kvm_vcpu *

vcpu

)

Definition at line 35 of file vgic-v3.c.

{
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;
    struct vgic_v3_cpu_if *cpuif = &vgic_cpu->vgic_v3;
    u32 model = vcpu->kvm->arch.vgic.vgic_model;
    int lr;

    DEBUG_SPINLOCK_BUG_ON(!irqs_disabled());

    cpuif->vgic_hcr &= ~ICH_HCR_UIE;

    for (lr = 0; lr < cpuif->used_lrs; lr++) {
        u64 val = cpuif->vgic_lr[lr];
        u32 intid, cpuid;
        struct vgic_irq *irq;
        bool is_v2_sgi = false;
        bool deactivated;

        cpuid = val & GICH_LR_PHYSID_CPUID;
        cpuid >>= GICH_LR_PHYSID_CPUID_SHIFT;

        if (model == KVM_DEV_TYPE_ARM_VGIC_V3) {
            intid = val & ICH_LR_VIRTUAL_ID_MASK;
        } else {
            intid = val & GICH_LR_VIRTUALID;
            is_v2_sgi = vgic_irq_is_sgi(intid);
        }

        /* Notify fds when the guest EOI'ed a level-triggered IRQ */
        if (lr_signals_eoi_mi(val) && vgic_valid_spi(vcpu->kvm, intid))
            kvm_notify_acked_irq(vcpu->kvm, 0,
                         intid - VGIC_NR_PRIVATE_IRQS);

        irq = vgic_get_irq(vcpu->kvm, vcpu, intid);
        if (!irq)   /* An LPI could have been unmapped. */
            continue;

        raw_spin_lock(&irq->irq_lock);

        /* Always preserve the active bit, note deactivation */
        deactivated = irq->active && !(val & ICH_LR_ACTIVE_BIT);
        irq->active = !!(val & ICH_LR_ACTIVE_BIT);

        if (irq->active && is_v2_sgi)
            irq->active_source = cpuid;

        /* Edge is the only case where we preserve the pending bit */
        if (irq->config == VGIC_CONFIG_EDGE &&
            (val & ICH_LR_PENDING_BIT)) {
            irq->pending_latch = true;

            if (is_v2_sgi)
                irq->source |= (1 << cpuid);
        }

        /*
         * Clear soft pending state when level irqs have been acked.
         */
        if (irq->config == VGIC_CONFIG_LEVEL && !(val & ICH_LR_STATE))
            irq->pending_latch = false;

        /* Handle resampling for mapped interrupts if required */
        vgic_irq_handle_resampling(irq, deactivated, val & ICH_LR_PENDING_BIT);

        raw_spin_unlock(&irq->irq_lock);
        vgic_put_irq(vcpu->kvm, irq);
    }

    cpuif->used_lrs = 0;
}

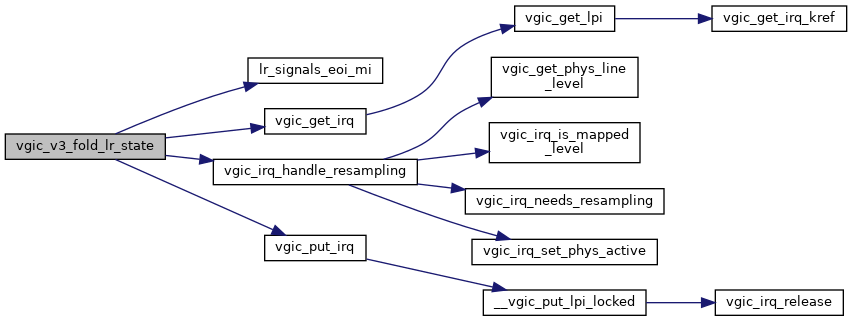

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_get_vmcr()

void vgic_v3_get_vmcr	(	struct kvm_vcpu *	vcpu,
		struct vgic_vmcr *	vmcrp
	)

Definition at line 224 of file vgic-v3.c.

{
    struct vgic_v3_cpu_if *cpu_if = &vcpu->arch.vgic_cpu.vgic_v3;
    u32 model = vcpu->kvm->arch.vgic.vgic_model;
    u32 vmcr;

    vmcr = cpu_if->vgic_vmcr;

    if (model == KVM_DEV_TYPE_ARM_VGIC_V2) {
        vmcrp->ackctl = (vmcr & ICH_VMCR_ACK_CTL_MASK) >>
            ICH_VMCR_ACK_CTL_SHIFT;
        vmcrp->fiqen = (vmcr & ICH_VMCR_FIQ_EN_MASK) >>
            ICH_VMCR_FIQ_EN_SHIFT;
    } else {
        /*
         * When emulating GICv3 on GICv3 with SRE=1 on the
         * VFIQEn bit is RES1 and the VAckCtl bit is RES0.
         */
        vmcrp->fiqen = 1;
        vmcrp->ackctl = 0;
    }

    vmcrp->cbpr = (vmcr & ICH_VMCR_CBPR_MASK) >> ICH_VMCR_CBPR_SHIFT;
    vmcrp->eoim = (vmcr & ICH_VMCR_EOIM_MASK) >> ICH_VMCR_EOIM_SHIFT;
    vmcrp->abpr = (vmcr & ICH_VMCR_BPR1_MASK) >> ICH_VMCR_BPR1_SHIFT;
    vmcrp->bpr  = (vmcr & ICH_VMCR_BPR0_MASK) >> ICH_VMCR_BPR0_SHIFT;
    vmcrp->pmr  = (vmcr & ICH_VMCR_PMR_MASK) >> ICH_VMCR_PMR_SHIFT;
    vmcrp->grpen0 = (vmcr & ICH_VMCR_ENG0_MASK) >> ICH_VMCR_ENG0_SHIFT;
    vmcrp->grpen1 = (vmcr & ICH_VMCR_ENG1_MASK) >> ICH_VMCR_ENG1_SHIFT;
}

Here is the caller graph for this function:

vgic_v3_load()

void vgic_v3_load

(

struct kvm_vcpu *

vcpu

)

Definition at line 720 of file vgic-v3.c.

{
    struct vgic_v3_cpu_if *cpu_if = &vcpu->arch.vgic_cpu.vgic_v3;

    /*
     * If dealing with a GICv2 emulation on GICv3, VMCR_EL2.VFIQen
     * is dependent on ICC_SRE_EL1.SRE, and we have to perform the
     * VMCR_EL2 save/restore in the world switch.
     */
    if (likely(cpu_if->vgic_sre))
        kvm_call_hyp(__vgic_v3_write_vmcr, cpu_if->vgic_vmcr);

    kvm_call_hyp(__vgic_v3_restore_aprs, cpu_if);

    if (has_vhe())
        __vgic_v3_activate_traps(cpu_if);

    WARN_ON(vgic_v4_load(vcpu));
}

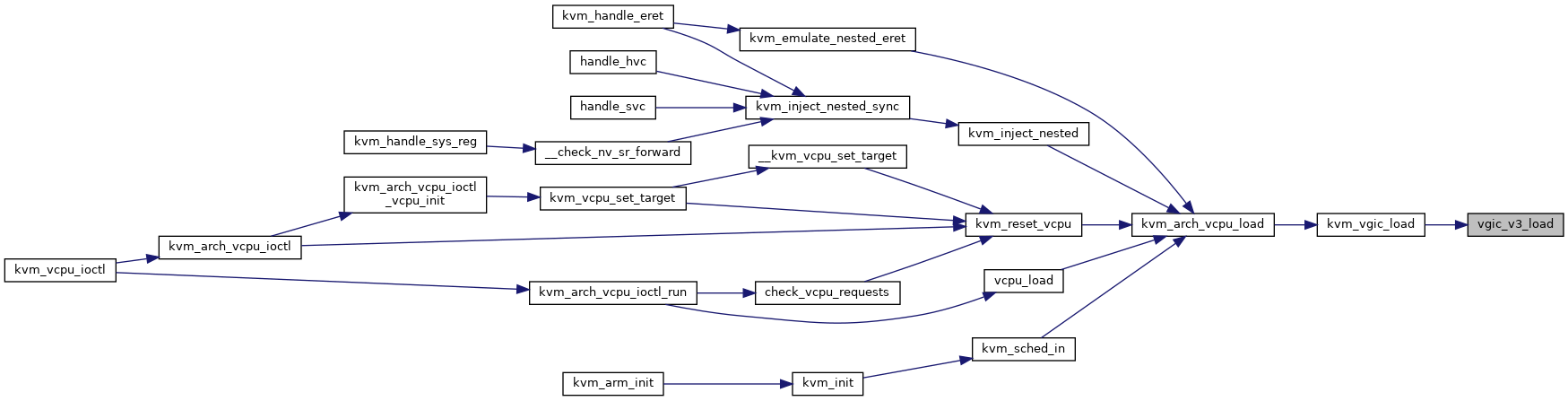

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_lpi_sync_pending_status()

int vgic_v3_lpi_sync_pending_status	(	struct kvm *	kvm,
		struct vgic_irq *	irq
	)

Definition at line 305 of file vgic-v3.c.

{
    struct kvm_vcpu *vcpu;
    int byte_offset, bit_nr;
    gpa_t pendbase, ptr;
    bool status;
    u8 val;
    int ret;
    unsigned long flags;

retry:
    vcpu = irq->target_vcpu;
    if (!vcpu)
        return 0;

    pendbase = GICR_PENDBASER_ADDRESS(vcpu->arch.vgic_cpu.pendbaser);

    byte_offset = irq->intid / BITS_PER_BYTE;
    bit_nr = irq->intid % BITS_PER_BYTE;
    ptr = pendbase + byte_offset;

    ret = kvm_read_guest_lock(kvm, ptr, &val, 1);
    if (ret)
        return ret;

    status = val & (1 << bit_nr);

    raw_spin_lock_irqsave(&irq->irq_lock, flags);
    if (irq->target_vcpu != vcpu) {
        raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
        goto retry;
    }
    irq->pending_latch = status;
    vgic_queue_irq_unlock(vcpu->kvm, irq, flags);

    if (status) {
        /* clear consumed data */
        val &= ~(1 << bit_nr);
        ret = vgic_write_guest_lock(kvm, ptr, &val, 1);
        if (ret)
            return ret;
    }
    return 0;
}

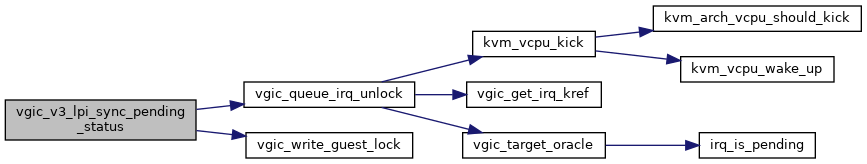

Here is the call graph for this function:

vgic_v3_map_resources()

int vgic_v3_map_resources

(

struct kvm *

kvm

)

Definition at line 538 of file vgic-v3.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    struct kvm_vcpu *vcpu;
    unsigned long c;

    kvm_for_each_vcpu(c, vcpu, kvm) {
        struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;

        if (IS_VGIC_ADDR_UNDEF(vgic_cpu->rd_iodev.base_addr)) {
            kvm_debug("vcpu %ld redistributor base not set\n", c);
            return -ENXIO;
        }
    }

    if (IS_VGIC_ADDR_UNDEF(dist->vgic_dist_base)) {
        kvm_debug("Need to set vgic distributor addresses first\n");
        return -ENXIO;
    }

    if (!vgic_v3_check_base(kvm)) {
        kvm_debug("VGIC redist and dist frames overlap\n");
        return -EINVAL;
    }

    /*
     * For a VGICv3 we require the userland to explicitly initialize
     * the VGIC before we need to use it.
     */
    if (!vgic_initialized(kvm)) {
        return -EBUSY;
    }

    if (kvm_vgic_global_state.has_gicv4_1)
        vgic_v4_configure_vsgis(kvm);

    return 0;
}

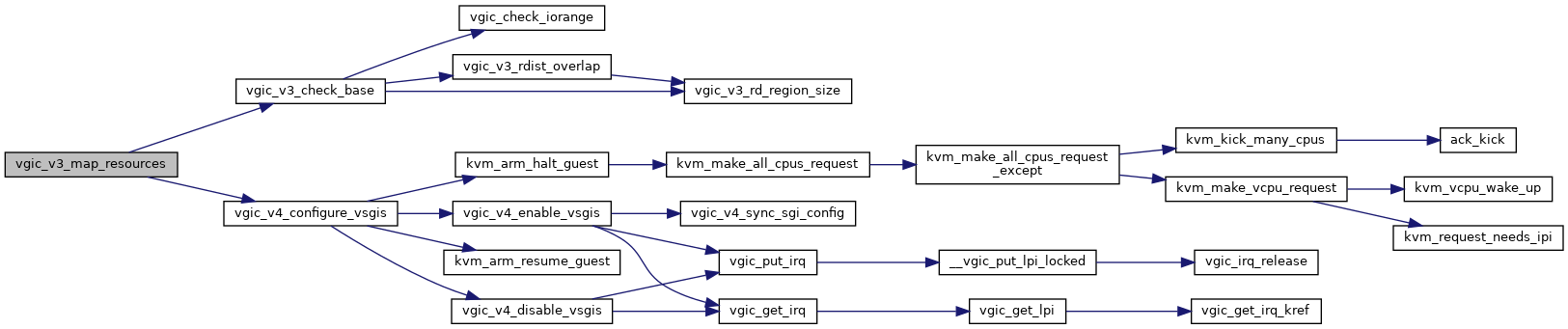

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_populate_lr()

void vgic_v3_populate_lr	(	struct kvm_vcpu *	vcpu,
		struct vgic_irq *	irq,
		int	lr
	)

Definition at line 107 of file vgic-v3.c.

{
    u32 model = vcpu->kvm->arch.vgic.vgic_model;
    u64 val = irq->intid;
    bool allow_pending = true, is_v2_sgi;

    is_v2_sgi = (vgic_irq_is_sgi(irq->intid) &&
             model == KVM_DEV_TYPE_ARM_VGIC_V2);

    if (irq->active) {
        val |= ICH_LR_ACTIVE_BIT;
        if (is_v2_sgi)
            val |= irq->active_source << GICH_LR_PHYSID_CPUID_SHIFT;
        if (vgic_irq_is_multi_sgi(irq)) {
            allow_pending = false;
            val |= ICH_LR_EOI;
        }
    }

    if (irq->hw && !vgic_irq_needs_resampling(irq)) {
        val |= ICH_LR_HW;
        val |= ((u64)irq->hwintid) << ICH_LR_PHYS_ID_SHIFT;
        /*
         * Never set pending+active on a HW interrupt, as the
         * pending state is kept at the physical distributor
         * level.
         */
        if (irq->active)
            allow_pending = false;
    } else {
        if (irq->config == VGIC_CONFIG_LEVEL) {
            val |= ICH_LR_EOI;

            /*
             * Software resampling doesn't work very well
             * if we allow P+A, so let's not do that.
             */
            if (irq->active)
                allow_pending = false;
        }
    }

    if (allow_pending && irq_is_pending(irq)) {
        val |= ICH_LR_PENDING_BIT;

        if (irq->config == VGIC_CONFIG_EDGE)
            irq->pending_latch = false;

        if (vgic_irq_is_sgi(irq->intid) &&
            model == KVM_DEV_TYPE_ARM_VGIC_V2) {
            u32 src = ffs(irq->source);

            if (WARN_RATELIMIT(!src, "No SGI source for INTID %d\n",
                       irq->intid))
                return;

            val |= (src - 1) << GICH_LR_PHYSID_CPUID_SHIFT;
            irq->source &= ~(1 << (src - 1));
            if (irq->source) {
                irq->pending_latch = true;
                val |= ICH_LR_EOI;
            }
        }
    }

    /*
     * Level-triggered mapped IRQs are special because we only observe
     * rising edges as input to the VGIC.  We therefore lower the line
     * level here, so that we can take new virtual IRQs.  See
     * vgic_v3_fold_lr_state for more info.
     */
    if (vgic_irq_is_mapped_level(irq) && (val & ICH_LR_PENDING_BIT))
        irq->line_level = false;

    if (irq->group)
        val |= ICH_LR_GROUP;

    val |= (u64)irq->priority << ICH_LR_PRIORITY_SHIFT;

    vcpu->arch.vgic_cpu.vgic_v3.vgic_lr[lr] = val;
}

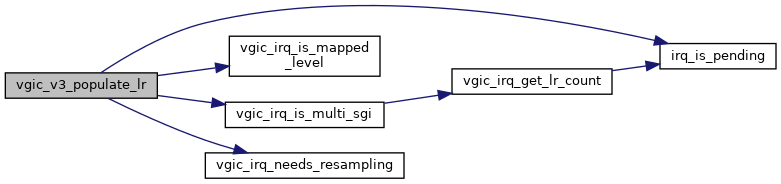

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_probe()

int vgic_v3_probe

(

const struct gic_kvm_info *

info

)

vgic_v3_probe - probe for a VGICv3 compatible interrupt controller @info: pointer to the GIC description

Returns 0 if the VGICv3 has been probed successfully, returns an error code otherwise

Definition at line 632 of file vgic-v3.c.

{
    u64 ich_vtr_el2 = kvm_call_hyp_ret(__vgic_v3_get_gic_config);
    bool has_v2;
    int ret;

    has_v2 = ich_vtr_el2 >> 63;
    ich_vtr_el2 = (u32)ich_vtr_el2;

    /*
     * The ListRegs field is 5 bits, but there is an architectural
     * maximum of 16 list registers. Just ignore bit 4...
     */
    kvm_vgic_global_state.nr_lr = (ich_vtr_el2 & 0xf) + 1;
    kvm_vgic_global_state.can_emulate_gicv2 = false;
    kvm_vgic_global_state.ich_vtr_el2 = ich_vtr_el2;

    /* GICv4 support? */
    if (info->has_v4) {
        kvm_vgic_global_state.has_gicv4 = gicv4_enable;
        kvm_vgic_global_state.has_gicv4_1 = info->has_v4_1 && gicv4_enable;
        kvm_info("GICv4%s support %sabled\n",
             kvm_vgic_global_state.has_gicv4_1 ? ".1" : "",
             gicv4_enable ? "en" : "dis");
    }

    kvm_vgic_global_state.vcpu_base = 0;

    if (!info->vcpu.start) {
        kvm_info("GICv3: no GICV resource entry\n");
    } else if (!has_v2) {
        pr_warn(FW_BUG "CPU interface incapable of MMIO access\n");
    } else if (!PAGE_ALIGNED(info->vcpu.start)) {
        pr_warn("GICV physical address 0x%llx not page aligned\n",
            (unsigned long long)info->vcpu.start);
    } else if (kvm_get_mode() != KVM_MODE_PROTECTED) {
        kvm_vgic_global_state.vcpu_base = info->vcpu.start;
        kvm_vgic_global_state.can_emulate_gicv2 = true;
        ret = kvm_register_vgic_device(KVM_DEV_TYPE_ARM_VGIC_V2);
        if (ret) {
            kvm_err("Cannot register GICv2 KVM device.\n");
            return ret;
        }
        kvm_info("vgic-v2@%llx\n", info->vcpu.start);
    }
    ret = kvm_register_vgic_device(KVM_DEV_TYPE_ARM_VGIC_V3);
    if (ret) {
        kvm_err("Cannot register GICv3 KVM device.\n");
        kvm_unregister_device_ops(KVM_DEV_TYPE_ARM_VGIC_V2);
        return ret;
    }

    if (kvm_vgic_global_state.vcpu_base == 0)
        kvm_info("disabling GICv2 emulation\n");

    if (cpus_have_final_cap(ARM64_WORKAROUND_CAVIUM_30115)) {
        group0_trap = true;
        group1_trap = true;
    }

    if (vgic_v3_broken_seis()) {
        kvm_info("GICv3 with broken locally generated SEI\n");

        kvm_vgic_global_state.ich_vtr_el2 &= ~ICH_VTR_SEIS_MASK;
        group0_trap = true;
        group1_trap = true;
        if (ich_vtr_el2 & ICH_VTR_TDS_MASK)
            dir_trap = true;
        else
            common_trap = true;
    }

    if (group0_trap || group1_trap || common_trap | dir_trap) {
        kvm_info("GICv3 sysreg trapping enabled ([%s%s%s%s], reduced performance)\n",
             group0_trap ? "G0" : "",
             group1_trap ? "G1" : "",
             common_trap ? "C"  : "",
             dir_trap    ? "D"  : "");
        static_branch_enable(&vgic_v3_cpuif_trap);
    }

    kvm_vgic_global_state.vctrl_base = NULL;
    kvm_vgic_global_state.type = VGIC_V3;
    kvm_vgic_global_state.max_gic_vcpus = VGIC_V3_MAX_CPUS;

    return 0;
}

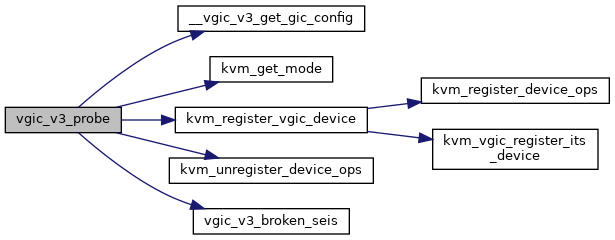

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_put()

void vgic_v3_put

(

struct kvm_vcpu *

vcpu

)

Definition at line 748 of file vgic-v3.c.

{
    struct vgic_v3_cpu_if *cpu_if = &vcpu->arch.vgic_cpu.vgic_v3;

    WARN_ON(vgic_v4_put(vcpu));

    vgic_v3_vmcr_sync(vcpu);

    kvm_call_hyp(__vgic_v3_save_aprs, cpu_if);

    if (has_vhe())
        __vgic_v3_deactivate_traps(cpu_if);
}

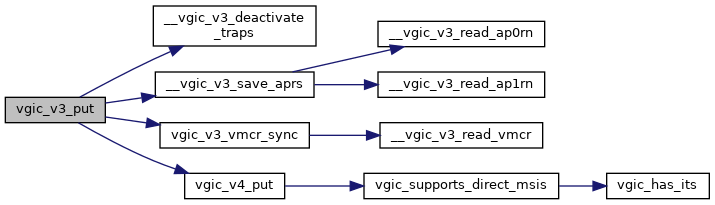

Here is the call graph for this function:

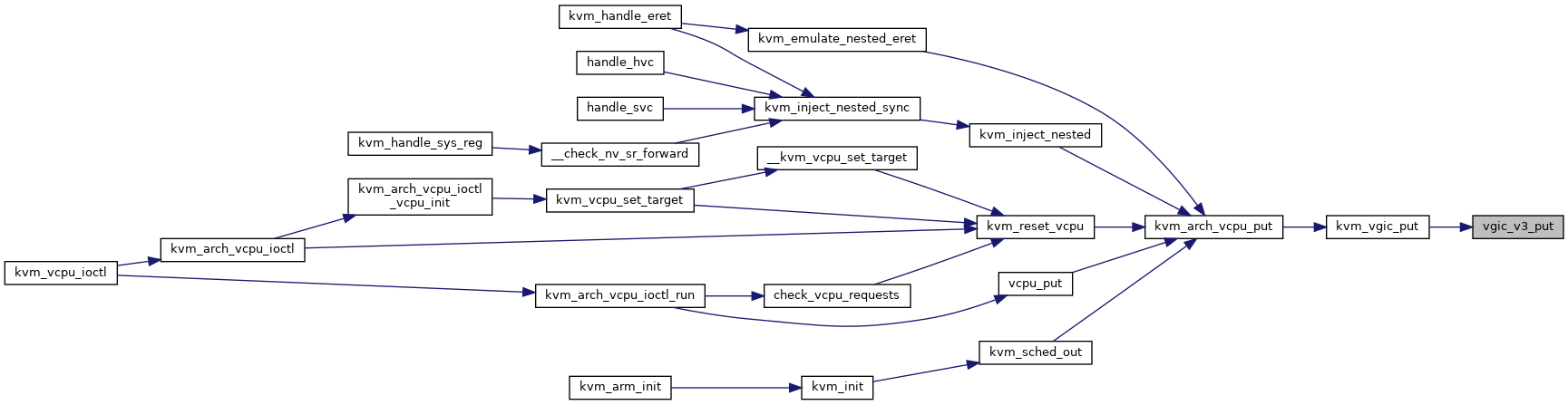

Here is the caller graph for this function:

vgic_v3_rdist_free_slot()

struct vgic_redist_region* vgic_v3_rdist_free_slot

(

struct list_head *

rd_regions

)

vgic_v3_rdist_free_slot - Look up registered rdist regions and identify one which has free space to put a new rdist region.

@rd_regions: redistributor region list head

A redistributor regions maps n redistributors, n = region size / (2 x 64kB). Stride between redistributors is 0 and regions are filled in the index order.

Return: the redist region handle, if any, that has space to map a new rdist region.

Definition at line 513 of file vgic-v3.c.

{
    struct vgic_redist_region *rdreg;

    list_for_each_entry(rdreg, rd_regions, list) {
        if (!vgic_v3_redist_region_full(rdreg))
            return rdreg;
    }
    return NULL;
}

Here is the call graph for this function:

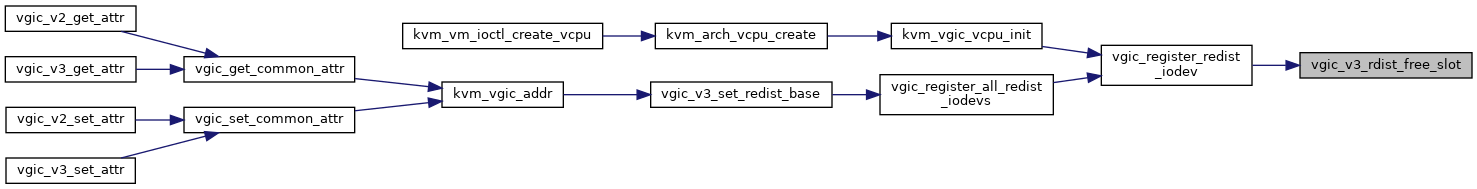

Here is the caller graph for this function:

vgic_v3_rdist_overlap()

bool vgic_v3_rdist_overlap	(	struct kvm *	kvm,
		gpa_t	base,
		size_t	size
	)

vgic_v3_rdist_overlap - check if a region overlaps with any existing redistributor region

@kvm: kvm handle @base: base of the region @size: size of region

Return: true if there is an overlap

Definition at line 460 of file vgic-v3.c.

{
    struct vgic_dist *d = &kvm->arch.vgic;
    struct vgic_redist_region *rdreg;

    list_for_each_entry(rdreg, &d->rd_regions, list) {
        if ((base + size > rdreg->base) &&
            (base < rdreg->base + vgic_v3_rd_region_size(kvm, rdreg)))
            return true;
    }
    return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_rdist_region_from_index()

struct vgic_redist_region* vgic_v3_rdist_region_from_index	(	struct kvm *	kvm,
		u32	index
	)

Definition at line 524 of file vgic-v3.c.

{
    struct list_head *rd_regions = &kvm->arch.vgic.rd_regions;
    struct vgic_redist_region *rdreg;

    list_for_each_entry(rdreg, rd_regions, list) {
        if (rdreg->index == index)
            return rdreg;
    }
    return NULL;
}

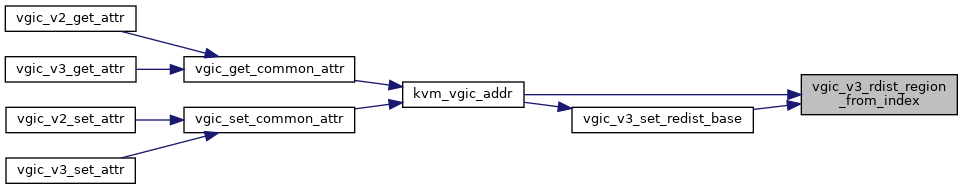

Here is the caller graph for this function:

vgic_v3_save_pending_tables()

int vgic_v3_save_pending_tables

(

struct kvm *

kvm

)

vgic_v3_save_pending_tables - Save the pending tables into guest RAM kvm lock and all vcpu lock must be held

Definition at line 377 of file vgic-v3.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    struct vgic_irq *irq;
    gpa_t last_ptr = ~(gpa_t)0;
    bool vlpi_avail = false;
    int ret = 0;
    u8 val;

    if (unlikely(!vgic_initialized(kvm)))
        return -ENXIO;

    /*
     * A preparation for getting any VLPI states.
     * The above vgic initialized check also ensures that the allocation
     * and enabling of the doorbells have already been done.
     */
    if (kvm_vgic_global_state.has_gicv4_1) {
        unmap_all_vpes(kvm);
        vlpi_avail = true;
    }

    list_for_each_entry(irq, &dist->lpi_list_head, lpi_list) {
        int byte_offset, bit_nr;
        struct kvm_vcpu *vcpu;
        gpa_t pendbase, ptr;
        bool is_pending;
        bool stored;

        vcpu = irq->target_vcpu;
        if (!vcpu)
            continue;

        pendbase = GICR_PENDBASER_ADDRESS(vcpu->arch.vgic_cpu.pendbaser);

        byte_offset = irq->intid / BITS_PER_BYTE;
        bit_nr = irq->intid % BITS_PER_BYTE;
        ptr = pendbase + byte_offset;

        if (ptr != last_ptr) {
            ret = kvm_read_guest_lock(kvm, ptr, &val, 1);
            if (ret)
                goto out;
            last_ptr = ptr;
        }

        stored = val & (1U << bit_nr);

        is_pending = irq->pending_latch;

        if (irq->hw && vlpi_avail)
            vgic_v4_get_vlpi_state(irq, &is_pending);

        if (stored == is_pending)
            continue;

        if (is_pending)
            val |= 1 << bit_nr;
        else
            val &= ~(1 << bit_nr);

        ret = vgic_write_guest_lock(kvm, ptr, &val, 1);
        if (ret)
            goto out;
    }

out:
    if (vlpi_avail)
        map_all_vpes(kvm);

    return ret;
}

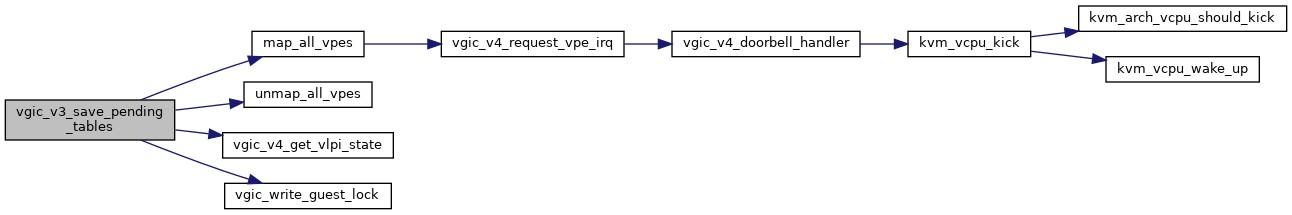

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_set_underflow()

void vgic_v3_set_underflow

(

struct kvm_vcpu *

vcpu

)

Definition at line 22 of file vgic-v3.c.

{
    struct vgic_v3_cpu_if *cpuif = &vcpu->arch.vgic_cpu.vgic_v3;

    cpuif->vgic_hcr |= ICH_HCR_UIE;
}

Here is the caller graph for this function:

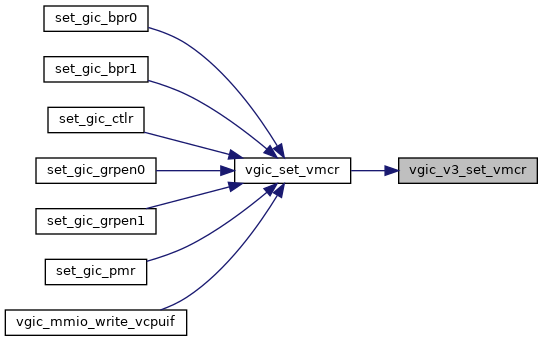

vgic_v3_set_vmcr()

void vgic_v3_set_vmcr	(	struct kvm_vcpu *	vcpu,
		struct vgic_vmcr *	vmcrp
	)

Definition at line 194 of file vgic-v3.c.

{
    struct vgic_v3_cpu_if *cpu_if = &vcpu->arch.vgic_cpu.vgic_v3;
    u32 model = vcpu->kvm->arch.vgic.vgic_model;
    u32 vmcr;

    if (model == KVM_DEV_TYPE_ARM_VGIC_V2) {
        vmcr = (vmcrp->ackctl << ICH_VMCR_ACK_CTL_SHIFT) &
            ICH_VMCR_ACK_CTL_MASK;
        vmcr |= (vmcrp->fiqen << ICH_VMCR_FIQ_EN_SHIFT) &
            ICH_VMCR_FIQ_EN_MASK;
    } else {
        /*
         * When emulating GICv3 on GICv3 with SRE=1 on the
         * VFIQEn bit is RES1 and the VAckCtl bit is RES0.
         */
        vmcr = ICH_VMCR_FIQ_EN_MASK;
    }

    vmcr |= (vmcrp->cbpr << ICH_VMCR_CBPR_SHIFT) & ICH_VMCR_CBPR_MASK;
    vmcr |= (vmcrp->eoim << ICH_VMCR_EOIM_SHIFT) & ICH_VMCR_EOIM_MASK;
    vmcr |= (vmcrp->abpr << ICH_VMCR_BPR1_SHIFT) & ICH_VMCR_BPR1_MASK;
    vmcr |= (vmcrp->bpr << ICH_VMCR_BPR0_SHIFT) & ICH_VMCR_BPR0_MASK;
    vmcr |= (vmcrp->pmr << ICH_VMCR_PMR_SHIFT) & ICH_VMCR_PMR_MASK;
    vmcr |= (vmcrp->grpen0 << ICH_VMCR_ENG0_SHIFT) & ICH_VMCR_ENG0_MASK;
    vmcr |= (vmcrp->grpen1 << ICH_VMCR_ENG1_SHIFT) & ICH_VMCR_ENG1_MASK;

    cpu_if->vgic_vmcr = vmcr;
}

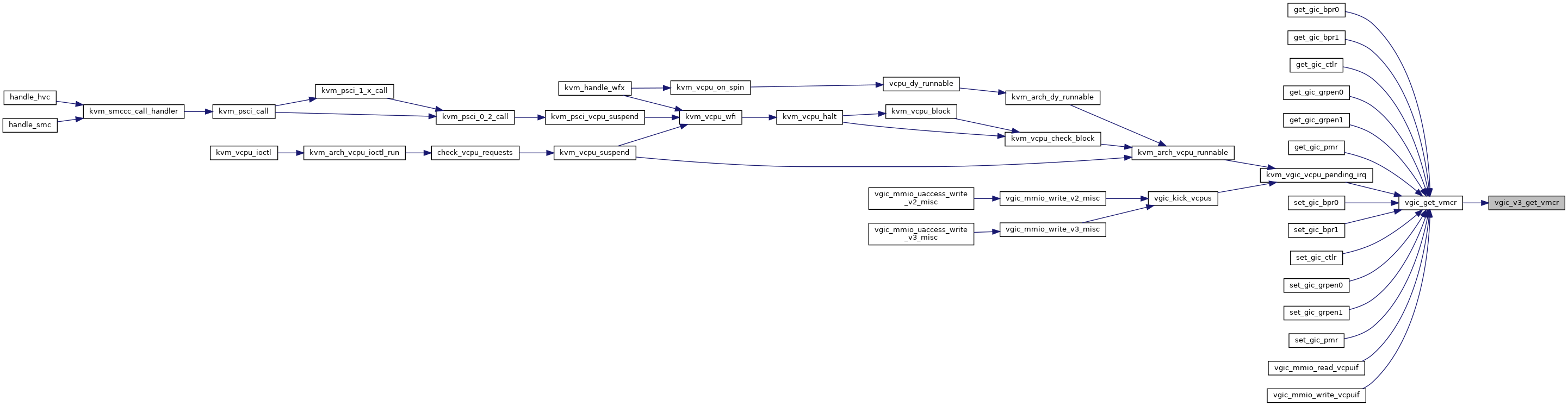

Here is the caller graph for this function:

vgic_v3_vmcr_sync()

void vgic_v3_vmcr_sync

(

struct kvm_vcpu *

vcpu

)

Definition at line 740 of file vgic-v3.c.

{
    struct vgic_v3_cpu_if *cpu_if = &vcpu->arch.vgic_cpu.vgic_v3;

    if (likely(cpu_if->vgic_sre))
        cpu_if->vgic_vmcr = kvm_call_hyp_ret(__vgic_v3_read_vmcr);
}

Here is the call graph for this function:

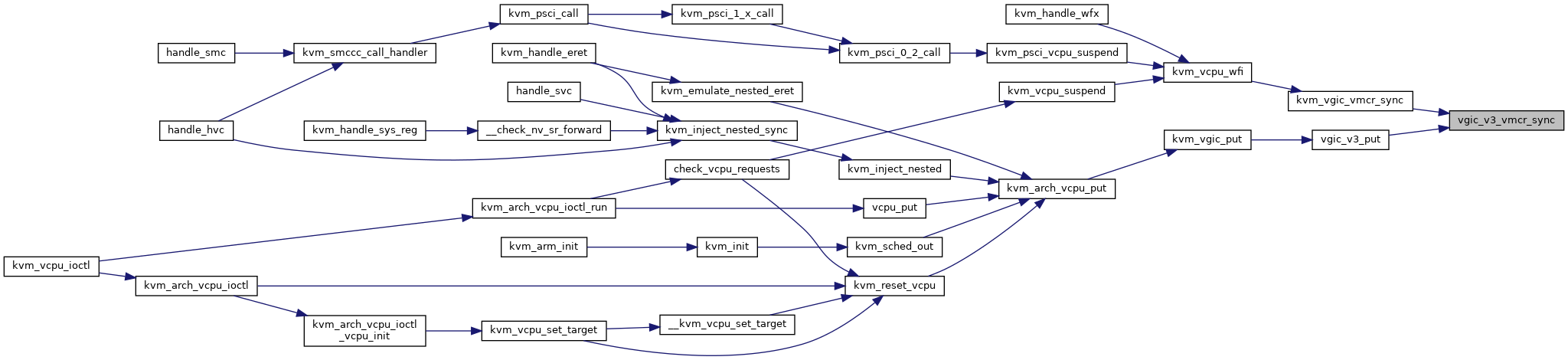

Here is the caller graph for this function:

Variable Documentation

broken_seis

const struct midr_range broken_seis[]

static

Initial value:

= {
    MIDR_ALL_VERSIONS(MIDR_APPLE_M1_ICESTORM),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M1_FIRESTORM),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M1_ICESTORM_PRO),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M1_FIRESTORM_PRO),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M1_ICESTORM_MAX),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M1_FIRESTORM_MAX),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M2_BLIZZARD),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M2_AVALANCHE),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M2_BLIZZARD_PRO),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M2_AVALANCHE_PRO),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M2_BLIZZARD_MAX),
    MIDR_ALL_VERSIONS(MIDR_APPLE_M2_AVALANCHE_MAX),
    {},
}

Definition at line 601 of file vgic-v3.c.

common_trap

bool common_trap

static

Definition at line 18 of file vgic-v3.c.

dir_trap

bool dir_trap

static

Definition at line 19 of file vgic-v3.c.

gicv4_enable

bool gicv4_enable

static

Definition at line 20 of file vgic-v3.c.

group0_trap

bool group0_trap

static

Definition at line 16 of file vgic-v3.c.

group1_trap

bool group1_trap

static

Definition at line 17 of file vgic-v3.c.
