vgic-kvm-device.c File Reference

#include <linux/kvm_host.h>
#include <kvm/arm_vgic.h>
#include <linux/uaccess.h>
#include <asm/kvm_mmu.h>
#include <asm/cputype.h>
#include "vgic.h"

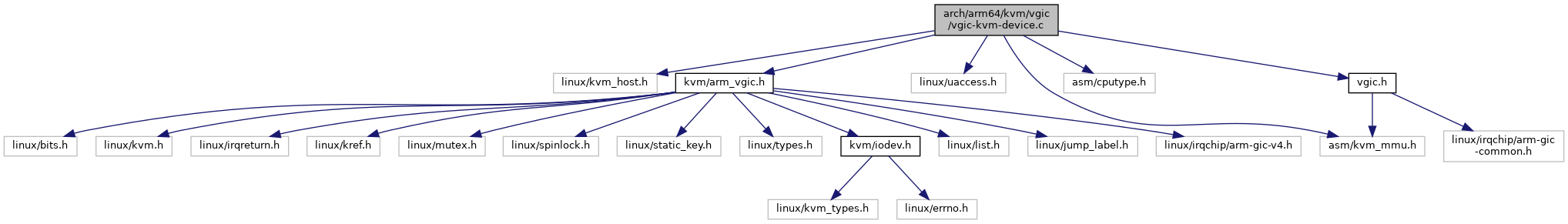

Include dependency graph for vgic-kvm-device.c:

Go to the source code of this file.

Functions
int	vgic_check_iorange (struct kvm *kvm, phys_addr_t ioaddr, phys_addr_t addr, phys_addr_t alignment, phys_addr_t size)
static int	vgic_check_type (struct kvm *kvm, int type_needed)
int	kvm_set_legacy_vgic_v2_addr (struct kvm *kvm, struct kvm_arm_device_addr *dev_addr)
static int	kvm_vgic_addr (struct kvm *kvm, struct kvm_device_attr *attr, bool write)
static int	vgic_set_common_attr (struct kvm_device *dev, struct kvm_device_attr *attr)
static int	vgic_get_common_attr (struct kvm_device *dev, struct kvm_device_attr *attr)
static int	vgic_create (struct kvm_device *dev, u32 type)
static void	vgic_destroy (struct kvm_device *dev)
int	kvm_register_vgic_device (unsigned long type)
int	vgic_v2_parse_attr (struct kvm_device *dev, struct kvm_device_attr *attr, struct vgic_reg_attr *reg_attr)
static int	vgic_v2_attr_regs_access (struct kvm_device *dev, struct kvm_device_attr *attr, bool is_write)
static int	vgic_v2_set_attr (struct kvm_device *dev, struct kvm_device_attr *attr)
static int	vgic_v2_get_attr (struct kvm_device *dev, struct kvm_device_attr *attr)
static int	vgic_v2_has_attr (struct kvm_device *dev, struct kvm_device_attr *attr)
int	vgic_v3_parse_attr (struct kvm_device *dev, struct kvm_device_attr *attr, struct vgic_reg_attr *reg_attr)
static int	vgic_v3_attr_regs_access (struct kvm_device *dev, struct kvm_device_attr *attr, bool is_write)
static int	vgic_v3_set_attr (struct kvm_device *dev, struct kvm_device_attr *attr)
static int	vgic_v3_get_attr (struct kvm_device *dev, struct kvm_device_attr *attr)
static int	vgic_v3_has_attr (struct kvm_device *dev, struct kvm_device_attr *attr)

Variables
struct kvm_device_ops	kvm_arm_vgic_v2_ops
struct kvm_device_ops	kvm_arm_vgic_v3_ops

Function Documentation

kvm_register_vgic_device()

int kvm_register_vgic_device

(

unsigned long

type

)

Definition at line 316 of file vgic-kvm-device.c.

{
    int ret = -ENODEV;

    switch (type) {
    case KVM_DEV_TYPE_ARM_VGIC_V2:
        ret = kvm_register_device_ops(&kvm_arm_vgic_v2_ops,
                          KVM_DEV_TYPE_ARM_VGIC_V2);
        break;
    case KVM_DEV_TYPE_ARM_VGIC_V3:
        ret = kvm_register_device_ops(&kvm_arm_vgic_v3_ops,
                          KVM_DEV_TYPE_ARM_VGIC_V3);

        if (ret)
            break;
        ret = kvm_vgic_register_its_device();
        break;
    }

    return ret;
}

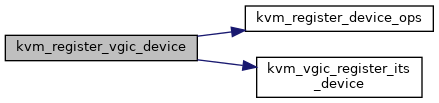

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_set_legacy_vgic_v2_addr()

int kvm_set_legacy_vgic_v2_addr	(	struct kvm *	kvm,
		struct kvm_arm_device_addr *	dev_addr
	)

Definition at line 45 of file vgic-kvm-device.c.

{
    struct vgic_dist *vgic = &kvm->arch.vgic;
    int r;

    mutex_lock(&kvm->arch.config_lock);
    switch (FIELD_GET(KVM_ARM_DEVICE_TYPE_MASK, dev_addr->id)) {
    case KVM_VGIC_V2_ADDR_TYPE_DIST:
        r = vgic_check_type(kvm, KVM_DEV_TYPE_ARM_VGIC_V2);
        if (!r)
            r = vgic_check_iorange(kvm, vgic->vgic_dist_base, dev_addr->addr,
                           SZ_4K, KVM_VGIC_V2_DIST_SIZE);
        if (!r)
            vgic->vgic_dist_base = dev_addr->addr;
        break;
    case KVM_VGIC_V2_ADDR_TYPE_CPU:
        r = vgic_check_type(kvm, KVM_DEV_TYPE_ARM_VGIC_V2);
        if (!r)
            r = vgic_check_iorange(kvm, vgic->vgic_cpu_base, dev_addr->addr,
                           SZ_4K, KVM_VGIC_V2_CPU_SIZE);
        if (!r)
            vgic->vgic_cpu_base = dev_addr->addr;
        break;
    default:
        r = -ENODEV;
    }

    mutex_unlock(&kvm->arch.config_lock);

    return r;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_vgic_addr()

static int kvm_vgic_addr ( struct kvm *  kvm, struct kvm_device_attr *  attr, bool  write  )

static

kvm_vgic_addr - set or get vgic VM base addresses @kvm: pointer to the vm struct @attr: pointer to the attribute being retrieved/updated @write: if true set the address in the VM address space, if false read the address

Set or get the vgic base addresses for the distributor and the virtual CPU interface in the VM physical address space. These addresses are properties of the emulated core/SoC and therefore user space initially knows this information. Check them for sanity (alignment, double assignment). We can't check for overlapping regions in case of a virtual GICv3 here, since we don't know the number of VCPUs yet, so we defer this check to map_resources().

Definition at line 92 of file vgic-kvm-device.c.

{
    u64 __user *uaddr = (u64 __user *)attr->addr;
    struct vgic_dist *vgic = &kvm->arch.vgic;
    phys_addr_t *addr_ptr, alignment, size;
    u64 undef_value = VGIC_ADDR_UNDEF;
    u64 addr;
    int r;

    /* Reading a redistributor region addr implies getting the index */
    if (write || attr->attr == KVM_VGIC_V3_ADDR_TYPE_REDIST_REGION)
        if (get_user(addr, uaddr))
            return -EFAULT;

    /*
     * Since we can't hold config_lock while registering the redistributor
     * iodevs, take the slots_lock immediately.
     */
    mutex_lock(&kvm->slots_lock);
    switch (attr->attr) {
    case KVM_VGIC_V2_ADDR_TYPE_DIST:
        r = vgic_check_type(kvm, KVM_DEV_TYPE_ARM_VGIC_V2);
        addr_ptr = &vgic->vgic_dist_base;
        alignment = SZ_4K;
        size = KVM_VGIC_V2_DIST_SIZE;
        break;
    case KVM_VGIC_V2_ADDR_TYPE_CPU:
        r = vgic_check_type(kvm, KVM_DEV_TYPE_ARM_VGIC_V2);
        addr_ptr = &vgic->vgic_cpu_base;
        alignment = SZ_4K;
        size = KVM_VGIC_V2_CPU_SIZE;
        break;
    case KVM_VGIC_V3_ADDR_TYPE_DIST:
        r = vgic_check_type(kvm, KVM_DEV_TYPE_ARM_VGIC_V3);
        addr_ptr = &vgic->vgic_dist_base;
        alignment = SZ_64K;
        size = KVM_VGIC_V3_DIST_SIZE;
        break;
    case KVM_VGIC_V3_ADDR_TYPE_REDIST: {
        struct vgic_redist_region *rdreg;

        r = vgic_check_type(kvm, KVM_DEV_TYPE_ARM_VGIC_V3);
        if (r)
            break;
        if (write) {
            r = vgic_v3_set_redist_base(kvm, 0, addr, 0);
            goto out;
        }
        rdreg = list_first_entry_or_null(&vgic->rd_regions,
                         struct vgic_redist_region, list);
        if (!rdreg)
            addr_ptr = &undef_value;
        else
            addr_ptr = &rdreg->base;
        break;
    }
    case KVM_VGIC_V3_ADDR_TYPE_REDIST_REGION:
    {
        struct vgic_redist_region *rdreg;
        u8 index;

        r = vgic_check_type(kvm, KVM_DEV_TYPE_ARM_VGIC_V3);
        if (r)
            break;

        index = addr & KVM_VGIC_V3_RDIST_INDEX_MASK;

        if (write) {
            gpa_t base = addr & KVM_VGIC_V3_RDIST_BASE_MASK;
            u32 count = FIELD_GET(KVM_VGIC_V3_RDIST_COUNT_MASK, addr);
            u8 flags = FIELD_GET(KVM_VGIC_V3_RDIST_FLAGS_MASK, addr);

            if (!count || flags)
                r = -EINVAL;
            else
                r = vgic_v3_set_redist_base(kvm, index,
                                base, count);
            goto out;
        }

        rdreg = vgic_v3_rdist_region_from_index(kvm, index);
        if (!rdreg) {
            r = -ENOENT;
            goto out;
        }

        addr = index;
        addr |= rdreg->base;
        addr |= (u64)rdreg->count << KVM_VGIC_V3_RDIST_COUNT_SHIFT;
        goto out;
    }
    default:
        r = -ENODEV;
    }

    if (r)
        goto out;

    mutex_lock(&kvm->arch.config_lock);
    if (write) {
        r = vgic_check_iorange(kvm, *addr_ptr, addr, alignment, size);
        if (!r)
            *addr_ptr = addr;
    } else {
        addr = *addr_ptr;
    }
    mutex_unlock(&kvm->arch.config_lock);

out:
    mutex_unlock(&kvm->slots_lock);

    if (!r && !write)
        r =  put_user(addr, uaddr);

    return r;
}

Here is the call graph for this function:

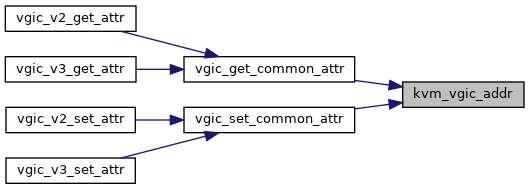

Here is the caller graph for this function:

vgic_check_iorange()

int vgic_check_iorange	(	struct kvm *	kvm,
		phys_addr_t	ioaddr,
		phys_addr_t	addr,
		phys_addr_t	alignment,
		phys_addr_t	size
	)

Definition at line 17 of file vgic-kvm-device.c.

{
    if (!IS_VGIC_ADDR_UNDEF(ioaddr))
        return -EEXIST;

    if (!IS_ALIGNED(addr, alignment) || !IS_ALIGNED(size, alignment))
        return -EINVAL;

    if (addr + size < addr)
        return -EINVAL;

    if (addr & ~kvm_phys_mask(&kvm->arch.mmu) ||
        (addr + size) > kvm_phys_size(&kvm->arch.mmu))
        return -E2BIG;

    return 0;
}

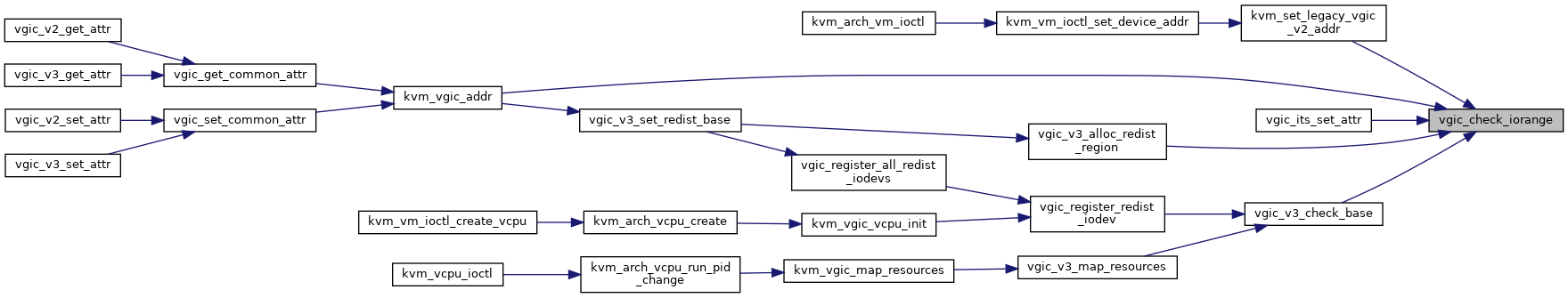

Here is the caller graph for this function:

vgic_check_type()

static int vgic_check_type ( struct kvm *  kvm, int  type_needed  )

static

Definition at line 37 of file vgic-kvm-device.c.

{
    if (kvm->arch.vgic.vgic_model != type_needed)
        return -ENODEV;
    else
        return 0;
}

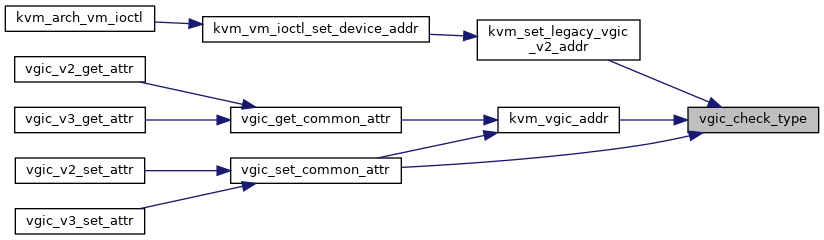

Here is the caller graph for this function:

vgic_create()

static int vgic_create ( struct kvm_device *  dev, u32  type  )

static

Definition at line 306 of file vgic-kvm-device.c.

{
    return kvm_vgic_create(dev->kvm, type);
}

Here is the call graph for this function:

vgic_destroy()

static void vgic_destroy ( struct kvm_device *  dev )

static

Definition at line 311 of file vgic-kvm-device.c.

{
    kfree(dev);
}

vgic_get_common_attr()

static int vgic_get_common_attr ( struct kvm_device *  dev, struct kvm_device_attr *  attr  )

static

Definition at line 285 of file vgic-kvm-device.c.

{
    int r = -ENXIO;

    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_ADDR:
        r = kvm_vgic_addr(dev->kvm, attr, false);
        return (r == -ENODEV) ? -ENXIO : r;
    case KVM_DEV_ARM_VGIC_GRP_NR_IRQS: {
        u32 __user *uaddr = (u32 __user *)(long)attr->addr;

        r = put_user(dev->kvm->arch.vgic.nr_spis +
                 VGIC_NR_PRIVATE_IRQS, uaddr);
        break;
    }
    }

    return r;
}

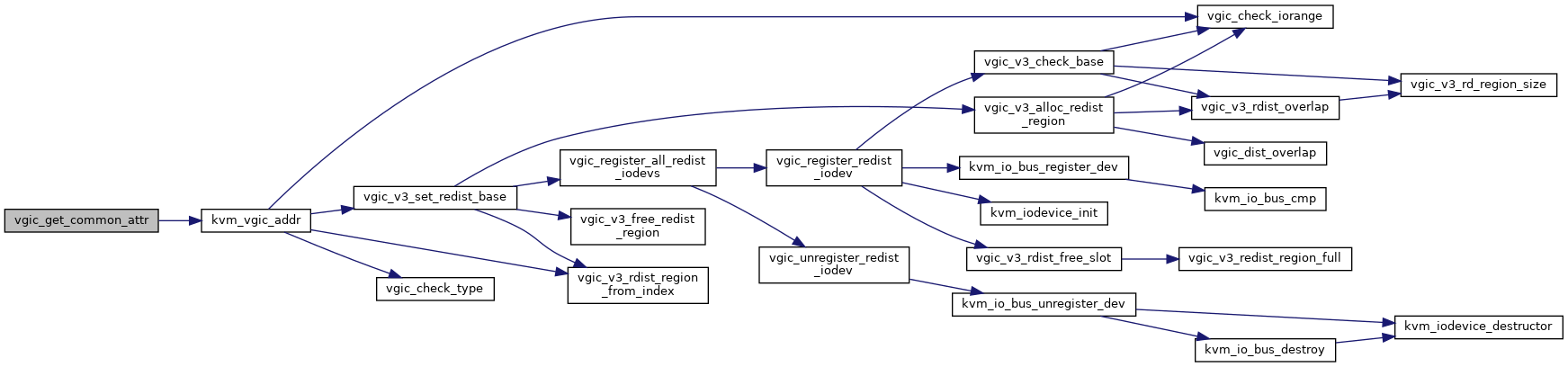

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_set_common_attr()

static int vgic_set_common_attr ( struct kvm_device *  dev, struct kvm_device_attr *  attr  )

static

Definition at line 209 of file vgic-kvm-device.c.

{
    int r;

    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_ADDR:
        r = kvm_vgic_addr(dev->kvm, attr, true);
        return (r == -ENODEV) ? -ENXIO : r;
    case KVM_DEV_ARM_VGIC_GRP_NR_IRQS: {
        u32 __user *uaddr = (u32 __user *)(long)attr->addr;
        u32 val;
        int ret = 0;

        if (get_user(val, uaddr))
            return -EFAULT;

        /*
         * We require:
         * - at least 32 SPIs on top of the 16 SGIs and 16 PPIs
         * - at most 1024 interrupts
         * - a multiple of 32 interrupts
         */
        if (val < (VGIC_NR_PRIVATE_IRQS + 32) ||
            val > VGIC_MAX_RESERVED ||
            (val & 31))
            return -EINVAL;

        mutex_lock(&dev->kvm->arch.config_lock);

        if (vgic_ready(dev->kvm) || dev->kvm->arch.vgic.nr_spis)
            ret = -EBUSY;
        else
            dev->kvm->arch.vgic.nr_spis =
                val - VGIC_NR_PRIVATE_IRQS;

        mutex_unlock(&dev->kvm->arch.config_lock);

        return ret;
    }
    case KVM_DEV_ARM_VGIC_GRP_CTRL: {
        switch (attr->attr) {
        case KVM_DEV_ARM_VGIC_CTRL_INIT:
            mutex_lock(&dev->kvm->arch.config_lock);
            r = vgic_init(dev->kvm);
            mutex_unlock(&dev->kvm->arch.config_lock);
            return r;
        case KVM_DEV_ARM_VGIC_SAVE_PENDING_TABLES:
            /*
             * OK, this one isn't common at all, but we
             * want to handle all control group attributes
             * in a single place.
             */
            if (vgic_check_type(dev->kvm, KVM_DEV_TYPE_ARM_VGIC_V3))
                return -ENXIO;
            mutex_lock(&dev->kvm->lock);

            if (!lock_all_vcpus(dev->kvm)) {
                mutex_unlock(&dev->kvm->lock);
                return -EBUSY;
            }

            mutex_lock(&dev->kvm->arch.config_lock);
            r = vgic_v3_save_pending_tables(dev->kvm);
            mutex_unlock(&dev->kvm->arch.config_lock);
            unlock_all_vcpus(dev->kvm);
            mutex_unlock(&dev->kvm->lock);
            return r;
        }
        break;
    }
    }

    return -ENXIO;
}

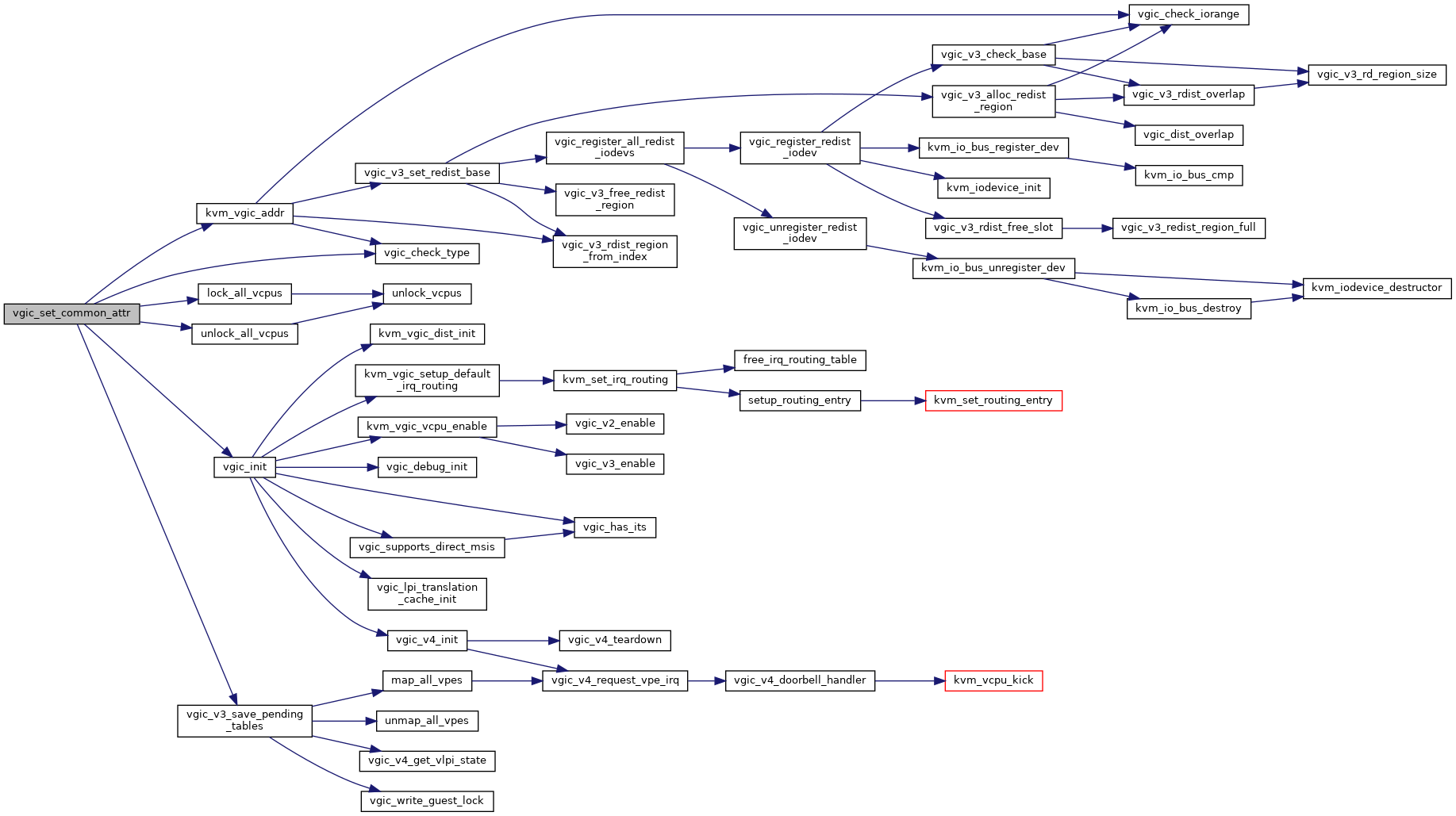

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v2_attr_regs_access()

static int vgic_v2_attr_regs_access ( struct kvm_device *  dev, struct kvm_device_attr *  attr, bool  is_write  )

static

vgic_v2_attr_regs_access - allows user space to access VGIC v2 state

@dev: kvm device handle @attr: kvm device attribute @is_write: true if userspace is writing a register

Definition at line 358 of file vgic-kvm-device.c.

{
    u32 __user *uaddr = (u32 __user *)(unsigned long)attr->addr;
    struct vgic_reg_attr reg_attr;
    gpa_t addr;
    struct kvm_vcpu *vcpu;
    int ret;
    u32 val;

    ret = vgic_v2_parse_attr(dev, attr, &reg_attr);
    if (ret)
        return ret;

    vcpu = reg_attr.vcpu;
    addr = reg_attr.addr;

    if (is_write)
        if (get_user(val, uaddr))
            return -EFAULT;

    mutex_lock(&dev->kvm->lock);

    if (!lock_all_vcpus(dev->kvm)) {
        mutex_unlock(&dev->kvm->lock);
        return -EBUSY;
    }

    mutex_lock(&dev->kvm->arch.config_lock);

    ret = vgic_init(dev->kvm);
    if (ret)
        goto out;

    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_CPU_REGS:
        ret = vgic_v2_cpuif_uaccess(vcpu, is_write, addr, &val);
        break;
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
        ret = vgic_v2_dist_uaccess(vcpu, is_write, addr, &val);
        break;
    default:
        ret = -EINVAL;
        break;
    }

out:
    mutex_unlock(&dev->kvm->arch.config_lock);
    unlock_all_vcpus(dev->kvm);
    mutex_unlock(&dev->kvm->lock);

    if (!ret && !is_write)
        ret = put_user(val, uaddr);

    return ret;
}

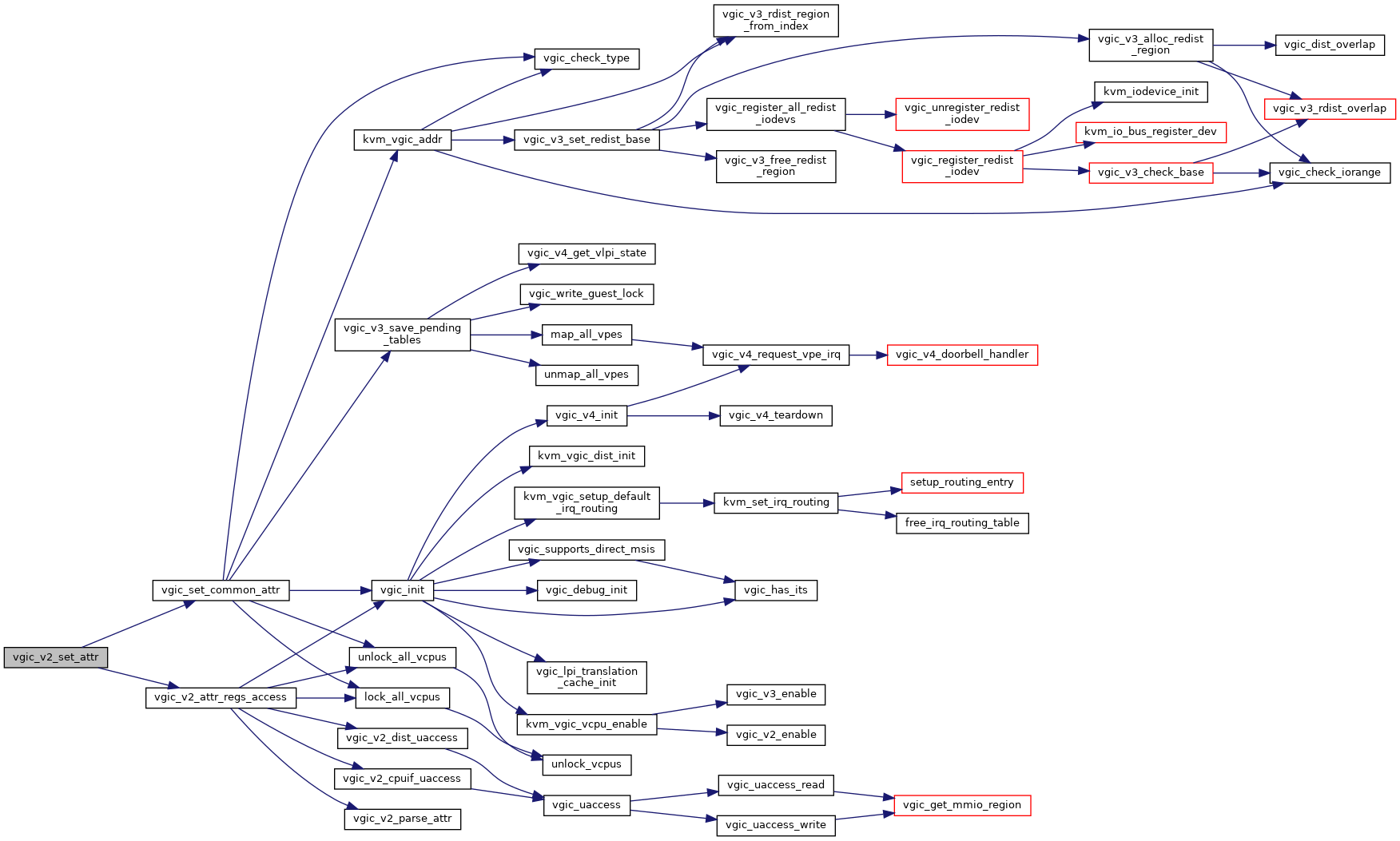

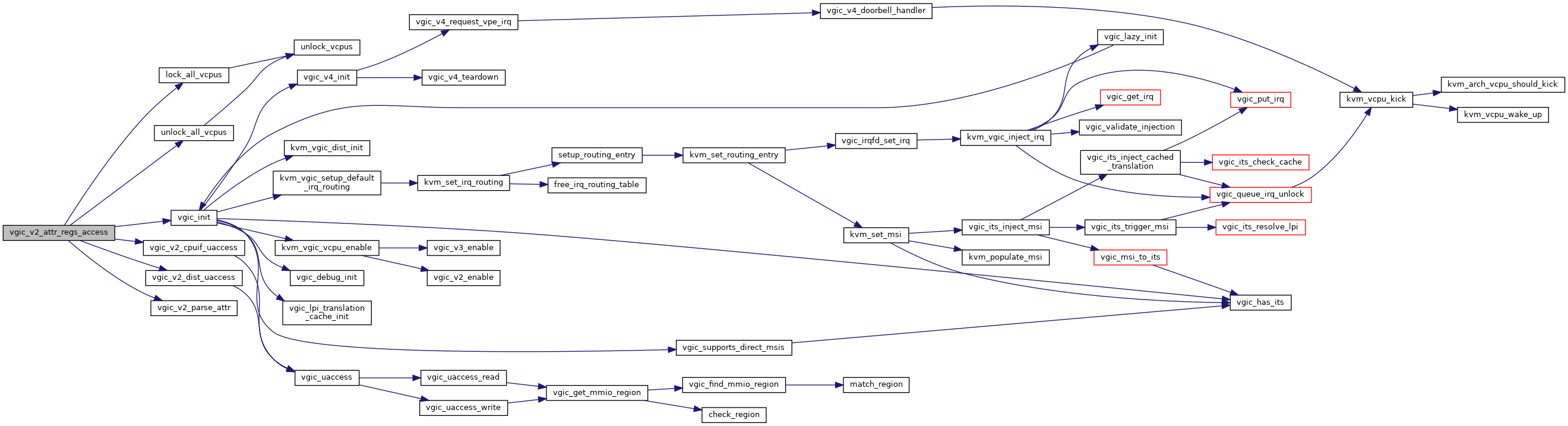

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v2_get_attr()

static int vgic_v2_get_attr ( struct kvm_device *  dev, struct kvm_device_attr *  attr  )

static

Definition at line 428 of file vgic-kvm-device.c.

{
    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_CPU_REGS:
        return vgic_v2_attr_regs_access(dev, attr, false);
    default:
        return vgic_get_common_attr(dev, attr);
    }
}

Here is the call graph for this function:

vgic_v2_has_attr()

static int vgic_v2_has_attr ( struct kvm_device *  dev, struct kvm_device_attr *  attr  )

static

Definition at line 440 of file vgic-kvm-device.c.

{
    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_ADDR:
        switch (attr->attr) {
        case KVM_VGIC_V2_ADDR_TYPE_DIST:
        case KVM_VGIC_V2_ADDR_TYPE_CPU:
            return 0;
        }
        break;
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_CPU_REGS:
        return vgic_v2_has_attr_regs(dev, attr);
    case KVM_DEV_ARM_VGIC_GRP_NR_IRQS:
        return 0;
    case KVM_DEV_ARM_VGIC_GRP_CTRL:
        switch (attr->attr) {
        case KVM_DEV_ARM_VGIC_CTRL_INIT:
            return 0;
        }
    }
    return -ENXIO;
}

vgic_v2_parse_attr()

int vgic_v2_parse_attr	(	struct kvm_device *	dev,
		struct kvm_device_attr *	attr,
		struct vgic_reg_attr *	reg_attr
	)

Definition at line 338 of file vgic-kvm-device.c.

{
    int cpuid;

    cpuid = FIELD_GET(KVM_DEV_ARM_VGIC_CPUID_MASK, attr->attr);

    reg_attr->vcpu = kvm_get_vcpu_by_id(dev->kvm, cpuid);
    reg_attr->addr = attr->attr & KVM_DEV_ARM_VGIC_OFFSET_MASK;

    return 0;
}

Here is the caller graph for this function:

vgic_v2_set_attr()

static int vgic_v2_set_attr ( struct kvm_device *  dev, struct kvm_device_attr *  attr  )

static

Definition at line 416 of file vgic-kvm-device.c.

{
    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_CPU_REGS:
        return vgic_v2_attr_regs_access(dev, attr, true);
    default:
        return vgic_set_common_attr(dev, attr);
    }
}

Here is the call graph for this function:

vgic_v3_attr_regs_access()

static int vgic_v3_attr_regs_access ( struct kvm_device *  dev, struct kvm_device_attr *  attr, bool  is_write  )

static

Definition at line 508 of file vgic-kvm-device.c.

{
    struct vgic_reg_attr reg_attr;
    gpa_t addr;
    struct kvm_vcpu *vcpu;
    bool uaccess;
    u32 val;
    int ret;

    ret = vgic_v3_parse_attr(dev, attr, &reg_attr);
    if (ret)
        return ret;

    vcpu = reg_attr.vcpu;
    addr = reg_attr.addr;

    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_CPU_SYSREGS:
        /* Sysregs uaccess is performed by the sysreg handling code */
        uaccess = false;
        break;
    default:
        uaccess = true;
    }

    if (uaccess && is_write) {
        u32 __user *uaddr = (u32 __user *)(unsigned long)attr->addr;
        if (get_user(val, uaddr))
            return -EFAULT;
    }

    mutex_lock(&dev->kvm->lock);

    if (!lock_all_vcpus(dev->kvm)) {
        mutex_unlock(&dev->kvm->lock);
        return -EBUSY;
    }

    mutex_lock(&dev->kvm->arch.config_lock);

    if (unlikely(!vgic_initialized(dev->kvm))) {
        ret = -EBUSY;
        goto out;
    }

    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
        ret = vgic_v3_dist_uaccess(vcpu, is_write, addr, &val);
        break;
    case KVM_DEV_ARM_VGIC_GRP_REDIST_REGS:
        ret = vgic_v3_redist_uaccess(vcpu, is_write, addr, &val);
        break;
    case KVM_DEV_ARM_VGIC_GRP_CPU_SYSREGS:
        ret = vgic_v3_cpu_sysregs_uaccess(vcpu, attr, is_write);
        break;
    case KVM_DEV_ARM_VGIC_GRP_LEVEL_INFO: {
        unsigned int info, intid;

        info = (attr->attr & KVM_DEV_ARM_VGIC_LINE_LEVEL_INFO_MASK) >>
            KVM_DEV_ARM_VGIC_LINE_LEVEL_INFO_SHIFT;
        if (info == VGIC_LEVEL_INFO_LINE_LEVEL) {
            intid = attr->attr &
                KVM_DEV_ARM_VGIC_LINE_LEVEL_INTID_MASK;
            ret = vgic_v3_line_level_info_uaccess(vcpu, is_write,
                                  intid, &val);
        } else {
            ret = -EINVAL;
        }
        break;
    }
    default:
        ret = -EINVAL;
        break;
    }

out:
    mutex_unlock(&dev->kvm->arch.config_lock);
    unlock_all_vcpus(dev->kvm);
    mutex_unlock(&dev->kvm->lock);

    if (!ret && uaccess && !is_write) {
        u32 __user *uaddr = (u32 __user *)(unsigned long)attr->addr;
        ret = put_user(val, uaddr);
    }

    return ret;
}

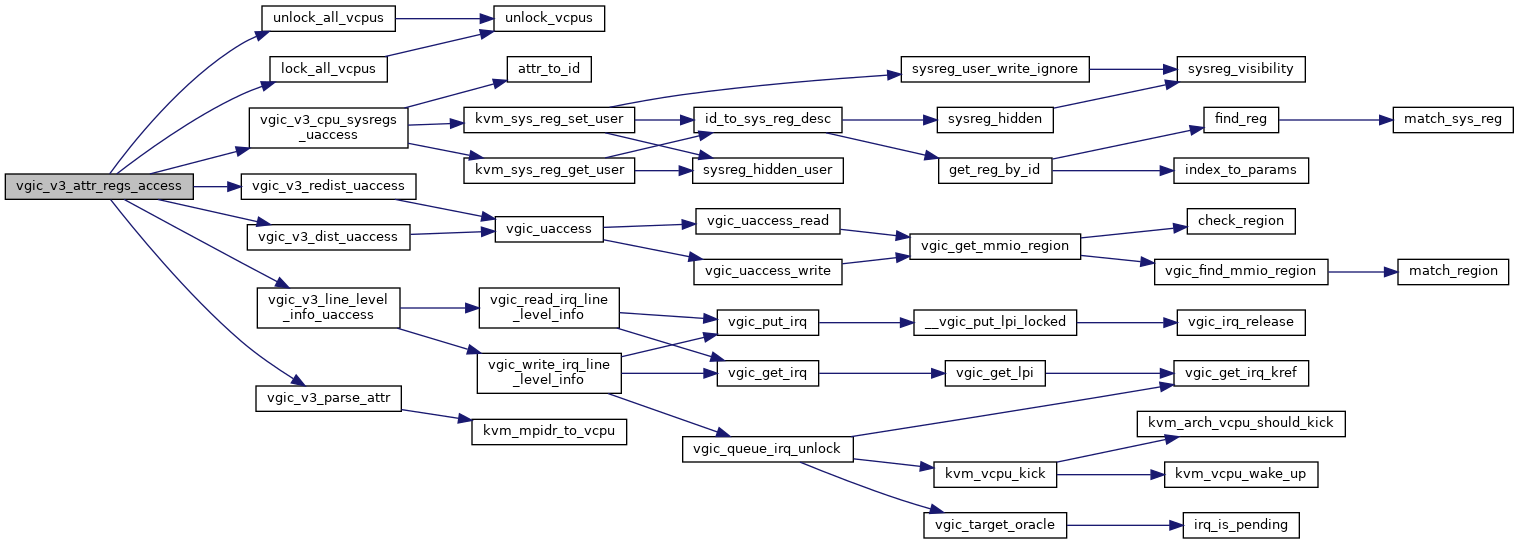

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v3_get_attr()

static int vgic_v3_get_attr ( struct kvm_device *  dev, struct kvm_device_attr *  attr  )

static

Definition at line 612 of file vgic-kvm-device.c.

{
    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_REDIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_CPU_SYSREGS:
    case KVM_DEV_ARM_VGIC_GRP_LEVEL_INFO:
        return vgic_v3_attr_regs_access(dev, attr, false);
    default:
        return vgic_get_common_attr(dev, attr);
    }
}

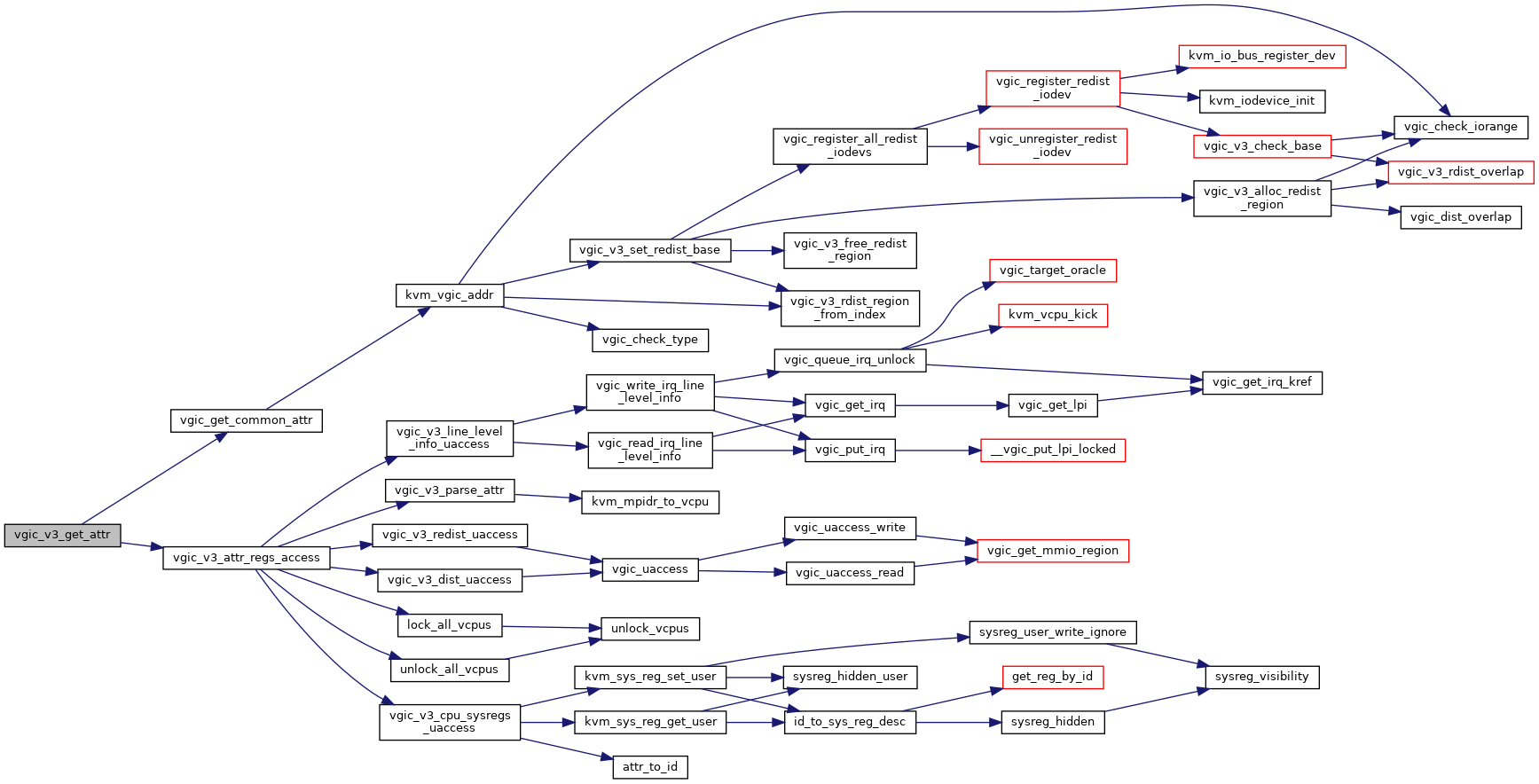

Here is the call graph for this function:

vgic_v3_has_attr()

static int vgic_v3_has_attr ( struct kvm_device *  dev, struct kvm_device_attr *  attr  )

static

Definition at line 626 of file vgic-kvm-device.c.

{
    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_ADDR:
        switch (attr->attr) {
        case KVM_VGIC_V3_ADDR_TYPE_DIST:
        case KVM_VGIC_V3_ADDR_TYPE_REDIST:
        case KVM_VGIC_V3_ADDR_TYPE_REDIST_REGION:
            return 0;
        }
        break;
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_REDIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_CPU_SYSREGS:
        return vgic_v3_has_attr_regs(dev, attr);
    case KVM_DEV_ARM_VGIC_GRP_NR_IRQS:
        return 0;
    case KVM_DEV_ARM_VGIC_GRP_LEVEL_INFO: {
        if (((attr->attr & KVM_DEV_ARM_VGIC_LINE_LEVEL_INFO_MASK) >>
              KVM_DEV_ARM_VGIC_LINE_LEVEL_INFO_SHIFT) ==
              VGIC_LEVEL_INFO_LINE_LEVEL)
            return 0;
        break;
    }
    case KVM_DEV_ARM_VGIC_GRP_CTRL:
        switch (attr->attr) {
        case KVM_DEV_ARM_VGIC_CTRL_INIT:
            return 0;
        case KVM_DEV_ARM_VGIC_SAVE_PENDING_TABLES:
            return 0;
        }
    }
    return -ENXIO;
}

vgic_v3_parse_attr()

int vgic_v3_parse_attr	(	struct kvm_device *	dev,
		struct kvm_device_attr *	attr,
		struct vgic_reg_attr *	reg_attr
	)

Definition at line 474 of file vgic-kvm-device.c.

{
    unsigned long vgic_mpidr, mpidr_reg;

    /*
     * For KVM_DEV_ARM_VGIC_GRP_DIST_REGS group,
     * attr might not hold MPIDR. Hence assume vcpu0.
     */
    if (attr->group != KVM_DEV_ARM_VGIC_GRP_DIST_REGS) {
        vgic_mpidr = (attr->attr & KVM_DEV_ARM_VGIC_V3_MPIDR_MASK) >>
                  KVM_DEV_ARM_VGIC_V3_MPIDR_SHIFT;

        mpidr_reg = VGIC_TO_MPIDR(vgic_mpidr);
        reg_attr->vcpu = kvm_mpidr_to_vcpu(dev->kvm, mpidr_reg);
    } else {
        reg_attr->vcpu = kvm_get_vcpu(dev->kvm, 0);
    }

    if (!reg_attr->vcpu)
        return -EINVAL;

    reg_attr->addr = attr->attr & KVM_DEV_ARM_VGIC_OFFSET_MASK;

    return 0;
}

Here is the call graph for this function:

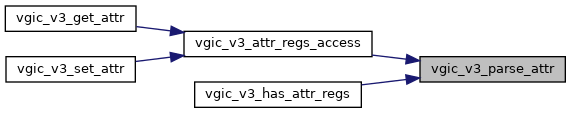

Here is the caller graph for this function:

vgic_v3_set_attr()

static int vgic_v3_set_attr ( struct kvm_device *  dev, struct kvm_device_attr *  attr  )

static

Definition at line 598 of file vgic-kvm-device.c.

{
    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_REDIST_REGS:
    case KVM_DEV_ARM_VGIC_GRP_CPU_SYSREGS:
    case KVM_DEV_ARM_VGIC_GRP_LEVEL_INFO:
        return vgic_v3_attr_regs_access(dev, attr, true);
    default:
        return vgic_set_common_attr(dev, attr);
    }
}

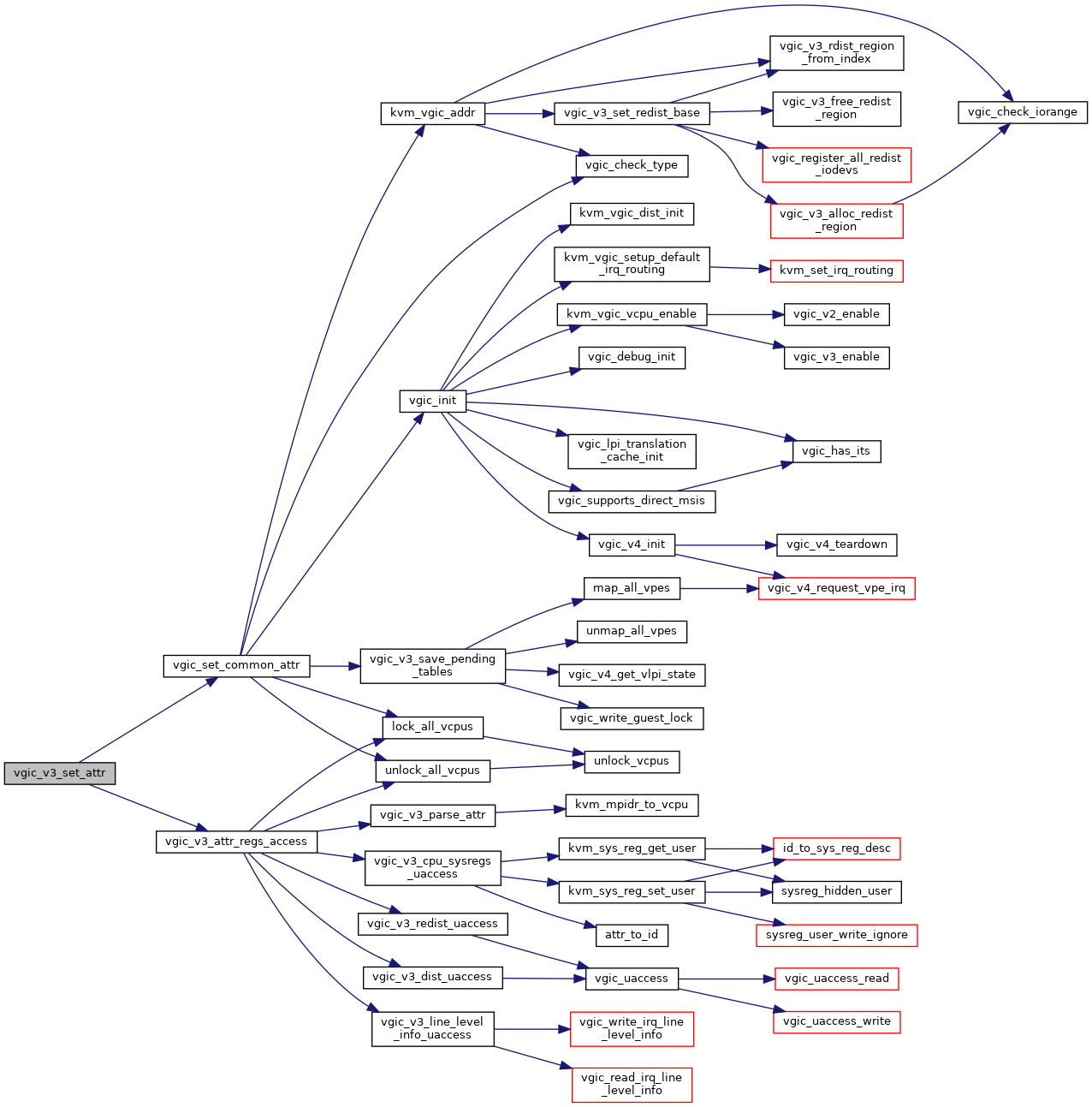

Here is the call graph for this function:

Variable Documentation

kvm_arm_vgic_v2_ops

struct kvm_device_ops kvm_arm_vgic_v2_ops

Initial value:

= {
    .name = "kvm-arm-vgic-v2",
    .create = vgic_create,
    .destroy = vgic_destroy,
    .set_attr = vgic_v2_set_attr,
    .get_attr = vgic_v2_get_attr,
    .has_attr = vgic_v2_has_attr,
}

Definition at line 440 of file vgic-kvm-device.c.

kvm_arm_vgic_v3_ops

struct kvm_device_ops kvm_arm_vgic_v3_ops

Initial value:

= {
    .name = "kvm-arm-vgic-v3",
    .create = vgic_create,
    .destroy = vgic_destroy,
    .set_attr = vgic_v3_set_attr,
    .get_attr = vgic_v3_get_attr,
    .has_attr = vgic_v3_has_attr,
}

Definition at line 626 of file vgic-kvm-device.c.
