vgic-mmio-v2.c File Reference

#include <linux/irqchip/arm-gic.h>
#include <linux/kvm.h>
#include <linux/kvm_host.h>
#include <linux/nospec.h>
#include <kvm/iodev.h>
#include <kvm/arm_vgic.h>
#include "vgic.h"
#include "vgic-mmio.h"

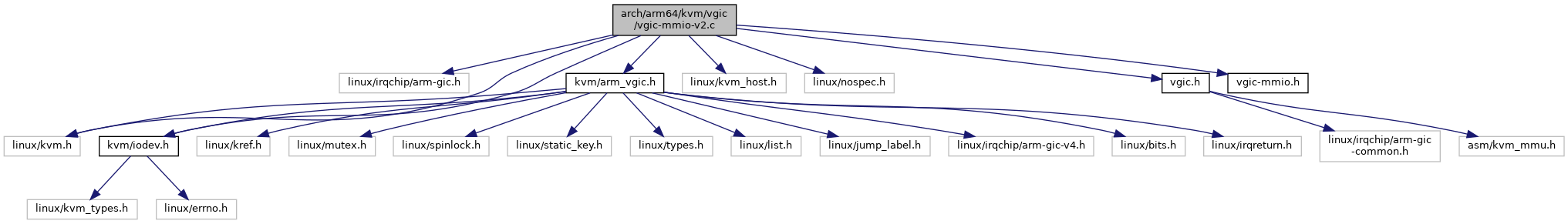

Include dependency graph for vgic-mmio-v2.c:

Go to the source code of this file.

Macros
#define	GICC_ARCH_VERSION_V2   0x2

Functions
static unsigned long	vgic_mmio_read_v2_misc (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_v2_misc (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static int	vgic_mmio_uaccess_write_v2_misc (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static int	vgic_mmio_uaccess_write_v2_group (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static void	vgic_mmio_write_sgir (struct kvm_vcpu *source_vcpu, gpa_t addr, unsigned int len, unsigned long val)
static unsigned long	vgic_mmio_read_target (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_target (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static unsigned long	vgic_mmio_read_sgipend (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_sgipendc (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static void	vgic_mmio_write_sgipends (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static unsigned long	vgic_mmio_read_vcpuif (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_vcpuif (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
static unsigned long	vgic_mmio_read_apr (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len)
static void	vgic_mmio_write_apr (struct kvm_vcpu *vcpu, gpa_t addr, unsigned int len, unsigned long val)
unsigned int	vgic_v2_init_dist_iodev (struct vgic_io_device *dev)
int	vgic_v2_has_attr_regs (struct kvm_device *dev, struct kvm_device_attr *attr)
int	vgic_v2_cpuif_uaccess (struct kvm_vcpu *vcpu, bool is_write, int offset, u32 *val)
int	vgic_v2_dist_uaccess (struct kvm_vcpu *vcpu, bool is_write, int offset, u32 *val)

Variables
static const struct vgic_register_region	vgic_v2_dist_registers []
static const struct vgic_register_region	vgic_v2_cpu_registers []

Macro Definition Documentation

GICC_ARCH_VERSION_V2

#define GICC_ARCH_VERSION_V2   0x2

Definition at line 272 of file vgic-mmio-v2.c.

Function Documentation

vgic_mmio_read_apr()

static unsigned long vgic_mmio_read_apr ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 362 of file vgic-mmio-v2.c.

{
    int n; /* which APRn is this */

    n = (addr >> 2) & 0x3;

    if (kvm_vgic_global_state.type == VGIC_V2) {
        /* GICv2 hardware systems support max. 32 groups */
        if (n != 0)
            return 0;
        return vcpu->arch.vgic_cpu.vgic_v2.vgic_apr;
    } else {
        struct vgic_v3_cpu_if *vgicv3 = &vcpu->arch.vgic_cpu.vgic_v3;

        if (n > vgic_v3_max_apr_idx(vcpu))
            return 0;

        n = array_index_nospec(n, 4);

        /* GICv3 only uses ICH_AP1Rn for memory mapped (GICv2) guests */
        return vgicv3->vgic_ap1r[n];
    }
}

Here is the call graph for this function:

vgic_mmio_read_sgipend()

static unsigned long vgic_mmio_read_sgipend ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 208 of file vgic-mmio-v2.c.

{
    u32 intid = addr & 0x0f;
    int i;
    u64 val = 0;

    for (i = 0; i < len; i++) {
        struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, vcpu, intid + i);

        val |= (u64)irq->source << (i * 8);

        vgic_put_irq(vcpu->kvm, irq);
    }
    return val;
}

Here is the call graph for this function:

vgic_mmio_read_target()

static unsigned long vgic_mmio_read_target ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 162 of file vgic-mmio-v2.c.

{
    u32 intid = VGIC_ADDR_TO_INTID(addr, 8);
    int i;
    u64 val = 0;

    for (i = 0; i < len; i++) {
        struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, vcpu, intid + i);

        val |= (u64)irq->targets << (i * 8);

        vgic_put_irq(vcpu->kvm, irq);
    }

    return val;
}

Here is the call graph for this function:

vgic_mmio_read_v2_misc()

static unsigned long vgic_mmio_read_v2_misc ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 25 of file vgic-mmio-v2.c.

{
    struct vgic_dist *vgic = &vcpu->kvm->arch.vgic;
    u32 value;

    switch (addr & 0x0c) {
    case GIC_DIST_CTRL:
        value = vgic->enabled ? GICD_ENABLE : 0;
        break;
    case GIC_DIST_CTR:
        value = vgic->nr_spis + VGIC_NR_PRIVATE_IRQS;
        value = (value >> 5) - 1;
        value |= (atomic_read(&vcpu->kvm->online_vcpus) - 1) << 5;
        break;
    case GIC_DIST_IIDR:
        value = (PRODUCT_ID_KVM << GICD_IIDR_PRODUCT_ID_SHIFT) |
            (vgic->implementation_rev << GICD_IIDR_REVISION_SHIFT) |
            (IMPLEMENTER_ARM << GICD_IIDR_IMPLEMENTER_SHIFT);
        break;
    default:
        return 0;
    }

    return value;
}

Here is the caller graph for this function:

vgic_mmio_read_vcpuif()

static unsigned long vgic_mmio_read_vcpuif ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len  )

static

Definition at line 275 of file vgic-mmio-v2.c.

{
    struct vgic_vmcr vmcr;
    u32 val;

    vgic_get_vmcr(vcpu, &vmcr);

    switch (addr & 0xff) {
    case GIC_CPU_CTRL:
        val = vmcr.grpen0 << GIC_CPU_CTRL_EnableGrp0_SHIFT;
        val |= vmcr.grpen1 << GIC_CPU_CTRL_EnableGrp1_SHIFT;
        val |= vmcr.ackctl << GIC_CPU_CTRL_AckCtl_SHIFT;
        val |= vmcr.fiqen << GIC_CPU_CTRL_FIQEn_SHIFT;
        val |= vmcr.cbpr << GIC_CPU_CTRL_CBPR_SHIFT;
        val |= vmcr.eoim << GIC_CPU_CTRL_EOImodeNS_SHIFT;

        break;
    case GIC_CPU_PRIMASK:
        /*
         * Our KVM_DEV_TYPE_ARM_VGIC_V2 device ABI exports the
         * PMR field as GICH_VMCR.VMPriMask rather than
         * GICC_PMR.Priority, so we expose the upper five bits of
         * priority mask to userspace using the lower bits in the
         * unsigned long.
         */
        val = (vmcr.pmr & GICV_PMR_PRIORITY_MASK) >>
            GICV_PMR_PRIORITY_SHIFT;
        break;
    case GIC_CPU_BINPOINT:
        val = vmcr.bpr;
        break;
    case GIC_CPU_ALIAS_BINPOINT:
        val = vmcr.abpr;
        break;
    case GIC_CPU_IDENT:
        val = ((PRODUCT_ID_KVM << 20) |
               (GICC_ARCH_VERSION_V2 << 16) |
               IMPLEMENTER_ARM);
        break;
    default:
        return 0;
    }

    return val;
}

Here is the call graph for this function:

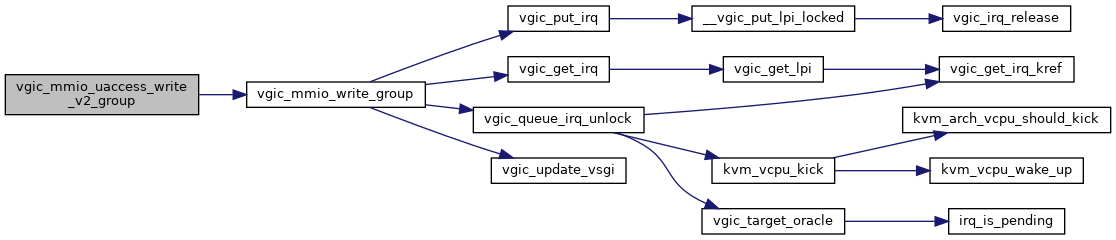

vgic_mmio_uaccess_write_v2_group()

static int vgic_mmio_uaccess_write_v2_group ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 110 of file vgic-mmio-v2.c.

{
    if (vcpu->kvm->arch.vgic.v2_groups_user_writable)
        vgic_mmio_write_group(vcpu, addr, len, val);

    return 0;
}

Here is the call graph for this function:

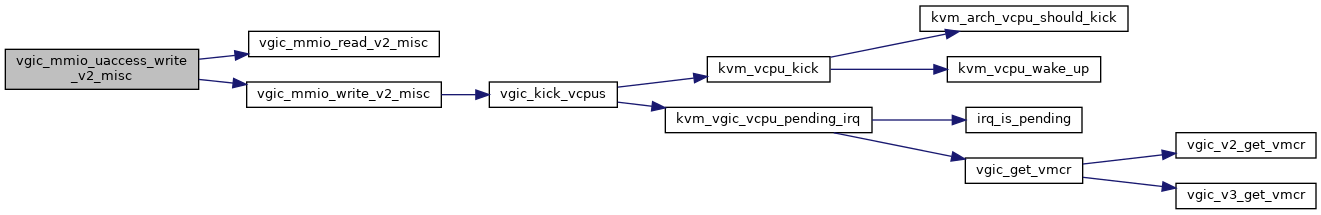

vgic_mmio_uaccess_write_v2_misc()

static int vgic_mmio_uaccess_write_v2_misc ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 72 of file vgic-mmio-v2.c.

{
    struct vgic_dist *dist = &vcpu->kvm->arch.vgic;
    u32 reg;

    switch (addr & 0x0c) {
    case GIC_DIST_IIDR:
        reg = vgic_mmio_read_v2_misc(vcpu, addr, len);
        if ((reg ^ val) & ~GICD_IIDR_REVISION_MASK)
            return -EINVAL;

        /*
         * If we observe a write to GICD_IIDR we know that userspace
         * has been updated and has had a chance to cope with older
         * kernels (VGICv2 IIDR.Revision == 0) incorrectly reporting
         * interrupts as group 1, and therefore we now allow groups to
         * be user writable.  Doing this by default would break
         * migration from old kernels to new kernels with legacy
         * userspace.
         */
        reg = FIELD_GET(GICD_IIDR_REVISION_MASK, reg);
        switch (reg) {
        case KVM_VGIC_IMP_REV_2:
        case KVM_VGIC_IMP_REV_3:
            vcpu->kvm->arch.vgic.v2_groups_user_writable = true;
            dist->implementation_rev = reg;
            return 0;
        default:
            return -EINVAL;
        }
    }

    vgic_mmio_write_v2_misc(vcpu, addr, len, val);
    return 0;
}

Here is the call graph for this function:

vgic_mmio_write_apr()

static void vgic_mmio_write_apr ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 387 of file vgic-mmio-v2.c.

{
    int n; /* which APRn is this */

    n = (addr >> 2) & 0x3;

    if (kvm_vgic_global_state.type == VGIC_V2) {
        /* GICv2 hardware systems support max. 32 groups */
        if (n != 0)
            return;
        vcpu->arch.vgic_cpu.vgic_v2.vgic_apr = val;
    } else {
        struct vgic_v3_cpu_if *vgicv3 = &vcpu->arch.vgic_cpu.vgic_v3;

        if (n > vgic_v3_max_apr_idx(vcpu))
            return;

        n = array_index_nospec(n, 4);

        /* GICv3 only uses ICH_AP1Rn for memory mapped (GICv2) guests */
        vgicv3->vgic_ap1r[n] = val;
    }
}

Here is the call graph for this function:

vgic_mmio_write_sgipendc()

static void vgic_mmio_write_sgipendc ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 225 of file vgic-mmio-v2.c.

{
    u32 intid = addr & 0x0f;
    int i;
    unsigned long flags;

    for (i = 0; i < len; i++) {
        struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, vcpu, intid + i);

        raw_spin_lock_irqsave(&irq->irq_lock, flags);

        irq->source &= ~((val >> (i * 8)) & 0xff);
        if (!irq->source)
            irq->pending_latch = false;

        raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
        vgic_put_irq(vcpu->kvm, irq);
    }
}

Here is the call graph for this function:

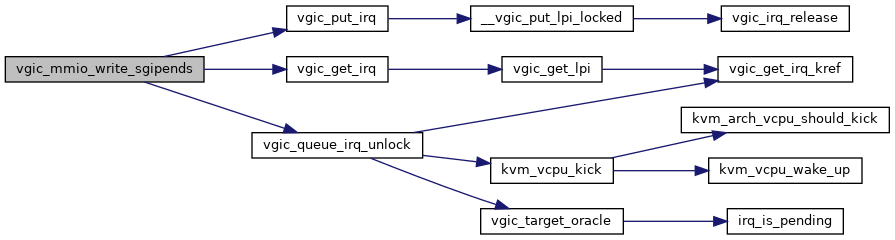

vgic_mmio_write_sgipends()

static void vgic_mmio_write_sgipends ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 247 of file vgic-mmio-v2.c.

{
    u32 intid = addr & 0x0f;
    int i;
    unsigned long flags;

    for (i = 0; i < len; i++) {
        struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, vcpu, intid + i);

        raw_spin_lock_irqsave(&irq->irq_lock, flags);

        irq->source |= (val >> (i * 8)) & 0xff;

        if (irq->source) {
            irq->pending_latch = true;
            vgic_queue_irq_unlock(vcpu->kvm, irq, flags);
        } else {
            raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
        }
        vgic_put_irq(vcpu->kvm, irq);
    }
}

Here is the call graph for this function:

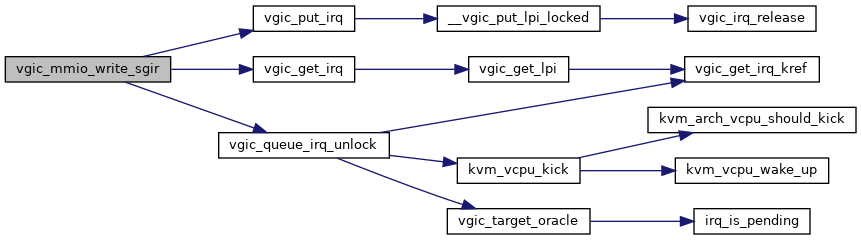

vgic_mmio_write_sgir()

static void vgic_mmio_write_sgir ( struct kvm_vcpu *  source_vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 120 of file vgic-mmio-v2.c.

{
    int nr_vcpus = atomic_read(&source_vcpu->kvm->online_vcpus);
    int intid = val & 0xf;
    int targets = (val >> 16) & 0xff;
    int mode = (val >> 24) & 0x03;
    struct kvm_vcpu *vcpu;
    unsigned long flags, c;

    switch (mode) {
    case 0x0:       /* as specified by targets */
        break;
    case 0x1:
        targets = (1U << nr_vcpus) - 1;         /* all, ... */
        targets &= ~(1U << source_vcpu->vcpu_id);   /* but self */
        break;
    case 0x2:       /* this very vCPU only */
        targets = (1U << source_vcpu->vcpu_id);
        break;
    case 0x3:       /* reserved */
        return;
    }

    kvm_for_each_vcpu(c, vcpu, source_vcpu->kvm) {
        struct vgic_irq *irq;

        if (!(targets & (1U << c)))
            continue;

        irq = vgic_get_irq(source_vcpu->kvm, vcpu, intid);

        raw_spin_lock_irqsave(&irq->irq_lock, flags);
        irq->pending_latch = true;
        irq->source |= 1U << source_vcpu->vcpu_id;

        vgic_queue_irq_unlock(source_vcpu->kvm, irq, flags);
        vgic_put_irq(source_vcpu->kvm, irq);
    }
}

Here is the call graph for this function:

vgic_mmio_write_target()

static void vgic_mmio_write_target ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 180 of file vgic-mmio-v2.c.

{
    u32 intid = VGIC_ADDR_TO_INTID(addr, 8);
    u8 cpu_mask = GENMASK(atomic_read(&vcpu->kvm->online_vcpus) - 1, 0);
    int i;
    unsigned long flags;

    /* GICD_ITARGETSR[0-7] are read-only */
    if (intid < VGIC_NR_PRIVATE_IRQS)
        return;

    for (i = 0; i < len; i++) {
        struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, NULL, intid + i);
        int target;

        raw_spin_lock_irqsave(&irq->irq_lock, flags);

        irq->targets = (val >> (i * 8)) & cpu_mask;
        target = irq->targets ? __ffs(irq->targets) : 0;
        irq->target_vcpu = kvm_get_vcpu(vcpu->kvm, target);

        raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
        vgic_put_irq(vcpu->kvm, irq);
    }
}

Here is the call graph for this function:

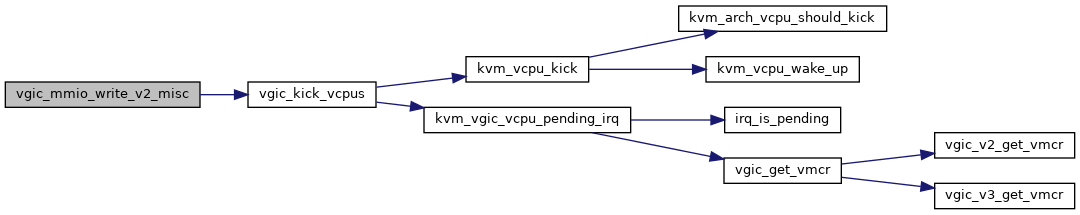

vgic_mmio_write_v2_misc()

static void vgic_mmio_write_v2_misc ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 52 of file vgic-mmio-v2.c.

{
    struct vgic_dist *dist = &vcpu->kvm->arch.vgic;
    bool was_enabled = dist->enabled;

    switch (addr & 0x0c) {
    case GIC_DIST_CTRL:
        dist->enabled = val & GICD_ENABLE;
        if (!was_enabled && dist->enabled)
            vgic_kick_vcpus(vcpu->kvm);
        break;
    case GIC_DIST_CTR:
    case GIC_DIST_IIDR:
        /* Nothing to do */
        return;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_mmio_write_vcpuif()

static void vgic_mmio_write_vcpuif ( struct kvm_vcpu *  vcpu, gpa_t  addr, unsigned int  len, unsigned long  val  )

static

Definition at line 322 of file vgic-mmio-v2.c.

{
    struct vgic_vmcr vmcr;

    vgic_get_vmcr(vcpu, &vmcr);

    switch (addr & 0xff) {
    case GIC_CPU_CTRL:
        vmcr.grpen0 = !!(val & GIC_CPU_CTRL_EnableGrp0);
        vmcr.grpen1 = !!(val & GIC_CPU_CTRL_EnableGrp1);
        vmcr.ackctl = !!(val & GIC_CPU_CTRL_AckCtl);
        vmcr.fiqen = !!(val & GIC_CPU_CTRL_FIQEn);
        vmcr.cbpr = !!(val & GIC_CPU_CTRL_CBPR);
        vmcr.eoim = !!(val & GIC_CPU_CTRL_EOImodeNS);

        break;
    case GIC_CPU_PRIMASK:
        /*
         * Our KVM_DEV_TYPE_ARM_VGIC_V2 device ABI exports the
         * PMR field as GICH_VMCR.VMPriMask rather than
         * GICC_PMR.Priority, so we expose the upper five bits of
         * priority mask to userspace using the lower bits in the
         * unsigned long.
         */
        vmcr.pmr = (val << GICV_PMR_PRIORITY_SHIFT) &
            GICV_PMR_PRIORITY_MASK;
        break;
    case GIC_CPU_BINPOINT:
        vmcr.bpr = val;
        break;
    case GIC_CPU_ALIAS_BINPOINT:
        vmcr.abpr = val;
        break;
    }

    vgic_set_vmcr(vcpu, &vmcr);
}

Here is the call graph for this function:

vgic_v2_cpuif_uaccess()

int vgic_v2_cpuif_uaccess	(	struct kvm_vcpu *	vcpu,
		bool	is_write,
		int	offset,
		u32 *	val
	)

Definition at line 539 of file vgic-mmio-v2.c.

{
    struct vgic_io_device dev = {
        .regions = vgic_v2_cpu_registers,
        .nr_regions = ARRAY_SIZE(vgic_v2_cpu_registers),
        .iodev_type = IODEV_CPUIF,
    };

    return vgic_uaccess(vcpu, &dev, is_write, offset, val);
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v2_dist_uaccess()

int vgic_v2_dist_uaccess	(	struct kvm_vcpu *	vcpu,
		bool	is_write,
		int	offset,
		u32 *	val
	)

Definition at line 551 of file vgic-mmio-v2.c.

{
    struct vgic_io_device dev = {
        .regions = vgic_v2_dist_registers,
        .nr_regions = ARRAY_SIZE(vgic_v2_dist_registers),
        .iodev_type = IODEV_DIST,
    };

    return vgic_uaccess(vcpu, &dev, is_write, offset, val);
}

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v2_has_attr_regs()

int vgic_v2_has_attr_regs	(	struct kvm_device *	dev,
		struct kvm_device_attr *	attr
	)

Definition at line 497 of file vgic-mmio-v2.c.

{
    const struct vgic_register_region *region;
    struct vgic_io_device iodev;
    struct vgic_reg_attr reg_attr;
    struct kvm_vcpu *vcpu;
    gpa_t addr;
    int ret;

    ret = vgic_v2_parse_attr(dev, attr, &reg_attr);
    if (ret)
        return ret;

    vcpu = reg_attr.vcpu;
    addr = reg_attr.addr;

    switch (attr->group) {
    case KVM_DEV_ARM_VGIC_GRP_DIST_REGS:
        iodev.regions = vgic_v2_dist_registers;
        iodev.nr_regions = ARRAY_SIZE(vgic_v2_dist_registers);
        iodev.base_addr = 0;
        break;
    case KVM_DEV_ARM_VGIC_GRP_CPU_REGS:
        iodev.regions = vgic_v2_cpu_registers;
        iodev.nr_regions = ARRAY_SIZE(vgic_v2_cpu_registers);
        iodev.base_addr = 0;
        break;
    default:
        return -ENXIO;
    }

    /* We only support aligned 32-bit accesses. */
    if (addr & 3)
        return -ENXIO;

    region = vgic_get_mmio_region(vcpu, &iodev, addr, sizeof(u32));
    if (!region)
        return -ENXIO;

    return 0;
}

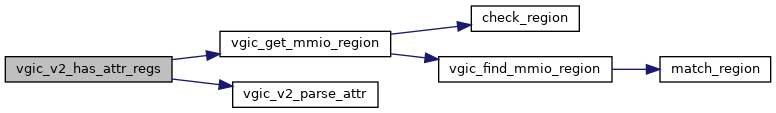

Here is the call graph for this function:

vgic_v2_init_dist_iodev()

unsigned int vgic_v2_init_dist_iodev

(

struct vgic_io_device *

dev

)

Definition at line 487 of file vgic-mmio-v2.c.

{
    dev->regions = vgic_v2_dist_registers;
    dev->nr_regions = ARRAY_SIZE(vgic_v2_dist_registers);

    kvm_iodevice_init(&dev->dev, &kvm_io_gic_ops);

    return SZ_4K;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

vgic_v2_cpu_registers

const struct vgic_register_region vgic_v2_cpu_registers[]

static

Initial value:

= {
    REGISTER_DESC_WITH_LENGTH(GIC_CPU_CTRL,
        vgic_mmio_read_vcpuif, vgic_mmio_write_vcpuif, 4,
        VGIC_ACCESS_32bit),
    REGISTER_DESC_WITH_LENGTH(GIC_CPU_PRIMASK,
        vgic_mmio_read_vcpuif, vgic_mmio_write_vcpuif, 4,
        VGIC_ACCESS_32bit),
    REGISTER_DESC_WITH_LENGTH(GIC_CPU_BINPOINT,
        vgic_mmio_read_vcpuif, vgic_mmio_write_vcpuif, 4,
        VGIC_ACCESS_32bit),
    REGISTER_DESC_WITH_LENGTH(GIC_CPU_ALIAS_BINPOINT,
        vgic_mmio_read_vcpuif, vgic_mmio_write_vcpuif, 4,
        VGIC_ACCESS_32bit),
    REGISTER_DESC_WITH_LENGTH(GIC_CPU_ACTIVEPRIO,
        vgic_mmio_read_apr, vgic_mmio_write_apr, 16,
        VGIC_ACCESS_32bit),
    REGISTER_DESC_WITH_LENGTH(GIC_CPU_IDENT,
        vgic_mmio_read_vcpuif, vgic_mmio_write_vcpuif, 4,
        VGIC_ACCESS_32bit),
}

Definition at line 387 of file vgic-mmio-v2.c.

vgic_v2_dist_registers

const struct vgic_register_region vgic_v2_dist_registers[]

static

Definition at line 387 of file vgic-mmio-v2.c.
