vgic-init.c File Reference

#include <linux/uaccess.h>
#include <linux/interrupt.h>
#include <linux/cpu.h>
#include <linux/kvm_host.h>
#include <kvm/arm_vgic.h>
#include <asm/kvm_emulate.h>
#include <asm/kvm_mmu.h>
#include "vgic.h"

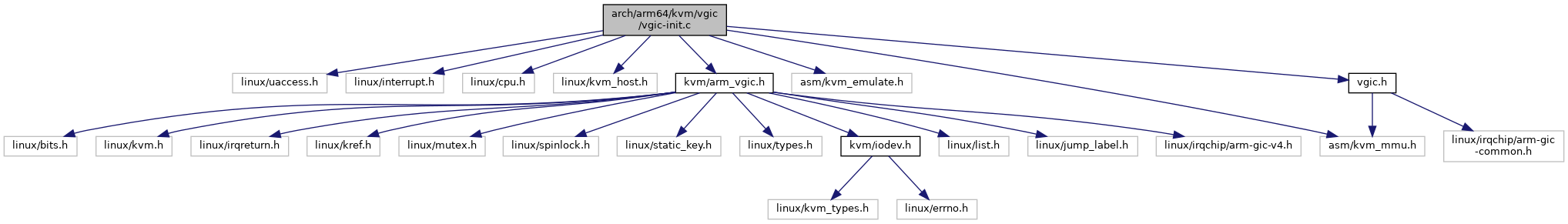

Include dependency graph for vgic-init.c:

Go to the source code of this file.

Functions
void	kvm_vgic_early_init (struct kvm *kvm)
int	kvm_vgic_create (struct kvm *kvm, u32 type)
static int	kvm_vgic_dist_init (struct kvm *kvm, unsigned int nr_spis)
int	kvm_vgic_vcpu_init (struct kvm_vcpu *vcpu)
static void	kvm_vgic_vcpu_enable (struct kvm_vcpu *vcpu)
int	vgic_init (struct kvm *kvm)
static void	kvm_vgic_dist_destroy (struct kvm *kvm)
static void	__kvm_vgic_vcpu_destroy (struct kvm_vcpu *vcpu)
void	kvm_vgic_vcpu_destroy (struct kvm_vcpu *vcpu)
void	kvm_vgic_destroy (struct kvm *kvm)
int	vgic_lazy_init (struct kvm *kvm)
int	kvm_vgic_map_resources (struct kvm *kvm)
void	kvm_vgic_cpu_up (void)
void	kvm_vgic_cpu_down (void)
static irqreturn_t	vgic_maintenance_handler (int irq, void *data)
void __init	vgic_set_kvm_info (const struct gic_kvm_info *info)
void	kvm_vgic_init_cpu_hardware (void)
int	kvm_vgic_hyp_init (void)

Variables
static struct gic_kvm_info *	gic_kvm_info

Function Documentation

__kvm_vgic_vcpu_destroy()

static void __kvm_vgic_vcpu_destroy ( struct kvm_vcpu *  vcpu )

static

Definition at line 371 of file vgic-init.c.

{
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;

    /*
     * Retire all pending LPIs on this vcpu anyway as we're
     * going to destroy it.
     */
    vgic_flush_pending_lpis(vcpu);

    INIT_LIST_HEAD(&vgic_cpu->ap_list_head);
    if (vcpu->kvm->arch.vgic.vgic_model == KVM_DEV_TYPE_ARM_VGIC_V3) {
        vgic_unregister_redist_iodev(vcpu);
        vgic_cpu->rd_iodev.base_addr = VGIC_ADDR_UNDEF;
    }
}

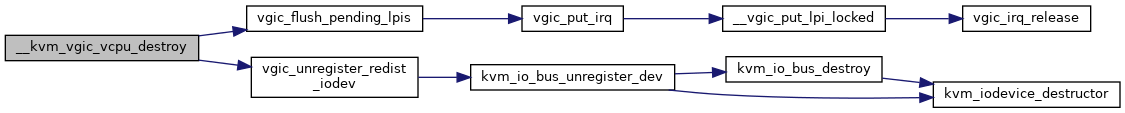

Here is the call graph for this function:

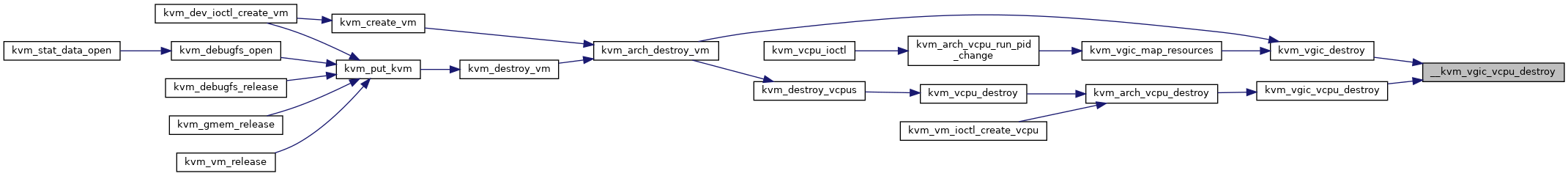

Here is the caller graph for this function:

kvm_vgic_cpu_down()

void kvm_vgic_cpu_down

(

void

)

Definition at line 513 of file vgic-init.c.

{
    disable_percpu_irq(kvm_vgic_global_state.maint_irq);
}

Here is the caller graph for this function:

kvm_vgic_cpu_up()

void kvm_vgic_cpu_up

(

void

)

Definition at line 507 of file vgic-init.c.

{
    enable_percpu_irq(kvm_vgic_global_state.maint_irq, 0);
}

Here is the caller graph for this function:

kvm_vgic_create()

int kvm_vgic_create	(	struct kvm *	kvm,
		u32	type
	)

kvm_vgic_create: triggered by the instantiation of the VGIC device by user space, either through the legacy KVM_CREATE_IRQCHIP ioctl (v2 only) or through the generic KVM_CREATE_DEVICE API ioctl. irqchip_in_kernel() tells you if this function succeeded or not. @kvm: kvm struct pointer @type: KVM_DEV_TYPE_ARM_VGIC_V[23]

Definition at line 71 of file vgic-init.c.

{
    struct kvm_vcpu *vcpu;
    unsigned long i;
    int ret;

    /*
     * This function is also called by the KVM_CREATE_IRQCHIP handler,
     * which had no chance yet to check the availability of the GICv2
     * emulation. So check this here again. KVM_CREATE_DEVICE does
     * the proper checks already.
     */
    if (type == KVM_DEV_TYPE_ARM_VGIC_V2 &&
        !kvm_vgic_global_state.can_emulate_gicv2)
        return -ENODEV;

    /* Must be held to avoid race with vCPU creation */
    lockdep_assert_held(&kvm->lock);

    ret = -EBUSY;
    if (!lock_all_vcpus(kvm))
        return ret;

    mutex_lock(&kvm->arch.config_lock);

    if (irqchip_in_kernel(kvm)) {
        ret = -EEXIST;
        goto out_unlock;
    }

    kvm_for_each_vcpu(i, vcpu, kvm) {
        if (vcpu_has_run_once(vcpu))
            goto out_unlock;
    }
    ret = 0;

    if (type == KVM_DEV_TYPE_ARM_VGIC_V2)
        kvm->max_vcpus = VGIC_V2_MAX_CPUS;
    else
        kvm->max_vcpus = VGIC_V3_MAX_CPUS;

    if (atomic_read(&kvm->online_vcpus) > kvm->max_vcpus) {
        ret = -E2BIG;
        goto out_unlock;
    }

    kvm->arch.vgic.in_kernel = true;
    kvm->arch.vgic.vgic_model = type;

    kvm->arch.vgic.vgic_dist_base = VGIC_ADDR_UNDEF;

    if (type == KVM_DEV_TYPE_ARM_VGIC_V2)
        kvm->arch.vgic.vgic_cpu_base = VGIC_ADDR_UNDEF;
    else
        INIT_LIST_HEAD(&kvm->arch.vgic.rd_regions);

out_unlock:
    mutex_unlock(&kvm->arch.config_lock);
    unlock_all_vcpus(kvm);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_vgic_destroy()

void kvm_vgic_destroy

(

struct kvm *

kvm

)

Definition at line 397 of file vgic-init.c.

{
    struct kvm_vcpu *vcpu;
    unsigned long i;

    mutex_lock(&kvm->slots_lock);

    vgic_debug_destroy(kvm);

    kvm_for_each_vcpu(i, vcpu, kvm)
        __kvm_vgic_vcpu_destroy(vcpu);

    mutex_lock(&kvm->arch.config_lock);

    kvm_vgic_dist_destroy(kvm);

    mutex_unlock(&kvm->arch.config_lock);
    mutex_unlock(&kvm->slots_lock);
}

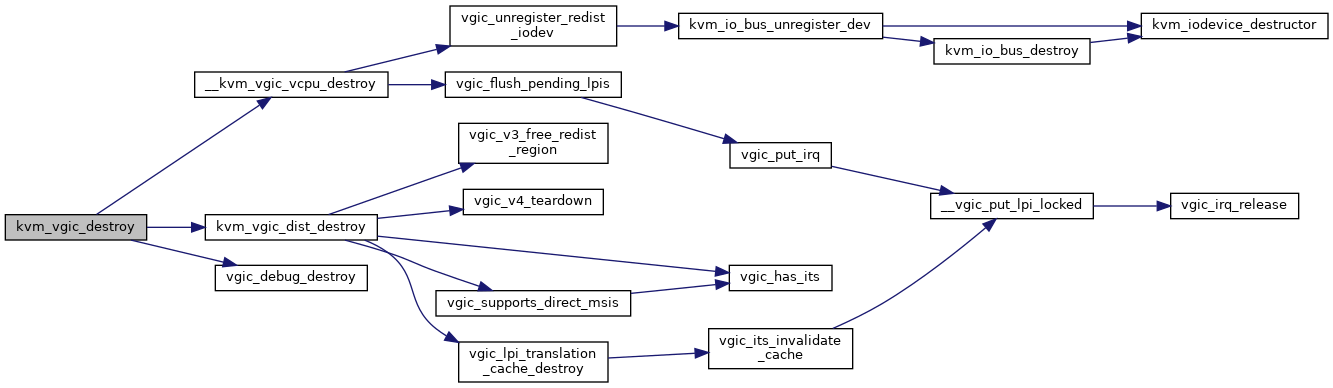

Here is the call graph for this function:

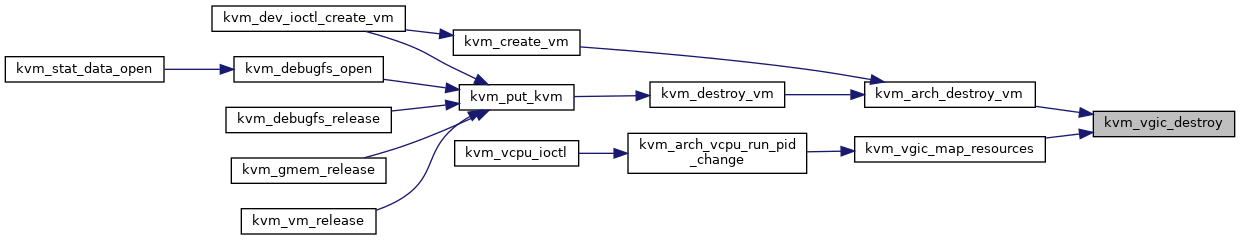

Here is the caller graph for this function:

kvm_vgic_dist_destroy()

static void kvm_vgic_dist_destroy ( struct kvm *  kvm )

static

Definition at line 343 of file vgic-init.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    struct vgic_redist_region *rdreg, *next;

    dist->ready = false;
    dist->initialized = false;

    kfree(dist->spis);
    dist->spis = NULL;
    dist->nr_spis = 0;
    dist->vgic_dist_base = VGIC_ADDR_UNDEF;

    if (dist->vgic_model == KVM_DEV_TYPE_ARM_VGIC_V3) {
        list_for_each_entry_safe(rdreg, next, &dist->rd_regions, list)
            vgic_v3_free_redist_region(rdreg);
        INIT_LIST_HEAD(&dist->rd_regions);
    } else {
        dist->vgic_cpu_base = VGIC_ADDR_UNDEF;
    }

    if (vgic_has_its(kvm))
        vgic_lpi_translation_cache_destroy(kvm);

    if (vgic_supports_direct_msis(kvm))
        vgic_v4_teardown(kvm);
}

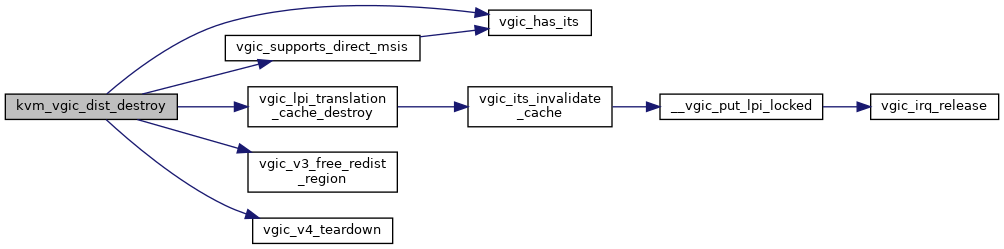

Here is the call graph for this function:

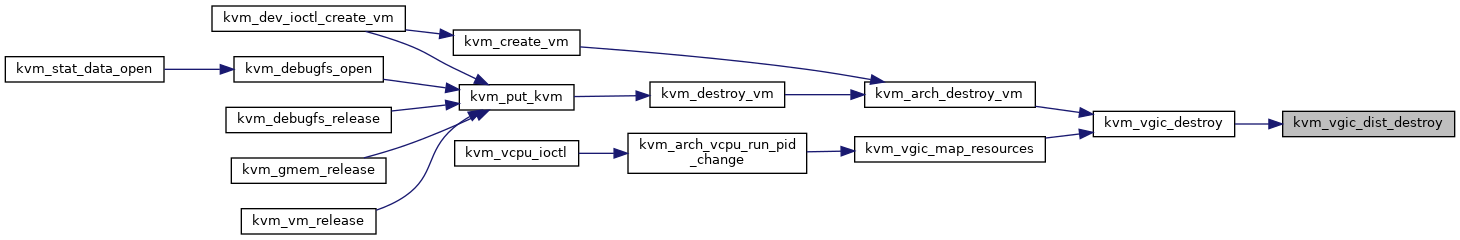

Here is the caller graph for this function:

kvm_vgic_dist_init()

static int kvm_vgic_dist_init ( struct kvm *  kvm, unsigned int  nr_spis  )

static

kvm_vgic_dist_init: initialize the dist data structures @kvm: kvm struct pointer @nr_spis: number of spis, frozen by caller

Definition at line 140 of file vgic-init.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    struct kvm_vcpu *vcpu0 = kvm_get_vcpu(kvm, 0);
    int i;

    dist->spis = kcalloc(nr_spis, sizeof(struct vgic_irq), GFP_KERNEL_ACCOUNT);
    if (!dist->spis)
        return  -ENOMEM;

    /*
     * In the following code we do not take the irq struct lock since
     * no other action on irq structs can happen while the VGIC is
     * not initialized yet:
     * If someone wants to inject an interrupt or does a MMIO access, we
     * require prior initialization in case of a virtual GICv3 or trigger
     * initialization when using a virtual GICv2.
     */
    for (i = 0; i < nr_spis; i++) {
        struct vgic_irq *irq = &dist->spis[i];

        irq->intid = i + VGIC_NR_PRIVATE_IRQS;
        INIT_LIST_HEAD(&irq->ap_list);
        raw_spin_lock_init(&irq->irq_lock);
        irq->vcpu = NULL;
        irq->target_vcpu = vcpu0;
        kref_init(&irq->refcount);
        switch (dist->vgic_model) {
        case KVM_DEV_TYPE_ARM_VGIC_V2:
            irq->targets = 0;
            irq->group = 0;
            break;
        case KVM_DEV_TYPE_ARM_VGIC_V3:
            irq->mpidr = 0;
            irq->group = 1;
            break;
        default:
            kfree(dist->spis);
            dist->spis = NULL;
            return -EINVAL;
        }
    }
    return 0;
}

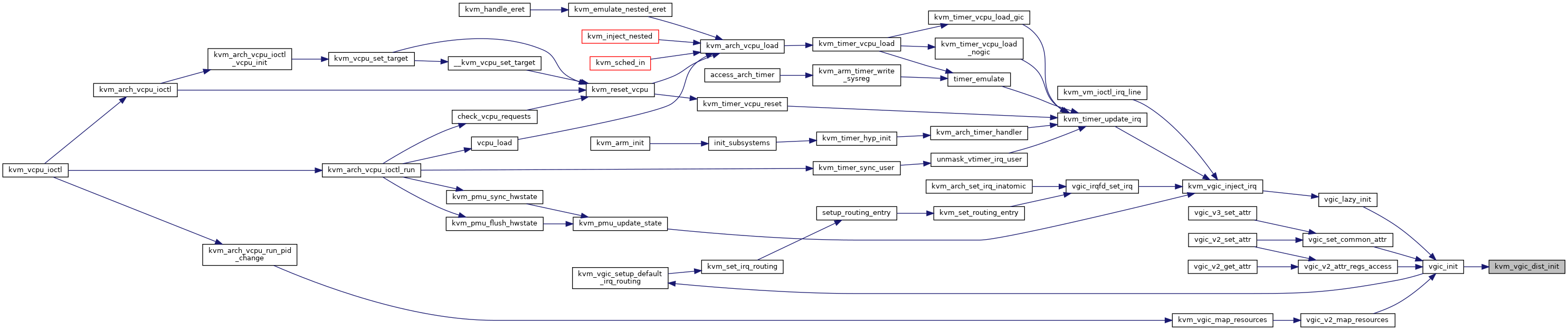

Here is the caller graph for this function:

kvm_vgic_early_init()

void kvm_vgic_early_init

(

struct kvm *

kvm

)

kvm_vgic_early_init() - Initialize static VGIC VCPU data structures @kvm: The VM whose VGIC districutor should be initialized

Only do initialization of static structures that don't require any allocation or sizing information from userspace. vgic_init() called kvm_vgic_dist_init() which takes care of the rest.

Definition at line 52 of file vgic-init.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;

    INIT_LIST_HEAD(&dist->lpi_list_head);
    INIT_LIST_HEAD(&dist->lpi_translation_cache);
    raw_spin_lock_init(&dist->lpi_list_lock);
}

Here is the caller graph for this function:

kvm_vgic_hyp_init()

int kvm_vgic_hyp_init

(

void

)

kvm_vgic_hyp_init: populates the kvm_vgic_global_state variable according to the host GIC model. Accordingly calls either vgic_v2/v3_probe which registers the KVM_DEVICE that can be instantiated by a guest later on .

Definition at line 564 of file vgic-init.c.

{
    bool has_mask;
    int ret;

    if (!gic_kvm_info)
        return -ENODEV;

    has_mask = !gic_kvm_info->no_maint_irq_mask;

    if (has_mask && !gic_kvm_info->maint_irq) {
        kvm_err("No vgic maintenance irq\n");
        return -ENXIO;
    }

    /*
     * If we get one of these oddball non-GICs, taint the kernel,
     * as we have no idea of how they *really* behave.
     */
    if (gic_kvm_info->no_hw_deactivation) {
        kvm_info("Non-architectural vgic, tainting kernel\n");
        add_taint(TAINT_CPU_OUT_OF_SPEC, LOCKDEP_STILL_OK);
        kvm_vgic_global_state.no_hw_deactivation = true;
    }

    switch (gic_kvm_info->type) {
    case GIC_V2:
        ret = vgic_v2_probe(gic_kvm_info);
        break;
    case GIC_V3:
        ret = vgic_v3_probe(gic_kvm_info);
        if (!ret) {
            static_branch_enable(&kvm_vgic_global_state.gicv3_cpuif);
            kvm_info("GIC system register CPU interface enabled\n");
        }
        break;
    default:
        ret = -ENODEV;
    }

    kvm_vgic_global_state.maint_irq = gic_kvm_info->maint_irq;

    kfree(gic_kvm_info);
    gic_kvm_info = NULL;

    if (ret)
        return ret;

    if (!has_mask && !kvm_vgic_global_state.maint_irq)
        return 0;

    ret = request_percpu_irq(kvm_vgic_global_state.maint_irq,
                 vgic_maintenance_handler,
                 "vgic", kvm_get_running_vcpus());
    if (ret) {
        kvm_err("Cannot register interrupt %d\n",
            kvm_vgic_global_state.maint_irq);
        return ret;
    }

    kvm_info("vgic interrupt IRQ%d\n", kvm_vgic_global_state.maint_irq);
    return 0;
}

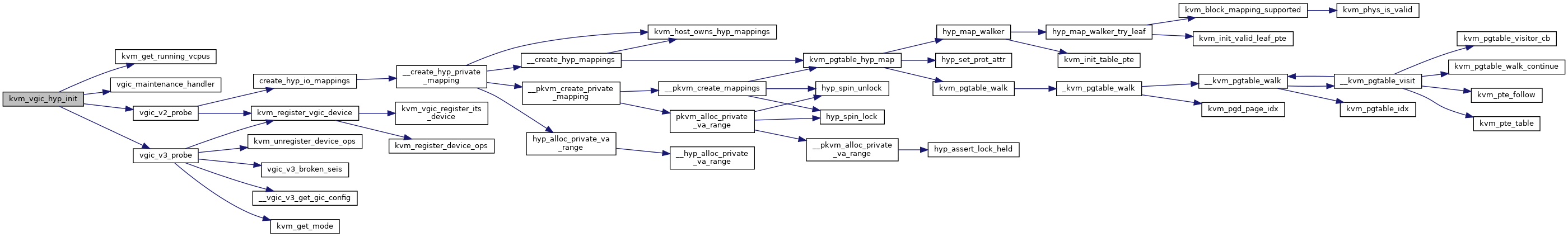

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_vgic_init_cpu_hardware()

void kvm_vgic_init_cpu_hardware

(

void

)

kvm_vgic_init_cpu_hardware - initialize the GIC VE hardware

For a specific CPU, initialize the GIC VE hardware.

Definition at line 544 of file vgic-init.c.

{
    BUG_ON(preemptible());

    /*
     * We want to make sure the list registers start out clear so that we
     * only have the program the used registers.
     */
    if (kvm_vgic_global_state.type == VGIC_V2)
        vgic_v2_init_lrs();
    else
        kvm_call_hyp(__vgic_v3_init_lrs);
}

Here is the call graph for this function:

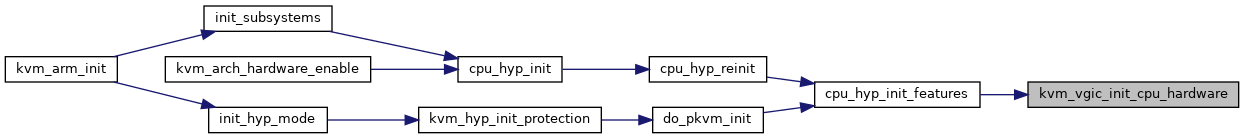

Here is the caller graph for this function:

kvm_vgic_map_resources()

int kvm_vgic_map_resources

(

struct kvm *

kvm

)

Map the MMIO regions depending on the VGIC model exposed to the guest called on the first VCPU run. Also map the virtual CPU interface into the VM. v2 calls vgic_init() if not already done. v3 and derivatives return an error if the VGIC is not initialized. vgic_ready() returns true if this function has succeeded. @kvm: kvm struct pointer

Definition at line 456 of file vgic-init.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    enum vgic_type type;
    gpa_t dist_base;
    int ret = 0;

    if (likely(vgic_ready(kvm)))
        return 0;

    mutex_lock(&kvm->slots_lock);
    mutex_lock(&kvm->arch.config_lock);
    if (vgic_ready(kvm))
        goto out;

    if (!irqchip_in_kernel(kvm))
        goto out;

    if (dist->vgic_model == KVM_DEV_TYPE_ARM_VGIC_V2) {
        ret = vgic_v2_map_resources(kvm);
        type = VGIC_V2;
    } else {
        ret = vgic_v3_map_resources(kvm);
        type = VGIC_V3;
    }

    if (ret)
        goto out;

    dist->ready = true;
    dist_base = dist->vgic_dist_base;
    mutex_unlock(&kvm->arch.config_lock);

    ret = vgic_register_dist_iodev(kvm, dist_base, type);
    if (ret)
        kvm_err("Unable to register VGIC dist MMIO regions\n");

    goto out_slots;
out:
    mutex_unlock(&kvm->arch.config_lock);
out_slots:
    mutex_unlock(&kvm->slots_lock);

    if (ret)
        kvm_vgic_destroy(kvm);

    return ret;
}

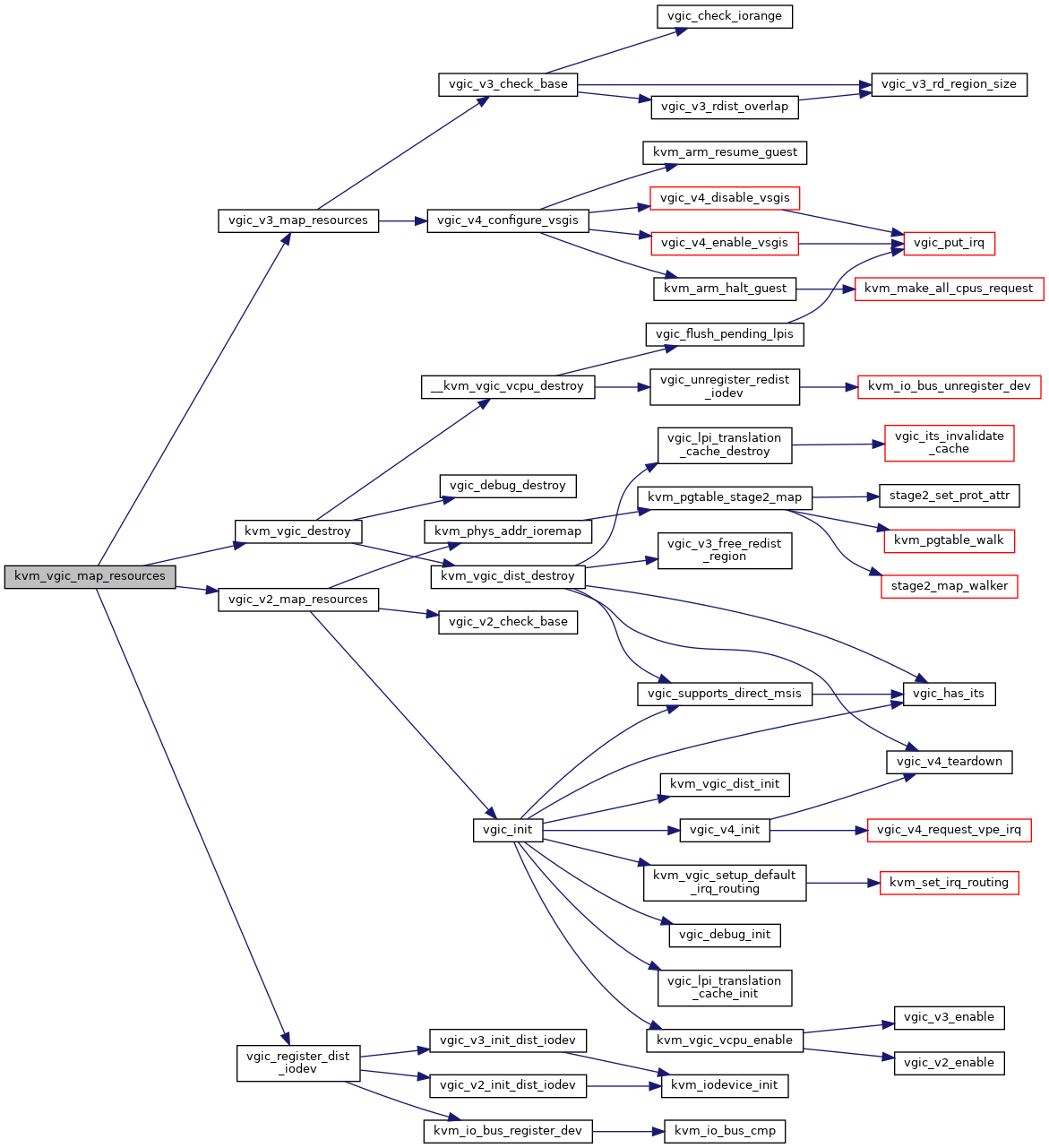

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_vgic_vcpu_destroy()

void kvm_vgic_vcpu_destroy

(

struct kvm_vcpu *

vcpu

)

Definition at line 388 of file vgic-init.c.

{
    struct kvm *kvm = vcpu->kvm;

    mutex_lock(&kvm->slots_lock);
    __kvm_vgic_vcpu_destroy(vcpu);
    mutex_unlock(&kvm->slots_lock);
}

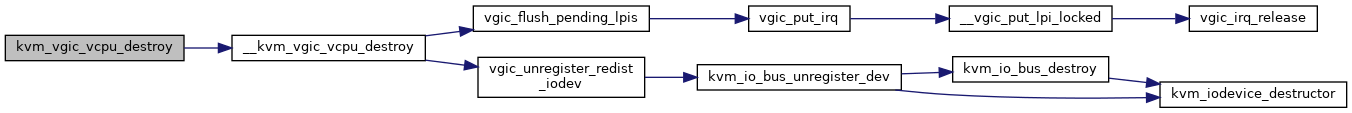

Here is the call graph for this function:

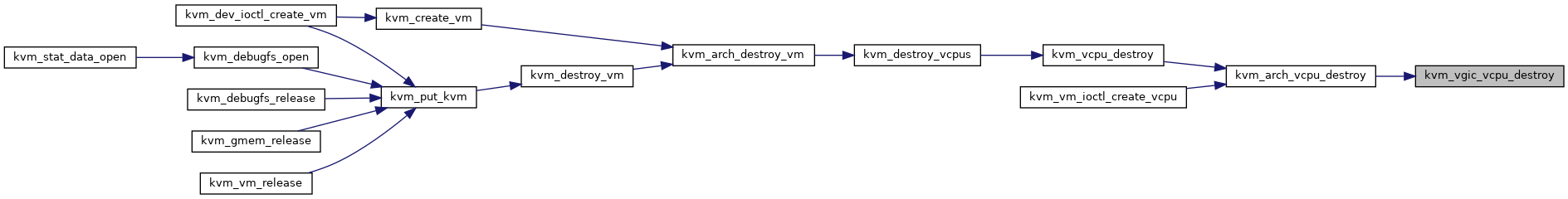

Here is the caller graph for this function:

kvm_vgic_vcpu_enable()

static void kvm_vgic_vcpu_enable ( struct kvm_vcpu *  vcpu )

static

Definition at line 245 of file vgic-init.c.

{
    if (kvm_vgic_global_state.type == VGIC_V2)
        vgic_v2_enable(vcpu);
    else
        vgic_v3_enable(vcpu);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_vgic_vcpu_init()

int kvm_vgic_vcpu_init

(

struct kvm_vcpu *

vcpu

)

kvm_vgic_vcpu_init() - Initialize static VGIC VCPU data structures and register VCPU-specific KVM iodevs

@vcpu: pointer to the VCPU being created and initialized

Only do initialization, but do not actually enable the VGIC CPU interface

Definition at line 194 of file vgic-init.c.

{
    struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;
    struct vgic_dist *dist = &vcpu->kvm->arch.vgic;
    int ret = 0;
    int i;

    vgic_cpu->rd_iodev.base_addr = VGIC_ADDR_UNDEF;

    INIT_LIST_HEAD(&vgic_cpu->ap_list_head);
    raw_spin_lock_init(&vgic_cpu->ap_list_lock);
    atomic_set(&vgic_cpu->vgic_v3.its_vpe.vlpi_count, 0);

    /*
     * Enable and configure all SGIs to be edge-triggered and
     * configure all PPIs as level-triggered.
     */
    for (i = 0; i < VGIC_NR_PRIVATE_IRQS; i++) {
        struct vgic_irq *irq = &vgic_cpu->private_irqs[i];

        INIT_LIST_HEAD(&irq->ap_list);
        raw_spin_lock_init(&irq->irq_lock);
        irq->intid = i;
        irq->vcpu = NULL;
        irq->target_vcpu = vcpu;
        kref_init(&irq->refcount);
        if (vgic_irq_is_sgi(i)) {
            /* SGIs */
            irq->enabled = 1;
            irq->config = VGIC_CONFIG_EDGE;
        } else {
            /* PPIs */
            irq->config = VGIC_CONFIG_LEVEL;
        }
    }

    if (!irqchip_in_kernel(vcpu->kvm))
        return 0;

    /*
     * If we are creating a VCPU with a GICv3 we must also register the
     * KVM io device for the redistributor that belongs to this VCPU.
     */
    if (dist->vgic_model == KVM_DEV_TYPE_ARM_VGIC_V3) {
        mutex_lock(&vcpu->kvm->slots_lock);
        ret = vgic_register_redist_iodev(vcpu);
        mutex_unlock(&vcpu->kvm->slots_lock);
    }
    return ret;
}

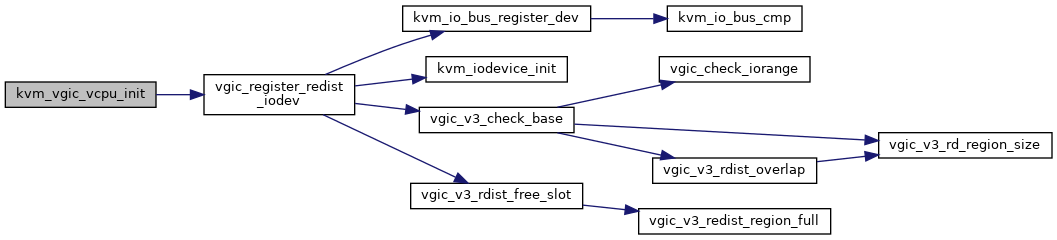

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_init()

int vgic_init

(

struct kvm *

kvm

)

Definition at line 262 of file vgic-init.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    struct kvm_vcpu *vcpu;
    int ret = 0, i;
    unsigned long idx;

    lockdep_assert_held(&kvm->arch.config_lock);

    if (vgic_initialized(kvm))
        return 0;

    /* Are we also in the middle of creating a VCPU? */
    if (kvm->created_vcpus != atomic_read(&kvm->online_vcpus))
        return -EBUSY;

    /* freeze the number of spis */
    if (!dist->nr_spis)
        dist->nr_spis = VGIC_NR_IRQS_LEGACY - VGIC_NR_PRIVATE_IRQS;

    ret = kvm_vgic_dist_init(kvm, dist->nr_spis);
    if (ret)
        goto out;

    /* Initialize groups on CPUs created before the VGIC type was known */
    kvm_for_each_vcpu(idx, vcpu, kvm) {
        struct vgic_cpu *vgic_cpu = &vcpu->arch.vgic_cpu;

        for (i = 0; i < VGIC_NR_PRIVATE_IRQS; i++) {
            struct vgic_irq *irq = &vgic_cpu->private_irqs[i];
            switch (dist->vgic_model) {
            case KVM_DEV_TYPE_ARM_VGIC_V3:
                irq->group = 1;
                irq->mpidr = kvm_vcpu_get_mpidr_aff(vcpu);
                break;
            case KVM_DEV_TYPE_ARM_VGIC_V2:
                irq->group = 0;
                irq->targets = 1U << idx;
                break;
            default:
                ret = -EINVAL;
                goto out;
            }
        }
    }

    if (vgic_has_its(kvm))
        vgic_lpi_translation_cache_init(kvm);

    /*
     * If we have GICv4.1 enabled, unconditionnaly request enable the
     * v4 support so that we get HW-accelerated vSGIs. Otherwise, only
     * enable it if we present a virtual ITS to the guest.
     */
    if (vgic_supports_direct_msis(kvm)) {
        ret = vgic_v4_init(kvm);
        if (ret)
            goto out;
    }

    kvm_for_each_vcpu(idx, vcpu, kvm)
        kvm_vgic_vcpu_enable(vcpu);

    ret = kvm_vgic_setup_default_irq_routing(kvm);
    if (ret)
        goto out;

    vgic_debug_init(kvm);

    /*
     * If userspace didn't set the GIC implementation revision,
     * default to the latest and greatest. You know want it.
     */
    if (!dist->implementation_rev)
        dist->implementation_rev = KVM_VGIC_IMP_REV_LATEST;
    dist->initialized = true;

out:
    return ret;
}

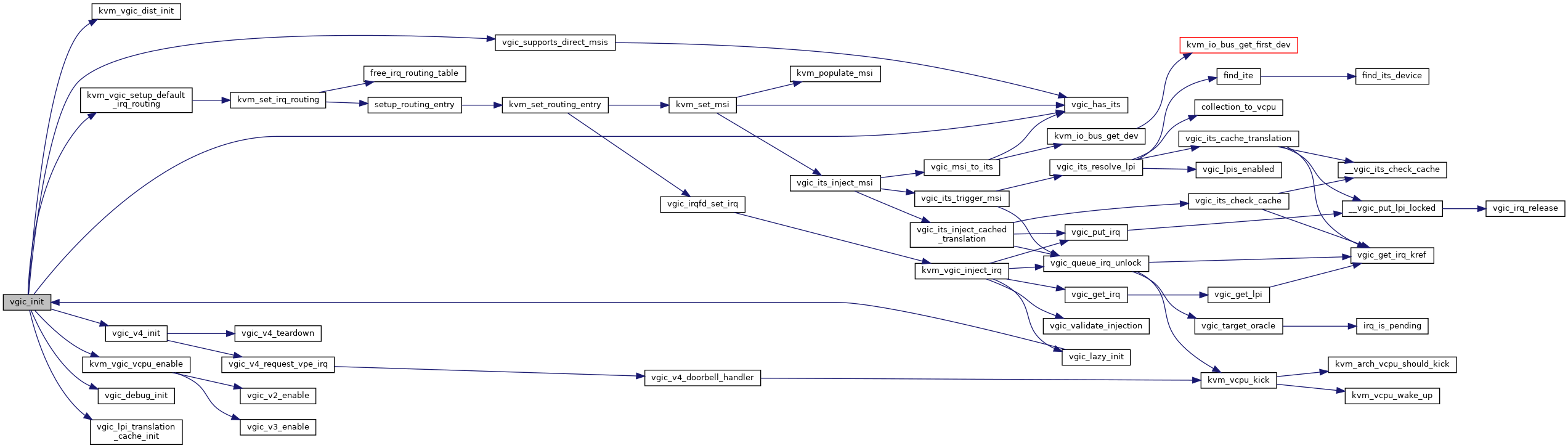

Here is the call graph for this function:

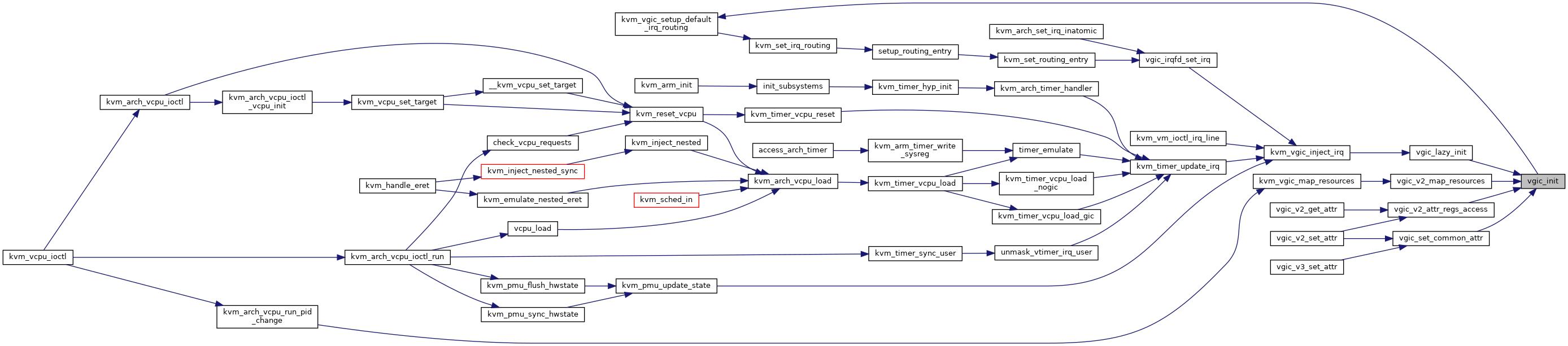

Here is the caller graph for this function:

vgic_lazy_init()

int vgic_lazy_init

(

struct kvm *

kvm

)

vgic_lazy_init: Lazy init is only allowed if the GIC exposed to the guest is a GICv2. A GICv3 must be explicitly initialized by userspace using the KVM_DEV_ARM_VGIC_GRP_CTRL KVM_DEVICE group. @kvm: kvm struct pointer

Definition at line 423 of file vgic-init.c.

{
    int ret = 0;

    if (unlikely(!vgic_initialized(kvm))) {
        /*
         * We only provide the automatic initialization of the VGIC
         * for the legacy case of a GICv2. Any other type must
         * be explicitly initialized once setup with the respective
         * KVM device call.
         */
        if (kvm->arch.vgic.vgic_model != KVM_DEV_TYPE_ARM_VGIC_V2)
            return -EBUSY;

        mutex_lock(&kvm->arch.config_lock);
        ret = vgic_init(kvm);
        mutex_unlock(&kvm->arch.config_lock);
    }

    return ret;
}

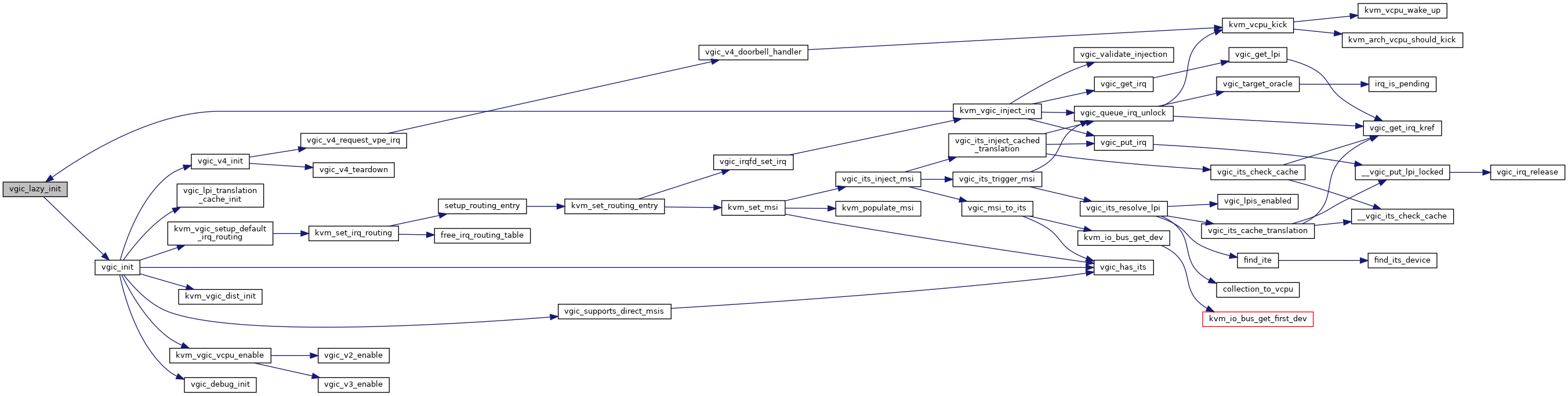

Here is the call graph for this function:

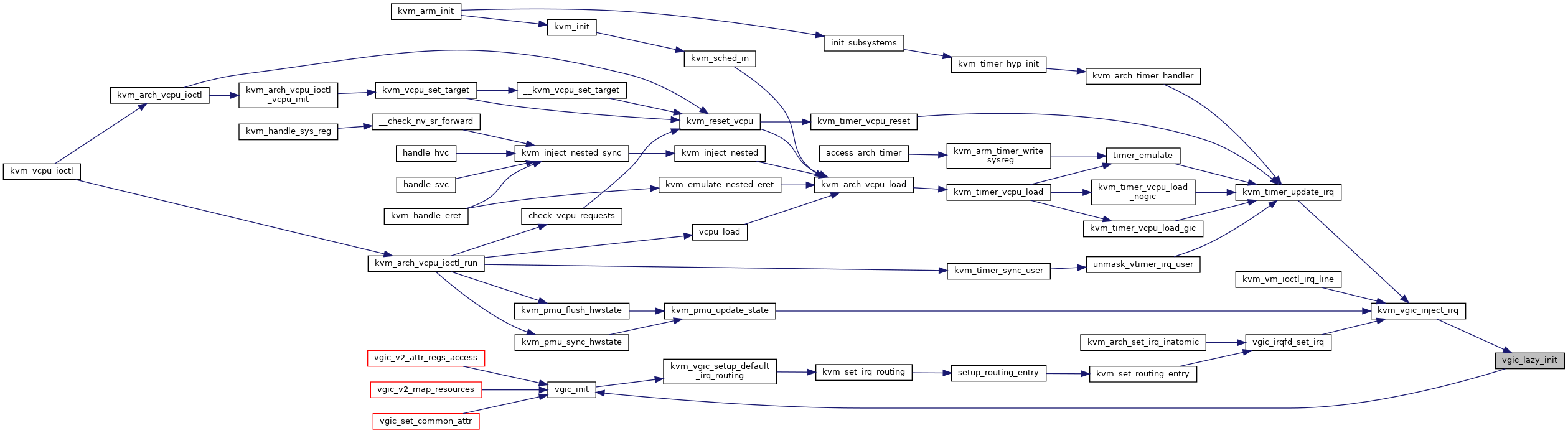

Here is the caller graph for this function:

vgic_maintenance_handler()

static irqreturn_t vgic_maintenance_handler ( int  irq, void *  data  )

static

Definition at line 518 of file vgic-init.c.

{
    /*
     * We cannot rely on the vgic maintenance interrupt to be
     * delivered synchronously. This means we can only use it to
     * exit the VM, and we perform the handling of EOIed
     * interrupts on the exit path (see vgic_fold_lr_state).
     */
    return IRQ_HANDLED;
}

Here is the caller graph for this function:

vgic_set_kvm_info()

void __init vgic_set_kvm_info

(

const struct gic_kvm_info *

info

)

Definition at line 531 of file vgic-init.c.

{
    BUG_ON(gic_kvm_info != NULL);
    gic_kvm_info = kmalloc(sizeof(*info), GFP_KERNEL);
    if (gic_kvm_info)
        *gic_kvm_info = *info;
}

Variable Documentation

gic_kvm_info

struct gic_kvm_info* gic_kvm_info

static

Definition at line 529 of file vgic-init.c.
