vgic-v4.c File Reference

#include <linux/interrupt.h>
#include <linux/irq.h>
#include <linux/irqdomain.h>
#include <linux/kvm_host.h>
#include <linux/irqchip/arm-gic-v3.h>
#include "vgic.h"

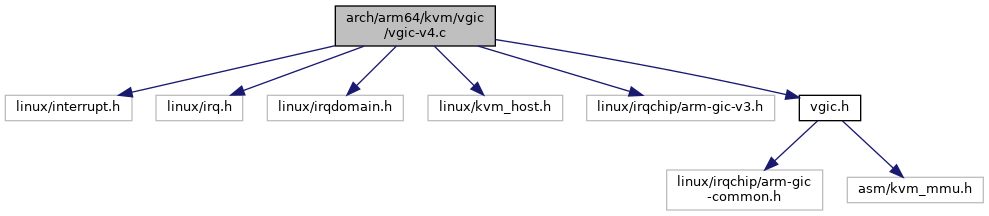

Include dependency graph for vgic-v4.c:

Go to the source code of this file.

Macros
#define	DB_IRQ_FLAGS   (IRQ_NOAUTOEN | IRQ_DISABLE_UNLAZY | IRQ_NO_BALANCING)

Functions
static irqreturn_t	vgic_v4_doorbell_handler (int irq, void *info)
static void	vgic_v4_sync_sgi_config (struct its_vpe *vpe, struct vgic_irq *irq)
static void	vgic_v4_enable_vsgis (struct kvm_vcpu *vcpu)
static void	vgic_v4_disable_vsgis (struct kvm_vcpu *vcpu)
void	vgic_v4_configure_vsgis (struct kvm *kvm)
void	vgic_v4_get_vlpi_state (struct vgic_irq *irq, bool *val)
int	vgic_v4_request_vpe_irq (struct kvm_vcpu *vcpu, int irq)
int	vgic_v4_init (struct kvm *kvm)
void	vgic_v4_teardown (struct kvm *kvm)
int	vgic_v4_put (struct kvm_vcpu *vcpu)
int	vgic_v4_load (struct kvm_vcpu *vcpu)
void	vgic_v4_commit (struct kvm_vcpu *vcpu)
static struct vgic_its *	vgic_get_its (struct kvm *kvm, struct kvm_kernel_irq_routing_entry *irq_entry)
int	kvm_vgic_v4_set_forwarding (struct kvm *kvm, int virq, struct kvm_kernel_irq_routing_entry *irq_entry)
int	kvm_vgic_v4_unset_forwarding (struct kvm *kvm, int virq, struct kvm_kernel_irq_routing_entry *irq_entry)

Macro Definition Documentation

DB_IRQ_FLAGS

#define DB_IRQ_FLAGS   (IRQ_NOAUTOEN | IRQ_DISABLE_UNLAZY | IRQ_NO_BALANCING)

Definition at line 82 of file vgic-v4.c.

Function Documentation

kvm_vgic_v4_set_forwarding()

int kvm_vgic_v4_set_forwarding	(	struct kvm *	kvm,
		int	virq,
		struct kvm_kernel_irq_routing_entry *	irq_entry
	)

Definition at line 411 of file vgic-v4.c.

{
    struct vgic_its *its;
    struct vgic_irq *irq;
    struct its_vlpi_map map;
    unsigned long flags;
    int ret;

    if (!vgic_supports_direct_msis(kvm))
        return 0;

    /*
     * Get the ITS, and escape early on error (not a valid
     * doorbell for any of our vITSs).
     */
    its = vgic_get_its(kvm, irq_entry);
    if (IS_ERR(its))
        return 0;

    mutex_lock(&its->its_lock);

    /* Perform the actual DevID/EventID -> LPI translation. */
    ret = vgic_its_resolve_lpi(kvm, its, irq_entry->msi.devid,
                   irq_entry->msi.data, &irq);
    if (ret)
        goto out;

    /* Silently exit if the vLPI is already mapped */
    if (irq->hw)
        goto out;

    /*
     * Emit the mapping request. If it fails, the ITS probably
     * isn't v4 compatible, so let's silently bail out. Holding
     * the ITS lock should ensure that nothing can modify the
     * target vcpu.
     */
    map = (struct its_vlpi_map) {
        .vm     = &kvm->arch.vgic.its_vm,
        .vpe        = &irq->target_vcpu->arch.vgic_cpu.vgic_v3.its_vpe,
        .vintid     = irq->intid,
        .properties = ((irq->priority & 0xfc) |
                   (irq->enabled ? LPI_PROP_ENABLED : 0) |
                   LPI_PROP_GROUP1),
        .db_enabled = true,
    };

    ret = its_map_vlpi(virq, &map);
    if (ret)
        goto out;

    irq->hw     = true;
    irq->host_irq   = virq;
    atomic_inc(&map.vpe->vlpi_count);

    /* Transfer pending state */
    raw_spin_lock_irqsave(&irq->irq_lock, flags);
    if (irq->pending_latch) {
        ret = irq_set_irqchip_state(irq->host_irq,
                        IRQCHIP_STATE_PENDING,
                        irq->pending_latch);
        WARN_RATELIMIT(ret, "IRQ %d", irq->host_irq);

        /*
         * Clear pending_latch and communicate this state
         * change via vgic_queue_irq_unlock.
         */
        irq->pending_latch = false;
        vgic_queue_irq_unlock(kvm, irq, flags);
    } else {
        raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
    }

out:
    mutex_unlock(&its->its_lock);
    return ret;
}

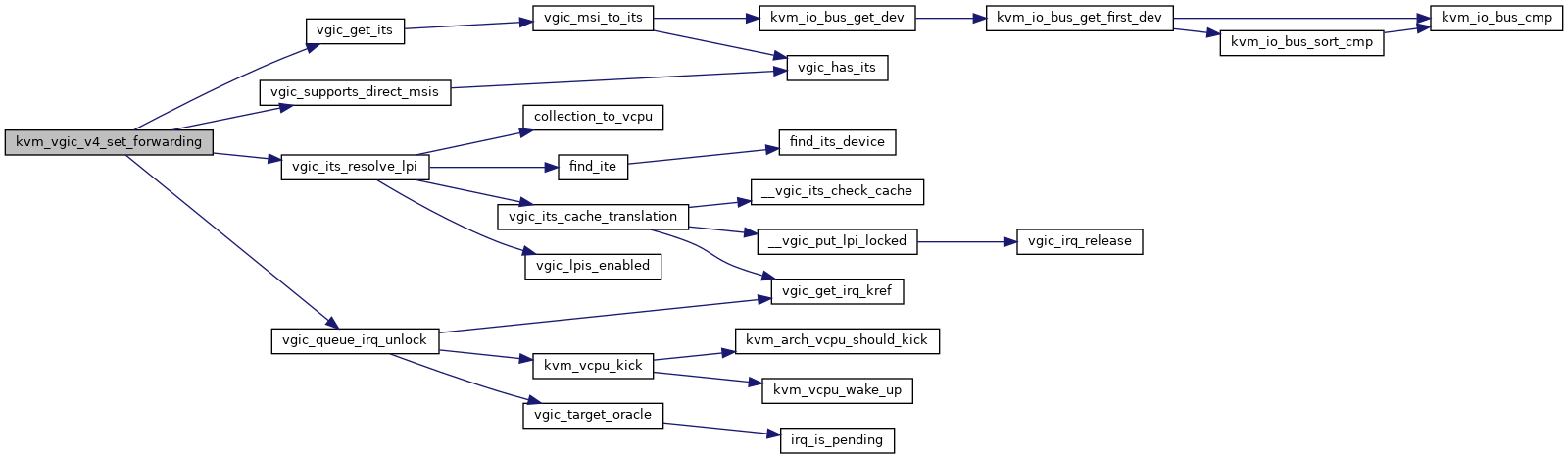

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_vgic_v4_unset_forwarding()

int kvm_vgic_v4_unset_forwarding	(	struct kvm *	kvm,
		int	virq,
		struct kvm_kernel_irq_routing_entry *	irq_entry
	)

Definition at line 490 of file vgic-v4.c.

{
    struct vgic_its *its;
    struct vgic_irq *irq;
    int ret;

    if (!vgic_supports_direct_msis(kvm))
        return 0;

    /*
     * Get the ITS, and escape early on error (not a valid
     * doorbell for any of our vITSs).
     */
    its = vgic_get_its(kvm, irq_entry);
    if (IS_ERR(its))
        return 0;

    mutex_lock(&its->its_lock);

    ret = vgic_its_resolve_lpi(kvm, its, irq_entry->msi.devid,
                   irq_entry->msi.data, &irq);
    if (ret)
        goto out;

    WARN_ON(!(irq->hw && irq->host_irq == virq));
    if (irq->hw) {
        atomic_dec(&irq->target_vcpu->arch.vgic_cpu.vgic_v3.its_vpe.vlpi_count);
        irq->hw = false;
        ret = its_unmap_vlpi(virq);
    }

out:
    mutex_unlock(&its->its_lock);
    return ret;
}

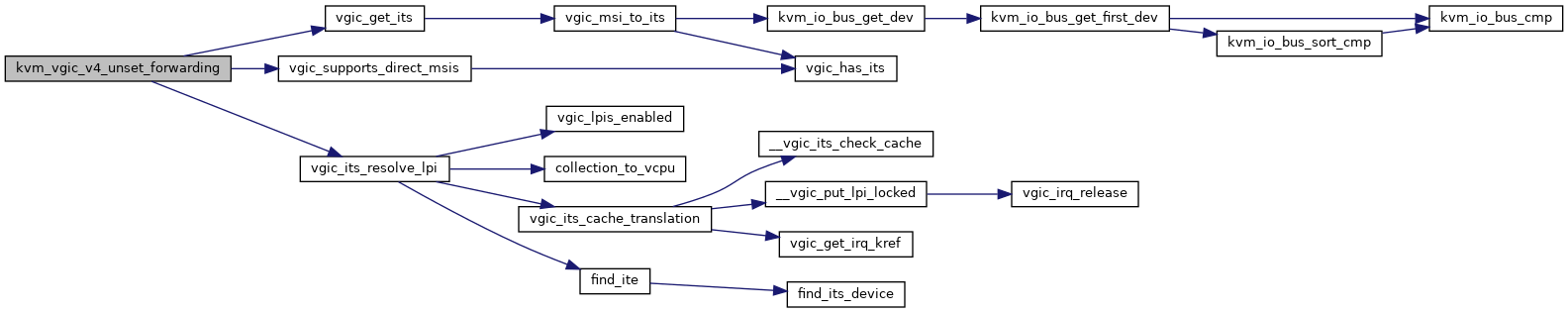

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_get_its()

static struct vgic_its* vgic_get_its ( struct kvm *  kvm, struct kvm_kernel_irq_routing_entry *  irq_entry  )

static

Definition at line 397 of file vgic-v4.c.

{
    struct kvm_msi msi  = (struct kvm_msi) {
        .address_lo = irq_entry->msi.address_lo,
        .address_hi = irq_entry->msi.address_hi,
        .data       = irq_entry->msi.data,
        .flags      = irq_entry->msi.flags,
        .devid      = irq_entry->msi.devid,
    };

    return vgic_msi_to_its(kvm, &msi);
}

Here is the call graph for this function:

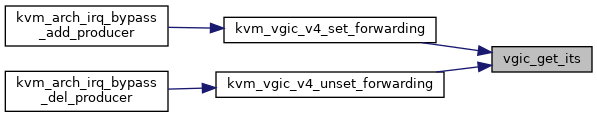

Here is the caller graph for this function:

vgic_v4_commit()

void vgic_v4_commit

(

struct kvm_vcpu *

vcpu

)

Definition at line 385 of file vgic-v4.c.

{
    struct its_vpe *vpe = &vcpu->arch.vgic_cpu.vgic_v3.its_vpe;

    /*
     * No need to wait for the vPE to be ready across a shallow guest
     * exit, as only a vcpu_put will invalidate it.
     */
    if (!vpe->ready)
        its_commit_vpe(vpe);
}

Here is the caller graph for this function:

vgic_v4_configure_vsgis()

void vgic_v4_configure_vsgis

(

struct kvm *

kvm

)

Definition at line 187 of file vgic-v4.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    struct kvm_vcpu *vcpu;
    unsigned long i;

    lockdep_assert_held(&kvm->arch.config_lock);

    kvm_arm_halt_guest(kvm);

    kvm_for_each_vcpu(i, vcpu, kvm) {
        if (dist->nassgireq)
            vgic_v4_enable_vsgis(vcpu);
        else
            vgic_v4_disable_vsgis(vcpu);
    }

    kvm_arm_resume_guest(kvm);
}

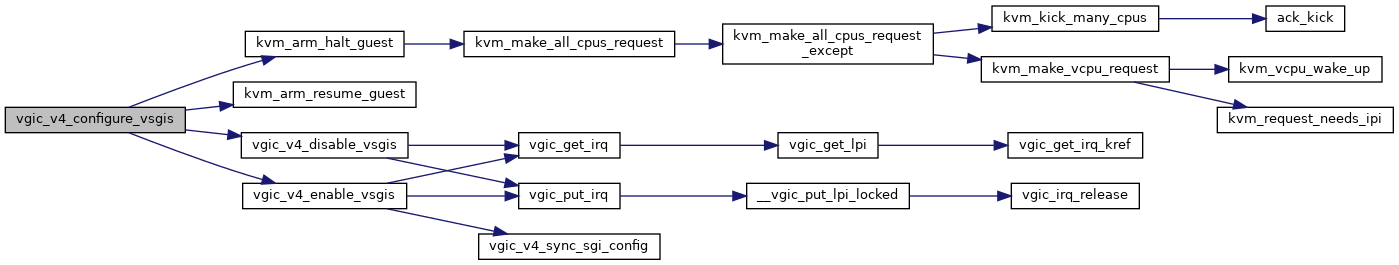

Here is the call graph for this function:

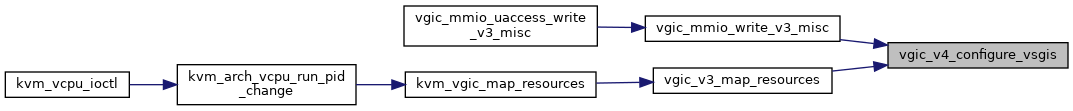

Here is the caller graph for this function:

vgic_v4_disable_vsgis()

static void vgic_v4_disable_vsgis ( struct kvm_vcpu *  vcpu )

static

Definition at line 158 of file vgic-v4.c.

{
    int i;

    for (i = 0; i < VGIC_NR_SGIS; i++) {
        struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, vcpu, i);
        struct irq_desc *desc;
        unsigned long flags;
        int ret;

        raw_spin_lock_irqsave(&irq->irq_lock, flags);

        if (!irq->hw)
            goto unlock;

        irq->hw = false;
        ret = irq_get_irqchip_state(irq->host_irq,
                        IRQCHIP_STATE_PENDING,
                        &irq->pending_latch);
        WARN_ON(ret);

        desc = irq_to_desc(irq->host_irq);
        irq_domain_deactivate_irq(irq_desc_get_irq_data(desc));
    unlock:
        raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
        vgic_put_irq(vcpu->kvm, irq);
    }
}

Here is the call graph for this function:

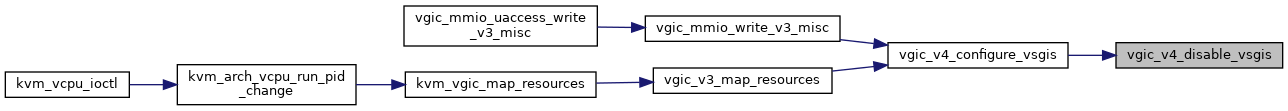

Here is the caller graph for this function:

vgic_v4_doorbell_handler()

static irqreturn_t vgic_v4_doorbell_handler ( int  irq, void *  info  )

static

Definition at line 84 of file vgic-v4.c.

{
    struct kvm_vcpu *vcpu = info;

    /* We got the message, no need to fire again */
    if (!kvm_vgic_global_state.has_gicv4_1 &&
        !irqd_irq_disabled(&irq_to_desc(irq)->irq_data))
        disable_irq_nosync(irq);

    /*
     * The v4.1 doorbell can fire concurrently with the vPE being
     * made non-resident. Ensure we only update pending_last
     * *after* the non-residency sequence has completed.
     */
    raw_spin_lock(&vcpu->arch.vgic_cpu.vgic_v3.its_vpe.vpe_lock);
    vcpu->arch.vgic_cpu.vgic_v3.its_vpe.pending_last = true;
    raw_spin_unlock(&vcpu->arch.vgic_cpu.vgic_v3.its_vpe.vpe_lock);

    kvm_make_request(KVM_REQ_IRQ_PENDING, vcpu);
    kvm_vcpu_kick(vcpu);

    return IRQ_HANDLED;
}

Here is the call graph for this function:

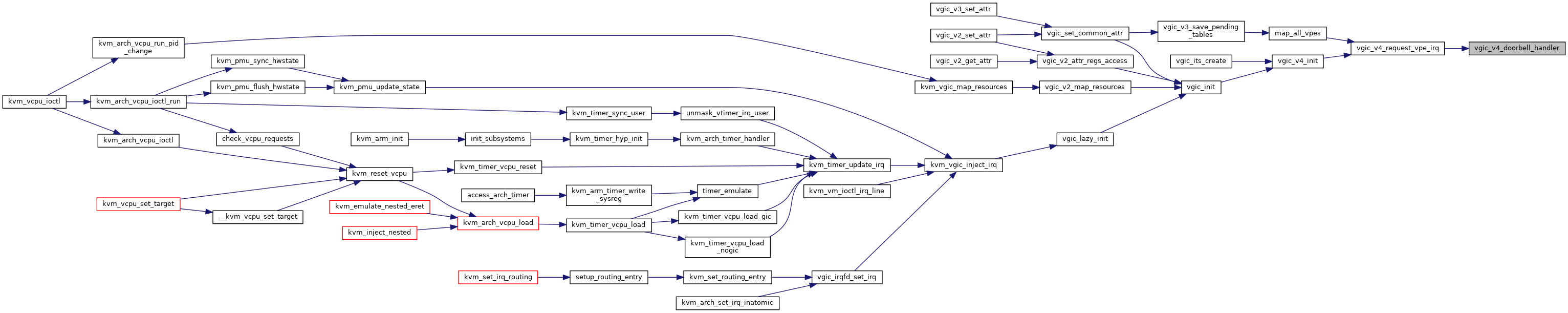

Here is the caller graph for this function:

vgic_v4_enable_vsgis()

static void vgic_v4_enable_vsgis ( struct kvm_vcpu *  vcpu )

static

Definition at line 115 of file vgic-v4.c.

{
    struct its_vpe *vpe = &vcpu->arch.vgic_cpu.vgic_v3.its_vpe;
    int i;

    /*
     * With GICv4.1, every virtual SGI can be directly injected. So
     * let's pretend that they are HW interrupts, tied to a host
     * IRQ. The SGI code will do its magic.
     */
    for (i = 0; i < VGIC_NR_SGIS; i++) {
        struct vgic_irq *irq = vgic_get_irq(vcpu->kvm, vcpu, i);
        struct irq_desc *desc;
        unsigned long flags;
        int ret;

        raw_spin_lock_irqsave(&irq->irq_lock, flags);

        if (irq->hw)
            goto unlock;

        irq->hw = true;
        irq->host_irq = irq_find_mapping(vpe->sgi_domain, i);

        /* Transfer the full irq state to the vPE */
        vgic_v4_sync_sgi_config(vpe, irq);
        desc = irq_to_desc(irq->host_irq);
        ret = irq_domain_activate_irq(irq_desc_get_irq_data(desc),
                          false);
        if (!WARN_ON(ret)) {
            /* Transfer pending state */
            ret = irq_set_irqchip_state(irq->host_irq,
                            IRQCHIP_STATE_PENDING,
                            irq->pending_latch);
            WARN_ON(ret);
            irq->pending_latch = false;
        }
    unlock:
        raw_spin_unlock_irqrestore(&irq->irq_lock, flags);
        vgic_put_irq(vcpu->kvm, irq);
    }
}

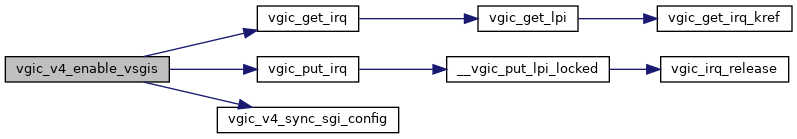

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v4_get_vlpi_state()

void vgic_v4_get_vlpi_state	(	struct vgic_irq *	irq,
		bool *	val
	)

Definition at line 213 of file vgic-v4.c.

{
    struct its_vpe *vpe = &irq->target_vcpu->arch.vgic_cpu.vgic_v3.its_vpe;
    int mask = BIT(irq->intid % BITS_PER_BYTE);
    void *va;
    u8 *ptr;

    va = page_address(vpe->vpt_page);
    ptr = va + irq->intid / BITS_PER_BYTE;

    *val = !!(*ptr & mask);
}

Here is the caller graph for this function:

vgic_v4_init()

int vgic_v4_init

(

struct kvm *

kvm

)

vgic_v4_init - Initialize the GICv4 data structures @kvm: Pointer to the VM being initialized

We may be called each time a vITS is created, or when the vgic is initialized. In both cases, the number of vcpus should now be fixed.

Definition at line 239 of file vgic-v4.c.

{
    struct vgic_dist *dist = &kvm->arch.vgic;
    struct kvm_vcpu *vcpu;
    int nr_vcpus, ret;
    unsigned long i;

    lockdep_assert_held(&kvm->arch.config_lock);

    if (!kvm_vgic_global_state.has_gicv4)
        return 0; /* Nothing to see here... move along. */

    if (dist->its_vm.vpes)
        return 0;

    nr_vcpus = atomic_read(&kvm->online_vcpus);

    dist->its_vm.vpes = kcalloc(nr_vcpus, sizeof(*dist->its_vm.vpes),
                    GFP_KERNEL_ACCOUNT);
    if (!dist->its_vm.vpes)
        return -ENOMEM;

    dist->its_vm.nr_vpes = nr_vcpus;

    kvm_for_each_vcpu(i, vcpu, kvm)
        dist->its_vm.vpes[i] = &vcpu->arch.vgic_cpu.vgic_v3.its_vpe;

    ret = its_alloc_vcpu_irqs(&dist->its_vm);
    if (ret < 0) {
        kvm_err("VPE IRQ allocation failure\n");
        kfree(dist->its_vm.vpes);
        dist->its_vm.nr_vpes = 0;
        dist->its_vm.vpes = NULL;
        return ret;
    }

    kvm_for_each_vcpu(i, vcpu, kvm) {
        int irq = dist->its_vm.vpes[i]->irq;
        unsigned long irq_flags = DB_IRQ_FLAGS;

        /*
         * Don't automatically enable the doorbell, as we're
         * flipping it back and forth when the vcpu gets
         * blocked. Also disable the lazy disabling, as the
         * doorbell could kick us out of the guest too
         * early...
         *
         * On GICv4.1, the doorbell is managed in HW and must
         * be left enabled.
         */
        if (kvm_vgic_global_state.has_gicv4_1)
            irq_flags &= ~IRQ_NOAUTOEN;
        irq_set_status_flags(irq, irq_flags);

        ret = vgic_v4_request_vpe_irq(vcpu, irq);
        if (ret) {
            kvm_err("failed to allocate vcpu IRQ%d\n", irq);
            /*
             * Trick: adjust the number of vpes so we know
             * how many to nuke on teardown...
             */
            dist->its_vm.nr_vpes = i;
            break;
        }
    }

    if (ret)
        vgic_v4_teardown(kvm);

    return ret;
}

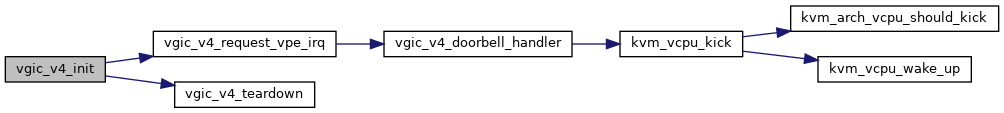

Here is the call graph for this function:

Here is the caller graph for this function:

vgic_v4_load()

int vgic_v4_load

(

struct kvm_vcpu *

vcpu

)

Definition at line 349 of file vgic-v4.c.

{
    struct its_vpe *vpe = &vcpu->arch.vgic_cpu.vgic_v3.its_vpe;
    int err;

    if (!vgic_supports_direct_msis(vcpu->kvm) || vpe->resident)
        return 0;

    if (vcpu_get_flag(vcpu, IN_WFI))
        return 0;

    /*
     * Before making the VPE resident, make sure the redistributor
     * corresponding to our current CPU expects us here. See the
     * doc in drivers/irqchip/irq-gic-v4.c to understand how this
     * turns into a VMOVP command at the ITS level.
     */
    err = irq_set_affinity(vpe->irq, cpumask_of(smp_processor_id()));
    if (err)
        return err;

    err = its_make_vpe_resident(vpe, false, vcpu->kvm->arch.vgic.enabled);
    if (err)
        return err;

    /*
     * Now that the VPE is resident, let's get rid of a potential
     * doorbell interrupt that would still be pending. This is a
     * GICv4.0 only "feature"...
     */
    if (!kvm_vgic_global_state.has_gicv4_1)
        err = irq_set_irqchip_state(vpe->irq, IRQCHIP_STATE_PENDING, false);

    return err;
}

Here is the call graph for this function:

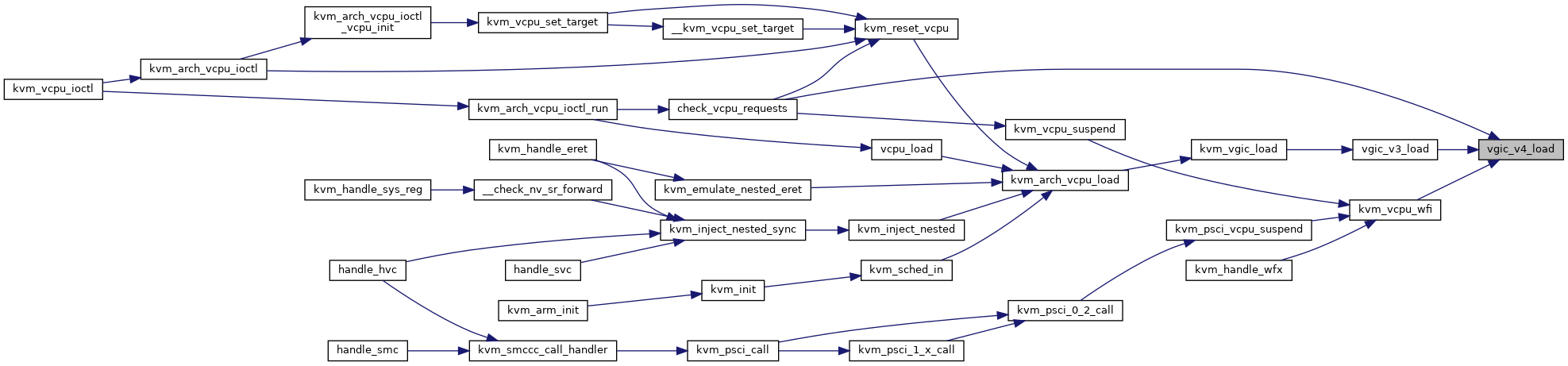

Here is the caller graph for this function:

vgic_v4_put()

int vgic_v4_put

(

struct kvm_vcpu *

vcpu

)

Definition at line 339 of file vgic-v4.c.

{
    struct its_vpe *vpe = &vcpu->arch.vgic_cpu.vgic_v3.its_vpe;

    if (!vgic_supports_direct_msis(vcpu->kvm) || !vpe->resident)
        return 0;

    return its_make_vpe_non_resident(vpe, !!vcpu_get_flag(vcpu, IN_WFI));
}

Here is the call graph for this function:

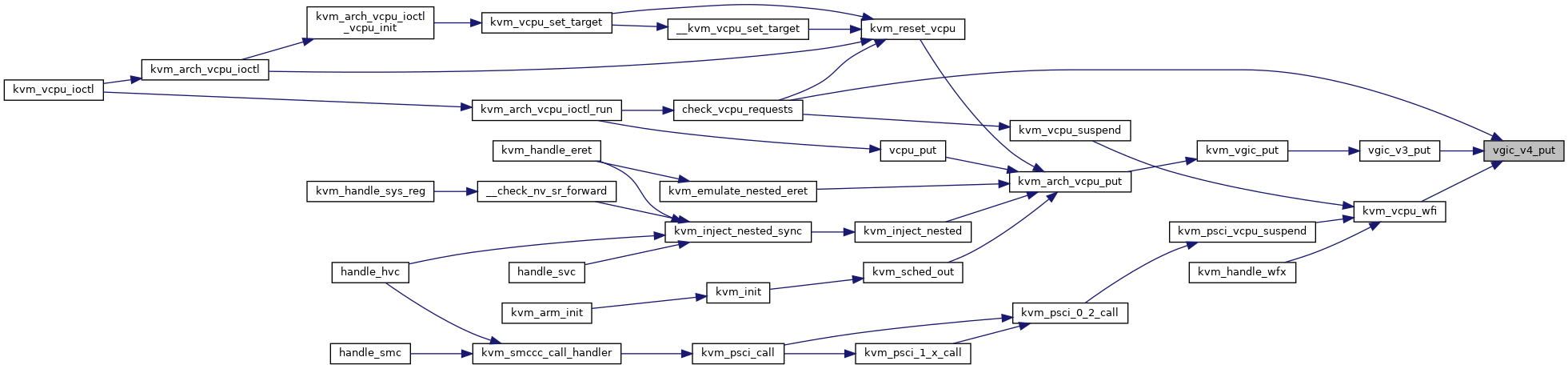

Here is the caller graph for this function:

vgic_v4_request_vpe_irq()

int vgic_v4_request_vpe_irq	(	struct kvm_vcpu *	vcpu,
		int	irq
	)

Definition at line 226 of file vgic-v4.c.

{
    return request_irq(irq, vgic_v4_doorbell_handler, 0, "vcpu", vcpu);
}

Here is the call graph for this function:

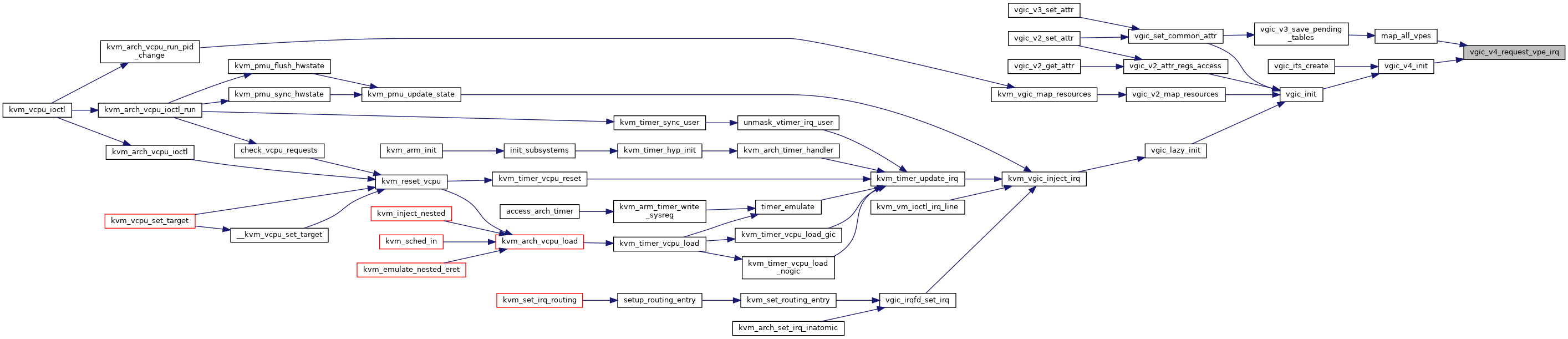

Here is the caller graph for this function:

vgic_v4_sync_sgi_config()

static void vgic_v4_sync_sgi_config ( struct its_vpe *  vpe, struct vgic_irq *  irq  )

static

Definition at line 108 of file vgic-v4.c.

{
    vpe->sgi_config[irq->intid].enabled = irq->enabled;
    vpe->sgi_config[irq->intid].group   = irq->group;
    vpe->sgi_config[irq->intid].priority    = irq->priority;
}

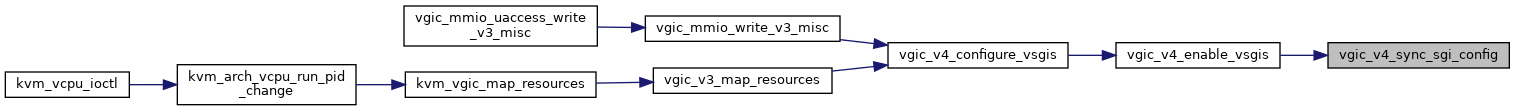

Here is the caller graph for this function:

vgic_v4_teardown()

void vgic_v4_teardown

(

struct kvm *

kvm

)

vgic_v4_teardown - Free the GICv4 data structures @kvm: Pointer to the VM being destroyed

Definition at line 315 of file vgic-v4.c.

{
    struct its_vm *its_vm = &kvm->arch.vgic.its_vm;
    int i;

    lockdep_assert_held(&kvm->arch.config_lock);

    if (!its_vm->vpes)
        return;

    for (i = 0; i < its_vm->nr_vpes; i++) {
        struct kvm_vcpu *vcpu = kvm_get_vcpu(kvm, i);
        int irq = its_vm->vpes[i]->irq;

        irq_clear_status_flags(irq, DB_IRQ_FLAGS);
        free_irq(irq, vcpu);
    }

    its_free_vcpu_irqs(its_vm);
    kfree(its_vm->vpes);
    its_vm->nr_vpes = 0;
    its_vm->vpes = NULL;
}

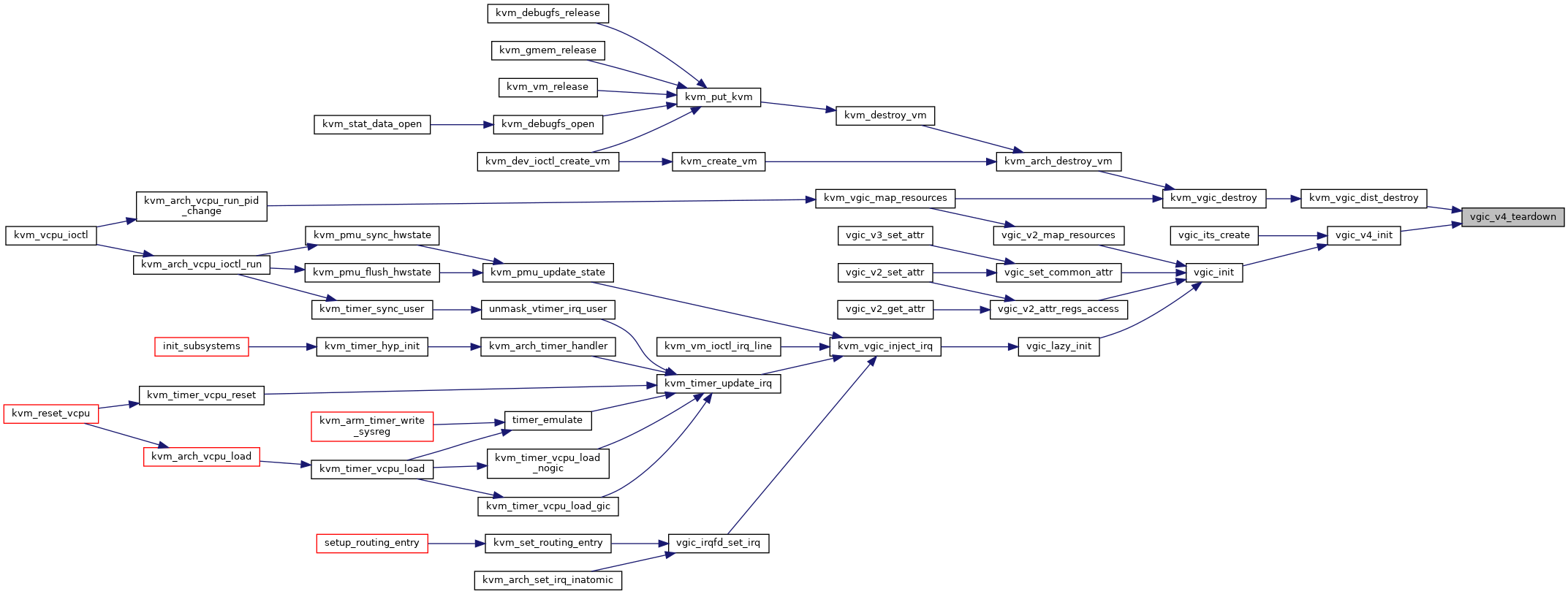

Here is the caller graph for this function:
