i8254.c File Reference

#include <linux/kvm_host.h>
#include <linux/slab.h>
#include "ioapic.h"
#include "irq.h"
#include "i8254.h"
#include "x86.h"

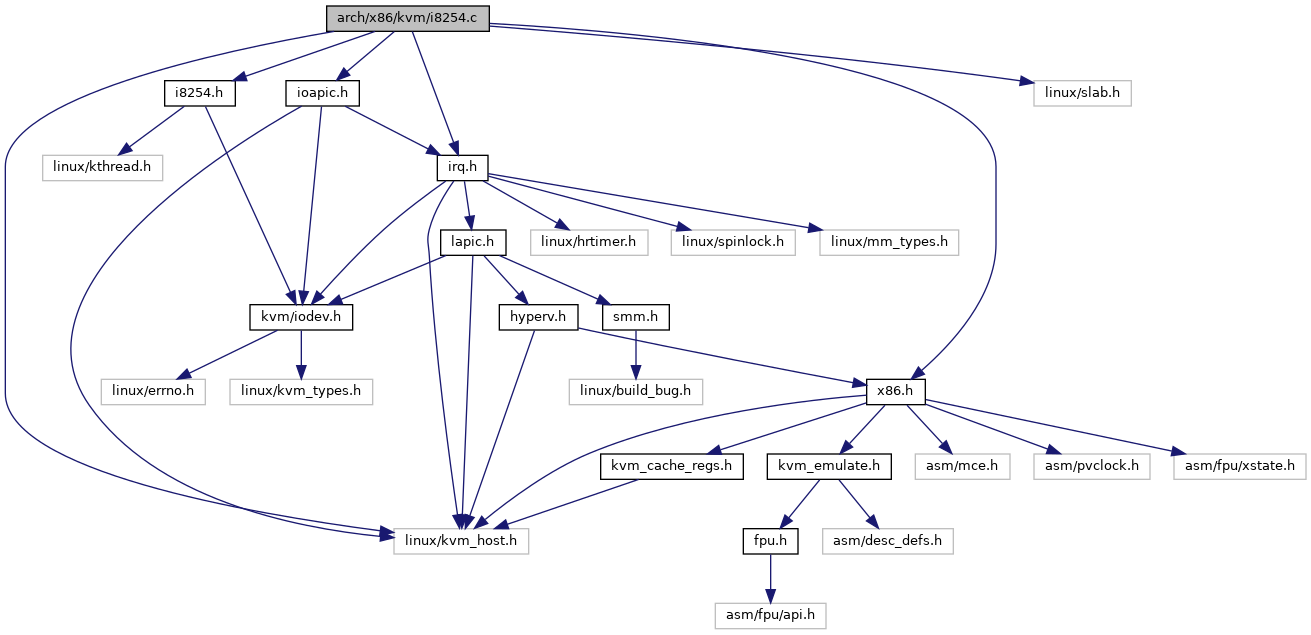

Include dependency graph for i8254.c:

Go to the source code of this file.

Macros
#define	pr_fmt(fmt)   KBUILD_MODNAME ": " fmt
#define	mod_64(x, y)   ((x) - (y) * div64_u64(x, y))
#define	RW_STATE_LSB   1
#define	RW_STATE_MSB   2
#define	RW_STATE_WORD0   3
#define	RW_STATE_WORD1   4

Functions
static void	pit_set_gate (struct kvm_pit *pit, int channel, u32 val)
static int	pit_get_gate (struct kvm_pit *pit, int channel)
static s64	__kpit_elapsed (struct kvm_pit *pit)
static s64	kpit_elapsed (struct kvm_pit *pit, struct kvm_kpit_channel_state *c, int channel)
static int	pit_get_count (struct kvm_pit *pit, int channel)
static int	pit_get_out (struct kvm_pit *pit, int channel)
static void	pit_latch_count (struct kvm_pit *pit, int channel)
static void	pit_latch_status (struct kvm_pit *pit, int channel)
static struct kvm_pit *	pit_state_to_pit (struct kvm_kpit_state *ps)
static void	kvm_pit_ack_irq (struct kvm_irq_ack_notifier *kian)
void	__kvm_migrate_pit_timer (struct kvm_vcpu *vcpu)
static void	destroy_pit_timer (struct kvm_pit *pit)
static void	pit_do_work (struct kthread_work *work)
static enum hrtimer_restart	pit_timer_fn (struct hrtimer *data)
static void	kvm_pit_reset_reinject (struct kvm_pit *pit)
void	kvm_pit_set_reinject (struct kvm_pit *pit, bool reinject)
static void	create_pit_timer (struct kvm_pit *pit, u32 val, int is_period)
static void	pit_load_count (struct kvm_pit *pit, int channel, u32 val)
void	kvm_pit_load_count (struct kvm_pit *pit, int channel, u32 val, int hpet_legacy_start)
static struct kvm_pit *	dev_to_pit (struct kvm_io_device *dev)
static struct kvm_pit *	speaker_to_pit (struct kvm_io_device *dev)
static int	pit_in_range (gpa_t addr)
static int	pit_ioport_write (struct kvm_vcpu *vcpu, struct kvm_io_device *this, gpa_t addr, int len, const void *data)
static int	pit_ioport_read (struct kvm_vcpu *vcpu, struct kvm_io_device *this, gpa_t addr, int len, void *data)
static int	speaker_ioport_write (struct kvm_vcpu *vcpu, struct kvm_io_device *this, gpa_t addr, int len, const void *data)
static int	speaker_ioport_read (struct kvm_vcpu *vcpu, struct kvm_io_device *this, gpa_t addr, int len, void *data)
static void	kvm_pit_reset (struct kvm_pit *pit)
static void	pit_mask_notifer (struct kvm_irq_mask_notifier *kimn, bool mask)
struct kvm_pit *	kvm_create_pit (struct kvm *kvm, u32 flags)
void	kvm_free_pit (struct kvm *kvm)

Variables
static const struct kvm_io_device_ops	pit_dev_ops
static const struct kvm_io_device_ops	speaker_dev_ops

Macro Definition Documentation

mod_64

#define mod_64	(		x,
			y
	)		((x) - (y) * div64_u64(x, y))

Definition at line 44 of file i8254.c.

pr_fmt

#define pr_fmt

(

fmt

)

KBUILD_MODNAME ": " fmt

Definition at line 33 of file i8254.c.

RW_STATE_LSB

#define RW_STATE_LSB   1

Definition at line 49 of file i8254.c.

RW_STATE_MSB

#define RW_STATE_MSB   2

Definition at line 50 of file i8254.c.

RW_STATE_WORD0

#define RW_STATE_WORD0   3

Definition at line 51 of file i8254.c.

RW_STATE_WORD1

#define RW_STATE_WORD1   4

Definition at line 52 of file i8254.c.

Function Documentation

__kpit_elapsed()

static s64 __kpit_elapsed ( struct kvm_pit *  pit )

static

Definition at line 82 of file i8254.c.

{
    s64 elapsed;
    ktime_t remaining;
    struct kvm_kpit_state *ps = &pit->pit_state;

    if (!ps->period)
        return 0;

    /*
     * The Counter does not stop when it reaches zero. In
     * Modes 0, 1, 4, and 5 the Counter ``wraps around'' to
     * the highest count, either FFFF hex for binary counting
     * or 9999 for BCD counting, and continues counting.
     * Modes 2 and 3 are periodic; the Counter reloads
     * itself with the initial count and continues counting
     * from there.
     */
    remaining = hrtimer_get_remaining(&ps->timer);
    elapsed = ps->period - ktime_to_ns(remaining);

    return elapsed;
}

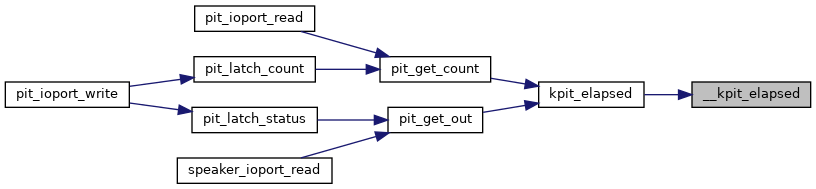

Here is the caller graph for this function:

__kvm_migrate_pit_timer()

void __kvm_migrate_pit_timer

(

struct kvm_vcpu *

vcpu

)

Definition at line 218 of file i8254.c.

{
    struct kvm_pit *pit = vcpu->kvm->arch.vpit;
    struct hrtimer *timer;

    /* Somewhat arbitrarily make vcpu0 the owner of the PIT. */
    if (vcpu->vcpu_id || !pit)
        return;

    timer = &pit->pit_state.timer;
    mutex_lock(&pit->pit_state.lock);
    if (hrtimer_cancel(timer))
        hrtimer_start_expires(timer, HRTIMER_MODE_ABS);
    mutex_unlock(&pit->pit_state.lock);
}

Here is the caller graph for this function:

create_pit_timer()

static void create_pit_timer ( struct kvm_pit *  pit, u32  val, int  is_period  )

static

Definition at line 322 of file i8254.c.

{
    struct kvm_kpit_state *ps = &pit->pit_state;
    struct kvm *kvm = pit->kvm;
    s64 interval;

    if (!ioapic_in_kernel(kvm) ||
        ps->flags & KVM_PIT_FLAGS_HPET_LEGACY)
        return;

    interval = mul_u64_u32_div(val, NSEC_PER_SEC, KVM_PIT_FREQ);

    pr_debug("create pit timer, interval is %llu nsec\n", interval);

    /* TODO The new value only affected after the retriggered */
    hrtimer_cancel(&ps->timer);
    kthread_flush_work(&pit->expired);
    ps->period = interval;
    ps->is_periodic = is_period;

    kvm_pit_reset_reinject(pit);

    /*
     * Do not allow the guest to program periodic timers with small
     * interval, since the hrtimers are not throttled by the host
     * scheduler.
     */
    if (ps->is_periodic) {
        s64 min_period = min_timer_period_us * 1000LL;

        if (ps->period < min_period) {
            pr_info_ratelimited(
                "requested %lld ns "
                "i8254 timer period limited to %lld ns\n",
                ps->period, min_period);
            ps->period = min_period;
        }
    }

    hrtimer_start(&ps->timer, ktime_add_ns(ktime_get(), interval),
              HRTIMER_MODE_ABS);
}

Here is the call graph for this function:

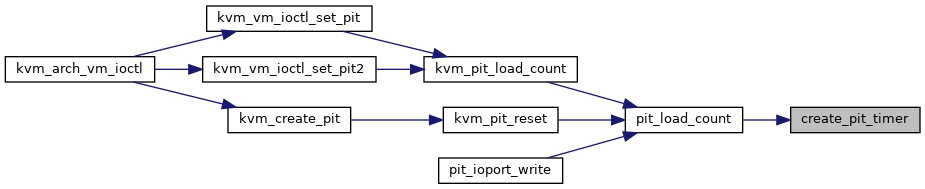

Here is the caller graph for this function:

destroy_pit_timer()

static void destroy_pit_timer ( struct kvm_pit *  pit )

static

Definition at line 234 of file i8254.c.

{
    hrtimer_cancel(&pit->pit_state.timer);
    kthread_flush_work(&pit->expired);
}

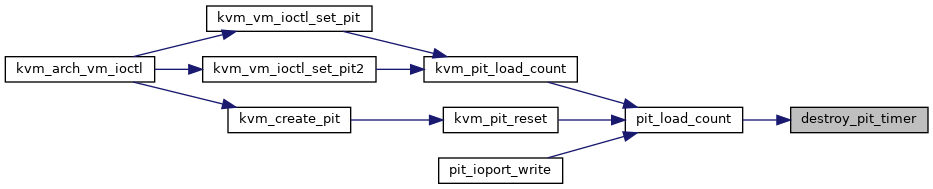

Here is the caller graph for this function:

dev_to_pit()

static struct kvm_pit* dev_to_pit ( struct kvm_io_device *  dev )

inlinestatic

Definition at line 422 of file i8254.c.

{
    return container_of(dev, struct kvm_pit, dev);
}

Here is the caller graph for this function:

kpit_elapsed()

static s64 kpit_elapsed ( struct kvm_pit *  pit, struct kvm_kpit_channel_state *  c, int  channel  )

static

Definition at line 106 of file i8254.c.

{
    if (channel == 0)
        return __kpit_elapsed(pit);

    return ktime_to_ns(ktime_sub(ktime_get(), c->count_load_time));
}

Here is the call graph for this function:

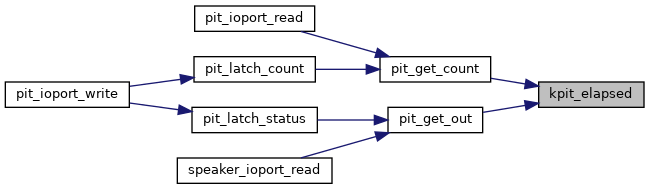

Here is the caller graph for this function:

kvm_create_pit()

struct kvm_pit* kvm_create_pit	(	struct kvm *	kvm,
		u32	flags
	)

Definition at line 662 of file i8254.c.

{
    struct kvm_pit *pit;
    struct kvm_kpit_state *pit_state;
    struct pid *pid;
    pid_t pid_nr;
    int ret;

    pit = kzalloc(sizeof(struct kvm_pit), GFP_KERNEL_ACCOUNT);
    if (!pit)
        return NULL;

    pit->irq_source_id = kvm_request_irq_source_id(kvm);
    if (pit->irq_source_id < 0)
        goto fail_request;

    mutex_init(&pit->pit_state.lock);

    pid = get_pid(task_tgid(current));
    pid_nr = pid_vnr(pid);
    put_pid(pid);

    pit->worker = kthread_create_worker(0, "kvm-pit/%d", pid_nr);
    if (IS_ERR(pit->worker))
        goto fail_kthread;

    kthread_init_work(&pit->expired, pit_do_work);

    pit->kvm = kvm;

    pit_state = &pit->pit_state;
    hrtimer_init(&pit_state->timer, CLOCK_MONOTONIC, HRTIMER_MODE_ABS);
    pit_state->timer.function = pit_timer_fn;

    pit_state->irq_ack_notifier.gsi = 0;
    pit_state->irq_ack_notifier.irq_acked = kvm_pit_ack_irq;
    pit->mask_notifier.func = pit_mask_notifer;

    kvm_pit_reset(pit);

    kvm_pit_set_reinject(pit, true);

    mutex_lock(&kvm->slots_lock);
    kvm_iodevice_init(&pit->dev, &pit_dev_ops);
    ret = kvm_io_bus_register_dev(kvm, KVM_PIO_BUS, KVM_PIT_BASE_ADDRESS,
                      KVM_PIT_MEM_LENGTH, &pit->dev);
    if (ret < 0)
        goto fail_register_pit;

    if (flags & KVM_PIT_SPEAKER_DUMMY) {
        kvm_iodevice_init(&pit->speaker_dev, &speaker_dev_ops);
        ret = kvm_io_bus_register_dev(kvm, KVM_PIO_BUS,
                          KVM_SPEAKER_BASE_ADDRESS, 4,
                          &pit->speaker_dev);
        if (ret < 0)
            goto fail_register_speaker;
    }
    mutex_unlock(&kvm->slots_lock);

    return pit;

fail_register_speaker:
    kvm_io_bus_unregister_dev(kvm, KVM_PIO_BUS, &pit->dev);
fail_register_pit:
    mutex_unlock(&kvm->slots_lock);
    kvm_pit_set_reinject(pit, false);
    kthread_destroy_worker(pit->worker);
fail_kthread:
    kvm_free_irq_source_id(kvm, pit->irq_source_id);
fail_request:
    kfree(pit);
    return NULL;
}

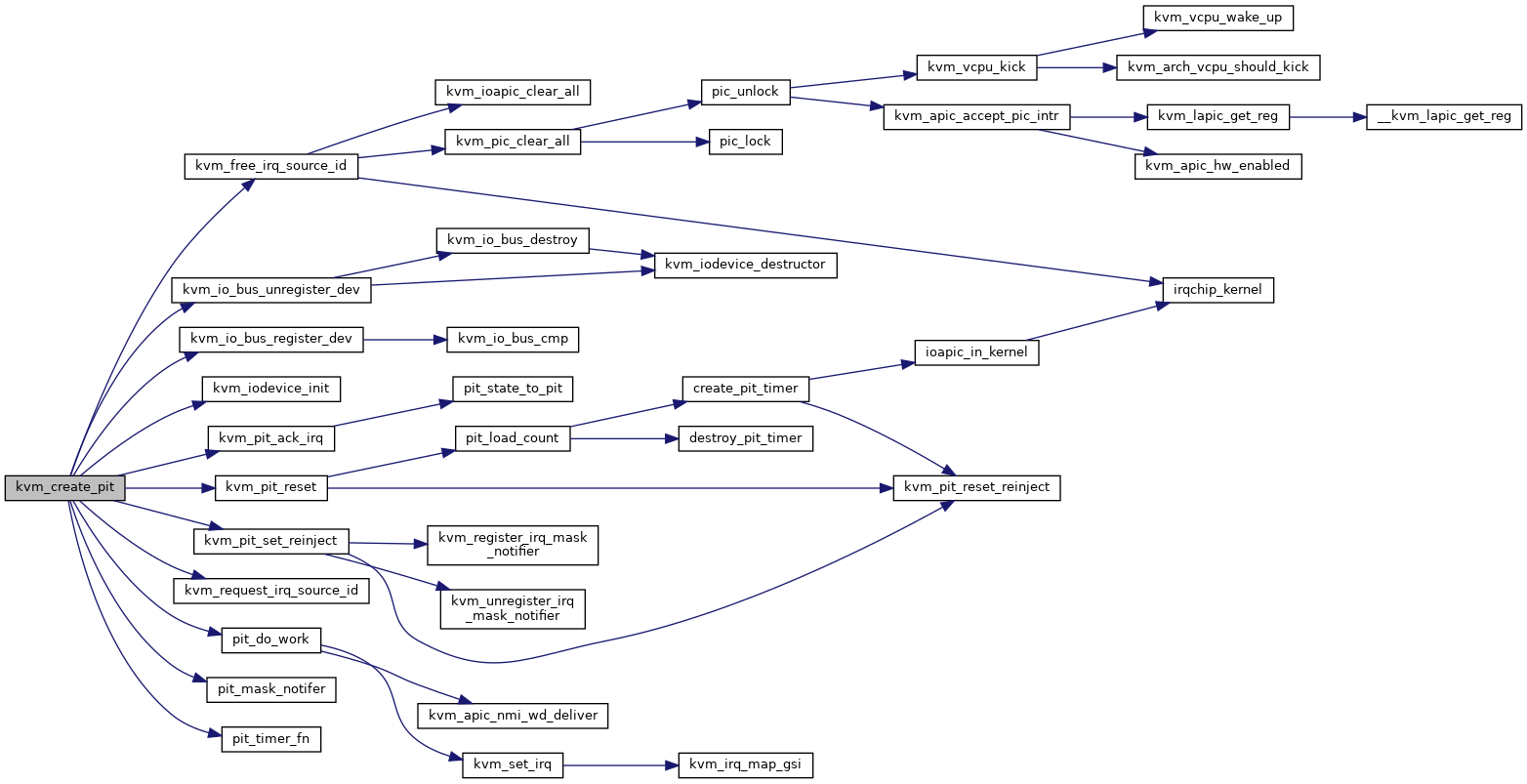

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_free_pit()

void kvm_free_pit

(

struct kvm *

kvm

)

Definition at line 736 of file i8254.c.

{
    struct kvm_pit *pit = kvm->arch.vpit;

    if (pit) {
        mutex_lock(&kvm->slots_lock);
        kvm_io_bus_unregister_dev(kvm, KVM_PIO_BUS, &pit->dev);
        kvm_io_bus_unregister_dev(kvm, KVM_PIO_BUS, &pit->speaker_dev);
        mutex_unlock(&kvm->slots_lock);
        kvm_pit_set_reinject(pit, false);
        hrtimer_cancel(&pit->pit_state.timer);
        kthread_destroy_worker(pit->worker);
        kvm_free_irq_source_id(kvm, pit->irq_source_id);
        kfree(pit);
    }
}

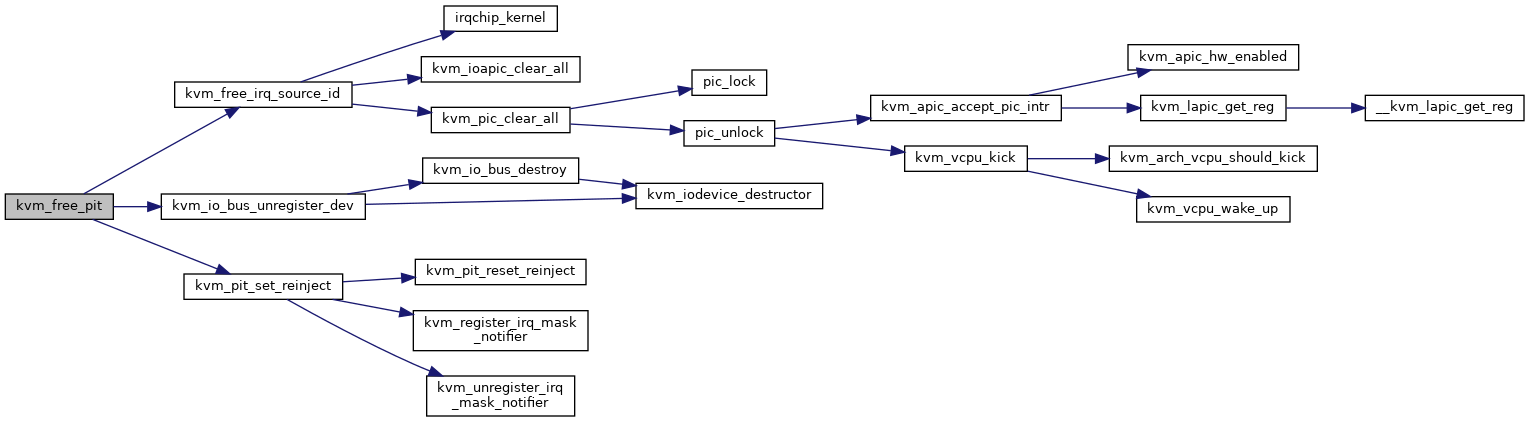

Here is the call graph for this function:

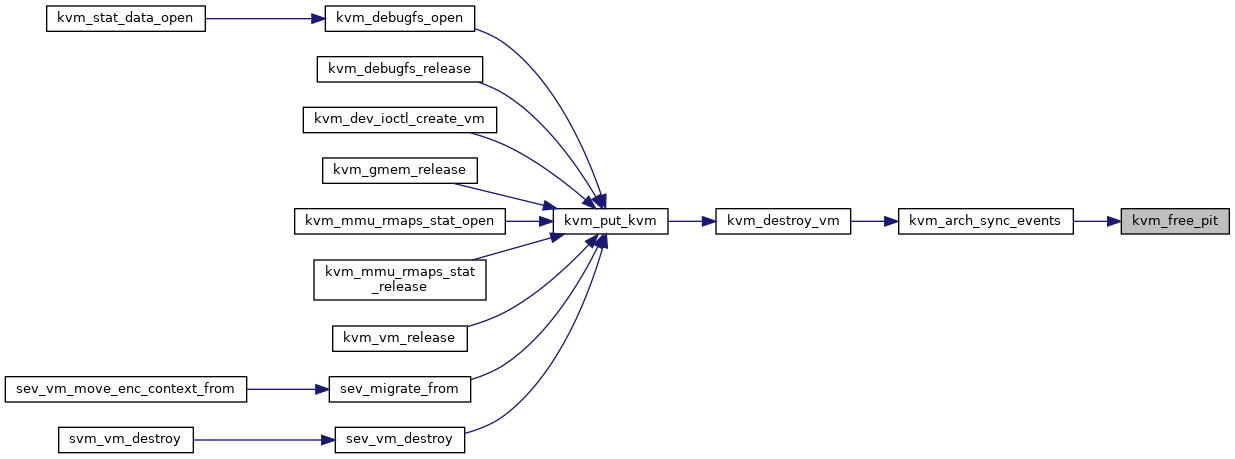

Here is the caller graph for this function:

kvm_pit_ack_irq()

static void kvm_pit_ack_irq ( struct kvm_irq_ack_notifier *  kian )

static

Definition at line 203 of file i8254.c.

{
    struct kvm_kpit_state *ps = container_of(kian, struct kvm_kpit_state,
                         irq_ack_notifier);
    struct kvm_pit *pit = pit_state_to_pit(ps);

    atomic_set(&ps->irq_ack, 1);
    /* irq_ack should be set before pending is read.  Order accesses with
     * inc(pending) in pit_timer_fn and xchg(irq_ack, 0) in pit_do_work.
     */
    smp_mb();
    if (atomic_dec_if_positive(&ps->pending) > 0)
        kthread_queue_work(pit->worker, &pit->expired);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pit_load_count()

void kvm_pit_load_count	(	struct kvm_pit *	pit,
		int	channel,
		u32	val,
		int	hpet_legacy_start
	)

Definition at line 403 of file i8254.c.

{
    u8 saved_mode;

    WARN_ON_ONCE(!mutex_is_locked(&pit->pit_state.lock));

    if (hpet_legacy_start) {
        /* save existing mode for later reenablement */
        WARN_ON(channel != 0);
        saved_mode = pit->pit_state.channels[0].mode;
        pit->pit_state.channels[0].mode = 0xff; /* disable timer */
        pit_load_count(pit, channel, val);
        pit->pit_state.channels[0].mode = saved_mode;
    } else {
        pit_load_count(pit, channel, val);
    }
}

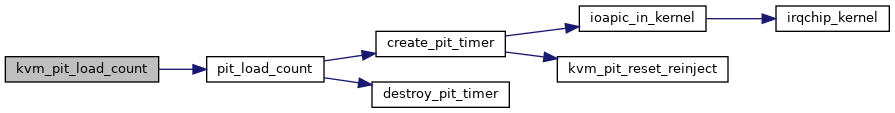

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pit_reset()

static void kvm_pit_reset ( struct kvm_pit *  pit )

static

Definition at line 628 of file i8254.c.

{
    int i;
    struct kvm_kpit_channel_state *c;

    pit->pit_state.flags = 0;
    for (i = 0; i < 3; i++) {
        c = &pit->pit_state.channels[i];
        c->mode = 0xff;
        c->gate = (i != 2);
        pit_load_count(pit, i, 0);
    }

    kvm_pit_reset_reinject(pit);
}

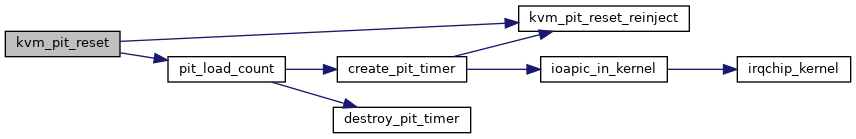

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pit_reset_reinject()

static void kvm_pit_reset_reinject ( struct kvm_pit *  pit )

inlinestatic

Definition at line 285 of file i8254.c.

{
    atomic_set(&pit->pit_state.pending, 0);
    atomic_set(&pit->pit_state.irq_ack, 1);
}

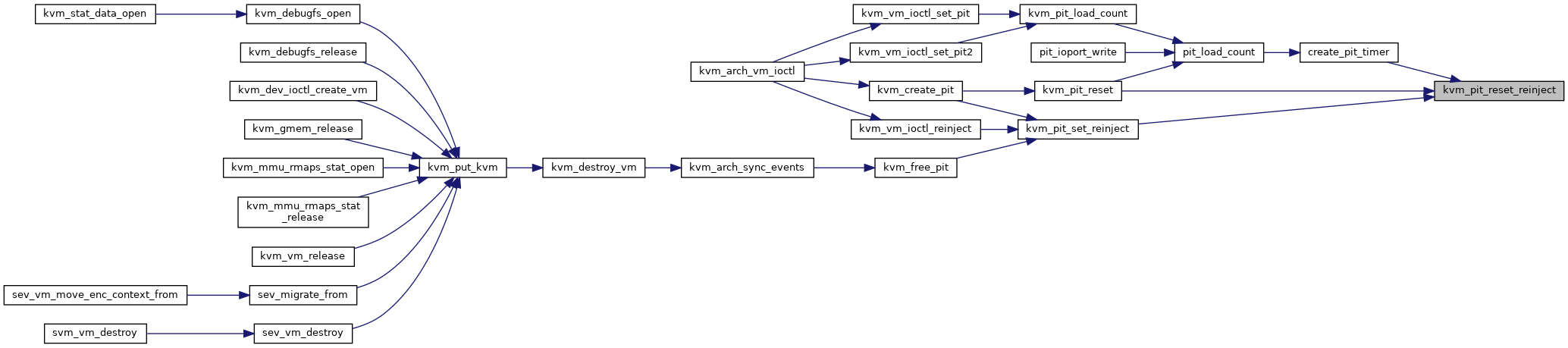

Here is the caller graph for this function:

kvm_pit_set_reinject()

void kvm_pit_set_reinject	(	struct kvm_pit *	pit,
		bool	reinject
	)

Definition at line 291 of file i8254.c.

{
    struct kvm_kpit_state *ps = &pit->pit_state;
    struct kvm *kvm = pit->kvm;

    if (atomic_read(&ps->reinject) == reinject)
        return;

    /*
     * AMD SVM AVIC accelerates EOI write and does not trap.
     * This cause in-kernel PIT re-inject mode to fail
     * since it checks ps->irq_ack before kvm_set_irq()
     * and relies on the ack notifier to timely queue
     * the pt->worker work iterm and reinject the missed tick.
     * So, deactivate APICv when PIT is in reinject mode.
     */
    if (reinject) {
        kvm_set_apicv_inhibit(kvm, APICV_INHIBIT_REASON_PIT_REINJ);
        /* The initial state is preserved while ps->reinject == 0. */
        kvm_pit_reset_reinject(pit);
        kvm_register_irq_ack_notifier(kvm, &ps->irq_ack_notifier);
        kvm_register_irq_mask_notifier(kvm, 0, &pit->mask_notifier);
    } else {
        kvm_clear_apicv_inhibit(kvm, APICV_INHIBIT_REASON_PIT_REINJ);
        kvm_unregister_irq_ack_notifier(kvm, &ps->irq_ack_notifier);
        kvm_unregister_irq_mask_notifier(kvm, 0, &pit->mask_notifier);
    }

    atomic_set(&ps->reinject, reinject);
}

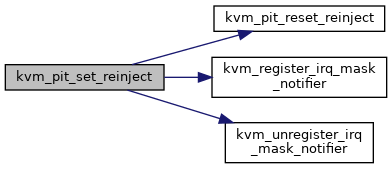

Here is the call graph for this function:

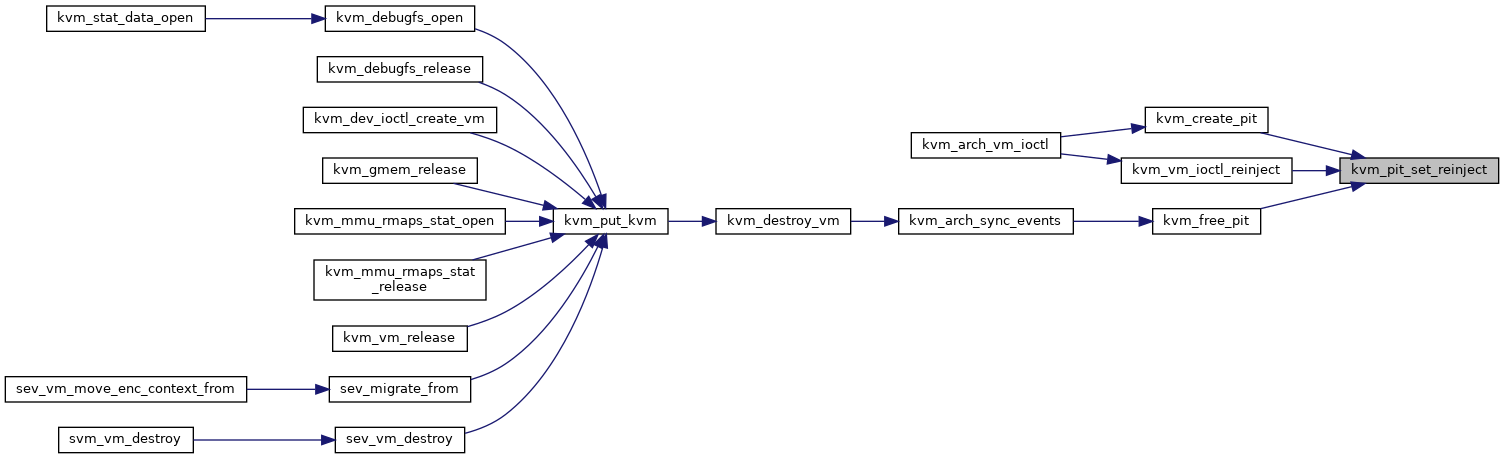

Here is the caller graph for this function:

pit_do_work()

static void pit_do_work ( struct kthread_work *  work )

static

Definition at line 240 of file i8254.c.

{
    struct kvm_pit *pit = container_of(work, struct kvm_pit, expired);
    struct kvm *kvm = pit->kvm;
    struct kvm_vcpu *vcpu;
    unsigned long i;
    struct kvm_kpit_state *ps = &pit->pit_state;

    if (atomic_read(&ps->reinject) && !atomic_xchg(&ps->irq_ack, 0))
        return;

    kvm_set_irq(kvm, pit->irq_source_id, 0, 1, false);
    kvm_set_irq(kvm, pit->irq_source_id, 0, 0, false);

    /*
     * Provides NMI watchdog support via Virtual Wire mode.
     * The route is: PIT -> LVT0 in NMI mode.
     *
     * Note: Our Virtual Wire implementation does not follow
     * the MP specification.  We propagate a PIT interrupt to all
     * VCPUs and only when LVT0 is in NMI mode.  The interrupt can
     * also be simultaneously delivered through PIC and IOAPIC.
     */
    if (atomic_read(&kvm->arch.vapics_in_nmi_mode) > 0)
        kvm_for_each_vcpu(i, vcpu, kvm)
            kvm_apic_nmi_wd_deliver(vcpu);
}

Here is the call graph for this function:

Here is the caller graph for this function:

pit_get_count()

static int pit_get_count ( struct kvm_pit *  pit, int  channel  )

static

Definition at line 115 of file i8254.c.

{
    struct kvm_kpit_channel_state *c = &pit->pit_state.channels[channel];
    s64 d, t;
    int counter;

    t = kpit_elapsed(pit, c, channel);
    d = mul_u64_u32_div(t, KVM_PIT_FREQ, NSEC_PER_SEC);

    switch (c->mode) {
    case 0:
    case 1:
    case 4:
    case 5:
        counter = (c->count - d) & 0xffff;
        break;
    case 3:
        /* XXX: may be incorrect for odd counts */
        counter = c->count - (mod_64((2 * d), c->count));
        break;
    default:
        counter = c->count - mod_64(d, c->count);
        break;
    }
    return counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pit_get_gate()

static int pit_get_gate ( struct kvm_pit *  pit, int  channel  )

static

Definition at line 77 of file i8254.c.

{
    return pit->pit_state.channels[channel].gate;
}

Here is the caller graph for this function:

pit_get_out()

static int pit_get_out ( struct kvm_pit *  pit, int  channel  )

static

Definition at line 142 of file i8254.c.

{
    struct kvm_kpit_channel_state *c = &pit->pit_state.channels[channel];
    s64 d, t;
    int out;

    t = kpit_elapsed(pit, c, channel);
    d = mul_u64_u32_div(t, KVM_PIT_FREQ, NSEC_PER_SEC);

    switch (c->mode) {
    default:
    case 0:
        out = (d >= c->count);
        break;
    case 1:
        out = (d < c->count);
        break;
    case 2:
        out = ((mod_64(d, c->count) == 0) && (d != 0));
        break;
    case 3:
        out = (mod_64(d, c->count) < ((c->count + 1) >> 1));
        break;
    case 4:
    case 5:
        out = (d == c->count);
        break;
    }

    return out;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pit_in_range()

static int pit_in_range ( gpa_t  addr )

inlinestatic

Definition at line 432 of file i8254.c.

{
    return ((addr >= KVM_PIT_BASE_ADDRESS) &&
        (addr < KVM_PIT_BASE_ADDRESS + KVM_PIT_MEM_LENGTH));
}

Here is the caller graph for this function:

pit_ioport_read()

static int pit_ioport_read ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  this, gpa_t  addr, int  len, void *  data  )

static

Definition at line 513 of file i8254.c.

{
    struct kvm_pit *pit = dev_to_pit(this);
    struct kvm_kpit_state *pit_state = &pit->pit_state;
    int ret, count;
    struct kvm_kpit_channel_state *s;
    if (!pit_in_range(addr))
        return -EOPNOTSUPP;

    addr &= KVM_PIT_CHANNEL_MASK;
    if (addr == 3)
        return 0;

    s = &pit_state->channels[addr];

    mutex_lock(&pit_state->lock);

    if (s->status_latched) {
        s->status_latched = 0;
        ret = s->status;
    } else if (s->count_latched) {
        switch (s->count_latched) {
        default:
        case RW_STATE_LSB:
            ret = s->latched_count & 0xff;
            s->count_latched = 0;
            break;
        case RW_STATE_MSB:
            ret = s->latched_count >> 8;
            s->count_latched = 0;
            break;
        case RW_STATE_WORD0:
            ret = s->latched_count & 0xff;
            s->count_latched = RW_STATE_MSB;
            break;
        }
    } else {
        switch (s->read_state) {
        default:
        case RW_STATE_LSB:
            count = pit_get_count(pit, addr);
            ret = count & 0xff;
            break;
        case RW_STATE_MSB:
            count = pit_get_count(pit, addr);
            ret = (count >> 8) & 0xff;
            break;
        case RW_STATE_WORD0:
            count = pit_get_count(pit, addr);
            ret = count & 0xff;
            s->read_state = RW_STATE_WORD1;
            break;
        case RW_STATE_WORD1:
            count = pit_get_count(pit, addr);
            ret = (count >> 8) & 0xff;
            s->read_state = RW_STATE_WORD0;
            break;
        }
    }

    if (len > sizeof(ret))
        len = sizeof(ret);
    memcpy(data, (char *)&ret, len);

    mutex_unlock(&pit_state->lock);
    return 0;
}

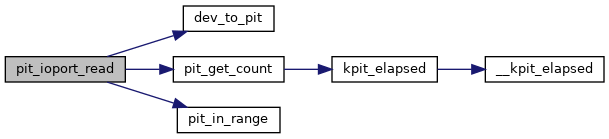

Here is the call graph for this function:

pit_ioport_write()

static int pit_ioport_write ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  this, gpa_t  addr, int  len, const void *  data  )

static

Definition at line 438 of file i8254.c.

{
    struct kvm_pit *pit = dev_to_pit(this);
    struct kvm_kpit_state *pit_state = &pit->pit_state;
    int channel, access;
    struct kvm_kpit_channel_state *s;
    u32 val = *(u32 *) data;
    if (!pit_in_range(addr))
        return -EOPNOTSUPP;

    val  &= 0xff;
    addr &= KVM_PIT_CHANNEL_MASK;

    mutex_lock(&pit_state->lock);

    if (val != 0)
        pr_debug("write addr is 0x%x, len is %d, val is 0x%x\n",
             (unsigned int)addr, len, val);

    if (addr == 3) {
        channel = val >> 6;
        if (channel == 3) {
            /* Read-Back Command. */
            for (channel = 0; channel < 3; channel++) {
                if (val & (2 << channel)) {
                    if (!(val & 0x20))
                        pit_latch_count(pit, channel);
                    if (!(val & 0x10))
                        pit_latch_status(pit, channel);
                }
            }
        } else {
            /* Select Counter <channel>. */
            s = &pit_state->channels[channel];
            access = (val >> 4) & KVM_PIT_CHANNEL_MASK;
            if (access == 0) {
                pit_latch_count(pit, channel);
            } else {
                s->rw_mode = access;
                s->read_state = access;
                s->write_state = access;
                s->mode = (val >> 1) & 7;
                if (s->mode > 5)
                    s->mode -= 4;
                s->bcd = val & 1;
            }
        }
    } else {
        /* Write Count. */
        s = &pit_state->channels[addr];
        switch (s->write_state) {
        default:
        case RW_STATE_LSB:
            pit_load_count(pit, addr, val);
            break;
        case RW_STATE_MSB:
            pit_load_count(pit, addr, val << 8);
            break;
        case RW_STATE_WORD0:
            s->write_latch = val;
            s->write_state = RW_STATE_WORD1;
            break;
        case RW_STATE_WORD1:
            pit_load_count(pit, addr, s->write_latch | (val << 8));
            s->write_state = RW_STATE_WORD0;
            break;
        }
    }

    mutex_unlock(&pit_state->lock);
    return 0;
}

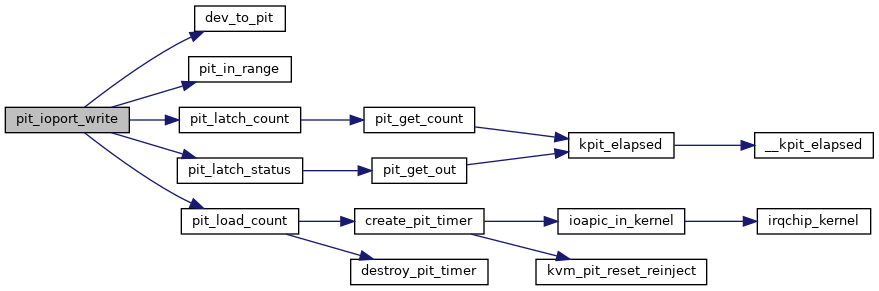

Here is the call graph for this function:

pit_latch_count()

static void pit_latch_count ( struct kvm_pit *  pit, int  channel  )

static

Definition at line 174 of file i8254.c.

{
    struct kvm_kpit_channel_state *c = &pit->pit_state.channels[channel];

    if (!c->count_latched) {
        c->latched_count = pit_get_count(pit, channel);
        c->count_latched = c->rw_mode;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pit_latch_status()

static void pit_latch_status ( struct kvm_pit *  pit, int  channel  )

static

Definition at line 184 of file i8254.c.

{
    struct kvm_kpit_channel_state *c = &pit->pit_state.channels[channel];

    if (!c->status_latched) {
        /* TODO: Return NULL COUNT (bit 6). */
        c->status = ((pit_get_out(pit, channel) << 7) |
                (c->rw_mode << 4) |
                (c->mode << 1) |
                c->bcd);
        c->status_latched = 1;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

pit_load_count()

static void pit_load_count ( struct kvm_pit *  pit, int  channel, u32  val  )

static

Definition at line 365 of file i8254.c.

{
    struct kvm_kpit_state *ps = &pit->pit_state;

    pr_debug("load_count val is %u, channel is %d\n", val, channel);

    /*
     * The largest possible initial count is 0; this is equivalent
     * to 216 for binary counting and 104 for BCD counting.
     */
    if (val == 0)
        val = 0x10000;

    ps->channels[channel].count = val;

    if (channel != 0) {
        ps->channels[channel].count_load_time = ktime_get();
        return;
    }

    /* Two types of timer
     * mode 1 is one shot, mode 2 is period, otherwise del timer */
    switch (ps->channels[0].mode) {
    case 0:
    case 1:
        /* FIXME: enhance mode 4 precision */
    case 4:
        create_pit_timer(pit, val, 0);
        break;
    case 2:
    case 3:
        create_pit_timer(pit, val, 1);
        break;
    default:
        destroy_pit_timer(pit);
    }
}

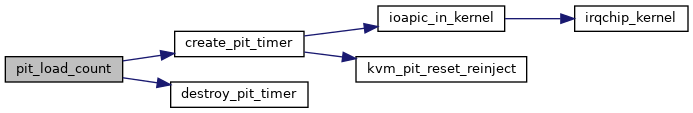

Here is the call graph for this function:

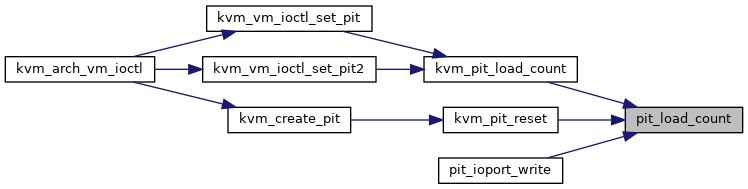

Here is the caller graph for this function:

pit_mask_notifer()

static void pit_mask_notifer ( struct kvm_irq_mask_notifier *  kimn, bool  mask  )

static

Definition at line 644 of file i8254.c.

{
    struct kvm_pit *pit = container_of(kimn, struct kvm_pit, mask_notifier);

    if (!mask)
        kvm_pit_reset_reinject(pit);
}

Here is the caller graph for this function:

pit_set_gate()

static void pit_set_gate ( struct kvm_pit *  pit, int  channel, u32  val  )

static

Definition at line 54 of file i8254.c.

{
    struct kvm_kpit_channel_state *c = &pit->pit_state.channels[channel];

    switch (c->mode) {
    default:
    case 0:
    case 4:
        /* XXX: just disable/enable counting */
        break;
    case 1:
    case 2:
    case 3:
    case 5:
        /* Restart counting on rising edge. */
        if (c->gate < val)
            c->count_load_time = ktime_get();
        break;
    }

    c->gate = val;
}

Here is the caller graph for this function:

pit_state_to_pit()

static struct kvm_pit* pit_state_to_pit ( struct kvm_kpit_state *  ps )

inlinestatic

Definition at line 198 of file i8254.c.

{
    return container_of(ps, struct kvm_pit, pit_state);
}

Here is the caller graph for this function:

pit_timer_fn()

static enum hrtimer_restart pit_timer_fn ( struct hrtimer *  data )

static

Definition at line 240 of file i8254.c.

{
    struct kvm_kpit_state *ps = container_of(data, struct kvm_kpit_state, timer);
    struct kvm_pit *pt = pit_state_to_pit(ps);

    if (atomic_read(&ps->reinject))
        atomic_inc(&ps->pending);

    kthread_queue_work(pt->worker, &pt->expired);

    if (ps->is_periodic) {
        hrtimer_add_expires_ns(&ps->timer, ps->period);
        return HRTIMER_RESTART;
    } else
        return HRTIMER_NORESTART;
}

Here is the caller graph for this function:

speaker_ioport_read()

static int speaker_ioport_read ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  this, gpa_t  addr, int  len, void *  data  )

static

Definition at line 603 of file i8254.c.

{
    struct kvm_pit *pit = speaker_to_pit(this);
    struct kvm_kpit_state *pit_state = &pit->pit_state;
    unsigned int refresh_clock;
    int ret;
    if (addr != KVM_SPEAKER_BASE_ADDRESS)
        return -EOPNOTSUPP;

    /* Refresh clock toggles at about 15us. We approximate as 2^14ns. */
    refresh_clock = ((unsigned int)ktime_to_ns(ktime_get()) >> 14) & 1;

    mutex_lock(&pit_state->lock);
    ret = (!!(pit_state->flags & KVM_PIT_FLAGS_SPEAKER_DATA_ON) << 1) |
        pit_get_gate(pit, 2) | (pit_get_out(pit, 2) << 5) |
        (refresh_clock << 4);
    if (len > sizeof(ret))
        len = sizeof(ret);
    memcpy(data, (char *)&ret, len);
    mutex_unlock(&pit_state->lock);
    return 0;
}

Here is the call graph for this function:

speaker_ioport_write()

static int speaker_ioport_write ( struct kvm_vcpu *  vcpu, struct kvm_io_device *  this, gpa_t  addr, int  len, const void *  data  )

static

Definition at line 583 of file i8254.c.

{
    struct kvm_pit *pit = speaker_to_pit(this);
    struct kvm_kpit_state *pit_state = &pit->pit_state;
    u32 val = *(u32 *) data;
    if (addr != KVM_SPEAKER_BASE_ADDRESS)
        return -EOPNOTSUPP;

    mutex_lock(&pit_state->lock);
    if (val & (1 << 1))
        pit_state->flags |= KVM_PIT_FLAGS_SPEAKER_DATA_ON;
    else
        pit_state->flags &= ~KVM_PIT_FLAGS_SPEAKER_DATA_ON;
    pit_set_gate(pit, 2, val & 1);
    mutex_unlock(&pit_state->lock);
    return 0;
}

Here is the call graph for this function:

speaker_to_pit()

static struct kvm_pit* speaker_to_pit ( struct kvm_io_device *  dev )

inlinestatic

Definition at line 427 of file i8254.c.

{
    return container_of(dev, struct kvm_pit, speaker_dev);
}

Here is the caller graph for this function:

Variable Documentation

pit_dev_ops

const struct kvm_io_device_ops pit_dev_ops

static

Initial value:

= {
    .read     = pit_ioport_read,
    .write    = pit_ioport_write,
}

Definition at line 644 of file i8254.c.

speaker_dev_ops

const struct kvm_io_device_ops speaker_dev_ops

static

Initial value:

= {
    .read     = speaker_ioport_read,
    .write    = speaker_ioport_write,
}

Definition at line 644 of file i8254.c.
