pkvm.c File Reference

#include <linux/kvm_host.h>
#include <linux/mm.h>
#include <nvhe/fixed_config.h>
#include <nvhe/mem_protect.h>
#include <nvhe/memory.h>
#include <nvhe/pkvm.h>
#include <nvhe/trap_handler.h>

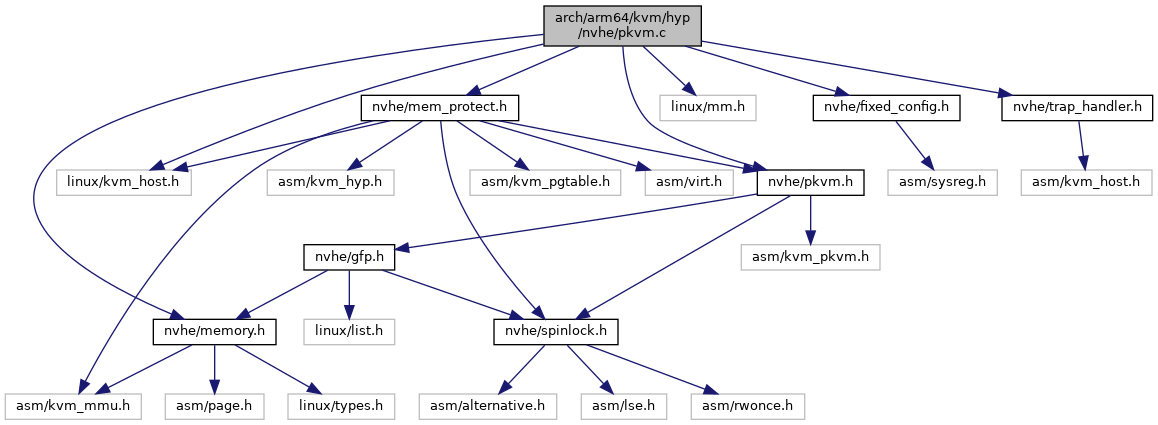

Include dependency graph for pkvm.c:

Go to the source code of this file.

Macros
#define	HANDLE_OFFSET   0x1000

Functions
static void	pvm_init_traps_aa64pfr0 (struct kvm_vcpu *vcpu)
static void	pvm_init_traps_aa64pfr1 (struct kvm_vcpu *vcpu)
static void	pvm_init_traps_aa64dfr0 (struct kvm_vcpu *vcpu)
static void	pvm_init_traps_aa64mmfr0 (struct kvm_vcpu *vcpu)
static void	pvm_init_traps_aa64mmfr1 (struct kvm_vcpu *vcpu)
static void	pvm_init_trap_regs (struct kvm_vcpu *vcpu)
void	__pkvm_vcpu_init_traps (struct kvm_vcpu *vcpu)
static unsigned int	vm_handle_to_idx (pkvm_handle_t handle)
static pkvm_handle_t	idx_to_vm_handle (unsigned int idx)
static	DEFINE_HYP_SPINLOCK (vm_table_lock)
void	pkvm_hyp_vm_table_init (void *tbl)
static struct pkvm_hyp_vm *	get_vm_by_handle (pkvm_handle_t handle)
struct pkvm_hyp_vcpu *	pkvm_load_hyp_vcpu (pkvm_handle_t handle, unsigned int vcpu_idx)
void	pkvm_put_hyp_vcpu (struct pkvm_hyp_vcpu *hyp_vcpu)
static void	unpin_host_vcpu (struct kvm_vcpu *host_vcpu)
static void	unpin_host_vcpus (struct pkvm_hyp_vcpu *hyp_vcpus[], unsigned int nr_vcpus)
static void	init_pkvm_hyp_vm (struct kvm *host_kvm, struct pkvm_hyp_vm *hyp_vm, unsigned int nr_vcpus)
static int	init_pkvm_hyp_vcpu (struct pkvm_hyp_vcpu *hyp_vcpu, struct pkvm_hyp_vm *hyp_vm, struct kvm_vcpu *host_vcpu, unsigned int vcpu_idx)
static int	find_free_vm_table_entry (struct kvm *host_kvm)
static pkvm_handle_t	insert_vm_table_entry (struct kvm *host_kvm, struct pkvm_hyp_vm *hyp_vm)
static void	remove_vm_table_entry (pkvm_handle_t handle)
static size_t	pkvm_get_hyp_vm_size (unsigned int nr_vcpus)
static void *	map_donated_memory_noclear (unsigned long host_va, size_t size)
static void *	map_donated_memory (unsigned long host_va, size_t size)
static void	__unmap_donated_memory (void *va, size_t size)
static void	unmap_donated_memory (void *va, size_t size)
static void	unmap_donated_memory_noclear (void *va, size_t size)
int	__pkvm_init_vm (struct kvm *host_kvm, unsigned long vm_hva, unsigned long pgd_hva)
int	__pkvm_init_vcpu (pkvm_handle_t handle, struct kvm_vcpu *host_vcpu, unsigned long vcpu_hva)
static void	teardown_donated_memory (struct kvm_hyp_memcache *mc, void *addr, size_t size)
int	__pkvm_teardown_vm (pkvm_handle_t handle)

Variables
unsigned long	__icache_flags
unsigned int	kvm_arm_vmid_bits
static struct pkvm_hyp_vm **	vm_table

Macro Definition Documentation

HANDLE_OFFSET

#define HANDLE_OFFSET   0x1000

Definition at line 219 of file pkvm.c.

Function Documentation

__pkvm_init_vcpu()

int __pkvm_init_vcpu	(	pkvm_handle_t	handle,
		struct kvm_vcpu *	host_vcpu,
		unsigned long	vcpu_hva
	)

Definition at line 539 of file pkvm.c.

{
    struct pkvm_hyp_vcpu *hyp_vcpu;
    struct pkvm_hyp_vm *hyp_vm;
    unsigned int idx;
    int ret;

    hyp_vcpu = map_donated_memory(vcpu_hva, sizeof(*hyp_vcpu));
    if (!hyp_vcpu)
        return -ENOMEM;

    hyp_spin_lock(&vm_table_lock);

    hyp_vm = get_vm_by_handle(handle);
    if (!hyp_vm) {
        ret = -ENOENT;
        goto unlock;
    }

    idx = hyp_vm->nr_vcpus;
    if (idx >= hyp_vm->kvm.created_vcpus) {
        ret = -EINVAL;
        goto unlock;
    }

    ret = init_pkvm_hyp_vcpu(hyp_vcpu, hyp_vm, host_vcpu, idx);
    if (ret)
        goto unlock;

    hyp_vm->vcpus[idx] = hyp_vcpu;
    hyp_vm->nr_vcpus++;
unlock:
    hyp_spin_unlock(&vm_table_lock);

    if (ret)
        unmap_donated_memory(hyp_vcpu, sizeof(*hyp_vcpu));

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

__pkvm_init_vm()

int __pkvm_init_vm	(	struct kvm *	host_kvm,
		unsigned long	vm_hva,
		unsigned long	pgd_hva
	)

Definition at line 470 of file pkvm.c.

{
    struct pkvm_hyp_vm *hyp_vm = NULL;
    size_t vm_size, pgd_size;
    unsigned int nr_vcpus;
    void *pgd = NULL;
    int ret;

    ret = hyp_pin_shared_mem(host_kvm, host_kvm + 1);
    if (ret)
        return ret;

    nr_vcpus = READ_ONCE(host_kvm->created_vcpus);
    if (nr_vcpus < 1) {
        ret = -EINVAL;
        goto err_unpin_kvm;
    }

    vm_size = pkvm_get_hyp_vm_size(nr_vcpus);
    pgd_size = kvm_pgtable_stage2_pgd_size(host_mmu.arch.mmu.vtcr);

    ret = -ENOMEM;

    hyp_vm = map_donated_memory(vm_hva, vm_size);
    if (!hyp_vm)
        goto err_remove_mappings;

    pgd = map_donated_memory_noclear(pgd_hva, pgd_size);
    if (!pgd)
        goto err_remove_mappings;

    init_pkvm_hyp_vm(host_kvm, hyp_vm, nr_vcpus);

    hyp_spin_lock(&vm_table_lock);
    ret = insert_vm_table_entry(host_kvm, hyp_vm);
    if (ret < 0)
        goto err_unlock;

    ret = kvm_guest_prepare_stage2(hyp_vm, pgd);
    if (ret)
        goto err_remove_vm_table_entry;
    hyp_spin_unlock(&vm_table_lock);

    return hyp_vm->kvm.arch.pkvm.handle;

err_remove_vm_table_entry:
    remove_vm_table_entry(hyp_vm->kvm.arch.pkvm.handle);
err_unlock:
    hyp_spin_unlock(&vm_table_lock);
err_remove_mappings:
    unmap_donated_memory(hyp_vm, vm_size);
    unmap_donated_memory(pgd, pgd_size);
err_unpin_kvm:
    hyp_unpin_shared_mem(host_kvm, host_kvm + 1);
    return ret;
}

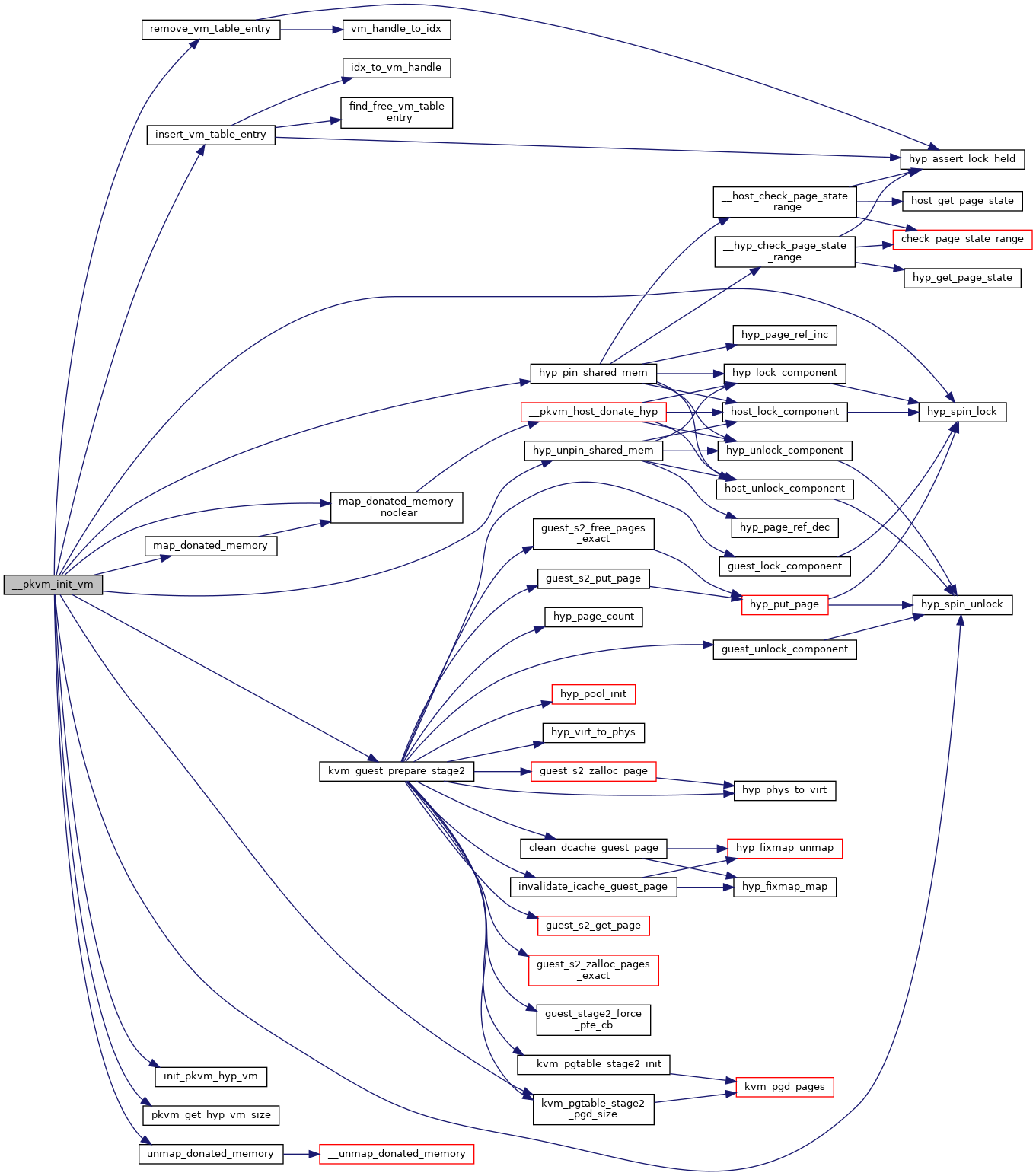

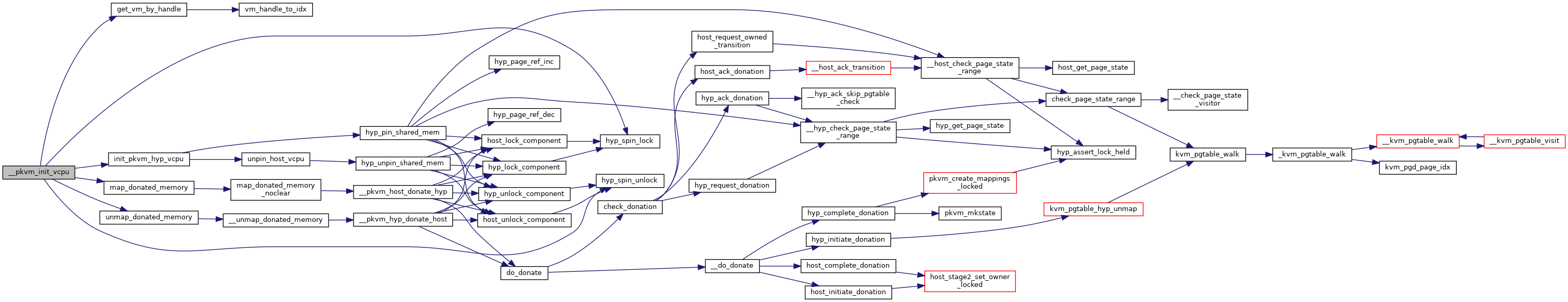

Here is the call graph for this function:

Here is the caller graph for this function:

__pkvm_teardown_vm()

int __pkvm_teardown_vm

(

pkvm_handle_t

handle

)

Definition at line 592 of file pkvm.c.

{
    struct kvm_hyp_memcache *mc;
    struct pkvm_hyp_vm *hyp_vm;
    struct kvm *host_kvm;
    unsigned int idx;
    size_t vm_size;
    int err;

    hyp_spin_lock(&vm_table_lock);
    hyp_vm = get_vm_by_handle(handle);
    if (!hyp_vm) {
        err = -ENOENT;
        goto err_unlock;
    }

    if (WARN_ON(hyp_page_count(hyp_vm))) {
        err = -EBUSY;
        goto err_unlock;
    }

    host_kvm = hyp_vm->host_kvm;

    /* Ensure the VMID is clean before it can be reallocated */
    __kvm_tlb_flush_vmid(&hyp_vm->kvm.arch.mmu);
    remove_vm_table_entry(handle);
    hyp_spin_unlock(&vm_table_lock);

    /* Reclaim guest pages (including page-table pages) */
    mc = &host_kvm->arch.pkvm.teardown_mc;
    reclaim_guest_pages(hyp_vm, mc);
    unpin_host_vcpus(hyp_vm->vcpus, hyp_vm->nr_vcpus);

    /* Push the metadata pages to the teardown memcache */
    for (idx = 0; idx < hyp_vm->nr_vcpus; ++idx) {
        struct pkvm_hyp_vcpu *hyp_vcpu = hyp_vm->vcpus[idx];

        teardown_donated_memory(mc, hyp_vcpu, sizeof(*hyp_vcpu));
    }

    vm_size = pkvm_get_hyp_vm_size(hyp_vm->kvm.created_vcpus);
    teardown_donated_memory(mc, hyp_vm, vm_size);
    hyp_unpin_shared_mem(host_kvm, host_kvm + 1);
    return 0;

err_unlock:
    hyp_spin_unlock(&vm_table_lock);
    return err;
}

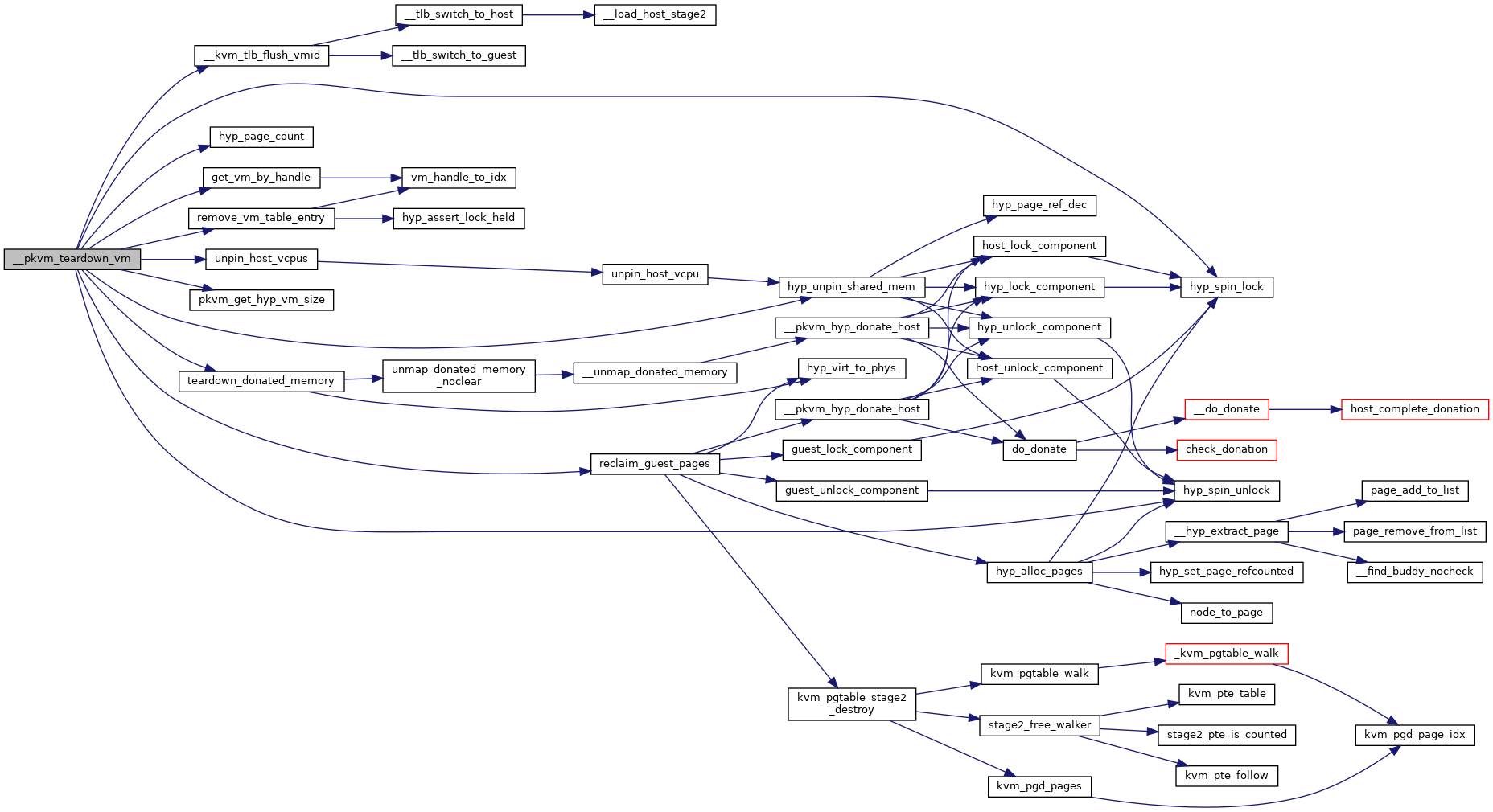

Here is the call graph for this function:

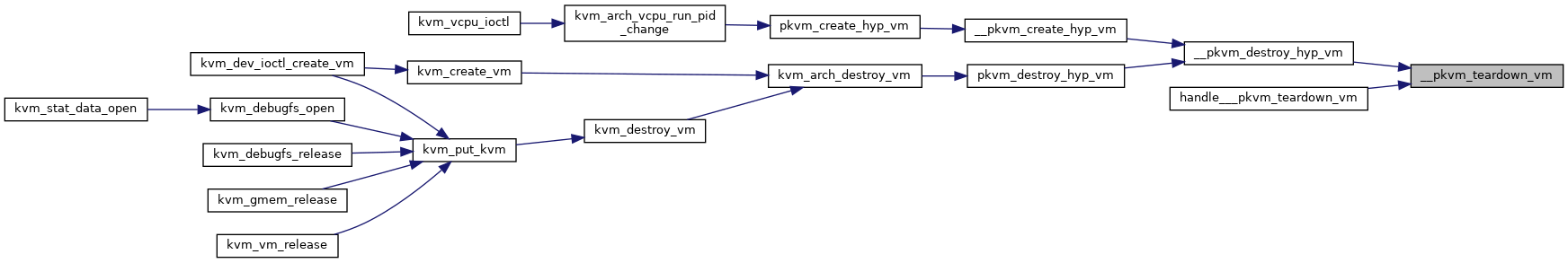

Here is the caller graph for this function:

__pkvm_vcpu_init_traps()

void __pkvm_vcpu_init_traps

(

struct kvm_vcpu *

vcpu

)

Definition at line 205 of file pkvm.c.

{
    pvm_init_trap_regs(vcpu);
    pvm_init_traps_aa64pfr0(vcpu);
    pvm_init_traps_aa64pfr1(vcpu);
    pvm_init_traps_aa64dfr0(vcpu);
    pvm_init_traps_aa64mmfr0(vcpu);
    pvm_init_traps_aa64mmfr1(vcpu);
}

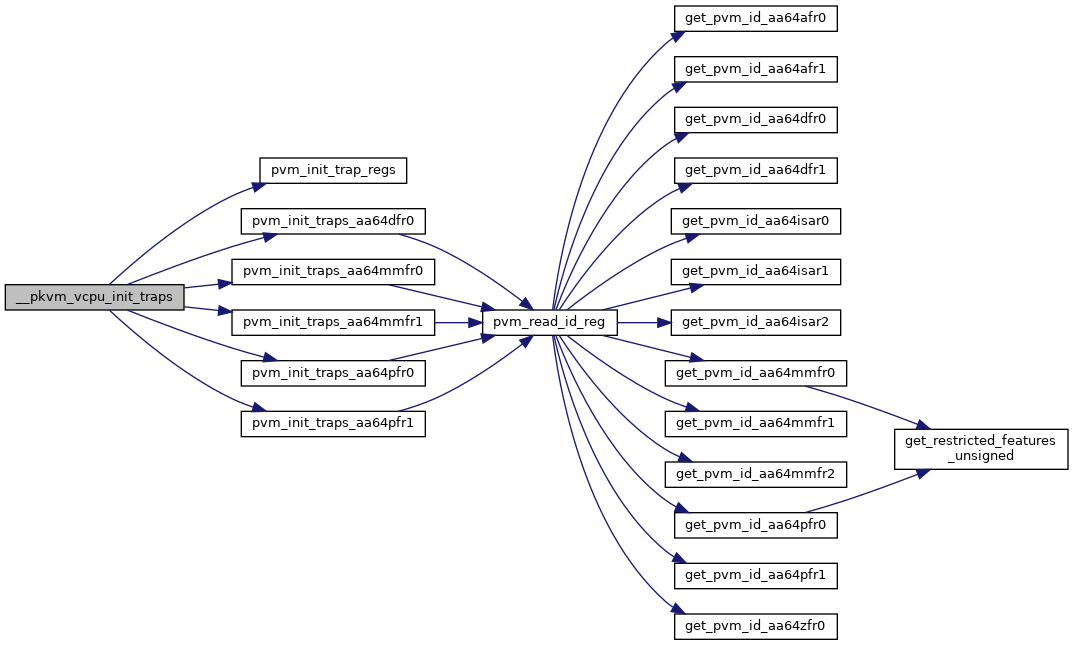

Here is the call graph for this function:

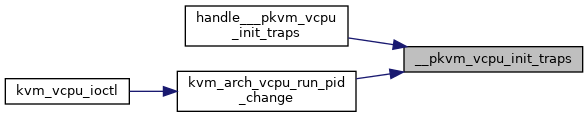

Here is the caller graph for this function:

__unmap_donated_memory()

static void __unmap_donated_memory ( void *  va, size_t  size  )

static

Definition at line 431 of file pkvm.c.

{
    WARN_ON(__pkvm_hyp_donate_host(hyp_virt_to_pfn(va),
                       PAGE_ALIGN(size) >> PAGE_SHIFT));
}

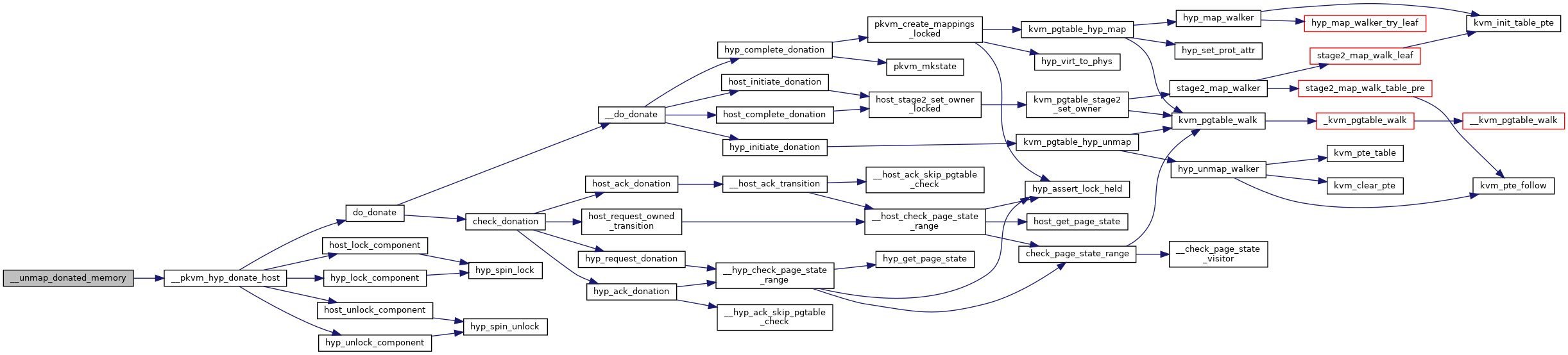

Here is the call graph for this function:

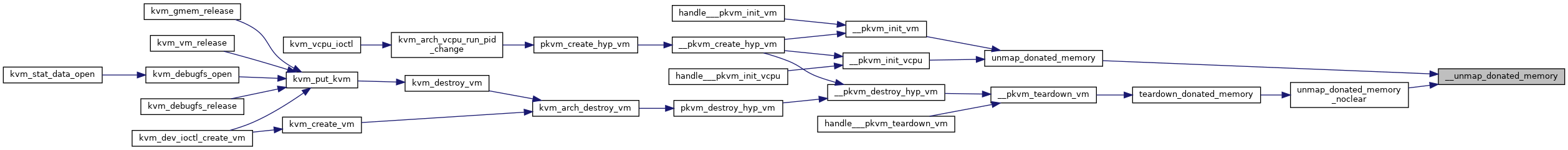

Here is the caller graph for this function:

DEFINE_HYP_SPINLOCK()

static DEFINE_HYP_SPINLOCK ( vm_table_lock  )

static

find_free_vm_table_entry()

static int find_free_vm_table_entry ( struct kvm *  host_kvm )

static

Definition at line 342 of file pkvm.c.

{
    int i;

    for (i = 0; i < KVM_MAX_PVMS; ++i) {
        if (!vm_table[i])
            return i;
    }

    return -ENOMEM;
}

Here is the caller graph for this function:

get_vm_by_handle()

static struct pkvm_hyp_vm* get_vm_by_handle ( pkvm_handle_t  handle )

static

Definition at line 253 of file pkvm.c.

{
    unsigned int idx = vm_handle_to_idx(handle);

    if (unlikely(idx >= KVM_MAX_PVMS))
        return NULL;

    return vm_table[idx];
}

Here is the call graph for this function:

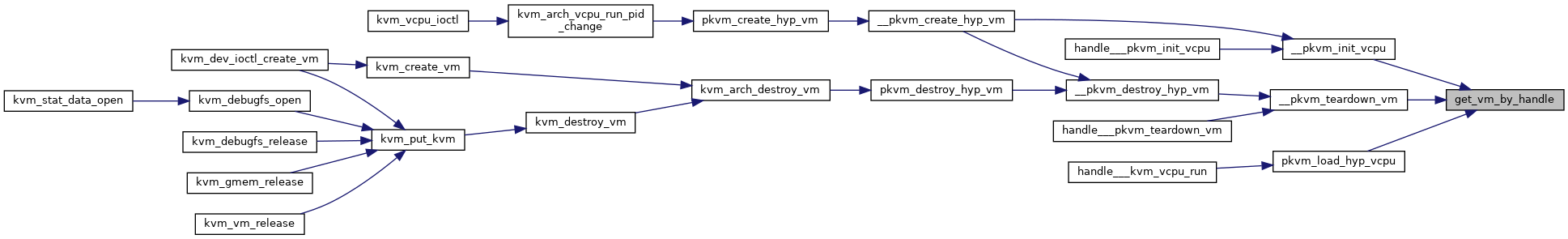

Here is the caller graph for this function:

idx_to_vm_handle()

static pkvm_handle_t idx_to_vm_handle ( unsigned int  idx )

static

Definition at line 226 of file pkvm.c.

{
    return idx + HANDLE_OFFSET;
}

Here is the caller graph for this function:

init_pkvm_hyp_vcpu()

static int init_pkvm_hyp_vcpu ( struct pkvm_hyp_vcpu *  hyp_vcpu, struct pkvm_hyp_vm *  hyp_vm, struct kvm_vcpu *  host_vcpu, unsigned int  vcpu_idx  )

static

Definition at line 313 of file pkvm.c.

{
    int ret = 0;

    if (hyp_pin_shared_mem(host_vcpu, host_vcpu + 1))
        return -EBUSY;

    if (host_vcpu->vcpu_idx != vcpu_idx) {
        ret = -EINVAL;
        goto done;
    }

    hyp_vcpu->host_vcpu = host_vcpu;

    hyp_vcpu->vcpu.kvm = &hyp_vm->kvm;
    hyp_vcpu->vcpu.vcpu_id = READ_ONCE(host_vcpu->vcpu_id);
    hyp_vcpu->vcpu.vcpu_idx = vcpu_idx;

    hyp_vcpu->vcpu.arch.hw_mmu = &hyp_vm->kvm.arch.mmu;
    hyp_vcpu->vcpu.arch.cflags = READ_ONCE(host_vcpu->arch.cflags);
done:
    if (ret)
        unpin_host_vcpu(host_vcpu);
    return ret;
}

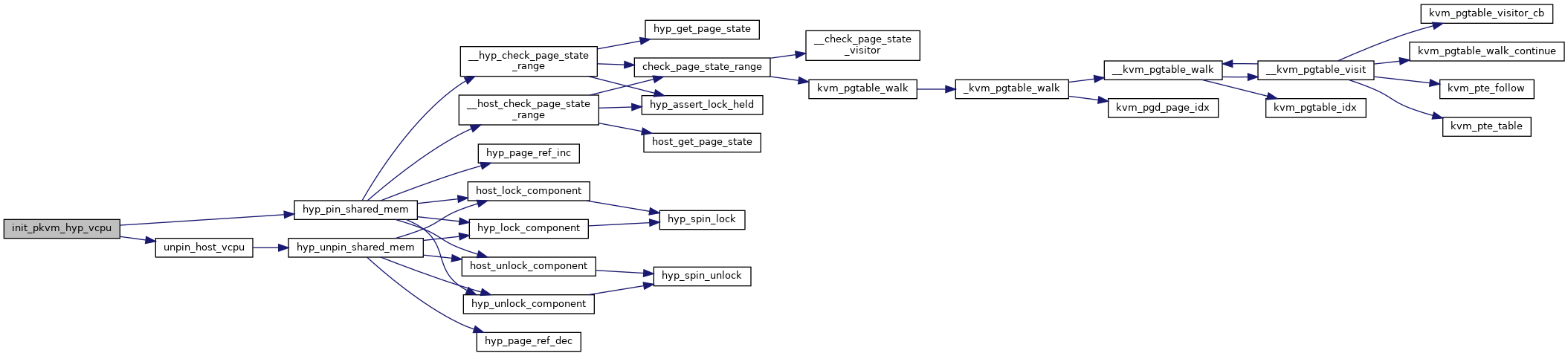

Here is the call graph for this function:

Here is the caller graph for this function:

init_pkvm_hyp_vm()

static void init_pkvm_hyp_vm ( struct kvm *  host_kvm, struct pkvm_hyp_vm *  hyp_vm, unsigned int  nr_vcpus  )

static

Definition at line 305 of file pkvm.c.

{
    hyp_vm->host_kvm = host_kvm;
    hyp_vm->kvm.created_vcpus = nr_vcpus;
    hyp_vm->kvm.arch.mmu.vtcr = host_mmu.arch.mmu.vtcr;
}

Here is the caller graph for this function:

insert_vm_table_entry()

static pkvm_handle_t insert_vm_table_entry ( struct kvm *  host_kvm, struct pkvm_hyp_vm *  hyp_vm  )

static

Definition at line 360 of file pkvm.c.

{
    struct kvm_s2_mmu *mmu = &hyp_vm->kvm.arch.mmu;
    int idx;

    hyp_assert_lock_held(&vm_table_lock);

    /*
     * Initializing protected state might have failed, yet a malicious
     * host could trigger this function. Thus, ensure that 'vm_table'
     * exists.
     */
    if (unlikely(!vm_table))
        return -EINVAL;

    idx = find_free_vm_table_entry(host_kvm);
    if (idx < 0)
        return idx;

    hyp_vm->kvm.arch.pkvm.handle = idx_to_vm_handle(idx);

    /* VMID 0 is reserved for the host */
    atomic64_set(&mmu->vmid.id, idx + 1);

    mmu->arch = &hyp_vm->kvm.arch;
    mmu->pgt = &hyp_vm->pgt;

    vm_table[idx] = hyp_vm;
    return hyp_vm->kvm.arch.pkvm.handle;
}

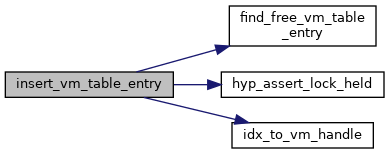

Here is the call graph for this function:

Here is the caller graph for this function:

map_donated_memory()

static void* map_donated_memory ( unsigned long  host_va, size_t  size  )

static

Definition at line 421 of file pkvm.c.

{
    void *va = map_donated_memory_noclear(host_va, size);

    if (va)
        memset(va, 0, size);

    return va;
}

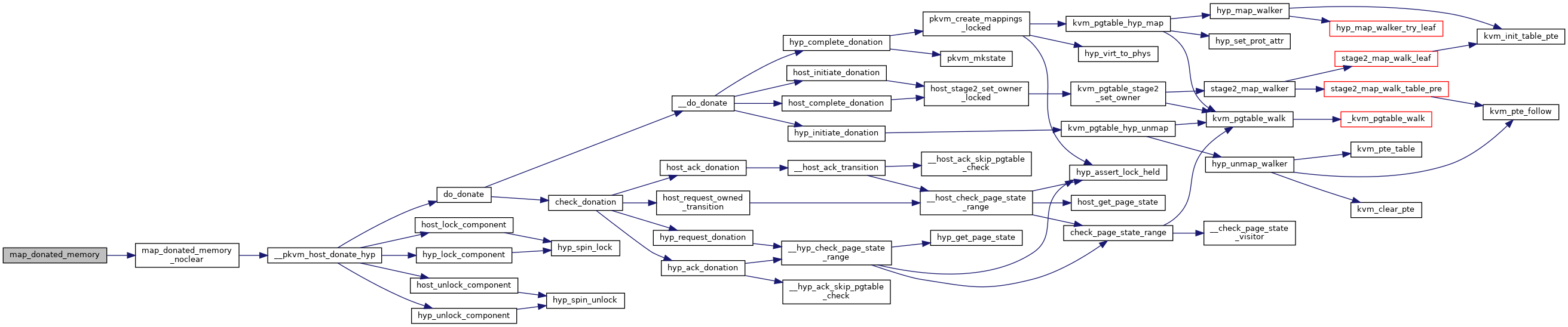

Here is the call graph for this function:

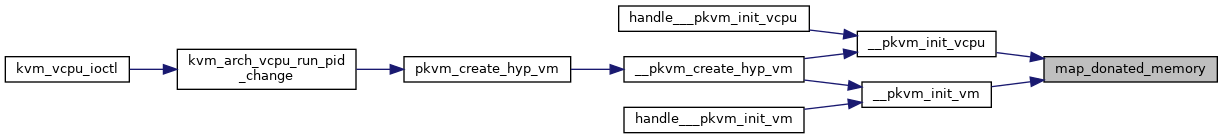

Here is the caller graph for this function:

map_donated_memory_noclear()

static void* map_donated_memory_noclear ( unsigned long  host_va, size_t  size  )

static

Definition at line 407 of file pkvm.c.

{
    void *va = (void *)kern_hyp_va(host_va);

    if (!PAGE_ALIGNED(va))
        return NULL;

    if (__pkvm_host_donate_hyp(hyp_virt_to_pfn(va),
                   PAGE_ALIGN(size) >> PAGE_SHIFT))
        return NULL;

    return va;
}

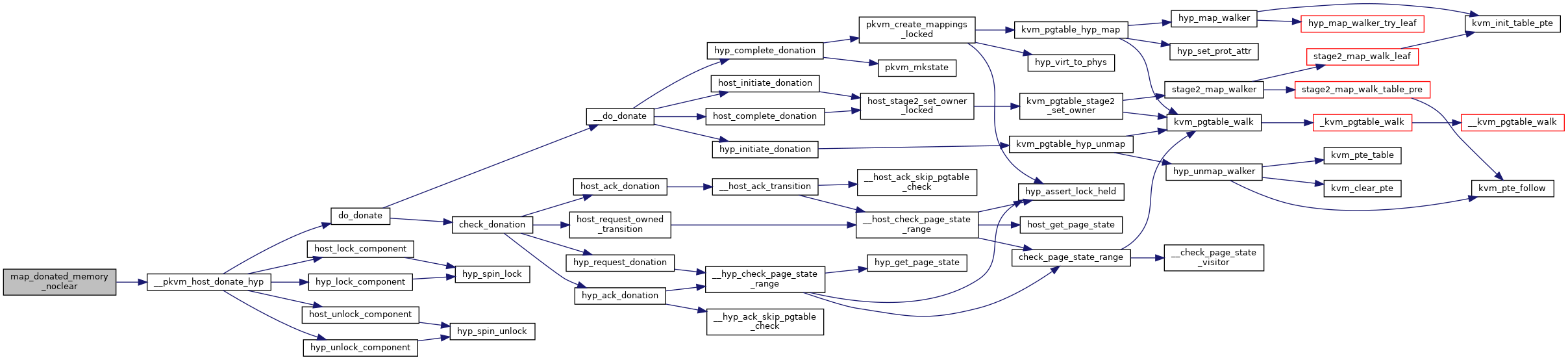

Here is the call graph for this function:

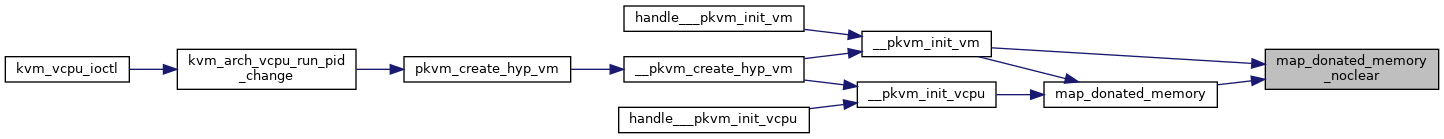

Here is the caller graph for this function:

pkvm_get_hyp_vm_size()

static size_t pkvm_get_hyp_vm_size ( unsigned int  nr_vcpus )

static

Definition at line 401 of file pkvm.c.

{
    return size_add(sizeof(struct pkvm_hyp_vm),
        size_mul(sizeof(struct pkvm_hyp_vcpu *), nr_vcpus));
}

Here is the caller graph for this function:

pkvm_hyp_vm_table_init()

void pkvm_hyp_vm_table_init

(

void *

tbl

)

Definition at line 244 of file pkvm.c.

{
    WARN_ON(vm_table);
    vm_table = tbl;
}

Here is the caller graph for this function:

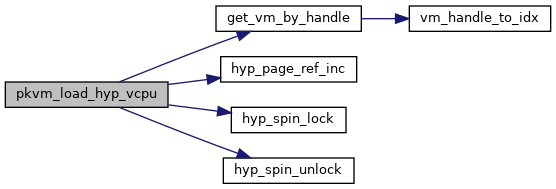

pkvm_load_hyp_vcpu()

struct pkvm_hyp_vcpu* pkvm_load_hyp_vcpu	(	pkvm_handle_t	handle,
		unsigned int	vcpu_idx
	)

Definition at line 263 of file pkvm.c.

{
    struct pkvm_hyp_vcpu *hyp_vcpu = NULL;
    struct pkvm_hyp_vm *hyp_vm;

    hyp_spin_lock(&vm_table_lock);
    hyp_vm = get_vm_by_handle(handle);
    if (!hyp_vm || hyp_vm->nr_vcpus <= vcpu_idx)
        goto unlock;

    hyp_vcpu = hyp_vm->vcpus[vcpu_idx];
    hyp_page_ref_inc(hyp_virt_to_page(hyp_vm));
unlock:
    hyp_spin_unlock(&vm_table_lock);
    return hyp_vcpu;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pkvm_put_hyp_vcpu()

void pkvm_put_hyp_vcpu

(

struct pkvm_hyp_vcpu *

hyp_vcpu

)

Definition at line 281 of file pkvm.c.

{
    struct pkvm_hyp_vm *hyp_vm = pkvm_hyp_vcpu_to_hyp_vm(hyp_vcpu);

    hyp_spin_lock(&vm_table_lock);
    hyp_page_ref_dec(hyp_virt_to_page(hyp_vm));
    hyp_spin_unlock(&vm_table_lock);
}

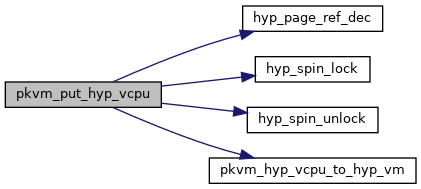

Here is the call graph for this function:

Here is the caller graph for this function:

pvm_init_trap_regs()

static void pvm_init_trap_regs ( struct kvm_vcpu *  vcpu )

static

Definition at line 181 of file pkvm.c.

{
    const u64 hcr_trap_feat_regs = HCR_TID3;
    const u64 hcr_trap_impdef = HCR_TACR | HCR_TIDCP | HCR_TID1;

    /*
     * Always trap:
     * - Feature id registers: to control features exposed to guests
     * - Implementation-defined features
     */
    vcpu->arch.hcr_el2 |= hcr_trap_feat_regs | hcr_trap_impdef;

    /* Clear res0 and set res1 bits to trap potential new features. */
    vcpu->arch.hcr_el2 &= ~(HCR_RES0);
    vcpu->arch.mdcr_el2 &= ~(MDCR_EL2_RES0);
    if (!has_hvhe()) {
        vcpu->arch.cptr_el2 |= CPTR_NVHE_EL2_RES1;
        vcpu->arch.cptr_el2 &= ~(CPTR_NVHE_EL2_RES0);
    }
}

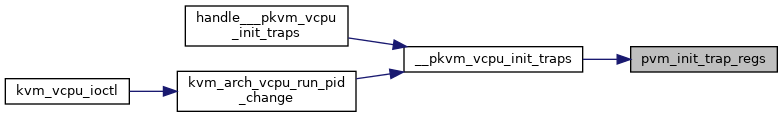

Here is the caller graph for this function:

pvm_init_traps_aa64dfr0()

static void pvm_init_traps_aa64dfr0 ( struct kvm_vcpu *  vcpu )

static

Definition at line 99 of file pkvm.c.

{
    const u64 feature_ids = pvm_read_id_reg(vcpu, SYS_ID_AA64DFR0_EL1);
    u64 mdcr_set = 0;
    u64 mdcr_clear = 0;
    u64 cptr_set = 0;

    /* Trap/constrain PMU */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64DFR0_EL1_PMUVer), feature_ids)) {
        mdcr_set |= MDCR_EL2_TPM | MDCR_EL2_TPMCR;
        mdcr_clear |= MDCR_EL2_HPME | MDCR_EL2_MTPME |
                  MDCR_EL2_HPMN_MASK;
    }

    /* Trap Debug */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64DFR0_EL1_DebugVer), feature_ids))
        mdcr_set |= MDCR_EL2_TDRA | MDCR_EL2_TDA | MDCR_EL2_TDE;

    /* Trap OS Double Lock */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64DFR0_EL1_DoubleLock), feature_ids))
        mdcr_set |= MDCR_EL2_TDOSA;

    /* Trap SPE */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64DFR0_EL1_PMSVer), feature_ids)) {
        mdcr_set |= MDCR_EL2_TPMS;
        mdcr_clear |= MDCR_EL2_E2PB_MASK << MDCR_EL2_E2PB_SHIFT;
    }

    /* Trap Trace Filter */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64DFR0_EL1_TraceFilt), feature_ids))
        mdcr_set |= MDCR_EL2_TTRF;

    /* Trap Trace */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64DFR0_EL1_TraceVer), feature_ids)) {
        if (has_hvhe())
            cptr_set |= CPACR_EL1_TTA;
        else
            cptr_set |= CPTR_EL2_TTA;
    }

    /* Trap External Trace */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64DFR0_EL1_ExtTrcBuff), feature_ids))
        mdcr_clear |= MDCR_EL2_E2TB_MASK << MDCR_EL2_E2TB_SHIFT;

    vcpu->arch.mdcr_el2 |= mdcr_set;
    vcpu->arch.mdcr_el2 &= ~mdcr_clear;
    vcpu->arch.cptr_el2 |= cptr_set;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pvm_init_traps_aa64mmfr0()

static void pvm_init_traps_aa64mmfr0 ( struct kvm_vcpu *  vcpu )

static

Definition at line 151 of file pkvm.c.

{
    const u64 feature_ids = pvm_read_id_reg(vcpu, SYS_ID_AA64MMFR0_EL1);
    u64 mdcr_set = 0;

    /* Trap Debug Communications Channel registers */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64MMFR0_EL1_FGT), feature_ids))
        mdcr_set |= MDCR_EL2_TDCC;

    vcpu->arch.mdcr_el2 |= mdcr_set;
}

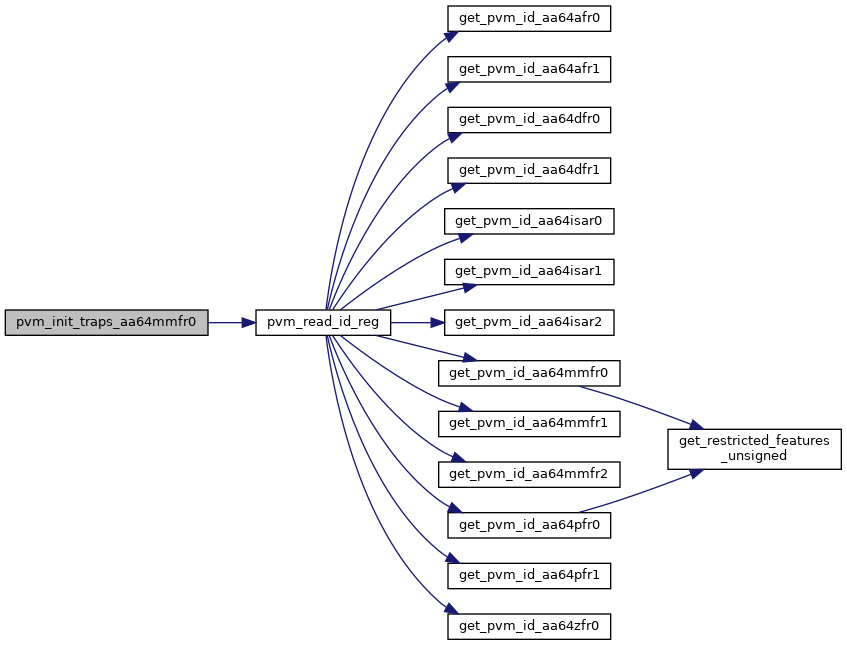

Here is the call graph for this function:

Here is the caller graph for this function:

pvm_init_traps_aa64mmfr1()

static void pvm_init_traps_aa64mmfr1 ( struct kvm_vcpu *  vcpu )

static

Definition at line 166 of file pkvm.c.

{
    const u64 feature_ids = pvm_read_id_reg(vcpu, SYS_ID_AA64MMFR1_EL1);
    u64 hcr_set = 0;

    /* Trap LOR */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64MMFR1_EL1_LO), feature_ids))
        hcr_set |= HCR_TLOR;

    vcpu->arch.hcr_el2 |= hcr_set;
}

Here is the call graph for this function:

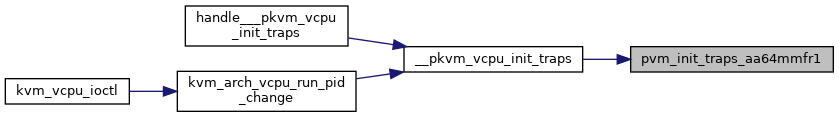

Here is the caller graph for this function:

pvm_init_traps_aa64pfr0()

static void pvm_init_traps_aa64pfr0 ( struct kvm_vcpu *  vcpu )

static

Definition at line 24 of file pkvm.c.

{
    const u64 feature_ids = pvm_read_id_reg(vcpu, SYS_ID_AA64PFR0_EL1);
    u64 hcr_set = HCR_RW;
    u64 hcr_clear = 0;
    u64 cptr_set = 0;
    u64 cptr_clear = 0;

    /* Protected KVM does not support AArch32 guests. */
    BUILD_BUG_ON(FIELD_GET(ARM64_FEATURE_MASK(ID_AA64PFR0_EL1_EL0),
        PVM_ID_AA64PFR0_RESTRICT_UNSIGNED) != ID_AA64PFR0_EL1_ELx_64BIT_ONLY);
    BUILD_BUG_ON(FIELD_GET(ARM64_FEATURE_MASK(ID_AA64PFR0_EL1_EL1),
        PVM_ID_AA64PFR0_RESTRICT_UNSIGNED) != ID_AA64PFR0_EL1_ELx_64BIT_ONLY);

    /*
     * Linux guests assume support for floating-point and Advanced SIMD. Do
     * not change the trapping behavior for these from the KVM default.
     */
    BUILD_BUG_ON(!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64PFR0_EL1_FP),
                PVM_ID_AA64PFR0_ALLOW));
    BUILD_BUG_ON(!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64PFR0_EL1_AdvSIMD),
                PVM_ID_AA64PFR0_ALLOW));

    if (has_hvhe())
        hcr_set |= HCR_E2H;

    /* Trap RAS unless all current versions are supported */
    if (FIELD_GET(ARM64_FEATURE_MASK(ID_AA64PFR0_EL1_RAS), feature_ids) <
        ID_AA64PFR0_EL1_RAS_V1P1) {
        hcr_set |= HCR_TERR | HCR_TEA;
        hcr_clear |= HCR_FIEN;
    }

    /* Trap AMU */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64PFR0_EL1_AMU), feature_ids)) {
        hcr_clear |= HCR_AMVOFFEN;
        cptr_set |= CPTR_EL2_TAM;
    }

    /* Trap SVE */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64PFR0_EL1_SVE), feature_ids)) {
        if (has_hvhe())
            cptr_clear |= CPACR_EL1_ZEN_EL0EN | CPACR_EL1_ZEN_EL1EN;
        else
            cptr_set |= CPTR_EL2_TZ;
    }

    vcpu->arch.hcr_el2 |= hcr_set;
    vcpu->arch.hcr_el2 &= ~hcr_clear;
    vcpu->arch.cptr_el2 |= cptr_set;
    vcpu->arch.cptr_el2 &= ~cptr_clear;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pvm_init_traps_aa64pfr1()

static void pvm_init_traps_aa64pfr1 ( struct kvm_vcpu *  vcpu )

static

Definition at line 80 of file pkvm.c.

{
    const u64 feature_ids = pvm_read_id_reg(vcpu, SYS_ID_AA64PFR1_EL1);
    u64 hcr_set = 0;
    u64 hcr_clear = 0;

    /* Memory Tagging: Trap and Treat as Untagged if not supported. */
    if (!FIELD_GET(ARM64_FEATURE_MASK(ID_AA64PFR1_EL1_MTE), feature_ids)) {
        hcr_set |= HCR_TID5;
        hcr_clear |= HCR_DCT | HCR_ATA;
    }

    vcpu->arch.hcr_el2 |= hcr_set;
    vcpu->arch.hcr_el2 &= ~hcr_clear;
}

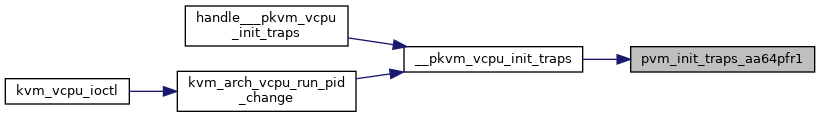

Here is the call graph for this function:

Here is the caller graph for this function:

remove_vm_table_entry()

static void remove_vm_table_entry ( pkvm_handle_t  handle )

static

Definition at line 395 of file pkvm.c.

{
    hyp_assert_lock_held(&vm_table_lock);
    vm_table[vm_handle_to_idx(handle)] = NULL;
}

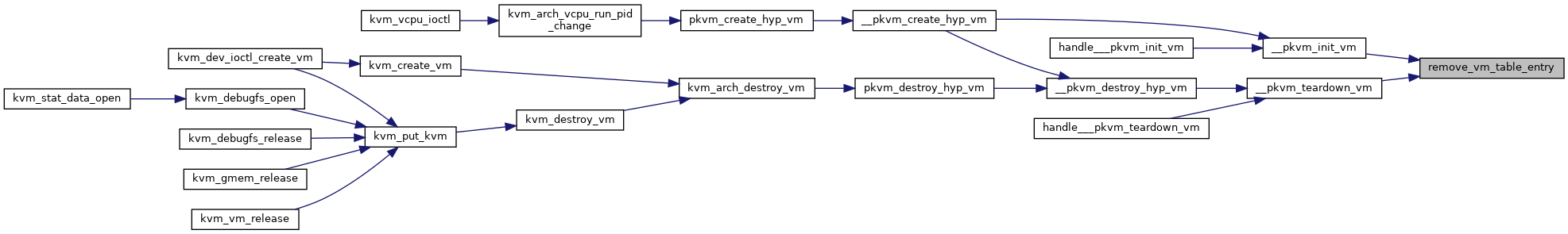

Here is the call graph for this function:

Here is the caller graph for this function:

teardown_donated_memory()

static void teardown_donated_memory ( struct kvm_hyp_memcache *  mc, void *  addr, size_t  size  )

static

Definition at line 581 of file pkvm.c.

{
    size = PAGE_ALIGN(size);
    memset(addr, 0, size);

    for (void *start = addr; start < addr + size; start += PAGE_SIZE)
        push_hyp_memcache(mc, start, hyp_virt_to_phys);

    unmap_donated_memory_noclear(addr, size);
}

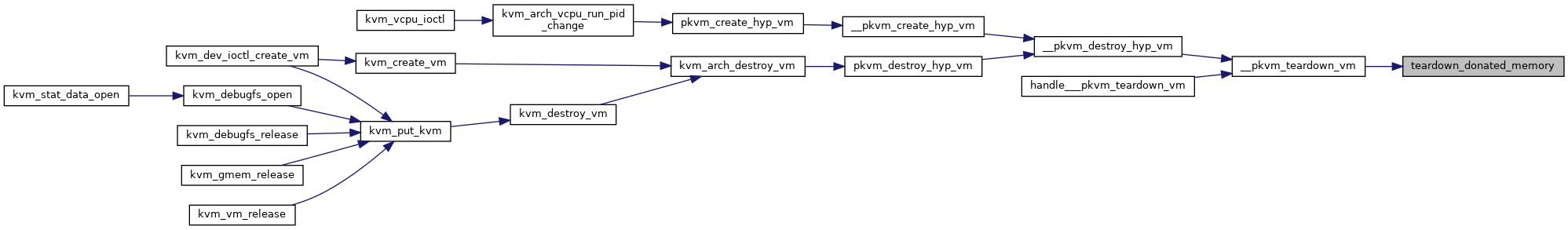

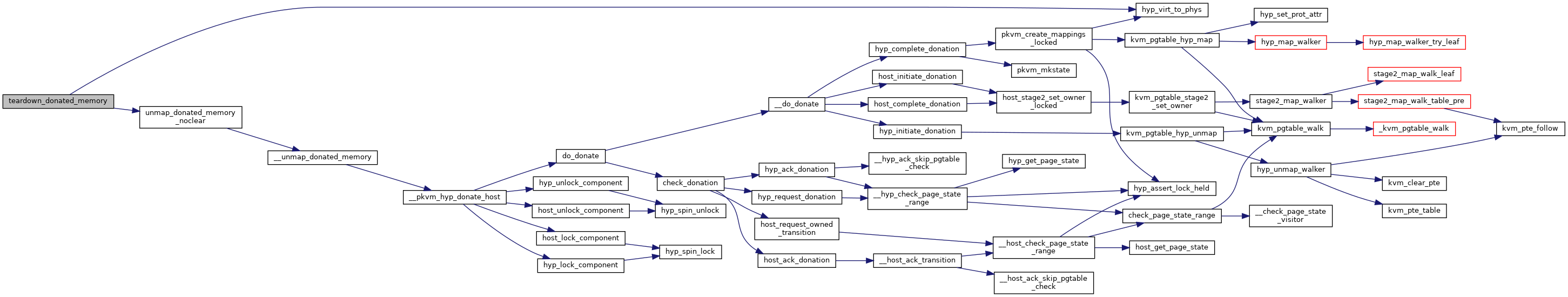

Here is the call graph for this function:

Here is the caller graph for this function:

unmap_donated_memory()

static void unmap_donated_memory ( void *  va, size_t  size  )

static

Definition at line 437 of file pkvm.c.

{
    if (!va)
        return;

    memset(va, 0, size);
    __unmap_donated_memory(va, size);
}

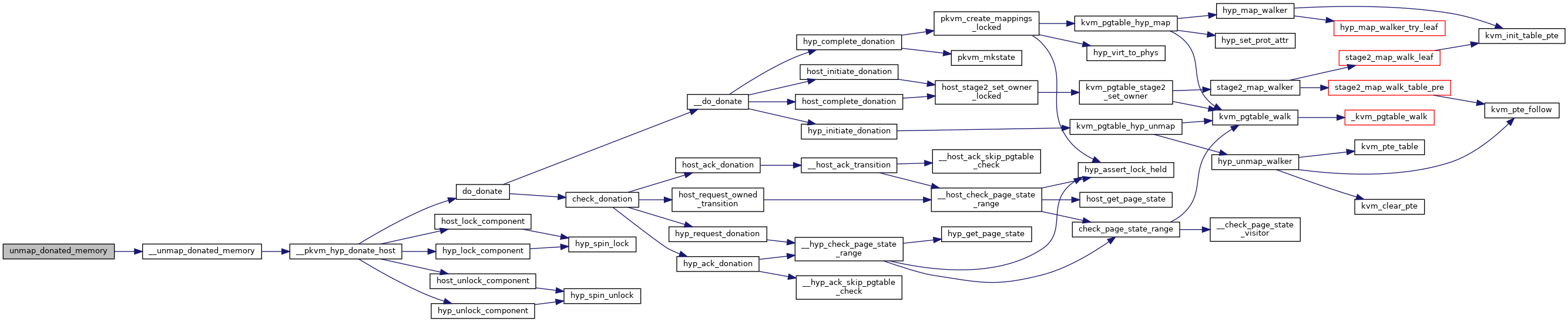

Here is the call graph for this function:

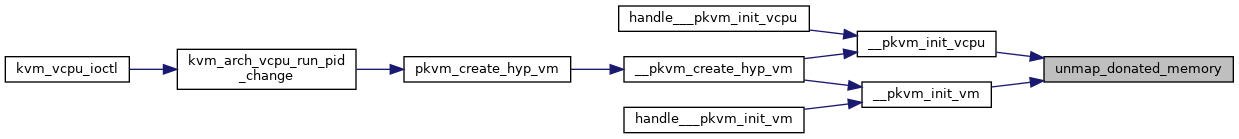

Here is the caller graph for this function:

unmap_donated_memory_noclear()

static void unmap_donated_memory_noclear ( void *  va, size_t  size  )

static

Definition at line 446 of file pkvm.c.

{
    if (!va)
        return;

    __unmap_donated_memory(va, size);
}

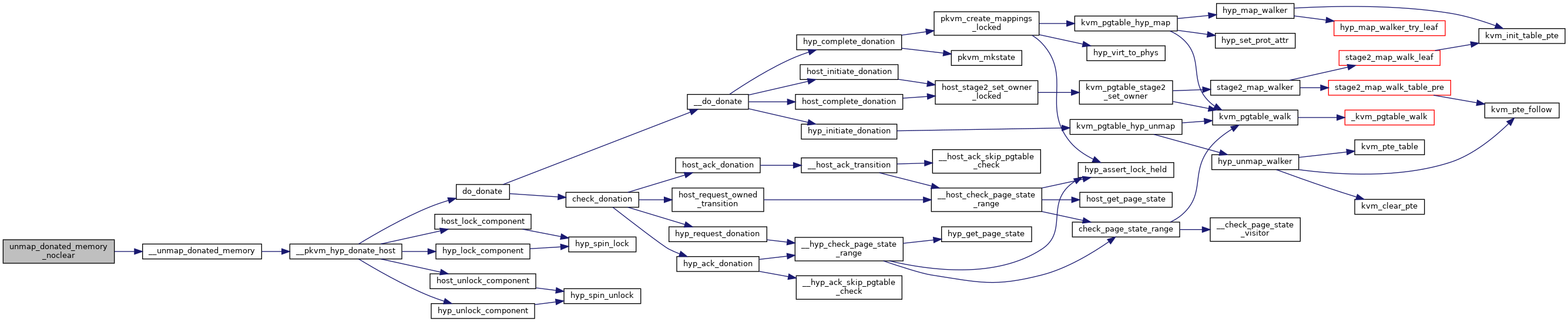

Here is the call graph for this function:

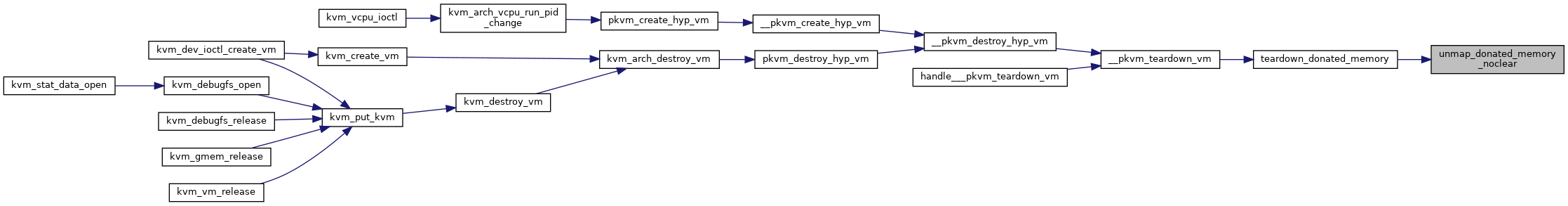

Here is the caller graph for this function:

unpin_host_vcpu()

static void unpin_host_vcpu ( struct kvm_vcpu *  host_vcpu )

static

Definition at line 290 of file pkvm.c.

{
    if (host_vcpu)
        hyp_unpin_shared_mem(host_vcpu, host_vcpu + 1);
}

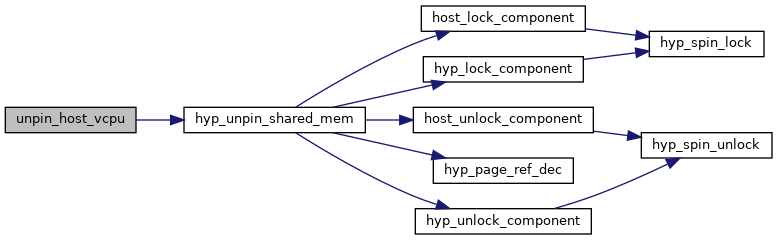

Here is the call graph for this function:

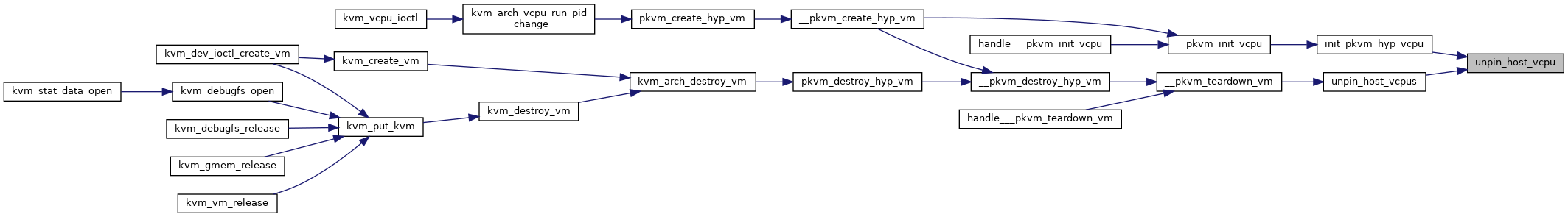

Here is the caller graph for this function:

unpin_host_vcpus()

static void unpin_host_vcpus ( struct pkvm_hyp_vcpu *  hyp_vcpus[], unsigned int  nr_vcpus  )

static

Definition at line 296 of file pkvm.c.

{
    int i;

    for (i = 0; i < nr_vcpus; i++)
        unpin_host_vcpu(hyp_vcpus[i]->host_vcpu);
}

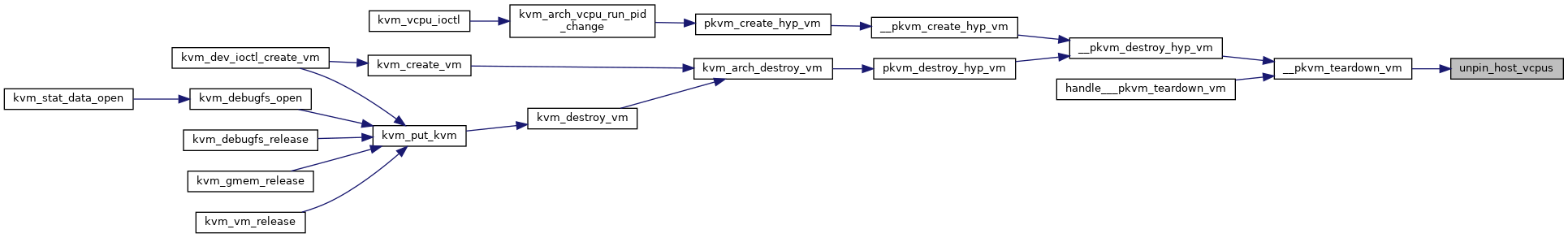

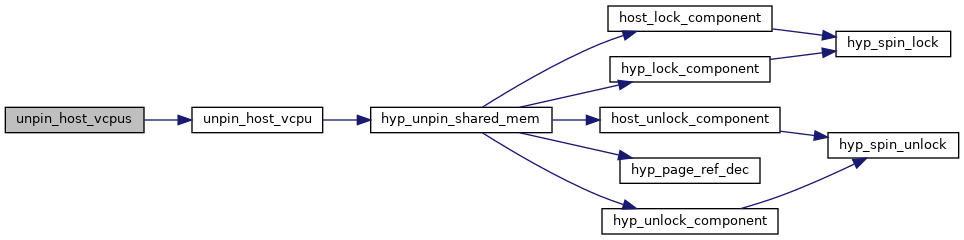

Here is the call graph for this function:

Here is the caller graph for this function:

vm_handle_to_idx()

static unsigned int vm_handle_to_idx ( pkvm_handle_t  handle )

static

Definition at line 221 of file pkvm.c.

{
    return handle - HANDLE_OFFSET;
}

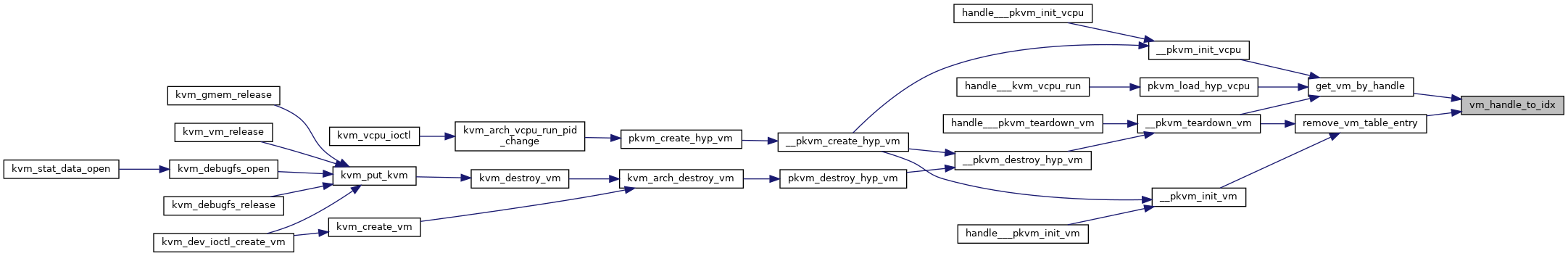

Here is the caller graph for this function:

Variable Documentation

__icache_flags

unsigned long __icache_flags

Definition at line 16 of file pkvm.c.

kvm_arm_vmid_bits

unsigned int kvm_arm_vmid_bits

Definition at line 19 of file pkvm.c.

vm_table

struct pkvm_hyp_vm** vm_table

static

Definition at line 242 of file pkvm.c.
