switch.c File Reference

#include <hyp/switch.h>
#include <linux/arm-smccc.h>
#include <linux/kvm_host.h>
#include <linux/types.h>
#include <linux/jump_label.h>
#include <linux/percpu.h>
#include <uapi/linux/psci.h>
#include <kvm/arm_psci.h>
#include <asm/barrier.h>
#include <asm/cpufeature.h>
#include <asm/kprobes.h>
#include <asm/kvm_asm.h>
#include <asm/kvm_emulate.h>
#include <asm/kvm_hyp.h>
#include <asm/kvm_mmu.h>
#include <asm/fpsimd.h>
#include <asm/debug-monitors.h>
#include <asm/processor.h>
#include <asm/thread_info.h>
#include <asm/vectors.h>

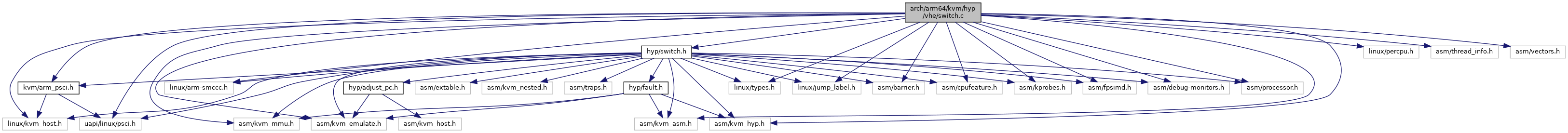

Include dependency graph for switch.c:

Go to the source code of this file.

Functions
	DEFINE_PER_CPU (struct kvm_host_data, kvm_host_data)
	DEFINE_PER_CPU (struct kvm_cpu_context, kvm_hyp_ctxt)
	DEFINE_PER_CPU (unsigned long, kvm_hyp_vector)
static void	__activate_traps (struct kvm_vcpu *vcpu)
	NOKPROBE_SYMBOL (__activate_traps)
static void	__deactivate_traps (struct kvm_vcpu *vcpu)
	NOKPROBE_SYMBOL (__deactivate_traps)
static void	__vcpu_load_activate_traps (struct kvm_vcpu *vcpu)
static void	__vcpu_put_deactivate_traps (struct kvm_vcpu *vcpu)
void	kvm_vcpu_load_vhe (struct kvm_vcpu *vcpu)
void	kvm_vcpu_put_vhe (struct kvm_vcpu *vcpu)
static const exit_handler_fn *	kvm_get_exit_handler_array (struct kvm_vcpu *vcpu)
static void	early_exit_filter (struct kvm_vcpu *vcpu, u64 *exit_code)
static int	__kvm_vcpu_run_vhe (struct kvm_vcpu *vcpu)
	NOKPROBE_SYMBOL (__kvm_vcpu_run_vhe)
int	__kvm_vcpu_run (struct kvm_vcpu *vcpu)
static void	__hyp_call_panic (u64 spsr, u64 elr, u64 par)
	NOKPROBE_SYMBOL (__hyp_call_panic)
void __noreturn	hyp_panic (void)
asmlinkage void	kvm_unexpected_el2_exception (void)

Variables
static const exit_handler_fn	hyp_exit_handlers []

Function Documentation

__activate_traps()

static void __activate_traps ( struct kvm_vcpu *  vcpu )

static

Definition at line 36 of file switch.c.

{
    u64 val;

    ___activate_traps(vcpu);

    if (has_cntpoff()) {
        struct timer_map map;

        get_timer_map(vcpu, &map);

        /*
         * We're entrering the guest. Reload the correct
         * values from memory now that TGE is clear.
         */
        if (map.direct_ptimer == vcpu_ptimer(vcpu))
            val = __vcpu_sys_reg(vcpu, CNTP_CVAL_EL0);
        if (map.direct_ptimer == vcpu_hptimer(vcpu))
            val = __vcpu_sys_reg(vcpu, CNTHP_CVAL_EL2);

        if (map.direct_ptimer) {
            write_sysreg_el0(val, SYS_CNTP_CVAL);
            isb();
        }
    }

    val = read_sysreg(cpacr_el1);
    val |= CPACR_ELx_TTA;
    val &= ~(CPACR_EL1_ZEN_EL0EN | CPACR_EL1_ZEN_EL1EN |
         CPACR_EL1_SMEN_EL0EN | CPACR_EL1_SMEN_EL1EN);

    /*
     * With VHE (HCR.E2H == 1), accesses to CPACR_EL1 are routed to
     * CPTR_EL2. In general, CPACR_EL1 has the same layout as CPTR_EL2,
     * except for some missing controls, such as TAM.
     * In this case, CPTR_EL2.TAM has the same position with or without
     * VHE (HCR.E2H == 1) which allows us to use here the CPTR_EL2.TAM
     * shift value for trapping the AMU accesses.
     */

    val |= CPTR_EL2_TAM;

    if (guest_owns_fp_regs(vcpu)) {
        if (vcpu_has_sve(vcpu))
            val |= CPACR_EL1_ZEN_EL0EN | CPACR_EL1_ZEN_EL1EN;
    } else {
        val &= ~(CPACR_EL1_FPEN_EL0EN | CPACR_EL1_FPEN_EL1EN);
        __activate_traps_fpsimd32(vcpu);
    }

    write_sysreg(val, cpacr_el1);

    write_sysreg(__this_cpu_read(kvm_hyp_vector), vbar_el1);
}

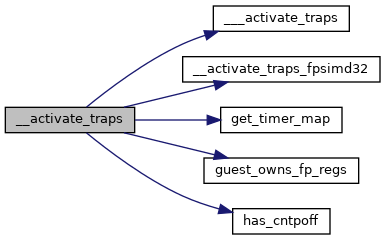

Here is the call graph for this function:

Here is the caller graph for this function:

__deactivate_traps()

static void __deactivate_traps ( struct kvm_vcpu *  vcpu )

static

Definition at line 92 of file switch.c.

{
    const char *host_vectors = vectors;

    ___deactivate_traps(vcpu);

    write_sysreg(HCR_HOST_VHE_FLAGS, hcr_el2);

    if (has_cntpoff()) {
        struct timer_map map;
        u64 val, offset;

        get_timer_map(vcpu, &map);

        /*
         * We're exiting the guest. Save the latest CVAL value
         * to memory and apply the offset now that TGE is set.
         */
        val = read_sysreg_el0(SYS_CNTP_CVAL);
        if (map.direct_ptimer == vcpu_ptimer(vcpu))
            __vcpu_sys_reg(vcpu, CNTP_CVAL_EL0) = val;
        if (map.direct_ptimer == vcpu_hptimer(vcpu))
            __vcpu_sys_reg(vcpu, CNTHP_CVAL_EL2) = val;

        offset = read_sysreg_s(SYS_CNTPOFF_EL2);

        if (map.direct_ptimer && offset) {
            write_sysreg_el0(val + offset, SYS_CNTP_CVAL);
            isb();
        }
    }

    /*
     * ARM errata 1165522 and 1530923 require the actual execution of the
     * above before we can switch to the EL2/EL0 translation regime used by
     * the host.
     */
    asm(ALTERNATIVE("nop", "isb", ARM64_WORKAROUND_SPECULATIVE_AT));

    kvm_reset_cptr_el2(vcpu);

    if (!arm64_kernel_unmapped_at_el0())
        host_vectors = __this_cpu_read(this_cpu_vector);
    write_sysreg(host_vectors, vbar_el1);
}

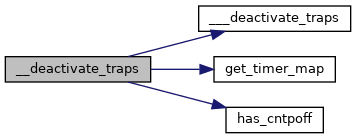

Here is the call graph for this function:

Here is the caller graph for this function:

__hyp_call_panic()

static void __hyp_call_panic ( u64  spsr, u64  elr, u64  par  )

static

Definition at line 304 of file switch.c.

{
    struct kvm_cpu_context *host_ctxt;
    struct kvm_vcpu *vcpu;

    host_ctxt = &this_cpu_ptr(&kvm_host_data)->host_ctxt;
    vcpu = host_ctxt->__hyp_running_vcpu;

    __deactivate_traps(vcpu);
    sysreg_restore_host_state_vhe(host_ctxt);

    panic("HYP panic:\nPS:%08llx PC:%016llx ESR:%08llx\nFAR:%016llx HPFAR:%016llx PAR:%016llx\nVCPU:%p\n",
          spsr, elr,
          read_sysreg_el2(SYS_ESR), read_sysreg_el2(SYS_FAR),
          read_sysreg(hpfar_el2), par, vcpu);
}

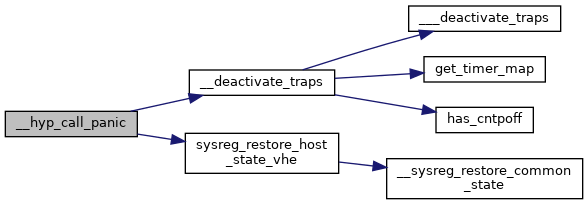

Here is the call graph for this function:

Here is the caller graph for this function:

__kvm_vcpu_run()

int __kvm_vcpu_run

(

struct kvm_vcpu *

vcpu

)

Definition at line 270 of file switch.c.

{
    int ret;

    local_daif_mask();

    /*
     * Having IRQs masked via PMR when entering the guest means the GIC
     * will not signal the CPU of interrupts of lower priority, and the
     * only way to get out will be via guest exceptions.
     * Naturally, we want to avoid this.
     *
     * local_daif_mask() already sets GIC_PRIO_PSR_I_SET, we just need a
     * dsb to ensure the redistributor is forwards EL2 IRQs to the CPU.
     */
    pmr_sync();

    ret = __kvm_vcpu_run_vhe(vcpu);

    /*
     * local_daif_restore() takes care to properly restore PSTATE.DAIF
     * and the GIC PMR if the host is using IRQ priorities.
     */
    local_daif_restore(DAIF_PROCCTX_NOIRQ);

    /*
     * When we exit from the guest we change a number of CPU configuration
     * parameters, such as traps.  We rely on the isb() in kvm_call_hyp*()
     * to make sure these changes take effect before running the host or
     * additional guests.
     */
    return ret;
}

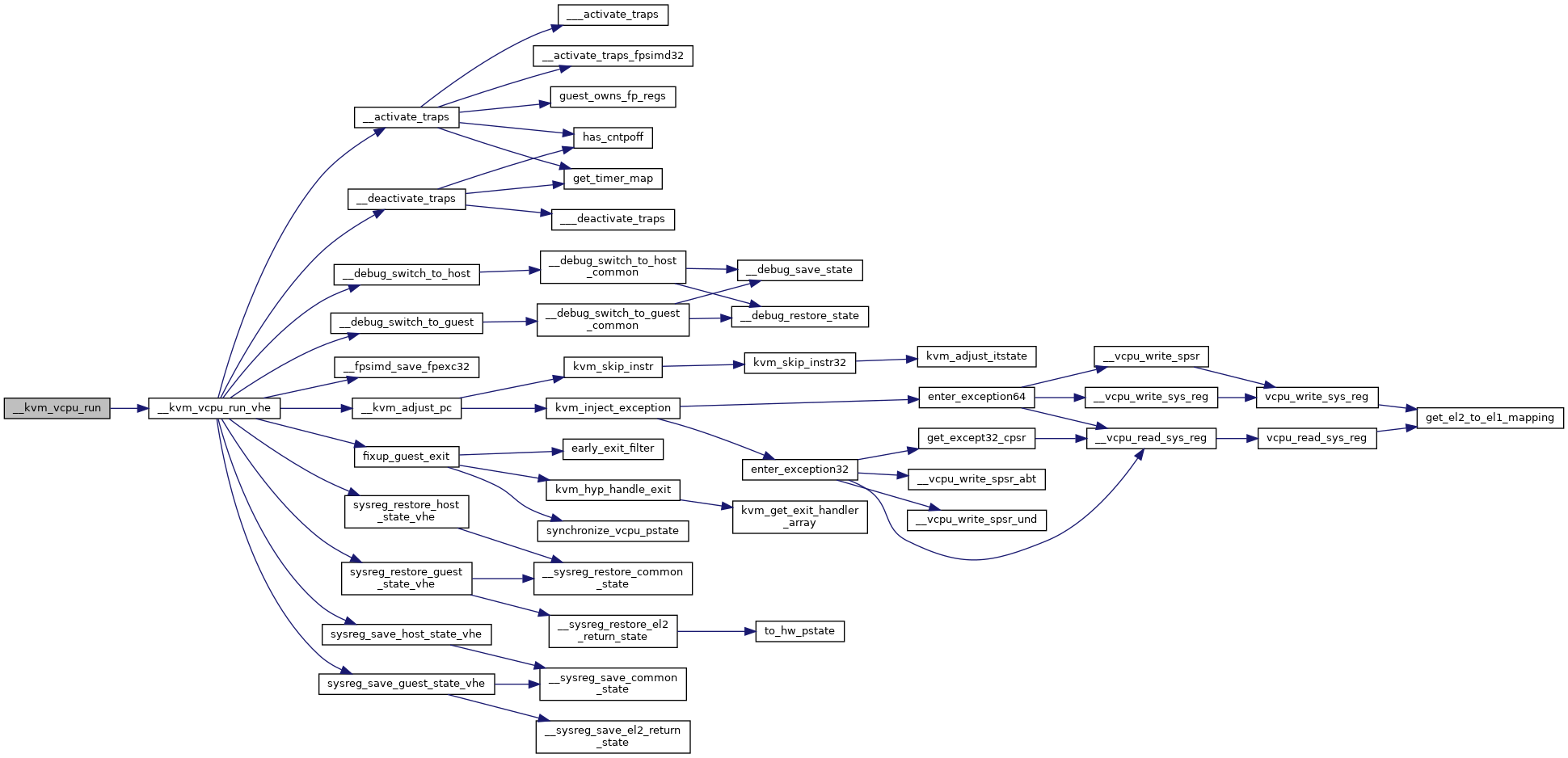

Here is the call graph for this function:

__kvm_vcpu_run_vhe()

static int __kvm_vcpu_run_vhe ( struct kvm_vcpu *  vcpu )

static

Definition at line 218 of file switch.c.

{
    struct kvm_cpu_context *host_ctxt;
    struct kvm_cpu_context *guest_ctxt;
    u64 exit_code;

    host_ctxt = &this_cpu_ptr(&kvm_host_data)->host_ctxt;
    host_ctxt->__hyp_running_vcpu = vcpu;
    guest_ctxt = &vcpu->arch.ctxt;

    sysreg_save_host_state_vhe(host_ctxt);

    /*
     * Note that ARM erratum 1165522 requires us to configure both stage 1
     * and stage 2 translation for the guest context before we clear
     * HCR_EL2.TGE. The stage 1 and stage 2 guest context has already been
     * loaded on the CPU in kvm_vcpu_load_vhe().
     */
    __activate_traps(vcpu);

    __kvm_adjust_pc(vcpu);

    sysreg_restore_guest_state_vhe(guest_ctxt);
    __debug_switch_to_guest(vcpu);

    if (is_hyp_ctxt(vcpu))
        vcpu_set_flag(vcpu, VCPU_HYP_CONTEXT);
    else
        vcpu_clear_flag(vcpu, VCPU_HYP_CONTEXT);

    do {
        /* Jump in the fire! */
        exit_code = __guest_enter(vcpu);

        /* And we're baaack! */
    } while (fixup_guest_exit(vcpu, &exit_code));

    sysreg_save_guest_state_vhe(guest_ctxt);

    __deactivate_traps(vcpu);

    sysreg_restore_host_state_vhe(host_ctxt);

    if (vcpu->arch.fp_state == FP_STATE_GUEST_OWNED)
        __fpsimd_save_fpexc32(vcpu);

    __debug_switch_to_host(vcpu);

    return exit_code;
}

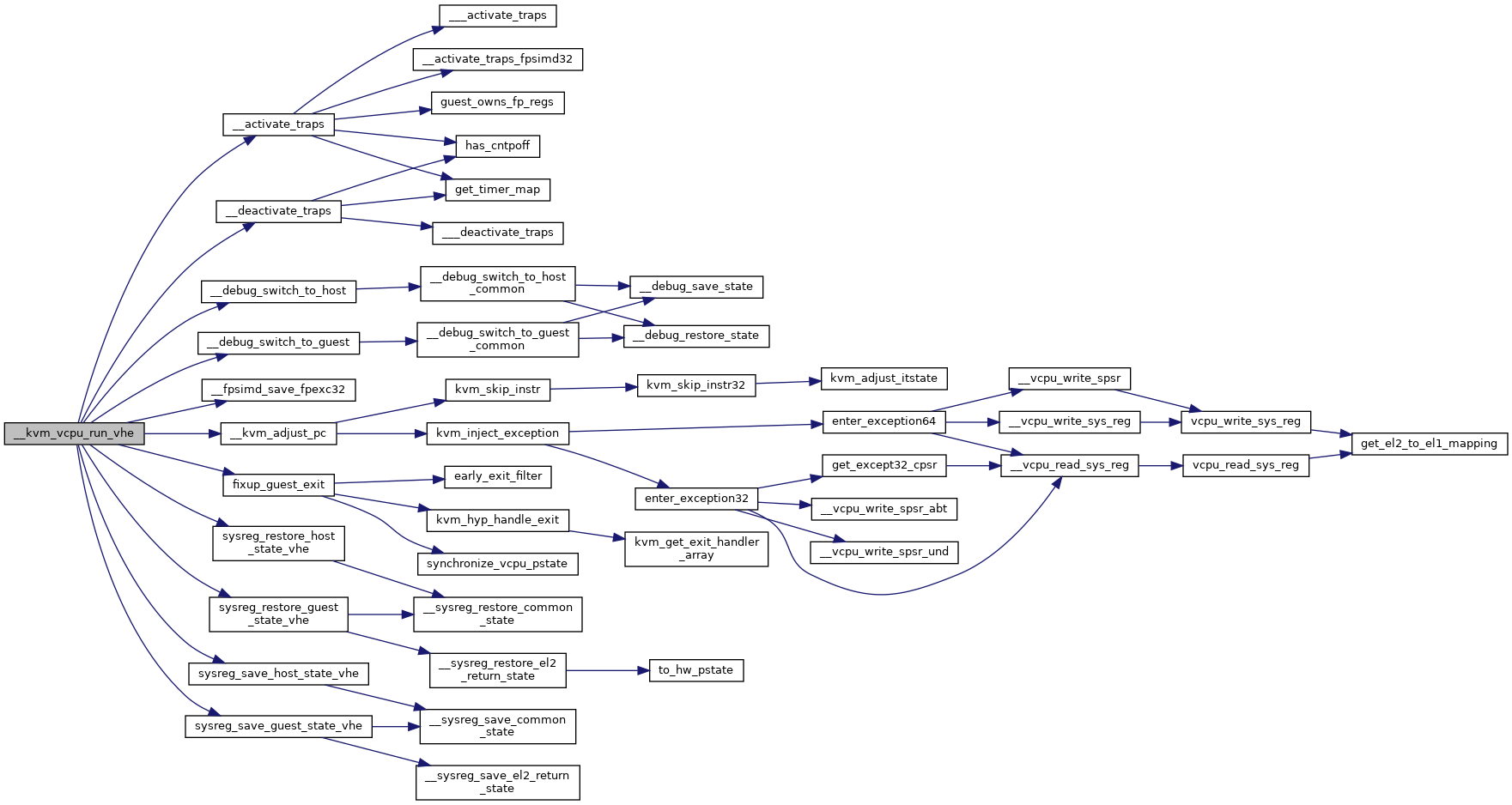

Here is the call graph for this function:

Here is the caller graph for this function:

__vcpu_load_activate_traps()

static void __vcpu_load_activate_traps ( struct kvm_vcpu *  vcpu )

static

Definition at line 145 of file switch.c.

{
    unsigned long flags;

    local_irq_save(flags);
    __activate_traps_common(vcpu);
    local_irq_restore(flags);
}

Here is the call graph for this function:

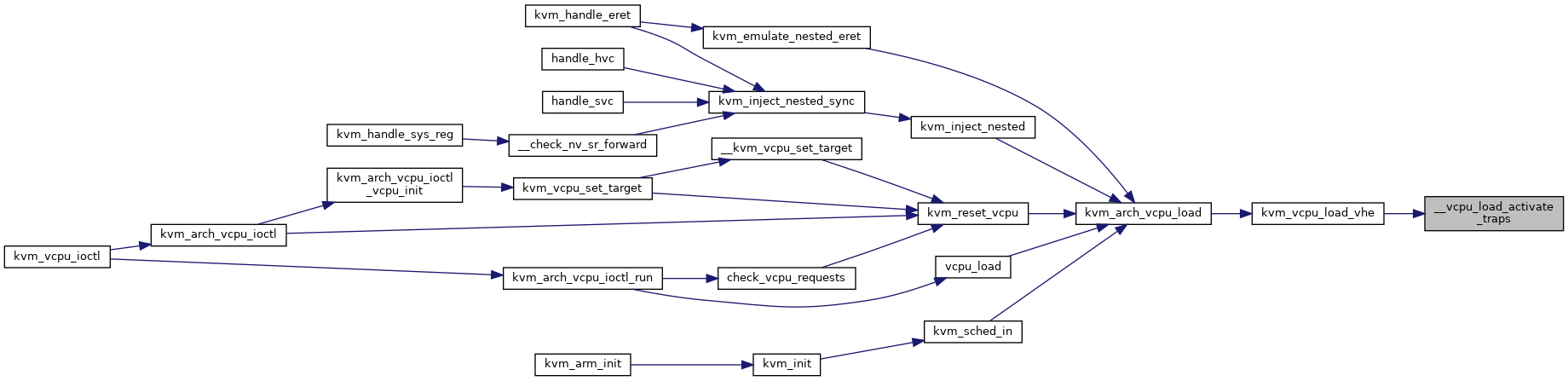

Here is the caller graph for this function:

__vcpu_put_deactivate_traps()

static void __vcpu_put_deactivate_traps ( struct kvm_vcpu *  vcpu )

static

Definition at line 154 of file switch.c.

{
    unsigned long flags;

    local_irq_save(flags);
    __deactivate_traps_common(vcpu);
    local_irq_restore(flags);
}

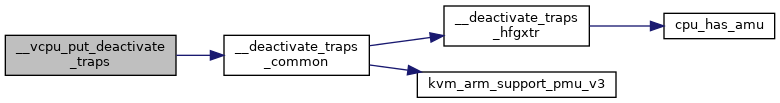

Here is the call graph for this function:

Here is the caller graph for this function:

DEFINE_PER_CPU() [1/3]

DEFINE_PER_CPU	(	struct kvm_cpu_context	,
		kvm_hyp_ctxt
	)

DEFINE_PER_CPU() [2/3]

DEFINE_PER_CPU	(	struct kvm_host_data	,
		kvm_host_data
	)

DEFINE_PER_CPU() [3/3]

DEFINE_PER_CPU	(	unsigned long	,
		kvm_hyp_vector
	)

early_exit_filter()

static void early_exit_filter ( struct kvm_vcpu *  vcpu, u64 *  exit_code  )

static

Definition at line 194 of file switch.c.

{
    /*
     * If we were in HYP context on entry, adjust the PSTATE view
     * so that the usual helpers work correctly.
     */
    if (unlikely(vcpu_get_flag(vcpu, VCPU_HYP_CONTEXT))) {
        u64 mode = *vcpu_cpsr(vcpu) & (PSR_MODE_MASK | PSR_MODE32_BIT);

        switch (mode) {
        case PSR_MODE_EL1t:
            mode = PSR_MODE_EL2t;
            break;
        case PSR_MODE_EL1h:
            mode = PSR_MODE_EL2h;
            break;
        }

        *vcpu_cpsr(vcpu) &= ~(PSR_MODE_MASK | PSR_MODE32_BIT);
        *vcpu_cpsr(vcpu) |= mode;
    }
}

hyp_panic()

void __noreturn hyp_panic

(

void

)

Definition at line 322 of file switch.c.

{
    u64 spsr = read_sysreg_el2(SYS_SPSR);
    u64 elr = read_sysreg_el2(SYS_ELR);
    u64 par = read_sysreg_par();

    __hyp_call_panic(spsr, elr, par);
    unreachable();
}

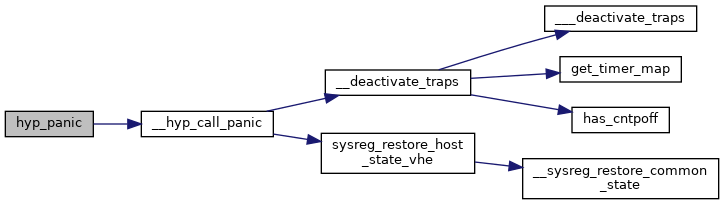

Here is the call graph for this function:

kvm_get_exit_handler_array()

static const exit_handler_fn* kvm_get_exit_handler_array ( struct kvm_vcpu *  vcpu )

static

Definition at line 189 of file switch.c.

{
    return hyp_exit_handlers;
}

kvm_unexpected_el2_exception()

asmlinkage void kvm_unexpected_el2_exception

(

void

)

Definition at line 332 of file switch.c.

{
    __kvm_unexpected_el2_exception();
}

Here is the call graph for this function:

kvm_vcpu_load_vhe()

void kvm_vcpu_load_vhe

(

struct kvm_vcpu *

vcpu

)

Definition at line 163 of file switch.c.

{
    __vcpu_load_switch_sysregs(vcpu);
    __vcpu_load_activate_traps(vcpu);
    __load_stage2(vcpu->arch.hw_mmu, vcpu->arch.hw_mmu->arch);
}

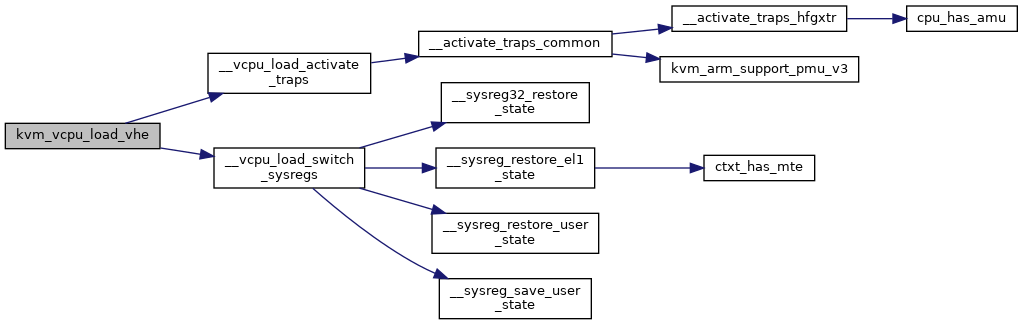

Here is the call graph for this function:

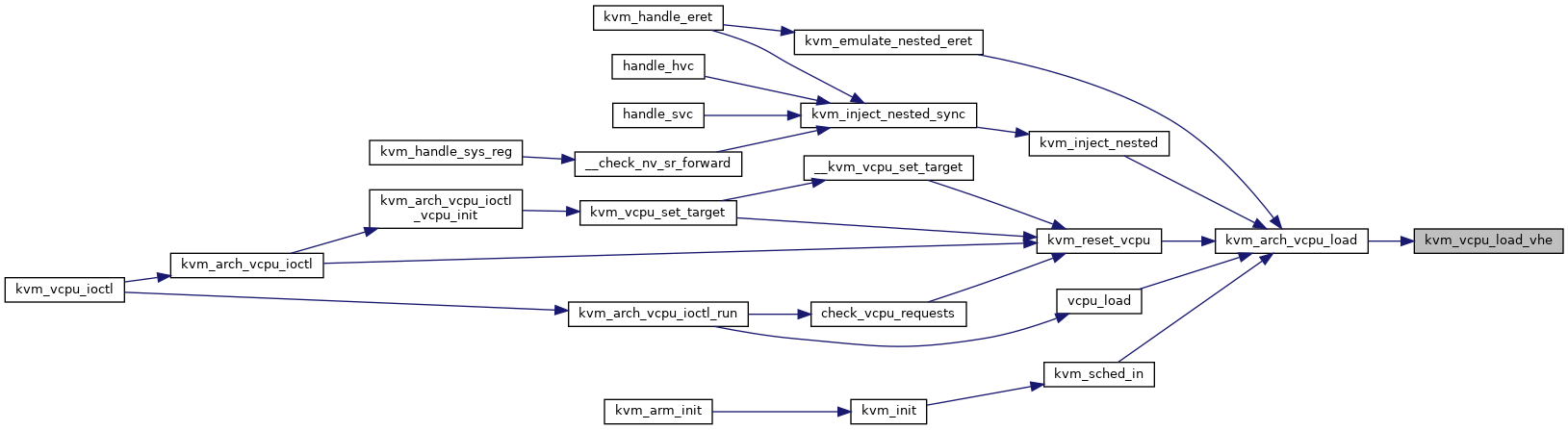

Here is the caller graph for this function:

kvm_vcpu_put_vhe()

void kvm_vcpu_put_vhe

(

struct kvm_vcpu *

vcpu

)

Definition at line 170 of file switch.c.

{
    __vcpu_put_deactivate_traps(vcpu);
    __vcpu_put_switch_sysregs(vcpu);
}

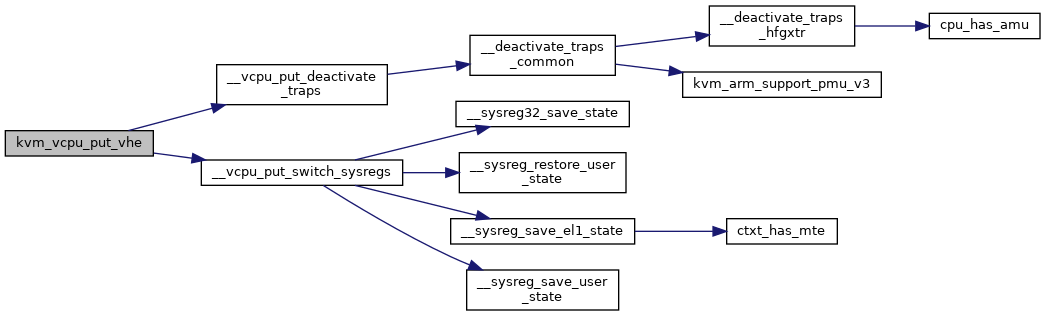

Here is the call graph for this function:

Here is the caller graph for this function:

NOKPROBE_SYMBOL() [1/4]

NOKPROBE_SYMBOL

(

__activate_traps

)

NOKPROBE_SYMBOL() [2/4]

NOKPROBE_SYMBOL

(

__deactivate_traps

)

NOKPROBE_SYMBOL() [3/4]

NOKPROBE_SYMBOL

(

__hyp_call_panic

)

NOKPROBE_SYMBOL() [4/4]

NOKPROBE_SYMBOL

(

__kvm_vcpu_run_vhe

)

Variable Documentation

hyp_exit_handlers

const exit_handler_fn hyp_exit_handlers[]

static

Initial value:

= {
    [0 ... ESR_ELx_EC_MAX]      = NULL,
    [ESR_ELx_EC_CP15_32]        = kvm_hyp_handle_cp15_32,
    [ESR_ELx_EC_SYS64]      = kvm_hyp_handle_sysreg,
    [ESR_ELx_EC_SVE]        = kvm_hyp_handle_fpsimd,
    [ESR_ELx_EC_FP_ASIMD]       = kvm_hyp_handle_fpsimd,
    [ESR_ELx_EC_IABT_LOW]       = kvm_hyp_handle_iabt_low,
    [ESR_ELx_EC_DABT_LOW]       = kvm_hyp_handle_dabt_low,
    [ESR_ELx_EC_WATCHPT_LOW]    = kvm_hyp_handle_watchpt_low,
    [ESR_ELx_EC_PAC]        = kvm_hyp_handle_ptrauth,
    [ESR_ELx_EC_MOPS]       = kvm_hyp_handle_mops,
}

Definition at line 176 of file switch.c.
