hyp-main.c File Reference
#include <hyp/adjust_pc.h>
#include <asm/pgtable-types.h>
#include <asm/kvm_asm.h>
#include <asm/kvm_emulate.h>
#include <asm/kvm_host.h>
#include <asm/kvm_hyp.h>
#include <asm/kvm_mmu.h>
#include <nvhe/ffa.h>
#include <nvhe/mem_protect.h>
#include <nvhe/mm.h>
#include <nvhe/pkvm.h>
#include <nvhe/trap_handler.h>

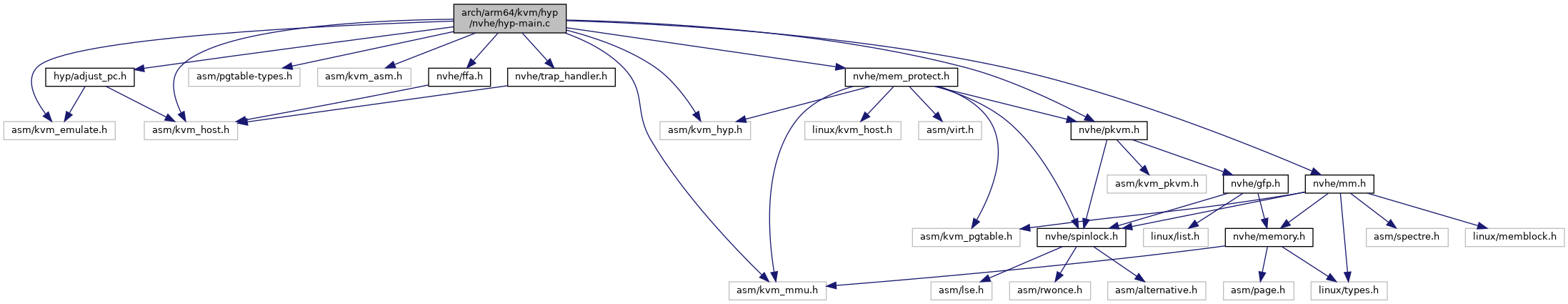

Include dependency graph for hyp-main.c:

Go to the source code of this file.

Macros

#define HANDLE_FUNC(x)   [__KVM_HOST_SMCCC_FUNC_##x] = (hcall_t)handle_##x


Typedefs

typedef void(* hcall_t) (struct kvm_cpu_context *)


Functions

 DEFINE_PER_CPU (struct kvm_nvhe_init_params, kvm_init_params)

void __kvm_hyp_host_forward_smc (struct kvm_cpu_context *host_ctxt)

static void flush_hyp_vcpu (struct pkvm_hyp_vcpu *hyp_vcpu)

static void sync_hyp_vcpu (struct pkvm_hyp_vcpu *hyp_vcpu)

static void handle___kvm_vcpu_run (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_adjust_pc (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_flush_vm_context (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_tlb_flush_vmid_ipa (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_tlb_flush_vmid_ipa_nsh (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_tlb_flush_vmid_range (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_tlb_flush_vmid (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_flush_cpu_context (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_timer_set_cntvoff (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_enable_ssbs (struct kvm_cpu_context *host_ctxt)

static void handle___vgic_v3_get_gic_config (struct kvm_cpu_context *host_ctxt)

static void handle___vgic_v3_read_vmcr (struct kvm_cpu_context *host_ctxt)

static void handle___vgic_v3_write_vmcr (struct kvm_cpu_context *host_ctxt)

static void handle___vgic_v3_init_lrs (struct kvm_cpu_context *host_ctxt)

static void handle___kvm_get_mdcr_el2 (struct kvm_cpu_context *host_ctxt)

static void handle___vgic_v3_save_aprs (struct kvm_cpu_context *host_ctxt)

static void handle___vgic_v3_restore_aprs (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_init (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_cpu_set_vector (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_host_share_hyp (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_host_unshare_hyp (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_create_private_mapping (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_prot_finalize (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_vcpu_init_traps (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_init_vm (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_init_vcpu (struct kvm_cpu_context *host_ctxt)

static void handle___pkvm_teardown_vm (struct kvm_cpu_context *host_ctxt)

static void handle_host_hcall (struct kvm_cpu_context *host_ctxt)

static void default_host_smc_handler (struct kvm_cpu_context *host_ctxt)

static void handle_host_smc (struct kvm_cpu_context *host_ctxt)

void handle_trap (struct kvm_cpu_context *host_ctxt)


Variables

static const hcall_t host_hcall []


Macro Definition Documentation

◆ HANDLE_FUNC

#define HANDLE_FUNC (   x)    [__KVM_HOST_SMCCC_FUNC_##x] = (hcall_t)handle_##x

Definition at line 319 of file hyp-main.c.

Typedef Documentation

◆ hcall_t

typedef void(* hcall_t) (struct kvm_cpu_context *)

Definition at line 317 of file hyp-main.c.

Function Documentation

◆ __kvm_hyp_host_forward_smc()

void __kvm_hyp_host_forward_smc ( struct kvm_cpu_context *  host_ctxt)
Here is the caller graph for this function:

◆ default_host_smc_handler()

static void default_host_smc_handler ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 389 of file hyp-main.c.

390 {
391  __kvm_hyp_host_forward_smc(host_ctxt);
392 }
void __kvm_hyp_host_forward_smc(struct kvm_cpu_context *host_ctxt)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ DEFINE_PER_CPU()

DEFINE_PER_CPU ( struct kvm_nvhe_init_params  ,
kvm_init_params
)

◆ flush_hyp_vcpu()

static void flush_hyp_vcpu ( struct pkvm_hyp_vcpu hyp_vcpu)
static

Definition at line 26 of file hyp-main.c.

27 {
28  struct kvm_vcpu *host_vcpu = hyp_vcpu->host_vcpu;
29
30  hyp_vcpu->vcpu.arch.ctxt = host_vcpu->arch.ctxt;
31
32  hyp_vcpu->vcpu.arch.sve_state = kern_hyp_va(host_vcpu->arch.sve_state);
33  hyp_vcpu->vcpu.arch.sve_max_vl = host_vcpu->arch.sve_max_vl;
34
35  hyp_vcpu->vcpu.arch.hw_mmu = host_vcpu->arch.hw_mmu;
36
37  hyp_vcpu->vcpu.arch.hcr_el2 = host_vcpu->arch.hcr_el2;
38  hyp_vcpu->vcpu.arch.mdcr_el2 = host_vcpu->arch.mdcr_el2;
39  hyp_vcpu->vcpu.arch.cptr_el2 = host_vcpu->arch.cptr_el2;
40
41  hyp_vcpu->vcpu.arch.iflags = host_vcpu->arch.iflags;
42  hyp_vcpu->vcpu.arch.fp_state = host_vcpu->arch.fp_state;
43
44  hyp_vcpu->vcpu.arch.debug_ptr = kern_hyp_va(host_vcpu->arch.debug_ptr);
45  hyp_vcpu->vcpu.arch.host_fpsimd_state = host_vcpu->arch.host_fpsimd_state;
46
47  hyp_vcpu->vcpu.arch.vsesr_el2 = host_vcpu->arch.vsesr_el2;
48
49  hyp_vcpu->vcpu.arch.vgic_cpu.vgic_v3 = host_vcpu->arch.vgic_cpu.vgic_v3;
50 }
struct kvm_vcpu vcpu
Definition: pkvm.h:19
struct kvm_vcpu * host_vcpu
Definition: pkvm.h:22
Here is the caller graph for this function:

◆ handle___kvm_adjust_pc()

static void handle___kvm_adjust_pc ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 108 of file hyp-main.c.

109 {
110  DECLARE_REG(struct kvm_vcpu *, vcpu, host_ctxt, 1);
111
112  __kvm_adjust_pc(kern_hyp_va(vcpu));
113 }
void __kvm_adjust_pc(struct kvm_vcpu *vcpu)
Definition: exception.c:365
#define DECLARE_REG(type, name, ctxt, reg)
Definition: trap_handler.h:15
Here is the call graph for this function:

◆ handle___kvm_enable_ssbs()

static void handle___kvm_enable_ssbs ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 167 of file hyp-main.c.

168 {
169  u64 tmp;
170
171  tmp = read_sysreg_el2(SYS_SCTLR);
172  tmp |= SCTLR_ELx_DSSBS;
173  write_sysreg_el2(tmp, SYS_SCTLR);
174 }

◆ handle___kvm_flush_cpu_context()

static void handle___kvm_flush_cpu_context ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 155 of file hyp-main.c.

156 {
157  DECLARE_REG(struct kvm_s2_mmu *, mmu, host_ctxt, 1);
158
159  __kvm_flush_cpu_context(kern_hyp_va(mmu));
160 }
void __kvm_flush_cpu_context(struct kvm_s2_mmu *mmu)
Definition: tlb.c:182
Here is the call graph for this function:

◆ handle___kvm_flush_vm_context()

static void handle___kvm_flush_vm_context ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 115 of file hyp-main.c.

116 {
118 }
void __kvm_flush_vm_context(void)
Definition: tlb.c:197
Here is the call graph for this function:

◆ handle___kvm_get_mdcr_el2()

static void handle___kvm_get_mdcr_el2 ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 196 of file hyp-main.c.

197 {
198  cpu_reg(host_ctxt, 1) = __kvm_get_mdcr_el2();
199 }
u64 __kvm_get_mdcr_el2(void)
Definition: debug-sr.c:110
#define cpu_reg(ctxt, r)
Definition: trap_handler.h:14
Here is the call graph for this function:

◆ handle___kvm_timer_set_cntvoff()

static void handle___kvm_timer_set_cntvoff ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 162 of file hyp-main.c.

163 {
164  __kvm_timer_set_cntvoff(cpu_reg(host_ctxt, 1));
165 }
void __kvm_timer_set_cntvoff(u64 cntvoff)
Definition: timer-sr.c:14
Here is the call graph for this function:

◆ handle___kvm_tlb_flush_vmid()

static void handle___kvm_tlb_flush_vmid ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 148 of file hyp-main.c.

149 {
150  DECLARE_REG(struct kvm_s2_mmu *, mmu, host_ctxt, 1);
151
152  __kvm_tlb_flush_vmid(kern_hyp_va(mmu));
153 }
void __kvm_tlb_flush_vmid(struct kvm_s2_mmu *mmu)
Definition: tlb.c:168
Here is the call graph for this function:

◆ handle___kvm_tlb_flush_vmid_ipa()

static void handle___kvm_tlb_flush_vmid_ipa ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 120 of file hyp-main.c.

121 {
122  DECLARE_REG(struct kvm_s2_mmu *, mmu, host_ctxt, 1);
123  DECLARE_REG(phys_addr_t, ipa, host_ctxt, 2);
124  DECLARE_REG(int, level, host_ctxt, 3);
125
126  __kvm_tlb_flush_vmid_ipa(kern_hyp_va(mmu), ipa, level);
127 }
void __kvm_tlb_flush_vmid_ipa(struct kvm_s2_mmu *mmu, phys_addr_t ipa, int level)
Definition: tlb.c:81
Here is the call graph for this function:

◆ handle___kvm_tlb_flush_vmid_ipa_nsh()

static void handle___kvm_tlb_flush_vmid_ipa_nsh ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 129 of file hyp-main.c.

130 {
131  DECLARE_REG(struct kvm_s2_mmu *, mmu, host_ctxt, 1);
132  DECLARE_REG(phys_addr_t, ipa, host_ctxt, 2);
133  DECLARE_REG(int, level, host_ctxt, 3);
134
135  __kvm_tlb_flush_vmid_ipa_nsh(kern_hyp_va(mmu), ipa, level);
136 }
void __kvm_tlb_flush_vmid_ipa_nsh(struct kvm_s2_mmu *mmu, phys_addr_t ipa, int level)
Definition: tlb.c:111
Here is the call graph for this function:

◆ handle___kvm_tlb_flush_vmid_range()

static void handle___kvm_tlb_flush_vmid_range ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 139 of file hyp-main.c.

140 {
141  DECLARE_REG(struct kvm_s2_mmu *, mmu, host_ctxt, 1);
142  DECLARE_REG(phys_addr_t, start, host_ctxt, 2);
143  DECLARE_REG(unsigned long, pages, host_ctxt, 3);
144
145  __kvm_tlb_flush_vmid_range(kern_hyp_va(mmu), start, pages);
146 }
void __kvm_tlb_flush_vmid_range(struct kvm_s2_mmu *mmu, phys_addr_t start, unsigned long pages)
Definition: tlb.c:141
Here is the call graph for this function:

◆ handle___kvm_vcpu_run()

static void handle___kvm_vcpu_run ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 74 of file hyp-main.c.

75 {
76  DECLARE_REG(struct kvm_vcpu *, host_vcpu, host_ctxt, 1);
77  int ret;
78
79  host_vcpu = kern_hyp_va(host_vcpu);
80
81  if (unlikely(is_protected_kvm_enabled())) {
82  struct pkvm_hyp_vcpu *hyp_vcpu;
83  struct kvm *host_kvm;
84
85  host_kvm = kern_hyp_va(host_vcpu->kvm);
86  hyp_vcpu = pkvm_load_hyp_vcpu(host_kvm->arch.pkvm.handle,
87  host_vcpu->vcpu_idx);
88  if (!hyp_vcpu) {
89  ret = -EINVAL;
90  goto out;
91  }
92
93  flush_hyp_vcpu(hyp_vcpu);
94
95  ret = __kvm_vcpu_run(&hyp_vcpu->vcpu);
96
97  sync_hyp_vcpu(hyp_vcpu);
98  pkvm_put_hyp_vcpu(hyp_vcpu);
99  } else {
100  /* The host is fully trusted, run its vCPU directly. */
101  ret = __kvm_vcpu_run(host_vcpu);
102  }
103
104 out:
105  cpu_reg(host_ctxt, 1) = ret;
106 }
static void flush_hyp_vcpu(struct pkvm_hyp_vcpu *hyp_vcpu)
Definition: hyp-main.c:26
static void sync_hyp_vcpu(struct pkvm_hyp_vcpu *hyp_vcpu)
Definition: hyp-main.c:52
int __kvm_vcpu_run(struct kvm_vcpu *vcpu)
Definition: switch.c:248
struct pkvm_hyp_vcpu * pkvm_load_hyp_vcpu(pkvm_handle_t handle, unsigned int vcpu_idx)
Definition: pkvm.c:263
void pkvm_put_hyp_vcpu(struct pkvm_hyp_vcpu *hyp_vcpu)
Definition: pkvm.c:281
Here is the call graph for this function:

◆ handle___pkvm_cpu_set_vector()

static void handle___pkvm_cpu_set_vector ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 232 of file hyp-main.c.

233 {
234  DECLARE_REG(enum arm64_hyp_spectre_vector, slot, host_ctxt, 1);
235
236  cpu_reg(host_ctxt, 1) = pkvm_cpu_set_vector(slot);
237 }
int pkvm_cpu_set_vector(enum arm64_hyp_spectre_vector slot)
Definition: mm.c:182
Here is the call graph for this function:

◆ handle___pkvm_create_private_mapping()

static void handle___pkvm_create_private_mapping ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 253 of file hyp-main.c.

254 {
255  DECLARE_REG(phys_addr_t, phys, host_ctxt, 1);
256  DECLARE_REG(size_t, size, host_ctxt, 2);
257  DECLARE_REG(enum kvm_pgtable_prot, prot, host_ctxt, 3);
258
259  /*
260  * __pkvm_create_private_mapping() populates a pointer with the
261  * hypervisor start address of the allocation.
262  *
263  * However, handle___pkvm_create_private_mapping() hypercall crosses the
264  * EL1/EL2 boundary so the pointer would not be valid in this context.
265  *
266  * Instead pass the allocation address as the return value (or return
267  * ERR_PTR() on failure).
268  */
269  unsigned long haddr;
270  int err = __pkvm_create_private_mapping(phys, size, prot, &haddr);
271
272  if (err)
273  haddr = (unsigned long)ERR_PTR(err);
274
275  cpu_reg(host_ctxt, 1) = haddr;
276 }
size_t size
Definition: gen-hyprel.c:133
int __pkvm_create_private_mapping(phys_addr_t phys, size_t size, enum kvm_pgtable_prot prot, unsigned long *haddr)
Definition: mm.c:93
Here is the call graph for this function:

◆ handle___pkvm_host_share_hyp()

static void handle___pkvm_host_share_hyp ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 239 of file hyp-main.c.

240 {
241  DECLARE_REG(u64, pfn, host_ctxt, 1);
242
243  cpu_reg(host_ctxt, 1) = __pkvm_host_share_hyp(pfn);
244 }
int __pkvm_host_share_hyp(u64 pfn)
Definition: mem_protect.c:1086
Here is the call graph for this function:

◆ handle___pkvm_host_unshare_hyp()

static void handle___pkvm_host_unshare_hyp ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 246 of file hyp-main.c.

247 {
248  DECLARE_REG(u64, pfn, host_ctxt, 1);
249
250  cpu_reg(host_ctxt, 1) = __pkvm_host_unshare_hyp(pfn);
251 }
int __pkvm_host_unshare_hyp(u64 pfn)
Definition: mem_protect.c:1119
Here is the call graph for this function:

◆ handle___pkvm_init()

static void handle___pkvm_init ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 215 of file hyp-main.c.

216 {
217  DECLARE_REG(phys_addr_t, phys, host_ctxt, 1);
218  DECLARE_REG(unsigned long, size, host_ctxt, 2);
219  DECLARE_REG(unsigned long, nr_cpus, host_ctxt, 3);
220  DECLARE_REG(unsigned long *, per_cpu_base, host_ctxt, 4);
221  DECLARE_REG(u32, hyp_va_bits, host_ctxt, 5);
222
223  /*
224  * __pkvm_init() will return only if an error occurred, otherwise it
225  * will tail-call in __pkvm_init_finalise() which will have to deal
226  * with the host context directly.
227  */
228  cpu_reg(host_ctxt, 1) = __pkvm_init(phys, size, nr_cpus, per_cpu_base,
229  hyp_va_bits);
230 }
int __pkvm_init(phys_addr_t phys, unsigned long size, unsigned long nr_cpus, unsigned long *per_cpu_base, u32 hyp_va_bits)
Definition: setup.c:314
Here is the call graph for this function:

◆ handle___pkvm_init_vcpu()

static void handle___pkvm_init_vcpu ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 300 of file hyp-main.c.

301 {
302  DECLARE_REG(pkvm_handle_t, handle, host_ctxt, 1);
303  DECLARE_REG(struct kvm_vcpu *, host_vcpu, host_ctxt, 2);
304  DECLARE_REG(unsigned long, vcpu_hva, host_ctxt, 3);
305
306  host_vcpu = kern_hyp_va(host_vcpu);
307  cpu_reg(host_ctxt, 1) = __pkvm_init_vcpu(handle, host_vcpu, vcpu_hva);
308 }
int __pkvm_init_vcpu(pkvm_handle_t handle, struct kvm_vcpu *host_vcpu, unsigned long vcpu_hva)
Definition: pkvm.c:539
Here is the call graph for this function:

◆ handle___pkvm_init_vm()

static void handle___pkvm_init_vm ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 290 of file hyp-main.c.

291 {
292  DECLARE_REG(struct kvm *, host_kvm, host_ctxt, 1);
293  DECLARE_REG(unsigned long, vm_hva, host_ctxt, 2);
294  DECLARE_REG(unsigned long, pgd_hva, host_ctxt, 3);
295
296  host_kvm = kern_hyp_va(host_kvm);
297  cpu_reg(host_ctxt, 1) = __pkvm_init_vm(host_kvm, vm_hva, pgd_hva);
298 }
int __pkvm_init_vm(struct kvm *host_kvm, unsigned long vm_hva, unsigned long pgd_hva)
Definition: pkvm.c:470
Here is the call graph for this function:

◆ handle___pkvm_prot_finalize()

static void handle___pkvm_prot_finalize ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 278 of file hyp-main.c.

279 {
280  cpu_reg(host_ctxt, 1) = __pkvm_prot_finalize();
281 }
int __pkvm_prot_finalize(void)
Definition: mem_protect.c:289
Here is the call graph for this function:

◆ handle___pkvm_teardown_vm()

static void handle___pkvm_teardown_vm ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 310 of file hyp-main.c.

311 {
312  DECLARE_REG(pkvm_handle_t, handle, host_ctxt, 1);
313
314  cpu_reg(host_ctxt, 1) = __pkvm_teardown_vm(handle);
315 }
int __pkvm_teardown_vm(pkvm_handle_t handle)
Definition: pkvm.c:592
Here is the call graph for this function:

◆ handle___pkvm_vcpu_init_traps()

static void handle___pkvm_vcpu_init_traps ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 283 of file hyp-main.c.

284 {
285  DECLARE_REG(struct kvm_vcpu *, vcpu, host_ctxt, 1);
286
287  __pkvm_vcpu_init_traps(kern_hyp_va(vcpu));
288 }
void __pkvm_vcpu_init_traps(struct kvm_vcpu *vcpu)
Definition: pkvm.c:205
Here is the call graph for this function:

◆ handle___vgic_v3_get_gic_config()

static void handle___vgic_v3_get_gic_config ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 176 of file hyp-main.c.

177 {
178  cpu_reg(host_ctxt, 1) = __vgic_v3_get_gic_config();
179 }
u64 __vgic_v3_get_gic_config(void)
Definition: vgic-v3-sr.c:414
Here is the call graph for this function:

◆ handle___vgic_v3_init_lrs()

static void handle___vgic_v3_init_lrs ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 191 of file hyp-main.c.

192 {
194 }
void __vgic_v3_init_lrs(void)
Definition: vgic-v3-sr.c:399
Here is the call graph for this function:

◆ handle___vgic_v3_read_vmcr()

static void handle___vgic_v3_read_vmcr ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 181 of file hyp-main.c.

182 {
183  cpu_reg(host_ctxt, 1) = __vgic_v3_read_vmcr();
184 }
u64 __vgic_v3_read_vmcr(void)
Definition: vgic-v3-sr.c:458
Here is the call graph for this function:

◆ handle___vgic_v3_restore_aprs()

static void handle___vgic_v3_restore_aprs ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 208 of file hyp-main.c.

209 {
210  DECLARE_REG(struct vgic_v3_cpu_if *, cpu_if, host_ctxt, 1);
211
212  __vgic_v3_restore_aprs(kern_hyp_va(cpu_if));
213 }
void __vgic_v3_restore_aprs(struct vgic_v3_cpu_if *cpu_if)
Definition: vgic-v3-sr.c:366
Here is the call graph for this function:

◆ handle___vgic_v3_save_aprs()

static void handle___vgic_v3_save_aprs ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 201 of file hyp-main.c.

202 {
203  DECLARE_REG(struct vgic_v3_cpu_if *, cpu_if, host_ctxt, 1);
204
205  __vgic_v3_save_aprs(kern_hyp_va(cpu_if));
206 }
void __vgic_v3_save_aprs(struct vgic_v3_cpu_if *cpu_if)
Definition: vgic-v3-sr.c:333
Here is the call graph for this function:

◆ handle___vgic_v3_write_vmcr()

static void handle___vgic_v3_write_vmcr ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 186 of file hyp-main.c.

187 {
188  __vgic_v3_write_vmcr(cpu_reg(host_ctxt, 1));
189 }
void __vgic_v3_write_vmcr(u32 vmcr)
Definition: vgic-v3-sr.c:463
Here is the call graph for this function:

◆ handle_host_hcall()

static void handle_host_hcall ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 353 of file hyp-main.c.

354 {
355  DECLARE_REG(unsigned long, id, host_ctxt, 0);
356  unsigned long hcall_min = 0;
357  hcall_t hfn;
358
359  /*
360  * If pKVM has been initialised then reject any calls to the
361  * early "privileged" hypercalls. Note that we cannot reject
362  * calls to __pkvm_prot_finalize for two reasons: (1) The static
363  * key used to determine initialisation must be toggled prior to
364  * finalisation and (2) finalisation is performed on a per-CPU
365  * basis. This is all fine, however, since __pkvm_prot_finalize
366  * returns -EPERM after the first call for a given CPU.
367  */
368  if (static_branch_unlikely(&kvm_protected_mode_initialized))
369  hcall_min = __KVM_HOST_SMCCC_FUNC___pkvm_prot_finalize;
370
371  id &= ~ARM_SMCCC_CALL_HINTS;
372  id -= KVM_HOST_SMCCC_ID(0);
373
374  if (unlikely(id < hcall_min || id >= ARRAY_SIZE(host_hcall)))
375  goto inval;
376
377  hfn = host_hcall[id];
378  if (unlikely(!hfn))
379  goto inval;
380
381  cpu_reg(host_ctxt, 0) = SMCCC_RET_SUCCESS;
382  hfn(host_ctxt);
383
384  return;
385 inval:
386  cpu_reg(host_ctxt, 0) = SMCCC_RET_NOT_SUPPORTED;
387 }
static const hcall_t host_hcall[]
Definition: hyp-main.c:321
void(* hcall_t)(struct kvm_cpu_context *)
Definition: hyp-main.c:317
Here is the caller graph for this function:

◆ handle_host_smc()

static void handle_host_smc ( struct kvm_cpu_context *  host_ctxt)
static

Definition at line 394 of file hyp-main.c.

395 {
396  DECLARE_REG(u64, func_id, host_ctxt, 0);
397  bool handled;
398
399  func_id &= ~ARM_SMCCC_CALL_HINTS;
400
401  handled = kvm_host_psci_handler(host_ctxt, func_id);
402  if (!handled)
403  handled = kvm_host_ffa_handler(host_ctxt, func_id);
404  if (!handled)
405  default_host_smc_handler(host_ctxt);
406
407  /* SMC was trapped, move ELR past the current PC. */
409 }
static void kvm_skip_host_instr(void)
Definition: adjust_pc.h:48
bool kvm_host_ffa_handler(struct kvm_cpu_context *host_ctxt, u32 func_id)
Definition: ffa.c:643
static void default_host_smc_handler(struct kvm_cpu_context *host_ctxt)
Definition: hyp-main.c:389
bool kvm_host_psci_handler(struct kvm_cpu_context *host_ctxt, u32 func_id)
Definition: psci-relay.c:276
Here is the call graph for this function:
Here is the caller graph for this function:

◆ handle_trap()

void handle_trap ( struct kvm_cpu_context *  host_ctxt)

Definition at line 411 of file hyp-main.c.

412 {
413  u64 esr = read_sysreg_el2(SYS_ESR);
414
415  switch (ESR_ELx_EC(esr)) {
416  case ESR_ELx_EC_HVC64:
417  handle_host_hcall(host_ctxt);
418  break;
419  case ESR_ELx_EC_SMC64:
420  handle_host_smc(host_ctxt);
421  break;
422  case ESR_ELx_EC_SVE:
423  if (has_hvhe())
424  sysreg_clear_set(cpacr_el1, 0, (CPACR_EL1_ZEN_EL1EN |
425  CPACR_EL1_ZEN_EL0EN));
426  else
427  sysreg_clear_set(cptr_el2, CPTR_EL2_TZ, 0);
428  isb();
429  sve_cond_update_zcr_vq(ZCR_ELx_LEN_MASK, SYS_ZCR_EL2);
430  break;
431  case ESR_ELx_EC_IABT_LOW:
432  case ESR_ELx_EC_DABT_LOW:
433  handle_host_mem_abort(host_ctxt);
434  break;
435  default:
436  BUG();
437  }
438 }
static void handle_host_smc(struct kvm_cpu_context *host_ctxt)
Definition: hyp-main.c:394
static void handle_host_hcall(struct kvm_cpu_context *host_ctxt)
Definition: hyp-main.c:353
void handle_host_mem_abort(struct kvm_cpu_context *host_ctxt)
Definition: mem_protect.c:529
Here is the call graph for this function:

◆ sync_hyp_vcpu()

static void sync_hyp_vcpu ( struct pkvm_hyp_vcpu hyp_vcpu)
static

Definition at line 52 of file hyp-main.c.

53 {
54  struct kvm_vcpu *host_vcpu = hyp_vcpu->host_vcpu;
55  struct vgic_v3_cpu_if *hyp_cpu_if = &hyp_vcpu->vcpu.arch.vgic_cpu.vgic_v3;
56  struct vgic_v3_cpu_if *host_cpu_if = &host_vcpu->arch.vgic_cpu.vgic_v3;
57  unsigned int i;
58
59  host_vcpu->arch.ctxt = hyp_vcpu->vcpu.arch.ctxt;
60
61  host_vcpu->arch.hcr_el2 = hyp_vcpu->vcpu.arch.hcr_el2;
62  host_vcpu->arch.cptr_el2 = hyp_vcpu->vcpu.arch.cptr_el2;
63
64  host_vcpu->arch.fault = hyp_vcpu->vcpu.arch.fault;
65
66  host_vcpu->arch.iflags = hyp_vcpu->vcpu.arch.iflags;
67  host_vcpu->arch.fp_state = hyp_vcpu->vcpu.arch.fp_state;
68
69  host_cpu_if->vgic_hcr = hyp_cpu_if->vgic_hcr;
70  for (i = 0; i < hyp_cpu_if->used_lrs; ++i)
71  host_cpu_if->vgic_lr[i] = hyp_cpu_if->vgic_lr[i];
72 }
unsigned int used_lrs
Definition: arm_vgic.h:322
u64 vgic_lr[VGIC_V3_MAX_LRS]
Definition: arm_vgic.h:312
Here is the caller graph for this function:

Variable Documentation

◆ host_hcall

const hcall_t host_hcall[]
static

Definition at line 321 of file hyp-main.c.
