reset.c File Reference

#include <linux/errno.h>
#include <linux/kernel.h>
#include <linux/kvm_host.h>
#include <linux/kvm.h>
#include <linux/hw_breakpoint.h>
#include <linux/slab.h>
#include <linux/string.h>
#include <linux/types.h>
#include <kvm/arm_arch_timer.h>
#include <asm/cpufeature.h>
#include <asm/cputype.h>
#include <asm/fpsimd.h>
#include <asm/ptrace.h>
#include <asm/kvm_arm.h>
#include <asm/kvm_asm.h>
#include <asm/kvm_emulate.h>
#include <asm/kvm_mmu.h>
#include <asm/kvm_nested.h>
#include <asm/virt.h>

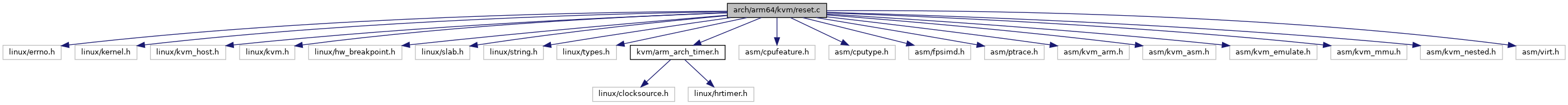

Include dependency graph for reset.c:

Go to the source code of this file.

Macros
#define	VCPU_RESET_PSTATE_EL1
#define	VCPU_RESET_PSTATE_EL2
#define	VCPU_RESET_PSTATE_SVC

Functions
int __init	kvm_arm_init_sve (void)
static void	kvm_vcpu_enable_sve (struct kvm_vcpu *vcpu)
static int	kvm_vcpu_finalize_sve (struct kvm_vcpu *vcpu)
int	kvm_arm_vcpu_finalize (struct kvm_vcpu *vcpu, int feature)
bool	kvm_arm_vcpu_is_finalized (struct kvm_vcpu *vcpu)
void	kvm_arm_vcpu_destroy (struct kvm_vcpu *vcpu)
static void	kvm_vcpu_reset_sve (struct kvm_vcpu *vcpu)
static void	kvm_vcpu_enable_ptrauth (struct kvm_vcpu *vcpu)
void	kvm_reset_vcpu (struct kvm_vcpu *vcpu)
u32	get_kvm_ipa_limit (void)
int __init	kvm_set_ipa_limit (void)

Variables
static u32 __ro_after_init	kvm_ipa_limit
unsigned int __ro_after_init	kvm_sve_max_vl

Macro Definition Documentation

VCPU_RESET_PSTATE_EL1

#define VCPU_RESET_PSTATE_EL1

Value:

                 (PSR_MODE_EL1h | PSR_A_BIT | PSR_I_BIT | \
                 PSR_F_BIT | PSR_D_BIT)

Definition at line 39 of file reset.c.

VCPU_RESET_PSTATE_EL2

#define VCPU_RESET_PSTATE_EL2

Value:

                 (PSR_MODE_EL2h | PSR_A_BIT | PSR_I_BIT | \
                 PSR_F_BIT | PSR_D_BIT)

Definition at line 42 of file reset.c.

VCPU_RESET_PSTATE_SVC

#define VCPU_RESET_PSTATE_SVC

Value:

                 (PSR_AA32_MODE_SVC | PSR_AA32_A_BIT | \
                 PSR_AA32_I_BIT | PSR_AA32_F_BIT)

Definition at line 45 of file reset.c.

Function Documentation

get_kvm_ipa_limit()

u32 get_kvm_ipa_limit

(

void

)

Definition at line 269 of file reset.c.

{
    return kvm_ipa_limit;
}

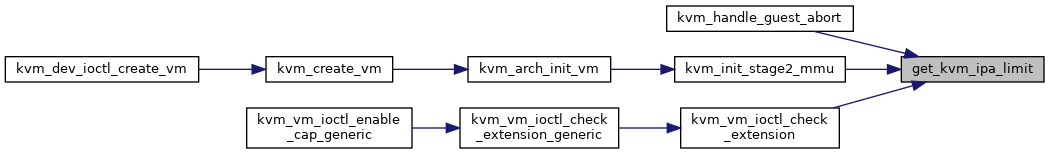

Here is the caller graph for this function:

kvm_arm_init_sve()

int __init kvm_arm_init_sve

(

void

)

Definition at line 50 of file reset.c.

{
    if (system_supports_sve()) {
        kvm_sve_max_vl = sve_max_virtualisable_vl();

        /*
         * The get_sve_reg()/set_sve_reg() ioctl interface will need
         * to be extended with multiple register slice support in
         * order to support vector lengths greater than
         * VL_ARCH_MAX:
         */
        if (WARN_ON(kvm_sve_max_vl > VL_ARCH_MAX))
            kvm_sve_max_vl = VL_ARCH_MAX;

        /*
         * Don't even try to make use of vector lengths that
         * aren't available on all CPUs, for now:
         */
        if (kvm_sve_max_vl < sve_max_vl())
            pr_warn("KVM: SVE vector length for guests limited to %u bytes\n",
                kvm_sve_max_vl);
    }

    return 0;
}

Here is the caller graph for this function:

kvm_arm_vcpu_destroy()

void kvm_arm_vcpu_destroy

(

struct kvm_vcpu *

vcpu

)

Definition at line 150 of file reset.c.

{
    void *sve_state = vcpu->arch.sve_state;

    kvm_vcpu_unshare_task_fp(vcpu);
    kvm_unshare_hyp(vcpu, vcpu + 1);
    if (sve_state)
        kvm_unshare_hyp(sve_state, sve_state + vcpu_sve_state_size(vcpu));
    kfree(sve_state);
    kfree(vcpu->arch.ccsidr);
}

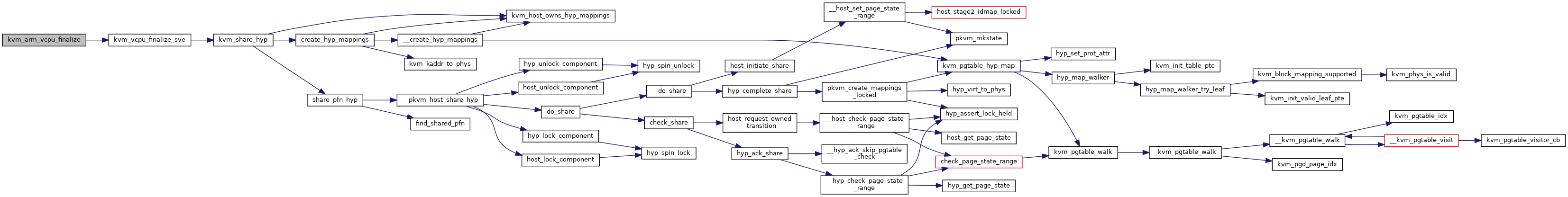

Here is the call graph for this function:

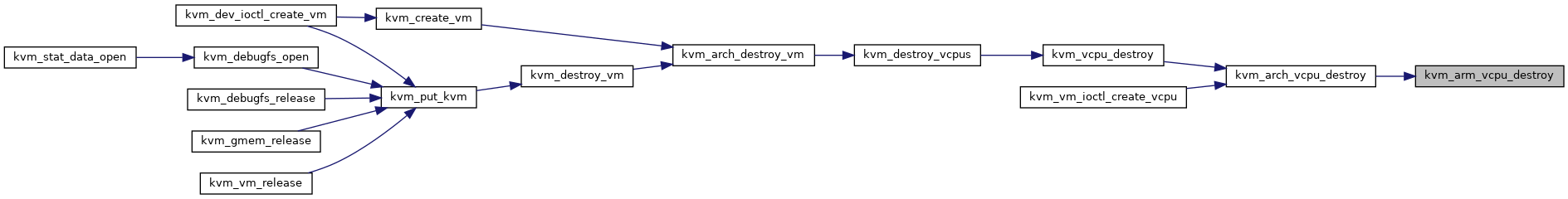

Here is the caller graph for this function:

kvm_arm_vcpu_finalize()

int kvm_arm_vcpu_finalize	(	struct kvm_vcpu *	vcpu,
		int	feature
	)

Definition at line 126 of file reset.c.

{
    switch (feature) {
    case KVM_ARM_VCPU_SVE:
        if (!vcpu_has_sve(vcpu))
            return -EINVAL;

        if (kvm_arm_vcpu_sve_finalized(vcpu))
            return -EPERM;

        return kvm_vcpu_finalize_sve(vcpu);
    }

    return -EINVAL;
}

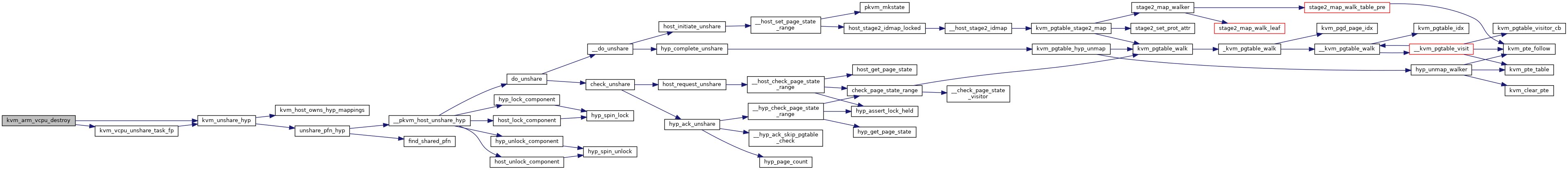

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_arm_vcpu_is_finalized()

bool kvm_arm_vcpu_is_finalized

(

struct kvm_vcpu *

vcpu

)

Definition at line 142 of file reset.c.

{
    if (vcpu_has_sve(vcpu) && !kvm_arm_vcpu_sve_finalized(vcpu))
        return false;

    return true;
}

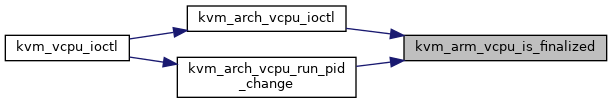

Here is the caller graph for this function:

kvm_reset_vcpu()

void kvm_reset_vcpu

(

struct kvm_vcpu *

vcpu

)

kvm_reset_vcpu - sets core registers and sys_regs to reset value @vcpu: The VCPU pointer

This function sets the registers on the virtual CPU struct to their architecturally defined reset values, except for registers whose reset is deferred until kvm_arm_vcpu_finalize().

Note: This function can be called from two paths: The KVM_ARM_VCPU_INIT ioctl or as part of handling a request issued by another VCPU in the PSCI handling code. In the first case, the VCPU will not be loaded, and in the second case the VCPU will be loaded. Because this function operates purely on the memory-backed values of system registers, we want to do a full put if we were loaded (handling a request) and load the values back at the end of the function. Otherwise we leave the state alone. In both cases, we disable preemption around the vcpu reset as we would otherwise race with preempt notifiers which also call put/load.

Definition at line 191 of file reset.c.

{
    struct vcpu_reset_state reset_state;
    bool loaded;
    u32 pstate;

    spin_lock(&vcpu->arch.mp_state_lock);
    reset_state = vcpu->arch.reset_state;
    vcpu->arch.reset_state.reset = false;
    spin_unlock(&vcpu->arch.mp_state_lock);

    /* Reset PMU outside of the non-preemptible section */
    kvm_pmu_vcpu_reset(vcpu);

    preempt_disable();
    loaded = (vcpu->cpu != -1);
    if (loaded)
        kvm_arch_vcpu_put(vcpu);

    if (!kvm_arm_vcpu_sve_finalized(vcpu)) {
        if (vcpu_has_feature(vcpu, KVM_ARM_VCPU_SVE))
            kvm_vcpu_enable_sve(vcpu);
    } else {
        kvm_vcpu_reset_sve(vcpu);
    }

    if (vcpu_has_feature(vcpu, KVM_ARM_VCPU_PTRAUTH_ADDRESS) ||
        vcpu_has_feature(vcpu, KVM_ARM_VCPU_PTRAUTH_GENERIC))
        kvm_vcpu_enable_ptrauth(vcpu);

    if (vcpu_el1_is_32bit(vcpu))
        pstate = VCPU_RESET_PSTATE_SVC;
    else if (vcpu_has_nv(vcpu))
        pstate = VCPU_RESET_PSTATE_EL2;
    else
        pstate = VCPU_RESET_PSTATE_EL1;

    /* Reset core registers */
    memset(vcpu_gp_regs(vcpu), 0, sizeof(*vcpu_gp_regs(vcpu)));
    memset(&vcpu->arch.ctxt.fp_regs, 0, sizeof(vcpu->arch.ctxt.fp_regs));
    vcpu->arch.ctxt.spsr_abt = 0;
    vcpu->arch.ctxt.spsr_und = 0;
    vcpu->arch.ctxt.spsr_irq = 0;
    vcpu->arch.ctxt.spsr_fiq = 0;
    vcpu_gp_regs(vcpu)->pstate = pstate;

    /* Reset system registers */
    kvm_reset_sys_regs(vcpu);

    /*
     * Additional reset state handling that PSCI may have imposed on us.
     * Must be done after all the sys_reg reset.
     */
    if (reset_state.reset) {
        unsigned long target_pc = reset_state.pc;

        /* Gracefully handle Thumb2 entry point */
        if (vcpu_mode_is_32bit(vcpu) && (target_pc & 1)) {
            target_pc &= ~1UL;
            vcpu_set_thumb(vcpu);
        }

        /* Propagate caller endianness */
        if (reset_state.be)
            kvm_vcpu_set_be(vcpu);

        *vcpu_pc(vcpu) = target_pc;
        vcpu_set_reg(vcpu, 0, reset_state.r0);
    }

    /* Reset timer */
    kvm_timer_vcpu_reset(vcpu);

    if (loaded)
        kvm_arch_vcpu_load(vcpu, smp_processor_id());
    preempt_enable();
}

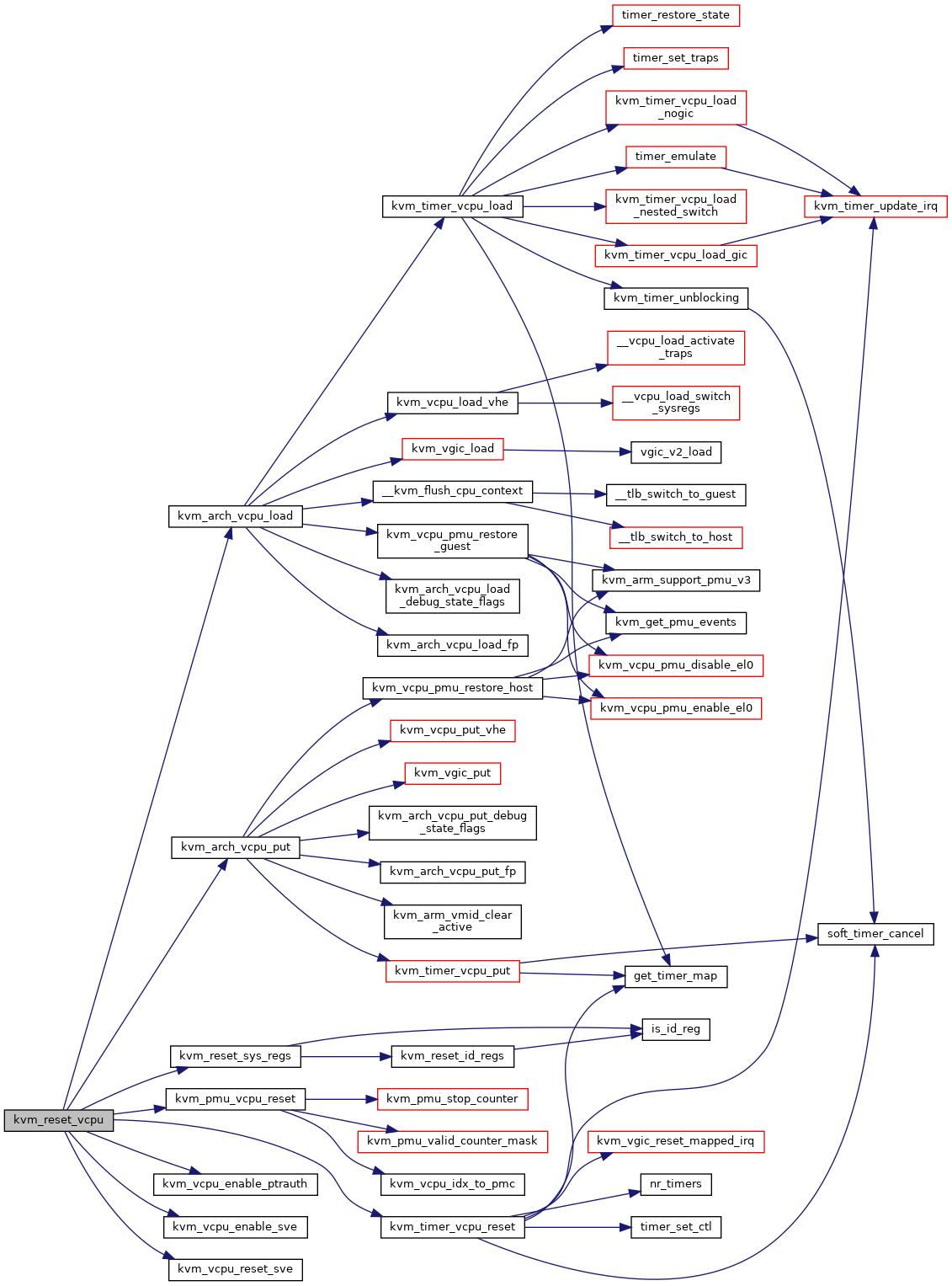

Here is the call graph for this function:

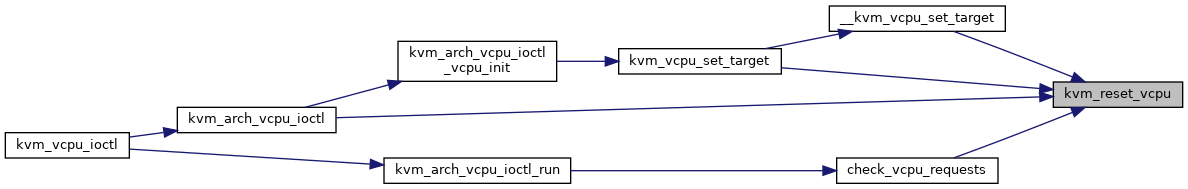

Here is the caller graph for this function:

kvm_set_ipa_limit()

int __init kvm_set_ipa_limit

(

void

)

Definition at line 274 of file reset.c.

{
    unsigned int parange;
    u64 mmfr0;

    mmfr0 = read_sanitised_ftr_reg(SYS_ID_AA64MMFR0_EL1);
    parange = cpuid_feature_extract_unsigned_field(mmfr0,
                ID_AA64MMFR0_EL1_PARANGE_SHIFT);
    /*
     * IPA size beyond 48 bits for 4K and 16K page size is only supported
     * when LPA2 is available. So if we have LPA2, enable it, else cap to 48
     * bits, in case it's reported as larger on the system.
     */
    if (!kvm_lpa2_is_enabled() && PAGE_SIZE != SZ_64K)
        parange = min(parange, (unsigned int)ID_AA64MMFR0_EL1_PARANGE_48);

    /*
     * Check with ARMv8.5-GTG that our PAGE_SIZE is supported at
     * Stage-2. If not, things will stop very quickly.
     */
    switch (cpuid_feature_extract_unsigned_field(mmfr0, ID_AA64MMFR0_EL1_TGRAN_2_SHIFT)) {
    case ID_AA64MMFR0_EL1_TGRAN_2_SUPPORTED_NONE:
        kvm_err("PAGE_SIZE not supported at Stage-2, giving up\n");
        return -EINVAL;
    case ID_AA64MMFR0_EL1_TGRAN_2_SUPPORTED_DEFAULT:
        kvm_debug("PAGE_SIZE supported at Stage-2 (default)\n");
        break;
    case ID_AA64MMFR0_EL1_TGRAN_2_SUPPORTED_MIN ... ID_AA64MMFR0_EL1_TGRAN_2_SUPPORTED_MAX:
        kvm_debug("PAGE_SIZE supported at Stage-2 (advertised)\n");
        break;
    default:
        kvm_err("Unsupported value for TGRAN_2, giving up\n");
        return -EINVAL;
    }

    kvm_ipa_limit = id_aa64mmfr0_parange_to_phys_shift(parange);
    kvm_info("IPA Size Limit: %d bits%s\n", kvm_ipa_limit,
         ((kvm_ipa_limit < KVM_PHYS_SHIFT) ?
          " (Reduced IPA size, limited VM/VMM compatibility)" : ""));

    return 0;
}

Here is the caller graph for this function:

kvm_vcpu_enable_ptrauth()

static void kvm_vcpu_enable_ptrauth ( struct kvm_vcpu *  vcpu )

static

Definition at line 168 of file reset.c.

{
    vcpu_set_flag(vcpu, GUEST_HAS_PTRAUTH);
}

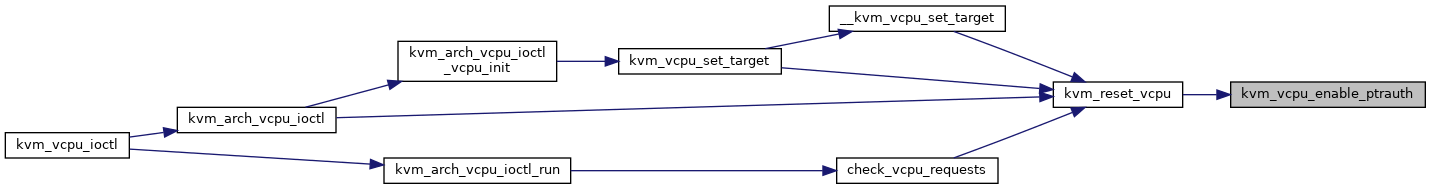

Here is the caller graph for this function:

kvm_vcpu_enable_sve()

static void kvm_vcpu_enable_sve ( struct kvm_vcpu *  vcpu )

static

Definition at line 76 of file reset.c.

{
    vcpu->arch.sve_max_vl = kvm_sve_max_vl;

    /*
     * Userspace can still customize the vector lengths by writing
     * KVM_REG_ARM64_SVE_VLS.  Allocation is deferred until
     * kvm_arm_vcpu_finalize(), which freezes the configuration.
     */
    vcpu_set_flag(vcpu, GUEST_HAS_SVE);
}

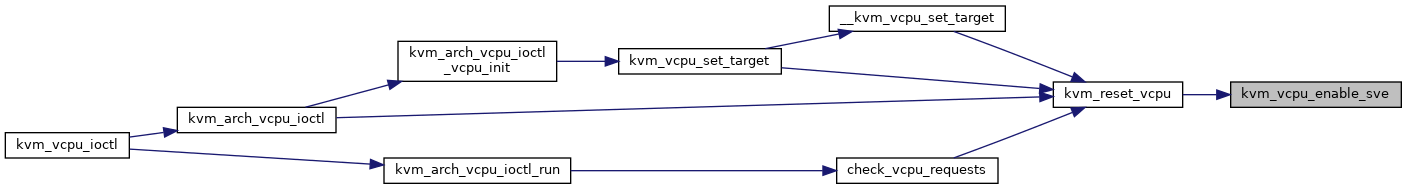

Here is the caller graph for this function:

kvm_vcpu_finalize_sve()

static int kvm_vcpu_finalize_sve ( struct kvm_vcpu *  vcpu )

static

Definition at line 92 of file reset.c.

{
    void *buf;
    unsigned int vl;
    size_t reg_sz;
    int ret;

    vl = vcpu->arch.sve_max_vl;

    /*
     * Responsibility for these properties is shared between
     * kvm_arm_init_sve(), kvm_vcpu_enable_sve() and
     * set_sve_vls().  Double-check here just to be sure:
     */
    if (WARN_ON(!sve_vl_valid(vl) || vl > sve_max_virtualisable_vl() ||
            vl > VL_ARCH_MAX))
        return -EIO;

    reg_sz = vcpu_sve_state_size(vcpu);
    buf = kzalloc(reg_sz, GFP_KERNEL_ACCOUNT);
    if (!buf)
        return -ENOMEM;

    ret = kvm_share_hyp(buf, buf + reg_sz);
    if (ret) {
        kfree(buf);
        return ret;
    }

    vcpu->arch.sve_state = buf;
    vcpu_set_flag(vcpu, VCPU_SVE_FINALIZED);
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_vcpu_reset_sve()

static void kvm_vcpu_reset_sve ( struct kvm_vcpu *  vcpu )

static

Definition at line 162 of file reset.c.

{
    if (vcpu_has_sve(vcpu))
        memset(vcpu->arch.sve_state, 0, vcpu_sve_state_size(vcpu));
}

Here is the caller graph for this function:

Variable Documentation

kvm_ipa_limit

u32 __ro_after_init kvm_ipa_limit

static

Definition at line 34 of file reset.c.

kvm_sve_max_vl

unsigned int __ro_after_init kvm_sve_max_vl

Definition at line 48 of file reset.c.
