pmu.c File Reference

#include <linux/types.h>
#include <linux/kvm_host.h>
#include <linux/perf_event.h>
#include <linux/bsearch.h>
#include <linux/sort.h>
#include <asm/perf_event.h>
#include <asm/cpu_device_id.h>
#include "x86.h"
#include "cpuid.h"
#include "lapic.h"
#include "pmu.h"
#include <asm/kvm-x86-pmu-ops.h>

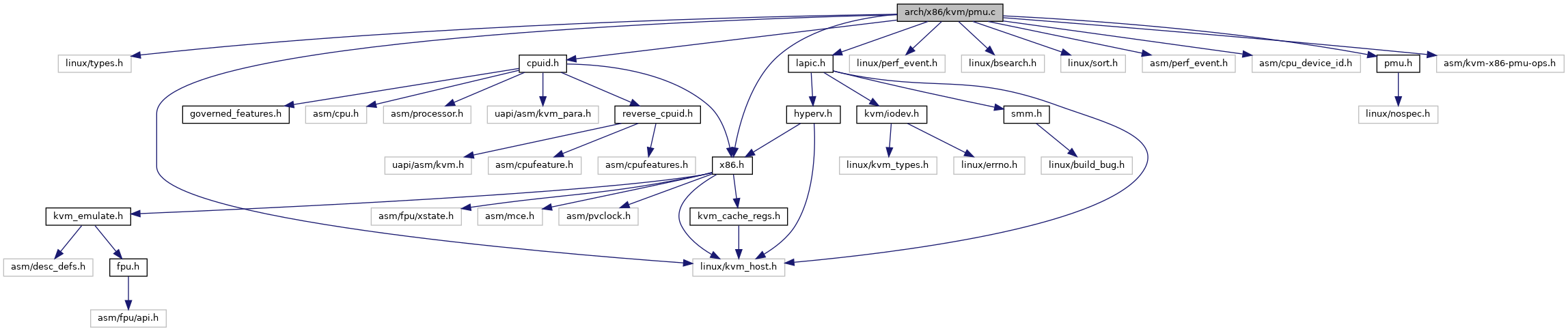

Include dependency graph for pmu.c:

Go to the source code of this file.

Macros
#define	pr_fmt(fmt)   KBUILD_MODNAME ": " fmt
#define	KVM_PMU_EVENT_FILTER_MAX_EVENTS   300
#define	KVM_X86_PMU_OP(func)
#define	KVM_X86_PMU_OP_OPTIONAL   KVM_X86_PMU_OP
#define	__KVM_X86_PMU_OP(func)    static_call_update(kvm_x86_pmu_##func, kvm_pmu_ops.func);
#define	KVM_X86_PMU_OP(func)    WARN_ON(!kvm_pmu_ops.func); __KVM_X86_PMU_OP(func)
#define	KVM_X86_PMU_OP_OPTIONAL   __KVM_X86_PMU_OP

Functions
	EXPORT_SYMBOL_GPL (kvm_pmu_cap)
void	kvm_pmu_ops_update (const struct kvm_pmu_ops *pmu_ops)
static void	__kvm_perf_overflow (struct kvm_pmc *pmc, bool in_pmi)
static void	kvm_perf_overflow (struct perf_event *perf_event, struct perf_sample_data *data, struct pt_regs *regs)
static u64	pmc_get_pebs_precise_level (struct kvm_pmc *pmc)
static u64	get_sample_period (struct kvm_pmc *pmc, u64 counter_value)
static int	pmc_reprogram_counter (struct kvm_pmc *pmc, u32 type, u64 config, bool exclude_user, bool exclude_kernel, bool intr)
static bool	pmc_pause_counter (struct kvm_pmc *pmc)
static bool	pmc_resume_counter (struct kvm_pmc *pmc)
static void	pmc_release_perf_event (struct kvm_pmc *pmc)
static void	pmc_stop_counter (struct kvm_pmc *pmc)
static void	pmc_update_sample_period (struct kvm_pmc *pmc)
void	pmc_write_counter (struct kvm_pmc *pmc, u64 val)
	EXPORT_SYMBOL_GPL (pmc_write_counter)
static int	filter_cmp (const void *pa, const void *pb, u64 mask)
static int	filter_sort_cmp (const void *pa, const void *pb)
static int	filter_event_cmp (const void *pa, const void *pb)
static int	find_filter_index (u64 *events, u64 nevents, u64 key)
static bool	is_filter_entry_match (u64 filter_event, u64 umask)
static bool	filter_contains_match (u64 *events, u64 nevents, u64 eventsel)
static bool	is_gp_event_allowed (struct kvm_x86_pmu_event_filter *f, u64 eventsel)
static bool	is_fixed_event_allowed (struct kvm_x86_pmu_event_filter *filter, int idx)
static bool	check_pmu_event_filter (struct kvm_pmc *pmc)
static bool	pmc_event_is_allowed (struct kvm_pmc *pmc)
static void	reprogram_counter (struct kvm_pmc *pmc)
void	kvm_pmu_handle_event (struct kvm_vcpu *vcpu)
bool	kvm_pmu_is_valid_rdpmc_ecx (struct kvm_vcpu *vcpu, unsigned int idx)
bool	is_vmware_backdoor_pmc (u32 pmc_idx)
static int	kvm_pmu_rdpmc_vmware (struct kvm_vcpu *vcpu, unsigned idx, u64 *data)
int	kvm_pmu_rdpmc (struct kvm_vcpu *vcpu, unsigned idx, u64 *data)
void	kvm_pmu_deliver_pmi (struct kvm_vcpu *vcpu)
bool	kvm_pmu_is_valid_msr (struct kvm_vcpu *vcpu, u32 msr)
static void	kvm_pmu_mark_pmc_in_use (struct kvm_vcpu *vcpu, u32 msr)
int	kvm_pmu_get_msr (struct kvm_vcpu *vcpu, struct msr_data *msr_info)
int	kvm_pmu_set_msr (struct kvm_vcpu *vcpu, struct msr_data *msr_info)
static void	kvm_pmu_reset (struct kvm_vcpu *vcpu)
void	kvm_pmu_refresh (struct kvm_vcpu *vcpu)
void	kvm_pmu_init (struct kvm_vcpu *vcpu)
void	kvm_pmu_cleanup (struct kvm_vcpu *vcpu)
void	kvm_pmu_destroy (struct kvm_vcpu *vcpu)
static void	kvm_pmu_incr_counter (struct kvm_pmc *pmc)
static bool	eventsel_match_perf_hw_id (struct kvm_pmc *pmc, unsigned int perf_hw_id)
static bool	cpl_is_matched (struct kvm_pmc *pmc)
void	kvm_pmu_trigger_event (struct kvm_vcpu *vcpu, u64 perf_hw_id)
	EXPORT_SYMBOL_GPL (kvm_pmu_trigger_event)
static bool	is_masked_filter_valid (const struct kvm_x86_pmu_event_filter *filter)
static void	convert_to_masked_filter (struct kvm_x86_pmu_event_filter *filter)
static int	prepare_filter_lists (struct kvm_x86_pmu_event_filter *filter)
int	kvm_vm_ioctl_set_pmu_event_filter (struct kvm *kvm, void __user *argp)

Variables
struct x86_pmu_capability __read_mostly	kvm_pmu_cap
static const struct x86_cpu_id	vmx_pebs_pdir_cpu []
static const struct x86_cpu_id	vmx_pebs_pdist_cpu []
static struct kvm_pmu_ops kvm_pmu_ops	__read_mostly

Macro Definition Documentation

__KVM_X86_PMU_OP

#define __KVM_X86_PMU_OP

(

func

)

static_call_update(kvm_x86_pmu_##func, kvm_pmu_ops.func);

KVM_PMU_EVENT_FILTER_MAX_EVENTS

#define KVM_PMU_EVENT_FILTER_MAX_EVENTS   300

Definition at line 27 of file pmu.c.

KVM_X86_PMU_OP [1/2]

#define KVM_X86_PMU_OP

(

func

)

Value:

    DEFINE_STATIC_CALL_NULL(kvm_x86_pmu_##func,              \
                *(((struct kvm_pmu_ops *)0)->func));

Definition at line 77 of file pmu.c.

KVM_X86_PMU_OP [2/2]

#define KVM_X86_PMU_OP

(

func

)

WARN_ON(!kvm_pmu_ops.func); __KVM_X86_PMU_OP(func)

Definition at line 77 of file pmu.c.

KVM_X86_PMU_OP_OPTIONAL [1/2]

#define KVM_X86_PMU_OP_OPTIONAL   KVM_X86_PMU_OP

Definition at line 80 of file pmu.c.

KVM_X86_PMU_OP_OPTIONAL [2/2]

#define KVM_X86_PMU_OP_OPTIONAL   __KVM_X86_PMU_OP

Definition at line 80 of file pmu.c.

pr_fmt

#define pr_fmt

(

fmt

)

KBUILD_MODNAME ": " fmt

Definition at line 12 of file pmu.c.

Function Documentation

__kvm_perf_overflow()

static void __kvm_perf_overflow ( struct kvm_pmc *  pmc, bool  in_pmi  )

inlinestatic

Definition at line 96 of file pmu.c.

{
    struct kvm_pmu *pmu = pmc_to_pmu(pmc);
    bool skip_pmi = false;

    if (pmc->perf_event && pmc->perf_event->attr.precise_ip) {
        if (!in_pmi) {
            /*
             * TODO: KVM is currently _choosing_ to not generate records
             * for emulated instructions, avoiding BUFFER_OVF PMI when
             * there are no records. Strictly speaking, it should be done
             * as well in the right context to improve sampling accuracy.
             */
            skip_pmi = true;
        } else {
            /* Indicate PEBS overflow PMI to guest. */
            skip_pmi = __test_and_set_bit(GLOBAL_STATUS_BUFFER_OVF_BIT,
                              (unsigned long *)&pmu->global_status);
        }
    } else {
        __set_bit(pmc->idx, (unsigned long *)&pmu->global_status);
    }

    if (pmc->intr && !skip_pmi)
        kvm_make_request(KVM_REQ_PMI, pmc->vcpu);
}

Here is the caller graph for this function:

check_pmu_event_filter()

static bool check_pmu_event_filter ( struct kvm_pmc *  pmc )

static

Definition at line 426 of file pmu.c.

{
    struct kvm_x86_pmu_event_filter *filter;
    struct kvm *kvm = pmc->vcpu->kvm;

    filter = srcu_dereference(kvm->arch.pmu_event_filter, &kvm->srcu);
    if (!filter)
        return true;

    if (pmc_is_gp(pmc))
        return is_gp_event_allowed(filter, pmc->eventsel);

    return is_fixed_event_allowed(filter, pmc->idx);
}

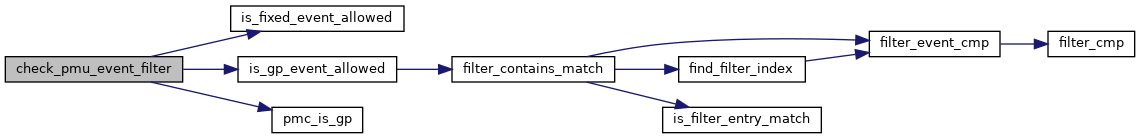

Here is the call graph for this function:

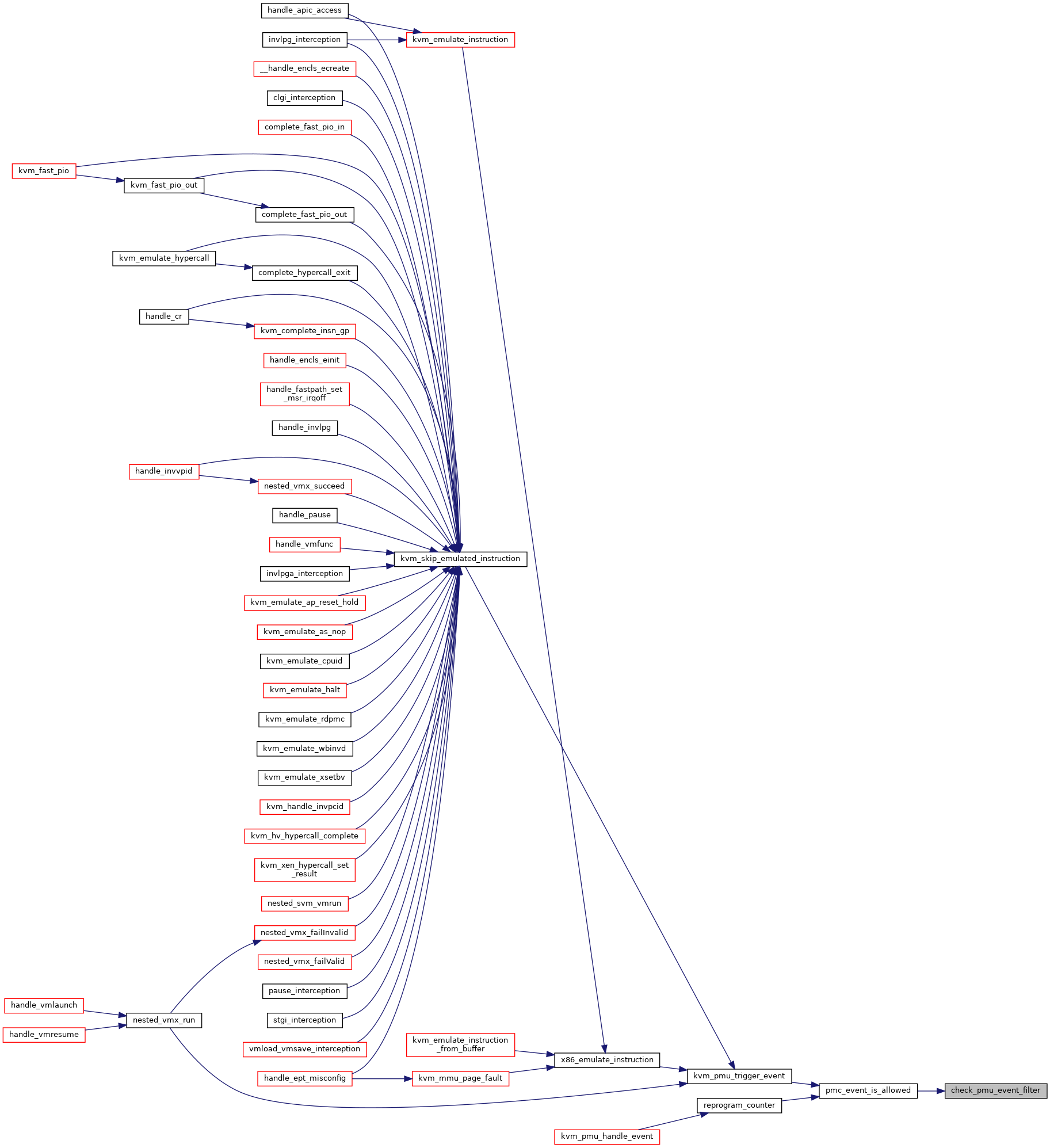

Here is the caller graph for this function:

convert_to_masked_filter()

static void convert_to_masked_filter ( struct kvm_x86_pmu_event_filter *  filter )

static

Definition at line 863 of file pmu.c.

{
    int i, j;

    for (i = 0, j = 0; i < filter->nevents; i++) {
        /*
         * Skip events that are impossible to match against a guest
         * event.  When filtering, only the event select + unit mask
         * of the guest event is used.  To maintain backwards
         * compatibility, impossible filters can't be rejected :-(
         */
        if (filter->events[i] & ~(kvm_pmu_ops.EVENTSEL_EVENT |
                      ARCH_PERFMON_EVENTSEL_UMASK))
            continue;
        /*
         * Convert userspace events to a common in-kernel event so
         * only one code path is needed to support both events.  For
         * the in-kernel events use masked events because they are
         * flexible enough to handle both cases.  To convert to masked
         * events all that's needed is to add an "all ones" umask_mask,
         * (unmasked filter events don't support EXCLUDE).
         */
        filter->events[j++] = filter->events[i] |
                      (0xFFULL << KVM_PMU_MASKED_ENTRY_UMASK_MASK_SHIFT);
    }

    filter->nevents = j;
}

Here is the caller graph for this function:

cpl_is_matched()

static bool cpl_is_matched ( struct kvm_pmc *  pmc )

inlinestatic

Definition at line 809 of file pmu.c.

{
    bool select_os, select_user;
    u64 config;

    if (pmc_is_gp(pmc)) {
        config = pmc->eventsel;
        select_os = config & ARCH_PERFMON_EVENTSEL_OS;
        select_user = config & ARCH_PERFMON_EVENTSEL_USR;
    } else {
        config = fixed_ctrl_field(pmc_to_pmu(pmc)->fixed_ctr_ctrl,
                      pmc->idx - INTEL_PMC_IDX_FIXED);
        select_os = config & 0x1;
        select_user = config & 0x2;
    }

    return (static_call(kvm_x86_get_cpl)(pmc->vcpu) == 0) ? select_os : select_user;
}

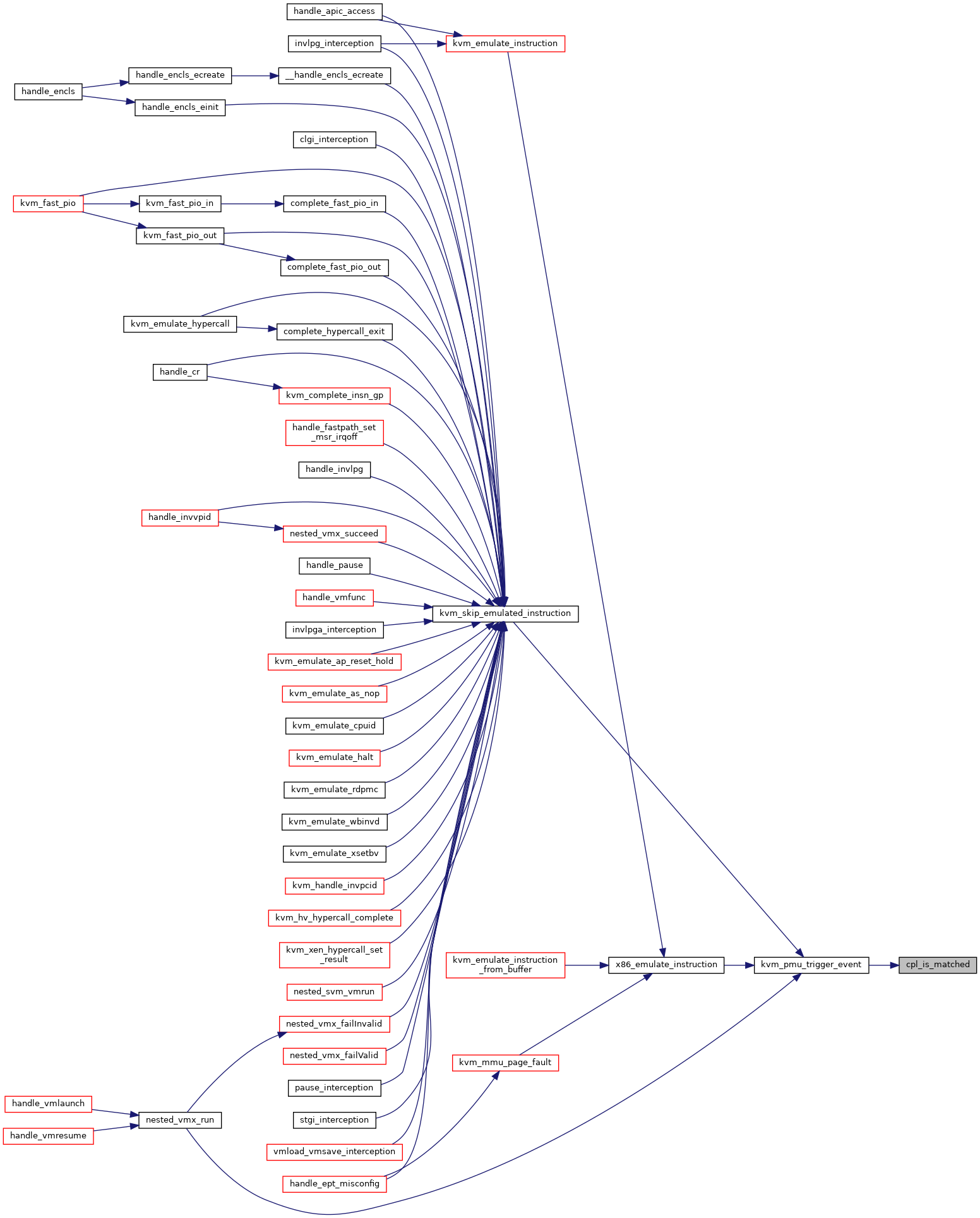

Here is the call graph for this function:

Here is the caller graph for this function:

eventsel_match_perf_hw_id()

static bool eventsel_match_perf_hw_id ( struct kvm_pmc *  pmc, unsigned int  perf_hw_id  )

inlinestatic

Definition at line 802 of file pmu.c.

{
    return !((pmc->eventsel ^ perf_get_hw_event_config(perf_hw_id)) &
        AMD64_RAW_EVENT_MASK_NB);
}

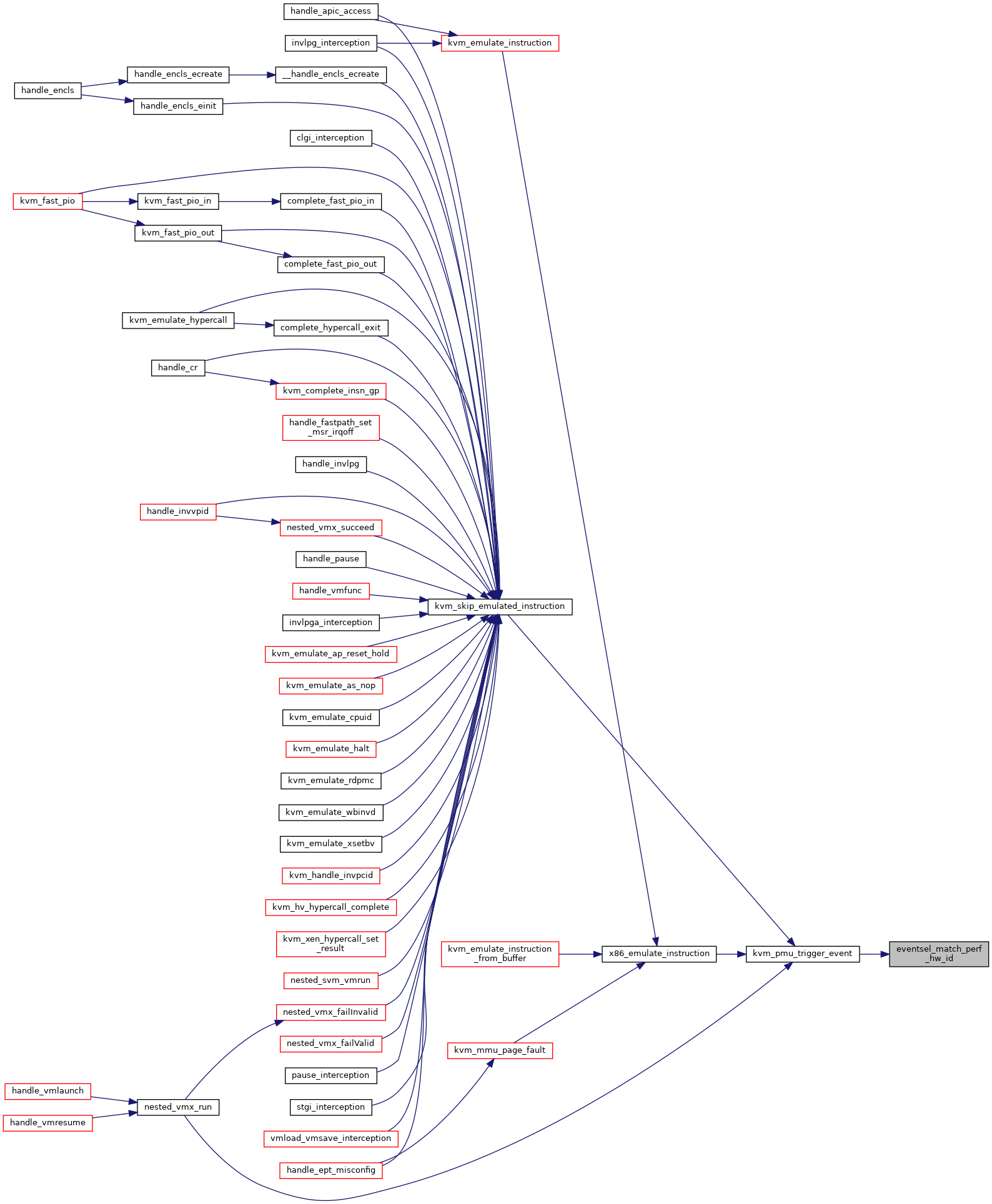

Here is the caller graph for this function:

EXPORT_SYMBOL_GPL() [1/3]

EXPORT_SYMBOL_GPL

(

kvm_pmu_cap

)

EXPORT_SYMBOL_GPL() [2/3]

EXPORT_SYMBOL_GPL

(

kvm_pmu_trigger_event

)

EXPORT_SYMBOL_GPL() [3/3]

EXPORT_SYMBOL_GPL

(

pmc_write_counter

)

filter_cmp()

static int filter_cmp ( const void *  pa, const void *  pb, u64  mask  )

static

Definition at line 320 of file pmu.c.

{
    u64 a = *(u64 *)pa & mask;
    u64 b = *(u64 *)pb & mask;

    return (a > b) - (a < b);
}

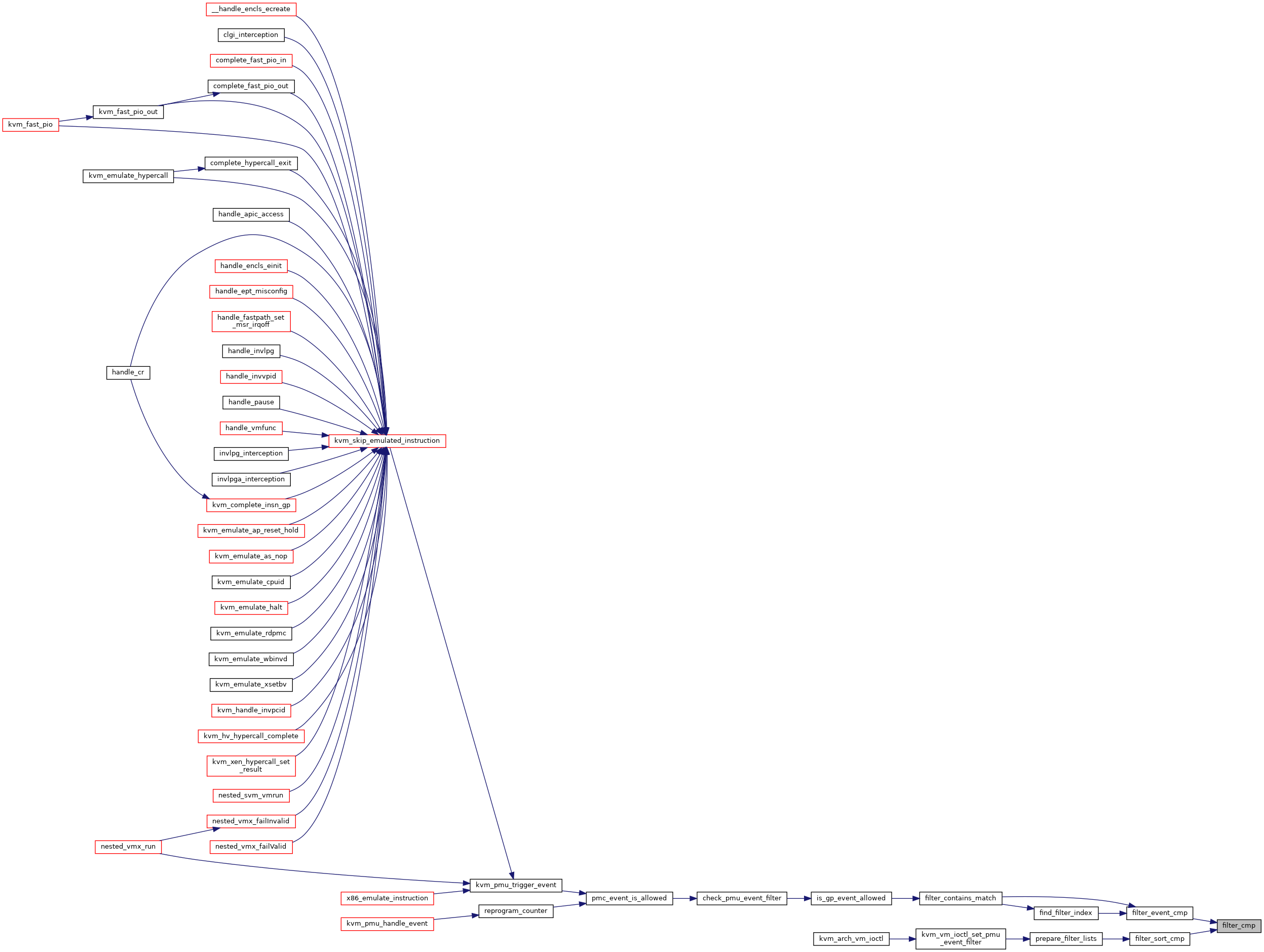

Here is the caller graph for this function:

filter_contains_match()

static bool filter_contains_match ( u64 *  events, u64  nevents, u64  eventsel  )

static

Definition at line 368 of file pmu.c.

{
    u64 event_select = eventsel & kvm_pmu_ops.EVENTSEL_EVENT;
    u64 umask = eventsel & ARCH_PERFMON_EVENTSEL_UMASK;
    int i, index;

    index = find_filter_index(events, nevents, event_select);
    if (index < 0)
        return false;

    /*
     * Entries are sorted by the event select.  Walk the list in both
     * directions to process all entries with the targeted event select.
     */
    for (i = index; i < nevents; i++) {
        if (filter_event_cmp(&events[i], &event_select))
            break;

        if (is_filter_entry_match(events[i], umask))
            return true;
    }

    for (i = index - 1; i >= 0; i--) {
        if (filter_event_cmp(&events[i], &event_select))
            break;

        if (is_filter_entry_match(events[i], umask))
            return true;
    }

    return false;
}

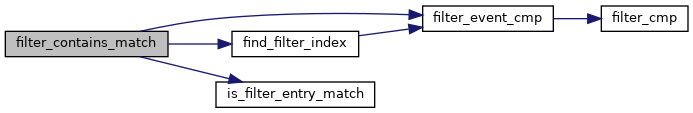

Here is the call graph for this function:

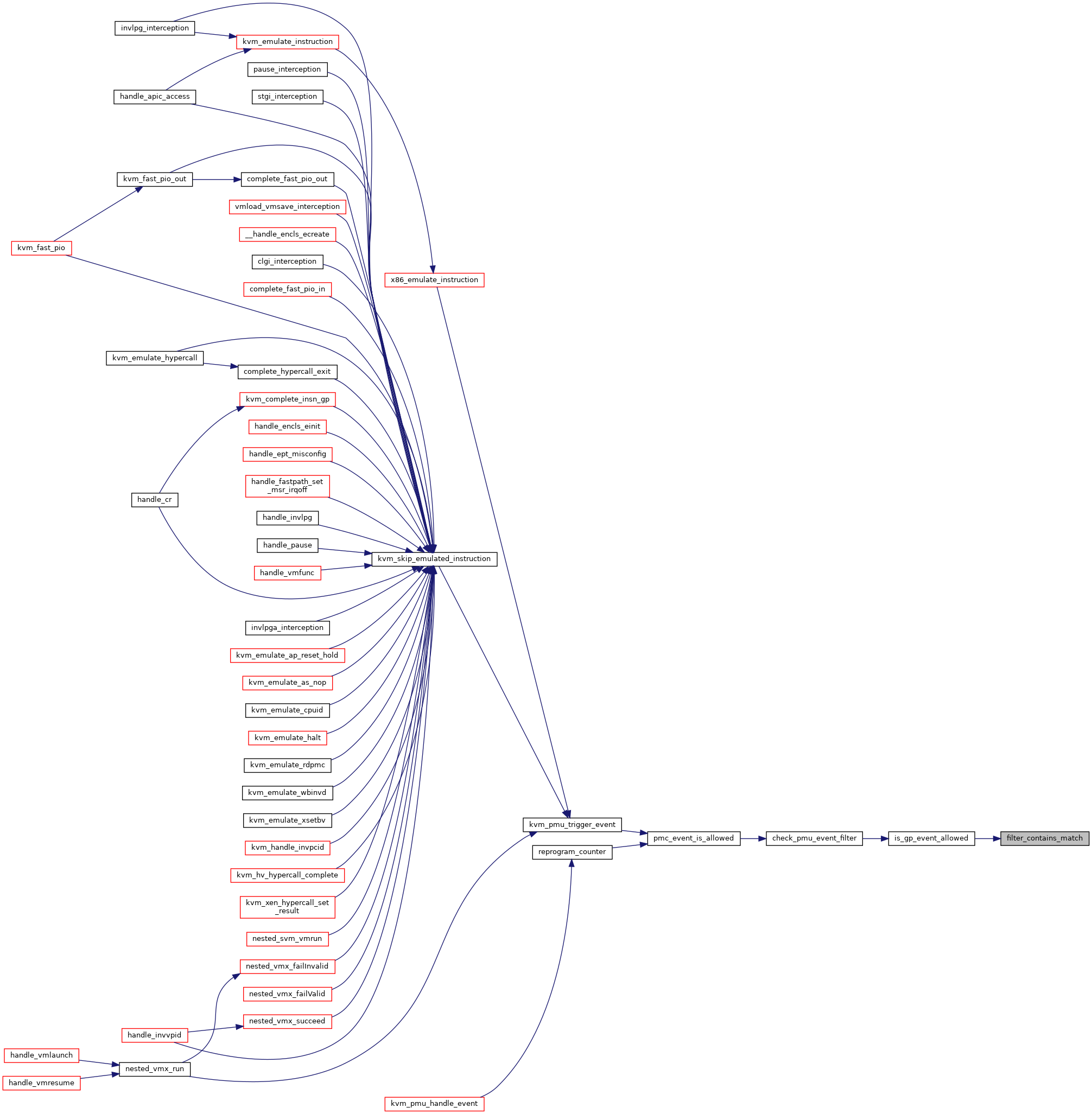

Here is the caller graph for this function:

filter_event_cmp()

static int filter_event_cmp ( const void *  pa, const void *  pb  )

static

Definition at line 340 of file pmu.c.

{
    return filter_cmp(pa, pb, (KVM_PMU_MASKED_ENTRY_EVENT_SELECT));
}

Here is the call graph for this function:

Here is the caller graph for this function:

filter_sort_cmp()

static int filter_sort_cmp ( const void *  pa, const void *  pb  )

static

Definition at line 329 of file pmu.c.

{
    return filter_cmp(pa, pb, (KVM_PMU_MASKED_ENTRY_EVENT_SELECT |
                   KVM_PMU_MASKED_ENTRY_EXCLUDE));
}

Here is the call graph for this function:

Here is the caller graph for this function:

find_filter_index()

static int find_filter_index ( u64 *  events, u64  nevents, u64  key  )

static

Definition at line 345 of file pmu.c.

{
    u64 *fe = bsearch(&key, events, nevents, sizeof(events[0]),
              filter_event_cmp);

    if (!fe)
        return -1;

    return fe - events;
}

Here is the call graph for this function:

Here is the caller graph for this function:

get_sample_period()

static u64 get_sample_period ( struct kvm_pmc *  pmc, u64  counter_value  )

static

Definition at line 164 of file pmu.c.

{
    u64 sample_period = (-counter_value) & pmc_bitmask(pmc);

    if (!sample_period)
        sample_period = pmc_bitmask(pmc) + 1;
    return sample_period;
}

Here is the call graph for this function:

Here is the caller graph for this function:

is_filter_entry_match()

static bool is_filter_entry_match ( u64  filter_event, u64  umask  )

static

Definition at line 356 of file pmu.c.

{
    u64 mask = filter_event >> (KVM_PMU_MASKED_ENTRY_UMASK_MASK_SHIFT - 8);
    u64 match = filter_event & KVM_PMU_MASKED_ENTRY_UMASK_MATCH;

    BUILD_BUG_ON((KVM_PMU_ENCODE_MASKED_ENTRY(0, 0xff, 0, false) >>
             (KVM_PMU_MASKED_ENTRY_UMASK_MASK_SHIFT - 8)) !=
             ARCH_PERFMON_EVENTSEL_UMASK);

    return (umask & mask) == match;
}

Here is the caller graph for this function:

is_fixed_event_allowed()

static bool is_fixed_event_allowed ( struct kvm_x86_pmu_event_filter *  filter, int  idx  )

static

Definition at line 411 of file pmu.c.

{
    int fixed_idx = idx - INTEL_PMC_IDX_FIXED;

    if (filter->action == KVM_PMU_EVENT_DENY &&
        test_bit(fixed_idx, (ulong *)&filter->fixed_counter_bitmap))
        return false;
    if (filter->action == KVM_PMU_EVENT_ALLOW &&
        !test_bit(fixed_idx, (ulong *)&filter->fixed_counter_bitmap))
        return false;

    return true;
}

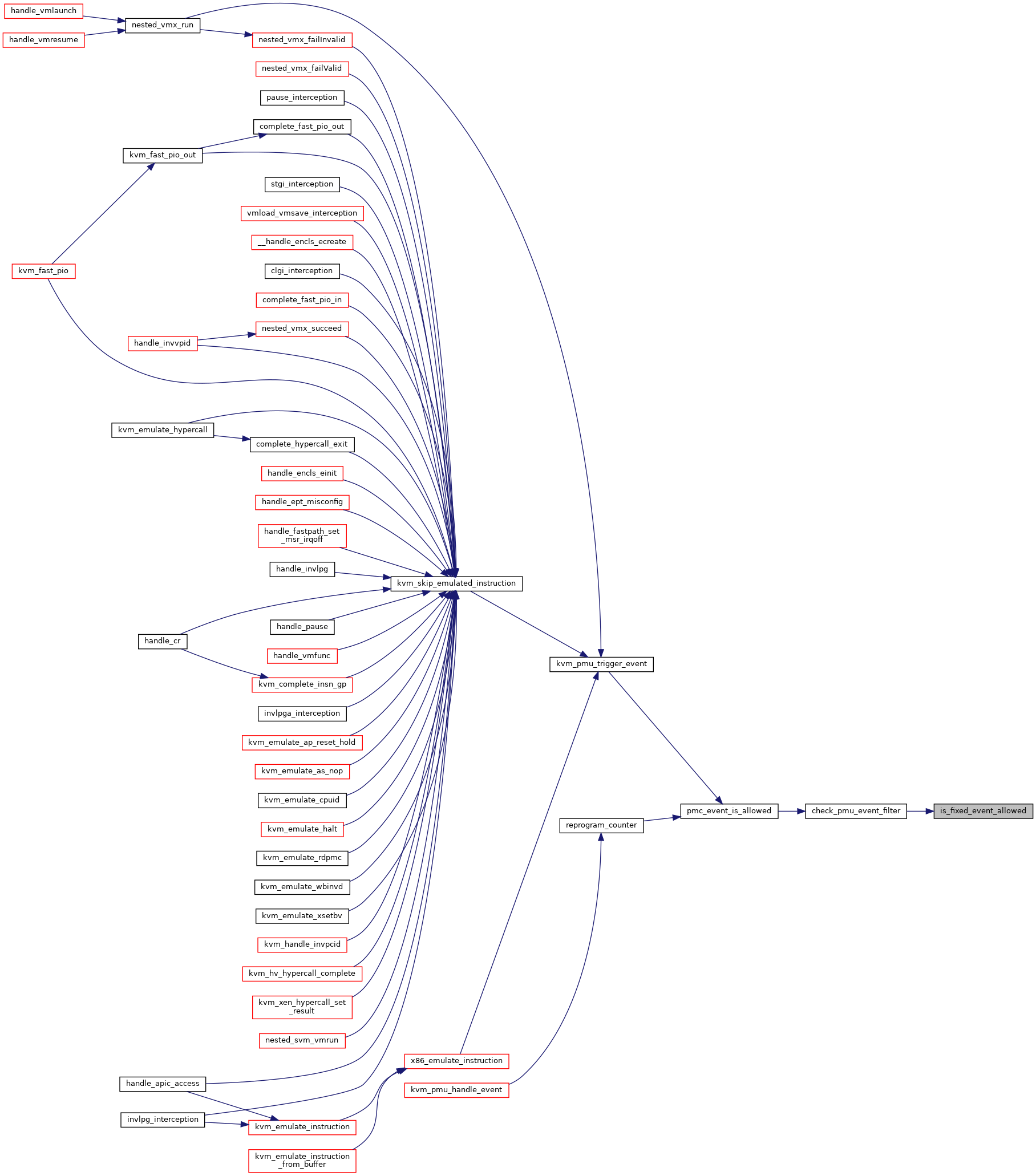

Here is the caller graph for this function:

is_gp_event_allowed()

static bool is_gp_event_allowed ( struct kvm_x86_pmu_event_filter *  f, u64  eventsel  )

static

Definition at line 401 of file pmu.c.

{
    if (filter_contains_match(f->includes, f->nr_includes, eventsel) &&
        !filter_contains_match(f->excludes, f->nr_excludes, eventsel))
        return f->action == KVM_PMU_EVENT_ALLOW;

    return f->action == KVM_PMU_EVENT_DENY;
}

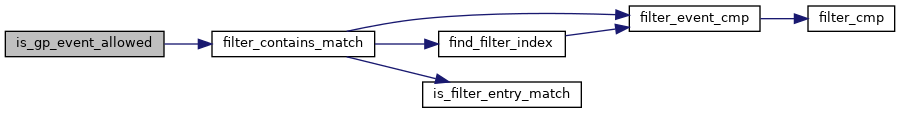

Here is the call graph for this function:

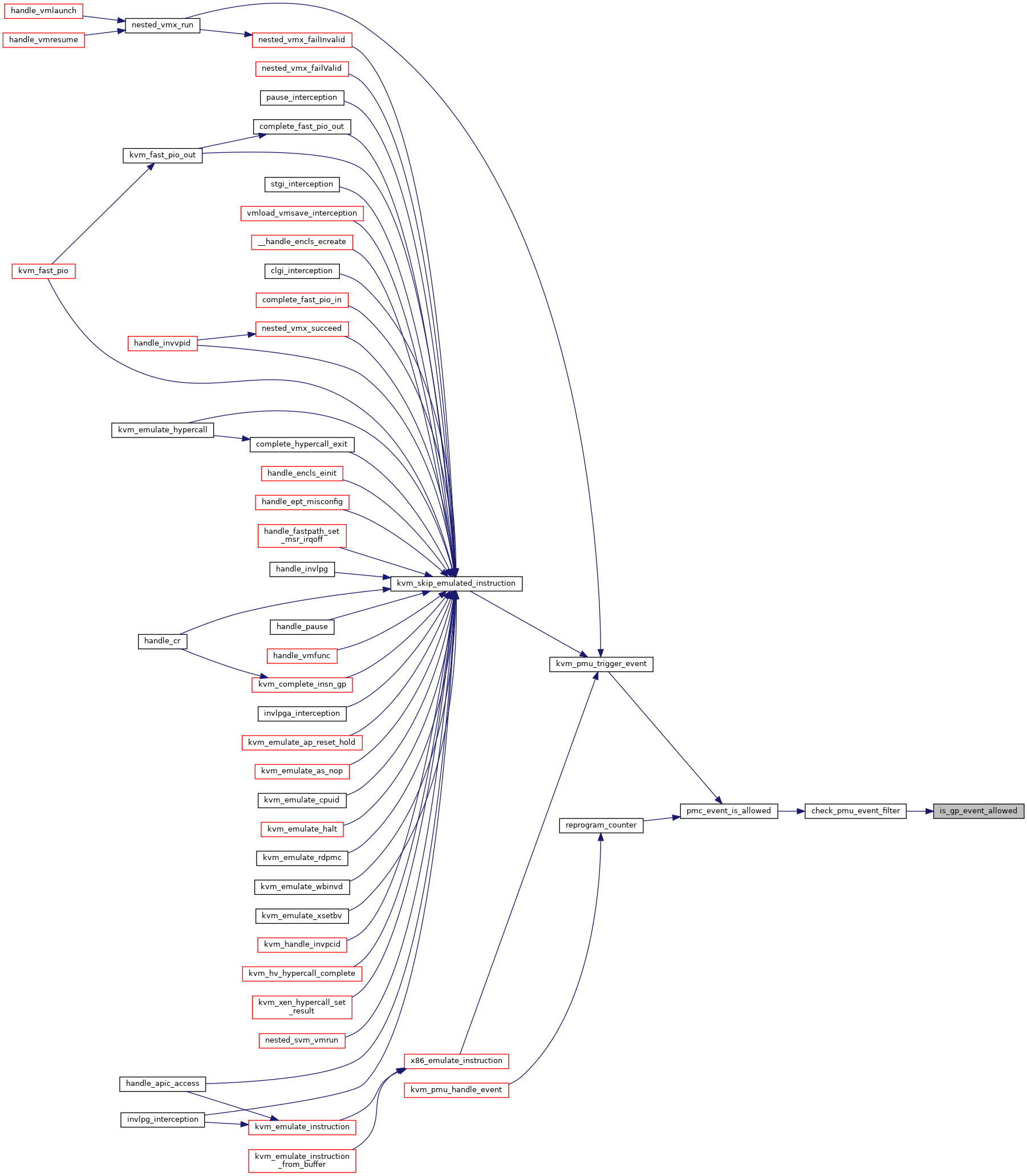

Here is the caller graph for this function:

is_masked_filter_valid()

static bool is_masked_filter_valid ( const struct kvm_x86_pmu_event_filter *  filter )

static

Definition at line 847 of file pmu.c.

{
    u64 mask = kvm_pmu_ops.EVENTSEL_EVENT |
           KVM_PMU_MASKED_ENTRY_UMASK_MASK |
           KVM_PMU_MASKED_ENTRY_UMASK_MATCH |
           KVM_PMU_MASKED_ENTRY_EXCLUDE;
    int i;

    for (i = 0; i < filter->nevents; i++) {
        if (filter->events[i] & ~mask)
            return false;
    }

    return true;
}

Here is the caller graph for this function:

is_vmware_backdoor_pmc()

bool is_vmware_backdoor_pmc

(

u32

pmc_idx

)

Definition at line 534 of file pmu.c.

{
    switch (pmc_idx) {
    case VMWARE_BACKDOOR_PMC_HOST_TSC:
    case VMWARE_BACKDOOR_PMC_REAL_TIME:
    case VMWARE_BACKDOOR_PMC_APPARENT_TIME:
        return true;
    }
    return false;
}

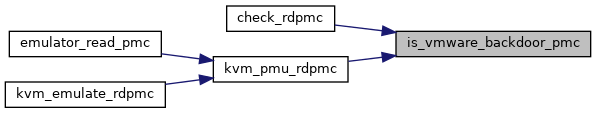

Here is the caller graph for this function:

kvm_perf_overflow()

static void kvm_perf_overflow ( struct perf_event *  perf_event, struct perf_sample_data *  data, struct pt_regs *  regs  )

static

Definition at line 123 of file pmu.c.

{
    struct kvm_pmc *pmc = perf_event->overflow_handler_context;

    /*
     * Ignore asynchronous overflow events for counters that are scheduled
     * to be reprogrammed, e.g. if a PMI for the previous event races with
     * KVM's handling of a related guest WRMSR.
     */
    if (test_and_set_bit(pmc->idx, pmc_to_pmu(pmc)->reprogram_pmi))
        return;

    __kvm_perf_overflow(pmc, true);

    kvm_make_request(KVM_REQ_PMU, pmc->vcpu);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pmu_cleanup()

void kvm_pmu_cleanup

(

struct kvm_vcpu *

vcpu

)

Definition at line 767 of file pmu.c.

{
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);
    struct kvm_pmc *pmc = NULL;
    DECLARE_BITMAP(bitmask, X86_PMC_IDX_MAX);
    int i;

    pmu->need_cleanup = false;

    bitmap_andnot(bitmask, pmu->all_valid_pmc_idx,
              pmu->pmc_in_use, X86_PMC_IDX_MAX);

    for_each_set_bit(i, bitmask, X86_PMC_IDX_MAX) {
        pmc = static_call(kvm_x86_pmu_pmc_idx_to_pmc)(pmu, i);

        if (pmc && pmc->perf_event && !pmc_speculative_in_use(pmc))
            pmc_stop_counter(pmc);
    }

    static_call_cond(kvm_x86_pmu_cleanup)(vcpu);

    bitmap_zero(pmu->pmc_in_use, X86_PMC_IDX_MAX);
}

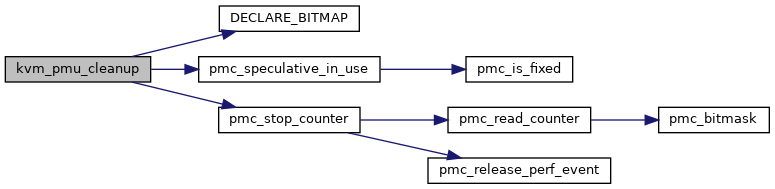

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pmu_deliver_pmi()

void kvm_pmu_deliver_pmi

(

struct kvm_vcpu *

vcpu

)

Definition at line 594 of file pmu.c.

{
    if (lapic_in_kernel(vcpu)) {
        static_call_cond(kvm_x86_pmu_deliver_pmi)(vcpu);
        kvm_apic_local_deliver(vcpu->arch.apic, APIC_LVTPC);
    }
}

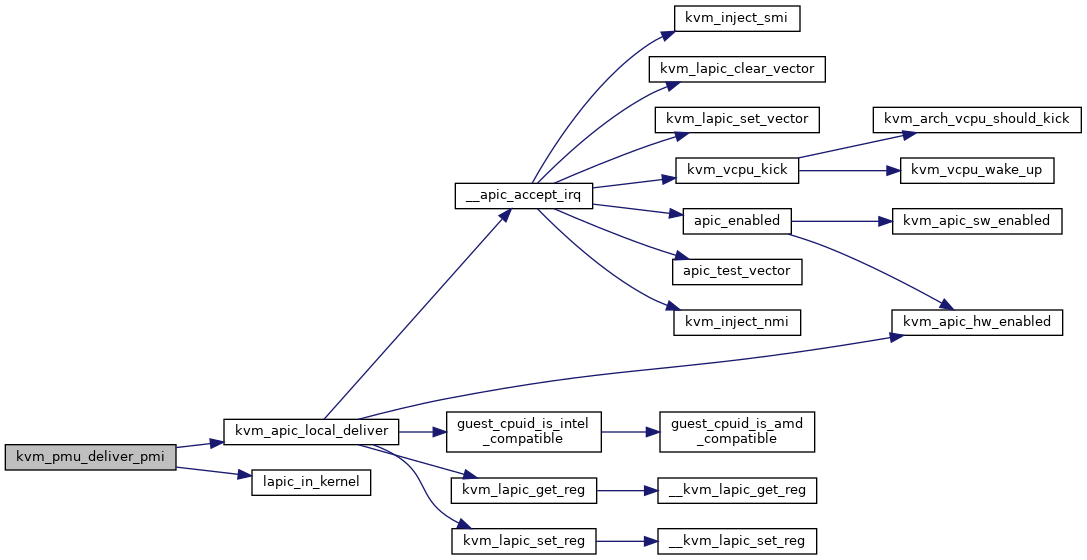

Here is the call graph for this function:

Here is the caller graph for this function:

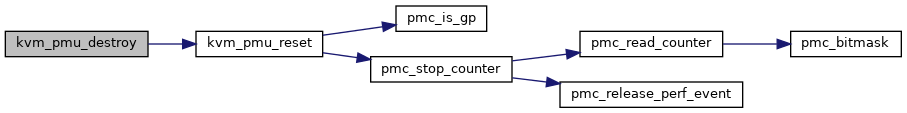

kvm_pmu_destroy()

void kvm_pmu_destroy

(

struct kvm_vcpu *

vcpu

)

Definition at line 791 of file pmu.c.

{
    kvm_pmu_reset(vcpu);
}

Here is the call graph for this function:

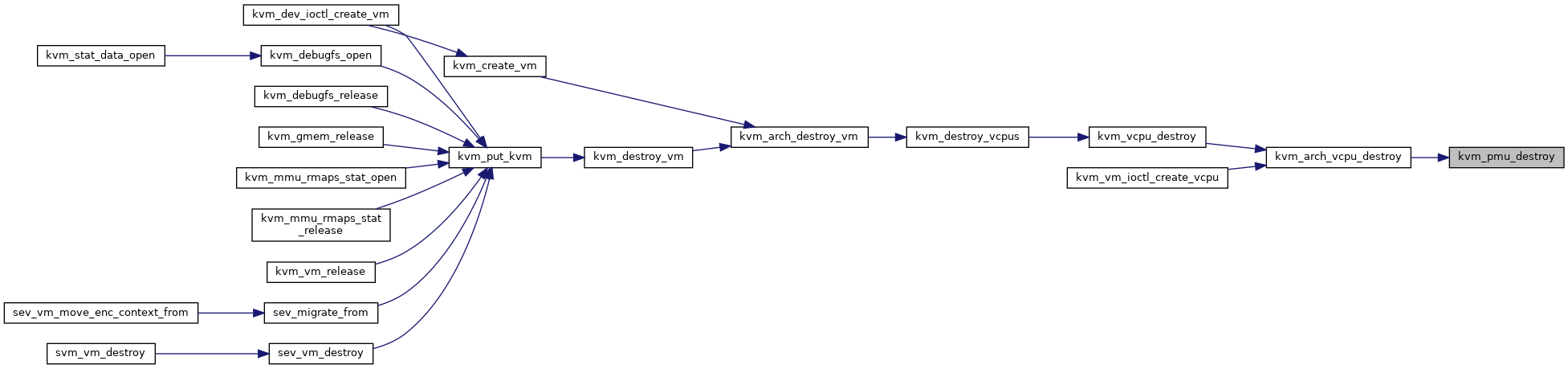

Here is the caller graph for this function:

kvm_pmu_get_msr()

int kvm_pmu_get_msr	(	struct kvm_vcpu *	vcpu,
		struct msr_data *	msr_info
	)

Definition at line 625 of file pmu.c.

{
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);
    u32 msr = msr_info->index;

    switch (msr) {
    case MSR_CORE_PERF_GLOBAL_STATUS:
    case MSR_AMD64_PERF_CNTR_GLOBAL_STATUS:
        msr_info->data = pmu->global_status;
        break;
    case MSR_AMD64_PERF_CNTR_GLOBAL_CTL:
    case MSR_CORE_PERF_GLOBAL_CTRL:
        msr_info->data = pmu->global_ctrl;
        break;
    case MSR_AMD64_PERF_CNTR_GLOBAL_STATUS_CLR:
    case MSR_CORE_PERF_GLOBAL_OVF_CTRL:
        msr_info->data = 0;
        break;
    default:
        return static_call(kvm_x86_pmu_get_msr)(vcpu, msr_info);
    }

    return 0;
}

Here is the caller graph for this function:

kvm_pmu_handle_event()

void kvm_pmu_handle_event

(

struct kvm_vcpu *

vcpu

)

Definition at line 503 of file pmu.c.

{
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);
    int bit;

    for_each_set_bit(bit, pmu->reprogram_pmi, X86_PMC_IDX_MAX) {
        struct kvm_pmc *pmc = static_call(kvm_x86_pmu_pmc_idx_to_pmc)(pmu, bit);

        if (unlikely(!pmc)) {
            clear_bit(bit, pmu->reprogram_pmi);
            continue;
        }

        reprogram_counter(pmc);
    }

    /*
     * Unused perf_events are only released if the corresponding MSRs
     * weren't accessed during the last vCPU time slice. kvm_arch_sched_in
     * triggers KVM_REQ_PMU if cleanup is needed.
     */
    if (unlikely(pmu->need_cleanup))
        kvm_pmu_cleanup(vcpu);
}

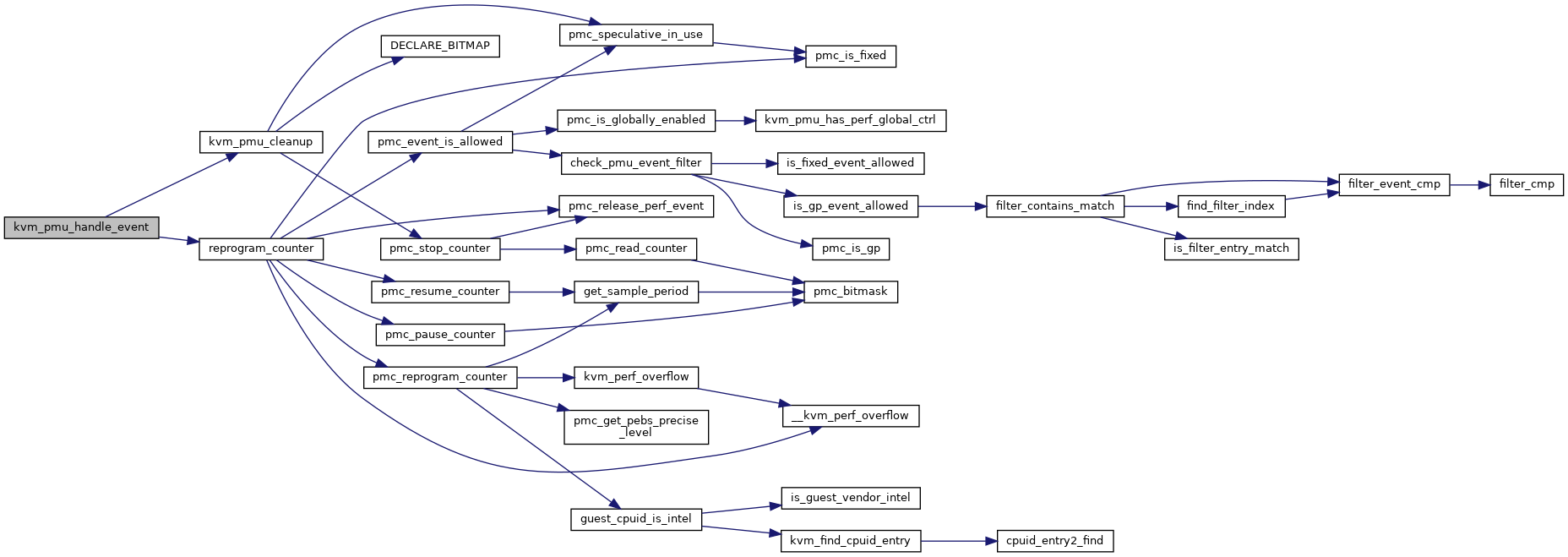

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pmu_incr_counter()

static void kvm_pmu_incr_counter ( struct kvm_pmc *  pmc )

static

Definition at line 796 of file pmu.c.

{
    pmc->emulated_counter++;
    kvm_pmu_request_counter_reprogram(pmc);
}

Here is the call graph for this function:

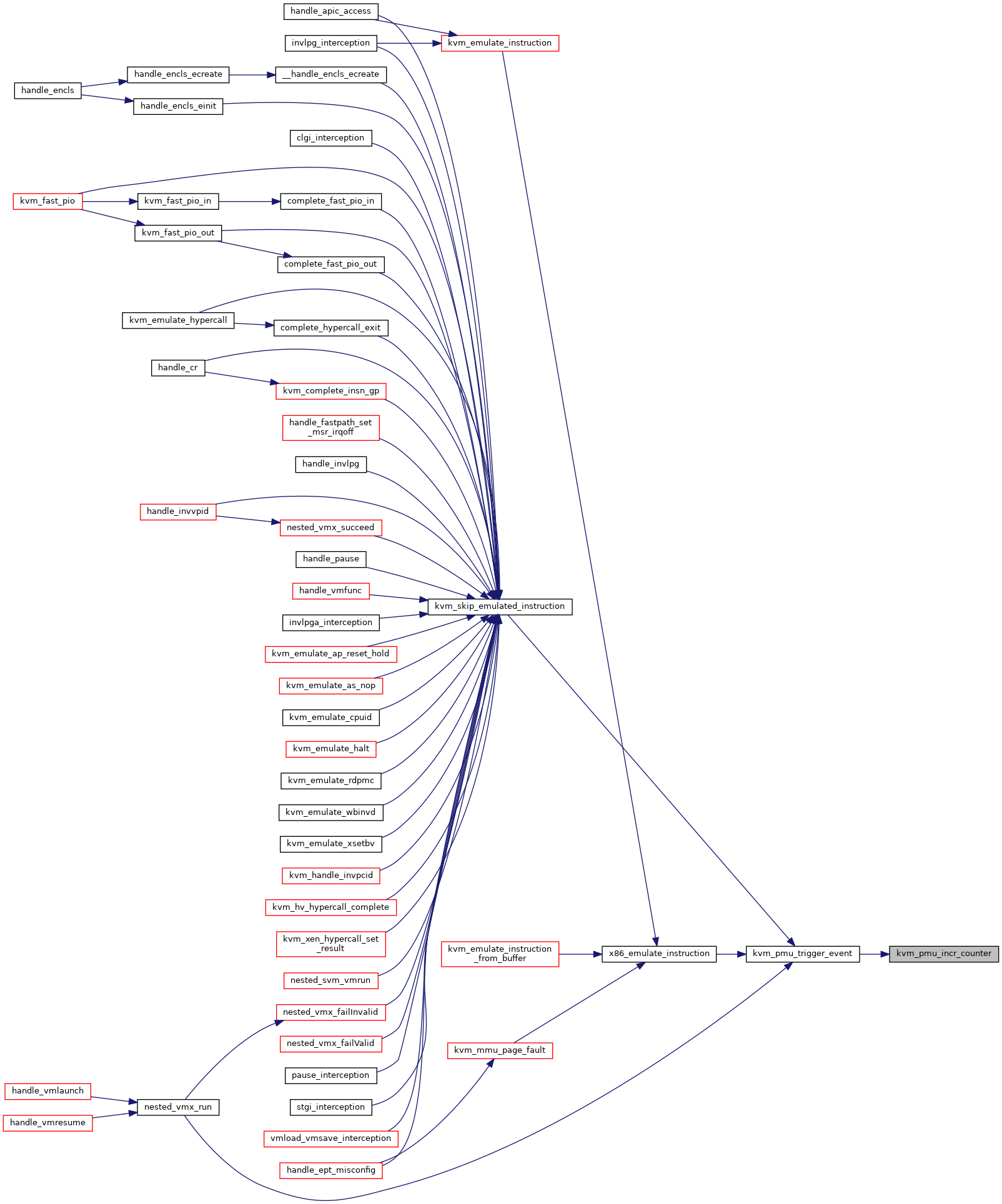

Here is the caller graph for this function:

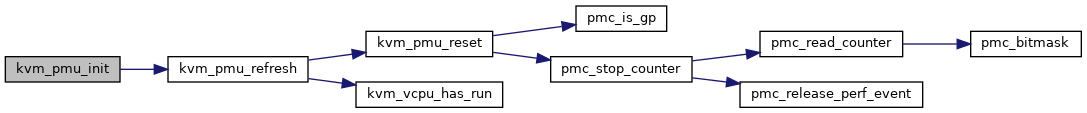

kvm_pmu_init()

void kvm_pmu_init

(

struct kvm_vcpu *

vcpu

)

Definition at line 757 of file pmu.c.

{
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);

    memset(pmu, 0, sizeof(*pmu));
    static_call(kvm_x86_pmu_init)(vcpu);
    kvm_pmu_refresh(vcpu);
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pmu_is_valid_msr()

bool kvm_pmu_is_valid_msr	(	struct kvm_vcpu *	vcpu,
		u32	msr
	)

Definition at line 602 of file pmu.c.

{
    switch (msr) {
    case MSR_CORE_PERF_GLOBAL_STATUS:
    case MSR_CORE_PERF_GLOBAL_CTRL:
    case MSR_CORE_PERF_GLOBAL_OVF_CTRL:
        return kvm_pmu_has_perf_global_ctrl(vcpu_to_pmu(vcpu));
    default:
        break;
    }
    return static_call(kvm_x86_pmu_msr_idx_to_pmc)(vcpu, msr) ||
        static_call(kvm_x86_pmu_is_valid_msr)(vcpu, msr);
}

Here is the call graph for this function:

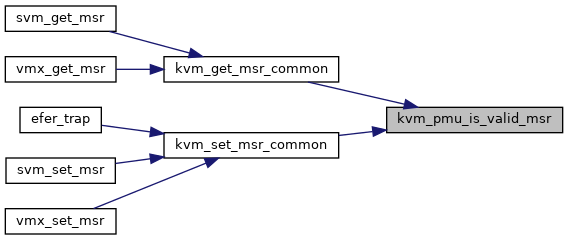

Here is the caller graph for this function:

kvm_pmu_is_valid_rdpmc_ecx()

bool kvm_pmu_is_valid_rdpmc_ecx	(	struct kvm_vcpu *	vcpu,
		unsigned int	idx
	)

Definition at line 529 of file pmu.c.

{
    return static_call(kvm_x86_pmu_is_valid_rdpmc_ecx)(vcpu, idx);
}

Here is the caller graph for this function:

kvm_pmu_mark_pmc_in_use()

static void kvm_pmu_mark_pmc_in_use ( struct kvm_vcpu *  vcpu, u32  msr  )

static

Definition at line 616 of file pmu.c.

{
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);
    struct kvm_pmc *pmc = static_call(kvm_x86_pmu_msr_idx_to_pmc)(vcpu, msr);

    if (pmc)
        __set_bit(pmc->idx, pmu->pmc_in_use);
}

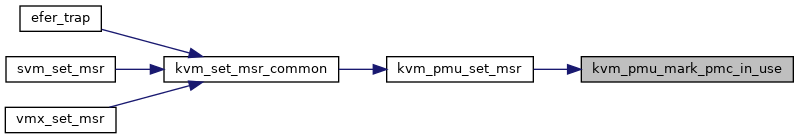

Here is the caller graph for this function:

kvm_pmu_ops_update()

void kvm_pmu_ops_update

(

const struct kvm_pmu_ops *

pmu_ops

)

Definition at line 83 of file pmu.c.

{
    memcpy(&kvm_pmu_ops, pmu_ops, sizeof(kvm_pmu_ops));

#define __KVM_X86_PMU_OP(func) \
    static_call_update(kvm_x86_pmu_##func, kvm_pmu_ops.func);
#define KVM_X86_PMU_OP(func) \
    WARN_ON(!kvm_pmu_ops.func); __KVM_X86_PMU_OP(func)
#define KVM_X86_PMU_OP_OPTIONAL __KVM_X86_PMU_OP
#include <asm/kvm-x86-pmu-ops.h>
#undef __KVM_X86_PMU_OP
}

Here is the caller graph for this function:

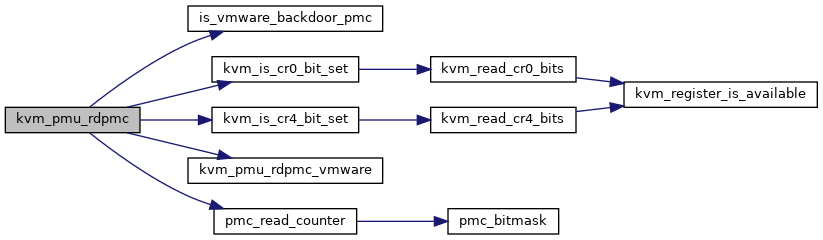

kvm_pmu_rdpmc()

int kvm_pmu_rdpmc	(	struct kvm_vcpu *	vcpu,
		unsigned	idx,
		u64 *	data
	)

Definition at line 568 of file pmu.c.

{
    bool fast_mode = idx & (1u << 31);
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);
    struct kvm_pmc *pmc;
    u64 mask = fast_mode ? ~0u : ~0ull;

    if (!pmu->version)
        return 1;

    if (is_vmware_backdoor_pmc(idx))
        return kvm_pmu_rdpmc_vmware(vcpu, idx, data);

    pmc = static_call(kvm_x86_pmu_rdpmc_ecx_to_pmc)(vcpu, idx, &mask);
    if (!pmc)
        return 1;

    if (!kvm_is_cr4_bit_set(vcpu, X86_CR4_PCE) &&
        (static_call(kvm_x86_get_cpl)(vcpu) != 0) &&
        kvm_is_cr0_bit_set(vcpu, X86_CR0_PE))
        return 1;

    *data = pmc_read_counter(pmc) & mask;
    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pmu_rdpmc_vmware()

static int kvm_pmu_rdpmc_vmware ( struct kvm_vcpu *  vcpu, unsigned  idx, u64 *  data  )

static

Definition at line 545 of file pmu.c.

{
    u64 ctr_val;

    switch (idx) {
    case VMWARE_BACKDOOR_PMC_HOST_TSC:
        ctr_val = rdtsc();
        break;
    case VMWARE_BACKDOOR_PMC_REAL_TIME:
        ctr_val = ktime_get_boottime_ns();
        break;
    case VMWARE_BACKDOOR_PMC_APPARENT_TIME:
        ctr_val = ktime_get_boottime_ns() +
            vcpu->kvm->arch.kvmclock_offset;
        break;
    default:
        return 1;
    }

    *data = ctr_val;
    return 0;
}

Here is the caller graph for this function:

kvm_pmu_refresh()

void kvm_pmu_refresh

(

struct kvm_vcpu *

vcpu

)

Definition at line 742 of file pmu.c.

{
    if (KVM_BUG_ON(kvm_vcpu_has_run(vcpu), vcpu->kvm))
        return;

    /*
     * Stop/release all existing counters/events before realizing the new
     * vPMU model.
     */
    kvm_pmu_reset(vcpu);

    bitmap_zero(vcpu_to_pmu(vcpu)->all_valid_pmc_idx, X86_PMC_IDX_MAX);
    static_call(kvm_x86_pmu_refresh)(vcpu);
}

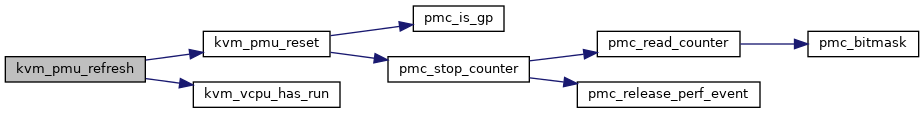

Here is the call graph for this function:

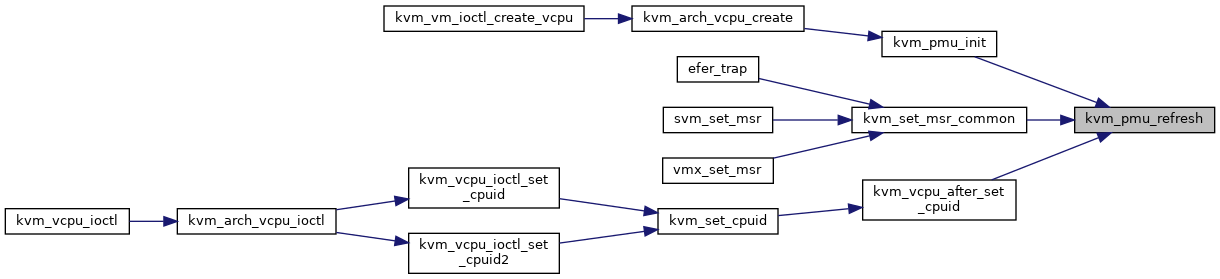

Here is the caller graph for this function:

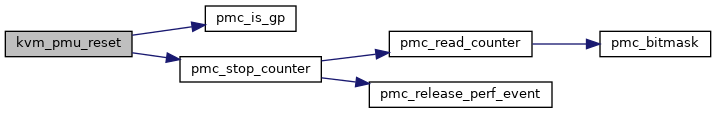

kvm_pmu_reset()

static void kvm_pmu_reset ( struct kvm_vcpu *  vcpu )

static

Definition at line 709 of file pmu.c.

{
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);
    struct kvm_pmc *pmc;
    int i;

    pmu->need_cleanup = false;

    bitmap_zero(pmu->reprogram_pmi, X86_PMC_IDX_MAX);

    for_each_set_bit(i, pmu->all_valid_pmc_idx, X86_PMC_IDX_MAX) {
        pmc = static_call(kvm_x86_pmu_pmc_idx_to_pmc)(pmu, i);
        if (!pmc)
            continue;

        pmc_stop_counter(pmc);
        pmc->counter = 0;
        pmc->emulated_counter = 0;

        if (pmc_is_gp(pmc))
            pmc->eventsel = 0;
    }

    pmu->fixed_ctr_ctrl = pmu->global_ctrl = pmu->global_status = 0;

    static_call_cond(kvm_x86_pmu_reset)(vcpu);
}

Here is the call graph for this function:

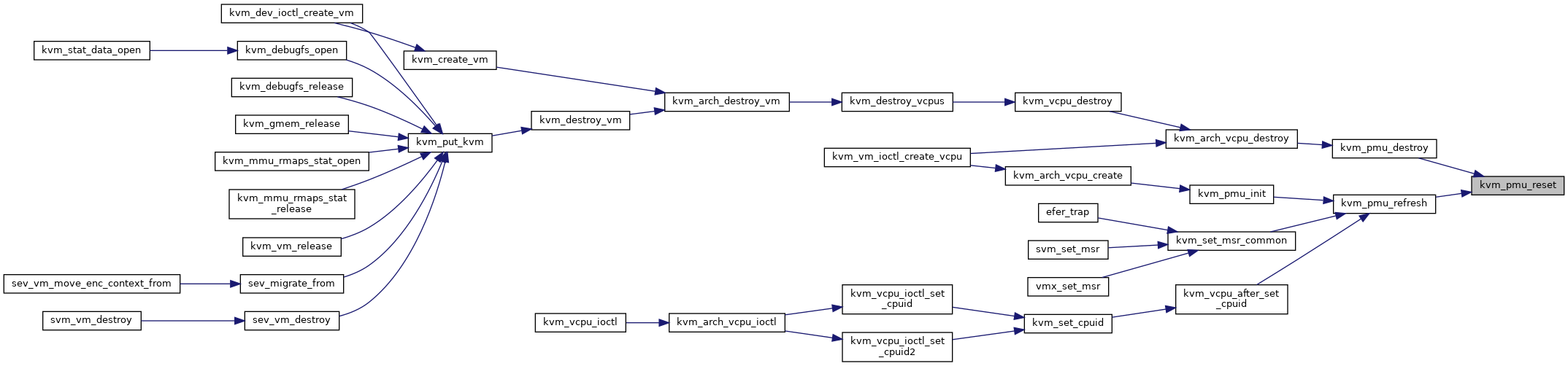

Here is the caller graph for this function:

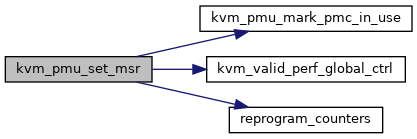

kvm_pmu_set_msr()

int kvm_pmu_set_msr	(	struct kvm_vcpu *	vcpu,
		struct msr_data *	msr_info
	)

Definition at line 650 of file pmu.c.

{
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);
    u32 msr = msr_info->index;
    u64 data = msr_info->data;
    u64 diff;

    /*
     * Note, AMD ignores writes to reserved bits and read-only PMU MSRs,
     * whereas Intel generates #GP on attempts to write reserved/RO MSRs.
     */
    switch (msr) {
    case MSR_CORE_PERF_GLOBAL_STATUS:
        if (!msr_info->host_initiated)
            return 1; /* RO MSR */
        fallthrough;
    case MSR_AMD64_PERF_CNTR_GLOBAL_STATUS:
        /* Per PPR, Read-only MSR. Writes are ignored. */
        if (!msr_info->host_initiated)
            break;

        if (data & pmu->global_status_mask)
            return 1;

        pmu->global_status = data;
        break;
    case MSR_AMD64_PERF_CNTR_GLOBAL_CTL:
        data &= ~pmu->global_ctrl_mask;
        fallthrough;
    case MSR_CORE_PERF_GLOBAL_CTRL:
        if (!kvm_valid_perf_global_ctrl(pmu, data))
            return 1;

        if (pmu->global_ctrl != data) {
            diff = pmu->global_ctrl ^ data;
            pmu->global_ctrl = data;
            reprogram_counters(pmu, diff);
        }
        break;
    case MSR_CORE_PERF_GLOBAL_OVF_CTRL:
        /*
         * GLOBAL_OVF_CTRL, a.k.a. GLOBAL STATUS_RESET, clears bits in
         * GLOBAL_STATUS, and so the set of reserved bits is the same.
         */
        if (data & pmu->global_status_mask)
            return 1;
        fallthrough;
    case MSR_AMD64_PERF_CNTR_GLOBAL_STATUS_CLR:
        if (!msr_info->host_initiated)
            pmu->global_status &= ~data;
        break;
    default:
        kvm_pmu_mark_pmc_in_use(vcpu, msr_info->index);
        return static_call(kvm_x86_pmu_set_msr)(vcpu, msr_info);
    }

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_pmu_trigger_event()

void kvm_pmu_trigger_event	(	struct kvm_vcpu *	vcpu,
		u64	perf_hw_id
	)

Definition at line 828 of file pmu.c.

{
    struct kvm_pmu *pmu = vcpu_to_pmu(vcpu);
    struct kvm_pmc *pmc;
    int i;

    for_each_set_bit(i, pmu->all_valid_pmc_idx, X86_PMC_IDX_MAX) {
        pmc = static_call(kvm_x86_pmu_pmc_idx_to_pmc)(pmu, i);

        if (!pmc || !pmc_event_is_allowed(pmc))
            continue;

        /* Ignore checks for edge detect, pin control, invert and CMASK bits */
        if (eventsel_match_perf_hw_id(pmc, perf_hw_id) && cpl_is_matched(pmc))
            kvm_pmu_incr_counter(pmc);
    }
}

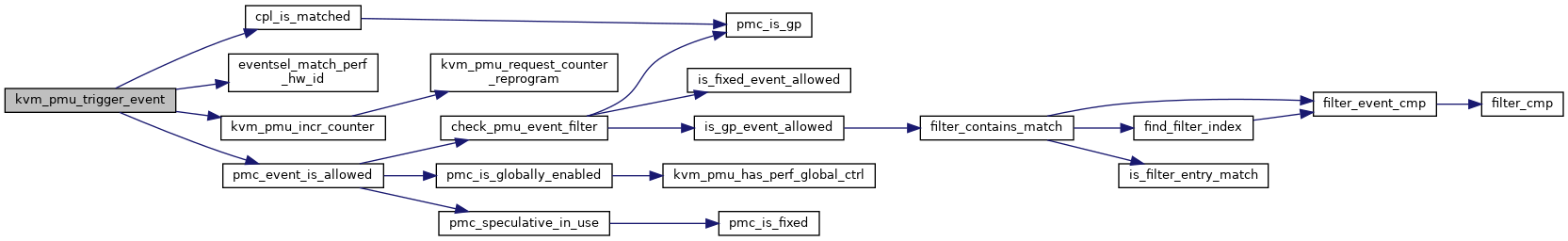

Here is the call graph for this function:

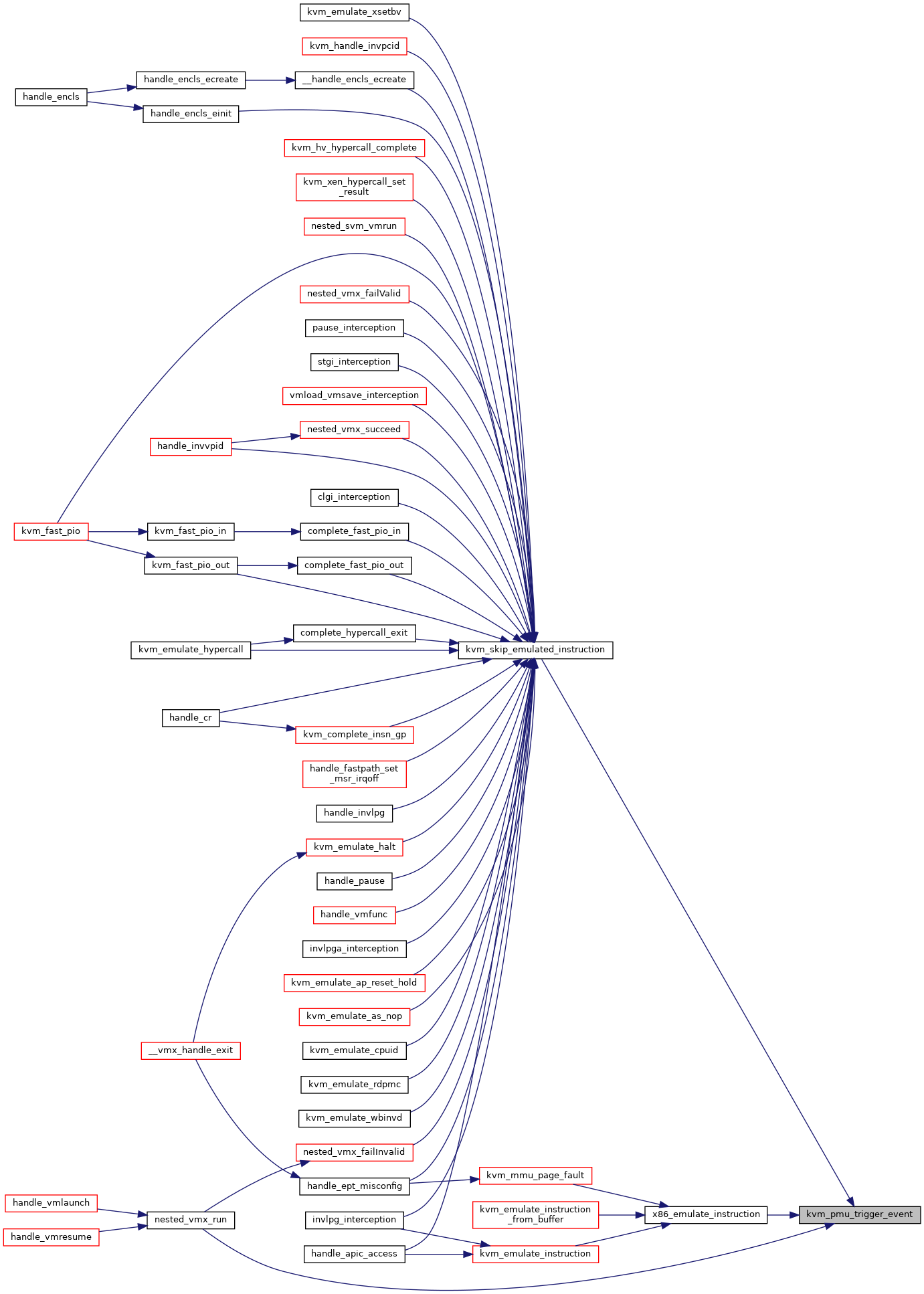

Here is the caller graph for this function:

kvm_vm_ioctl_set_pmu_event_filter()

int kvm_vm_ioctl_set_pmu_event_filter	(	struct kvm *	kvm,
		void __user *	argp
	)

Definition at line 928 of file pmu.c.

{
    struct kvm_pmu_event_filter __user *user_filter = argp;
    struct kvm_x86_pmu_event_filter *filter;
    struct kvm_pmu_event_filter tmp;
    struct kvm_vcpu *vcpu;
    unsigned long i;
    size_t size;
    int r;

    if (copy_from_user(&tmp, user_filter, sizeof(tmp)))
        return -EFAULT;

    if (tmp.action != KVM_PMU_EVENT_ALLOW &&
        tmp.action != KVM_PMU_EVENT_DENY)
        return -EINVAL;

    if (tmp.flags & ~KVM_PMU_EVENT_FLAGS_VALID_MASK)
        return -EINVAL;

    if (tmp.nevents > KVM_PMU_EVENT_FILTER_MAX_EVENTS)
        return -E2BIG;

    size = struct_size(filter, events, tmp.nevents);
    filter = kzalloc(size, GFP_KERNEL_ACCOUNT);
    if (!filter)
        return -ENOMEM;

    filter->action = tmp.action;
    filter->nevents = tmp.nevents;
    filter->fixed_counter_bitmap = tmp.fixed_counter_bitmap;
    filter->flags = tmp.flags;

    r = -EFAULT;
    if (copy_from_user(filter->events, user_filter->events,
               sizeof(filter->events[0]) * filter->nevents))
        goto cleanup;

    r = prepare_filter_lists(filter);
    if (r)
        goto cleanup;

    mutex_lock(&kvm->lock);
    filter = rcu_replace_pointer(kvm->arch.pmu_event_filter, filter,
                     mutex_is_locked(&kvm->lock));
    mutex_unlock(&kvm->lock);
    synchronize_srcu_expedited(&kvm->srcu);

    BUILD_BUG_ON(sizeof(((struct kvm_pmu *)0)->reprogram_pmi) >
             sizeof(((struct kvm_pmu *)0)->__reprogram_pmi));

    kvm_for_each_vcpu(i, vcpu, kvm)
        atomic64_set(&vcpu_to_pmu(vcpu)->__reprogram_pmi, -1ull);

    kvm_make_all_cpus_request(kvm, KVM_REQ_PMU);

    r = 0;
cleanup:
    kfree(filter);
    return r;
}

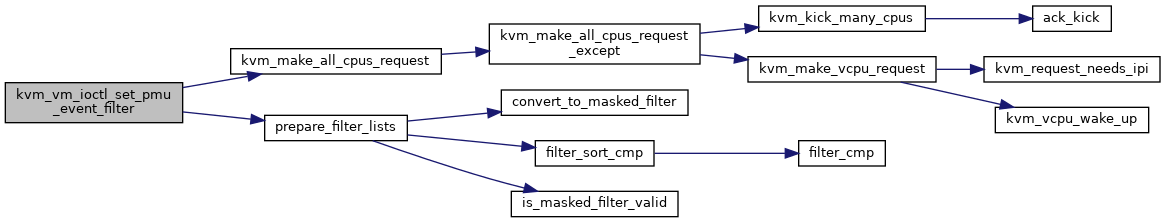

Here is the call graph for this function:

Here is the caller graph for this function:

pmc_event_is_allowed()

static bool pmc_event_is_allowed ( struct kvm_pmc *  pmc )

static

Definition at line 441 of file pmu.c.

{
    return pmc_is_globally_enabled(pmc) && pmc_speculative_in_use(pmc) &&
           static_call(kvm_x86_pmu_hw_event_available)(pmc) &&
           check_pmu_event_filter(pmc);
}

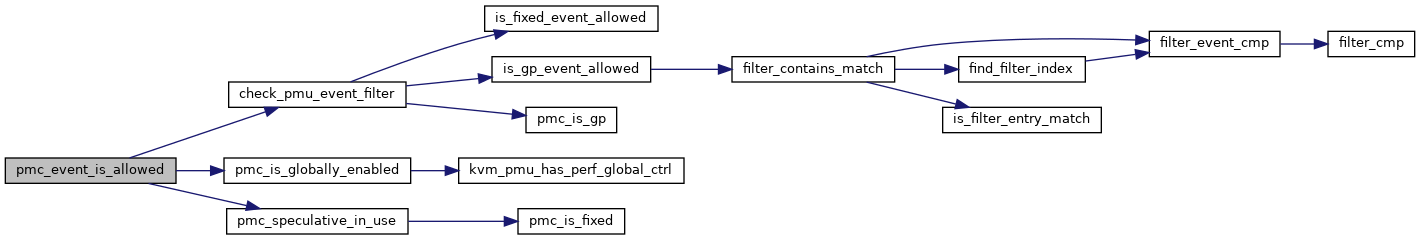

Here is the call graph for this function:

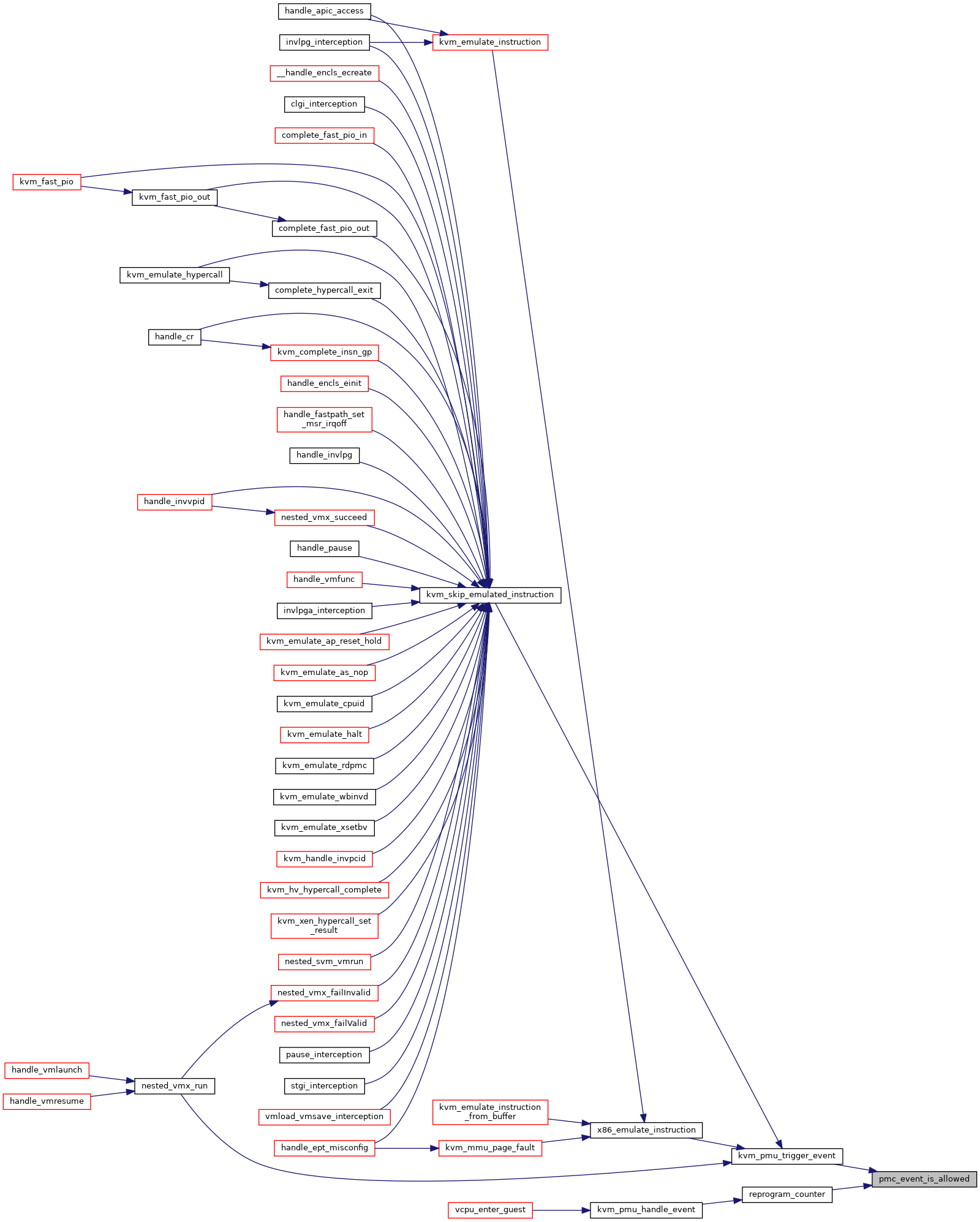

Here is the caller graph for this function:

pmc_get_pebs_precise_level()

static u64 pmc_get_pebs_precise_level ( struct kvm_pmc *  pmc )

static

Definition at line 142 of file pmu.c.

{
    /*
     * For some model specific pebs counters with special capabilities
     * (PDIR, PDIR++, PDIST), KVM needs to raise the event precise
     * level to the maximum value (currently 3, backwards compatible)
     * so that the perf subsystem would assign specific hardware counter
     * with that capability for vPMC.
     */
    if ((pmc->idx == 0 && x86_match_cpu(vmx_pebs_pdist_cpu)) ||
        (pmc->idx == 32 && x86_match_cpu(vmx_pebs_pdir_cpu)))
        return 3;

    /*
     * The non-zero precision level of guest event makes the ordinary
     * guest event becomes a guest PEBS event and triggers the host
     * PEBS PMI handler to determine whether the PEBS overflow PMI
     * comes from the host counters or the guest.
     */
    return 1;
}

Here is the caller graph for this function:

pmc_pause_counter()

static bool pmc_pause_counter ( struct kvm_pmc *  pmc )

static

Definition at line 227 of file pmu.c.

{
    u64 counter = pmc->counter;
    u64 prev_counter;

    /* update counter, reset event value to avoid redundant accumulation */
    if (pmc->perf_event && !pmc->is_paused)
        counter += perf_event_pause(pmc->perf_event, true);

    /*
     * Snapshot the previous counter *after* accumulating state from perf.
     * If overflow already happened, hardware (via perf) is responsible for
     * generating a PMI.  KVM just needs to detect overflow on emulated
     * counter events that haven't yet been processed.
     */
    prev_counter = counter & pmc_bitmask(pmc);

    counter += pmc->emulated_counter;
    pmc->counter = counter & pmc_bitmask(pmc);

    pmc->emulated_counter = 0;
    pmc->is_paused = true;

    return pmc->counter < prev_counter;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pmc_release_perf_event()

static void pmc_release_perf_event ( struct kvm_pmc *  pmc )

static

Definition at line 275 of file pmu.c.

{
    if (pmc->perf_event) {
        perf_event_release_kernel(pmc->perf_event);
        pmc->perf_event = NULL;
        pmc->current_config = 0;
        pmc_to_pmu(pmc)->event_count--;
    }
}

Here is the caller graph for this function:

pmc_reprogram_counter()

static int pmc_reprogram_counter ( struct kvm_pmc *  pmc, u32  type, u64  config, bool  exclude_user, bool  exclude_kernel, bool  intr  )

static

Definition at line 173 of file pmu.c.

{
    struct kvm_pmu *pmu = pmc_to_pmu(pmc);
    struct perf_event *event;
    struct perf_event_attr attr = {
        .type = type,
        .size = sizeof(attr),
        .pinned = true,
        .exclude_idle = true,
        .exclude_host = 1,
        .exclude_user = exclude_user,
        .exclude_kernel = exclude_kernel,
        .config = config,
    };
    bool pebs = test_bit(pmc->idx, (unsigned long *)&pmu->pebs_enable);

    attr.sample_period = get_sample_period(pmc, pmc->counter);

    if ((attr.config & HSW_IN_TX_CHECKPOINTED) &&
        guest_cpuid_is_intel(pmc->vcpu)) {
        /*
         * HSW_IN_TX_CHECKPOINTED is not supported with nonzero
         * period. Just clear the sample period so at least
         * allocating the counter doesn't fail.
         */
        attr.sample_period = 0;
    }
    if (pebs) {
        /*
         * For most PEBS hardware events, the difference in the software
         * precision levels of guest and host PEBS events will not affect
         * the accuracy of the PEBS profiling result, because the "event IP"
         * in the PEBS record is calibrated on the guest side.
         */
        attr.precise_ip = pmc_get_pebs_precise_level(pmc);
    }

    event = perf_event_create_kernel_counter(&attr, -1, current,
                         kvm_perf_overflow, pmc);
    if (IS_ERR(event)) {
        pr_debug_ratelimited("kvm_pmu: event creation failed %ld for pmc->idx = %d\n",
                PTR_ERR(event), pmc->idx);
        return PTR_ERR(event);
    }

    pmc->perf_event = event;
    pmc_to_pmu(pmc)->event_count++;
    pmc->is_paused = false;
    pmc->intr = intr || pebs;
    return 0;
}

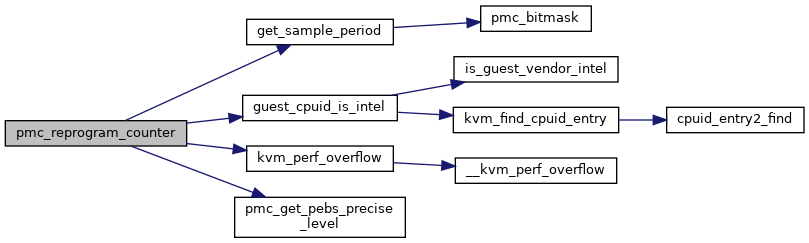

Here is the call graph for this function:

Here is the caller graph for this function:

pmc_resume_counter()

static bool pmc_resume_counter ( struct kvm_pmc *  pmc )

static

Definition at line 253 of file pmu.c.

{
    if (!pmc->perf_event)
        return false;

    /* recalibrate sample period and check if it's accepted by perf core */
    if (is_sampling_event(pmc->perf_event) &&
        perf_event_period(pmc->perf_event,
                  get_sample_period(pmc, pmc->counter)))
        return false;

    if (test_bit(pmc->idx, (unsigned long *)&pmc_to_pmu(pmc)->pebs_enable) !=
        (!!pmc->perf_event->attr.precise_ip))
        return false;

    /* reuse perf_event to serve as pmc_reprogram_counter() does*/
    perf_event_enable(pmc->perf_event);
    pmc->is_paused = false;

    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

pmc_stop_counter()

static void pmc_stop_counter ( struct kvm_pmc *  pmc )

static

Definition at line 285 of file pmu.c.

{
    if (pmc->perf_event) {
        pmc->counter = pmc_read_counter(pmc);
        pmc_release_perf_event(pmc);
    }
}

Here is the call graph for this function:

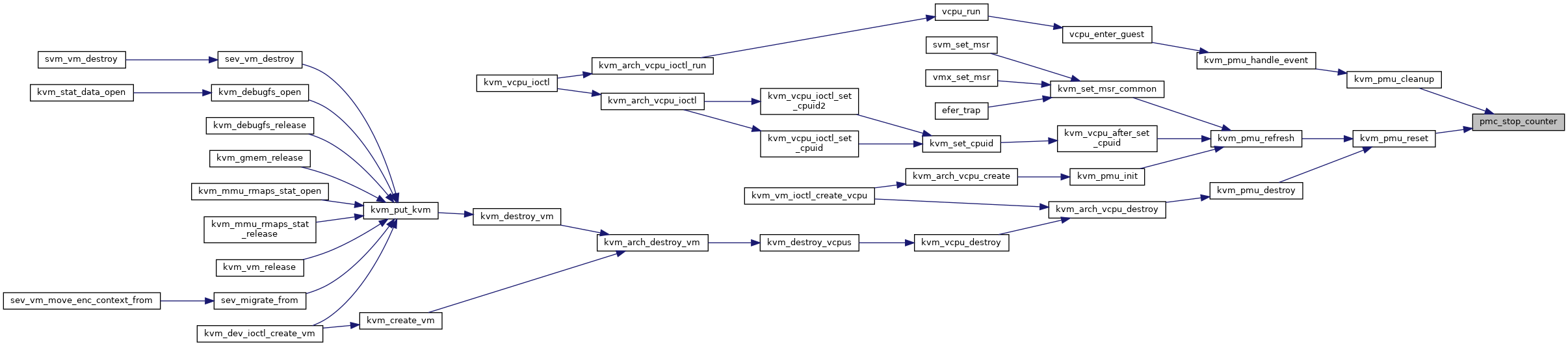

Here is the caller graph for this function:

pmc_update_sample_period()

static void pmc_update_sample_period ( struct kvm_pmc *  pmc )

static

Definition at line 293 of file pmu.c.

{
    if (!pmc->perf_event || pmc->is_paused ||
        !is_sampling_event(pmc->perf_event))
        return;

    perf_event_period(pmc->perf_event,
              get_sample_period(pmc, pmc->counter));
}

Here is the call graph for this function:

Here is the caller graph for this function:

pmc_write_counter()

void pmc_write_counter	(	struct kvm_pmc *	pmc,
		u64	val
	)

Definition at line 303 of file pmu.c.

{
    /*
     * Drop any unconsumed accumulated counts, the WRMSR is a write, not a
     * read-modify-write.  Adjust the counter value so that its value is
     * relative to the current count, as reading the current count from
     * perf is faster than pausing and repgrogramming the event in order to
     * reset it to '0'.  Note, this very sneakily offsets the accumulated
     * emulated count too, by using pmc_read_counter()!
     */
    pmc->emulated_counter = 0;
    pmc->counter += val - pmc_read_counter(pmc);
    pmc->counter &= pmc_bitmask(pmc);
    pmc_update_sample_period(pmc);
}

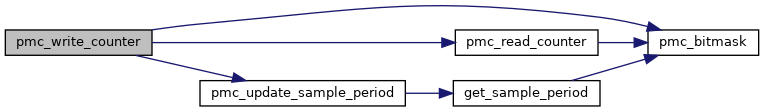

Here is the call graph for this function:

Here is the caller graph for this function:

prepare_filter_lists()

static int prepare_filter_lists ( struct kvm_x86_pmu_event_filter *  filter )

static

Definition at line 892 of file pmu.c.

{
    int i;

    if (!(filter->flags & KVM_PMU_EVENT_FLAG_MASKED_EVENTS))
        convert_to_masked_filter(filter);
    else if (!is_masked_filter_valid(filter))
        return -EINVAL;

    /*
     * Sort entries by event select and includes vs. excludes so that all
     * entries for a given event select can be processed efficiently during
     * filtering.  The EXCLUDE flag uses a more significant bit than the
     * event select, and so the sorted list is also effectively split into
     * includes and excludes sub-lists.
     */
    sort(&filter->events, filter->nevents, sizeof(filter->events[0]),
         filter_sort_cmp, NULL);

    i = filter->nevents;
    /* Find the first EXCLUDE event (only supported for masked events). */
    if (filter->flags & KVM_PMU_EVENT_FLAG_MASKED_EVENTS) {
        for (i = 0; i < filter->nevents; i++) {
            if (filter->events[i] & KVM_PMU_MASKED_ENTRY_EXCLUDE)
                break;
        }
    }

    filter->nr_includes = i;
    filter->nr_excludes = filter->nevents - filter->nr_includes;
    filter->includes = filter->events;
    filter->excludes = filter->events + filter->nr_includes;

    return 0;
}

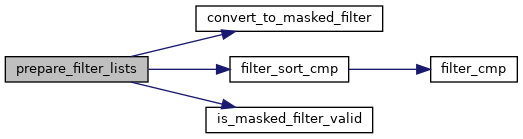

Here is the call graph for this function:

Here is the caller graph for this function:

reprogram_counter()

static void reprogram_counter ( struct kvm_pmc *  pmc )

static

Definition at line 448 of file pmu.c.

{
    struct kvm_pmu *pmu = pmc_to_pmu(pmc);
    u64 eventsel = pmc->eventsel;
    u64 new_config = eventsel;
    bool emulate_overflow;
    u8 fixed_ctr_ctrl;

    emulate_overflow = pmc_pause_counter(pmc);

    if (!pmc_event_is_allowed(pmc))
        goto reprogram_complete;

    if (emulate_overflow)
        __kvm_perf_overflow(pmc, false);

    if (eventsel & ARCH_PERFMON_EVENTSEL_PIN_CONTROL)
        printk_once("kvm pmu: pin control bit is ignored\n");

    if (pmc_is_fixed(pmc)) {
        fixed_ctr_ctrl = fixed_ctrl_field(pmu->fixed_ctr_ctrl,
                          pmc->idx - INTEL_PMC_IDX_FIXED);
        if (fixed_ctr_ctrl & 0x1)
            eventsel |= ARCH_PERFMON_EVENTSEL_OS;
        if (fixed_ctr_ctrl & 0x2)
            eventsel |= ARCH_PERFMON_EVENTSEL_USR;
        if (fixed_ctr_ctrl & 0x8)
            eventsel |= ARCH_PERFMON_EVENTSEL_INT;
        new_config = (u64)fixed_ctr_ctrl;
    }

    if (pmc->current_config == new_config && pmc_resume_counter(pmc))
        goto reprogram_complete;

    pmc_release_perf_event(pmc);

    pmc->current_config = new_config;

    /*
     * If reprogramming fails, e.g. due to contention, leave the counter's
     * regprogram bit set, i.e. opportunistically try again on the next PMU
     * refresh.  Don't make a new request as doing so can stall the guest
     * if reprogramming repeatedly fails.
     */
    if (pmc_reprogram_counter(pmc, PERF_TYPE_RAW,
                  (eventsel & pmu->raw_event_mask),
                  !(eventsel & ARCH_PERFMON_EVENTSEL_USR),
                  !(eventsel & ARCH_PERFMON_EVENTSEL_OS),
                  eventsel & ARCH_PERFMON_EVENTSEL_INT))
        return;

reprogram_complete:
    clear_bit(pmc->idx, (unsigned long *)&pmc_to_pmu(pmc)->reprogram_pmi);
}

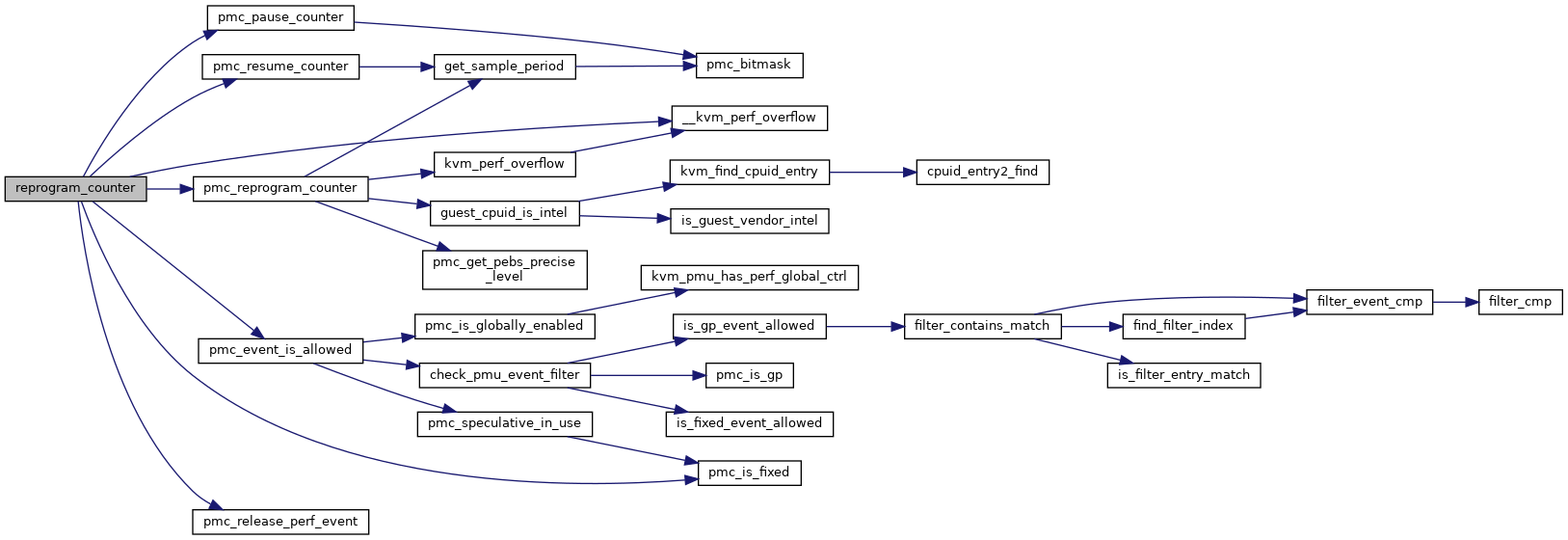

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

__read_mostly

struct kvm_pmu_ops kvm_pmu_ops __read_mostly

static

Definition at line 30 of file pmu.c.

kvm_pmu_cap

struct x86_pmu_capability __read_mostly kvm_pmu_cap

Definition at line 1 of file pmu.c.

vmx_pebs_pdir_cpu

const struct x86_cpu_id vmx_pebs_pdir_cpu[]

static

Initial value:

= {
    X86_MATCH_INTEL_FAM6_MODEL(ICELAKE_D, NULL),
    X86_MATCH_INTEL_FAM6_MODEL(ICELAKE_X, NULL),

    X86_MATCH_INTEL_FAM6_MODEL(SAPPHIRERAPIDS_X, NULL),
    {}
}

Definition at line 30 of file pmu.c.

vmx_pebs_pdist_cpu

const struct x86_cpu_id vmx_pebs_pdist_cpu[]

static

Initial value:

= {
    X86_MATCH_INTEL_FAM6_MODEL(SAPPHIRERAPIDS_X, NULL),
    {}
}

Definition at line 30 of file pmu.c.
