trace.h File Reference

#include <linux/tracepoint.h>
#include <asm/vmx.h>
#include <asm/svm.h>
#include <asm/clocksource.h>
#include <asm/pvclock-abi.h>
#include <trace/define_trace.h>

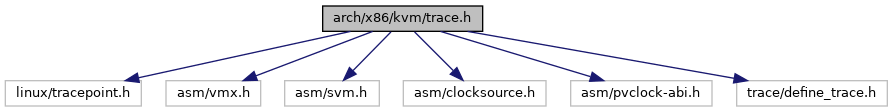

Include dependency graph for trace.h:

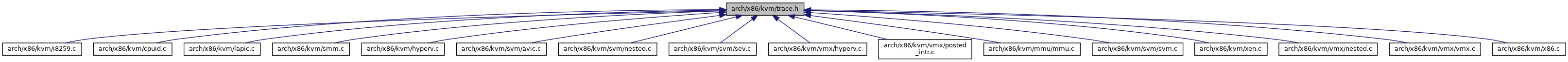

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	_TRACE_KVM_H
#define	TRACE_SYSTEM   kvm
#define	KVM_PIO_IN   0
#define	KVM_PIO_OUT   1
#define	AREG(x)   { APIC_##x, "APIC_" #x }
#define	kvm_trace_symbol_apic
#define	trace_kvm_apic_read(reg, val)   trace_kvm_apic(0, reg, val)
#define	trace_kvm_apic_write(reg, val)   trace_kvm_apic(1, reg, val)
#define	KVM_ISA_VMX   1
#define	KVM_ISA_SVM   2
#define	kvm_print_exit_reason(exit_reason, isa)
#define	TRACE_EVENT_KVM_EXIT(name)
#define	EXS(x)   { x##_VECTOR, "#" #x }
#define	kvm_trace_sym_exc
#define	trace_kvm_msr_read(ecx, data)   trace_kvm_msr(0, ecx, data, false)
#define	trace_kvm_msr_write(ecx, data)   trace_kvm_msr(1, ecx, data, false)
#define	trace_kvm_msr_read_ex(ecx)   trace_kvm_msr(0, ecx, 0, true)
#define	trace_kvm_msr_write_ex(ecx, data)   trace_kvm_msr(1, ecx, data, true)
#define	trace_kvm_cr_read(cr, val)   trace_kvm_cr(0, cr, val)
#define	trace_kvm_cr_write(cr, val)   trace_kvm_cr(1, cr, val)
#define	kvm_apic_dst_shorthand
#define	KVM_EMUL_INSN_F_CR0_PE   (1 << 0)
#define	KVM_EMUL_INSN_F_EFL_VM   (1 << 1)
#define	KVM_EMUL_INSN_F_CS_D   (1 << 2)
#define	KVM_EMUL_INSN_F_CS_L   (1 << 3)
#define	kvm_trace_symbol_emul_flags
#define	kei_decode_mode(mode)
#define	trace_kvm_emulate_insn_start(vcpu)   trace_kvm_emulate_insn(vcpu, 0)
#define	trace_kvm_emulate_insn_failed(vcpu)   trace_kvm_emulate_insn(vcpu, 1)
#define	TRACE_INCLUDE_PATH   /home/alisa/linux_host/arch/x86/kvm
#define	TRACE_INCLUDE_FILE   trace

Functions
	TRACE_EVENT (kvm_entry, TP_PROTO(struct kvm_vcpu *vcpu), TP_ARGS(vcpu), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(unsigned long, rip)), TP_fast_assign(__entry->vcpu_id=vcpu->vcpu_id;__entry->rip=kvm_rip_read(vcpu);), TP_printk("vcpu %u, rip 0x%lx", __entry->vcpu_id, __entry->rip))
	TRACE_EVENT (kvm_hypercall, TP_PROTO(unsigned long nr, unsigned long a0, unsigned long a1, unsigned long a2, unsigned long a3), TP_ARGS(nr, a0, a1, a2, a3), TP_STRUCT__entry(__field(unsigned long, nr) __field(unsigned long, a0) __field(unsigned long, a1) __field(unsigned long, a2) __field(unsigned long, a3)), TP_fast_assign(__entry->nr=nr;__entry->a0=a0;__entry->a1=a1;__entry->a2=a2;__entry->a3=a3;), TP_printk("nr 0x%lx a0 0x%lx a1 0x%lx a2 0x%lx a3 0x%lx", __entry->nr, __entry->a0, __entry->a1, __entry->a2, __entry->a3))
	TRACE_EVENT (kvm_hv_hypercall, TP_PROTO(__u16 code, bool fast, __u16 var_cnt, __u16 rep_cnt, __u16 rep_idx, __u64 ingpa, __u64 outgpa), TP_ARGS(code, fast, var_cnt, rep_cnt, rep_idx, ingpa, outgpa), TP_STRUCT__entry(__field(__u16, rep_cnt) __field(__u16, rep_idx) __field(__u64, ingpa) __field(__u64, outgpa) __field(__u16, code) __field(__u16, var_cnt) __field(bool, fast)), TP_fast_assign(__entry->rep_cnt=rep_cnt;__entry->rep_idx=rep_idx;__entry->ingpa=ingpa;__entry->outgpa=outgpa;__entry->code=code;__entry->var_cnt=var_cnt;__entry->fast=fast;), TP_printk("code 0x%x %s var_cnt 0x%x rep_cnt 0x%x idx 0x%x in 0x%llx out 0x%llx", __entry->code, __entry->fast ? "fast" :"slow", __entry->var_cnt, __entry->rep_cnt, __entry->rep_idx, __entry->ingpa, __entry->outgpa))
	TRACE_EVENT (kvm_hv_hypercall_done, TP_PROTO(u64 result), TP_ARGS(result), TP_STRUCT__entry(__field(__u64, result)), TP_fast_assign(__entry->result=result;), TP_printk("result 0x%llx", __entry->result))
	TRACE_EVENT (kvm_xen_hypercall, TP_PROTO(u8 cpl, unsigned long nr, unsigned long a0, unsigned long a1, unsigned long a2, unsigned long a3, unsigned long a4, unsigned long a5), TP_ARGS(cpl, nr, a0, a1, a2, a3, a4, a5), TP_STRUCT__entry(__field(u8, cpl) __field(unsigned long, nr) __field(unsigned long, a0) __field(unsigned long, a1) __field(unsigned long, a2) __field(unsigned long, a3) __field(unsigned long, a4) __field(unsigned long, a5)), TP_fast_assign(__entry->cpl=cpl;__entry->nr=nr;__entry->a0=a0;__entry->a1=a1;__entry->a2=a2;__entry->a3=a3;__entry->a4=a4;__entry->a4=a5;), TP_printk("cpl %d nr 0x%lx a0 0x%lx a1 0x%lx a2 0x%lx a3 0x%lx a4 0x%lx a5 %lx", __entry->cpl, __entry->nr, __entry->a0, __entry->a1, __entry->a2, __entry->a3, __entry->a4, __entry->a5))
	TRACE_EVENT (kvm_pio, TP_PROTO(unsigned int rw, unsigned int port, unsigned int size, unsigned int count, const void *data), TP_ARGS(rw, port, size, count, data), TP_STRUCT__entry(__field(unsigned int, rw) __field(unsigned int, port) __field(unsigned int, size) __field(unsigned int, count) __field(unsigned int, val)), TP_fast_assign(__entry->rw=rw;__entry->port=port;__entry->size=size;__entry->count=count;if(size==1) __entry->val= *(unsigned char *) data;else if(size==2) __entry->val= *(unsigned short *) data;else __entry->val= *(unsigned int *) data;), TP_printk("pio_%s at 0x%x size %d count %d val 0x%x %s", __entry->rw ? "write" :"read", __entry->port, __entry->size, __entry->count, __entry->val, __entry->count > 1 ? "(...)" :""))
	TRACE_EVENT (kvm_fast_mmio, TP_PROTO(u64 gpa), TP_ARGS(gpa), TP_STRUCT__entry(__field(u64, gpa)), TP_fast_assign(__entry->gpa=gpa;), TP_printk("fast mmio at gpa 0x%llx", __entry->gpa))
	TRACE_EVENT (kvm_cpuid, TP_PROTO(unsigned int function, unsigned int index, unsigned long rax, unsigned long rbx, unsigned long rcx, unsigned long rdx, bool found, bool used_max_basic), TP_ARGS(function, index, rax, rbx, rcx, rdx, found, used_max_basic), TP_STRUCT__entry(__field(unsigned int, function) __field(unsigned int, index) __field(unsigned long, rax) __field(unsigned long, rbx) __field(unsigned long, rcx) __field(unsigned long, rdx) __field(bool, found) __field(bool, used_max_basic)), TP_fast_assign(__entry->function=function;__entry->index=index;__entry->rax=rax;__entry->rbx=rbx;__entry->rcx=rcx;__entry->rdx=rdx;__entry->found=found;__entry->used_max_basic=used_max_basic;), TP_printk("func %x idx %x rax %lx rbx %lx rcx %lx rdx %lx, cpuid entry %s%s", __entry->function, __entry->index, __entry->rax, __entry->rbx, __entry->rcx, __entry->rdx, __entry->found ? "found" :"not found", __entry->used_max_basic ? ", used max basic" :""))
	TRACE_EVENT (kvm_apic, TP_PROTO(unsigned int rw, unsigned int reg, u64 val), TP_ARGS(rw, reg, val), TP_STRUCT__entry(__field(unsigned int, rw) __field(unsigned int, reg) __field(u64, val)), TP_fast_assign(__entry->rw=rw;__entry->reg=reg;__entry->val=val;), TP_printk("apic_%s %s = 0x%llx", __entry->rw ? "write" :"read", __print_symbolic(__entry->reg, kvm_trace_symbol_apic), __entry->val))
	TRACE_EVENT_KVM_EXIT (kvm_exit)
	TRACE_EVENT (kvm_inj_virq, TP_PROTO(unsigned int vector, bool soft, bool reinjected), TP_ARGS(vector, soft, reinjected), TP_STRUCT__entry(__field(unsigned int, vector) __field(bool, soft) __field(bool, reinjected)), TP_fast_assign(__entry->vector=vector;__entry->soft=soft;__entry->reinjected=reinjected;), TP_printk("%s 0x%x%s", __entry->soft ? "Soft/INTn" :"IRQ", __entry->vector, __entry->reinjected ? " [reinjected]" :""))
	TRACE_EVENT (kvm_inj_exception, TP_PROTO(unsigned exception, bool has_error, unsigned error_code, bool reinjected), TP_ARGS(exception, has_error, error_code, reinjected), TP_STRUCT__entry(__field(u8, exception) __field(u8, has_error) __field(u32, error_code) __field(bool, reinjected)), TP_fast_assign(__entry->exception=exception;__entry->has_error=has_error;__entry->error_code=error_code;__entry->reinjected=reinjected;), TP_printk("%s%s%s%s%s", __print_symbolic(__entry->exception, kvm_trace_sym_exc), !__entry->has_error ? "" :" (", !__entry->has_error ? "" :__print_symbolic(__entry->error_code, { }), !__entry->has_error ? "" :")", __entry->reinjected ? " [reinjected]" :""))
	TRACE_EVENT (kvm_page_fault, TP_PROTO(struct kvm_vcpu *vcpu, u64 fault_address, u64 error_code), TP_ARGS(vcpu, fault_address, error_code), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(unsigned long, guest_rip) __field(u64, fault_address) __field(u64, error_code)), TP_fast_assign(__entry->vcpu_id=vcpu->vcpu_id;__entry->guest_rip=kvm_rip_read(vcpu);__entry->fault_address=fault_address;__entry->error_code=error_code;), TP_printk("vcpu %u rip 0x%lx address 0x%016llx error_code 0x%llx", __entry->vcpu_id, __entry->guest_rip, __entry->fault_address, __entry->error_code))
	TRACE_EVENT (kvm_msr, TP_PROTO(unsigned write, u32 ecx, u64 data, bool exception), TP_ARGS(write, ecx, data, exception), TP_STRUCT__entry(__field(unsigned, write) __field(u32, ecx) __field(u64, data) __field(u8, exception)), TP_fast_assign(__entry->write=write;__entry->ecx=ecx;__entry->data=data;__entry->exception=exception;), TP_printk("msr_%s %x = 0x%llx%s", __entry->write ? "write" :"read", __entry->ecx, __entry->data, __entry->exception ? " (#GP)" :""))
	TRACE_EVENT (kvm_cr, TP_PROTO(unsigned int rw, unsigned int cr, unsigned long val), TP_ARGS(rw, cr, val), TP_STRUCT__entry(__field(unsigned int, rw) __field(unsigned int, cr) __field(unsigned long, val)), TP_fast_assign(__entry->rw=rw;__entry->cr=cr;__entry->val=val;), TP_printk("cr_%s %x = 0x%lx", __entry->rw ? "write" :"read", __entry->cr, __entry->val))
	TRACE_EVENT (kvm_pic_set_irq, TP_PROTO(__u8 chip, __u8 pin, __u8 elcr, __u8 imr, bool coalesced), TP_ARGS(chip, pin, elcr, imr, coalesced), TP_STRUCT__entry(__field(__u8, chip) __field(__u8, pin) __field(__u8, elcr) __field(__u8, imr) __field(bool, coalesced)), TP_fast_assign(__entry->chip=chip;__entry->pin=pin;__entry->elcr=elcr;__entry->imr=imr;__entry->coalesced=coalesced;), TP_printk("chip %u pin %u (%s%s)%s", __entry->chip, __entry->pin,(__entry->elcr &(1<< __entry->pin)) ? "level":"edge",(__entry->imr &(1<< __entry->pin)) ? "|masked":"", __entry->coalesced ? " (coalesced)" :""))
	TRACE_EVENT (kvm_apic_ipi, TP_PROTO(__u32 icr_low, __u32 dest_id), TP_ARGS(icr_low, dest_id), TP_STRUCT__entry(__field(__u32, icr_low) __field(__u32, dest_id)), TP_fast_assign(__entry->icr_low=icr_low;__entry->dest_id=dest_id;), TP_printk("dst %x vec %u (%s|%s|%s|%s|%s)", __entry->dest_id,(u8) __entry->icr_low, __print_symbolic((__entry->icr_low >> 8 &0x7), kvm_deliver_mode),(__entry->icr_low &(1<< 11)) ? "logical" :"physical",(__entry->icr_low &(1<< 14)) ? "assert" :"de-assert",(__entry->icr_low &(1<< 15)) ? "level" :"edge", __print_symbolic((__entry->icr_low >> 18 &0x3), kvm_apic_dst_shorthand)))
	TRACE_EVENT (kvm_apic_accept_irq, TP_PROTO(__u32 apicid, __u16 dm, __u16 tm, __u8 vec), TP_ARGS(apicid, dm, tm, vec), TP_STRUCT__entry(__field(__u32, apicid) __field(__u16, dm) __field(__u16, tm) __field(__u8, vec)), TP_fast_assign(__entry->apicid=apicid;__entry->dm=dm;__entry->tm=tm;__entry->vec=vec;), TP_printk("apicid %x vec %u (%s|%s)", __entry->apicid, __entry->vec, __print_symbolic((__entry->dm >> 8 &0x7), kvm_deliver_mode), __entry->tm ? "level" :"edge"))
	TRACE_EVENT (kvm_eoi, TP_PROTO(struct kvm_lapic *apic, int vector), TP_ARGS(apic, vector), TP_STRUCT__entry(__field(__u32, apicid) __field(int, vector)), TP_fast_assign(__entry->apicid=apic->vcpu->vcpu_id;__entry->vector=vector;), TP_printk("apicid %x vector %d", __entry->apicid, __entry->vector))
	TRACE_EVENT (kvm_pv_eoi, TP_PROTO(struct kvm_lapic *apic, int vector), TP_ARGS(apic, vector), TP_STRUCT__entry(__field(__u32, apicid) __field(int, vector)), TP_fast_assign(__entry->apicid=apic->vcpu->vcpu_id;__entry->vector=vector;), TP_printk("apicid %x vector %d", __entry->apicid, __entry->vector))
	TRACE_EVENT (kvm_nested_vmenter, TP_PROTO(__u64 rip, __u64 vmcb, __u64 nested_rip, __u32 int_ctl, __u32 event_inj, bool tdp_enabled, __u64 guest_tdp_pgd, __u64 guest_cr3, __u32 isa), TP_ARGS(rip, vmcb, nested_rip, int_ctl, event_inj, tdp_enabled, guest_tdp_pgd, guest_cr3, isa), TP_STRUCT__entry(__field(__u64, rip) __field(__u64, vmcb) __field(__u64, nested_rip) __field(__u32, int_ctl) __field(__u32, event_inj) __field(bool, tdp_enabled) __field(__u64, guest_pgd) __field(__u32, isa)), TP_fast_assign(__entry->rip=rip;__entry->vmcb=vmcb;__entry->nested_rip=nested_rip;__entry->int_ctl=int_ctl;__entry->event_inj=event_inj;__entry->tdp_enabled=tdp_enabled;__entry->guest_pgd=tdp_enabled ? guest_tdp_pgd :guest_cr3;__entry->isa=isa;), TP_printk("rip: 0x%016llx %s: 0x%016llx nested_rip: 0x%016llx " "int_ctl: 0x%08x event_inj: 0x%08x nested_%s=%s %s: 0x%016llx", __entry->rip, __entry->isa==KVM_ISA_VMX ? "vmcs" :"vmcb", __entry->vmcb, __entry->nested_rip, __entry->int_ctl, __entry->event_inj, __entry->isa==KVM_ISA_VMX ? "ept" :"npt", __entry->tdp_enabled ? "y" :"n", !__entry->tdp_enabled ? "guest_cr3" :__entry->isa==KVM_ISA_VMX ? "nested_eptp" :"nested_cr3", __entry->guest_pgd))
	TRACE_EVENT (kvm_nested_intercepts, TP_PROTO(__u16 cr_read, __u16 cr_write, __u32 exceptions, __u32 intercept1, __u32 intercept2, __u32 intercept3), TP_ARGS(cr_read, cr_write, exceptions, intercept1, intercept2, intercept3), TP_STRUCT__entry(__field(__u16, cr_read) __field(__u16, cr_write) __field(__u32, exceptions) __field(__u32, intercept1) __field(__u32, intercept2) __field(__u32, intercept3)), TP_fast_assign(__entry->cr_read=cr_read;__entry->cr_write=cr_write;__entry->exceptions=exceptions;__entry->intercept1=intercept1;__entry->intercept2=intercept2;__entry->intercept3=intercept3;), TP_printk("cr_read: %04x cr_write: %04x excp: %08x " "intercepts: %08x %08x %08x", __entry->cr_read, __entry->cr_write, __entry->exceptions, __entry->intercept1, __entry->intercept2, __entry->intercept3))
	TRACE_EVENT_KVM_EXIT (kvm_nested_vmexit)
	TRACE_EVENT (kvm_nested_vmexit_inject, TP_PROTO(__u32 exit_code, __u64 exit_info1, __u64 exit_info2, __u32 exit_int_info, __u32 exit_int_info_err, __u32 isa), TP_ARGS(exit_code, exit_info1, exit_info2, exit_int_info, exit_int_info_err, isa), TP_STRUCT__entry(__field(__u32, exit_code) __field(__u64, exit_info1) __field(__u64, exit_info2) __field(__u32, exit_int_info) __field(__u32, exit_int_info_err) __field(__u32, isa)), TP_fast_assign(__entry->exit_code=exit_code;__entry->exit_info1=exit_info1;__entry->exit_info2=exit_info2;__entry->exit_int_info=exit_int_info;__entry->exit_int_info_err=exit_int_info_err;__entry->isa=isa;), TP_printk("reason: %s%s%s ext_inf1: 0x%016llx " "ext_inf2: 0x%016llx ext_int: 0x%08x ext_int_err: 0x%08x", kvm_print_exit_reason(__entry->exit_code, __entry->isa), __entry->exit_info1, __entry->exit_info2, __entry->exit_int_info, __entry->exit_int_info_err))
	TRACE_EVENT (kvm_nested_intr_vmexit, TP_PROTO(__u64 rip), TP_ARGS(rip), TP_STRUCT__entry(__field(__u64, rip)), TP_fast_assign(__entry->rip=rip), TP_printk("rip: 0x%016llx", __entry->rip))
	TRACE_EVENT (kvm_invlpga, TP_PROTO(__u64 rip, unsigned int asid, u64 address), TP_ARGS(rip, asid, address), TP_STRUCT__entry(__field(__u64, rip) __field(unsigned int, asid) __field(__u64, address)), TP_fast_assign(__entry->rip=rip;__entry->asid=asid;__entry->address=address;), TP_printk("rip: 0x%016llx asid: %u address: 0x%016llx", __entry->rip, __entry->asid, __entry->address))
	TRACE_EVENT (kvm_skinit, TP_PROTO(__u64 rip, __u32 slb), TP_ARGS(rip, slb), TP_STRUCT__entry(__field(__u64, rip) __field(__u32, slb)), TP_fast_assign(__entry->rip=rip;__entry->slb=slb;), TP_printk("rip: 0x%016llx slb: 0x%08x", __entry->rip, __entry->slb))
	TRACE_EVENT (kvm_emulate_insn, TP_PROTO(struct kvm_vcpu *vcpu, __u8 failed), TP_ARGS(vcpu, failed), TP_STRUCT__entry(__field(__u64, rip) __field(__u32, csbase) __field(__u8, len) __array(__u8, insn, 15) __field(__u8, flags) __field(__u8, failed)), TP_fast_assign(__entry->csbase=static_call(kvm_x86_get_segment_base)(vcpu, VCPU_SREG_CS);__entry->len=vcpu->arch.emulate_ctxt->fetch.ptr - vcpu->arch.emulate_ctxt->fetch.data;__entry->rip=vcpu->arch.emulate_ctxt->_eip - __entry->len;memcpy(__entry->insn, vcpu->arch.emulate_ctxt->fetch.data, 15);__entry->flags=kei_decode_mode(vcpu->arch.emulate_ctxt->mode);__entry->failed=failed;), TP_printk("%x:%llx:%s (%s)%s", __entry->csbase, __entry->rip, __print_hex(__entry->insn, __entry->len), __print_symbolic(__entry->flags, kvm_trace_symbol_emul_flags), __entry->failed ? " failed" :""))
	TRACE_EVENT (vcpu_match_mmio, TP_PROTO(gva_t gva, gpa_t gpa, bool write, bool gpa_match), TP_ARGS(gva, gpa, write, gpa_match), TP_STRUCT__entry(__field(gva_t, gva) __field(gpa_t, gpa) __field(bool, write) __field(bool, gpa_match)), TP_fast_assign(__entry->gva=gva;__entry->gpa=gpa;__entry->write=write;__entry->gpa_match=gpa_match), TP_printk("gva %#lx gpa %#llx %s %s", __entry->gva, __entry->gpa, __entry->write ? "Write" :"Read", __entry->gpa_match ? "GPA" :"GVA"))
	TRACE_EVENT (kvm_write_tsc_offset, TP_PROTO(unsigned int vcpu_id, __u64 previous_tsc_offset, __u64 next_tsc_offset), TP_ARGS(vcpu_id, previous_tsc_offset, next_tsc_offset), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(__u64, previous_tsc_offset) __field(__u64, next_tsc_offset)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->previous_tsc_offset=previous_tsc_offset;__entry->next_tsc_offset=next_tsc_offset;), TP_printk("vcpu=%u prev=%llu next=%llu", __entry->vcpu_id, __entry->previous_tsc_offset, __entry->next_tsc_offset))
	TRACE_EVENT (kvm_pml_full, TP_PROTO(unsigned int vcpu_id), TP_ARGS(vcpu_id), TP_STRUCT__entry(__field(unsigned int, vcpu_id)), TP_fast_assign(__entry->vcpu_id=vcpu_id;), TP_printk("vcpu %d: PML full", __entry->vcpu_id))
	TRACE_EVENT (kvm_ple_window_update, TP_PROTO(unsigned int vcpu_id, unsigned int new, unsigned int old), TP_ARGS(vcpu_id, new, old), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(unsigned int, new) __field(unsigned int, old)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->new=new;__entry->old=old;), TP_printk("vcpu %u old %u new %u (%s)", __entry->vcpu_id, __entry->old, __entry->new, __entry->old< __entry->new ? "growed" :"shrinked"))
	TRACE_EVENT (kvm_pvclock_update, TP_PROTO(unsigned int vcpu_id, struct pvclock_vcpu_time_info *pvclock), TP_ARGS(vcpu_id, pvclock), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(__u32, version) __field(__u64, tsc_timestamp) __field(__u64, system_time) __field(__u32, tsc_to_system_mul) __field(__s8, tsc_shift) __field(__u8, flags)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->version=pvclock->version;__entry->tsc_timestamp=pvclock->tsc_timestamp;__entry->system_time=pvclock->system_time;__entry->tsc_to_system_mul=pvclock->tsc_to_system_mul;__entry->tsc_shift=pvclock->tsc_shift;__entry->flags=pvclock->flags;), TP_printk("vcpu_id %u, pvclock { version %u, tsc_timestamp 0x%llx, " "system_time 0x%llx, tsc_to_system_mul 0x%x, tsc_shift %d, " "flags 0x%x }", __entry->vcpu_id, __entry->version, __entry->tsc_timestamp, __entry->system_time, __entry->tsc_to_system_mul, __entry->tsc_shift, __entry->flags))
	TRACE_EVENT (kvm_wait_lapic_expire, TP_PROTO(unsigned int vcpu_id, s64 delta), TP_ARGS(vcpu_id, delta), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(s64, delta)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->delta=delta;), TP_printk("vcpu %u: delta %lld (%s)", __entry->vcpu_id, __entry->delta, __entry->delta< 0 ? "early" :"late"))
	TRACE_EVENT (kvm_smm_transition, TP_PROTO(unsigned int vcpu_id, u64 smbase, bool entering), TP_ARGS(vcpu_id, smbase, entering), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, smbase) __field(bool, entering)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->smbase=smbase;__entry->entering=entering;), TP_printk("vcpu %u: %s SMM, smbase 0x%llx", __entry->vcpu_id, __entry->entering ? "entering" :"leaving", __entry->smbase))
	TRACE_EVENT (kvm_pi_irte_update, TP_PROTO(unsigned int host_irq, unsigned int vcpu_id, unsigned int gsi, unsigned int gvec, u64 pi_desc_addr, bool set), TP_ARGS(host_irq, vcpu_id, gsi, gvec, pi_desc_addr, set), TP_STRUCT__entry(__field(unsigned int, host_irq) __field(unsigned int, vcpu_id) __field(unsigned int, gsi) __field(unsigned int, gvec) __field(u64, pi_desc_addr) __field(bool, set)), TP_fast_assign(__entry->host_irq=host_irq;__entry->vcpu_id=vcpu_id;__entry->gsi=gsi;__entry->gvec=gvec;__entry->pi_desc_addr=pi_desc_addr;__entry->set=set;), TP_printk("VT-d PI is %s for irq %u, vcpu %u, gsi: 0x%x, " "gvec: 0x%x, pi_desc_addr: 0x%llx", __entry->set ? "enabled and being updated" :"disabled", __entry->host_irq, __entry->vcpu_id, __entry->gsi, __entry->gvec, __entry->pi_desc_addr))
	TRACE_EVENT (kvm_hv_notify_acked_sint, TP_PROTO(int vcpu_id, u32 sint), TP_ARGS(vcpu_id, sint), TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, sint)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->sint=sint;), TP_printk("vcpu_id %d sint %u", __entry->vcpu_id, __entry->sint))
	TRACE_EVENT (kvm_hv_synic_set_irq, TP_PROTO(int vcpu_id, u32 sint, int vector, int ret), TP_ARGS(vcpu_id, sint, vector, ret), TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, sint) __field(int, vector) __field(int, ret)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->sint=sint;__entry->vector=vector;__entry->ret=ret;), TP_printk("vcpu_id %d sint %u vector %d ret %d", __entry->vcpu_id, __entry->sint, __entry->vector, __entry->ret))
	TRACE_EVENT (kvm_hv_synic_send_eoi, TP_PROTO(int vcpu_id, int vector), TP_ARGS(vcpu_id, vector), TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, sint) __field(int, vector) __field(int, ret)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->vector=vector;), TP_printk("vcpu_id %d vector %d", __entry->vcpu_id, __entry->vector))
	TRACE_EVENT (kvm_hv_synic_set_msr, TP_PROTO(int vcpu_id, u32 msr, u64 data, bool host), TP_ARGS(vcpu_id, msr, data, host), TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, msr) __field(u64, data) __field(bool, host)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->msr=msr;__entry->data=data;__entry->host=host), TP_printk("vcpu_id %d msr 0x%x data 0x%llx host %d", __entry->vcpu_id, __entry->msr, __entry->data, __entry->host))
	TRACE_EVENT (kvm_hv_stimer_set_config, TP_PROTO(int vcpu_id, int timer_index, u64 config, bool host), TP_ARGS(vcpu_id, timer_index, config, host), TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(u64, config) __field(bool, host)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->config=config;__entry->host=host;), TP_printk("vcpu_id %d timer %d config 0x%llx host %d", __entry->vcpu_id, __entry->timer_index, __entry->config, __entry->host))
	TRACE_EVENT (kvm_hv_stimer_set_count, TP_PROTO(int vcpu_id, int timer_index, u64 count, bool host), TP_ARGS(vcpu_id, timer_index, count, host), TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(u64, count) __field(bool, host)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->count=count;__entry->host=host;), TP_printk("vcpu_id %d timer %d count %llu host %d", __entry->vcpu_id, __entry->timer_index, __entry->count, __entry->host))
	TRACE_EVENT (kvm_hv_stimer_start_periodic, TP_PROTO(int vcpu_id, int timer_index, u64 time_now, u64 exp_time), TP_ARGS(vcpu_id, timer_index, time_now, exp_time), TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(u64, time_now) __field(u64, exp_time)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->time_now=time_now;__entry->exp_time=exp_time;), TP_printk("vcpu_id %d timer %d time_now %llu exp_time %llu", __entry->vcpu_id, __entry->timer_index, __entry->time_now, __entry->exp_time))
	TRACE_EVENT (kvm_hv_stimer_start_one_shot, TP_PROTO(int vcpu_id, int timer_index, u64 time_now, u64 count), TP_ARGS(vcpu_id, timer_index, time_now, count), TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(u64, time_now) __field(u64, count)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->time_now=time_now;__entry->count=count;), TP_printk("vcpu_id %d timer %d time_now %llu count %llu", __entry->vcpu_id, __entry->timer_index, __entry->time_now, __entry->count))
	TRACE_EVENT (kvm_hv_stimer_callback, TP_PROTO(int vcpu_id, int timer_index), TP_ARGS(vcpu_id, timer_index), TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;), TP_printk("vcpu_id %d timer %d", __entry->vcpu_id, __entry->timer_index))
	TRACE_EVENT (kvm_hv_stimer_expiration, TP_PROTO(int vcpu_id, int timer_index, int direct, int msg_send_result), TP_ARGS(vcpu_id, timer_index, direct, msg_send_result), TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(int, direct) __field(int, msg_send_result)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->direct=direct;__entry->msg_send_result=msg_send_result;), TP_printk("vcpu_id %d timer %d direct %d send result %d", __entry->vcpu_id, __entry->timer_index, __entry->direct, __entry->msg_send_result))
	TRACE_EVENT (kvm_hv_stimer_cleanup, TP_PROTO(int vcpu_id, int timer_index), TP_ARGS(vcpu_id, timer_index), TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;), TP_printk("vcpu_id %d timer %d", __entry->vcpu_id, __entry->timer_index))
	TRACE_EVENT (kvm_apicv_inhibit_changed, TP_PROTO(int reason, bool set, unsigned long inhibits), TP_ARGS(reason, set, inhibits), TP_STRUCT__entry(__field(int, reason) __field(bool, set) __field(unsigned long, inhibits)), TP_fast_assign(__entry->reason=reason;__entry->set=set;__entry->inhibits=inhibits;), TP_printk("%s reason=%u, inhibits=0x%lx", __entry->set ? "set" :"cleared", __entry->reason, __entry->inhibits))
	TRACE_EVENT (kvm_apicv_accept_irq, TP_PROTO(__u32 apicid, __u16 dm, __u16 tm, __u8 vec), TP_ARGS(apicid, dm, tm, vec), TP_STRUCT__entry(__field(__u32, apicid) __field(__u16, dm) __field(__u16, tm) __field(__u8, vec)), TP_fast_assign(__entry->apicid=apicid;__entry->dm=dm;__entry->tm=tm;__entry->vec=vec;), TP_printk("apicid %x vec %u (%s|%s)", __entry->apicid, __entry->vec, __print_symbolic((__entry->dm >> 8 &0x7), kvm_deliver_mode), __entry->tm ? "level" :"edge"))
	TRACE_EVENT (kvm_avic_incomplete_ipi, TP_PROTO(u32 vcpu, u32 icrh, u32 icrl, u32 id, u32 index), TP_ARGS(vcpu, icrh, icrl, id, index), TP_STRUCT__entry(__field(u32, vcpu) __field(u32, icrh) __field(u32, icrl) __field(u32, id) __field(u32, index)), TP_fast_assign(__entry->vcpu=vcpu;__entry->icrh=icrh;__entry->icrl=icrl;__entry->id=id;__entry->index=index;), TP_printk("vcpu=%u, icrh:icrl=%#010x:%08x, id=%u, index=%u", __entry->vcpu, __entry->icrh, __entry->icrl, __entry->id, __entry->index))
	TRACE_EVENT (kvm_avic_unaccelerated_access, TP_PROTO(u32 vcpu, u32 offset, bool ft, bool rw, u32 vec), TP_ARGS(vcpu, offset, ft, rw, vec), TP_STRUCT__entry(__field(u32, vcpu) __field(u32, offset) __field(bool, ft) __field(bool, rw) __field(u32, vec)), TP_fast_assign(__entry->vcpu=vcpu;__entry->offset=offset;__entry->ft=ft;__entry->rw=rw;__entry->vec=vec;), TP_printk("vcpu=%u, offset=%#x(%s), %s, %s, vec=%#x", __entry->vcpu, __entry->offset, __print_symbolic(__entry->offset, kvm_trace_symbol_apic), __entry->ft ? "trap" :"fault", __entry->rw ? "write" :"read", __entry->vec))
	TRACE_EVENT (kvm_avic_ga_log, TP_PROTO(u32 vmid, u32 vcpuid), TP_ARGS(vmid, vcpuid), TP_STRUCT__entry(__field(u32, vmid) __field(u32, vcpuid)), TP_fast_assign(__entry->vmid=vmid;__entry->vcpuid=vcpuid;), TP_printk("vmid=%u, vcpuid=%u", __entry->vmid, __entry->vcpuid))
	TRACE_EVENT (kvm_avic_kick_vcpu_slowpath, TP_PROTO(u32 icrh, u32 icrl, u32 index), TP_ARGS(icrh, icrl, index), TP_STRUCT__entry(__field(u32, icrh) __field(u32, icrl) __field(u32, index)), TP_fast_assign(__entry->icrh=icrh;__entry->icrl=icrl;__entry->index=index;), TP_printk("icrh:icrl=%#08x:%08x, index=%u", __entry->icrh, __entry->icrl, __entry->index))
	TRACE_EVENT (kvm_avic_doorbell, TP_PROTO(u32 vcpuid, u32 apicid), TP_ARGS(vcpuid, apicid), TP_STRUCT__entry(__field(u32, vcpuid) __field(u32, apicid)), TP_fast_assign(__entry->vcpuid=vcpuid;__entry->apicid=apicid;), TP_printk("vcpuid=%u, apicid=%u", __entry->vcpuid, __entry->apicid))
	TRACE_EVENT (kvm_hv_timer_state, TP_PROTO(unsigned int vcpu_id, unsigned int hv_timer_in_use), TP_ARGS(vcpu_id, hv_timer_in_use), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(unsigned int, hv_timer_in_use)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->hv_timer_in_use=hv_timer_in_use;), TP_printk("vcpu_id %x hv_timer %x", __entry->vcpu_id, __entry->hv_timer_in_use))
	TRACE_EVENT (kvm_hv_flush_tlb, TP_PROTO(u64 processor_mask, u64 address_space, u64 flags, bool guest_mode), TP_ARGS(processor_mask, address_space, flags, guest_mode), TP_STRUCT__entry(__field(u64, processor_mask) __field(u64, address_space) __field(u64, flags) __field(bool, guest_mode)), TP_fast_assign(__entry->processor_mask=processor_mask;__entry->address_space=address_space;__entry->flags=flags;__entry->guest_mode=guest_mode;), TP_printk("processor_mask 0x%llx address_space 0x%llx flags 0x%llx %s", __entry->processor_mask, __entry->address_space, __entry->flags, __entry->guest_mode ? "(L2)" :""))
	TRACE_EVENT (kvm_hv_flush_tlb_ex, TP_PROTO(u64 valid_bank_mask, u64 format, u64 address_space, u64 flags, bool guest_mode), TP_ARGS(valid_bank_mask, format, address_space, flags, guest_mode), TP_STRUCT__entry(__field(u64, valid_bank_mask) __field(u64, format) __field(u64, address_space) __field(u64, flags) __field(bool, guest_mode)), TP_fast_assign(__entry->valid_bank_mask=valid_bank_mask;__entry->format=format;__entry->address_space=address_space;__entry->flags=flags;__entry->guest_mode=guest_mode;), TP_printk("valid_bank_mask 0x%llx format 0x%llx " "address_space 0x%llx flags 0x%llx %s", __entry->valid_bank_mask, __entry->format, __entry->address_space, __entry->flags, __entry->guest_mode ? "(L2)" :""))
	TRACE_EVENT (kvm_hv_send_ipi, TP_PROTO(u32 vector, u64 processor_mask), TP_ARGS(vector, processor_mask), TP_STRUCT__entry(__field(u32, vector) __field(u64, processor_mask)), TP_fast_assign(__entry->vector=vector;__entry->processor_mask=processor_mask;), TP_printk("vector %x processor_mask 0x%llx", __entry->vector, __entry->processor_mask))
	TRACE_EVENT (kvm_hv_send_ipi_ex, TP_PROTO(u32 vector, u64 format, u64 valid_bank_mask), TP_ARGS(vector, format, valid_bank_mask), TP_STRUCT__entry(__field(u32, vector) __field(u64, format) __field(u64, valid_bank_mask)), TP_fast_assign(__entry->vector=vector;__entry->format=format;__entry->valid_bank_mask=valid_bank_mask;), TP_printk("vector %x format %llx valid_bank_mask 0x%llx", __entry->vector, __entry->format, __entry->valid_bank_mask))
	TRACE_EVENT (kvm_pv_tlb_flush, TP_PROTO(unsigned int vcpu_id, bool need_flush_tlb), TP_ARGS(vcpu_id, need_flush_tlb), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(bool, need_flush_tlb)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->need_flush_tlb=need_flush_tlb;), TP_printk("vcpu %u need_flush_tlb %s", __entry->vcpu_id, __entry->need_flush_tlb ? "true" :"false"))
	TRACE_EVENT (kvm_nested_vmenter_failed, TP_PROTO(const char *msg, u32 err), TP_ARGS(msg, err), TP_STRUCT__entry(__string(msg, msg) __field(u32, err)), TP_fast_assign(__assign_str(msg, msg);__entry->err=err;), TP_printk("%s%s", __get_str(msg), !__entry->err ? "" :__print_symbolic(__entry->err, VMX_VMENTER_INSTRUCTION_ERRORS)))
	TRACE_EVENT (kvm_hv_syndbg_set_msr, TP_PROTO(int vcpu_id, u32 vp_index, u32 msr, u64 data), TP_ARGS(vcpu_id, vp_index, msr, data), TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, vp_index) __field(u32, msr) __field(u64, data)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->vp_index=vp_index;__entry->msr=msr;__entry->data=data;), TP_printk("vcpu_id %d vp_index %u msr 0x%x data 0x%llx", __entry->vcpu_id, __entry->vp_index, __entry->msr, __entry->data))
	TRACE_EVENT (kvm_hv_syndbg_get_msr, TP_PROTO(int vcpu_id, u32 vp_index, u32 msr, u64 data), TP_ARGS(vcpu_id, vp_index, msr, data), TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, vp_index) __field(u32, msr) __field(u64, data)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->vp_index=vp_index;__entry->msr=msr;__entry->data=data;), TP_printk("vcpu_id %d vp_index %u msr 0x%x data 0x%llx", __entry->vcpu_id, __entry->vp_index, __entry->msr, __entry->data))
	TRACE_EVENT (kvm_vmgexit_enter, TP_PROTO(unsigned int vcpu_id, struct ghcb *ghcb), TP_ARGS(vcpu_id, ghcb), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, exit_reason) __field(u64, info1) __field(u64, info2)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->exit_reason=ghcb->save.sw_exit_code;__entry->info1=ghcb->save.sw_exit_info_1;__entry->info2=ghcb->save.sw_exit_info_2;), TP_printk("vcpu %u, exit_reason %llx, exit_info1 %llx, exit_info2 %llx", __entry->vcpu_id, __entry->exit_reason, __entry->info1, __entry->info2))
	TRACE_EVENT (kvm_vmgexit_exit, TP_PROTO(unsigned int vcpu_id, struct ghcb *ghcb), TP_ARGS(vcpu_id, ghcb), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, exit_reason) __field(u64, info1) __field(u64, info2)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->exit_reason=ghcb->save.sw_exit_code;__entry->info1=ghcb->save.sw_exit_info_1;__entry->info2=ghcb->save.sw_exit_info_2;), TP_printk("vcpu %u, exit_reason %llx, exit_info1 %llx, exit_info2 %llx", __entry->vcpu_id, __entry->exit_reason, __entry->info1, __entry->info2))
	TRACE_EVENT (kvm_vmgexit_msr_protocol_enter, TP_PROTO(unsigned int vcpu_id, u64 ghcb_gpa), TP_ARGS(vcpu_id, ghcb_gpa), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, ghcb_gpa)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->ghcb_gpa=ghcb_gpa;), TP_printk("vcpu %u, ghcb_gpa %016llx", __entry->vcpu_id, __entry->ghcb_gpa))
	TRACE_EVENT (kvm_vmgexit_msr_protocol_exit, TP_PROTO(unsigned int vcpu_id, u64 ghcb_gpa, int result), TP_ARGS(vcpu_id, ghcb_gpa, result), TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, ghcb_gpa) __field(int, result)), TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->ghcb_gpa=ghcb_gpa;__entry->result=result;), TP_printk("vcpu %u, ghcb_gpa %016llx, result %d", __entry->vcpu_id, __entry->ghcb_gpa, __entry->result))

Macro Definition Documentation

_TRACE_KVM_H

#define _TRACE_KVM_H

Definition at line 3 of file trace.h.

AREG

#define AREG

(

x

)

{ APIC_##x, "APIC_" #x }

Definition at line 246 of file trace.h.

EXS

#define EXS

(

x

)

{ x##_VECTOR, "#" #x }

Definition at line 359 of file trace.h.

kei_decode_mode

#define kei_decode_mode

(

mode

)

Value:

    ({          \
    u8 flags = 0xff;                \
    switch (mode) {                 \
    case X86EMUL_MODE_REAL:             \
        flags = 0;              \
        break;                  \
    case X86EMUL_MODE_VM86:             \
        flags = KVM_EMUL_INSN_F_EFL_VM;     \
        break;                  \
    case X86EMUL_MODE_PROT16:           \
        flags = KVM_EMUL_INSN_F_CR0_PE;     \
        break;                  \
    case X86EMUL_MODE_PROT32:           \
        flags = KVM_EMUL_INSN_F_CR0_PE      \
            | KVM_EMUL_INSN_F_CS_D;     \
        break;                  \
    case X86EMUL_MODE_PROT64:           \
        flags = KVM_EMUL_INSN_F_CR0_PE      \
            | KVM_EMUL_INSN_F_CS_L;     \
        break;                  \
    }                       \
    flags;                      \
    })

Definition at line 790 of file trace.h.

kvm_apic_dst_shorthand

#define kvm_apic_dst_shorthand

Value:

    {0x0, "dst"},           \
    {0x1, "self"},          \
    {0x2, "all"},           \
    {0x3, "all-but-self"}

Definition at line 508 of file trace.h.

KVM_EMUL_INSN_F_CR0_PE

#define KVM_EMUL_INSN_F_CR0_PE   (1 << 0)

Definition at line 775 of file trace.h.

KVM_EMUL_INSN_F_CS_D

#define KVM_EMUL_INSN_F_CS_D   (1 << 2)

Definition at line 777 of file trace.h.

KVM_EMUL_INSN_F_CS_L

#define KVM_EMUL_INSN_F_CS_L   (1 << 3)

Definition at line 778 of file trace.h.

KVM_EMUL_INSN_F_EFL_VM

#define KVM_EMUL_INSN_F_EFL_VM   (1 << 1)

Definition at line 776 of file trace.h.

KVM_ISA_SVM

#define KVM_ISA_SVM   2

Definition at line 284 of file trace.h.

KVM_ISA_VMX

#define KVM_ISA_VMX   1

Definition at line 283 of file trace.h.

KVM_PIO_IN

#define KVM_PIO_IN   0

Definition at line 155 of file trace.h.

KVM_PIO_OUT

#define KVM_PIO_OUT   1

Definition at line 156 of file trace.h.

kvm_print_exit_reason

#define kvm_print_exit_reason	(		exit_reason,
			isa
	)

Value:

    (isa == KVM_ISA_VMX) ?                      \
    __print_symbolic(exit_reason & 0xffff, VMX_EXIT_REASONS) :  \
    __print_symbolic(exit_reason, SVM_EXIT_REASONS),        \
    (isa == KVM_ISA_VMX && exit_reason & ~0xffff) ? " " : "",   \
    (isa == KVM_ISA_VMX) ?                      \
    __print_flags(exit_reason & ~0xffff, " ", VMX_EXIT_REASON_FLAGS) : ""

Definition at line 286 of file trace.h.

kvm_trace_sym_exc

#define kvm_trace_sym_exc

Value:

    EXS(DE), EXS(DB), EXS(BP), EXS(OF), EXS(BR), EXS(UD), EXS(NM),  \
    EXS(DF), EXS(TS), EXS(NP), EXS(SS), EXS(GP), EXS(PF),       \
    EXS(MF), EXS(AC), EXS(MC)

Definition at line 361 of file trace.h.

kvm_trace_symbol_apic

#define kvm_trace_symbol_apic

Value:

    AREG(ID), AREG(LVR), AREG(TASKPRI), AREG(ARBPRI), AREG(PROCPRI),    \
    AREG(EOI), AREG(RRR), AREG(LDR), AREG(DFR), AREG(SPIV), AREG(ISR),  \
    AREG(TMR), AREG(IRR), AREG(ESR), AREG(ICR), AREG(ICR2), AREG(LVTT), \
    AREG(LVTTHMR), AREG(LVTPC), AREG(LVT0), AREG(LVT1), AREG(LVTERR),   \
    AREG(TMICT), AREG(TMCCT), AREG(TDCR), AREG(SELF_IPI), AREG(EFEAT),  \
    AREG(ECTRL)

Definition at line 248 of file trace.h.

kvm_trace_symbol_emul_flags

#define kvm_trace_symbol_emul_flags

Value:

    { 0,                "real" },         \
    { KVM_EMUL_INSN_F_CR0_PE              \
      | KVM_EMUL_INSN_F_EFL_VM, "vm16" },         \
    { KVM_EMUL_INSN_F_CR0_PE,   "prot16" },       \
    { KVM_EMUL_INSN_F_CR0_PE              \
      | KVM_EMUL_INSN_F_CS_D,   "prot32" },       \
    { KVM_EMUL_INSN_F_CR0_PE              \
      | KVM_EMUL_INSN_F_CS_L,   "prot64" }

Definition at line 780 of file trace.h.

TRACE_EVENT_KVM_EXIT

#define TRACE_EVENT_KVM_EXIT

(

name

)

Definition at line 294 of file trace.h.

TRACE_INCLUDE_FILE

#define TRACE_INCLUDE_FILE   trace

Definition at line 1839 of file trace.h.

TRACE_INCLUDE_PATH

#define TRACE_INCLUDE_PATH   /home/alisa/linux_host/arch/x86/kvm

Definition at line 1837 of file trace.h.

trace_kvm_apic_read

#define trace_kvm_apic_read	(		reg,
			val
	)		trace_kvm_apic(0, reg, val)

Definition at line 280 of file trace.h.

trace_kvm_apic_write

#define trace_kvm_apic_write	(		reg,
			val
	)		trace_kvm_apic(1, reg, val)

Definition at line 281 of file trace.h.

trace_kvm_cr_read

#define trace_kvm_cr_read	(		cr,
			val
	)		trace_kvm_cr(0, cr, val)

Definition at line 478 of file trace.h.

trace_kvm_cr_write

#define trace_kvm_cr_write	(		cr,
			val
	)		trace_kvm_cr(1, cr, val)

Definition at line 479 of file trace.h.

trace_kvm_emulate_insn_failed

#define trace_kvm_emulate_insn_failed

(

vcpu

)

trace_kvm_emulate_insn(vcpu, 1)

Definition at line 849 of file trace.h.

trace_kvm_emulate_insn_start

#define trace_kvm_emulate_insn_start

(

vcpu

)

trace_kvm_emulate_insn(vcpu, 0)

Definition at line 848 of file trace.h.

trace_kvm_msr_read

#define trace_kvm_msr_read	(		ecx,
			data
	)		trace_kvm_msr(0, ecx, data, false)

Definition at line 449 of file trace.h.

trace_kvm_msr_read_ex

#define trace_kvm_msr_read_ex

(

ecx

)

trace_kvm_msr(0, ecx, 0, true)

Definition at line 451 of file trace.h.

trace_kvm_msr_write

#define trace_kvm_msr_write	(		ecx,
			data
	)		trace_kvm_msr(1, ecx, data, false)

Definition at line 450 of file trace.h.

trace_kvm_msr_write_ex

#define trace_kvm_msr_write_ex	(		ecx,
			data
	)		trace_kvm_msr(1, ecx, data, true)

Definition at line 452 of file trace.h.

TRACE_SYSTEM

#define TRACE_SYSTEM   kvm

Definition at line 12 of file trace.h.

Function Documentation

TRACE_EVENT() [1/65]

TRACE_EVENT	(	kvm_apic	,
		TP_PROTO(unsigned int rw, unsigned int reg, u64 val)	,
		TP_ARGS(rw, reg, val)	,
		TP_STRUCT__entry(__field(unsigned int, rw) __field(unsigned int, reg) __field(u64, val))	,
		TP_fast_assign(__entry->rw=rw;__entry->reg=reg;__entry->val=val;)	,
		TP_printk("apic_%s %s = 0x%llx", __entry->rw ? "write" :"read", __print_symbolic(__entry->reg, kvm_trace_symbol_apic), __entry->val)
	)

TRACE_EVENT() [2/65]

TRACE_EVENT	(	kvm_apic_accept_irq	,
		TP_PROTO(__u32 apicid, __u16 dm, __u16 tm, __u8 vec)	,
		TP_ARGS(apicid, dm, tm, vec)	,
		TP_STRUCT__entry(__field(__u32, apicid) __field(__u16, dm) __field(__u16, tm) __field(__u8, vec))	,
		TP_fast_assign(__entry->apicid=apicid;__entry->dm=dm;__entry->tm=tm;__entry->vec=vec;)	,
		TP_printk("apicid %x vec %u (%s|%s)", __entry->apicid, __entry->vec, __print_symbolic((__entry->dm >> 8 &0x7), kvm_deliver_mode), __entry->tm ? "level" :"edge")
	)

TRACE_EVENT() [3/65]

TRACE_EVENT	(	kvm_apic_ipi	,
		TP_PROTO(__u32 icr_low, __u32 dest_id)	,
		TP_ARGS(icr_low, dest_id)	,
		TP_STRUCT__entry(__field(__u32, icr_low) __field(__u32, dest_id))	,
		TP_fast_assign(__entry->icr_low=icr_low;__entry->dest_id=dest_id;)	,
		TP_printk("dst %x vec %u (%s|%s|%s|%s|%s)", __entry->dest_id,(u8) __entry->icr_low, __print_symbolic((__entry->icr_low >> 8 &0x7), kvm_deliver_mode),(__entry->icr_low &(1<< 11)) ? "logical" :"physical",(__entry->icr_low &(1<< 14)) ? "assert" :"de-assert",(__entry->icr_low &(1<< 15)) ? "level" :"edge", __print_symbolic((__entry->icr_low >> 18 &0x3), kvm_apic_dst_shorthand))
	)

TRACE_EVENT() [4/65]

TRACE_EVENT	(	kvm_apicv_accept_irq	,
		TP_PROTO(__u32 apicid, __u16 dm, __u16 tm, __u8 vec)	,
		TP_ARGS(apicid, dm, tm, vec)	,
		TP_STRUCT__entry(__field(__u32, apicid) __field(__u16, dm) __field(__u16, tm) __field(__u8, vec))	,
		TP_fast_assign(__entry->apicid=apicid;__entry->dm=dm;__entry->tm=tm;__entry->vec=vec;)	,
		TP_printk("apicid %x vec %u (%s|%s)", __entry->apicid, __entry->vec, __print_symbolic((__entry->dm >> 8 &0x7), kvm_deliver_mode), __entry->tm ? "level" :"edge")
	)

TRACE_EVENT() [5/65]

TRACE_EVENT	(	kvm_apicv_inhibit_changed	,
		TP_PROTO(int reason, bool set, unsigned long inhibits)	,
		TP_ARGS(reason, set, inhibits)	,
		TP_STRUCT__entry(__field(int, reason) __field(bool, set) __field(unsigned long, inhibits))	,
		TP_fast_assign(__entry->reason=reason;__entry->set=set;__entry->inhibits=inhibits;)	,
		TP_printk("%s reason=%u, inhibits=0x%lx", __entry->set ? "set" :"cleared", __entry->reason, __entry->inhibits)
	)

TRACE_EVENT() [6/65]

TRACE_EVENT	(	kvm_avic_doorbell	,
		TP_PROTO(u32 vcpuid, u32 apicid)	,
		TP_ARGS(vcpuid, apicid)	,
		TP_STRUCT__entry(__field(u32, vcpuid) __field(u32, apicid))	,
		TP_fast_assign(__entry->vcpuid=vcpuid;__entry->apicid=apicid;)	,
		TP_printk("vcpuid=%u, apicid=%u", __entry->vcpuid, __entry->apicid)
	)

TRACE_EVENT() [7/65]

TRACE_EVENT	(	kvm_avic_ga_log	,
		TP_PROTO(u32 vmid, u32 vcpuid)	,
		TP_ARGS(vmid, vcpuid)	,
		TP_STRUCT__entry(__field(u32, vmid) __field(u32, vcpuid))	,
		TP_fast_assign(__entry->vmid=vmid;__entry->vcpuid=vcpuid;)	,
		TP_printk("vmid=%u, vcpuid=%u", __entry->vmid, __entry->vcpuid)
	)

TRACE_EVENT() [8/65]

TRACE_EVENT	(	kvm_avic_incomplete_ipi	,
		TP_PROTO(u32 vcpu, u32 icrh, u32 icrl, u32 id, u32 index)	,
		TP_ARGS(vcpu, icrh, icrl, id, index)	,
		TP_STRUCT__entry(__field(u32, vcpu) __field(u32, icrh) __field(u32, icrl) __field(u32, id) __field(u32, index))	,
		TP_fast_assign(__entry->vcpu=vcpu;__entry->icrh=icrh;__entry->icrl=icrl;__entry->id=id;__entry->index=index;)	,
		TP_printk("vcpu=%u, icrh:icrl=%#010x:%08x, id=%u, index=%u", __entry->vcpu, __entry->icrh, __entry->icrl, __entry->id, __entry->index)
	)

TRACE_EVENT() [9/65]

TRACE_EVENT	(	kvm_avic_kick_vcpu_slowpath	,
		TP_PROTO(u32 icrh, u32 icrl, u32 index)	,
		TP_ARGS(icrh, icrl, index)	,
		TP_STRUCT__entry(__field(u32, icrh) __field(u32, icrl) __field(u32, index))	,
		TP_fast_assign(__entry->icrh=icrh;__entry->icrl=icrl;__entry->index=index;)	,
		TP_printk("icrh:icrl=%#08x:%08x, index=%u", __entry->icrh, __entry->icrl, __entry->index)
	)

TRACE_EVENT() [10/65]

TRACE_EVENT	(	kvm_avic_unaccelerated_access	,
		TP_PROTO(u32 vcpu, u32 offset, bool ft, bool rw, u32 vec)	,
		TP_ARGS(vcpu, offset, ft, rw, vec)	,
		TP_STRUCT__entry(__field(u32, vcpu) __field(u32, offset) __field(bool, ft) __field(bool, rw) __field(u32, vec))	,
		TP_fast_assign(__entry->vcpu=vcpu;__entry->offset=offset;__entry->ft=ft;__entry->rw=rw;__entry->vec=vec;)	,
		TP_printk("vcpu=%u, offset=%#x(%s), %s, %s, vec=%#x", __entry->vcpu, __entry->offset, __print_symbolic(__entry->offset, kvm_trace_symbol_apic), __entry->ft ? "trap" :"fault", __entry->rw ? "write" :"read", __entry->vec)
	)

TRACE_EVENT() [11/65]

TRACE_EVENT	(	kvm_cpuid	,
		TP_PROTO(unsigned int function, unsigned int index, unsigned long rax, unsigned long rbx, unsigned long rcx, unsigned long rdx, bool found, bool used_max_basic)	,
		TP_ARGS(function, index, rax, rbx, rcx, rdx, found, used_max_basic)	,
		TP_STRUCT__entry(__field(unsigned int, function) __field(unsigned int, index) __field(unsigned long, rax) __field(unsigned long, rbx) __field(unsigned long, rcx) __field(unsigned long, rdx) __field(bool, found) __field(bool, used_max_basic))	,
		TP_fast_assign(__entry->function=function;__entry->index=index;__entry->rax=rax;__entry->rbx=rbx;__entry->rcx=rcx;__entry->rdx=rdx;__entry->found=found;__entry->used_max_basic=used_max_basic;)	,
		TP_printk("func %x idx %x rax %lx rbx %lx rcx %lx rdx %lx, cpuid entry %s%s", __entry->function, __entry->index, __entry->rax, __entry->rbx, __entry->rcx, __entry->rdx, __entry->found ? "found" :"not found", __entry->used_max_basic ? ", used max basic" :"")
	)

TRACE_EVENT() [12/65]

TRACE_EVENT	(	kvm_cr	,
		TP_PROTO(unsigned int rw, unsigned int cr, unsigned long val)	,
		TP_ARGS(rw, cr, val)	,
		TP_STRUCT__entry(__field(unsigned int, rw) __field(unsigned int, cr) __field(unsigned long, val))	,
		TP_fast_assign(__entry->rw=rw;__entry->cr=cr;__entry->val=val;)	,
		TP_printk("cr_%s %x = 0x%lx", __entry->rw ? "write" :"read", __entry->cr, __entry->val)
	)

TRACE_EVENT() [13/65]

TRACE_EVENT	(	kvm_emulate_insn	,
		TP_PROTO(struct kvm_vcpu *vcpu, __u8 failed)	,
		TP_ARGS(vcpu, failed)	,
		TP_STRUCT__entry(__field(__u64, rip) __field(__u32, csbase) __field(__u8, len) __array(__u8, insn, 15) __field(__u8, flags) __field(__u8, failed))	,
		TP_fast_assign(__entry->csbase=static_call(kvm_x86_get_segment_base)(vcpu, VCPU_SREG_CS);__entry->len=vcpu->arch.emulate_ctxt->fetch.ptr - vcpu->arch.emulate_ctxt->fetch.data;__entry->rip=vcpu->arch.emulate_ctxt->_eip - __entry->len;memcpy(__entry->insn, vcpu->arch.emulate_ctxt->fetch.data, 15);__entry->flags=kei_decode_mode(vcpu->arch.emulate_ctxt->mode);__entry->failed=failed;)	,
		TP_printk("%x:%llx:%s (%s)%s", __entry->csbase, __entry->rip, __print_hex(__entry->insn, __entry->len), __print_symbolic(__entry->flags, kvm_trace_symbol_emul_flags), __entry->failed ? " failed" :"")
	)

TRACE_EVENT() [14/65]

TRACE_EVENT	(	kvm_entry	,
		TP_PROTO(struct kvm_vcpu *vcpu)	,
		TP_ARGS(vcpu)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(unsigned long, rip))	,
		TP_fast_assign(__entry->vcpu_id=vcpu->vcpu_id;__entry->rip=kvm_rip_read(vcpu);)	,
		TP_printk("vcpu %u, rip 0x%lx", __entry->vcpu_id, __entry->rip)
	)

TRACE_EVENT() [15/65]

TRACE_EVENT	(	kvm_eoi	,
		TP_PROTO(struct kvm_lapic *apic, int vector)	,
		TP_ARGS(apic, vector)	,
		TP_STRUCT__entry(__field(__u32, apicid) __field(int, vector))	,
		TP_fast_assign(__entry->apicid=apic->vcpu->vcpu_id;__entry->vector=vector;)	,
		TP_printk("apicid %x vector %d", __entry->apicid, __entry->vector)
	)

TRACE_EVENT() [16/65]

TRACE_EVENT	(	kvm_fast_mmio	,
		TP_PROTO(u64 gpa)	,
		TP_ARGS(gpa)	,
		TP_STRUCT__entry(__field(u64, gpa))	,
		TP_fast_assign(__entry->gpa=gpa;)	,
		TP_printk("fast mmio at gpa 0x%llx", __entry->gpa)
	)

TRACE_EVENT() [17/65]

TRACE_EVENT	(	kvm_hv_flush_tlb	,
		TP_PROTO(u64 processor_mask, u64 address_space, u64 flags, bool guest_mode)	,
		TP_ARGS(processor_mask, address_space, flags, guest_mode)	,
		TP_STRUCT__entry(__field(u64, processor_mask) __field(u64, address_space) __field(u64, flags) __field(bool, guest_mode))	,
		TP_fast_assign(__entry->processor_mask=processor_mask;__entry->address_space=address_space;__entry->flags=flags;__entry->guest_mode=guest_mode;)	,
		TP_printk("processor_mask 0x%llx address_space 0x%llx flags 0x%llx %s", __entry->processor_mask, __entry->address_space, __entry->flags, __entry->guest_mode ? "(L2)" :"")
	)

TRACE_EVENT() [18/65]

TRACE_EVENT	(	kvm_hv_flush_tlb_ex	,
		TP_PROTO(u64 valid_bank_mask, u64 format, u64 address_space, u64 flags, bool guest_mode)	,
		TP_ARGS(valid_bank_mask, format, address_space, flags, guest_mode)	,
		TP_STRUCT__entry(__field(u64, valid_bank_mask) __field(u64, format) __field(u64, address_space) __field(u64, flags) __field(bool, guest_mode))	,
		TP_fast_assign(__entry->valid_bank_mask=valid_bank_mask;__entry->format=format;__entry->address_space=address_space;__entry->flags=flags;__entry->guest_mode=guest_mode;)	,
		TP_printk("valid_bank_mask 0x%llx format 0x%llx " "address_space 0x%llx flags 0x%llx %s", __entry->valid_bank_mask, __entry->format, __entry->address_space, __entry->flags, __entry->guest_mode ? "(L2)" :"")
	)

TRACE_EVENT() [19/65]

TRACE_EVENT	(	kvm_hv_hypercall	,
		TP_PROTO(__u16 code, bool fast, __u16 var_cnt, __u16 rep_cnt, __u16 rep_idx, __u64 ingpa, __u64 outgpa)	,
		TP_ARGS(code, fast, var_cnt, rep_cnt, rep_idx, ingpa, outgpa)	,
		TP_STRUCT__entry(__field(__u16, rep_cnt) __field(__u16, rep_idx) __field(__u64, ingpa) __field(__u64, outgpa) __field(__u16, code) __field(__u16, var_cnt) __field(bool, fast))	,
		TP_fast_assign(__entry->rep_cnt=rep_cnt;__entry->rep_idx=rep_idx;__entry->ingpa=ingpa;__entry->outgpa=outgpa;__entry->code=code;__entry->var_cnt=var_cnt;__entry->fast=fast;)	,
		TP_printk("code 0x%x %s var_cnt 0x%x rep_cnt 0x%x idx 0x%x in 0x%llx out 0x%llx", __entry->code, __entry->fast ? "fast" :"slow", __entry->var_cnt, __entry->rep_cnt, __entry->rep_idx, __entry->ingpa, __entry->outgpa)
	)

TRACE_EVENT() [20/65]

TRACE_EVENT	(	kvm_hv_hypercall_done	,
		TP_PROTO(u64 result)	,
		TP_ARGS(result)	,
		TP_STRUCT__entry(__field(__u64, result))	,
		TP_fast_assign(__entry->result=result;)	,
		TP_printk("result 0x%llx", __entry->result)
	)

TRACE_EVENT() [21/65]

TRACE_EVENT	(	kvm_hv_notify_acked_sint	,
		TP_PROTO(int vcpu_id, u32 sint)	,
		TP_ARGS(vcpu_id, sint)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, sint))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->sint=sint;)	,
		TP_printk("vcpu_id %d sint %u", __entry->vcpu_id, __entry->sint)
	)

TRACE_EVENT() [22/65]

TRACE_EVENT	(	kvm_hv_send_ipi	,
		TP_PROTO(u32 vector, u64 processor_mask)	,
		TP_ARGS(vector, processor_mask)	,
		TP_STRUCT__entry(__field(u32, vector) __field(u64, processor_mask))	,
		TP_fast_assign(__entry->vector=vector;__entry->processor_mask=processor_mask;)	,
		TP_printk("vector %x processor_mask 0x%llx", __entry->vector, __entry->processor_mask)
	)

TRACE_EVENT() [23/65]

TRACE_EVENT	(	kvm_hv_send_ipi_ex	,
		TP_PROTO(u32 vector, u64 format, u64 valid_bank_mask)	,
		TP_ARGS(vector, format, valid_bank_mask)	,
		TP_STRUCT__entry(__field(u32, vector) __field(u64, format) __field(u64, valid_bank_mask))	,
		TP_fast_assign(__entry->vector=vector;__entry->format=format;__entry->valid_bank_mask=valid_bank_mask;)	,
		TP_printk("vector %x format %llx valid_bank_mask 0x%llx", __entry->vector, __entry->format, __entry->valid_bank_mask)
	)

TRACE_EVENT() [24/65]

TRACE_EVENT	(	kvm_hv_stimer_callback	,
		TP_PROTO(int vcpu_id, int timer_index)	,
		TP_ARGS(vcpu_id, timer_index)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;)	,
		TP_printk("vcpu_id %d timer %d", __entry->vcpu_id, __entry->timer_index)
	)

TRACE_EVENT() [25/65]

TRACE_EVENT	(	kvm_hv_stimer_cleanup	,
		TP_PROTO(int vcpu_id, int timer_index)	,
		TP_ARGS(vcpu_id, timer_index)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;)	,
		TP_printk("vcpu_id %d timer %d", __entry->vcpu_id, __entry->timer_index)
	)

TRACE_EVENT() [26/65]

TRACE_EVENT	(	kvm_hv_stimer_expiration	,
		TP_PROTO(int vcpu_id, int timer_index, int direct, int msg_send_result)	,
		TP_ARGS(vcpu_id, timer_index, direct, msg_send_result)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(int, direct) __field(int, msg_send_result))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->direct=direct;__entry->msg_send_result=msg_send_result;)	,
		TP_printk("vcpu_id %d timer %d direct %d send result %d", __entry->vcpu_id, __entry->timer_index, __entry->direct, __entry->msg_send_result)
	)

TRACE_EVENT() [27/65]

TRACE_EVENT	(	kvm_hv_stimer_set_config	,
		TP_PROTO(int vcpu_id, int timer_index, u64 config, bool host)	,
		TP_ARGS(vcpu_id, timer_index, config, host)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(u64, config) __field(bool, host))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->config=config;__entry->host=host;)	,
		TP_printk("vcpu_id %d timer %d config 0x%llx host %d", __entry->vcpu_id, __entry->timer_index, __entry->config, __entry->host)
	)

TRACE_EVENT() [28/65]

TRACE_EVENT	(	kvm_hv_stimer_set_count	,
		TP_PROTO(int vcpu_id, int timer_index, u64 count, bool host)	,
		TP_ARGS(vcpu_id, timer_index, count, host)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(u64, count) __field(bool, host))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->count=count;__entry->host=host;)	,
		TP_printk("vcpu_id %d timer %d count %llu host %d", __entry->vcpu_id, __entry->timer_index, __entry->count, __entry->host)
	)

TRACE_EVENT() [29/65]

TRACE_EVENT	(	kvm_hv_stimer_start_one_shot	,
		TP_PROTO(int vcpu_id, int timer_index, u64 time_now, u64 count)	,
		TP_ARGS(vcpu_id, timer_index, time_now, count)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(u64, time_now) __field(u64, count))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->time_now=time_now;__entry->count=count;)	,
		TP_printk("vcpu_id %d timer %d time_now %llu count %llu", __entry->vcpu_id, __entry->timer_index, __entry->time_now, __entry->count)
	)

TRACE_EVENT() [30/65]

TRACE_EVENT	(	kvm_hv_stimer_start_periodic	,
		TP_PROTO(int vcpu_id, int timer_index, u64 time_now, u64 exp_time)	,
		TP_ARGS(vcpu_id, timer_index, time_now, exp_time)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(int, timer_index) __field(u64, time_now) __field(u64, exp_time))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->timer_index=timer_index;__entry->time_now=time_now;__entry->exp_time=exp_time;)	,
		TP_printk("vcpu_id %d timer %d time_now %llu exp_time %llu", __entry->vcpu_id, __entry->timer_index, __entry->time_now, __entry->exp_time)
	)

TRACE_EVENT() [31/65]

TRACE_EVENT	(	kvm_hv_syndbg_get_msr	,
		TP_PROTO(int vcpu_id, u32 vp_index, u32 msr, u64 data)	,
		TP_ARGS(vcpu_id, vp_index, msr, data)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, vp_index) __field(u32, msr) __field(u64, data))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->vp_index=vp_index;__entry->msr=msr;__entry->data=data;)	,
		TP_printk("vcpu_id %d vp_index %u msr 0x%x data 0x%llx", __entry->vcpu_id, __entry->vp_index, __entry->msr, __entry->data)
	)

TRACE_EVENT() [32/65]

TRACE_EVENT	(	kvm_hv_syndbg_set_msr	,
		TP_PROTO(int vcpu_id, u32 vp_index, u32 msr, u64 data)	,
		TP_ARGS(vcpu_id, vp_index, msr, data)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, vp_index) __field(u32, msr) __field(u64, data))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->vp_index=vp_index;__entry->msr=msr;__entry->data=data;)	,
		TP_printk("vcpu_id %d vp_index %u msr 0x%x data 0x%llx", __entry->vcpu_id, __entry->vp_index, __entry->msr, __entry->data)
	)

TRACE_EVENT() [33/65]

TRACE_EVENT	(	kvm_hv_synic_send_eoi	,
		TP_PROTO(int vcpu_id, int vector)	,
		TP_ARGS(vcpu_id, vector)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, sint) __field(int, vector) __field(int, ret))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->vector=vector;)	,
		TP_printk("vcpu_id %d vector %d", __entry->vcpu_id, __entry->vector)
	)

TRACE_EVENT() [34/65]

TRACE_EVENT	(	kvm_hv_synic_set_irq	,
		TP_PROTO(int vcpu_id, u32 sint, int vector, int ret)	,
		TP_ARGS(vcpu_id, sint, vector, ret)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, sint) __field(int, vector) __field(int, ret))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->sint=sint;__entry->vector=vector;__entry->ret=ret;)	,
		TP_printk("vcpu_id %d sint %u vector %d ret %d", __entry->vcpu_id, __entry->sint, __entry->vector, __entry->ret)
	)

TRACE_EVENT() [35/65]

TRACE_EVENT	(	kvm_hv_synic_set_msr	,
		TP_PROTO(int vcpu_id, u32 msr, u64 data, bool host)	,
		TP_ARGS(vcpu_id, msr, data, host)	,
		TP_STRUCT__entry(__field(int, vcpu_id) __field(u32, msr) __field(u64, data) __field(bool, host))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->msr=msr;__entry->data=data;__entry->host=host)	,
		TP_printk("vcpu_id %d msr 0x%x data 0x%llx host %d", __entry->vcpu_id, __entry->msr, __entry->data, __entry->host)
	)

TRACE_EVENT() [36/65]

TRACE_EVENT	(	kvm_hv_timer_state	,
		TP_PROTO(unsigned int vcpu_id, unsigned int hv_timer_in_use)	,
		TP_ARGS(vcpu_id, hv_timer_in_use)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(unsigned int, hv_timer_in_use))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->hv_timer_in_use=hv_timer_in_use;)	,
		TP_printk("vcpu_id %x hv_timer %x", __entry->vcpu_id, __entry->hv_timer_in_use)
	)

TRACE_EVENT() [37/65]

TRACE_EVENT	(	kvm_hypercall	,
		TP_PROTO(unsigned long nr, unsigned long a0, unsigned long a1, unsigned long a2, unsigned long a3)	,
		TP_ARGS(nr, a0, a1, a2, a3)	,
		TP_STRUCT__entry(__field(unsigned long, nr) __field(unsigned long, a0) __field(unsigned long, a1) __field(unsigned long, a2) __field(unsigned long, a3))	,
		TP_fast_assign(__entry->nr=nr;__entry->a0=a0;__entry->a1=a1;__entry->a2=a2;__entry->a3=a3;)	,
		TP_printk("nr 0x%lx a0 0x%lx a1 0x%lx a2 0x%lx a3 0x%lx", __entry->nr, __entry->a0, __entry->a1, __entry->a2, __entry->a3)
	)

TRACE_EVENT() [38/65]

TRACE_EVENT	(	kvm_inj_exception	,
		TP_PROTO(unsigned exception, bool has_error, unsigned error_code, bool reinjected)	,
		TP_ARGS(exception, has_error, error_code, reinjected)	,
		TP_STRUCT__entry(__field(u8, exception) __field(u8, has_error) __field(u32, error_code) __field(bool, reinjected))	,
		TP_fast_assign(__entry->exception=exception;__entry->has_error=has_error;__entry->error_code=error_code;__entry->reinjected=reinjected;)	,
		TP_printk("%s%s%s%s%s", __print_symbolic(__entry->exception, kvm_trace_sym_exc), !__entry->has_error ? "" :" (", !__entry->has_error ? "" :__print_symbolic(__entry->error_code, { }), !__entry->has_error ? "" :")", __entry->reinjected ? " [reinjected]" :"")
	)

TRACE_EVENT() [39/65]

TRACE_EVENT	(	kvm_inj_virq	,
		TP_PROTO(unsigned int vector, bool soft, bool reinjected)	,
		TP_ARGS(vector, soft, reinjected)	,
		TP_STRUCT__entry(__field(unsigned int, vector) __field(bool, soft) __field(bool, reinjected))	,
		TP_fast_assign(__entry->vector=vector;__entry->soft=soft;__entry->reinjected=reinjected;)	,
		TP_printk("%s 0x%x%s", __entry->soft ? "Soft/INTn" :"IRQ", __entry->vector, __entry->reinjected ? " [reinjected]" :"")
	)

TRACE_EVENT() [40/65]

TRACE_EVENT	(	kvm_invlpga	,
		TP_PROTO(__u64 rip, unsigned int asid, u64 address)	,
		TP_ARGS(rip, asid, address)	,
		TP_STRUCT__entry(__field(__u64, rip) __field(unsigned int, asid) __field(__u64, address))	,
		TP_fast_assign(__entry->rip=rip;__entry->asid=asid;__entry->address=address;)	,
		TP_printk("rip: 0x%016llx asid: %u address: 0x%016llx", __entry->rip, __entry->asid, __entry->address)
	)

TRACE_EVENT() [41/65]

TRACE_EVENT	(	kvm_msr	,
		TP_PROTO(unsigned write, u32 ecx, u64 data, bool exception)	,
		TP_ARGS(write, ecx, data, exception)	,
		TP_STRUCT__entry(__field(unsigned, write) __field(u32, ecx) __field(u64, data) __field(u8, exception))	,
		TP_fast_assign(__entry->write=write;__entry->ecx=ecx;__entry->data=data;__entry->exception=exception;)	,
		TP_printk("msr_%s %x = 0x%llx%s", __entry->write ? "write" :"read", __entry->ecx, __entry->data, __entry->exception ? " (#GP)" :"")
	)

TRACE_EVENT() [42/65]

TRACE_EVENT	(	kvm_nested_intercepts	,
		TP_PROTO(__u16 cr_read, __u16 cr_write, __u32 exceptions, __u32 intercept1, __u32 intercept2, __u32 intercept3)	,
		TP_ARGS(cr_read, cr_write, exceptions, intercept1, intercept2, intercept3)	,
		TP_STRUCT__entry(__field(__u16, cr_read) __field(__u16, cr_write) __field(__u32, exceptions) __field(__u32, intercept1) __field(__u32, intercept2) __field(__u32, intercept3))	,
		TP_fast_assign(__entry->cr_read=cr_read;__entry->cr_write=cr_write;__entry->exceptions=exceptions;__entry->intercept1=intercept1;__entry->intercept2=intercept2;__entry->intercept3=intercept3;)	,
		TP_printk("cr_read: %04x cr_write: %04x excp: %08x " "intercepts: %08x %08x %08x", __entry->cr_read, __entry->cr_write, __entry->exceptions, __entry->intercept1, __entry->intercept2, __entry->intercept3)
	)

TRACE_EVENT() [43/65]

TRACE_EVENT	(	kvm_nested_intr_vmexit	,
		TP_PROTO(__u64 rip)	,
		TP_ARGS(rip)	,
		TP_STRUCT__entry(__field(__u64, rip))	,
		TP_fast_assign(__entry->rip=rip)	,
		TP_printk("rip: 0x%016llx", __entry->rip)
	)

TRACE_EVENT() [44/65]

TRACE_EVENT	(	kvm_nested_vmenter	,
		TP_PROTO(__u64 rip, __u64 vmcb, __u64 nested_rip, __u32 int_ctl, __u32 event_inj, bool tdp_enabled, __u64 guest_tdp_pgd, __u64 guest_cr3, __u32 isa)	,
		TP_ARGS(rip, vmcb, nested_rip, int_ctl, event_inj, tdp_enabled, guest_tdp_pgd, guest_cr3, isa)	,
		TP_STRUCT__entry(__field(__u64, rip) __field(__u64, vmcb) __field(__u64, nested_rip) __field(__u32, int_ctl) __field(__u32, event_inj) __field(bool, tdp_enabled) __field(__u64, guest_pgd) __field(__u32, isa))	,
		TP_fast_assign(__entry->rip=rip;__entry->vmcb=vmcb;__entry->nested_rip=nested_rip;__entry->int_ctl=int_ctl;__entry->event_inj=event_inj;__entry->tdp_enabled=tdp_enabled;__entry->guest_pgd=tdp_enabled ? guest_tdp_pgd :guest_cr3;__entry->isa=isa;)	,
		TP_printk("rip: 0x%016llx %s: 0x%016llx nested_rip: 0x%016llx " "int_ctl: 0x%08x event_inj: 0x%08x nested_%s=%s %s: 0x%016llx", __entry->rip, __entry->isa==KVM_ISA_VMX ? "vmcs" :"vmcb", __entry->vmcb, __entry->nested_rip, __entry->int_ctl, __entry->event_inj, __entry->isa==KVM_ISA_VMX ? "ept" :"npt", __entry->tdp_enabled ? "y" :"n", !__entry->tdp_enabled ? "guest_cr3" :__entry->isa==KVM_ISA_VMX ? "nested_eptp" :"nested_cr3", __entry->guest_pgd)
	)

TRACE_EVENT() [45/65]

TRACE_EVENT	(	kvm_nested_vmenter_failed	,
		TP_PROTO(const char *msg, u32 err)	,
		TP_ARGS(msg, err)	,
		TP_STRUCT__entry(__string(msg, msg) __field(u32, err))	,
		TP_fast_assign(__assign_str(msg, msg);__entry->err=err;)	,
		TP_printk("%s%s", __get_str(msg), !__entry->err ? "" :__print_symbolic(__entry->err, VMX_VMENTER_INSTRUCTION_ERRORS))
	)

TRACE_EVENT() [46/65]

TRACE_EVENT	(	kvm_nested_vmexit_inject	,
		TP_PROTO(__u32 exit_code, __u64 exit_info1, __u64 exit_info2, __u32 exit_int_info, __u32 exit_int_info_err, __u32 isa)	,
		TP_ARGS(exit_code, exit_info1, exit_info2, exit_int_info, exit_int_info_err, isa)	,
		TP_STRUCT__entry(__field(__u32, exit_code) __field(__u64, exit_info1) __field(__u64, exit_info2) __field(__u32, exit_int_info) __field(__u32, exit_int_info_err) __field(__u32, isa))	,
		TP_fast_assign(__entry->exit_code=exit_code;__entry->exit_info1=exit_info1;__entry->exit_info2=exit_info2;__entry->exit_int_info=exit_int_info;__entry->exit_int_info_err=exit_int_info_err;__entry->isa=isa;)	,
		TP_printk("reason: %s%s%s ext_inf1: 0x%016llx " "ext_inf2: 0x%016llx ext_int: 0x%08x ext_int_err: 0x%08x", kvm_print_exit_reason(__entry->exit_code, __entry->isa), __entry->exit_info1, __entry->exit_info2, __entry->exit_int_info, __entry->exit_int_info_err)
	)

TRACE_EVENT() [47/65]

TRACE_EVENT	(	kvm_page_fault	,
		TP_PROTO(struct kvm_vcpu *vcpu, u64 fault_address, u64 error_code)	,
		TP_ARGS(vcpu, fault_address, error_code)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(unsigned long, guest_rip) __field(u64, fault_address) __field(u64, error_code))	,
		TP_fast_assign(__entry->vcpu_id=vcpu->vcpu_id;__entry->guest_rip=kvm_rip_read(vcpu);__entry->fault_address=fault_address;__entry->error_code=error_code;)	,
		TP_printk("vcpu %u rip 0x%lx address 0x%016llx error_code 0x%llx", __entry->vcpu_id, __entry->guest_rip, __entry->fault_address, __entry->error_code)
	)

TRACE_EVENT() [48/65]

TRACE_EVENT	(	kvm_pi_irte_update	,
		TP_PROTO(unsigned int host_irq, unsigned int vcpu_id, unsigned int gsi, unsigned int gvec, u64 pi_desc_addr, bool set)	,
		TP_ARGS(host_irq, vcpu_id, gsi, gvec, pi_desc_addr, set)	,
		TP_STRUCT__entry(__field(unsigned int, host_irq) __field(unsigned int, vcpu_id) __field(unsigned int, gsi) __field(unsigned int, gvec) __field(u64, pi_desc_addr) __field(bool, set))	,
		TP_fast_assign(__entry->host_irq=host_irq;__entry->vcpu_id=vcpu_id;__entry->gsi=gsi;__entry->gvec=gvec;__entry->pi_desc_addr=pi_desc_addr;__entry->set=set;)	,
		TP_printk("VT-d PI is %s for irq %u, vcpu %u, gsi: 0x%x, " "gvec: 0x%x, pi_desc_addr: 0x%llx", __entry->set ? "enabled and being updated" :"disabled", __entry->host_irq, __entry->vcpu_id, __entry->gsi, __entry->gvec, __entry->pi_desc_addr)
	)

TRACE_EVENT() [49/65]

TRACE_EVENT	(	kvm_pic_set_irq	,
		TP_PROTO(__u8 chip, __u8 pin, __u8 elcr, __u8 imr, bool coalesced)	,
		TP_ARGS(chip, pin, elcr, imr, coalesced)	,
		TP_STRUCT__entry(__field(__u8, chip) __field(__u8, pin) __field(__u8, elcr) __field(__u8, imr) __field(bool, coalesced))	,
		TP_fast_assign(__entry->chip=chip;__entry->pin=pin;__entry->elcr=elcr;__entry->imr=imr;__entry->coalesced=coalesced;)	,
		TP_printk("chip %u pin %u (%s%s)%s", __entry->chip, __entry->pin,(__entry->elcr &(1<< __entry->pin)) ? "level":"edge",(__entry->imr &(1<< __entry->pin)) ? "|masked":"", __entry->coalesced ? " (coalesced)" :"")
	)

TRACE_EVENT() [50/65]

TRACE_EVENT	(	kvm_pio	,
		TP_PROTO(unsigned int rw, unsigned int port, unsigned int size, unsigned int count, const void *data)	,
		TP_ARGS(rw, port, size, count, data)	,
		TP_STRUCT__entry(__field(unsigned int, rw) __field(unsigned int, port) __field(unsigned int, size) __field(unsigned int, count) __field(unsigned int, val))	,
		TP_fast_assign(__entry->rw=rw;__entry->port=port;__entry->size=size;__entry->count=count;if(size==1) __entry->val=*(unsigned char *) data;else if(size==2) __entry->val=*(unsigned short *) data;else __entry->val=*(unsigned int *) data;)	,
		TP_printk("pio_%s at 0x%x size %d count %d val 0x%x %s", __entry->rw ? "write" :"read", __entry->port, __entry->size, __entry->count, __entry->val, __entry->count > 1 ? "(...)" :"")
	)

TRACE_EVENT() [51/65]

TRACE_EVENT	(	kvm_ple_window_update	,
		TP_PROTO(unsigned int vcpu_id, unsigned int new, unsigned int old)	,
		TP_ARGS(vcpu_id, new, old)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(unsigned int, new) __field(unsigned int, old))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->new=new;__entry->old=old;)	,
		TP_printk("vcpu %u old %u new %u (%s)", __entry->vcpu_id, __entry->old, __entry->new, __entry->old< __entry->new ? "growed" :"shrinked")
	)

TRACE_EVENT() [52/65]

TRACE_EVENT	(	kvm_pml_full	,
		TP_PROTO(unsigned int vcpu_id)	,
		TP_ARGS(vcpu_id)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;)	,
		TP_printk("vcpu %d: PML full", __entry->vcpu_id)
	)

TRACE_EVENT() [53/65]

TRACE_EVENT	(	kvm_pv_eoi	,
		TP_PROTO(struct kvm_lapic *apic, int vector)	,
		TP_ARGS(apic, vector)	,
		TP_STRUCT__entry(__field(__u32, apicid) __field(int, vector))	,
		TP_fast_assign(__entry->apicid=apic->vcpu->vcpu_id;__entry->vector=vector;)	,
		TP_printk("apicid %x vector %d", __entry->apicid, __entry->vector)
	)

TRACE_EVENT() [54/65]

TRACE_EVENT	(	kvm_pv_tlb_flush	,
		TP_PROTO(unsigned int vcpu_id, bool need_flush_tlb)	,
		TP_ARGS(vcpu_id, need_flush_tlb)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(bool, need_flush_tlb))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->need_flush_tlb=need_flush_tlb;)	,
		TP_printk("vcpu %u need_flush_tlb %s", __entry->vcpu_id, __entry->need_flush_tlb ? "true" :"false")
	)

TRACE_EVENT() [55/65]

TRACE_EVENT	(	kvm_pvclock_update	,
		TP_PROTO(unsigned int vcpu_id, struct pvclock_vcpu_time_info *pvclock)	,
		TP_ARGS(vcpu_id, pvclock)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(__u32, version) __field(__u64, tsc_timestamp) __field(__u64, system_time) __field(__u32, tsc_to_system_mul) __field(__s8, tsc_shift) __field(__u8, flags))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->version=pvclock->version;__entry->tsc_timestamp=pvclock->tsc_timestamp;__entry->system_time=pvclock->system_time;__entry->tsc_to_system_mul=pvclock->tsc_to_system_mul;__entry->tsc_shift=pvclock->tsc_shift;__entry->flags=pvclock->flags;)	,
		TP_printk("vcpu_id %u, pvclock { version %u, tsc_timestamp 0x%llx, " "system_time 0x%llx, tsc_to_system_mul 0x%x, tsc_shift %d, " "flags 0x%x }", __entry->vcpu_id, __entry->version, __entry->tsc_timestamp, __entry->system_time, __entry->tsc_to_system_mul, __entry->tsc_shift, __entry->flags)
	)

TRACE_EVENT() [56/65]

TRACE_EVENT	(	kvm_skinit	,
		TP_PROTO(__u64 rip, __u32 slb)	,
		TP_ARGS(rip, slb)	,
		TP_STRUCT__entry(__field(__u64, rip) __field(__u32, slb))	,
		TP_fast_assign(__entry->rip=rip;__entry->slb=slb;)	,
		TP_printk("rip: 0x%016llx slb: 0x%08x", __entry->rip, __entry->slb)
	)

TRACE_EVENT() [57/65]

TRACE_EVENT	(	kvm_smm_transition	,
		TP_PROTO(unsigned int vcpu_id, u64 smbase, bool entering)	,
		TP_ARGS(vcpu_id, smbase, entering)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, smbase) __field(bool, entering))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->smbase=smbase;__entry->entering=entering;)	,
		TP_printk("vcpu %u: %s SMM, smbase 0x%llx", __entry->vcpu_id, __entry->entering ? "entering" :"leaving", __entry->smbase)
	)

TRACE_EVENT() [58/65]

TRACE_EVENT	(	kvm_vmgexit_enter	,
		TP_PROTO(unsigned int vcpu_id, struct ghcb *ghcb)	,
		TP_ARGS(vcpu_id, ghcb)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, exit_reason) __field(u64, info1) __field(u64, info2))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->exit_reason=ghcb->save.sw_exit_code;__entry->info1=ghcb->save.sw_exit_info_1;__entry->info2=ghcb->save.sw_exit_info_2;)	,
		TP_printk("vcpu %u, exit_reason %llx, exit_info1 %llx, exit_info2 %llx", __entry->vcpu_id, __entry->exit_reason, __entry->info1, __entry->info2)
	)

TRACE_EVENT() [59/65]

TRACE_EVENT	(	kvm_vmgexit_exit	,
		TP_PROTO(unsigned int vcpu_id, struct ghcb *ghcb)	,
		TP_ARGS(vcpu_id, ghcb)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, exit_reason) __field(u64, info1) __field(u64, info2))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->exit_reason=ghcb->save.sw_exit_code;__entry->info1=ghcb->save.sw_exit_info_1;__entry->info2=ghcb->save.sw_exit_info_2;)	,
		TP_printk("vcpu %u, exit_reason %llx, exit_info1 %llx, exit_info2 %llx", __entry->vcpu_id, __entry->exit_reason, __entry->info1, __entry->info2)
	)

TRACE_EVENT() [60/65]

TRACE_EVENT	(	kvm_vmgexit_msr_protocol_enter	,
		TP_PROTO(unsigned int vcpu_id, u64 ghcb_gpa)	,
		TP_ARGS(vcpu_id, ghcb_gpa)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, ghcb_gpa))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->ghcb_gpa=ghcb_gpa;)	,
		TP_printk("vcpu %u, ghcb_gpa %016llx", __entry->vcpu_id, __entry->ghcb_gpa)
	)

TRACE_EVENT() [61/65]

TRACE_EVENT	(	kvm_vmgexit_msr_protocol_exit	,
		TP_PROTO(unsigned int vcpu_id, u64 ghcb_gpa, int result)	,
		TP_ARGS(vcpu_id, ghcb_gpa, result)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(u64, ghcb_gpa) __field(int, result))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->ghcb_gpa=ghcb_gpa;__entry->result=result;)	,
		TP_printk("vcpu %u, ghcb_gpa %016llx, result %d", __entry->vcpu_id, __entry->ghcb_gpa, __entry->result)
	)

TRACE_EVENT() [62/65]

TRACE_EVENT	(	kvm_wait_lapic_expire	,
		TP_PROTO(unsigned int vcpu_id, s64 delta)	,
		TP_ARGS(vcpu_id, delta)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(s64, delta))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->delta=delta;)	,
		TP_printk("vcpu %u: delta %lld (%s)", __entry->vcpu_id, __entry->delta, __entry->delta< 0 ? "early" :"late")
	)

TRACE_EVENT() [63/65]

TRACE_EVENT	(	kvm_write_tsc_offset	,
		TP_PROTO(unsigned int vcpu_id, __u64 previous_tsc_offset, __u64 next_tsc_offset)	,
		TP_ARGS(vcpu_id, previous_tsc_offset, next_tsc_offset)	,
		TP_STRUCT__entry(__field(unsigned int, vcpu_id) __field(__u64, previous_tsc_offset) __field(__u64, next_tsc_offset))	,
		TP_fast_assign(__entry->vcpu_id=vcpu_id;__entry->previous_tsc_offset=previous_tsc_offset;__entry->next_tsc_offset=next_tsc_offset;)	,
		TP_printk("vcpu=%u prev=%llu next=%llu", __entry->vcpu_id, __entry->previous_tsc_offset, __entry->next_tsc_offset)
	)

TRACE_EVENT() [64/65]

TRACE_EVENT	(	kvm_xen_hypercall	,
		TP_PROTO(u8 cpl, unsigned long nr, unsigned long a0, unsigned long a1, unsigned long a2, unsigned long a3, unsigned long a4, unsigned long a5)	,
		TP_ARGS(cpl, nr, a0, a1, a2, a3, a4, a5)	,
		TP_STRUCT__entry(__field(u8, cpl) __field(unsigned long, nr) __field(unsigned long, a0) __field(unsigned long, a1) __field(unsigned long, a2) __field(unsigned long, a3) __field(unsigned long, a4) __field(unsigned long, a5))	,
		TP_fast_assign(__entry->cpl=cpl;__entry->nr=nr;__entry->a0=a0;__entry->a1=a1;__entry->a2=a2;__entry->a3=a3;__entry->a4=a4;__entry->a4=a5;)	,
		TP_printk("cpl %d nr 0x%lx a0 0x%lx a1 0x%lx a2 0x%lx a3 0x%lx a4 0x%lx a5 %lx", __entry->cpl, __entry->nr, __entry->a0, __entry->a1, __entry->a2, __entry->a3, __entry->a4, __entry->a5)
	)

TRACE_EVENT() [65/65]

TRACE_EVENT	(	vcpu_match_mmio	,
		TP_PROTO(gva_t gva, gpa_t gpa, bool write, bool gpa_match)	,
		TP_ARGS(gva, gpa, write, gpa_match)	,
		TP_STRUCT__entry(__field(gva_t, gva) __field(gpa_t, gpa) __field(bool, write) __field(bool, gpa_match))	,
		TP_fast_assign(__entry->gva=gva;__entry->gpa=gpa;__entry->write=write;__entry->gpa_match=gpa_match)	,
		TP_printk("gva %#lx gpa %#llx %s %s", __entry->gva, __entry->gpa, __entry->write ? "Write" :"Read", __entry->gpa_match ? "GPA" :"GVA")
	)

TRACE_EVENT_KVM_EXIT() [1/2]

TRACE_EVENT_KVM_EXIT

(

kvm_exit

)

TRACE_EVENT_KVM_EXIT() [2/2]

TRACE_EVENT_KVM_EXIT

(

kvm_nested_vmexit

)
