sev.c File Reference

#include <linux/kvm_types.h>
#include <linux/kvm_host.h>
#include <linux/kernel.h>
#include <linux/highmem.h>
#include <linux/psp.h>
#include <linux/psp-sev.h>
#include <linux/pagemap.h>
#include <linux/swap.h>
#include <linux/misc_cgroup.h>
#include <linux/processor.h>
#include <linux/trace_events.h>
#include <asm/pkru.h>
#include <asm/trapnr.h>
#include <asm/fpu/xcr.h>
#include <asm/debugreg.h>
#include "mmu.h"
#include "x86.h"
#include "svm.h"
#include "svm_ops.h"
#include "cpuid.h"
#include "trace.h"

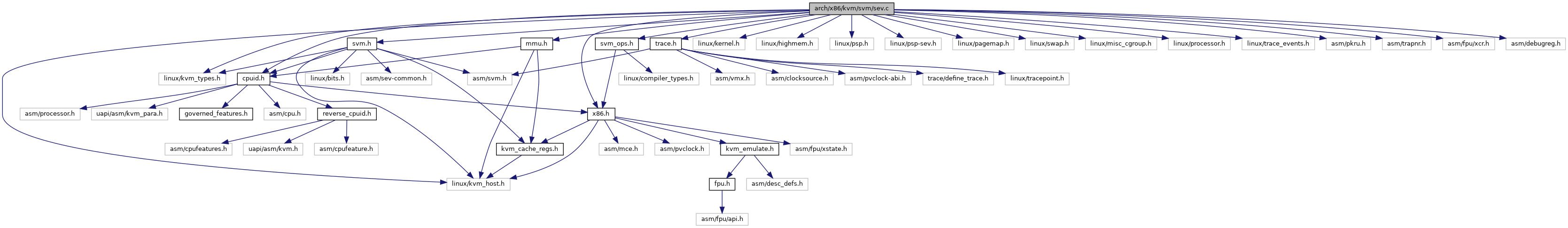

Include dependency graph for sev.c:

Go to the source code of this file.

Classes
struct	enc_region

Macros
#define	pr_fmt(fmt)   KBUILD_MODNAME ": " fmt
#define	MISC_CG_RES_SEV   MISC_CG_RES_TYPES
#define	MISC_CG_RES_SEV_ES   MISC_CG_RES_TYPES
#define	sev_enabled   false
#define	sev_es_enabled   false
#define	sev_es_debug_swap_enabled   false
#define	GHCB_SCRATCH_AREA_LIMIT   (16ULL * PAGE_SIZE)

Enumerations
enum	sev_migration_role { SEV_MIGRATION_SOURCE = 0 , SEV_MIGRATION_TARGET , SEV_NR_MIGRATION_ROLES }

Functions
static	DECLARE_RWSEM (sev_deactivate_lock)
static	DEFINE_MUTEX (sev_bitmap_lock)
static int	sev_flush_asids (unsigned int min_asid, unsigned int max_asid)
static bool	is_mirroring_enc_context (struct kvm *kvm)
static bool	__sev_recycle_asids (unsigned int min_asid, unsigned int max_asid)
static int	sev_misc_cg_try_charge (struct kvm_sev_info *sev)
static void	sev_misc_cg_uncharge (struct kvm_sev_info *sev)
static int	sev_asid_new (struct kvm_sev_info *sev)
static unsigned int	sev_get_asid (struct kvm *kvm)
static void	sev_asid_free (struct kvm_sev_info *sev)
static void	sev_decommission (unsigned int handle)

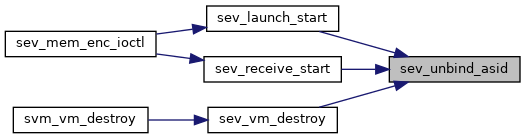

static void	sev_unbind_asid (struct kvm *kvm, unsigned int handle)
static int	sev_guest_init (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_bind_asid (struct kvm *kvm, unsigned int handle, int *error)
static int	__sev_issue_cmd (int fd, int id, void *data, int *error)
static int	sev_issue_cmd (struct kvm *kvm, int id, void *data, int *error)
static int	sev_launch_start (struct kvm *kvm, struct kvm_sev_cmd *argp)
static struct page **	sev_pin_memory (struct kvm *kvm, unsigned long uaddr, unsigned long ulen, unsigned long *n, int write)

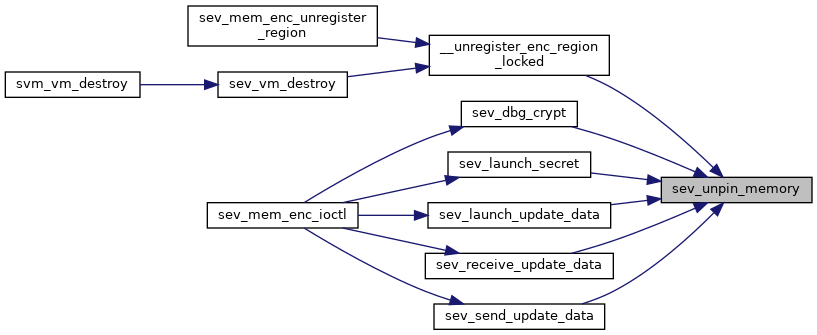

static void	sev_unpin_memory (struct kvm *kvm, struct page **pages, unsigned long npages)
static void	sev_clflush_pages (struct page *pages[], unsigned long npages)
static unsigned long	get_num_contig_pages (unsigned long idx, struct page **inpages, unsigned long npages)
static int	sev_launch_update_data (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_es_sync_vmsa (struct vcpu_svm *svm)
static int	__sev_launch_update_vmsa (struct kvm *kvm, struct kvm_vcpu *vcpu, int *error)
static int	sev_launch_update_vmsa (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_launch_measure (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_launch_finish (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_guest_status (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	__sev_issue_dbg_cmd (struct kvm *kvm, unsigned long src, unsigned long dst, int size, int *error, bool enc)
static int	__sev_dbg_decrypt (struct kvm *kvm, unsigned long src_paddr, unsigned long dst_paddr, int sz, int *err)
static int	__sev_dbg_decrypt_user (struct kvm *kvm, unsigned long paddr, void __user *dst_uaddr, unsigned long dst_paddr, int size, int *err)
static int	__sev_dbg_encrypt_user (struct kvm *kvm, unsigned long paddr, void __user *vaddr, unsigned long dst_paddr, void __user *dst_vaddr, int size, int *error)
static int	sev_dbg_crypt (struct kvm *kvm, struct kvm_sev_cmd *argp, bool dec)
static int	sev_launch_secret (struct kvm *kvm, struct kvm_sev_cmd *argp)

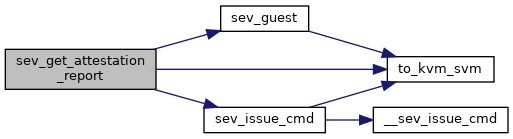

static int	sev_get_attestation_report (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	__sev_send_start_query_session_length (struct kvm *kvm, struct kvm_sev_cmd *argp, struct kvm_sev_send_start *params)
static int	sev_send_start (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	__sev_send_update_data_query_lengths (struct kvm *kvm, struct kvm_sev_cmd *argp, struct kvm_sev_send_update_data *params)
static int	sev_send_update_data (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_send_finish (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_send_cancel (struct kvm *kvm, struct kvm_sev_cmd *argp)

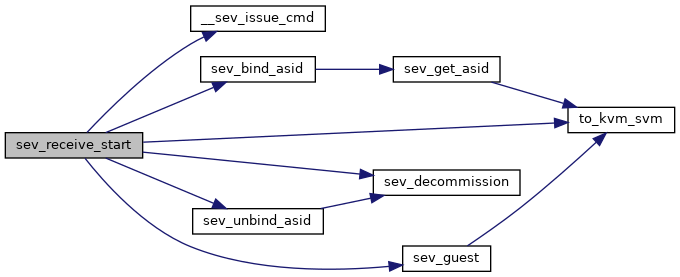

static int	sev_receive_start (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_receive_update_data (struct kvm *kvm, struct kvm_sev_cmd *argp)
static int	sev_receive_finish (struct kvm *kvm, struct kvm_sev_cmd *argp)
static bool	is_cmd_allowed_from_mirror (u32 cmd_id)
static int	sev_lock_two_vms (struct kvm *dst_kvm, struct kvm *src_kvm)
static void	sev_unlock_two_vms (struct kvm *dst_kvm, struct kvm *src_kvm)
static int	sev_lock_vcpus_for_migration (struct kvm *kvm, enum sev_migration_role role)
static void	sev_unlock_vcpus_for_migration (struct kvm *kvm)
static void	sev_migrate_from (struct kvm *dst_kvm, struct kvm *src_kvm)
static int	sev_check_source_vcpus (struct kvm *dst, struct kvm *src)
int	sev_vm_move_enc_context_from (struct kvm *kvm, unsigned int source_fd)

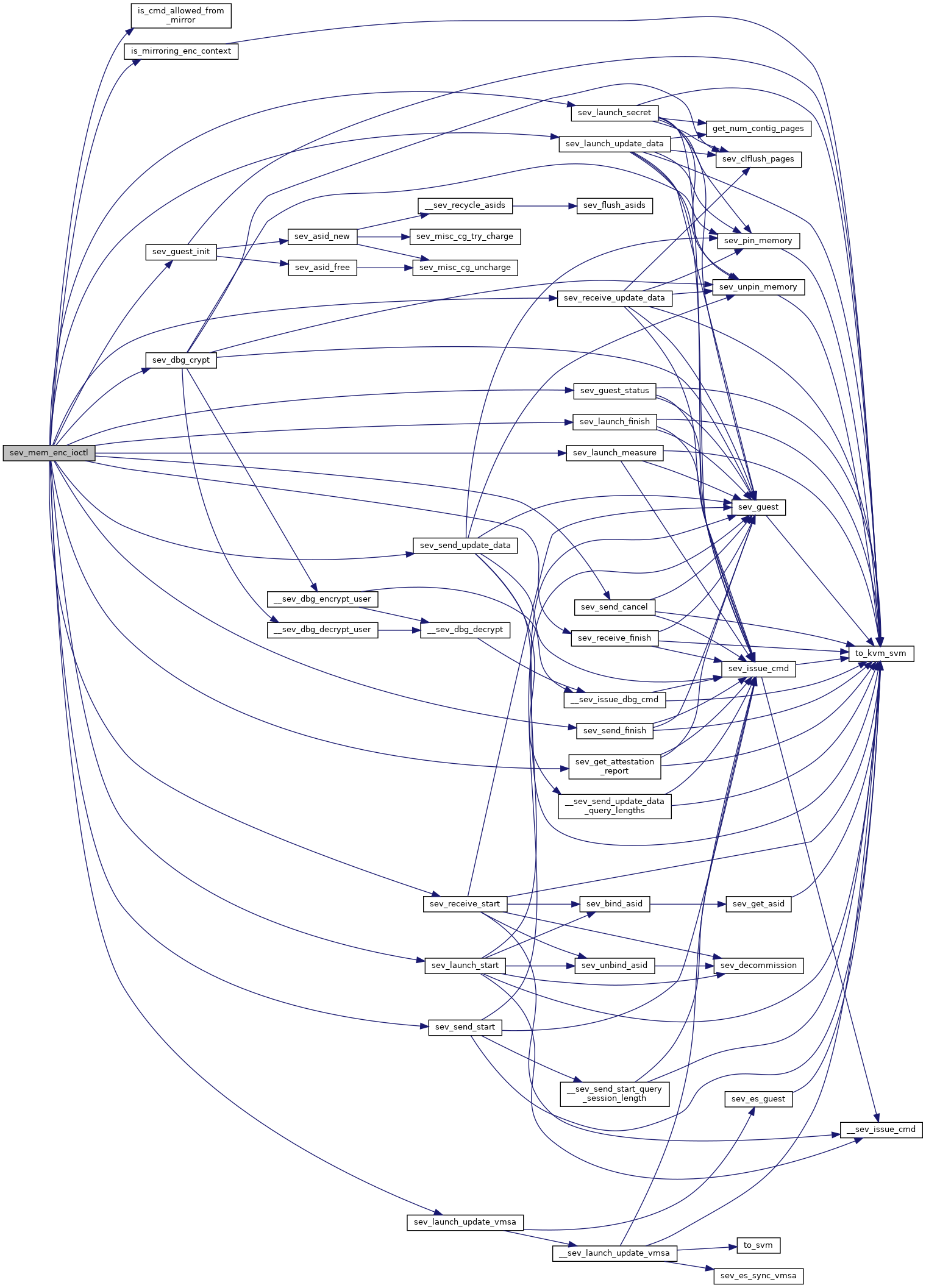

int	sev_mem_enc_ioctl (struct kvm *kvm, void __user *argp)
int	sev_mem_enc_register_region (struct kvm *kvm, struct kvm_enc_region *range)
static struct enc_region *	find_enc_region (struct kvm *kvm, struct kvm_enc_region *range)
static void	__unregister_enc_region_locked (struct kvm *kvm, struct enc_region *region)
int	sev_mem_enc_unregister_region (struct kvm *kvm, struct kvm_enc_region *range)

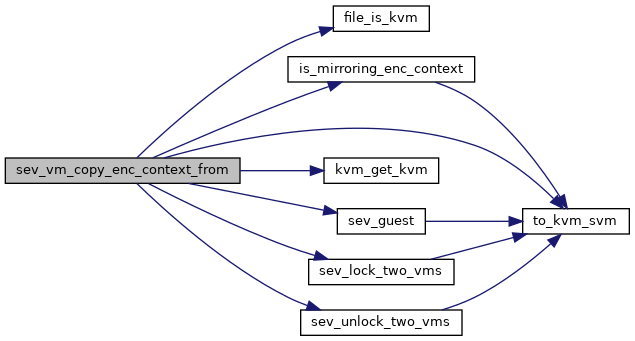

int	sev_vm_copy_enc_context_from (struct kvm *kvm, unsigned int source_fd)
void	sev_vm_destroy (struct kvm *kvm)
void __init	sev_set_cpu_caps (void)
void __init	sev_hardware_setup (void)
void	sev_hardware_unsetup (void)
int	sev_cpu_init (struct svm_cpu_data *sd)
static void	sev_flush_encrypted_page (struct kvm_vcpu *vcpu, void *va)
void	sev_guest_memory_reclaimed (struct kvm *kvm)
void	sev_free_vcpu (struct kvm_vcpu *vcpu)
static void	dump_ghcb (struct vcpu_svm *svm)
static void	sev_es_sync_to_ghcb (struct vcpu_svm *svm)
static void	sev_es_sync_from_ghcb (struct vcpu_svm *svm)
static u64	kvm_ghcb_get_sw_exit_code (struct vmcb_control_area *control)
static int	sev_es_validate_vmgexit (struct vcpu_svm *svm)
void	sev_es_unmap_ghcb (struct vcpu_svm *svm)
void	pre_sev_run (struct vcpu_svm *svm, int cpu)
static int	setup_vmgexit_scratch (struct vcpu_svm *svm, bool sync, u64 len)
static void	set_ghcb_msr_bits (struct vcpu_svm *svm, u64 value, u64 mask, unsigned int pos)
static u64	get_ghcb_msr_bits (struct vcpu_svm *svm, u64 mask, unsigned int pos)

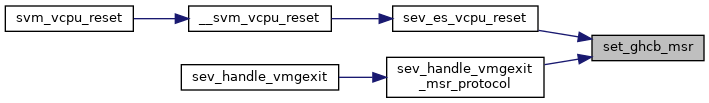

static void	set_ghcb_msr (struct vcpu_svm *svm, u64 value)
static int	sev_handle_vmgexit_msr_protocol (struct vcpu_svm *svm)
int	sev_handle_vmgexit (struct kvm_vcpu *vcpu)
int	sev_es_string_io (struct vcpu_svm *svm, int size, unsigned int port, int in)
static void	sev_es_vcpu_after_set_cpuid (struct vcpu_svm *svm)

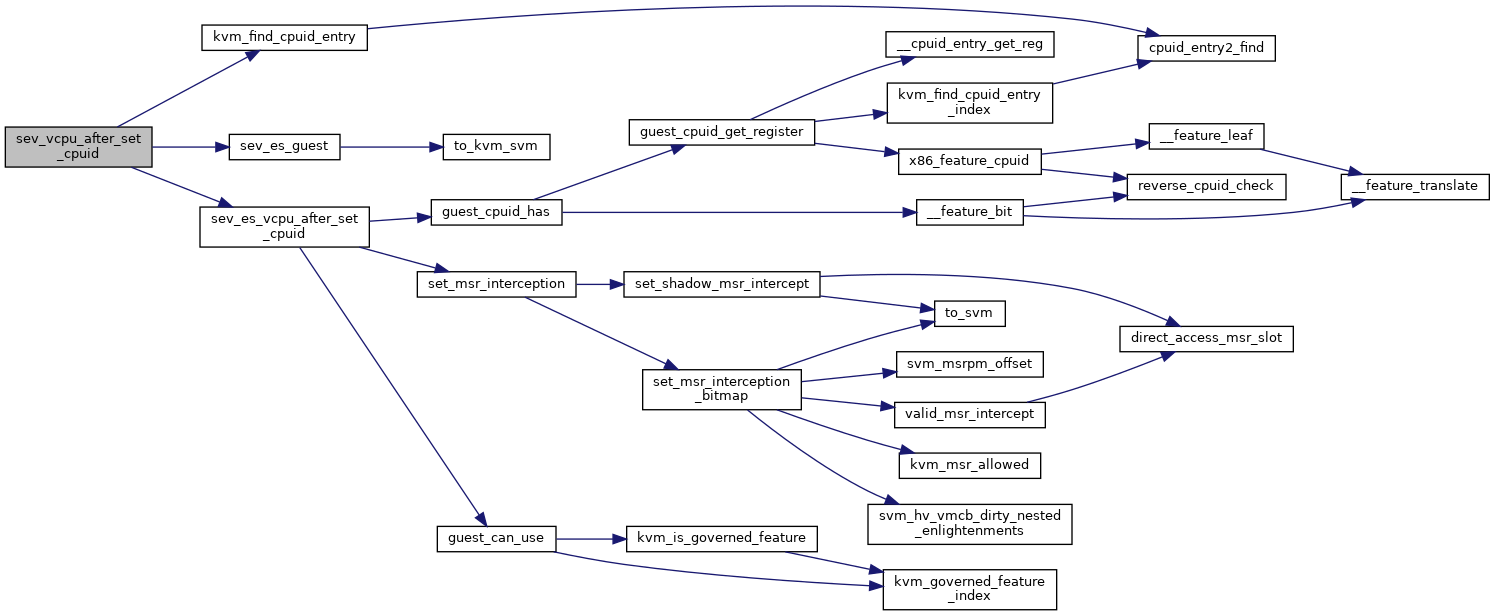

void	sev_vcpu_after_set_cpuid (struct vcpu_svm *svm)
static void	sev_es_init_vmcb (struct vcpu_svm *svm)
void	sev_init_vmcb (struct vcpu_svm *svm)
void	sev_es_vcpu_reset (struct vcpu_svm *svm)
void	sev_es_prepare_switch_to_guest (struct sev_es_save_area *hostsa)
void	sev_vcpu_deliver_sipi_vector (struct kvm_vcpu *vcpu, u8 vector)

Variables
static u8	sev_enc_bit
unsigned int	max_sev_asid
static unsigned int	min_sev_asid
static unsigned long	sev_me_mask
static unsigned int	nr_asids
static unsigned long *	sev_asid_bitmap
static unsigned long *	sev_reclaim_asid_bitmap

Macro Definition Documentation

GHCB_SCRATCH_AREA_LIMIT

#define GHCB_SCRATCH_AREA_LIMIT   (16ULL * PAGE_SIZE)

Definition at line 2669 of file sev.c.

MISC_CG_RES_SEV

#define MISC_CG_RES_SEV   MISC_CG_RES_TYPES

Definition at line 46 of file sev.c.

MISC_CG_RES_SEV_ES

#define MISC_CG_RES_SEV_ES   MISC_CG_RES_TYPES

Definition at line 47 of file sev.c.

pr_fmt

#define pr_fmt

(

fmt

)

KBUILD_MODNAME ": " fmt

Definition at line 9 of file sev.c.

sev_enabled

#define sev_enabled   false

Definition at line 63 of file sev.c.

sev_es_debug_swap_enabled

#define sev_es_debug_swap_enabled   false

Definition at line 65 of file sev.c.

sev_es_enabled

#define sev_es_enabled   false

Definition at line 64 of file sev.c.

Enumeration Type Documentation

sev_migration_role

enum sev_migration_role

Enumerator
SEV_MIGRATION_SOURCE
SEV_MIGRATION_TARGET
SEV_NR_MIGRATION_ROLES

Definition at line 1628 of file sev.c.

                        {
    SEV_MIGRATION_SOURCE = 0,
    SEV_MIGRATION_TARGET,
    SEV_NR_MIGRATION_ROLES,
};

Function Documentation

__sev_dbg_decrypt()

static int __sev_dbg_decrypt ( struct kvm *  kvm, unsigned long  src_paddr, unsigned long  dst_paddr, int  sz, int *  err  )

static

Definition at line 813 of file sev.c.

{
    int offset;

    /*
     * Its safe to read more than we are asked, caller should ensure that
     * destination has enough space.
     */
    offset = src_paddr & 15;
    src_paddr = round_down(src_paddr, 16);
    sz = round_up(sz + offset, 16);

    return __sev_issue_dbg_cmd(kvm, src_paddr, dst_paddr, sz, err, false);
}

Here is the call graph for this function:

Here is the caller graph for this function:

__sev_dbg_decrypt_user()

static int __sev_dbg_decrypt_user ( struct kvm *  kvm, unsigned long  paddr, void __user *  dst_uaddr, unsigned long  dst_paddr, int  size, int *  err  )

static

Definition at line 829 of file sev.c.

{
    struct page *tpage = NULL;
    int ret, offset;

    /* if inputs are not 16-byte then use intermediate buffer */
    if (!IS_ALIGNED(dst_paddr, 16) ||
        !IS_ALIGNED(paddr,     16) ||
        !IS_ALIGNED(size,      16)) {
        tpage = (void *)alloc_page(GFP_KERNEL_ACCOUNT | __GFP_ZERO);
        if (!tpage)
            return -ENOMEM;

        dst_paddr = __sme_page_pa(tpage);
    }

    ret = __sev_dbg_decrypt(kvm, paddr, dst_paddr, size, err);
    if (ret)
        goto e_free;

    if (tpage) {
        offset = paddr & 15;
        if (copy_to_user(dst_uaddr, page_address(tpage) + offset, size))
            ret = -EFAULT;
    }

e_free:
    if (tpage)
        __free_page(tpage);

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

__sev_dbg_encrypt_user()

static int __sev_dbg_encrypt_user ( struct kvm *  kvm, unsigned long  paddr, void __user *  vaddr, unsigned long  dst_paddr, void __user *  dst_vaddr, int  size, int *  error  )

static

Definition at line 865 of file sev.c.

{
    struct page *src_tpage = NULL;
    struct page *dst_tpage = NULL;
    int ret, len = size;

    /* If source buffer is not aligned then use an intermediate buffer */
    if (!IS_ALIGNED((unsigned long)vaddr, 16)) {
        src_tpage = alloc_page(GFP_KERNEL_ACCOUNT);
        if (!src_tpage)
            return -ENOMEM;

        if (copy_from_user(page_address(src_tpage), vaddr, size)) {
            __free_page(src_tpage);
            return -EFAULT;
        }

        paddr = __sme_page_pa(src_tpage);
    }

    /*
     *  If destination buffer or length is not aligned then do read-modify-write:
     *   - decrypt destination in an intermediate buffer
     *   - copy the source buffer in an intermediate buffer
     *   - use the intermediate buffer as source buffer
     */
    if (!IS_ALIGNED((unsigned long)dst_vaddr, 16) || !IS_ALIGNED(size, 16)) {
        int dst_offset;

        dst_tpage = alloc_page(GFP_KERNEL_ACCOUNT);
        if (!dst_tpage) {
            ret = -ENOMEM;
            goto e_free;
        }

        ret = __sev_dbg_decrypt(kvm, dst_paddr,
                    __sme_page_pa(dst_tpage), size, error);
        if (ret)
            goto e_free;

        /*
         *  If source is kernel buffer then use memcpy() otherwise
         *  copy_from_user().
         */
        dst_offset = dst_paddr & 15;

        if (src_tpage)
            memcpy(page_address(dst_tpage) + dst_offset,
                   page_address(src_tpage), size);
        else {
            if (copy_from_user(page_address(dst_tpage) + dst_offset,
                       vaddr, size)) {
                ret = -EFAULT;
                goto e_free;
            }
        }

        paddr = __sme_page_pa(dst_tpage);
        dst_paddr = round_down(dst_paddr, 16);
        len = round_up(size, 16);
    }

    ret = __sev_issue_dbg_cmd(kvm, paddr, dst_paddr, len, error, true);

e_free:
    if (src_tpage)
        __free_page(src_tpage);
    if (dst_tpage)
        __free_page(dst_tpage);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

__sev_issue_cmd()

static int __sev_issue_cmd ( int  fd, int  id, void *  data, int *  error  )

static

Definition at line 306 of file sev.c.

{
    struct fd f;
    int ret;

    f = fdget(fd);
    if (!f.file)
        return -EBADF;

    ret = sev_issue_cmd_external_user(f.file, id, data, error);

    fdput(f);
    return ret;
}

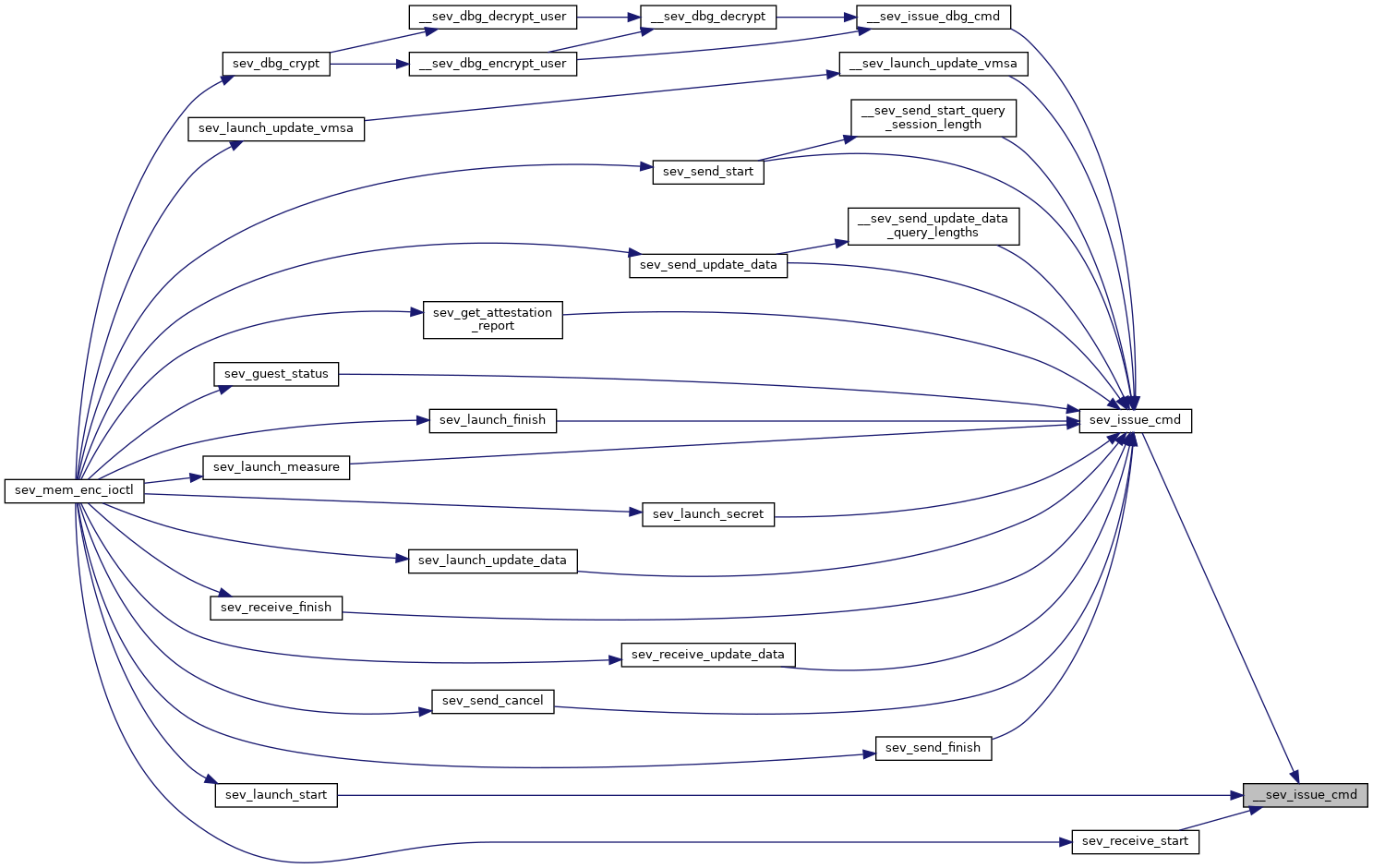

Here is the caller graph for this function:

__sev_issue_dbg_cmd()

static int __sev_issue_dbg_cmd ( struct kvm *  kvm, unsigned long  src, unsigned long  dst, int  size, int *  error, bool  enc  )

static

Definition at line 795 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_dbg data;

    data.reserved = 0;
    data.handle = sev->handle;
    data.dst_addr = dst;
    data.src_addr = src;
    data.len = size;

    return sev_issue_cmd(kvm,
                 enc ? SEV_CMD_DBG_ENCRYPT : SEV_CMD_DBG_DECRYPT,
                 &data, error);
}

Here is the call graph for this function:

Here is the caller graph for this function:

__sev_launch_update_vmsa()

static int __sev_launch_update_vmsa ( struct kvm *  kvm, struct kvm_vcpu *  vcpu, int *  error  )

static

Definition at line 634 of file sev.c.

{
    struct sev_data_launch_update_vmsa vmsa;
    struct vcpu_svm *svm = to_svm(vcpu);
    int ret;

    if (vcpu->guest_debug) {
        pr_warn_once("KVM_SET_GUEST_DEBUG for SEV-ES guest is not supported");
        return -EINVAL;
    }

    /* Perform some pre-encryption checks against the VMSA */
    ret = sev_es_sync_vmsa(svm);
    if (ret)
        return ret;

    /*
     * The LAUNCH_UPDATE_VMSA command will perform in-place encryption of
     * the VMSA memory content (i.e it will write the same memory region
     * with the guest's key), so invalidate it first.
     */
    clflush_cache_range(svm->sev_es.vmsa, PAGE_SIZE);

    vmsa.reserved = 0;
    vmsa.handle = to_kvm_svm(kvm)->sev_info.handle;
    vmsa.address = __sme_pa(svm->sev_es.vmsa);
    vmsa.len = PAGE_SIZE;
    ret = sev_issue_cmd(kvm, SEV_CMD_LAUNCH_UPDATE_VMSA, &vmsa, error);
    if (ret)
      return ret;

    vcpu->arch.guest_state_protected = true;
    return 0;
}

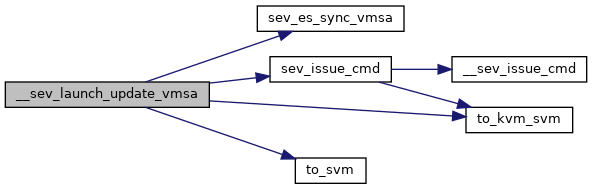

Here is the call graph for this function:

Here is the caller graph for this function:

__sev_recycle_asids()

static bool __sev_recycle_asids ( unsigned int  min_asid, unsigned int  max_asid  )

static

Definition at line 120 of file sev.c.

{
    if (sev_flush_asids(min_asid, max_asid))
        return false;

    /* The flush process will flush all reclaimable SEV and SEV-ES ASIDs */
    bitmap_xor(sev_asid_bitmap, sev_asid_bitmap, sev_reclaim_asid_bitmap,
           nr_asids);
    bitmap_zero(sev_reclaim_asid_bitmap, nr_asids);

    return true;
}

Here is the call graph for this function:

Here is the caller graph for this function:

__sev_send_start_query_session_length()

static int __sev_send_start_query_session_length ( struct kvm *  kvm, struct kvm_sev_cmd *  argp, struct kvm_sev_send_start *  params  )

static

Definition at line 1163 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_send_start data;
    int ret;

    memset(&data, 0, sizeof(data));
    data.handle = sev->handle;
    ret = sev_issue_cmd(kvm, SEV_CMD_SEND_START, &data, &argp->error);

    params->session_len = data.session_len;
    if (copy_to_user((void __user *)(uintptr_t)argp->data, params,
                sizeof(struct kvm_sev_send_start)))
        ret = -EFAULT;

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

__sev_send_update_data_query_lengths()

static int __sev_send_update_data_query_lengths ( struct kvm *  kvm, struct kvm_sev_cmd *  argp, struct kvm_sev_send_update_data *  params  )

static

Definition at line 1274 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_send_update_data data;
    int ret;

    memset(&data, 0, sizeof(data));
    data.handle = sev->handle;
    ret = sev_issue_cmd(kvm, SEV_CMD_SEND_UPDATE_DATA, &data, &argp->error);

    params->hdr_len = data.hdr_len;
    params->trans_len = data.trans_len;

    if (copy_to_user((void __user *)(uintptr_t)argp->data, params,
             sizeof(struct kvm_sev_send_update_data)))
        ret = -EFAULT;

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

__unregister_enc_region_locked()

static void __unregister_enc_region_locked ( struct kvm *  kvm, struct enc_region *  region  )

static

Definition at line 2027 of file sev.c.

{
    sev_unpin_memory(kvm, region->pages, region->npages);
    list_del(&region->list);
    kfree(region);
}

Here is the call graph for this function:

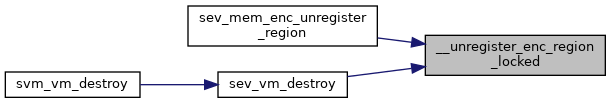

Here is the caller graph for this function:

DECLARE_RWSEM()

static DECLARE_RWSEM ( sev_deactivate_lock  )

static

DEFINE_MUTEX()

static DEFINE_MUTEX ( sev_bitmap_lock  )

static

dump_ghcb()

static void dump_ghcb ( struct vcpu_svm *  svm )

static

Definition at line 2391 of file sev.c.

{
    struct ghcb *ghcb = svm->sev_es.ghcb;
    unsigned int nbits;

    /* Re-use the dump_invalid_vmcb module parameter */
    if (!dump_invalid_vmcb) {
        pr_warn_ratelimited("set kvm_amd.dump_invalid_vmcb=1 to dump internal KVM state.\n");
        return;
    }

    nbits = sizeof(ghcb->save.valid_bitmap) * 8;

    pr_err("GHCB (GPA=%016llx):\n", svm->vmcb->control.ghcb_gpa);
    pr_err("%-20s%016llx is_valid: %u\n", "sw_exit_code",
           ghcb->save.sw_exit_code, ghcb_sw_exit_code_is_valid(ghcb));
    pr_err("%-20s%016llx is_valid: %u\n", "sw_exit_info_1",
           ghcb->save.sw_exit_info_1, ghcb_sw_exit_info_1_is_valid(ghcb));
    pr_err("%-20s%016llx is_valid: %u\n", "sw_exit_info_2",
           ghcb->save.sw_exit_info_2, ghcb_sw_exit_info_2_is_valid(ghcb));
    pr_err("%-20s%016llx is_valid: %u\n", "sw_scratch",
           ghcb->save.sw_scratch, ghcb_sw_scratch_is_valid(ghcb));
    pr_err("%-20s%*pb\n", "valid_bitmap", nbits, ghcb->save.valid_bitmap);
}

Here is the caller graph for this function:

find_enc_region()

static struct enc_region* find_enc_region ( struct kvm *  kvm, struct kvm_enc_region *  range  )

static

Definition at line 2012 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct list_head *head = &sev->regions_list;
    struct enc_region *i;

    list_for_each_entry(i, head, list) {
        if (i->uaddr == range->addr &&
            i->size == range->size)
            return i;
    }

    return NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

get_ghcb_msr_bits()

static u64 get_ghcb_msr_bits ( struct vcpu_svm *  svm, u64  mask, unsigned int  pos  )

static

Definition at line 2761 of file sev.c.

{
    return (svm->vmcb->control.ghcb_gpa >> pos) & mask;
}

Here is the caller graph for this function:

get_num_contig_pages()

static unsigned long get_num_contig_pages ( unsigned long  idx, struct page **  inpages, unsigned long  npages  )

static

Definition at line 490 of file sev.c.

{
    unsigned long paddr, next_paddr;
    unsigned long i = idx + 1, pages = 1;

    /* find the number of contiguous pages starting from idx */
    paddr = __sme_page_pa(inpages[idx]);
    while (i < npages) {
        next_paddr = __sme_page_pa(inpages[i++]);
        if ((paddr + PAGE_SIZE) == next_paddr) {
            pages++;
            paddr = next_paddr;
            continue;
        }
        break;
    }

    return pages;
}

Here is the caller graph for this function:

is_cmd_allowed_from_mirror()

static bool is_cmd_allowed_from_mirror ( u32  cmd_id )

static

Definition at line 1567 of file sev.c.

{
    /*
     * Allow mirrors VM to call KVM_SEV_LAUNCH_UPDATE_VMSA to enable SEV-ES
     * active mirror VMs. Also allow the debugging and status commands.
     */
    if (cmd_id == KVM_SEV_LAUNCH_UPDATE_VMSA ||
        cmd_id == KVM_SEV_GUEST_STATUS || cmd_id == KVM_SEV_DBG_DECRYPT ||
        cmd_id == KVM_SEV_DBG_ENCRYPT)
        return true;

    return false;
}

Here is the caller graph for this function:

is_mirroring_enc_context()

static bool is_mirroring_enc_context ( struct kvm *  kvm )

inlinestatic

Definition at line 114 of file sev.c.

{
    return !!to_kvm_svm(kvm)->sev_info.enc_context_owner;
}

Here is the call graph for this function:

Here is the caller graph for this function:

kvm_ghcb_get_sw_exit_code()

static u64 kvm_ghcb_get_sw_exit_code ( struct vmcb_control_area *  control )

static

Definition at line 2484 of file sev.c.

{
    return (((u64)control->exit_code_hi) << 32) | control->exit_code;
}

Here is the caller graph for this function:

pre_sev_run()

void pre_sev_run	(	struct vcpu_svm *	svm,
		int	cpu
	)

Definition at line 2646 of file sev.c.

{
    struct svm_cpu_data *sd = per_cpu_ptr(&svm_data, cpu);
    unsigned int asid = sev_get_asid(svm->vcpu.kvm);

    /* Assign the asid allocated with this SEV guest */
    svm->asid = asid;

    /*
     * Flush guest TLB:
     *
     * 1) when different VMCB for the same ASID is to be run on the same host CPU.
     * 2) or this VMCB was executed on different host CPU in previous VMRUNs.
     */
    if (sd->sev_vmcbs[asid] == svm->vmcb &&
        svm->vcpu.arch.last_vmentry_cpu == cpu)
        return;

    sd->sev_vmcbs[asid] = svm->vmcb;
    svm->vmcb->control.tlb_ctl = TLB_CONTROL_FLUSH_ASID;
    vmcb_mark_dirty(svm->vmcb, VMCB_ASID);
}

Here is the call graph for this function:

Here is the caller graph for this function:

set_ghcb_msr()

static void set_ghcb_msr ( struct vcpu_svm *  svm, u64  value  )

static

Definition at line 2766 of file sev.c.

{
    svm->vmcb->control.ghcb_gpa = value;
}

Here is the caller graph for this function:

set_ghcb_msr_bits()

static void set_ghcb_msr_bits ( struct vcpu_svm *  svm, u64  value, u64  mask, unsigned int  pos  )

static

Definition at line 2754 of file sev.c.

{
    svm->vmcb->control.ghcb_gpa &= ~(mask << pos);
    svm->vmcb->control.ghcb_gpa |= (value & mask) << pos;
}

Here is the caller graph for this function:

setup_vmgexit_scratch()

static int setup_vmgexit_scratch ( struct vcpu_svm *  svm, bool  sync, u64  len  )

static

Definition at line 2670 of file sev.c.

{
    struct vmcb_control_area *control = &svm->vmcb->control;
    u64 ghcb_scratch_beg, ghcb_scratch_end;
    u64 scratch_gpa_beg, scratch_gpa_end;
    void *scratch_va;

    scratch_gpa_beg = svm->sev_es.sw_scratch;
    if (!scratch_gpa_beg) {
        pr_err("vmgexit: scratch gpa not provided\n");
        goto e_scratch;
    }

    scratch_gpa_end = scratch_gpa_beg + len;
    if (scratch_gpa_end < scratch_gpa_beg) {
        pr_err("vmgexit: scratch length (%#llx) not valid for scratch address (%#llx)\n",
               len, scratch_gpa_beg);
        goto e_scratch;
    }

    if ((scratch_gpa_beg & PAGE_MASK) == control->ghcb_gpa) {
        /* Scratch area begins within GHCB */
        ghcb_scratch_beg = control->ghcb_gpa +
                   offsetof(struct ghcb, shared_buffer);
        ghcb_scratch_end = control->ghcb_gpa +
                   offsetof(struct ghcb, reserved_0xff0);

        /*
         * If the scratch area begins within the GHCB, it must be
         * completely contained in the GHCB shared buffer area.
         */
        if (scratch_gpa_beg < ghcb_scratch_beg ||
            scratch_gpa_end > ghcb_scratch_end) {
            pr_err("vmgexit: scratch area is outside of GHCB shared buffer area (%#llx - %#llx)\n",
                   scratch_gpa_beg, scratch_gpa_end);
            goto e_scratch;
        }

        scratch_va = (void *)svm->sev_es.ghcb;
        scratch_va += (scratch_gpa_beg - control->ghcb_gpa);
    } else {
        /*
         * The guest memory must be read into a kernel buffer, so
         * limit the size
         */
        if (len > GHCB_SCRATCH_AREA_LIMIT) {
            pr_err("vmgexit: scratch area exceeds KVM limits (%#llx requested, %#llx limit)\n",
                   len, GHCB_SCRATCH_AREA_LIMIT);
            goto e_scratch;
        }
        scratch_va = kvzalloc(len, GFP_KERNEL_ACCOUNT);
        if (!scratch_va)
            return -ENOMEM;

        if (kvm_read_guest(svm->vcpu.kvm, scratch_gpa_beg, scratch_va, len)) {
            /* Unable to copy scratch area from guest */
            pr_err("vmgexit: kvm_read_guest for scratch area failed\n");

            kvfree(scratch_va);
            return -EFAULT;
        }

        /*
         * The scratch area is outside the GHCB. The operation will
         * dictate whether the buffer needs to be synced before running
         * the vCPU next time (i.e. a read was requested so the data
         * must be written back to the guest memory).
         */
        svm->sev_es.ghcb_sa_sync = sync;
        svm->sev_es.ghcb_sa_free = true;
    }

    svm->sev_es.ghcb_sa = scratch_va;
    svm->sev_es.ghcb_sa_len = len;

    return 0;

e_scratch:
    ghcb_set_sw_exit_info_1(svm->sev_es.ghcb, 2);
    ghcb_set_sw_exit_info_2(svm->sev_es.ghcb, GHCB_ERR_INVALID_SCRATCH_AREA);

    return 1;
}

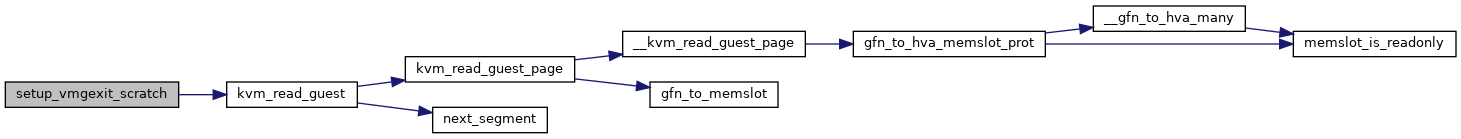

Here is the call graph for this function:

Here is the caller graph for this function:

sev_asid_free()

static void sev_asid_free ( struct kvm_sev_info *  sev )

static

Definition at line 204 of file sev.c.

{
    struct svm_cpu_data *sd;
    int cpu;

    mutex_lock(&sev_bitmap_lock);

    __set_bit(sev->asid, sev_reclaim_asid_bitmap);

    for_each_possible_cpu(cpu) {
        sd = per_cpu_ptr(&svm_data, cpu);
        sd->sev_vmcbs[sev->asid] = NULL;
    }

    mutex_unlock(&sev_bitmap_lock);

    sev_misc_cg_uncharge(sev);
    put_misc_cg(sev->misc_cg);
    sev->misc_cg = NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_asid_new()

static int sev_asid_new ( struct kvm_sev_info *  sev )

static

Definition at line 145 of file sev.c.

{
    /*
     * SEV-enabled guests must use asid from min_sev_asid to max_sev_asid.
     * SEV-ES-enabled guest can use from 1 to min_sev_asid - 1.
     * Note: min ASID can end up larger than the max if basic SEV support is
     * effectively disabled by disallowing use of ASIDs for SEV guests.
     */
    unsigned int min_asid = sev->es_active ? 1 : min_sev_asid;
    unsigned int max_asid = sev->es_active ? min_sev_asid - 1 : max_sev_asid;
    unsigned int asid;
    bool retry = true;
    int ret;

    if (min_asid > max_asid)
        return -ENOTTY;

    WARN_ON(sev->misc_cg);
    sev->misc_cg = get_current_misc_cg();
    ret = sev_misc_cg_try_charge(sev);
    if (ret) {
        put_misc_cg(sev->misc_cg);
        sev->misc_cg = NULL;
        return ret;
    }

    mutex_lock(&sev_bitmap_lock);

again:
    asid = find_next_zero_bit(sev_asid_bitmap, max_asid + 1, min_asid);
    if (asid > max_asid) {
        if (retry && __sev_recycle_asids(min_asid, max_asid)) {
            retry = false;
            goto again;
        }
        mutex_unlock(&sev_bitmap_lock);
        ret = -EBUSY;
        goto e_uncharge;
    }

    __set_bit(asid, sev_asid_bitmap);

    mutex_unlock(&sev_bitmap_lock);

    return asid;
e_uncharge:
    sev_misc_cg_uncharge(sev);
    put_misc_cg(sev->misc_cg);
    sev->misc_cg = NULL;
    return ret;
}

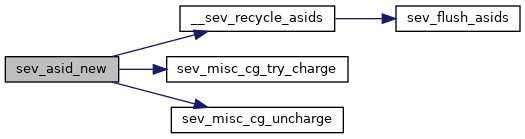

Here is the call graph for this function:

Here is the caller graph for this function:

sev_bind_asid()

static int sev_bind_asid ( struct kvm *  kvm, unsigned int  handle, int *  error  )

static

Definition at line 292 of file sev.c.

{
    unsigned int asid = sev_get_asid(kvm);
    struct sev_data_activate activate;
    int ret;

    /* activate ASID on the given handle */
    activate.handle = handle;
    activate.asid   = asid;
    ret = sev_guest_activate(&activate, error);

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_check_source_vcpus()

static int sev_check_source_vcpus ( struct kvm *  dst, struct kvm *  src  )

static

Definition at line 1772 of file sev.c.

{
    struct kvm_vcpu *src_vcpu;
    unsigned long i;

    if (!sev_es_guest(src))
        return 0;

    if (atomic_read(&src->online_vcpus) != atomic_read(&dst->online_vcpus))
        return -EINVAL;

    kvm_for_each_vcpu(i, src_vcpu, src) {
        if (!src_vcpu->arch.guest_state_protected)
            return -EINVAL;
    }

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_clflush_pages()

static void sev_clflush_pages ( struct page *  pages[], unsigned long  npages  )

static

Definition at line 473 of file sev.c.

{
    uint8_t *page_virtual;
    unsigned long i;

    if (this_cpu_has(X86_FEATURE_SME_COHERENT) || npages == 0 ||
        pages == NULL)
        return;

    for (i = 0; i < npages; i++) {
        page_virtual = kmap_local_page(pages[i]);
        clflush_cache_range(page_virtual, PAGE_SIZE);
        kunmap_local(page_virtual);
        cond_resched();
    }
}

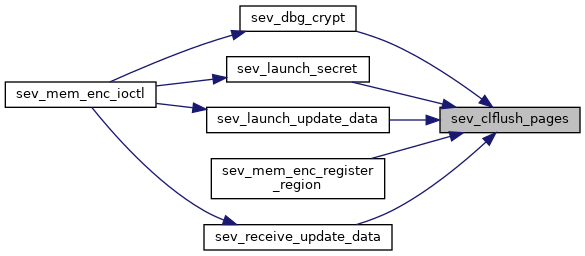

Here is the caller graph for this function:

sev_cpu_init()

int sev_cpu_init

(

struct svm_cpu_data *

sd

)

Definition at line 2313 of file sev.c.

{
    if (!sev_enabled)
        return 0;

    sd->sev_vmcbs = kcalloc(nr_asids, sizeof(void *), GFP_KERNEL);
    if (!sd->sev_vmcbs)
        return -ENOMEM;

    return 0;
}

Here is the caller graph for this function:

sev_dbg_crypt()

static int sev_dbg_crypt ( struct kvm *  kvm, struct kvm_sev_cmd *  argp, bool  dec  )

static

Definition at line 941 of file sev.c.

{
    unsigned long vaddr, vaddr_end, next_vaddr;
    unsigned long dst_vaddr;
    struct page **src_p, **dst_p;
    struct kvm_sev_dbg debug;
    unsigned long n;
    unsigned int size;
    int ret;

    if (!sev_guest(kvm))
        return -ENOTTY;

    if (copy_from_user(&debug, (void __user *)(uintptr_t)argp->data, sizeof(debug)))
        return -EFAULT;

    if (!debug.len || debug.src_uaddr + debug.len < debug.src_uaddr)
        return -EINVAL;
    if (!debug.dst_uaddr)
        return -EINVAL;

    vaddr = debug.src_uaddr;
    size = debug.len;
    vaddr_end = vaddr + size;
    dst_vaddr = debug.dst_uaddr;

    for (; vaddr < vaddr_end; vaddr = next_vaddr) {
        int len, s_off, d_off;

        /* lock userspace source and destination page */
        src_p = sev_pin_memory(kvm, vaddr & PAGE_MASK, PAGE_SIZE, &n, 0);
        if (IS_ERR(src_p))
            return PTR_ERR(src_p);

        dst_p = sev_pin_memory(kvm, dst_vaddr & PAGE_MASK, PAGE_SIZE, &n, 1);
        if (IS_ERR(dst_p)) {
            sev_unpin_memory(kvm, src_p, n);
            return PTR_ERR(dst_p);
        }

        /*
         * Flush (on non-coherent CPUs) before DBG_{DE,EN}CRYPT read or modify
         * the pages; flush the destination too so that future accesses do not
         * see stale data.
         */
        sev_clflush_pages(src_p, 1);
        sev_clflush_pages(dst_p, 1);

        /*
         * Since user buffer may not be page aligned, calculate the
         * offset within the page.
         */
        s_off = vaddr & ~PAGE_MASK;
        d_off = dst_vaddr & ~PAGE_MASK;
        len = min_t(size_t, (PAGE_SIZE - s_off), size);

        if (dec)
            ret = __sev_dbg_decrypt_user(kvm,
                             __sme_page_pa(src_p[0]) + s_off,
                             (void __user *)dst_vaddr,
                             __sme_page_pa(dst_p[0]) + d_off,
                             len, &argp->error);
        else
            ret = __sev_dbg_encrypt_user(kvm,
                             __sme_page_pa(src_p[0]) + s_off,
                             (void __user *)vaddr,
                             __sme_page_pa(dst_p[0]) + d_off,
                             (void __user *)dst_vaddr,
                             len, &argp->error);

        sev_unpin_memory(kvm, src_p, n);
        sev_unpin_memory(kvm, dst_p, n);

        if (ret)
            goto err;

        next_vaddr = vaddr + len;
        dst_vaddr = dst_vaddr + len;
        size -= len;
    }
err:
    return ret;
}

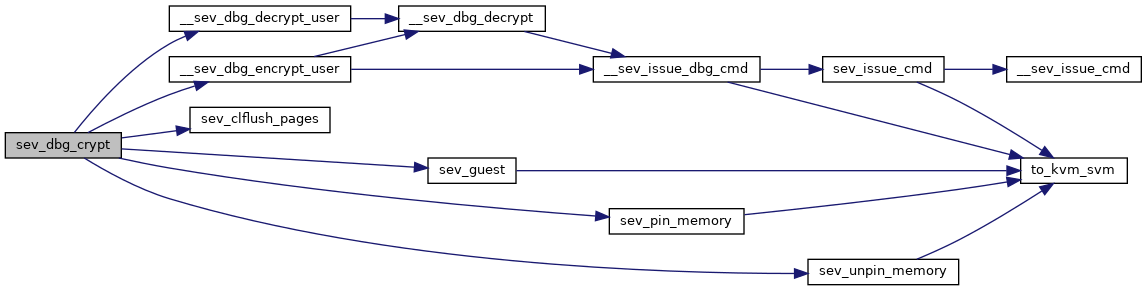

Here is the call graph for this function:

Here is the caller graph for this function:

sev_decommission()

static void sev_decommission ( unsigned int  handle )

static

Definition at line 225 of file sev.c.

{
    struct sev_data_decommission decommission;

    if (!handle)
        return;

    decommission.handle = handle;
    sev_guest_decommission(&decommission, NULL);
}

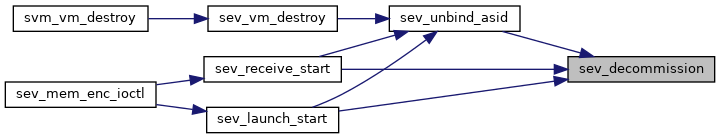

Here is the caller graph for this function:

sev_es_init_vmcb()

static void sev_es_init_vmcb ( struct vcpu_svm *  svm )

static

Definition at line 3029 of file sev.c.

{
    struct vmcb *vmcb = svm->vmcb01.ptr;
    struct kvm_vcpu *vcpu = &svm->vcpu;

    svm->vmcb->control.nested_ctl |= SVM_NESTED_CTL_SEV_ES_ENABLE;
    svm->vmcb->control.virt_ext |= LBR_CTL_ENABLE_MASK;

    /*
     * An SEV-ES guest requires a VMSA area that is a separate from the
     * VMCB page. Do not include the encryption mask on the VMSA physical
     * address since hardware will access it using the guest key.  Note,
     * the VMSA will be NULL if this vCPU is the destination for intrahost
     * migration, and will be copied later.
     */
    if (svm->sev_es.vmsa)
        svm->vmcb->control.vmsa_pa = __pa(svm->sev_es.vmsa);

    /* Can't intercept CR register access, HV can't modify CR registers */
    svm_clr_intercept(svm, INTERCEPT_CR0_READ);
    svm_clr_intercept(svm, INTERCEPT_CR4_READ);
    svm_clr_intercept(svm, INTERCEPT_CR8_READ);
    svm_clr_intercept(svm, INTERCEPT_CR0_WRITE);
    svm_clr_intercept(svm, INTERCEPT_CR4_WRITE);
    svm_clr_intercept(svm, INTERCEPT_CR8_WRITE);

    svm_clr_intercept(svm, INTERCEPT_SELECTIVE_CR0);

    /* Track EFER/CR register changes */
    svm_set_intercept(svm, TRAP_EFER_WRITE);
    svm_set_intercept(svm, TRAP_CR0_WRITE);
    svm_set_intercept(svm, TRAP_CR4_WRITE);
    svm_set_intercept(svm, TRAP_CR8_WRITE);

    vmcb->control.intercepts[INTERCEPT_DR] = 0;
    if (!sev_es_debug_swap_enabled) {
        vmcb_set_intercept(&vmcb->control, INTERCEPT_DR7_READ);
        vmcb_set_intercept(&vmcb->control, INTERCEPT_DR7_WRITE);
        recalc_intercepts(svm);
    } else {
        /*
         * Disable #DB intercept iff DebugSwap is enabled.  KVM doesn't
         * allow debugging SEV-ES guests, and enables DebugSwap iff
         * NO_NESTED_DATA_BP is supported, so there's no reason to
         * intercept #DB when DebugSwap is enabled.  For simplicity
         * with respect to guest debug, intercept #DB for other VMs
         * even if NO_NESTED_DATA_BP is supported, i.e. even if the
         * guest can't DoS the CPU with infinite #DB vectoring.
         */
        clr_exception_intercept(svm, DB_VECTOR);
    }

    /* Can't intercept XSETBV, HV can't modify XCR0 directly */
    svm_clr_intercept(svm, INTERCEPT_XSETBV);

    /* Clear intercepts on selected MSRs */
    set_msr_interception(vcpu, svm->msrpm, MSR_EFER, 1, 1);
    set_msr_interception(vcpu, svm->msrpm, MSR_IA32_CR_PAT, 1, 1);
    set_msr_interception(vcpu, svm->msrpm, MSR_IA32_LASTBRANCHFROMIP, 1, 1);
    set_msr_interception(vcpu, svm->msrpm, MSR_IA32_LASTBRANCHTOIP, 1, 1);
    set_msr_interception(vcpu, svm->msrpm, MSR_IA32_LASTINTFROMIP, 1, 1);
    set_msr_interception(vcpu, svm->msrpm, MSR_IA32_LASTINTTOIP, 1, 1);
}

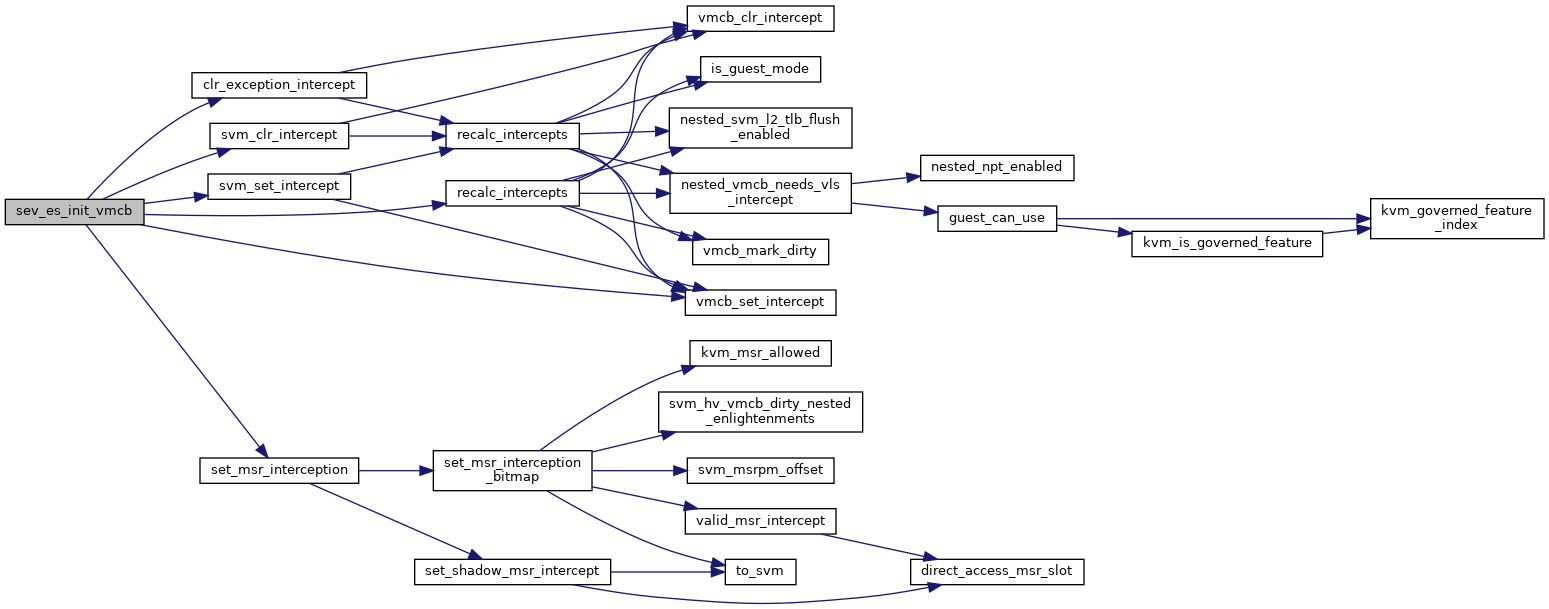

Here is the call graph for this function:

Here is the caller graph for this function:

sev_es_prepare_switch_to_guest()

void sev_es_prepare_switch_to_guest

(

struct sev_es_save_area *

hostsa

)

Definition at line 3119 of file sev.c.

{
    /*
     * All host state for SEV-ES guests is categorized into three swap types
     * based on how it is handled by hardware during a world switch:
     *
     * A: VMRUN:   Host state saved in host save area
     *    VMEXIT:  Host state loaded from host save area
     *
     * B: VMRUN:   Host state _NOT_ saved in host save area
     *    VMEXIT:  Host state loaded from host save area
     *
     * C: VMRUN:   Host state _NOT_ saved in host save area
     *    VMEXIT:  Host state initialized to default(reset) values
     *
     * Manually save type-B state, i.e. state that is loaded by VMEXIT but
     * isn't saved by VMRUN, that isn't already saved by VMSAVE (performed
     * by common SVM code).
     */
    hostsa->xcr0 = xgetbv(XCR_XFEATURE_ENABLED_MASK);
    hostsa->pkru = read_pkru();
    hostsa->xss = host_xss;

    /*
     * If DebugSwap is enabled, debug registers are loaded but NOT saved by
     * the CPU (Type-B). If DebugSwap is disabled/unsupported, the CPU both
     * saves and loads debug registers (Type-A).
     */
    if (sev_es_debug_swap_enabled) {
        hostsa->dr0 = native_get_debugreg(0);
        hostsa->dr1 = native_get_debugreg(1);
        hostsa->dr2 = native_get_debugreg(2);
        hostsa->dr3 = native_get_debugreg(3);
        hostsa->dr0_addr_mask = amd_get_dr_addr_mask(0);
        hostsa->dr1_addr_mask = amd_get_dr_addr_mask(1);
        hostsa->dr2_addr_mask = amd_get_dr_addr_mask(2);
        hostsa->dr3_addr_mask = amd_get_dr_addr_mask(3);
    }
}

Here is the caller graph for this function:

sev_es_string_io()

int sev_es_string_io	(	struct vcpu_svm *	svm,
		int	size,
		unsigned int	port,
		int	in
	)

Definition at line 2963 of file sev.c.

{
    int count;
    int bytes;
    int r;

    if (svm->vmcb->control.exit_info_2 > INT_MAX)
        return -EINVAL;

    count = svm->vmcb->control.exit_info_2;
    if (unlikely(check_mul_overflow(count, size, &bytes)))
        return -EINVAL;

    r = setup_vmgexit_scratch(svm, in, bytes);
    if (r)
        return r;

    return kvm_sev_es_string_io(&svm->vcpu, size, port, svm->sev_es.ghcb_sa,
                    count, in);
}

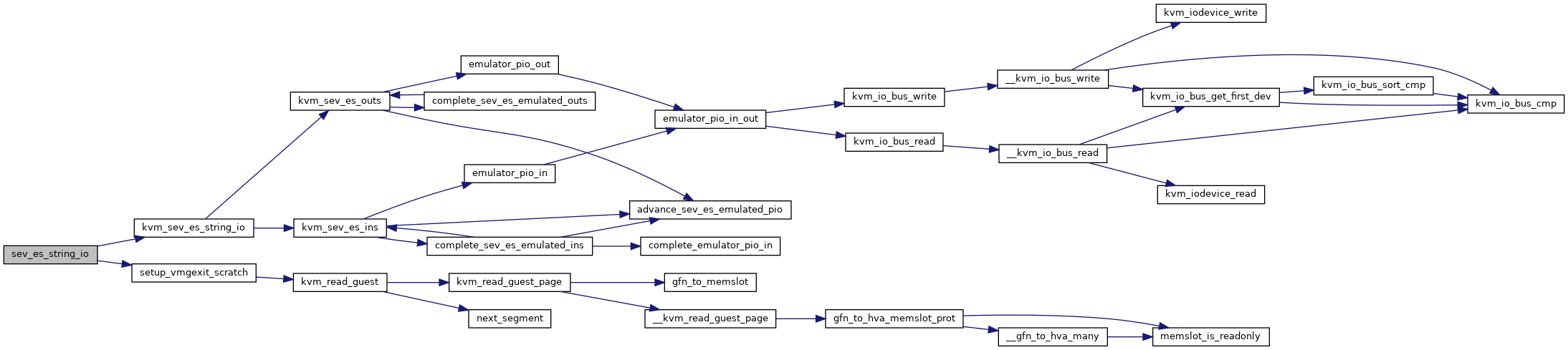

Here is the call graph for this function:

Here is the caller graph for this function:

sev_es_sync_from_ghcb()

static void sev_es_sync_from_ghcb ( struct vcpu_svm *  svm )

static

Definition at line 2435 of file sev.c.

{
    struct vmcb_control_area *control = &svm->vmcb->control;
    struct kvm_vcpu *vcpu = &svm->vcpu;
    struct ghcb *ghcb = svm->sev_es.ghcb;
    u64 exit_code;

    /*
     * The GHCB protocol so far allows for the following data
     * to be supplied:
     *   GPRs RAX, RBX, RCX, RDX
     *   XCR0
     *   CPL
     *
     * VMMCALL allows the guest to provide extra registers. KVM also
     * expects RSI for hypercalls, so include that, too.
     *
     * Copy their values to the appropriate location if supplied.
     */
    memset(vcpu->arch.regs, 0, sizeof(vcpu->arch.regs));

    BUILD_BUG_ON(sizeof(svm->sev_es.valid_bitmap) != sizeof(ghcb->save.valid_bitmap));
    memcpy(&svm->sev_es.valid_bitmap, &ghcb->save.valid_bitmap, sizeof(ghcb->save.valid_bitmap));

    vcpu->arch.regs[VCPU_REGS_RAX] = kvm_ghcb_get_rax_if_valid(svm, ghcb);
    vcpu->arch.regs[VCPU_REGS_RBX] = kvm_ghcb_get_rbx_if_valid(svm, ghcb);
    vcpu->arch.regs[VCPU_REGS_RCX] = kvm_ghcb_get_rcx_if_valid(svm, ghcb);
    vcpu->arch.regs[VCPU_REGS_RDX] = kvm_ghcb_get_rdx_if_valid(svm, ghcb);
    vcpu->arch.regs[VCPU_REGS_RSI] = kvm_ghcb_get_rsi_if_valid(svm, ghcb);

    svm->vmcb->save.cpl = kvm_ghcb_get_cpl_if_valid(svm, ghcb);

    if (kvm_ghcb_xcr0_is_valid(svm)) {
        vcpu->arch.xcr0 = ghcb_get_xcr0(ghcb);
        kvm_update_cpuid_runtime(vcpu);
    }

    /* Copy the GHCB exit information into the VMCB fields */
    exit_code = ghcb_get_sw_exit_code(ghcb);
    control->exit_code = lower_32_bits(exit_code);
    control->exit_code_hi = upper_32_bits(exit_code);
    control->exit_info_1 = ghcb_get_sw_exit_info_1(ghcb);
    control->exit_info_2 = ghcb_get_sw_exit_info_2(ghcb);
    svm->sev_es.sw_scratch = kvm_ghcb_get_sw_scratch_if_valid(svm, ghcb);

    /* Clear the valid entries fields */
    memset(ghcb->save.valid_bitmap, 0, sizeof(ghcb->save.valid_bitmap));
}

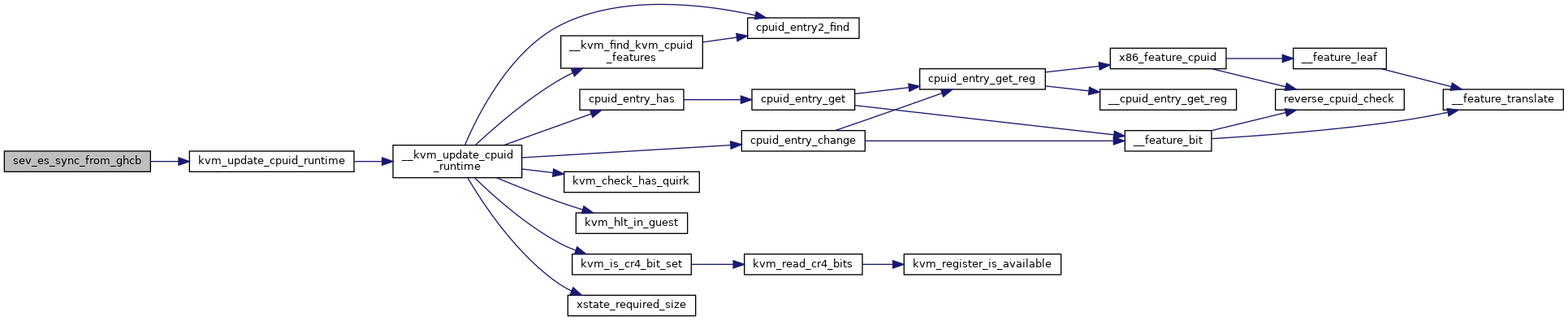

Here is the call graph for this function:

Here is the caller graph for this function:

sev_es_sync_to_ghcb()

static void sev_es_sync_to_ghcb ( struct vcpu_svm *  svm )

static

Definition at line 2416 of file sev.c.

{
    struct kvm_vcpu *vcpu = &svm->vcpu;
    struct ghcb *ghcb = svm->sev_es.ghcb;

    /*
     * The GHCB protocol so far allows for the following data
     * to be returned:
     *   GPRs RAX, RBX, RCX, RDX
     *
     * Copy their values, even if they may not have been written during the
     * VM-Exit.  It's the guest's responsibility to not consume random data.
     */
    ghcb_set_rax(ghcb, vcpu->arch.regs[VCPU_REGS_RAX]);
    ghcb_set_rbx(ghcb, vcpu->arch.regs[VCPU_REGS_RBX]);
    ghcb_set_rcx(ghcb, vcpu->arch.regs[VCPU_REGS_RCX]);
    ghcb_set_rdx(ghcb, vcpu->arch.regs[VCPU_REGS_RDX]);
}

Here is the caller graph for this function:

sev_es_sync_vmsa()

static int sev_es_sync_vmsa ( struct vcpu_svm *  svm )

static

Definition at line 579 of file sev.c.

{
    struct sev_es_save_area *save = svm->sev_es.vmsa;

    /* Check some debug related fields before encrypting the VMSA */
    if (svm->vcpu.guest_debug || (svm->vmcb->save.dr7 & ~DR7_FIXED_1))
        return -EINVAL;

    /*
     * SEV-ES will use a VMSA that is pointed to by the VMCB, not
     * the traditional VMSA that is part of the VMCB. Copy the
     * traditional VMSA as it has been built so far (in prep
     * for LAUNCH_UPDATE_VMSA) to be the initial SEV-ES state.
     */
    memcpy(save, &svm->vmcb->save, sizeof(svm->vmcb->save));

    /* Sync registgers */
    save->rax = svm->vcpu.arch.regs[VCPU_REGS_RAX];
    save->rbx = svm->vcpu.arch.regs[VCPU_REGS_RBX];
    save->rcx = svm->vcpu.arch.regs[VCPU_REGS_RCX];
    save->rdx = svm->vcpu.arch.regs[VCPU_REGS_RDX];
    save->rsp = svm->vcpu.arch.regs[VCPU_REGS_RSP];
    save->rbp = svm->vcpu.arch.regs[VCPU_REGS_RBP];
    save->rsi = svm->vcpu.arch.regs[VCPU_REGS_RSI];
    save->rdi = svm->vcpu.arch.regs[VCPU_REGS_RDI];
#ifdef CONFIG_X86_64
    save->r8  = svm->vcpu.arch.regs[VCPU_REGS_R8];
    save->r9  = svm->vcpu.arch.regs[VCPU_REGS_R9];
    save->r10 = svm->vcpu.arch.regs[VCPU_REGS_R10];
    save->r11 = svm->vcpu.arch.regs[VCPU_REGS_R11];
    save->r12 = svm->vcpu.arch.regs[VCPU_REGS_R12];
    save->r13 = svm->vcpu.arch.regs[VCPU_REGS_R13];
    save->r14 = svm->vcpu.arch.regs[VCPU_REGS_R14];
    save->r15 = svm->vcpu.arch.regs[VCPU_REGS_R15];
#endif
    save->rip = svm->vcpu.arch.regs[VCPU_REGS_RIP];

    /* Sync some non-GPR registers before encrypting */
    save->xcr0 = svm->vcpu.arch.xcr0;
    save->pkru = svm->vcpu.arch.pkru;
    save->xss  = svm->vcpu.arch.ia32_xss;
    save->dr6  = svm->vcpu.arch.dr6;

    if (sev_es_debug_swap_enabled) {
        save->sev_features |= SVM_SEV_FEAT_DEBUG_SWAP;
        pr_warn_once("Enabling DebugSwap with KVM_SEV_ES_INIT. "
                 "This will not work starting with Linux 6.10\n");
    }

    pr_debug("Virtual Machine Save Area (VMSA):\n");
    print_hex_dump_debug("", DUMP_PREFIX_NONE, 16, 1, save, sizeof(*save), false);

    return 0;
}

Here is the caller graph for this function:

sev_es_unmap_ghcb()

void sev_es_unmap_ghcb

(

struct vcpu_svm *

svm

)

Definition at line 2614 of file sev.c.

{
    if (!svm->sev_es.ghcb)
        return;

    if (svm->sev_es.ghcb_sa_free) {
        /*
         * The scratch area lives outside the GHCB, so there is a
         * buffer that, depending on the operation performed, may
         * need to be synced, then freed.
         */
        if (svm->sev_es.ghcb_sa_sync) {
            kvm_write_guest(svm->vcpu.kvm,
                    svm->sev_es.sw_scratch,
                    svm->sev_es.ghcb_sa,
                    svm->sev_es.ghcb_sa_len);
            svm->sev_es.ghcb_sa_sync = false;
        }

        kvfree(svm->sev_es.ghcb_sa);
        svm->sev_es.ghcb_sa = NULL;
        svm->sev_es.ghcb_sa_free = false;
    }

    trace_kvm_vmgexit_exit(svm->vcpu.vcpu_id, svm->sev_es.ghcb);

    sev_es_sync_to_ghcb(svm);

    kvm_vcpu_unmap(&svm->vcpu, &svm->sev_es.ghcb_map, true);
    svm->sev_es.ghcb = NULL;
}

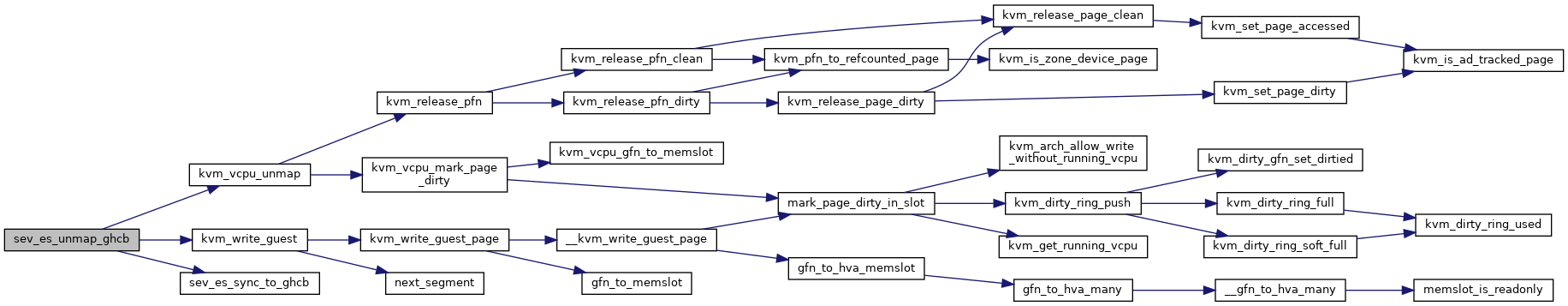

Here is the call graph for this function:

Here is the caller graph for this function:

sev_es_validate_vmgexit()

static int sev_es_validate_vmgexit ( struct vcpu_svm *  svm )

static

Definition at line 2489 of file sev.c.

{
    struct vmcb_control_area *control = &svm->vmcb->control;
    struct kvm_vcpu *vcpu = &svm->vcpu;
    u64 exit_code;
    u64 reason;

    /*
     * Retrieve the exit code now even though it may not be marked valid
     * as it could help with debugging.
     */
    exit_code = kvm_ghcb_get_sw_exit_code(control);

    /* Only GHCB Usage code 0 is supported */
    if (svm->sev_es.ghcb->ghcb_usage) {
        reason = GHCB_ERR_INVALID_USAGE;
        goto vmgexit_err;
    }

    reason = GHCB_ERR_MISSING_INPUT;

    if (!kvm_ghcb_sw_exit_code_is_valid(svm) ||
        !kvm_ghcb_sw_exit_info_1_is_valid(svm) ||
        !kvm_ghcb_sw_exit_info_2_is_valid(svm))
        goto vmgexit_err;

    switch (exit_code) {
    case SVM_EXIT_READ_DR7:
        break;
    case SVM_EXIT_WRITE_DR7:
        if (!kvm_ghcb_rax_is_valid(svm))
            goto vmgexit_err;
        break;
    case SVM_EXIT_RDTSC:
        break;
    case SVM_EXIT_RDPMC:
        if (!kvm_ghcb_rcx_is_valid(svm))
            goto vmgexit_err;
        break;
    case SVM_EXIT_CPUID:
        if (!kvm_ghcb_rax_is_valid(svm) ||
            !kvm_ghcb_rcx_is_valid(svm))
            goto vmgexit_err;
        if (vcpu->arch.regs[VCPU_REGS_RAX] == 0xd)
            if (!kvm_ghcb_xcr0_is_valid(svm))
                goto vmgexit_err;
        break;
    case SVM_EXIT_INVD:
        break;
    case SVM_EXIT_IOIO:
        if (control->exit_info_1 & SVM_IOIO_STR_MASK) {
            if (!kvm_ghcb_sw_scratch_is_valid(svm))
                goto vmgexit_err;
        } else {
            if (!(control->exit_info_1 & SVM_IOIO_TYPE_MASK))
                if (!kvm_ghcb_rax_is_valid(svm))
                    goto vmgexit_err;
        }
        break;
    case SVM_EXIT_MSR:
        if (!kvm_ghcb_rcx_is_valid(svm))
            goto vmgexit_err;
        if (control->exit_info_1) {
            if (!kvm_ghcb_rax_is_valid(svm) ||
                !kvm_ghcb_rdx_is_valid(svm))
                goto vmgexit_err;
        }
        break;
    case SVM_EXIT_VMMCALL:
        if (!kvm_ghcb_rax_is_valid(svm) ||
            !kvm_ghcb_cpl_is_valid(svm))
            goto vmgexit_err;
        break;
    case SVM_EXIT_RDTSCP:
        break;
    case SVM_EXIT_WBINVD:
        break;
    case SVM_EXIT_MONITOR:
        if (!kvm_ghcb_rax_is_valid(svm) ||
            !kvm_ghcb_rcx_is_valid(svm) ||
            !kvm_ghcb_rdx_is_valid(svm))
            goto vmgexit_err;
        break;
    case SVM_EXIT_MWAIT:
        if (!kvm_ghcb_rax_is_valid(svm) ||
            !kvm_ghcb_rcx_is_valid(svm))
            goto vmgexit_err;
        break;
    case SVM_VMGEXIT_MMIO_READ:
    case SVM_VMGEXIT_MMIO_WRITE:
        if (!kvm_ghcb_sw_scratch_is_valid(svm))
            goto vmgexit_err;
        break;
    case SVM_VMGEXIT_NMI_COMPLETE:
    case SVM_VMGEXIT_AP_HLT_LOOP:
    case SVM_VMGEXIT_AP_JUMP_TABLE:
    case SVM_VMGEXIT_UNSUPPORTED_EVENT:
        break;
    default:
        reason = GHCB_ERR_INVALID_EVENT;
        goto vmgexit_err;
    }

    return 0;

vmgexit_err:
    if (reason == GHCB_ERR_INVALID_USAGE) {
        vcpu_unimpl(vcpu, "vmgexit: ghcb usage %#x is not valid\n",
                svm->sev_es.ghcb->ghcb_usage);
    } else if (reason == GHCB_ERR_INVALID_EVENT) {
        vcpu_unimpl(vcpu, "vmgexit: exit code %#llx is not valid\n",
                exit_code);
    } else {
        vcpu_unimpl(vcpu, "vmgexit: exit code %#llx input is not valid\n",
                exit_code);
        dump_ghcb(svm);
    }

    ghcb_set_sw_exit_info_1(svm->sev_es.ghcb, 2);
    ghcb_set_sw_exit_info_2(svm->sev_es.ghcb, reason);

    /* Resume the guest to "return" the error code. */
    return 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_es_vcpu_after_set_cpuid()

static void sev_es_vcpu_after_set_cpuid ( struct vcpu_svm *  svm )

static

Definition at line 2984 of file sev.c.

{
    struct kvm_vcpu *vcpu = &svm->vcpu;

    if (boot_cpu_has(X86_FEATURE_V_TSC_AUX)) {
        bool v_tsc_aux = guest_cpuid_has(vcpu, X86_FEATURE_RDTSCP) ||
                 guest_cpuid_has(vcpu, X86_FEATURE_RDPID);

        set_msr_interception(vcpu, svm->msrpm, MSR_TSC_AUX, v_tsc_aux, v_tsc_aux);
    }

    /*
     * For SEV-ES, accesses to MSR_IA32_XSS should not be intercepted if
     * the host/guest supports its use.
     *
     * guest_can_use() checks a number of requirements on the host/guest to
     * ensure that MSR_IA32_XSS is available, but it might report true even
     * if X86_FEATURE_XSAVES isn't configured in the guest to ensure host
     * MSR_IA32_XSS is always properly restored. For SEV-ES, it is better
     * to further check that the guest CPUID actually supports
     * X86_FEATURE_XSAVES so that accesses to MSR_IA32_XSS by misbehaved
     * guests will still get intercepted and caught in the normal
     * kvm_emulate_rdmsr()/kvm_emulated_wrmsr() paths.
     */
    if (guest_can_use(vcpu, X86_FEATURE_XSAVES) &&
        guest_cpuid_has(vcpu, X86_FEATURE_XSAVES))
        set_msr_interception(vcpu, svm->msrpm, MSR_IA32_XSS, 1, 1);
    else
        set_msr_interception(vcpu, svm->msrpm, MSR_IA32_XSS, 0, 0);
}

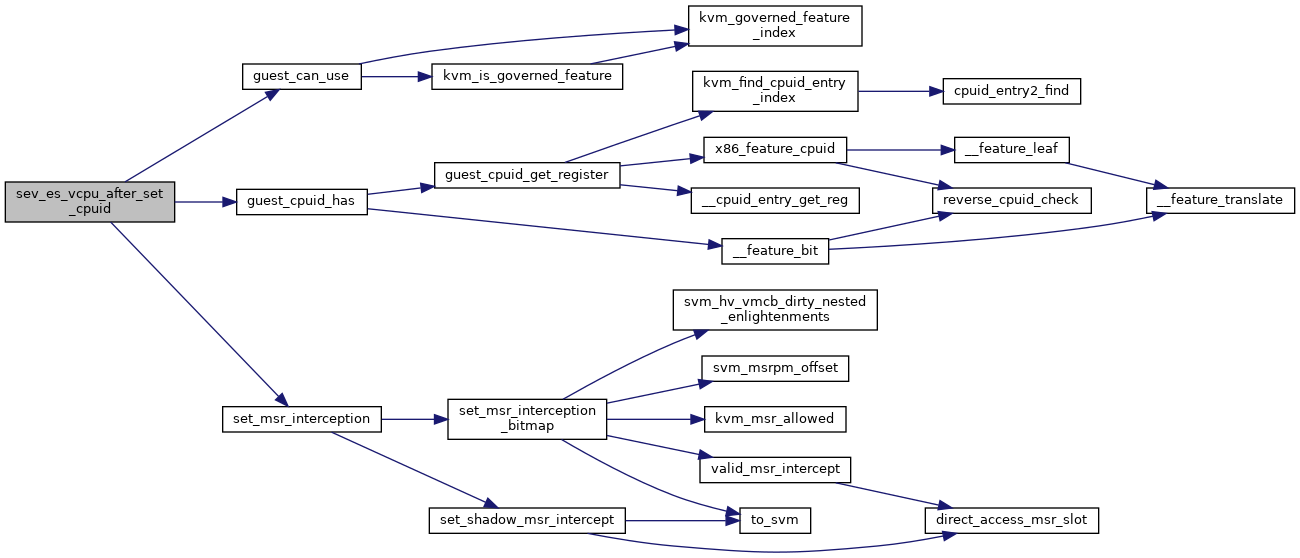

Here is the call graph for this function:

Here is the caller graph for this function:

sev_es_vcpu_reset()

void sev_es_vcpu_reset

(

struct vcpu_svm *

svm

)

Definition at line 3108 of file sev.c.

{
    /*
     * Set the GHCB MSR value as per the GHCB specification when emulating
     * vCPU RESET for an SEV-ES guest.
     */
    set_ghcb_msr(svm, GHCB_MSR_SEV_INFO(GHCB_VERSION_MAX,
                        GHCB_VERSION_MIN,
                        sev_enc_bit));
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_flush_asids()

static int sev_flush_asids ( unsigned int  min_asid, unsigned int  max_asid  )

static

Definition at line 87 of file sev.c.

{
    int ret, error = 0;
    unsigned int asid;

    /* Check if there are any ASIDs to reclaim before performing a flush */
    asid = find_next_bit(sev_reclaim_asid_bitmap, nr_asids, min_asid);
    if (asid > max_asid)
        return -EBUSY;

    /*
     * DEACTIVATE will clear the WBINVD indicator causing DF_FLUSH to fail,
     * so it must be guarded.
     */
    down_write(&sev_deactivate_lock);

    wbinvd_on_all_cpus();
    ret = sev_guest_df_flush(&error);

    up_write(&sev_deactivate_lock);

    if (ret)
        pr_err("SEV: DF_FLUSH failed, ret=%d, error=%#x\n", ret, error);

    return ret;
}

Here is the caller graph for this function:

sev_flush_encrypted_page()

static void sev_flush_encrypted_page ( struct kvm_vcpu *  vcpu, void *  va  )

static

Definition at line 2329 of file sev.c.

{
    unsigned int asid = sev_get_asid(vcpu->kvm);

    /*
     * Note!  The address must be a kernel address, as regular page walk
     * checks are performed by VM_PAGE_FLUSH, i.e. operating on a user
     * address is non-deterministic and unsafe.  This function deliberately
     * takes a pointer to deter passing in a user address.
     */
    unsigned long addr = (unsigned long)va;

    /*
     * If CPU enforced cache coherency for encrypted mappings of the
     * same physical page is supported, use CLFLUSHOPT instead. NOTE: cache
     * flush is still needed in order to work properly with DMA devices.
     */
    if (boot_cpu_has(X86_FEATURE_SME_COHERENT)) {
        clflush_cache_range(va, PAGE_SIZE);
        return;
    }

    /*
     * VM Page Flush takes a host virtual address and a guest ASID.  Fall
     * back to WBINVD if this faults so as not to make any problems worse
     * by leaving stale encrypted data in the cache.
     */
    if (WARN_ON_ONCE(wrmsrl_safe(MSR_AMD64_VM_PAGE_FLUSH, addr | asid)))
        goto do_wbinvd;

    return;

do_wbinvd:
    wbinvd_on_all_cpus();
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_free_vcpu()

void sev_free_vcpu

(

struct kvm_vcpu *

vcpu

)

Definition at line 2373 of file sev.c.

{
    struct vcpu_svm *svm;

    if (!sev_es_guest(vcpu->kvm))
        return;

    svm = to_svm(vcpu);

    if (vcpu->arch.guest_state_protected)
        sev_flush_encrypted_page(vcpu, svm->sev_es.vmsa);

    __free_page(virt_to_page(svm->sev_es.vmsa));

    if (svm->sev_es.ghcb_sa_free)
        kvfree(svm->sev_es.ghcb_sa);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_get_asid()

static unsigned int sev_get_asid ( struct kvm *  kvm )

static

Definition at line 197 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;

    return sev->asid;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_get_attestation_report()

static int sev_get_attestation_report ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1100 of file sev.c.

{
    void __user *report = (void __user *)(uintptr_t)argp->data;
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_attestation_report data;
    struct kvm_sev_attestation_report params;
    void __user *p;
    void *blob = NULL;
    int ret;

    if (!sev_guest(kvm))
        return -ENOTTY;

    if (copy_from_user(&params, (void __user *)(uintptr_t)argp->data, sizeof(params)))
        return -EFAULT;

    memset(&data, 0, sizeof(data));

    /* User wants to query the blob length */
    if (!params.len)
        goto cmd;

    p = (void __user *)(uintptr_t)params.uaddr;
    if (p) {
        if (params.len > SEV_FW_BLOB_MAX_SIZE)
            return -EINVAL;

        blob = kzalloc(params.len, GFP_KERNEL_ACCOUNT);
        if (!blob)
            return -ENOMEM;

        data.address = __psp_pa(blob);
        data.len = params.len;
        memcpy(data.mnonce, params.mnonce, sizeof(params.mnonce));
    }
cmd:
    data.handle = sev->handle;
    ret = sev_issue_cmd(kvm, SEV_CMD_ATTESTATION_REPORT, &data, &argp->error);
    /*
     * If we query the session length, FW responded with expected data.
     */
    if (!params.len)
        goto done;

    if (ret)
        goto e_free_blob;

    if (blob) {
        if (copy_to_user(p, blob, params.len))
            ret = -EFAULT;
    }

done:
    params.len = data.len;
    if (copy_to_user(report, &params, sizeof(params)))
        ret = -EFAULT;
e_free_blob:
    kfree(blob);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_guest_init()

static int sev_guest_init ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 253 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    int asid, ret;

    if (kvm->created_vcpus)
        return -EINVAL;

    ret = -EBUSY;
    if (unlikely(sev->active))
        return ret;

    sev->active = true;
    sev->es_active = argp->id == KVM_SEV_ES_INIT;
    asid = sev_asid_new(sev);
    if (asid < 0)
        goto e_no_asid;
    sev->asid = asid;

    ret = sev_platform_init(&argp->error);
    if (ret)
        goto e_free;

    INIT_LIST_HEAD(&sev->regions_list);
    INIT_LIST_HEAD(&sev->mirror_vms);

    kvm_set_apicv_inhibit(kvm, APICV_INHIBIT_REASON_SEV);

    return 0;

e_free:
    sev_asid_free(sev);
    sev->asid = 0;
e_no_asid:
    sev->es_active = false;
    sev->active = false;
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_guest_memory_reclaimed()

void sev_guest_memory_reclaimed

(

struct kvm *

kvm

)

Definition at line 2365 of file sev.c.

{
    if (!sev_guest(kvm))
        return;

    wbinvd_on_all_cpus();
}

Here is the call graph for this function:

sev_guest_status()

static int sev_guest_status ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 768 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct kvm_sev_guest_status params;
    struct sev_data_guest_status data;
    int ret;

    if (!sev_guest(kvm))
        return -ENOTTY;

    memset(&data, 0, sizeof(data));

    data.handle = sev->handle;
    ret = sev_issue_cmd(kvm, SEV_CMD_GUEST_STATUS, &data, &argp->error);
    if (ret)
        return ret;

    params.policy = data.policy;
    params.state = data.state;
    params.handle = data.handle;

    if (copy_to_user((void __user *)(uintptr_t)argp->data, &params, sizeof(params)))
        ret = -EFAULT;

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_handle_vmgexit()

int sev_handle_vmgexit

(

struct kvm_vcpu *

vcpu

)

Definition at line 2857 of file sev.c.

{
    struct vcpu_svm *svm = to_svm(vcpu);
    struct vmcb_control_area *control = &svm->vmcb->control;
    u64 ghcb_gpa, exit_code;
    int ret;

    /* Validate the GHCB */
    ghcb_gpa = control->ghcb_gpa;
    if (ghcb_gpa & GHCB_MSR_INFO_MASK)
        return sev_handle_vmgexit_msr_protocol(svm);

    if (!ghcb_gpa) {
        vcpu_unimpl(vcpu, "vmgexit: GHCB gpa is not set\n");

        /* Without a GHCB, just return right back to the guest */
        return 1;
    }

    if (kvm_vcpu_map(vcpu, ghcb_gpa >> PAGE_SHIFT, &svm->sev_es.ghcb_map)) {
        /* Unable to map GHCB from guest */
        vcpu_unimpl(vcpu, "vmgexit: error mapping GHCB [%#llx] from guest\n",
                ghcb_gpa);

        /* Without a GHCB, just return right back to the guest */
        return 1;
    }

    svm->sev_es.ghcb = svm->sev_es.ghcb_map.hva;

    trace_kvm_vmgexit_enter(vcpu->vcpu_id, svm->sev_es.ghcb);

    sev_es_sync_from_ghcb(svm);
    ret = sev_es_validate_vmgexit(svm);
    if (ret)
        return ret;

    ghcb_set_sw_exit_info_1(svm->sev_es.ghcb, 0);
    ghcb_set_sw_exit_info_2(svm->sev_es.ghcb, 0);

    exit_code = kvm_ghcb_get_sw_exit_code(control);
    switch (exit_code) {
    case SVM_VMGEXIT_MMIO_READ:
        ret = setup_vmgexit_scratch(svm, true, control->exit_info_2);
        if (ret)
            break;

        ret = kvm_sev_es_mmio_read(vcpu,
                       control->exit_info_1,
                       control->exit_info_2,
                       svm->sev_es.ghcb_sa);
        break;
    case SVM_VMGEXIT_MMIO_WRITE:
        ret = setup_vmgexit_scratch(svm, false, control->exit_info_2);
        if (ret)
            break;

        ret = kvm_sev_es_mmio_write(vcpu,
                        control->exit_info_1,
                        control->exit_info_2,
                        svm->sev_es.ghcb_sa);
        break;
    case SVM_VMGEXIT_NMI_COMPLETE:
        ++vcpu->stat.nmi_window_exits;
        svm->nmi_masked = false;
        kvm_make_request(KVM_REQ_EVENT, vcpu);
        ret = 1;
        break;
    case SVM_VMGEXIT_AP_HLT_LOOP:
        ret = kvm_emulate_ap_reset_hold(vcpu);
        break;
    case SVM_VMGEXIT_AP_JUMP_TABLE: {
        struct kvm_sev_info *sev = &to_kvm_svm(vcpu->kvm)->sev_info;

        switch (control->exit_info_1) {
        case 0:
            /* Set AP jump table address */
            sev->ap_jump_table = control->exit_info_2;
            break;
        case 1:
            /* Get AP jump table address */
            ghcb_set_sw_exit_info_2(svm->sev_es.ghcb, sev->ap_jump_table);
            break;
        default:
            pr_err("svm: vmgexit: unsupported AP jump table request - exit_info_1=%#llx\n",
                   control->exit_info_1);
            ghcb_set_sw_exit_info_1(svm->sev_es.ghcb, 2);
            ghcb_set_sw_exit_info_2(svm->sev_es.ghcb, GHCB_ERR_INVALID_INPUT);
        }

        ret = 1;
        break;
    }
    case SVM_VMGEXIT_UNSUPPORTED_EVENT:
        vcpu_unimpl(vcpu,
                "vmgexit: unsupported event - exit_info_1=%#llx, exit_info_2=%#llx\n",
                control->exit_info_1, control->exit_info_2);
        ret = -EINVAL;
        break;
    default:
        ret = svm_invoke_exit_handler(vcpu, exit_code);
    }

    return ret;
}

Here is the call graph for this function:

sev_handle_vmgexit_msr_protocol()

static int sev_handle_vmgexit_msr_protocol ( struct vcpu_svm *  svm )

static

Definition at line 2771 of file sev.c.

{
    struct vmcb_control_area *control = &svm->vmcb->control;
    struct kvm_vcpu *vcpu = &svm->vcpu;
    u64 ghcb_info;
    int ret = 1;

    ghcb_info = control->ghcb_gpa & GHCB_MSR_INFO_MASK;

    trace_kvm_vmgexit_msr_protocol_enter(svm->vcpu.vcpu_id,
                         control->ghcb_gpa);

    switch (ghcb_info) {
    case GHCB_MSR_SEV_INFO_REQ:
        set_ghcb_msr(svm, GHCB_MSR_SEV_INFO(GHCB_VERSION_MAX,
                            GHCB_VERSION_MIN,
                            sev_enc_bit));
        break;
    case GHCB_MSR_CPUID_REQ: {
        u64 cpuid_fn, cpuid_reg, cpuid_value;

        cpuid_fn = get_ghcb_msr_bits(svm,
                         GHCB_MSR_CPUID_FUNC_MASK,
                         GHCB_MSR_CPUID_FUNC_POS);

        /* Initialize the registers needed by the CPUID intercept */
        vcpu->arch.regs[VCPU_REGS_RAX] = cpuid_fn;
        vcpu->arch.regs[VCPU_REGS_RCX] = 0;

        ret = svm_invoke_exit_handler(vcpu, SVM_EXIT_CPUID);
        if (!ret) {
            /* Error, keep GHCB MSR value as-is */
            break;
        }

        cpuid_reg = get_ghcb_msr_bits(svm,
                          GHCB_MSR_CPUID_REG_MASK,
                          GHCB_MSR_CPUID_REG_POS);
        if (cpuid_reg == 0)
            cpuid_value = vcpu->arch.regs[VCPU_REGS_RAX];
        else if (cpuid_reg == 1)
            cpuid_value = vcpu->arch.regs[VCPU_REGS_RBX];
        else if (cpuid_reg == 2)
            cpuid_value = vcpu->arch.regs[VCPU_REGS_RCX];
        else
            cpuid_value = vcpu->arch.regs[VCPU_REGS_RDX];

        set_ghcb_msr_bits(svm, cpuid_value,
                  GHCB_MSR_CPUID_VALUE_MASK,
                  GHCB_MSR_CPUID_VALUE_POS);

        set_ghcb_msr_bits(svm, GHCB_MSR_CPUID_RESP,
                  GHCB_MSR_INFO_MASK,
                  GHCB_MSR_INFO_POS);
        break;
    }
    case GHCB_MSR_TERM_REQ: {
        u64 reason_set, reason_code;

        reason_set = get_ghcb_msr_bits(svm,
                           GHCB_MSR_TERM_REASON_SET_MASK,
                           GHCB_MSR_TERM_REASON_SET_POS);
        reason_code = get_ghcb_msr_bits(svm,
                        GHCB_MSR_TERM_REASON_MASK,
                        GHCB_MSR_TERM_REASON_POS);
        pr_info("SEV-ES guest requested termination: %#llx:%#llx\n",
            reason_set, reason_code);

        vcpu->run->exit_reason = KVM_EXIT_SYSTEM_EVENT;
        vcpu->run->system_event.type = KVM_SYSTEM_EVENT_SEV_TERM;
        vcpu->run->system_event.ndata = 1;
        vcpu->run->system_event.data[0] = control->ghcb_gpa;

        return 0;
    }
    default:
        /* Error, keep GHCB MSR value as-is */
        break;
    }

    trace_kvm_vmgexit_msr_protocol_exit(svm->vcpu.vcpu_id,
                        control->ghcb_gpa, ret);

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_hardware_setup()

void __init sev_hardware_setup

(

void

)

Definition at line 2193 of file sev.c.

{
#ifdef CONFIG_KVM_AMD_SEV
    unsigned int eax, ebx, ecx, edx, sev_asid_count, sev_es_asid_count;
    bool sev_es_supported = false;
    bool sev_supported = false;

    if (!sev_enabled || !npt_enabled || !nrips)
        goto out;

    /*
     * SEV must obviously be supported in hardware.  Sanity check that the
     * CPU supports decode assists, which is mandatory for SEV guests to
     * support instruction emulation.  Ditto for flushing by ASID, as SEV
     * guests are bound to a single ASID, i.e. KVM can't rotate to a new
     * ASID to effect a TLB flush.
     */
    if (!boot_cpu_has(X86_FEATURE_SEV) ||
        WARN_ON_ONCE(!boot_cpu_has(X86_FEATURE_DECODEASSISTS)) ||
        WARN_ON_ONCE(!boot_cpu_has(X86_FEATURE_FLUSHBYASID)))
        goto out;

    /* Retrieve SEV CPUID information */
    cpuid(0x8000001f, &eax, &ebx, &ecx, &edx);

    /* Set encryption bit location for SEV-ES guests */
    sev_enc_bit = ebx & 0x3f;

    /* Maximum number of encrypted guests supported simultaneously */
    max_sev_asid = ecx;
    if (!max_sev_asid)
        goto out;

    /* Minimum ASID value that should be used for SEV guest */
    min_sev_asid = edx;
    sev_me_mask = 1UL << (ebx & 0x3f);

    /*
     * Initialize SEV ASID bitmaps. Allocate space for ASID 0 in the bitmap,
     * even though it's never used, so that the bitmap is indexed by the
     * actual ASID.
     */
    nr_asids = max_sev_asid + 1;
    sev_asid_bitmap = bitmap_zalloc(nr_asids, GFP_KERNEL);
    if (!sev_asid_bitmap)
        goto out;

    sev_reclaim_asid_bitmap = bitmap_zalloc(nr_asids, GFP_KERNEL);
    if (!sev_reclaim_asid_bitmap) {
        bitmap_free(sev_asid_bitmap);
        sev_asid_bitmap = NULL;
        goto out;
    }

    if (min_sev_asid <= max_sev_asid) {
        sev_asid_count = max_sev_asid - min_sev_asid + 1;
        WARN_ON_ONCE(misc_cg_set_capacity(MISC_CG_RES_SEV, sev_asid_count));
    }
    sev_supported = true;

    /* SEV-ES support requested? */
    if (!sev_es_enabled)
        goto out;

    /*
     * SEV-ES requires MMIO caching as KVM doesn't have access to the guest
     * instruction stream, i.e. can't emulate in response to a #NPF and
     * instead relies on #NPF(RSVD) being reflected into the guest as #VC
     * (the guest can then do a #VMGEXIT to request MMIO emulation).
     */
    if (!enable_mmio_caching)
        goto out;

    /* Does the CPU support SEV-ES? */
    if (!boot_cpu_has(X86_FEATURE_SEV_ES))
        goto out;

    /* Has the system been allocated ASIDs for SEV-ES? */
    if (min_sev_asid == 1)
        goto out;

    sev_es_asid_count = min_sev_asid - 1;
    WARN_ON_ONCE(misc_cg_set_capacity(MISC_CG_RES_SEV_ES, sev_es_asid_count));
    sev_es_supported = true;

out:
    if (boot_cpu_has(X86_FEATURE_SEV))
        pr_info("SEV %s (ASIDs %u - %u)\n",
            sev_supported ? min_sev_asid <= max_sev_asid ? "enabled" :
                                       "unusable" :
                                       "disabled",
            min_sev_asid, max_sev_asid);
    if (boot_cpu_has(X86_FEATURE_SEV_ES))
        pr_info("SEV-ES %s (ASIDs %u - %u)\n",
            sev_es_supported ? "enabled" : "disabled",
            min_sev_asid > 1 ? 1 : 0, min_sev_asid - 1);

    sev_enabled = sev_supported;
    sev_es_enabled = sev_es_supported;
    if (!sev_es_enabled || !cpu_feature_enabled(X86_FEATURE_DEBUG_SWAP) ||
        !cpu_feature_enabled(X86_FEATURE_NO_NESTED_DATA_BP))
        sev_es_debug_swap_enabled = false;
#endif
}

Here is the caller graph for this function:

sev_hardware_unsetup()

void sev_hardware_unsetup

(

void

)

Definition at line 2298 of file sev.c.

{
    if (!sev_enabled)
        return;

    /* No need to take sev_bitmap_lock, all VMs have been destroyed. */
    sev_flush_asids(1, max_sev_asid);

    bitmap_free(sev_asid_bitmap);
    bitmap_free(sev_reclaim_asid_bitmap);

    misc_cg_set_capacity(MISC_CG_RES_SEV, 0);
    misc_cg_set_capacity(MISC_CG_RES_SEV_ES, 0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_init_vmcb()

void sev_init_vmcb

(

struct vcpu_svm *

svm

)

Definition at line 3093 of file sev.c.

{
    svm->vmcb->control.nested_ctl |= SVM_NESTED_CTL_SEV_ENABLE;
    clr_exception_intercept(svm, UD_VECTOR);

    /*
     * Don't intercept #GP for SEV guests, e.g. for the VMware backdoor, as
     * KVM can't decrypt guest memory to decode the faulting instruction.
     */
    clr_exception_intercept(svm, GP_VECTOR);

    if (sev_es_guest(svm->vcpu.kvm))
        sev_es_init_vmcb(svm);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_issue_cmd()

static int sev_issue_cmd ( struct kvm *  kvm, int  id, void *  data, int *  error  )

static

Definition at line 321 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;

    return __sev_issue_cmd(sev->fd, id, data, error);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_launch_finish()

static int sev_launch_finish ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 756 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_launch_finish data;

    if (!sev_guest(kvm))
        return -ENOTTY;

    data.handle = sev->handle;
    return sev_issue_cmd(kvm, SEV_CMD_LAUNCH_FINISH, &data, &argp->error);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_launch_measure()

static int sev_launch_measure ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 694 of file sev.c.

{
    void __user *measure = (void __user *)(uintptr_t)argp->data;
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_launch_measure data;
    struct kvm_sev_launch_measure params;
    void __user *p = NULL;
    void *blob = NULL;
    int ret;

    if (!sev_guest(kvm))
        return -ENOTTY;

    if (copy_from_user(&params, measure, sizeof(params)))
        return -EFAULT;

    memset(&data, 0, sizeof(data));

    /* User wants to query the blob length */
    if (!params.len)
        goto cmd;

    p = (void __user *)(uintptr_t)params.uaddr;
    if (p) {
        if (params.len > SEV_FW_BLOB_MAX_SIZE)
            return -EINVAL;

        blob = kzalloc(params.len, GFP_KERNEL_ACCOUNT);
        if (!blob)
            return -ENOMEM;

        data.address = __psp_pa(blob);
        data.len = params.len;
    }

cmd:
    data.handle = sev->handle;
    ret = sev_issue_cmd(kvm, SEV_CMD_LAUNCH_MEASURE, &data, &argp->error);

    /*
     * If we query the session length, FW responded with expected data.
     */
    if (!params.len)
        goto done;

    if (ret)
        goto e_free_blob;

    if (blob) {
        if (copy_to_user(p, blob, params.len))
            ret = -EFAULT;
    }

done:
    params.len = data.len;
    if (copy_to_user(measure, &params, sizeof(params)))
        ret = -EFAULT;
e_free_blob:
    kfree(blob);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_launch_secret()

static int sev_launch_secret ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1025 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_launch_secret data;
    struct kvm_sev_launch_secret params;
    struct page **pages;
    void *blob, *hdr;
    unsigned long n, i;
    int ret, offset;

    if (!sev_guest(kvm))
        return -ENOTTY;

    if (copy_from_user(&params, (void __user *)(uintptr_t)argp->data, sizeof(params)))
        return -EFAULT;

    pages = sev_pin_memory(kvm, params.guest_uaddr, params.guest_len, &n, 1);
    if (IS_ERR(pages))
        return PTR_ERR(pages);

    /*
     * Flush (on non-coherent CPUs) before LAUNCH_SECRET encrypts pages in
     * place; the cache may contain the data that was written unencrypted.
     */
    sev_clflush_pages(pages, n);

    /*
     * The secret must be copied into contiguous memory region, lets verify
     * that userspace memory pages are contiguous before we issue command.
     */
    if (get_num_contig_pages(0, pages, n) != n) {
        ret = -EINVAL;
        goto e_unpin_memory;
    }

    memset(&data, 0, sizeof(data));

    offset = params.guest_uaddr & (PAGE_SIZE - 1);
    data.guest_address = __sme_page_pa(pages[0]) + offset;
    data.guest_len = params.guest_len;

    blob = psp_copy_user_blob(params.trans_uaddr, params.trans_len);
    if (IS_ERR(blob)) {
        ret = PTR_ERR(blob);
        goto e_unpin_memory;
    }

    data.trans_address = __psp_pa(blob);
    data.trans_len = params.trans_len;

    hdr = psp_copy_user_blob(params.hdr_uaddr, params.hdr_len);
    if (IS_ERR(hdr)) {
        ret = PTR_ERR(hdr);
        goto e_free_blob;
    }
    data.hdr_address = __psp_pa(hdr);
    data.hdr_len = params.hdr_len;

    data.handle = sev->handle;
    ret = sev_issue_cmd(kvm, SEV_CMD_LAUNCH_UPDATE_SECRET, &data, &argp->error);

    kfree(hdr);

e_free_blob:
    kfree(blob);
e_unpin_memory:
    /* content of memory is updated, mark pages dirty */
    for (i = 0; i < n; i++) {
        set_page_dirty_lock(pages[i]);
        mark_page_accessed(pages[i]);
    }
    sev_unpin_memory(kvm, pages, n);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_launch_start()

static int sev_launch_start ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 328 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_launch_start start;
    struct kvm_sev_launch_start params;
    void *dh_blob, *session_blob;
    int *error = &argp->error;
    int ret;

    if (!sev_guest(kvm))
        return -ENOTTY;

    if (copy_from_user(&params, (void __user *)(uintptr_t)argp->data, sizeof(params)))
        return -EFAULT;

    memset(&start, 0, sizeof(start));

    dh_blob = NULL;
    if (params.dh_uaddr) {
        dh_blob = psp_copy_user_blob(params.dh_uaddr, params.dh_len);
        if (IS_ERR(dh_blob))
            return PTR_ERR(dh_blob);

        start.dh_cert_address = __sme_set(__pa(dh_blob));
        start.dh_cert_len = params.dh_len;
    }

    session_blob = NULL;
    if (params.session_uaddr) {
        session_blob = psp_copy_user_blob(params.session_uaddr, params.session_len);
        if (IS_ERR(session_blob)) {
            ret = PTR_ERR(session_blob);
            goto e_free_dh;
        }

        start.session_address = __sme_set(__pa(session_blob));
        start.session_len = params.session_len;
    }

    start.handle = params.handle;
    start.policy = params.policy;

    /* create memory encryption context */
    ret = __sev_issue_cmd(argp->sev_fd, SEV_CMD_LAUNCH_START, &start, error);
    if (ret)
        goto e_free_session;

    /* Bind ASID to this guest */
    ret = sev_bind_asid(kvm, start.handle, error);
    if (ret) {
        sev_decommission(start.handle);
        goto e_free_session;
    }

    /* return handle to userspace */
    params.handle = start.handle;
    if (copy_to_user((void __user *)(uintptr_t)argp->data, &params, sizeof(params))) {
        sev_unbind_asid(kvm, start.handle);
        ret = -EFAULT;
        goto e_free_session;
    }

    sev->handle = start.handle;
    sev->fd = argp->sev_fd;

e_free_session:
    kfree(session_blob);
e_free_dh:
    kfree(dh_blob);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_launch_update_data()

static int sev_launch_update_data ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 511 of file sev.c.

{
    unsigned long vaddr, vaddr_end, next_vaddr, npages, pages, size, i;
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct kvm_sev_launch_update_data params;
    struct sev_data_launch_update_data data;
    struct page **inpages;
    int ret;

    if (!sev_guest(kvm))
        return -ENOTTY;

    if (copy_from_user(&params, (void __user *)(uintptr_t)argp->data, sizeof(params)))
        return -EFAULT;

    vaddr = params.uaddr;
    size = params.len;
    vaddr_end = vaddr + size;

    /* Lock the user memory. */
    inpages = sev_pin_memory(kvm, vaddr, size, &npages, 1);
    if (IS_ERR(inpages))
        return PTR_ERR(inpages);

    /*
     * Flush (on non-coherent CPUs) before LAUNCH_UPDATE encrypts pages in
     * place; the cache may contain the data that was written unencrypted.
     */
    sev_clflush_pages(inpages, npages);

    data.reserved = 0;
    data.handle = sev->handle;

    for (i = 0; vaddr < vaddr_end; vaddr = next_vaddr, i += pages) {
        int offset, len;

        /*
         * If the user buffer is not page-aligned, calculate the offset
         * within the page.
         */
        offset = vaddr & (PAGE_SIZE - 1);

        /* Calculate the number of pages that can be encrypted in one go. */
        pages = get_num_contig_pages(i, inpages, npages);

        len = min_t(size_t, ((pages * PAGE_SIZE) - offset), size);

        data.len = len;
        data.address = __sme_page_pa(inpages[i]) + offset;
        ret = sev_issue_cmd(kvm, SEV_CMD_LAUNCH_UPDATE_DATA, &data, &argp->error);
        if (ret)
            goto e_unpin;

        size -= len;
        next_vaddr = vaddr + len;
    }

e_unpin:
    /* content of memory is updated, mark pages dirty */
    for (i = 0; i < npages; i++) {
        set_page_dirty_lock(inpages[i]);
        mark_page_accessed(inpages[i]);
    }
    /* unlock the user pages */
    sev_unpin_memory(kvm, inpages, npages);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_launch_update_vmsa()

static int sev_launch_update_vmsa ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 670 of file sev.c.

{
    struct kvm_vcpu *vcpu;
    unsigned long i;
    int ret;

    if (!sev_es_guest(kvm))
        return -ENOTTY;

    kvm_for_each_vcpu(i, vcpu, kvm) {
        ret = mutex_lock_killable(&vcpu->mutex);
        if (ret)
            return ret;

        ret = __sev_launch_update_vmsa(kvm, vcpu, &argp->error);

        mutex_unlock(&vcpu->mutex);
        if (ret)
            return ret;
    }

    return 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_lock_two_vms()

static int sev_lock_two_vms ( struct kvm *  dst_kvm, struct kvm *  src_kvm  )

static

Definition at line 1581 of file sev.c.

{
    struct kvm_sev_info *dst_sev = &to_kvm_svm(dst_kvm)->sev_info;
    struct kvm_sev_info *src_sev = &to_kvm_svm(src_kvm)->sev_info;
    int r = -EBUSY;

    if (dst_kvm == src_kvm)
        return -EINVAL;

    /*
     * Bail if these VMs are already involved in a migration to avoid
     * deadlock between two VMs trying to migrate to/from each other.
     */
    if (atomic_cmpxchg_acquire(&dst_sev->migration_in_progress, 0, 1))
        return -EBUSY;

    if (atomic_cmpxchg_acquire(&src_sev->migration_in_progress, 0, 1))
        goto release_dst;

    r = -EINTR;
    if (mutex_lock_killable(&dst_kvm->lock))
        goto release_src;
    if (mutex_lock_killable_nested(&src_kvm->lock, SINGLE_DEPTH_NESTING))
        goto unlock_dst;
    return 0;

unlock_dst:
    mutex_unlock(&dst_kvm->lock);
release_src:
    atomic_set_release(&src_sev->migration_in_progress, 0);
release_dst:
    atomic_set_release(&dst_sev->migration_in_progress, 0);
    return r;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_lock_vcpus_for_migration()

static int sev_lock_vcpus_for_migration ( struct kvm *  kvm, enum sev_migration_role  role  )

static

Definition at line 1634 of file sev.c.

{
    struct kvm_vcpu *vcpu;
    unsigned long i, j;

    kvm_for_each_vcpu(i, vcpu, kvm) {
        if (mutex_lock_killable_nested(&vcpu->mutex, role))
            goto out_unlock;

#ifdef CONFIG_PROVE_LOCKING
        if (!i)
            /*
             * Reset the role to one that avoids colliding with
             * the role used for the first vcpu mutex.
             */
            role = SEV_NR_MIGRATION_ROLES;
        else
            mutex_release(&vcpu->mutex.dep_map, _THIS_IP_);
#endif
    }

    return 0;

out_unlock:

    kvm_for_each_vcpu(j, vcpu, kvm) {
        if (i == j)
            break;

#ifdef CONFIG_PROVE_LOCKING
        if (j)
            mutex_acquire(&vcpu->mutex.dep_map, role, 0, _THIS_IP_);
#endif

        mutex_unlock(&vcpu->mutex);
    }
    return -EINTR;
}

Here is the caller graph for this function:

sev_mem_enc_ioctl()

int sev_mem_enc_ioctl	(	struct kvm *	kvm,
		void __user *	argp
	)

Definition at line 1862 of file sev.c.

{
    struct kvm_sev_cmd sev_cmd;
    int r;

    if (!sev_enabled)
        return -ENOTTY;

    if (!argp)
        return 0;

    if (copy_from_user(&sev_cmd, argp, sizeof(struct kvm_sev_cmd)))
        return -EFAULT;

    mutex_lock(&kvm->lock);

    /* Only the enc_context_owner handles some memory enc operations. */
    if (is_mirroring_enc_context(kvm) &&
        !is_cmd_allowed_from_mirror(sev_cmd.id)) {
        r = -EINVAL;
        goto out;
    }

    switch (sev_cmd.id) {
    case KVM_SEV_ES_INIT:
        if (!sev_es_enabled) {
            r = -ENOTTY;
            goto out;
        }
        fallthrough;
    case KVM_SEV_INIT:
        r = sev_guest_init(kvm, &sev_cmd);
        break;
    case KVM_SEV_LAUNCH_START:
        r = sev_launch_start(kvm, &sev_cmd);
        break;
    case KVM_SEV_LAUNCH_UPDATE_DATA:
        r = sev_launch_update_data(kvm, &sev_cmd);
        break;
    case KVM_SEV_LAUNCH_UPDATE_VMSA:
        r = sev_launch_update_vmsa(kvm, &sev_cmd);
        break;
    case KVM_SEV_LAUNCH_MEASURE:
        r = sev_launch_measure(kvm, &sev_cmd);
        break;
    case KVM_SEV_LAUNCH_FINISH:
        r = sev_launch_finish(kvm, &sev_cmd);
        break;
    case KVM_SEV_GUEST_STATUS:
        r = sev_guest_status(kvm, &sev_cmd);
        break;
    case KVM_SEV_DBG_DECRYPT:
        r = sev_dbg_crypt(kvm, &sev_cmd, true);
        break;
    case KVM_SEV_DBG_ENCRYPT:
        r = sev_dbg_crypt(kvm, &sev_cmd, false);
        break;
    case KVM_SEV_LAUNCH_SECRET:
        r = sev_launch_secret(kvm, &sev_cmd);
        break;
    case KVM_SEV_GET_ATTESTATION_REPORT:
        r = sev_get_attestation_report(kvm, &sev_cmd);
        break;
    case KVM_SEV_SEND_START:
        r = sev_send_start(kvm, &sev_cmd);
        break;
    case KVM_SEV_SEND_UPDATE_DATA:
        r = sev_send_update_data(kvm, &sev_cmd);
        break;
    case KVM_SEV_SEND_FINISH:
        r = sev_send_finish(kvm, &sev_cmd);
        break;
    case KVM_SEV_SEND_CANCEL:
        r = sev_send_cancel(kvm, &sev_cmd);
        break;
    case KVM_SEV_RECEIVE_START:
        r = sev_receive_start(kvm, &sev_cmd);
        break;
    case KVM_SEV_RECEIVE_UPDATE_DATA:
        r = sev_receive_update_data(kvm, &sev_cmd);
        break;
    case KVM_SEV_RECEIVE_FINISH:
        r = sev_receive_finish(kvm, &sev_cmd);
        break;
    default:
        r = -EINVAL;
        goto out;
    }

    if (copy_to_user(argp, &sev_cmd, sizeof(struct kvm_sev_cmd)))
        r = -EFAULT;

out:
    mutex_unlock(&kvm->lock);
    return r;
}

Here is the call graph for this function:

sev_mem_enc_register_region()

int sev_mem_enc_register_region	(	struct kvm *	kvm,
		struct kvm_enc_region *	range
	)

Definition at line 1959 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct enc_region *region;
    int ret = 0;

    if (!sev_guest(kvm))
        return -ENOTTY;

    /* If kvm is mirroring encryption context it isn't responsible for it */
    if (is_mirroring_enc_context(kvm))
        return -EINVAL;

    if (range->addr > ULONG_MAX || range->size > ULONG_MAX)
        return -EINVAL;

    region = kzalloc(sizeof(*region), GFP_KERNEL_ACCOUNT);
    if (!region)
        return -ENOMEM;

    mutex_lock(&kvm->lock);
    region->pages = sev_pin_memory(kvm, range->addr, range->size, &region->npages, 1);
    if (IS_ERR(region->pages)) {
        ret = PTR_ERR(region->pages);
        mutex_unlock(&kvm->lock);
        goto e_free;
    }

    /*
     * The guest may change the memory encryption attribute from C=0 -> C=1
     * or vice versa for this memory range. Lets make sure caches are
     * flushed to ensure that guest data gets written into memory with
     * correct C-bit.  Note, this must be done before dropping kvm->lock,
     * as region and its array of pages can be freed by a different task
     * once kvm->lock is released.
     */
    sev_clflush_pages(region->pages, region->npages);

    region->uaddr = range->addr;
    region->size = range->size;

    list_add_tail(&region->list, &sev->regions_list);
    mutex_unlock(&kvm->lock);

    return ret;

e_free:
    kfree(region);
    return ret;
}

Here is the call graph for this function:

sev_mem_enc_unregister_region()

int sev_mem_enc_unregister_region	(	struct kvm *	kvm,
		struct kvm_enc_region *	range
	)

Definition at line 2035 of file sev.c.

{
    struct enc_region *region;
    int ret;

    /* If kvm is mirroring encryption context it isn't responsible for it */
    if (is_mirroring_enc_context(kvm))
        return -EINVAL;

    mutex_lock(&kvm->lock);

    if (!sev_guest(kvm)) {
        ret = -ENOTTY;
        goto failed;
    }

    region = find_enc_region(kvm, range);
    if (!region) {
        ret = -EINVAL;
        goto failed;
    }

    /*
     * Ensure that all guest tagged cache entries are flushed before
     * releasing the pages back to the system for use. CLFLUSH will
     * not do this, so issue a WBINVD.
     */
    wbinvd_on_all_cpus();

    __unregister_enc_region_locked(kvm, region);

    mutex_unlock(&kvm->lock);
    return 0;

failed:
    mutex_unlock(&kvm->lock);
    return ret;
}

Here is the call graph for this function:

sev_migrate_from()

static void sev_migrate_from ( struct kvm *  dst_kvm, struct kvm *  src_kvm  )

static

Definition at line 1691 of file sev.c.

{
    struct kvm_sev_info *dst = &to_kvm_svm(dst_kvm)->sev_info;
    struct kvm_sev_info *src = &to_kvm_svm(src_kvm)->sev_info;
    struct kvm_vcpu *dst_vcpu, *src_vcpu;
    struct vcpu_svm *dst_svm, *src_svm;
    struct kvm_sev_info *mirror;
    unsigned long i;

    dst->active = true;
    dst->asid = src->asid;
    dst->handle = src->handle;
    dst->pages_locked = src->pages_locked;
    dst->enc_context_owner = src->enc_context_owner;
    dst->es_active = src->es_active;

    src->asid = 0;
    src->active = false;
    src->handle = 0;
    src->pages_locked = 0;
    src->enc_context_owner = NULL;
    src->es_active = false;

    list_cut_before(&dst->regions_list, &src->regions_list, &src->regions_list);

    /*
     * If this VM has mirrors, "transfer" each mirror's refcount of the
     * source to the destination (this KVM).  The caller holds a reference
     * to the source, so there's no danger of use-after-free.
     */
    list_cut_before(&dst->mirror_vms, &src->mirror_vms, &src->mirror_vms);
    list_for_each_entry(mirror, &dst->mirror_vms, mirror_entry) {
        kvm_get_kvm(dst_kvm);
        kvm_put_kvm(src_kvm);
        mirror->enc_context_owner = dst_kvm;
    }

    /*
     * If this VM is a mirror, remove the old mirror from the owners list
     * and add the new mirror to the list.
     */
    if (is_mirroring_enc_context(dst_kvm)) {
        struct kvm_sev_info *owner_sev_info =
            &to_kvm_svm(dst->enc_context_owner)->sev_info;

        list_del(&src->mirror_entry);
        list_add_tail(&dst->mirror_entry, &owner_sev_info->mirror_vms);
    }

    kvm_for_each_vcpu(i, dst_vcpu, dst_kvm) {
        dst_svm = to_svm(dst_vcpu);

        sev_init_vmcb(dst_svm);

        if (!dst->es_active)
            continue;

        /*
         * Note, the source is not required to have the same number of
         * vCPUs as the destination when migrating a vanilla SEV VM.
         */
        src_vcpu = kvm_get_vcpu(src_kvm, i);
        src_svm = to_svm(src_vcpu);

        /*
         * Transfer VMSA and GHCB state to the destination.  Nullify and
         * clear source fields as appropriate, the state now belongs to
         * the destination.
         */
        memcpy(&dst_svm->sev_es, &src_svm->sev_es, sizeof(src_svm->sev_es));
        dst_svm->vmcb->control.ghcb_gpa = src_svm->vmcb->control.ghcb_gpa;
        dst_svm->vmcb->control.vmsa_pa = src_svm->vmcb->control.vmsa_pa;
        dst_vcpu->arch.guest_state_protected = true;

        memset(&src_svm->sev_es, 0, sizeof(src_svm->sev_es));
        src_svm->vmcb->control.ghcb_gpa = INVALID_PAGE;
        src_svm->vmcb->control.vmsa_pa = INVALID_PAGE;
        src_vcpu->arch.guest_state_protected = false;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_misc_cg_try_charge()

static int sev_misc_cg_try_charge ( struct kvm_sev_info *  sev )

static

Definition at line 133 of file sev.c.

{
    enum misc_res_type type = sev->es_active ? MISC_CG_RES_SEV_ES : MISC_CG_RES_SEV;
    return misc_cg_try_charge(type, sev->misc_cg, 1);
}

Here is the caller graph for this function:

sev_misc_cg_uncharge()

static void sev_misc_cg_uncharge ( struct kvm_sev_info *  sev )

static

Definition at line 139 of file sev.c.

{
    enum misc_res_type type = sev->es_active ? MISC_CG_RES_SEV_ES : MISC_CG_RES_SEV;
    misc_cg_uncharge(type, sev->misc_cg, 1);
}

Here is the caller graph for this function:

sev_pin_memory()

static struct page** sev_pin_memory ( struct kvm *  kvm, unsigned long  uaddr, unsigned long  ulen, unsigned long *  n, int  write  )

static

Definition at line 400 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    unsigned long npages, size;
    int npinned;
    unsigned long locked, lock_limit;
    struct page **pages;
    unsigned long first, last;
    int ret;

    lockdep_assert_held(&kvm->lock);

    if (ulen == 0 || uaddr + ulen < uaddr)
        return ERR_PTR(-EINVAL);

    /* Calculate number of pages. */
    first = (uaddr & PAGE_MASK) >> PAGE_SHIFT;
    last = ((uaddr + ulen - 1) & PAGE_MASK) >> PAGE_SHIFT;
    npages = (last - first + 1);

    locked = sev->pages_locked + npages;
    lock_limit = rlimit(RLIMIT_MEMLOCK) >> PAGE_SHIFT;
    if (locked > lock_limit && !capable(CAP_IPC_LOCK)) {
        pr_err("SEV: %lu locked pages exceed the lock limit of %lu.\n", locked, lock_limit);
        return ERR_PTR(-ENOMEM);
    }

    if (WARN_ON_ONCE(npages > INT_MAX))
        return ERR_PTR(-EINVAL);

    /* Avoid using vmalloc for smaller buffers. */
    size = npages * sizeof(struct page *);
    if (size > PAGE_SIZE)
        pages = __vmalloc(size, GFP_KERNEL_ACCOUNT | __GFP_ZERO);
    else
        pages = kmalloc(size, GFP_KERNEL_ACCOUNT);

    if (!pages)
        return ERR_PTR(-ENOMEM);

    /* Pin the user virtual address. */
    npinned = pin_user_pages_fast(uaddr, npages, write ? FOLL_WRITE : 0, pages);
    if (npinned != npages) {
        pr_err("SEV: Failure locking %lu pages.\n", npages);
        ret = -ENOMEM;
        goto err;
    }

    *n = npages;
    sev->pages_locked = locked;

    return pages;

err:
    if (npinned > 0)
        unpin_user_pages(pages, npinned);

    kvfree(pages);
    return ERR_PTR(ret);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_receive_finish()

static int sev_receive_finish ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1555 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_receive_finish data;

    if (!sev_guest(kvm))
        return -ENOTTY;

    data.handle = sev->handle;
    return sev_issue_cmd(kvm, SEV_CMD_RECEIVE_FINISH, &data, &argp->error);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_receive_start()

static int sev_receive_start ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1404 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_receive_start start;
    struct kvm_sev_receive_start params;
    int *error = &argp->error;
    void *session_data;
    void *pdh_data;
    int ret;

    if (!sev_guest(kvm))
        return -ENOTTY;

    /* Get parameter from the userspace */
    if (copy_from_user(&params, (void __user *)(uintptr_t)argp->data,
            sizeof(struct kvm_sev_receive_start)))
        return -EFAULT;

    /* some sanity checks */
    if (!params.pdh_uaddr || !params.pdh_len ||
        !params.session_uaddr || !params.session_len)
        return -EINVAL;

    pdh_data = psp_copy_user_blob(params.pdh_uaddr, params.pdh_len);
    if (IS_ERR(pdh_data))
        return PTR_ERR(pdh_data);

    session_data = psp_copy_user_blob(params.session_uaddr,
            params.session_len);
    if (IS_ERR(session_data)) {
        ret = PTR_ERR(session_data);
        goto e_free_pdh;
    }

    memset(&start, 0, sizeof(start));
    start.handle = params.handle;
    start.policy = params.policy;
    start.pdh_cert_address = __psp_pa(pdh_data);
    start.pdh_cert_len = params.pdh_len;
    start.session_address = __psp_pa(session_data);
    start.session_len = params.session_len;

    /* create memory encryption context */
    ret = __sev_issue_cmd(argp->sev_fd, SEV_CMD_RECEIVE_START, &start,
                error);
    if (ret)
        goto e_free_session;

    /* Bind ASID to this guest */
    ret = sev_bind_asid(kvm, start.handle, error);
    if (ret) {
        sev_decommission(start.handle);
        goto e_free_session;
    }

    params.handle = start.handle;
    if (copy_to_user((void __user *)(uintptr_t)argp->data,
             &params, sizeof(struct kvm_sev_receive_start))) {
        ret = -EFAULT;
        sev_unbind_asid(kvm, start.handle);
        goto e_free_session;
    }

        sev->handle = start.handle;
    sev->fd = argp->sev_fd;

e_free_session:
    kfree(session_data);
e_free_pdh:
    kfree(pdh_data);

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_receive_update_data()

static int sev_receive_update_data ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1478 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct kvm_sev_receive_update_data params;
    struct sev_data_receive_update_data data;
    void *hdr = NULL, *trans = NULL;
    struct page **guest_page;
    unsigned long n;
    int ret, offset;

    if (!sev_guest(kvm))
        return -EINVAL;

    if (copy_from_user(&params, (void __user *)(uintptr_t)argp->data,
            sizeof(struct kvm_sev_receive_update_data)))
        return -EFAULT;

    if (!params.hdr_uaddr || !params.hdr_len ||
        !params.guest_uaddr || !params.guest_len ||
        !params.trans_uaddr || !params.trans_len)
        return -EINVAL;

    /* Check if we are crossing the page boundary */
    offset = params.guest_uaddr & (PAGE_SIZE - 1);
    if (params.guest_len > PAGE_SIZE || (params.guest_len + offset) > PAGE_SIZE)
        return -EINVAL;

    hdr = psp_copy_user_blob(params.hdr_uaddr, params.hdr_len);
    if (IS_ERR(hdr))
        return PTR_ERR(hdr);

    trans = psp_copy_user_blob(params.trans_uaddr, params.trans_len);
    if (IS_ERR(trans)) {
        ret = PTR_ERR(trans);
        goto e_free_hdr;
    }

    memset(&data, 0, sizeof(data));
    data.hdr_address = __psp_pa(hdr);
    data.hdr_len = params.hdr_len;
    data.trans_address = __psp_pa(trans);
    data.trans_len = params.trans_len;

    /* Pin guest memory */
    guest_page = sev_pin_memory(kvm, params.guest_uaddr & PAGE_MASK,
                    PAGE_SIZE, &n, 1);
    if (IS_ERR(guest_page)) {
        ret = PTR_ERR(guest_page);
        goto e_free_trans;
    }

    /*
     * Flush (on non-coherent CPUs) before RECEIVE_UPDATE_DATA, the PSP
     * encrypts the written data with the guest's key, and the cache may
     * contain dirty, unencrypted data.
     */
    sev_clflush_pages(guest_page, n);

    /* The RECEIVE_UPDATE_DATA command requires C-bit to be always set. */
    data.guest_address = (page_to_pfn(guest_page[0]) << PAGE_SHIFT) + offset;
    data.guest_address |= sev_me_mask;
    data.guest_len = params.guest_len;
    data.handle = sev->handle;

    ret = sev_issue_cmd(kvm, SEV_CMD_RECEIVE_UPDATE_DATA, &data,
                &argp->error);

    sev_unpin_memory(kvm, guest_page, n);

e_free_trans:
    kfree(trans);
e_free_hdr:
    kfree(hdr);

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_send_cancel()

static int sev_send_cancel ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1392 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_send_cancel data;

    if (!sev_guest(kvm))
        return -ENOTTY;

    data.handle = sev->handle;
    return sev_issue_cmd(kvm, SEV_CMD_SEND_CANCEL, &data, &argp->error);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_send_finish()

static int sev_send_finish ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1380 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_send_finish data;

    if (!sev_guest(kvm))
        return -ENOTTY;

    data.handle = sev->handle;
    return sev_issue_cmd(kvm, SEV_CMD_SEND_FINISH, &data, &argp->error);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_send_start()

static int sev_send_start ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1182 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_send_start data;
    struct kvm_sev_send_start params;
    void *amd_certs, *session_data;
    void *pdh_cert, *plat_certs;
    int ret;

    if (!sev_guest(kvm))
        return -ENOTTY;

    if (copy_from_user(&params, (void __user *)(uintptr_t)argp->data,
                sizeof(struct kvm_sev_send_start)))
        return -EFAULT;

    /* if session_len is zero, userspace wants to query the session length */
    if (!params.session_len)
        return __sev_send_start_query_session_length(kvm, argp,
                &params);

    /* some sanity checks */
    if (!params.pdh_cert_uaddr || !params.pdh_cert_len ||
        !params.session_uaddr || params.session_len > SEV_FW_BLOB_MAX_SIZE)
        return -EINVAL;

    /* allocate the memory to hold the session data blob */
    session_data = kzalloc(params.session_len, GFP_KERNEL_ACCOUNT);
    if (!session_data)
        return -ENOMEM;

    /* copy the certificate blobs from userspace */
    pdh_cert = psp_copy_user_blob(params.pdh_cert_uaddr,
                params.pdh_cert_len);
    if (IS_ERR(pdh_cert)) {
        ret = PTR_ERR(pdh_cert);
        goto e_free_session;
    }

    plat_certs = psp_copy_user_blob(params.plat_certs_uaddr,
                params.plat_certs_len);
    if (IS_ERR(plat_certs)) {
        ret = PTR_ERR(plat_certs);
        goto e_free_pdh;
    }

    amd_certs = psp_copy_user_blob(params.amd_certs_uaddr,
                params.amd_certs_len);
    if (IS_ERR(amd_certs)) {
        ret = PTR_ERR(amd_certs);
        goto e_free_plat_cert;
    }

    /* populate the FW SEND_START field with system physical address */
    memset(&data, 0, sizeof(data));
    data.pdh_cert_address = __psp_pa(pdh_cert);
    data.pdh_cert_len = params.pdh_cert_len;
    data.plat_certs_address = __psp_pa(plat_certs);
    data.plat_certs_len = params.plat_certs_len;
    data.amd_certs_address = __psp_pa(amd_certs);
    data.amd_certs_len = params.amd_certs_len;
    data.session_address = __psp_pa(session_data);
    data.session_len = params.session_len;
    data.handle = sev->handle;

    ret = sev_issue_cmd(kvm, SEV_CMD_SEND_START, &data, &argp->error);

    if (!ret && copy_to_user((void __user *)(uintptr_t)params.session_uaddr,
            session_data, params.session_len)) {
        ret = -EFAULT;
        goto e_free_amd_cert;
    }

    params.policy = data.policy;
    params.session_len = data.session_len;
    if (copy_to_user((void __user *)(uintptr_t)argp->data, &params,
                sizeof(struct kvm_sev_send_start)))
        ret = -EFAULT;

e_free_amd_cert:
    kfree(amd_certs);
e_free_plat_cert:
    kfree(plat_certs);
e_free_pdh:
    kfree(pdh_cert);
e_free_session:
    kfree(session_data);
    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_send_update_data()

static int sev_send_update_data ( struct kvm *  kvm, struct kvm_sev_cmd *  argp  )

static

Definition at line 1295 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct sev_data_send_update_data data;
    struct kvm_sev_send_update_data params;
    void *hdr, *trans_data;
    struct page **guest_page;
    unsigned long n;
    int ret, offset;

    if (!sev_guest(kvm))
        return -ENOTTY;

    if (copy_from_user(&params, (void __user *)(uintptr_t)argp->data,
            sizeof(struct kvm_sev_send_update_data)))
        return -EFAULT;

    /* userspace wants to query either header or trans length */
    if (!params.trans_len || !params.hdr_len)
        return __sev_send_update_data_query_lengths(kvm, argp, &params);

    if (!params.trans_uaddr || !params.guest_uaddr ||
        !params.guest_len || !params.hdr_uaddr)
        return -EINVAL;

    /* Check if we are crossing the page boundary */
    offset = params.guest_uaddr & (PAGE_SIZE - 1);
    if (params.guest_len > PAGE_SIZE || (params.guest_len + offset) > PAGE_SIZE)
        return -EINVAL;

    /* Pin guest memory */
    guest_page = sev_pin_memory(kvm, params.guest_uaddr & PAGE_MASK,
                    PAGE_SIZE, &n, 0);
    if (IS_ERR(guest_page))
        return PTR_ERR(guest_page);

    /* allocate memory for header and transport buffer */
    ret = -ENOMEM;
    hdr = kzalloc(params.hdr_len, GFP_KERNEL_ACCOUNT);
    if (!hdr)
        goto e_unpin;

    trans_data = kzalloc(params.trans_len, GFP_KERNEL_ACCOUNT);
    if (!trans_data)
        goto e_free_hdr;

    memset(&data, 0, sizeof(data));
    data.hdr_address = __psp_pa(hdr);
    data.hdr_len = params.hdr_len;
    data.trans_address = __psp_pa(trans_data);
    data.trans_len = params.trans_len;

    /* The SEND_UPDATE_DATA command requires C-bit to be always set. */
    data.guest_address = (page_to_pfn(guest_page[0]) << PAGE_SHIFT) + offset;
    data.guest_address |= sev_me_mask;
    data.guest_len = params.guest_len;
    data.handle = sev->handle;

    ret = sev_issue_cmd(kvm, SEV_CMD_SEND_UPDATE_DATA, &data, &argp->error);

    if (ret)
        goto e_free_trans_data;

    /* copy transport buffer to user space */
    if (copy_to_user((void __user *)(uintptr_t)params.trans_uaddr,
             trans_data, params.trans_len)) {
        ret = -EFAULT;
        goto e_free_trans_data;
    }

    /* Copy packet header to userspace. */
    if (copy_to_user((void __user *)(uintptr_t)params.hdr_uaddr, hdr,
             params.hdr_len))
        ret = -EFAULT;

e_free_trans_data:
    kfree(trans_data);
e_free_hdr:
    kfree(hdr);
e_unpin:
    sev_unpin_memory(kvm, guest_page, n);

    return ret;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_set_cpu_caps()

void __init sev_set_cpu_caps

(

void

)

Definition at line 2185 of file sev.c.

{
    if (!sev_enabled)
        kvm_cpu_cap_clear(X86_FEATURE_SEV);
    if (!sev_es_enabled)
        kvm_cpu_cap_clear(X86_FEATURE_SEV_ES);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_unbind_asid()

static void sev_unbind_asid ( struct kvm *  kvm, unsigned int  handle  )

static

Definition at line 236 of file sev.c.

{
    struct sev_data_deactivate deactivate;

    if (!handle)
        return;

    deactivate.handle = handle;

    /* Guard DEACTIVATE against WBINVD/DF_FLUSH used in ASID recycling */
    down_read(&sev_deactivate_lock);
    sev_guest_deactivate(&deactivate, NULL);
    up_read(&sev_deactivate_lock);

    sev_decommission(handle);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_unlock_two_vms()

static void sev_unlock_two_vms ( struct kvm *  dst_kvm, struct kvm *  src_kvm  )

static

Definition at line 1616 of file sev.c.

{
    struct kvm_sev_info *dst_sev = &to_kvm_svm(dst_kvm)->sev_info;
    struct kvm_sev_info *src_sev = &to_kvm_svm(src_kvm)->sev_info;

    mutex_unlock(&dst_kvm->lock);
    mutex_unlock(&src_kvm->lock);
    atomic_set_release(&dst_sev->migration_in_progress, 0);
    atomic_set_release(&src_sev->migration_in_progress, 0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_unlock_vcpus_for_migration()

static void sev_unlock_vcpus_for_migration ( struct kvm *  kvm )

static

Definition at line 1674 of file sev.c.

{
    struct kvm_vcpu *vcpu;
    unsigned long i;
    bool first = true;

    kvm_for_each_vcpu(i, vcpu, kvm) {
        if (first)
            first = false;
        else
            mutex_acquire(&vcpu->mutex.dep_map,
                      SEV_NR_MIGRATION_ROLES, 0, _THIS_IP_);

        mutex_unlock(&vcpu->mutex);
    }
}

Here is the caller graph for this function:

sev_unpin_memory()

static void sev_unpin_memory ( struct kvm *  kvm, struct page **  pages, unsigned long  npages  )

static

Definition at line 463 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;

    unpin_user_pages(pages, npages);
    kvfree(pages);
    sev->pages_locked -= npages;
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_vcpu_after_set_cpuid()

void sev_vcpu_after_set_cpuid

(

struct vcpu_svm *

svm

)

Definition at line 3015 of file sev.c.

{
    struct kvm_vcpu *vcpu = &svm->vcpu;
    struct kvm_cpuid_entry2 *best;

    /* For sev guests, the memory encryption bit is not reserved in CR3.  */
    best = kvm_find_cpuid_entry(vcpu, 0x8000001F);
    if (best)
        vcpu->arch.reserved_gpa_bits &= ~(1UL << (best->ebx & 0x3f));

    if (sev_es_guest(svm->vcpu.kvm))
        sev_es_vcpu_after_set_cpuid(svm);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_vcpu_deliver_sipi_vector()

void sev_vcpu_deliver_sipi_vector	(	struct kvm_vcpu *	vcpu,
		u8	vector
	)

Definition at line 3159 of file sev.c.

{
    struct vcpu_svm *svm = to_svm(vcpu);

    /* First SIPI: Use the values as initially set by the VMM */
    if (!svm->sev_es.received_first_sipi) {
        svm->sev_es.received_first_sipi = true;
        return;
    }

    /*
     * Subsequent SIPI: Return from an AP Reset Hold VMGEXIT, where
     * the guest will set the CS and RIP. Set SW_EXIT_INFO_2 to a
     * non-zero value.
     */
    if (!svm->sev_es.ghcb)
        return;

    ghcb_set_sw_exit_info_2(svm->sev_es.ghcb, 1);
}

Here is the caller graph for this function:

sev_vm_copy_enc_context_from()

int sev_vm_copy_enc_context_from	(	struct kvm *	kvm,
		unsigned int	source_fd
	)

Definition at line 2075 of file sev.c.

{
    struct fd f = fdget(source_fd);
    struct kvm *source_kvm;
    struct kvm_sev_info *source_sev, *mirror_sev;
    int ret;

    if (!f.file)
        return -EBADF;

    if (!file_is_kvm(f.file)) {
        ret = -EBADF;
        goto e_source_fput;
    }

    source_kvm = f.file->private_data;
    ret = sev_lock_two_vms(kvm, source_kvm);
    if (ret)
        goto e_source_fput;

    /*
     * Mirrors of mirrors should work, but let's not get silly.  Also
     * disallow out-of-band SEV/SEV-ES init if the target is already an
     * SEV guest, or if vCPUs have been created.  KVM relies on vCPUs being
     * created after SEV/SEV-ES initialization, e.g. to init intercepts.
     */
    if (sev_guest(kvm) || !sev_guest(source_kvm) ||
        is_mirroring_enc_context(source_kvm) || kvm->created_vcpus) {
        ret = -EINVAL;
        goto e_unlock;
    }

    /*
     * The mirror kvm holds an enc_context_owner ref so its asid can't
     * disappear until we're done with it
     */
    source_sev = &to_kvm_svm(source_kvm)->sev_info;
    kvm_get_kvm(source_kvm);
    mirror_sev = &to_kvm_svm(kvm)->sev_info;
    list_add_tail(&mirror_sev->mirror_entry, &source_sev->mirror_vms);

    /* Set enc_context_owner and copy its encryption context over */
    mirror_sev->enc_context_owner = source_kvm;
    mirror_sev->active = true;
    mirror_sev->asid = source_sev->asid;
    mirror_sev->fd = source_sev->fd;
    mirror_sev->es_active = source_sev->es_active;
    mirror_sev->handle = source_sev->handle;
    INIT_LIST_HEAD(&mirror_sev->regions_list);
    INIT_LIST_HEAD(&mirror_sev->mirror_vms);
    ret = 0;

    /*
     * Do not copy ap_jump_table. Since the mirror does not share the same
     * KVM contexts as the original, and they may have different
     * memory-views.
     */

e_unlock:
    sev_unlock_two_vms(kvm, source_kvm);
e_source_fput:
    fdput(f);
    return ret;
}

Here is the call graph for this function:

sev_vm_destroy()

void sev_vm_destroy

(

struct kvm *

kvm

)

Definition at line 2140 of file sev.c.

{
    struct kvm_sev_info *sev = &to_kvm_svm(kvm)->sev_info;
    struct list_head *head = &sev->regions_list;
    struct list_head *pos, *q;

    if (!sev_guest(kvm))
        return;

    WARN_ON(!list_empty(&sev->mirror_vms));

    /* If this is a mirror_kvm release the enc_context_owner and skip sev cleanup */
    if (is_mirroring_enc_context(kvm)) {
        struct kvm *owner_kvm = sev->enc_context_owner;

        mutex_lock(&owner_kvm->lock);
        list_del(&sev->mirror_entry);
        mutex_unlock(&owner_kvm->lock);
        kvm_put_kvm(owner_kvm);
        return;
    }

    /*
     * Ensure that all guest tagged cache entries are flushed before
     * releasing the pages back to the system for use. CLFLUSH will
     * not do this, so issue a WBINVD.
     */
    wbinvd_on_all_cpus();

    /*
     * if userspace was terminated before unregistering the memory regions
     * then lets unpin all the registered memory.
     */
    if (!list_empty(head)) {
        list_for_each_safe(pos, q, head) {
            __unregister_enc_region_locked(kvm,
                list_entry(pos, struct enc_region, list));
            cond_resched();
        }
    }

    sev_unbind_asid(kvm, sev->handle);
    sev_asid_free(sev);
}

Here is the call graph for this function:

Here is the caller graph for this function:

sev_vm_move_enc_context_from()

int sev_vm_move_enc_context_from	(	struct kvm *	kvm,
		unsigned int	source_fd
	)

Definition at line 1791 of file sev.c.

{
    struct kvm_sev_info *dst_sev = &to_kvm_svm(kvm)->sev_info;
    struct kvm_sev_info *src_sev, *cg_cleanup_sev;
    struct fd f = fdget(source_fd);
    struct kvm *source_kvm;
    bool charged = false;
    int ret;

    if (!f.file)
        return -EBADF;

    if (!file_is_kvm(f.file)) {
        ret = -EBADF;
        goto out_fput;
    }

    source_kvm = f.file->private_data;
    ret = sev_lock_two_vms(kvm, source_kvm);
    if (ret)
        goto out_fput;

    if (sev_guest(kvm) || !sev_guest(source_kvm)) {
        ret = -EINVAL;
        goto out_unlock;
    }

    src_sev = &to_kvm_svm(source_kvm)->sev_info;

    dst_sev->misc_cg = get_current_misc_cg();
    cg_cleanup_sev = dst_sev;
    if (dst_sev->misc_cg != src_sev->misc_cg) {
        ret = sev_misc_cg_try_charge(dst_sev);
        if (ret)
            goto out_dst_cgroup;
        charged = true;
    }

    ret = sev_lock_vcpus_for_migration(kvm, SEV_MIGRATION_SOURCE);
    if (ret)
        goto out_dst_cgroup;
    ret = sev_lock_vcpus_for_migration(source_kvm, SEV_MIGRATION_TARGET);
    if (ret)
        goto out_dst_vcpu;

    ret = sev_check_source_vcpus(kvm, source_kvm);
    if (ret)
        goto out_source_vcpu;

    sev_migrate_from(kvm, source_kvm);
    kvm_vm_dead(source_kvm);
    cg_cleanup_sev = src_sev;
    ret = 0;

out_source_vcpu:
    sev_unlock_vcpus_for_migration(source_kvm);
out_dst_vcpu:
    sev_unlock_vcpus_for_migration(kvm);
out_dst_cgroup:
    /* Operates on the source on success, on the destination on failure.  */
    if (charged)
        sev_misc_cg_uncharge(cg_cleanup_sev);
    put_misc_cg(cg_cleanup_sev->misc_cg);
    cg_cleanup_sev->misc_cg = NULL;
out_unlock:
    sev_unlock_two_vms(kvm, source_kvm);
out_fput:
    fdput(f);
    return ret;
}

Here is the call graph for this function:

Variable Documentation

max_sev_asid

unsigned int max_sev_asid

Definition at line 71 of file sev.c.

min_sev_asid

unsigned int min_sev_asid

static

Definition at line 72 of file sev.c.

nr_asids

unsigned int nr_asids

static

Definition at line 74 of file sev.c.

sev_asid_bitmap

unsigned long* sev_asid_bitmap

static

Definition at line 75 of file sev.c.

sev_enc_bit

u8 sev_enc_bit

static

Definition at line 68 of file sev.c.

sev_me_mask

unsigned long sev_me_mask

static

Definition at line 73 of file sev.c.

sev_reclaim_asid_bitmap

unsigned long* sev_reclaim_asid_bitmap

static

Definition at line 76 of file sev.c.
